AC DC Capacitor Discharge Pen Adjustable Pin Spacing Voltage

Discover the AC DC Capacitor Discharge Pen Adjustable Pin Spacing Voltage — a standout decor pick featuring adjustable, ergonomic design for dependable, everyday performance.

Specifications

AC Voltage: AC/DC1000V

Brand Name: Aideepen

DC Voltage: AC/DC1000V

DIY Supplies: Electrical

Operating Mode: Auto Range

Semi-finishedproduct: No

Features:

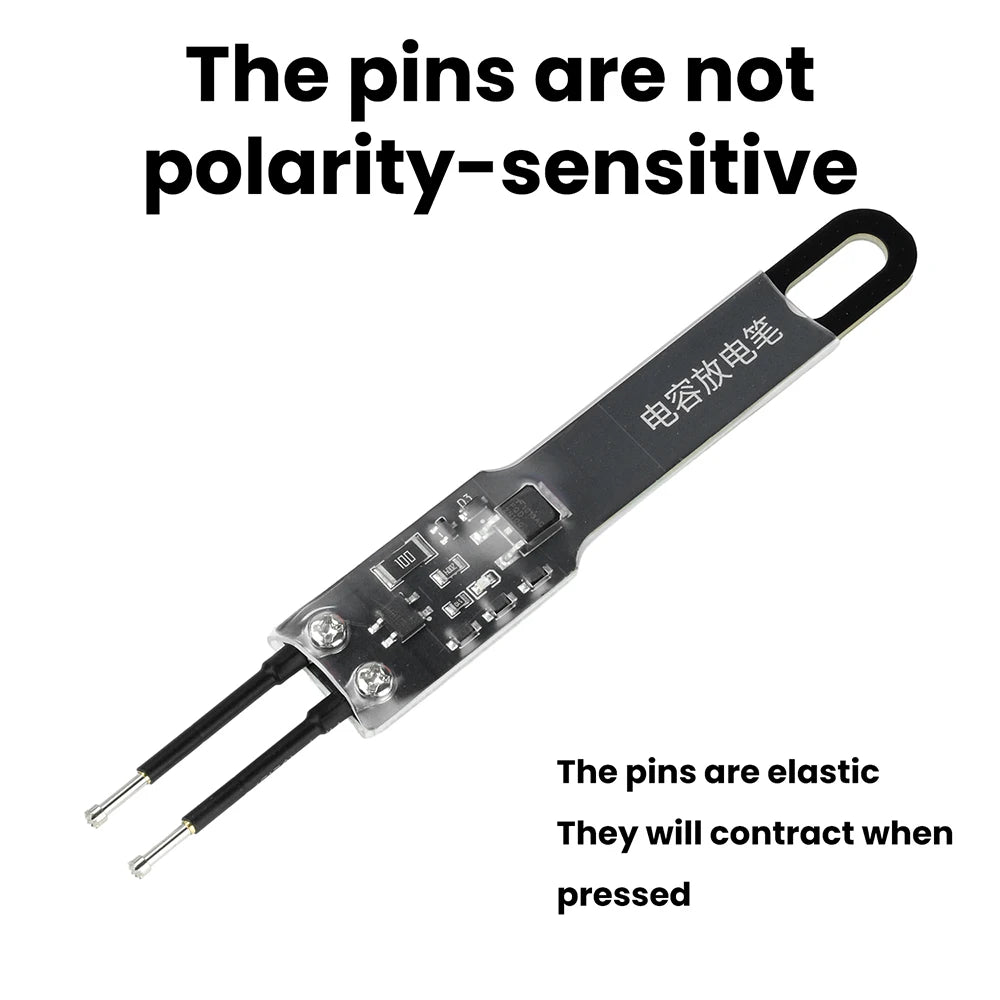

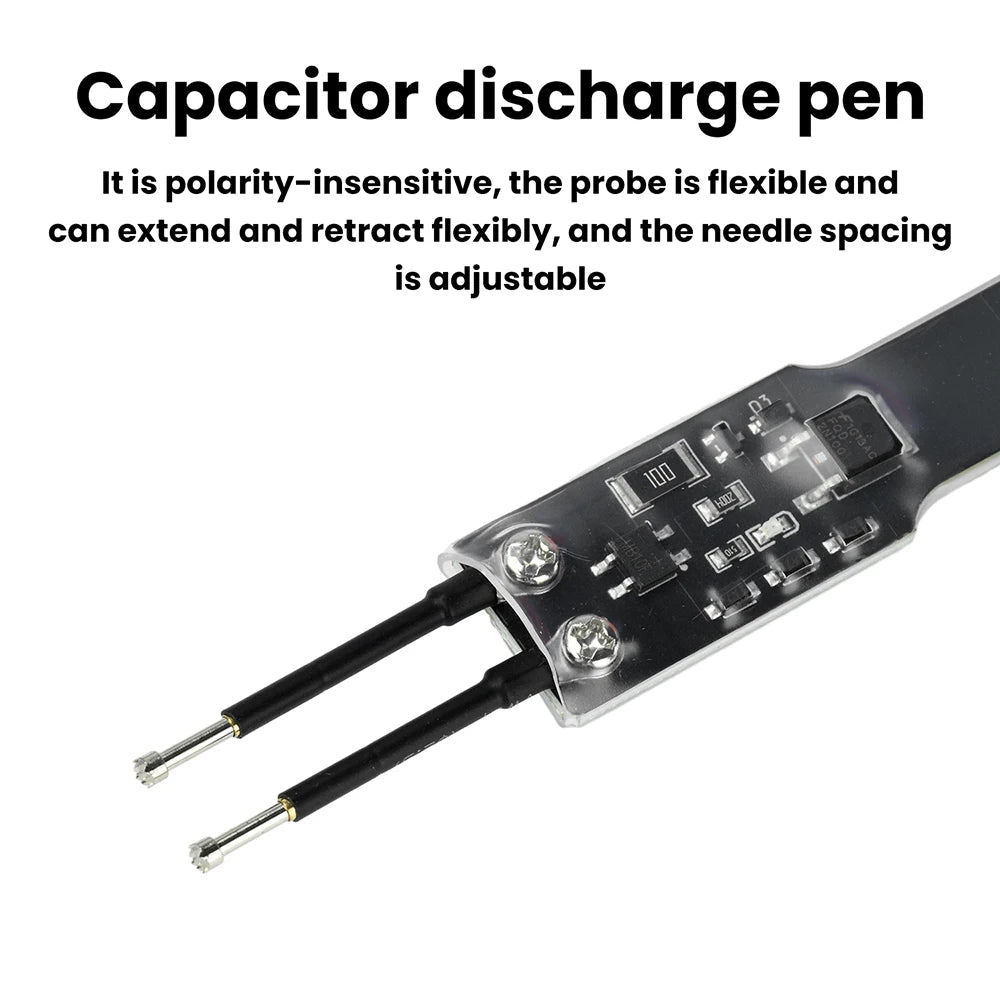

1. Non-polarized design with flexible, retractable probes and adjustable needle spacing

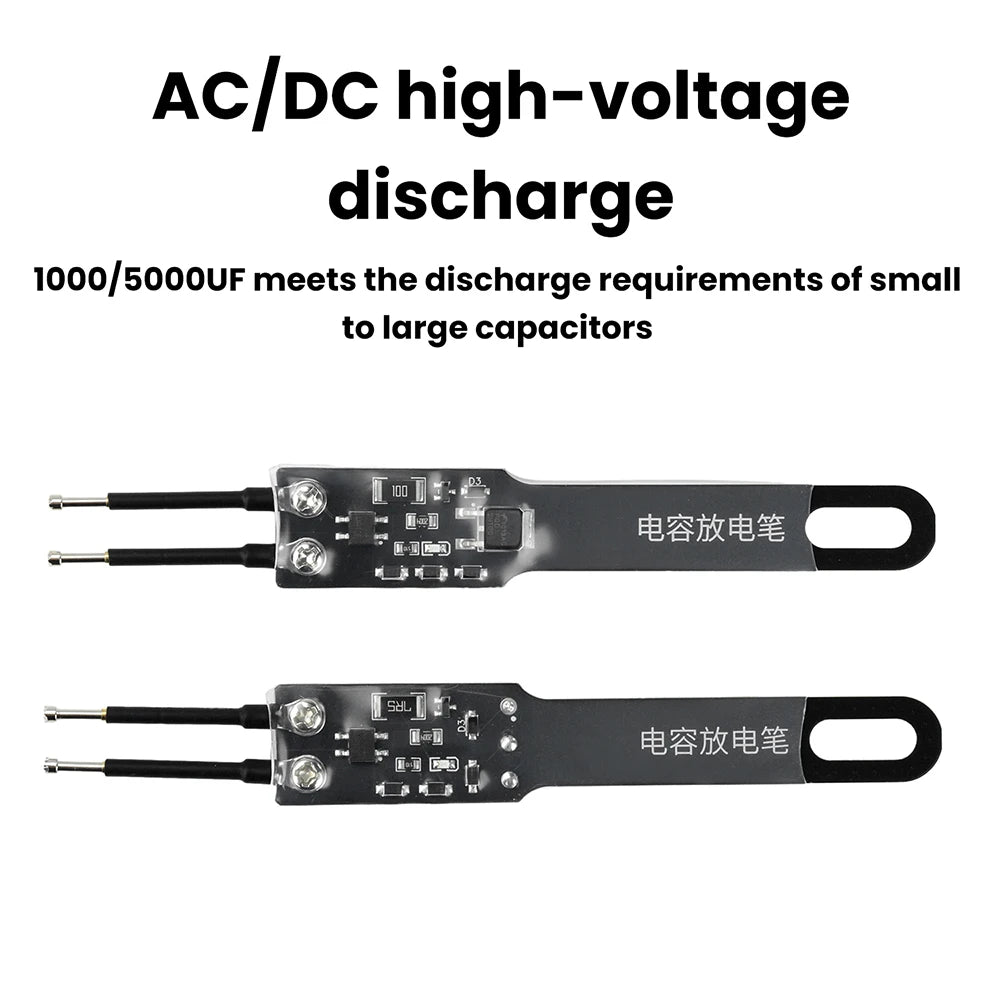

2. 1000/5000μF capacity meets discharge requirements for small to large capacitors

3. Stable spark-free discharge throughout, withstands 1000V high voltage

4. Indicator light illuminates during discharge; extinguishes upon reaching safe voltage (approx. 6V)

5. Wide application range protects production, testing, and maintenance equipment from damage

Product Specifications:

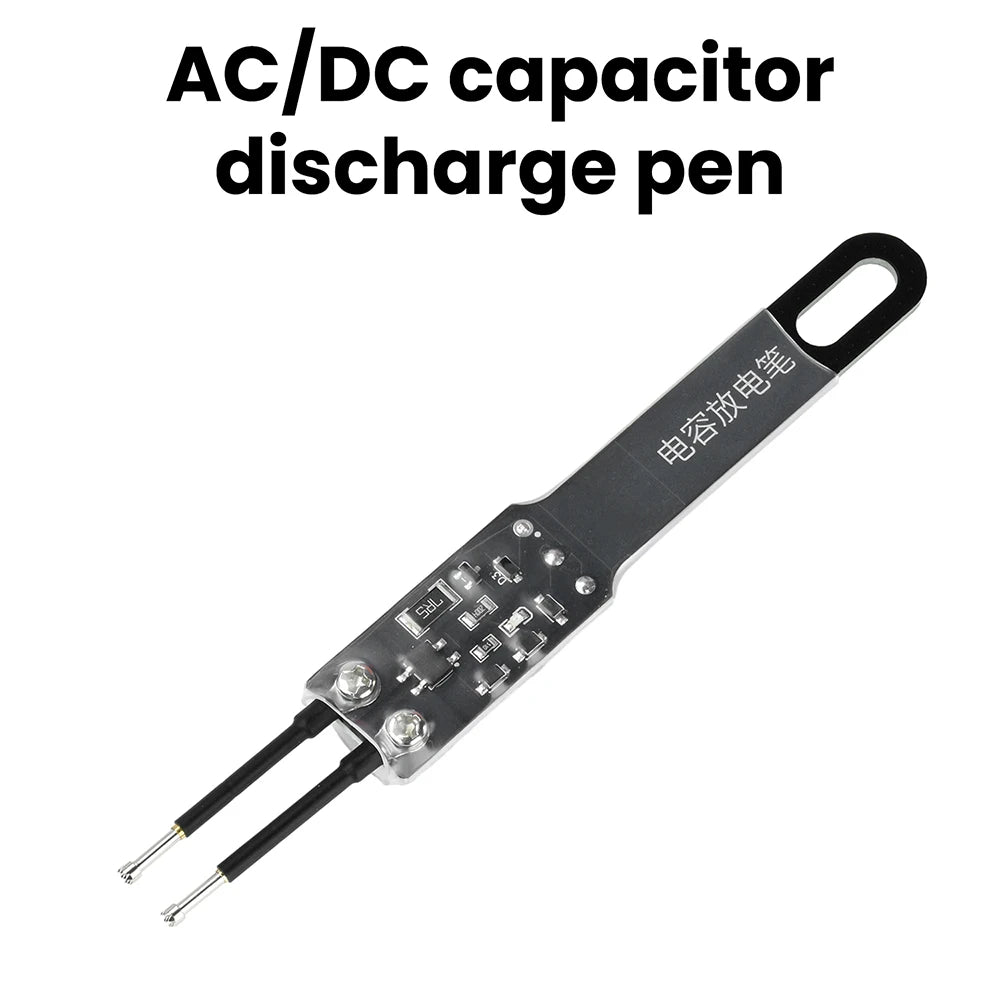

Name: Capacitor Discharge Pen

Color: Black

Maximum Discharge Capacitance: 1000μF/5000μF

Maximum Supported Voltage: AC/DC 1000V

Discharge Time: 1-2 seconds (1000μF) / 2-3 seconds (5000μF)

Product Description:

1. AC/DC capacitance discharge pen for rapid, spark-free discharge

2. Features constant-current discharge design with ergonomic grip. Integrated high-voltage/heat-resistant heat-shrink tubing ensures safe operation. Grooved hanging loop at handle end enhances storage flexibility

3. Effortlessly discharges large capacitors (1000μF/5000μF) in one pass. Discharge indicator extinguishes when capacitor voltage drops below safe levels. Not suitable for discharging low-voltage supercapacitors

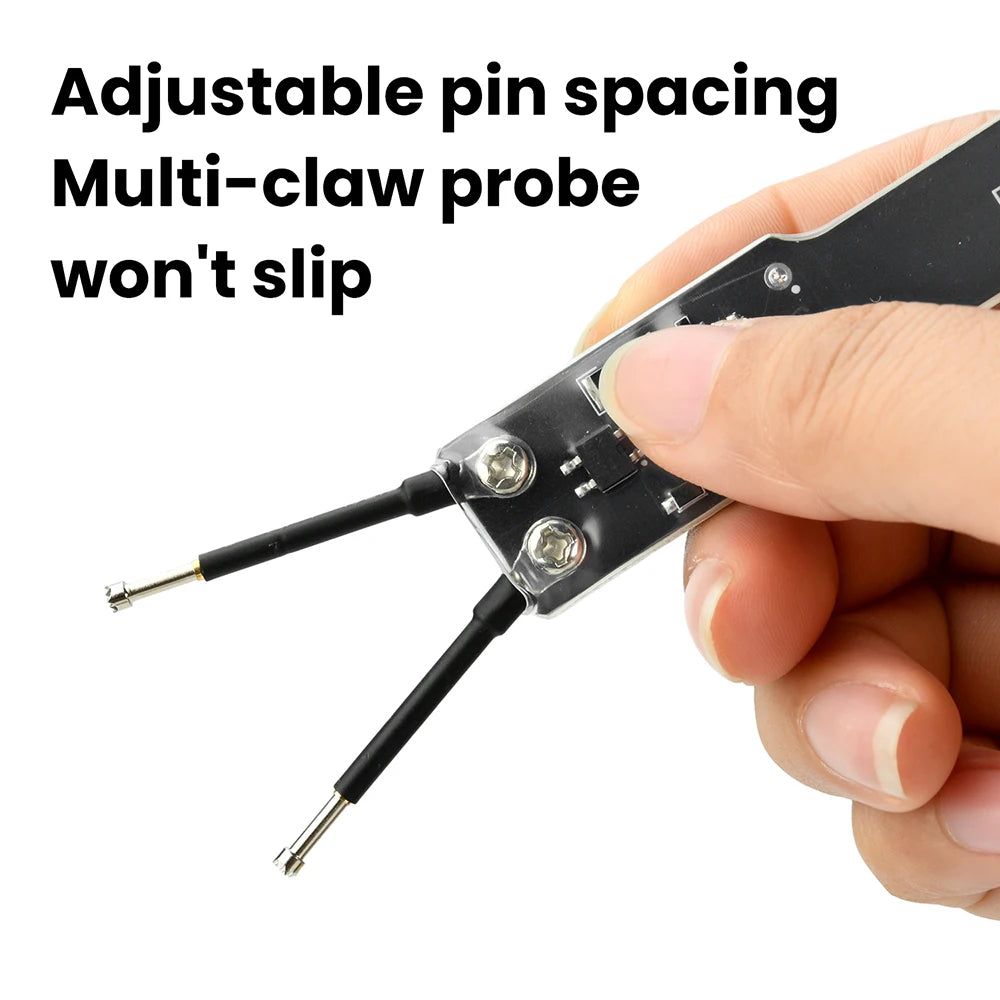

4. Adjustable probe spacing with non-polarized tips. Spring-loaded pins retract upon pressure. Multi-claw design prevents slippage when contacting capacitor pins or solder joints.

Precautions:

1. After discharge completion, the indicator light turns off, but the capacitor retains approximately 6V residual voltage.

2. Avoid touching circuits or exposed metal during discharge.

3. Do not discharge for extended periods. Ensure adequate heat dissipation during discharge. For high-capacity capacitors, discharge multiple times after allowing the MOSFET to cool.

Product List:

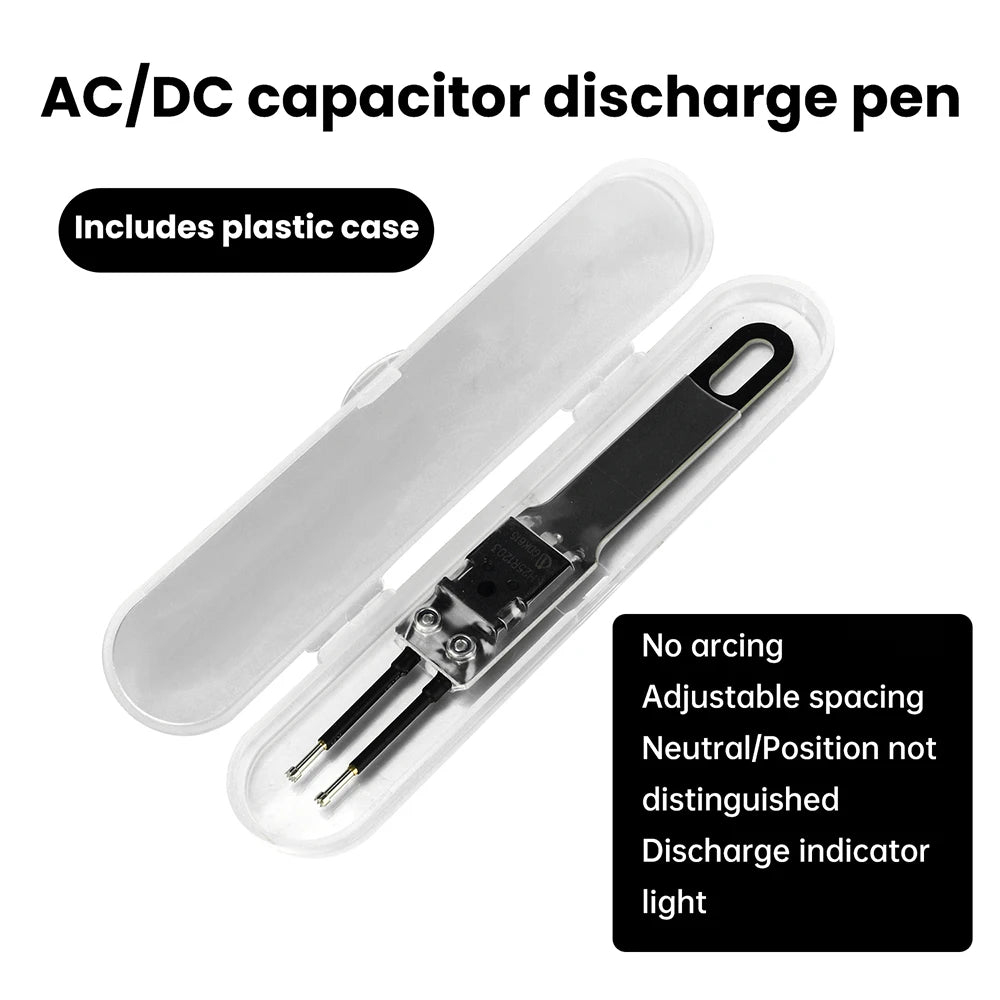

Discharge Pen*1

Options

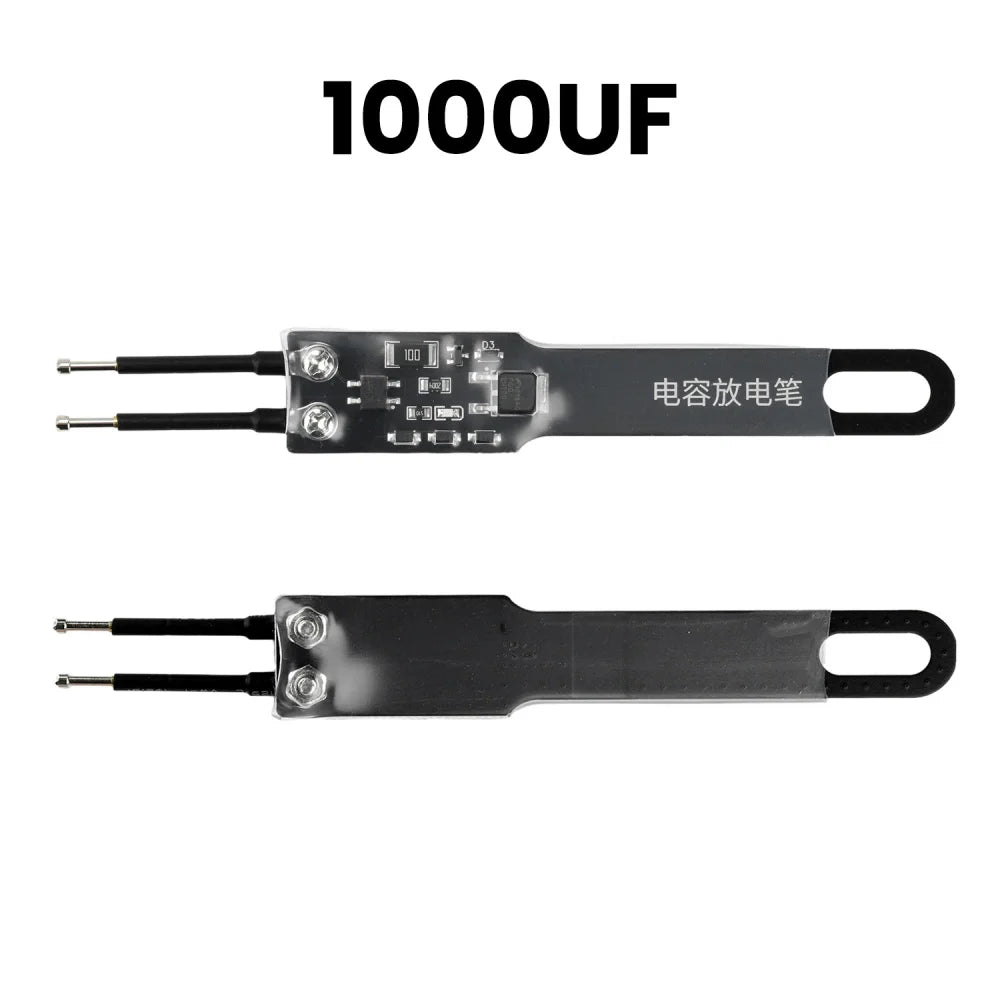

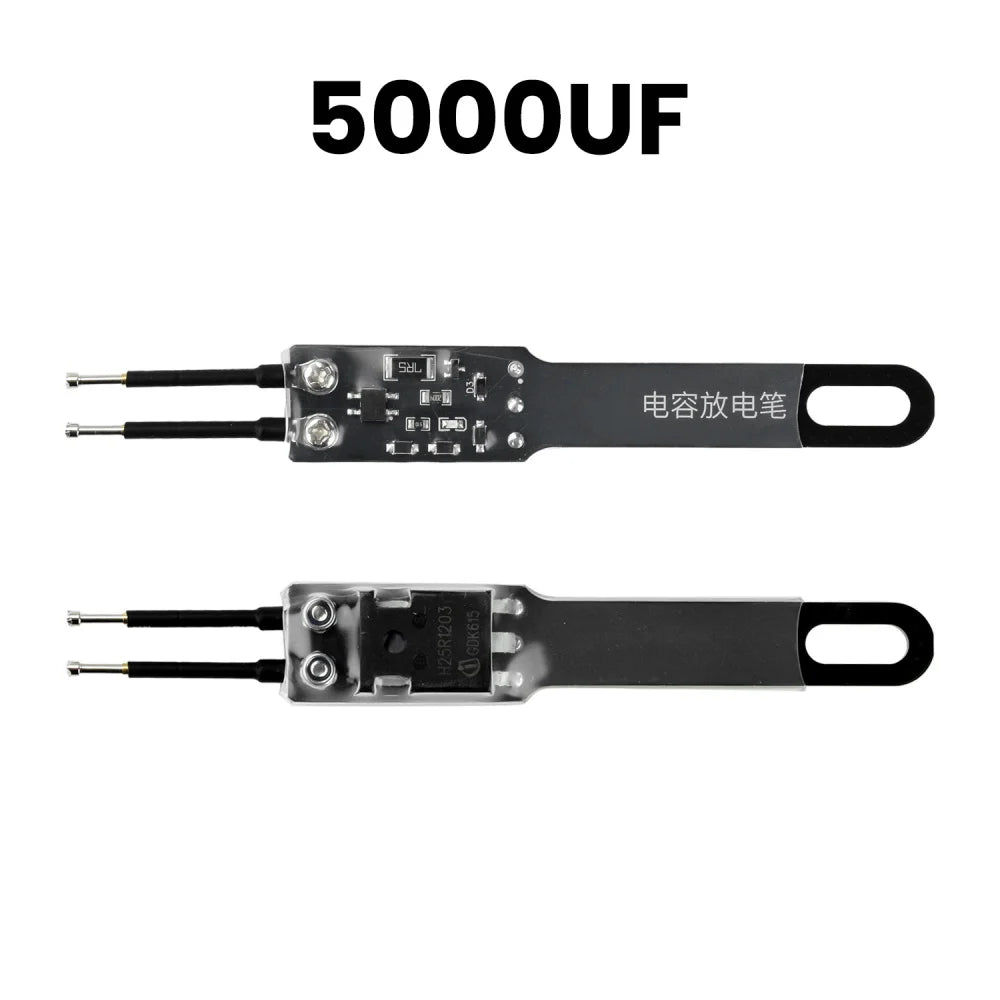

• Color: 1000UF, 5000UF
