AHD Camera CCTV 1080P 5MP Digital Security Definition Infrared

Discover the AHD Camera CCTV 1080P 5MP Digital Security Definition Infrared — a standout decor pick featuring waterproof, rechargeable design for dependable, everyday performance.

Specifications

Audio Output: None

Brand Name: JIENUO

Camera Stabilization: NONE

Certification: CE,weee

Color Night Vision: no

Connectivity: Closed System/CCTV Wired

High Definition: 1080P(Full-HD)

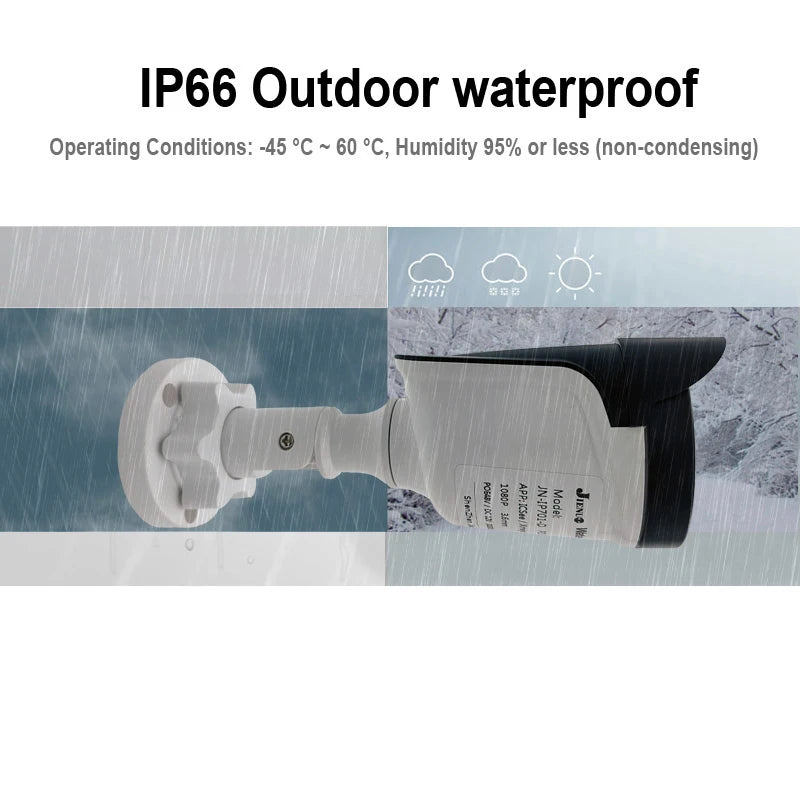

IP Rating: IP66

IR Distance(m): 25m

Installation: Normal,Wall Mounted,Stick,Pendant Mount,Vertical Pole Mount

Internal Storage: None

JIENUO Model: JN-706D-AHD

Lens (mm): 3.6mm,6mm,8mm,2.8mm

Lens Quantity: Single Lens

Megapixels: 5 MP

Minimum Illumination(Lux): 1/2.7

Operating Temperature: -10°-60°

Power Consumption(W): 5W

Power Source: Normal

Power Supply: Normal

Power Supply(V): DC 12V 2A

Rechargeable Battery: NONE

Scene: Indoor and outdoor

Sensor: CMOS

Shell Material: Plastic

Special Features: Waterproof / Weatherproof

Style: Bullet Camera

Supported Operating Systems: No

Video Compression Format: H.264

Viewing Angle : 85°

Whether or Not 50Vac or 75Vdc or Higher Power Supply: No

Zoom: NONE

Zoom type: None

is_customized: Yes

AHD Camera Analog Surveillance Infrared Night Vision

CCTV Security Home Indoor Outdoor Bullet Full Hd Cameras

AHD Analog High Definition Surveillance Infrared Camera

Why AHD

As the industry moves from standard definition to high definition, how can we ensure the whole surveillance system not only satisfies the resolution requirement, but also the total cost?

Super Video Technology presents Analog High Definition(AHD) technology to the market. AHD is an over-coaxial-cable analog HD video transmission standard, allowing long-distance HD transmission at a lower cost to meet the requirements for a complex and large installation.

HD AHD Camera

1.HD camera

2.Resolution : 1080P / 5MP Camera

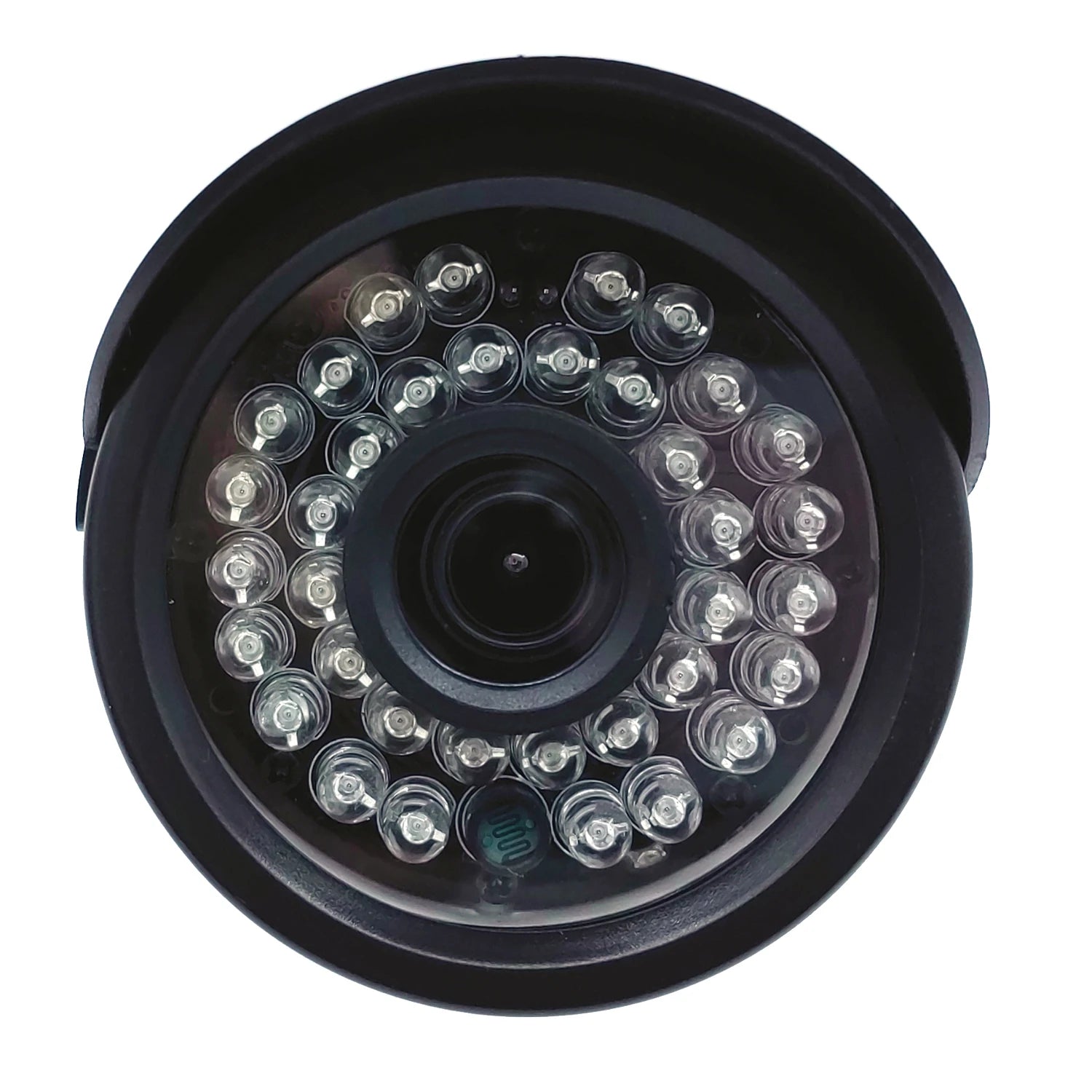

3.36PCS IR LEDS with 30M IR Distance

4. Built in IR-CUT Filter, Day & Night Vision

5. High Quality ABS Plastic Case, Used Indoor/Outdoor, Waterproof IP66

6. Standard lens: HD 3.6mm Lens ( 6mm lens optional).

7.AHD (Analog High Definition), a new video format for enhanced CVBS (COMET*) & HD video transmission.

8. HD AHD camera is an over-coaxial-cable analog HD video transmission standard, allowing long-distance HD transmission at a lower cost to meet the requirements for a complex and large installation.

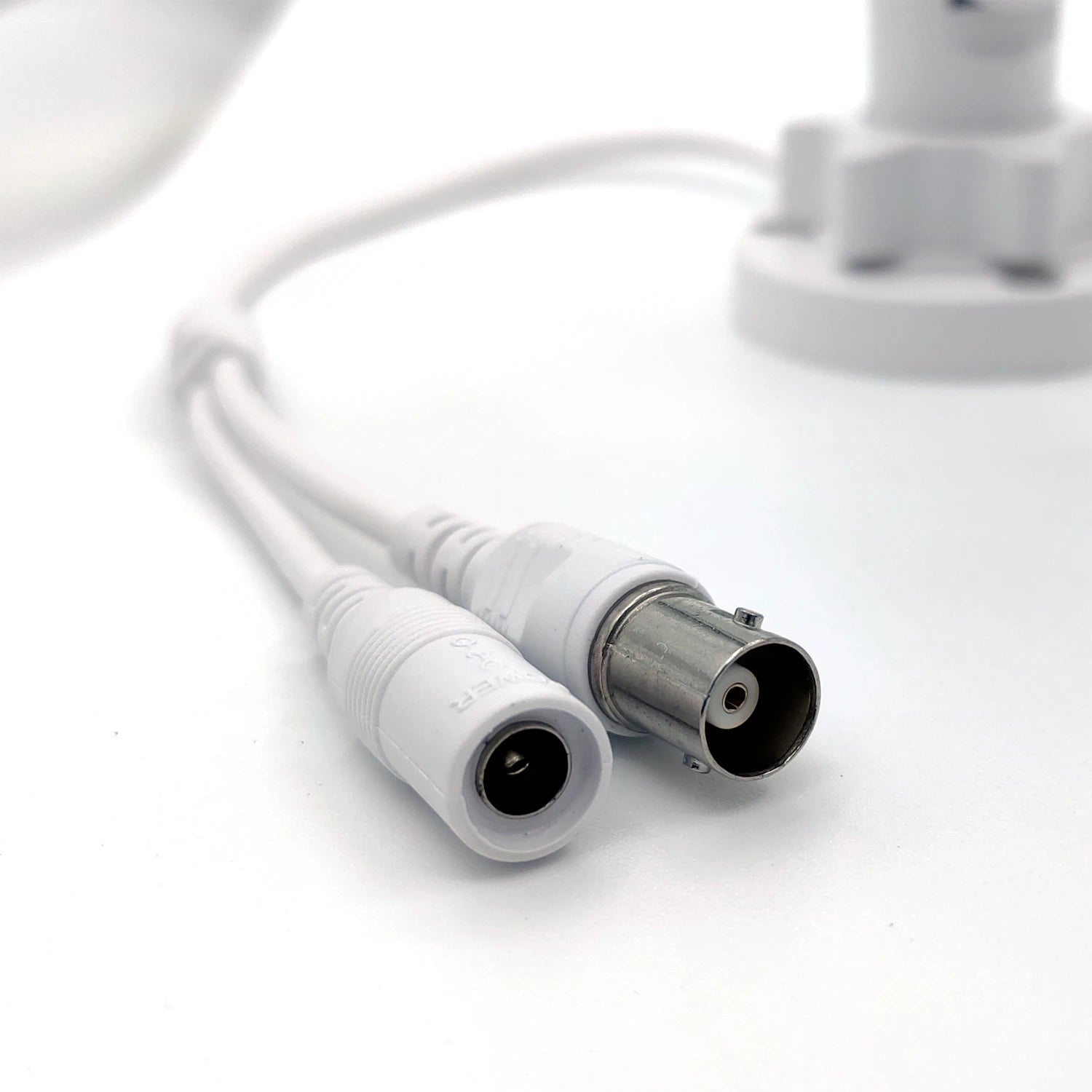

9. Usually use Coaxial-Cable, SYV-75-5 cable can transfer video over 500meters.

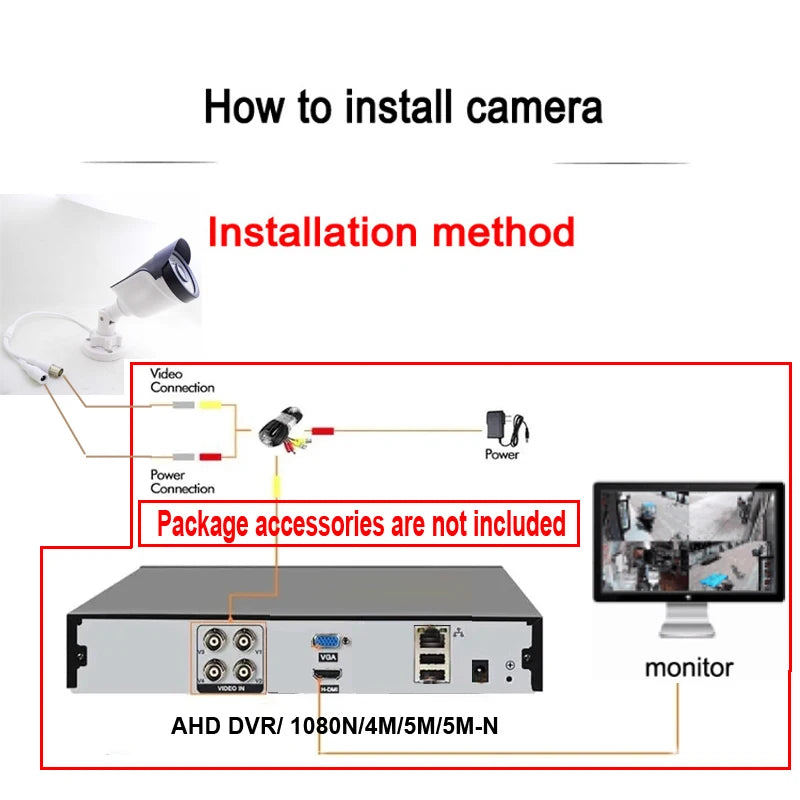

10. MUST work with AHD DVR

11. Best choice for project reconstruction.

12. You can upgrade an old analog security system to HD cameras without changing cable routes.

***P.S:

Before ordering, please confirm that you have a DVR that supports AHD. Normal DVR does not support AHD cameras.
Video capture card does not support AHD camera, does not support direct connection to TV

When ordering, please confirm the camera system you need, such as PAL or NTSC, which is very important.
Some AHD DVRs support changing the camera format, such as: XM AHD DVR, you can change it in the menu, or contact us

How to choose

1080P: digital signal, video resolution: 1920*1080, does not support TV and monitor connection, does not support analog DVR connection by default, supports entering Camera menu setting (XVI control entering menu) through AHD DVR, (note) supports connecting to AHD DVR list ( 1080N/1080P/4MP/5M-N/5MP/4K)

5MP: digital signal, video resolution: 2560*1920, does not support TV connection by default, does not support analog DVR connection by default, supports entering Camera menu settings through AHD DVR (XVI control to enter menu), (note) supports connecting to AHD DVR list ( 5M-N/5MP/4K )

****Do not support direct connection to electronic video
Not supporting direct connection to the monitor

What is Included

Options

• Sensor Size: 5MP, 1080P
• Signal System: NTSC, PAL
• Focus: 6mm, 8mm, 2.8mm, 3.6mm

Frequently Asked Questions

Q: What is the AHD Camera CCTV 1080P 5MP Digital Security Definition?

A: The AHD Camera CCTV 1080P 5MP Digital Security Definition is a quality decor pick. Super Video Technology presents Analog High Definition(AHD) technology to the market.

Q: What is the AHD Camera CCTV 1080P 5MP Digital Security Definition made of?

A: The AHD Camera CCTV 1080P 5MP Digital Security Definition is made from Plastic Special Features.

Q: Why choose the AHD Camera CCTV 1080P 5MP Digital Security Definition?

A: The AHD Camera CCTV 1080P 5MP Digital Security Definition stands out in our decor range — AHD is an over-coaxial-cable analog HD video transmission standard, allowing long-distance HD transmission at a lower cost to meet the requirements for a complex and large installation.
