Airepair LCR-AR1 Transistor Tester Diode Triode Capacimeter

Discover the Airepair LCR-AR1 Transistor Tester Diode Triode Capacimeter — a standout decor pick featuring multifunctional design for dependable, everyday performance.

Specifications

Battery Included: Yes

Brand Name: Aideepen

Certification: NONE

DIY Supplies: Electrical

Model Number: LCR-AR1

Semi-finishedproduct: No

Features:

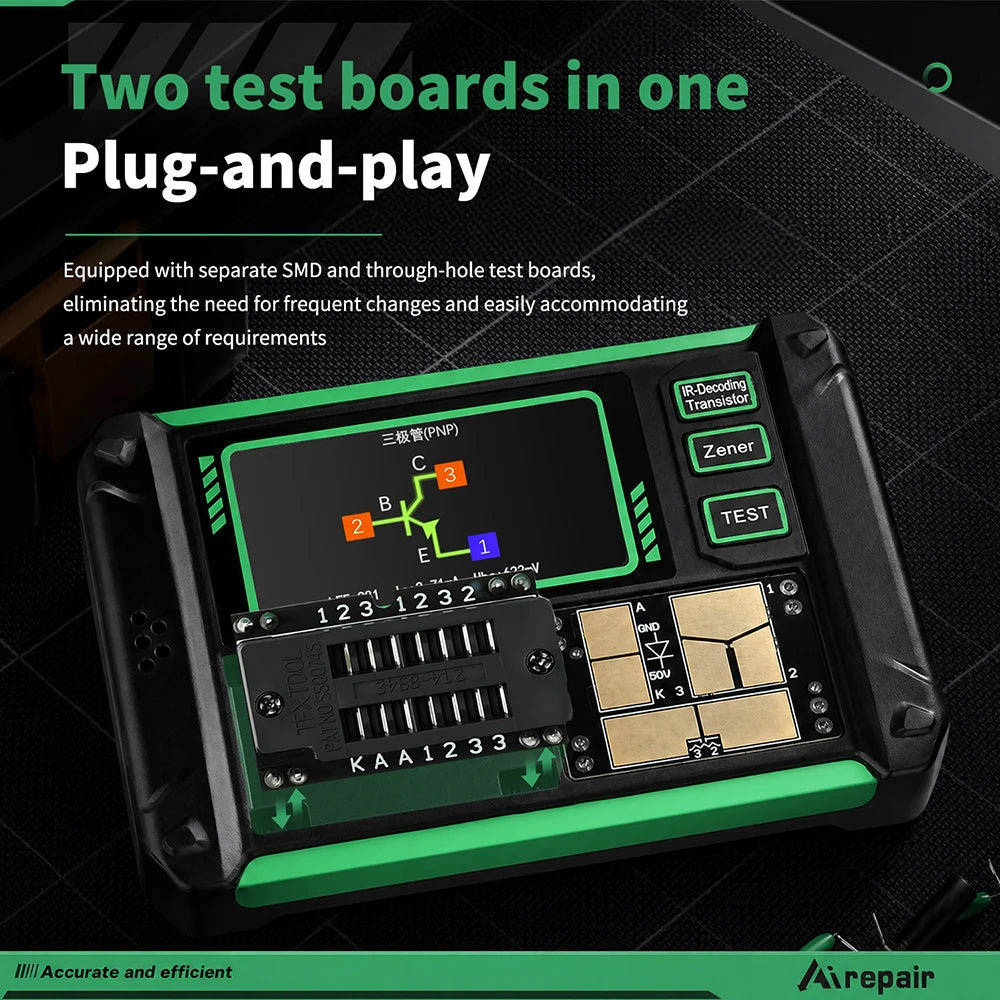

1. Compatible with SMD sockets, it flexibly accommodates various components. You can easily measure all types of SMD components without frequent changes, making testing more convenient and efficient.

2. Short-circuit test ports 1, 2, and 3, then press and hold the TEST button for 3 seconds to enter the self-calibration process. Regular calibration ensures that measurement data remains reliable.

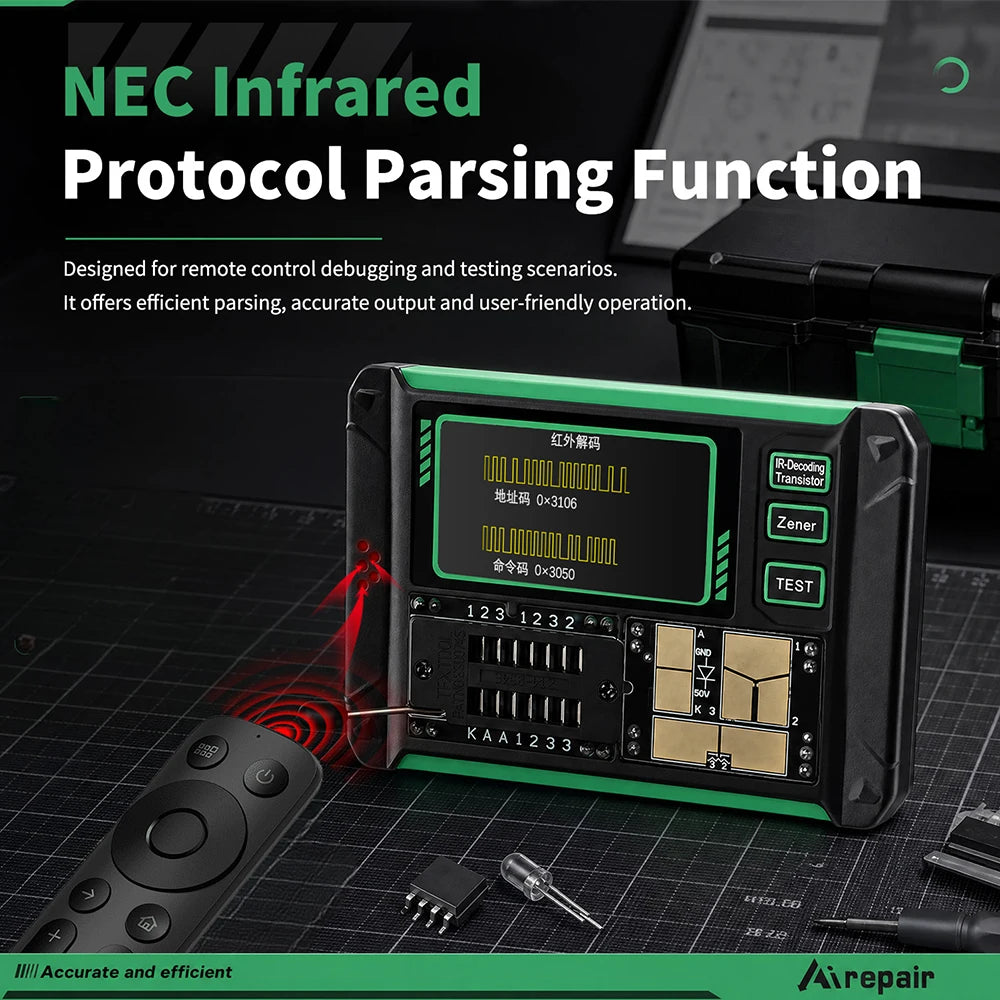

3. Supports decoding of NEC protocol infrared signals, allowing you to read remote control codes and display waveforms—an essential feature for home appliance repair.

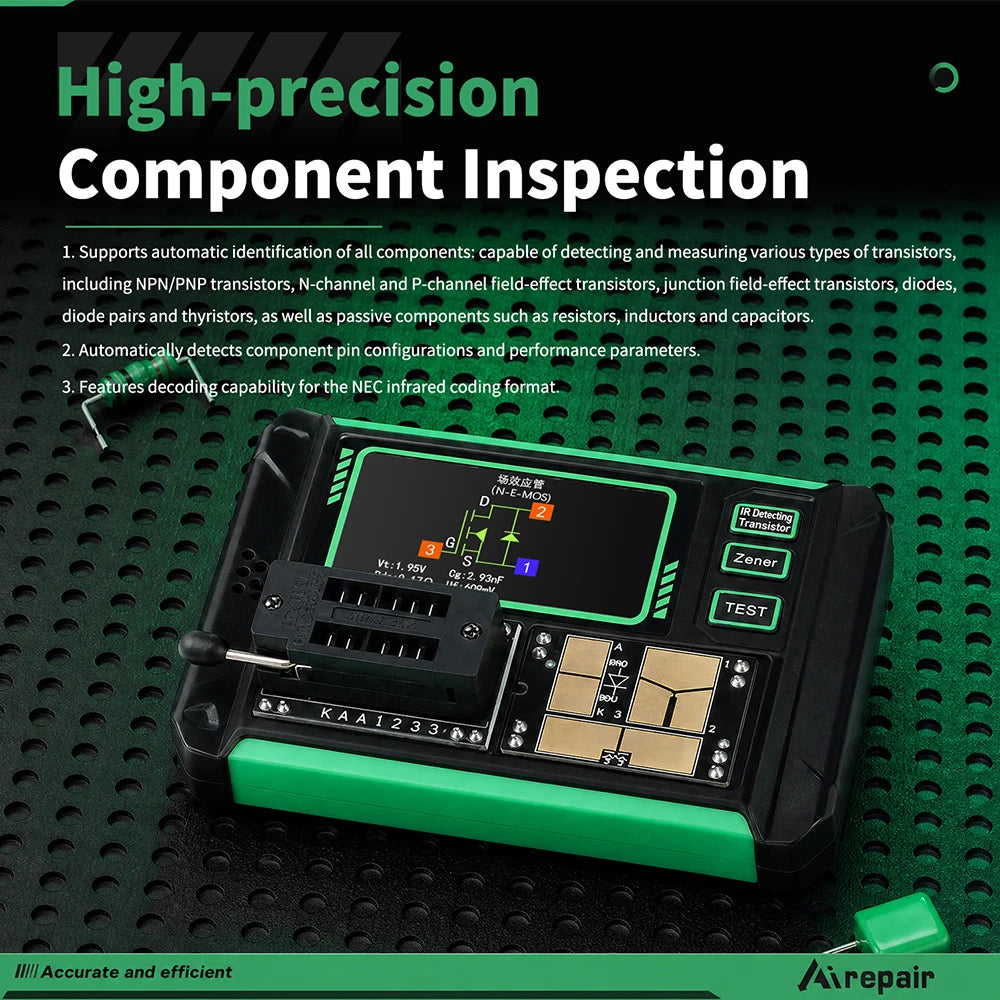

4. Switch to Auto mode, and the device automatically identifies component types. A short press of the TEST button starts the measurement, handling transistors, diodes, capacitors, inductors, and resistors with ease.

5. Lightly press the buttons to manually switch between measurement modes; the screen displays the corresponding icon in real time to meet specialized testing needs.

6. Suitable for product R&D, home appliance repair, educational experiments, scientific research testing, and other scenarios—a reliable tool for electronics engineers and hobbyists.

Product Specifications

Model: LCR-AR1

Display: 1.9 inches

Battery Capacity: 300mAh

Charging Specifications: USB Type-C, 5V/1A

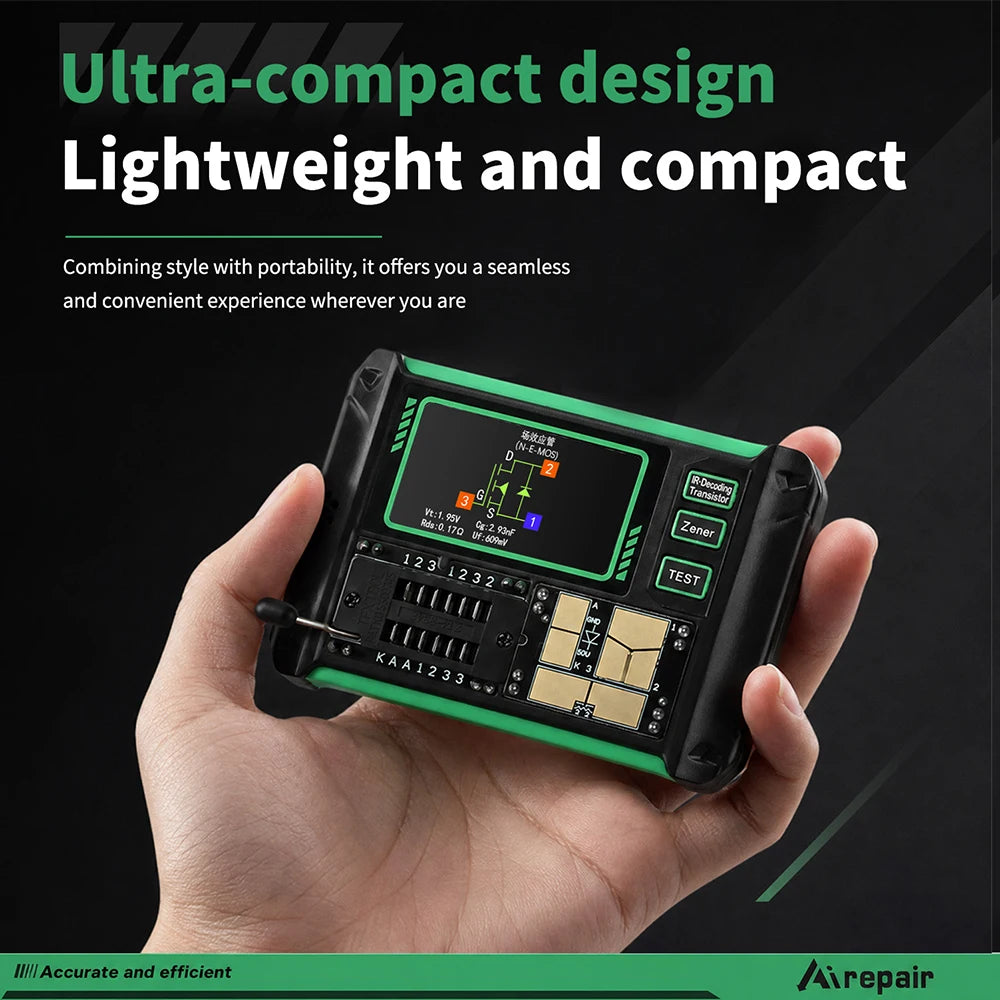

Product Dimensions: 62 × 90 × 32 mm

Product Introduction

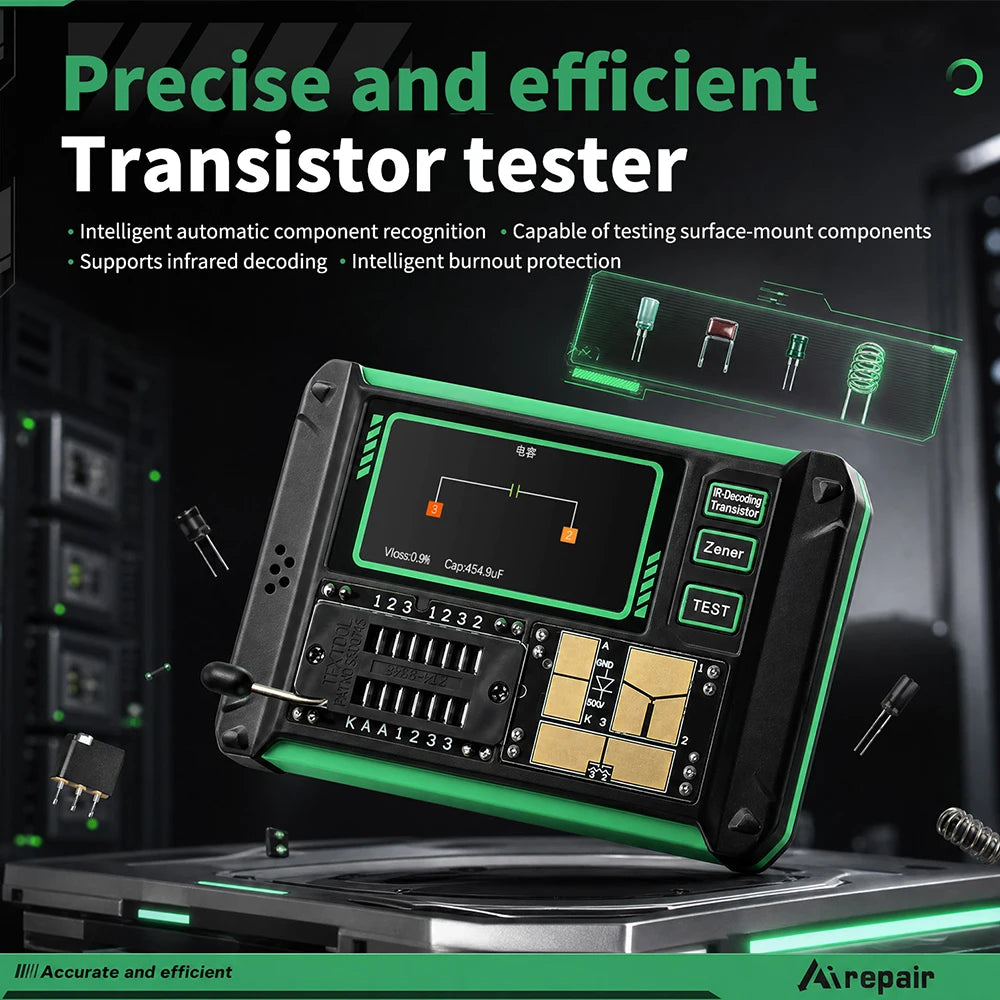

The LCR-AR1 Transistor Tester is a high-precision, multifunctional electronic testing device designed specifically for electronic engineers, technicians, and electronics enthusiasts.

This device is designed to test and analyze the performance and characteristics of semiconductor components such as transistors, diodes, triodes, and field-effect transistors (FETs). Equipped with a color screen, it supports multi-parameter measurements of various components and automatically identifies the type and pin configuration of the device under test, simplifying the operation process and improving testing efficiency.

Precautions

1. If you measure a capacitor without first discharging it, the device will discharge the capacitor the moment it is inserted into the locking interface, which may cause a spark. This feature is intended solely as a safeguard against forgetting to discharge the capacitor; for proper use, it is still recommended to manually discharge the capacitor before testing.

2. When not in use, the 123 locking interface remains conductive; do not insert batteries directly.

3. If a component’s parameters fall outside the test range, the test results may indicate an incorrect component type.

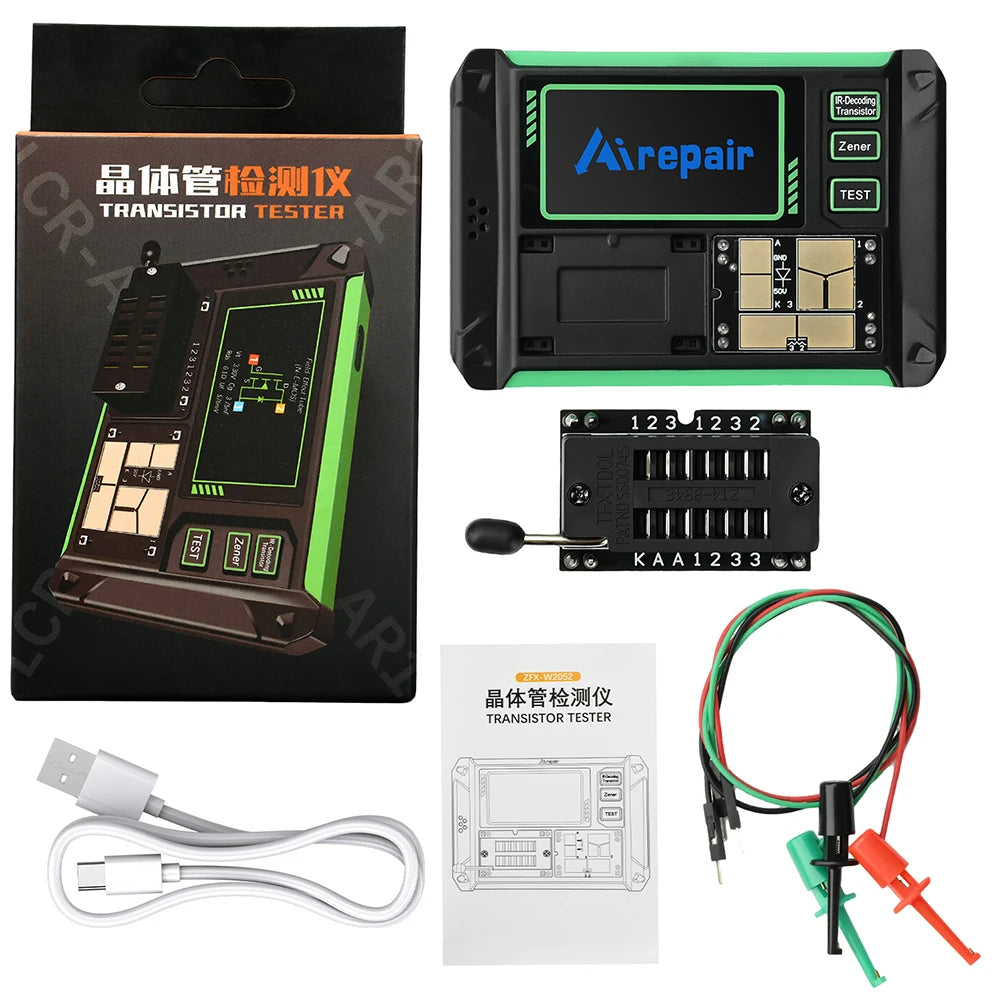

Package Contents

Transistor Tester *1

Test Socket *1

Type-C Data Cable *1

Chinese-English Instruction Manual *1

Test Clips *3

Options

• Color: A
