AV to RF TV Link Modulator & IR Remote Extender – UHF PAL/NTSC

AV to RF TV Link Modulator with IR Remote Control Range Extender

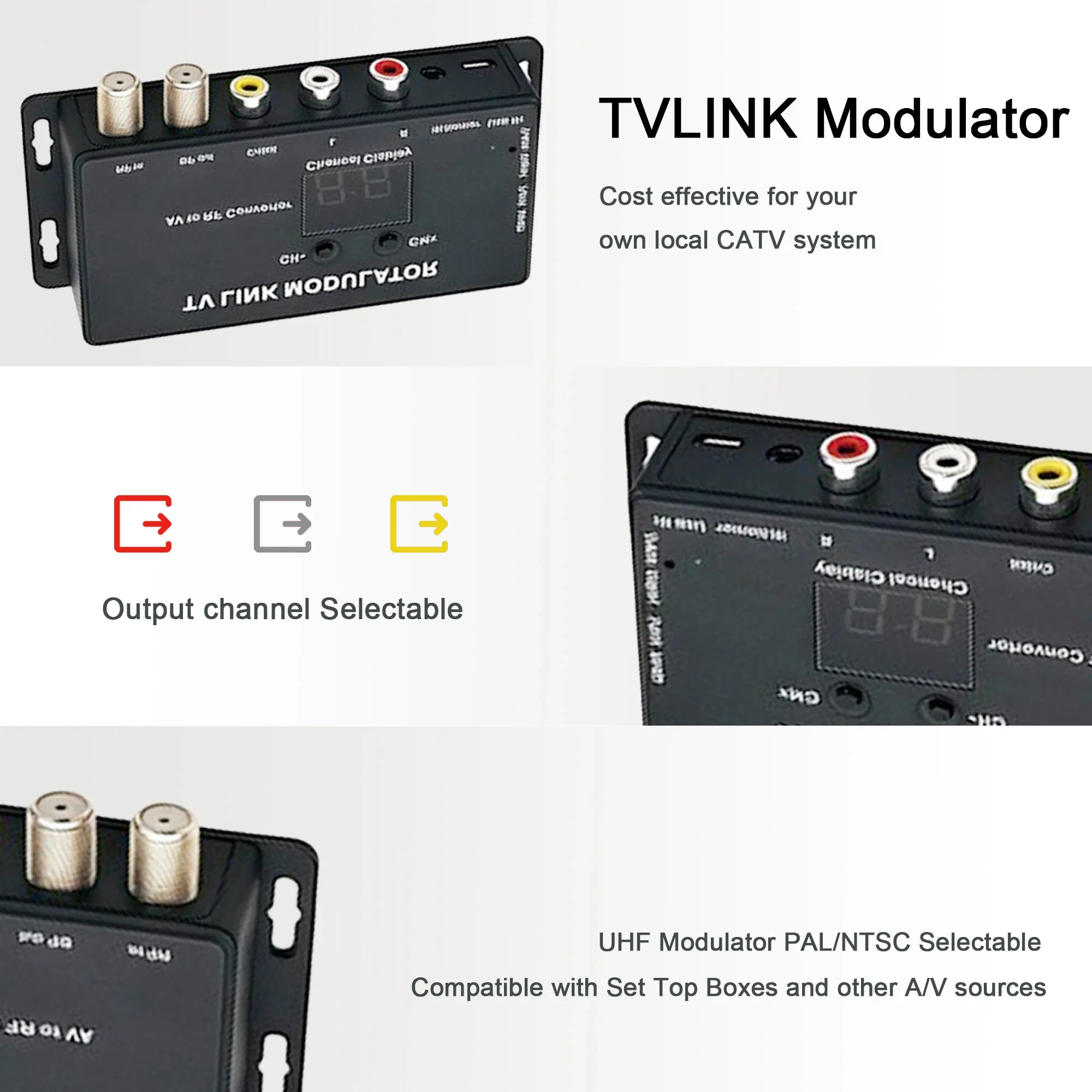

The Tuoying TLM01 AV to RF TV Link Modulator is a compact, cost-effective solution for distributing audio/video signals across your local analog TV network. Whether you're running a private CATV system, hotel in-room entertainment, or simply want to broadcast a set-top box signal throughout your home, this UHF modulator makes it easy. With built-in IR remote control range extension and selectable output channels, you get professional-grade flexibility in a plug-and-play package.

Made in Mainland China. CE certified.

Key Features

• UHF Modulator – PAL/NTSC selectable, covering channels UHF 21–69
• IR Remote Range Extender – Supports 38 kHz & 56 kHz frequencies with a range of ≥8 m, so you can control your set-top box from another room

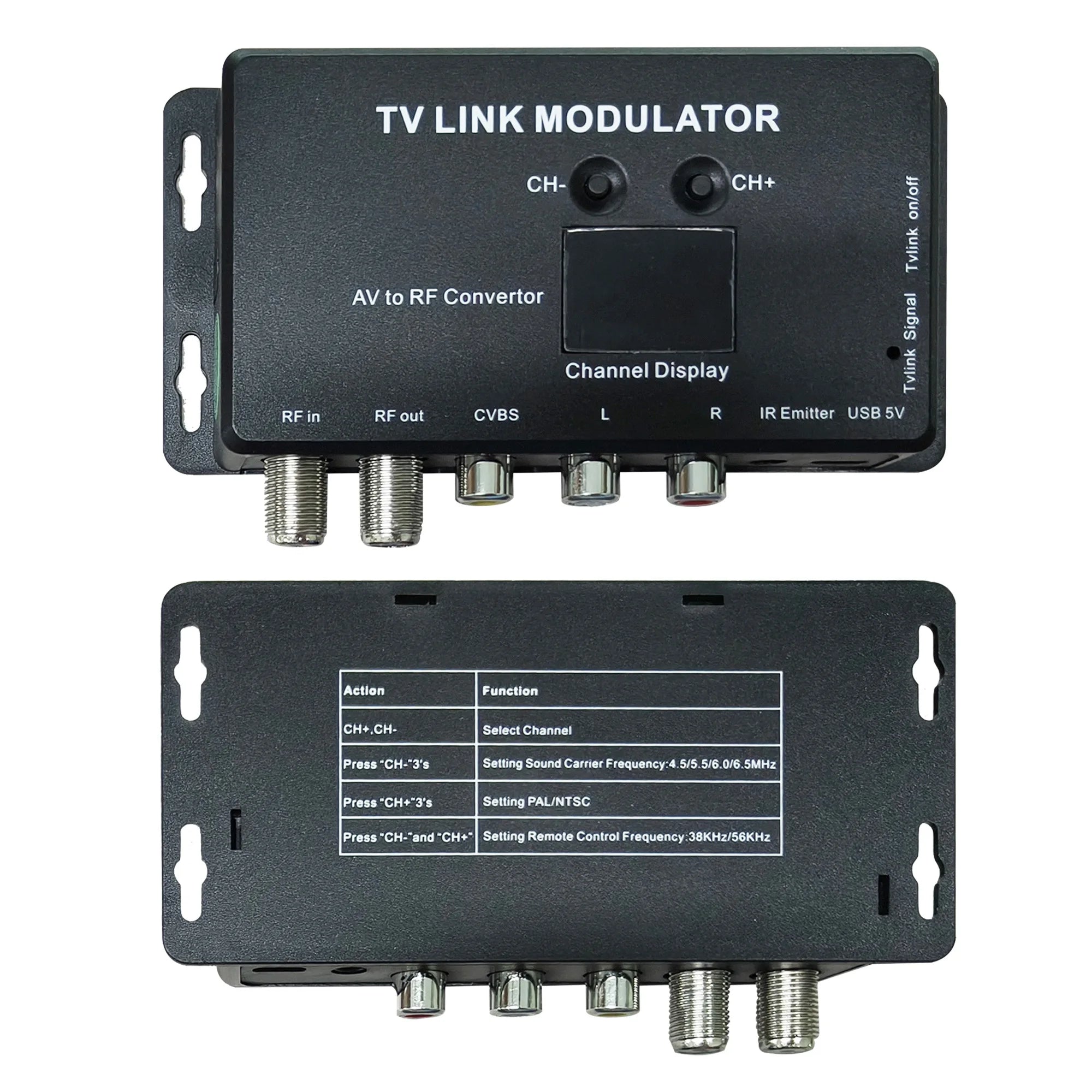

• Selectable Output Channel – Easily tune to your preferred UHF channel for interference-free broadcasting

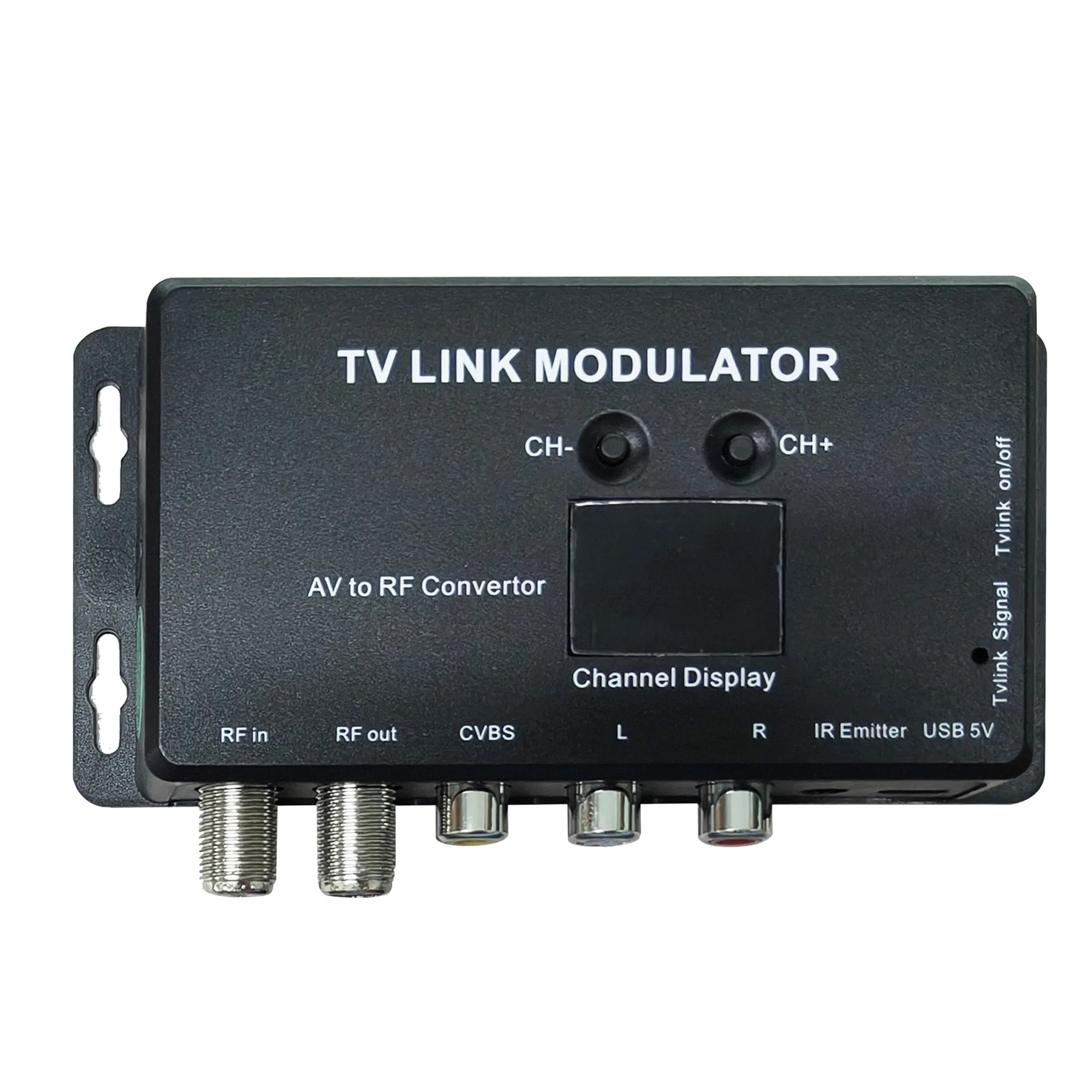

• Compatible with Set-Top Boxes & A/V Sources – Standard RCA female connectors for hassle-free hookup

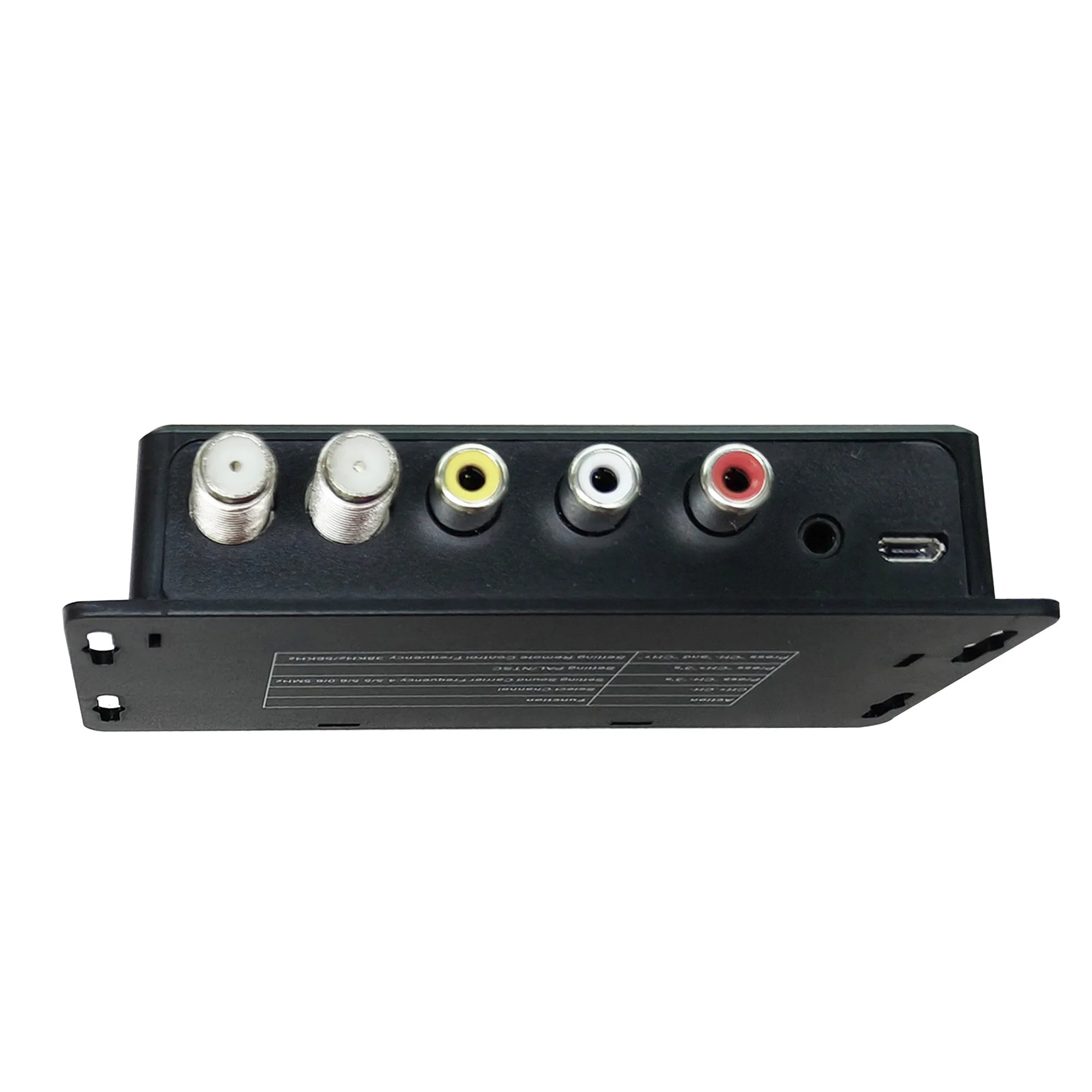

• RF Pass-Through – F-female RF input and output with 9VDC/100m DC output capability
• USB Powered – Runs on USB 5V @ 400mA for convenient, low-power operation
• Multiple Sound Systems Supported – M (4.5 MHz), B/G (5.5 MHz), I (6.0 MHz), D/K (6.5 MHz)
• Compact & Lightweight – 9.6 × 11.8 × 2.5 cm, only 0.125 kg

Technical Specifications

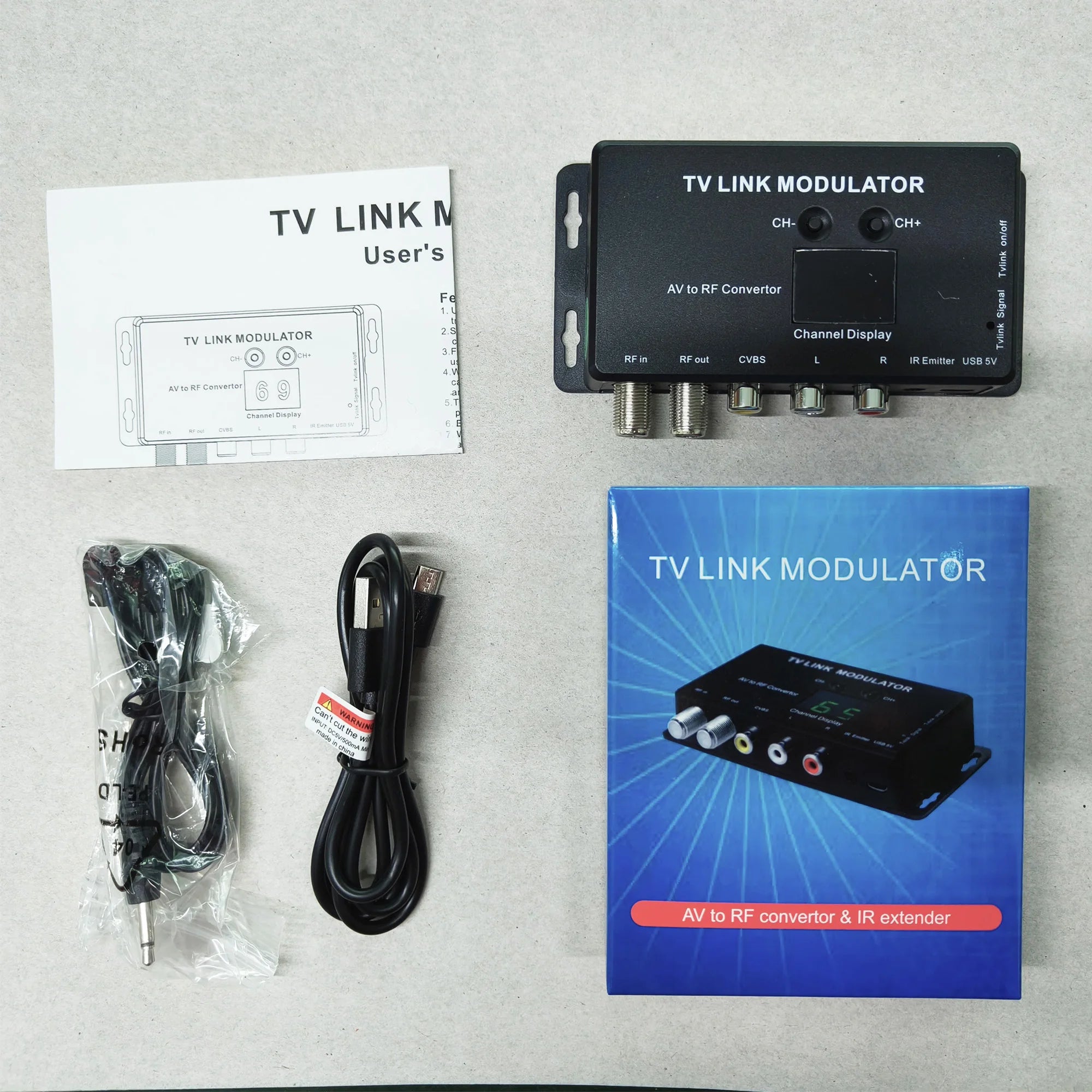

What's in the Box

• 1× TLM01 AV to RF TV Link Modulator
• 1× IR Emitter
• 1× USB Power Cable

Ideal For

• Private/home CATV distribution systems
• Hotel, guesthouse, or hospitality A/V setups
• Distributing satellite or cable set-top box signals to multiple TVs
• Extending IR remote control signals to hidden or remote equipment

Related Products You May Like

• 1.8M DisplayPort to HDMI Cable 4K – DP Adapter for PC & TV
• 1.8M USB-C to HDMI Cable 4K – MacBook, Laptop & Phone

For further guidance on TV signal standards and broadcast technology, refer to the NIST Communications Technology Laboratory.

Frequently Asked Questions

Q: What is a TV Link Modulator and what does the Tuoying TLM01 do?

A: A TV Link Modulator converts composite audio/video (AV) signals from a source such as a set-top box, DVD player, or security camera into a UHF RF signal that can be broadcast to standard analog TVs over your existing coaxial cable network. The Tuoying TLM01 supports PAL and NTSC standards across UHF channels 21–69, making it highly versatile for home and commercial distribution setups.

Q: How does the IR remote range extender work?

A: The included IR emitter relays remote control signals from your TV location back to your set-top box or A/V source, even if it is installed in a different room or a locked cabinet. It supports 38 kHz and 56 kHz infrared frequencies, covering the vast majority of consumer remote controls, with an effective range of 8 meters or more.

Q: Which TV standards and regions is this modulator compatible with?

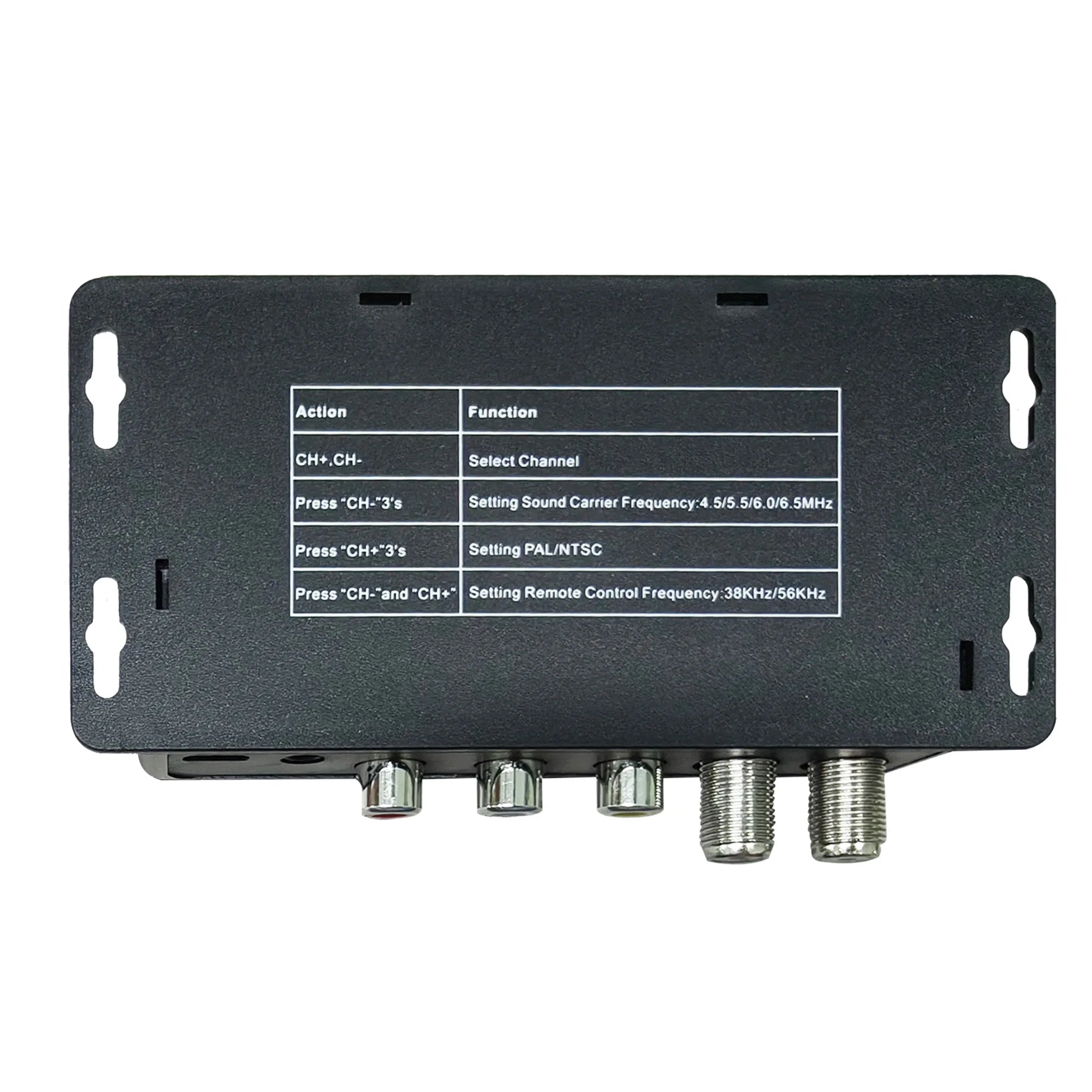

A: The TLM01 supports both PAL and NTSC broadcast standards and is compatible with multiple sound systems including M (4.5 MHz), B/G (5.5 MHz), I (6.0 MHz), and D/K (6.5 MHz). This makes it suitable for use in the UK, Europe, Asia, Australia, and other regions using these analog TV standards. Simply select the appropriate standard for your region using the on-unit settings.

Q: What power source does the TLM01 require?

A: The modulator is powered via a standard USB 5V connection at 400mA — a common phone charger or USB port on your TV or set-top box is all you need. No dedicated power adapter is required.

Q: Can I use this modulator with my SLX or TV-Link system?

A: Yes. The TLM01 features F-female RF input and output connectors and is specifically designed to be compatible with SLX and TV-Link distribution systems, as well as other standard coaxial RF networks.
