BLDC 24W Motor Driver Board 7-40V 4A Speed Controller Hall Sensor

Discover the BLDC 24W Motor Driver Board 7-40V 4A Speed Controller Hall Sensor — a standout decor pick featuring compact design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Does it include a Battery?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Motor: DC Motor

Product Features:

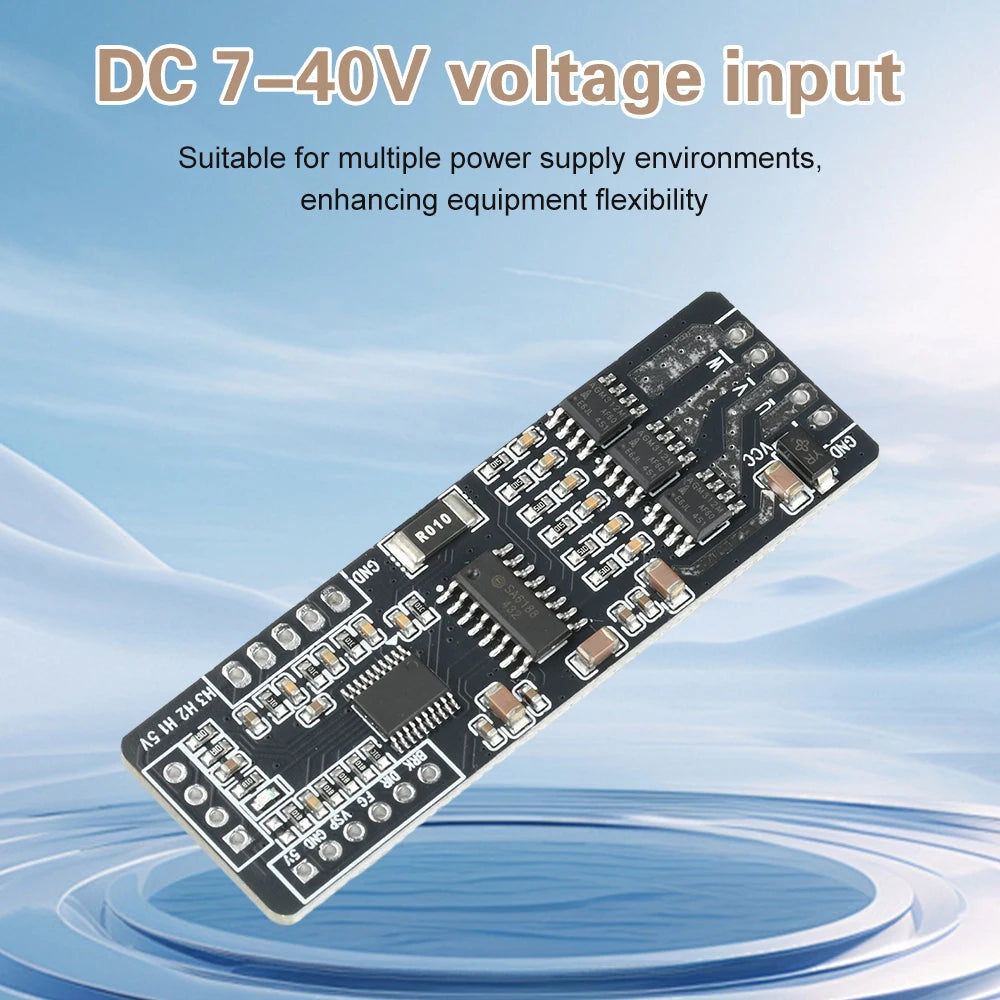

1. Supports DC 7-40V input voltage, suitable for diverse power supply environments, enhancing device flexibility

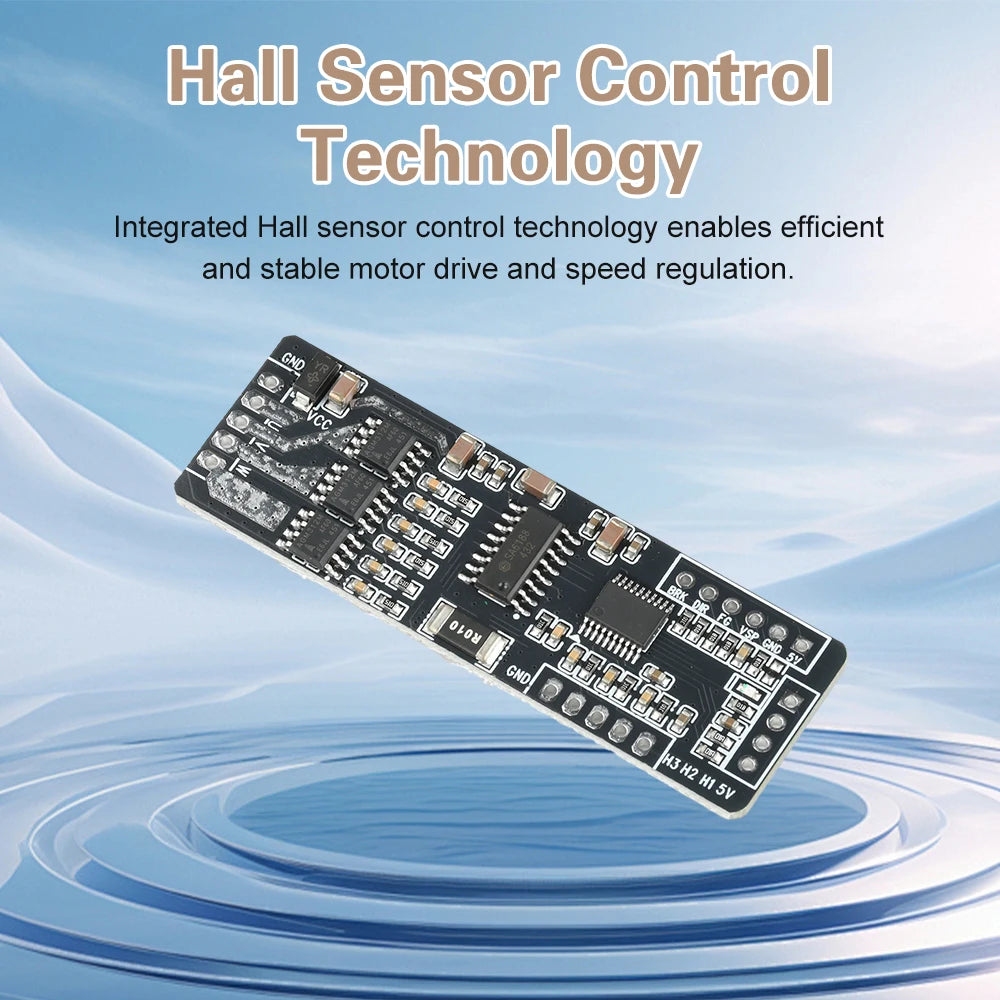

2. Integrates Hall sensor control technology for efficient and stable motor drive and speed regulation

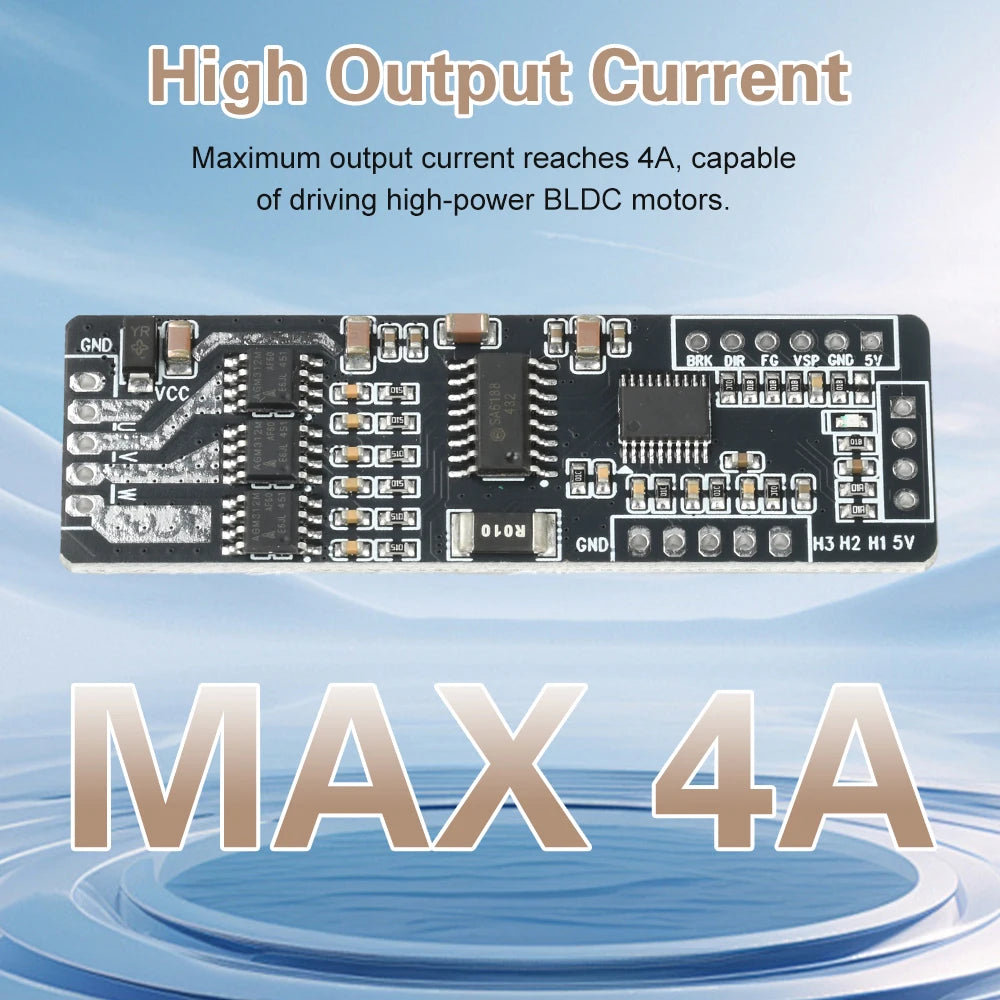

3. Maximum output current reaches 4A, capable of driving higher-power BLDC motors

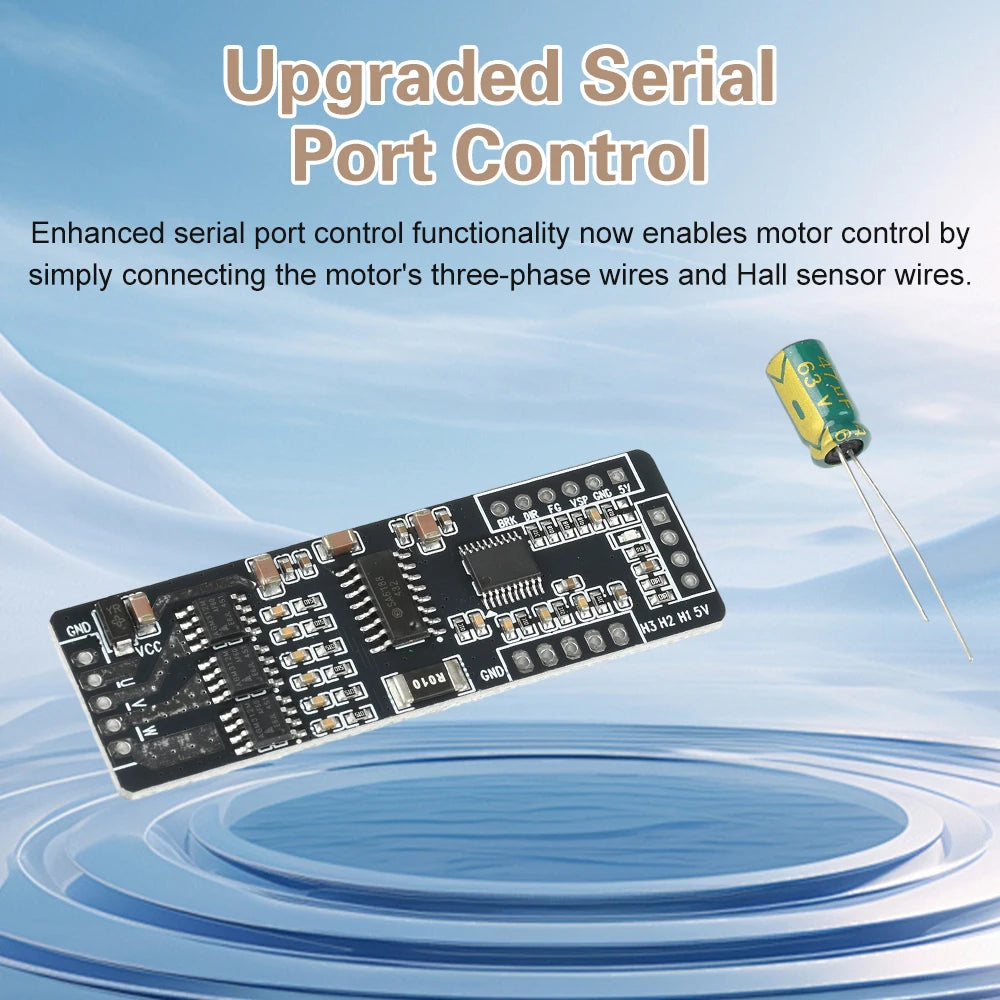

4. Upgraded serial port control functionality enables motor control by simply connecting the motor's three-phase wires and Hall sensor wires

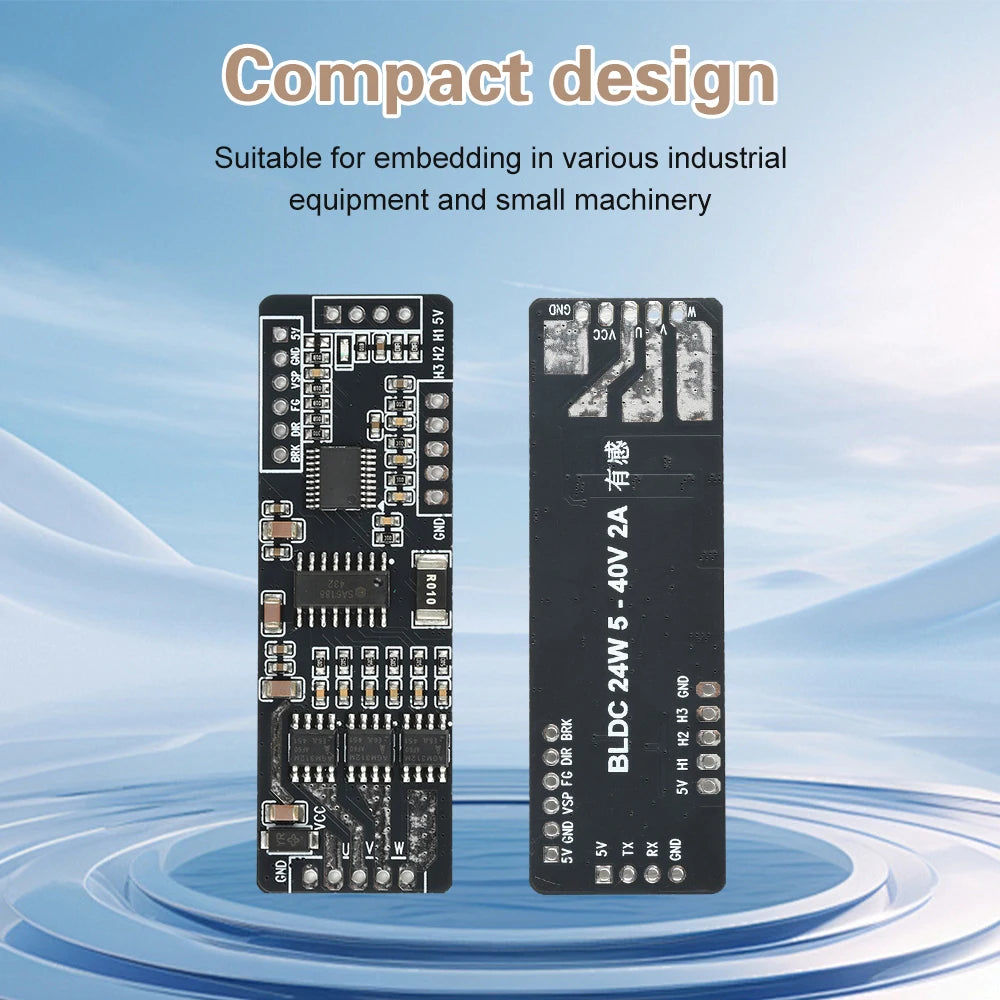

5. Compact design suitable for embedding in industrial equipment and small machinery

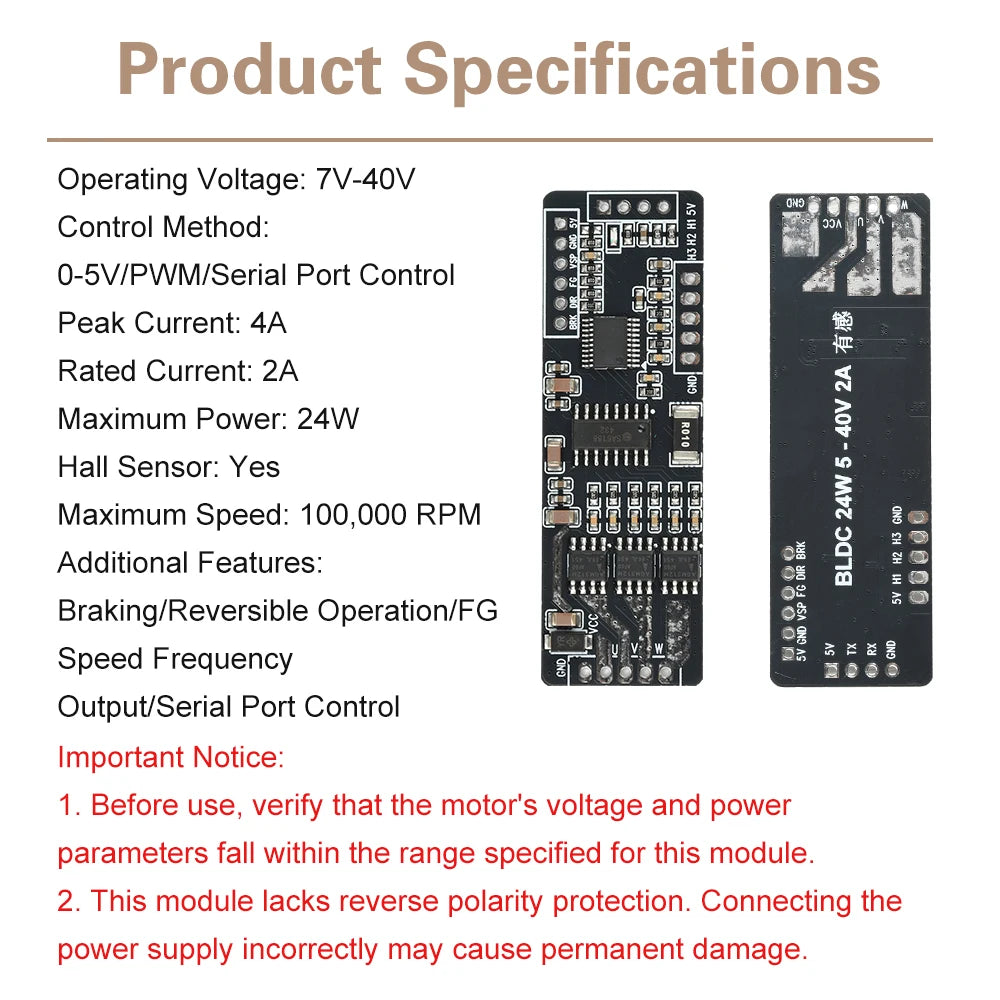

Product Specifications:

Operating Voltage: 7V-40V

Control Mode: 0-5V/PWM/Serial Port Control

Peak Current: 4A

Rated Current: 2A

Maximum Power: 24W

Hall Sensor: Yes

Maximum RPM: 100,000 RPM

Additional Features: Braking/Reversing/FG Speed Frequency Output/Serial Control

Wiring Method:

1. Before use, confirm the brushless DC motor has Hall sensors. Motors with Hall sensors typically have 8 wires (applicable), while those without have only 3 wires.

2. The module supports 120-degree or 60-degree Hall sensor electrical angles. Default configuration is for 120-degree Hall sensors. Connect the 5 Hall sensor wires: 2 are Hall sensor power lines, and 3 are Hall sensor signal lines. Refer to the motor manufacturer's specifications or color coding to distinguish and connect correctly. Note: Distinguish between motor wires, Hall sensor signal wires, and Hall sensor power wires.

Important Notes:

1. Before use, verify the motor's voltage and power parameters match the module's specified range.

2. The module lacks reverse polarity protection; incorrect power connection will cause permanent damage.

Package Contents:

Module*1

Frequently Asked Questions

Q: What is the BLDC 24W Motor Driver Board 7-40V 4A Speed Controller Hall?

A: The BLDC 24W Motor Driver Board 7-40V 4A Speed Controller Hall is a quality decor pick. Supports DC 7-40V input voltage, suitable for diverse power supply environments, enhancing device flexibility 2.

Q: How do I use the BLDC 24W Motor Driver Board 7-40V 4A Speed Controller Hall?

A: The BLDC 24W Motor Driver Board 7-40V 4A Speed Controller Hall is ready to use right out of the box and makes an easy addition to your decor lineup.

Q: Why choose the BLDC 24W Motor Driver Board 7-40V 4A Speed Controller Hall?

A: The BLDC 24W Motor Driver Board 7-40V 4A Speed Controller Hall stands out in our decor range — Integrates Hall sensor control technology for efficient and stable motor drive and speed regulation 3.
