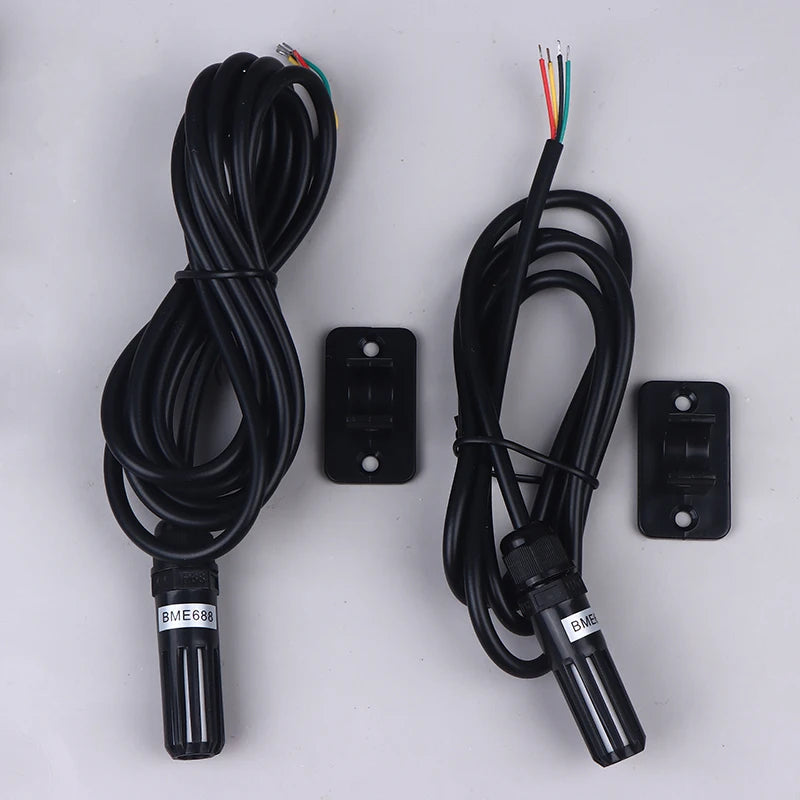

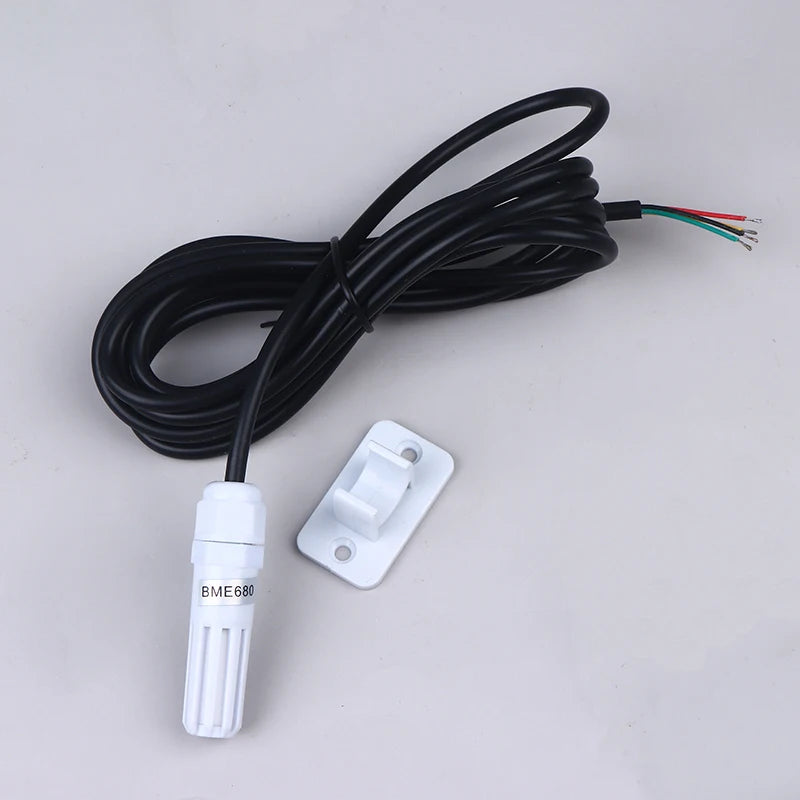

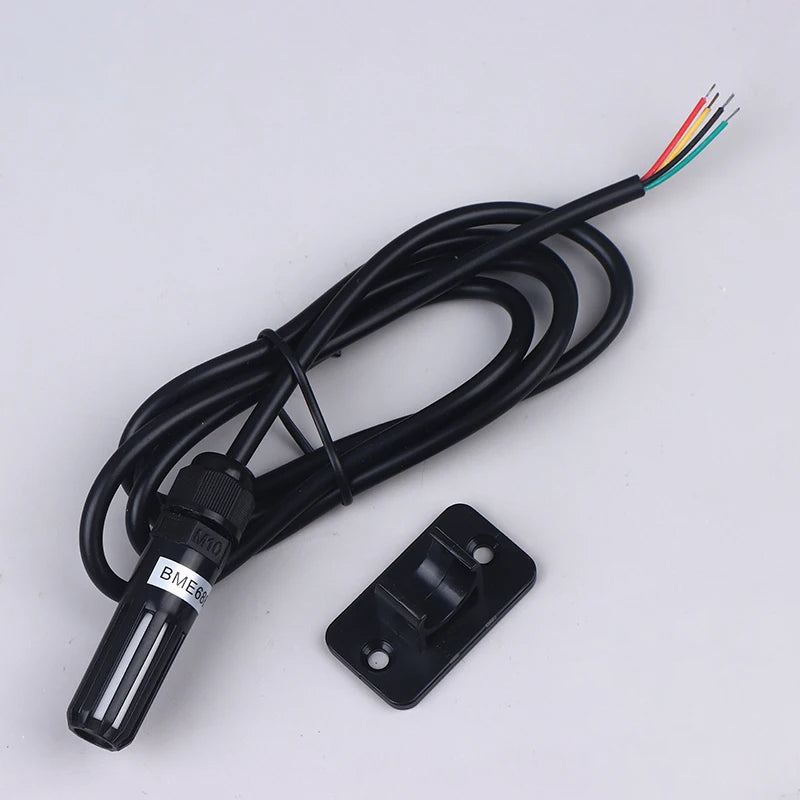

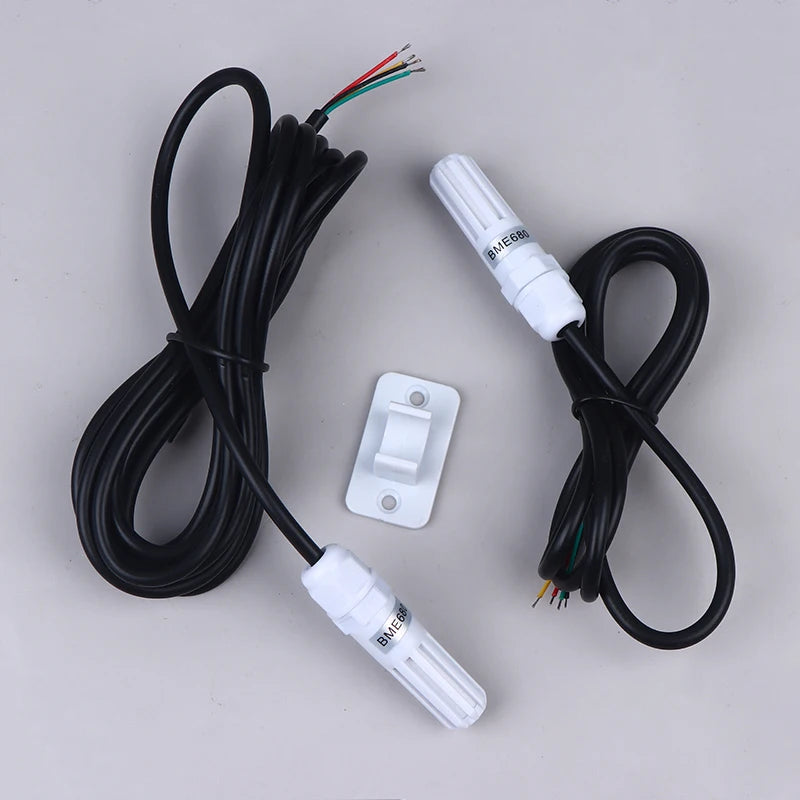

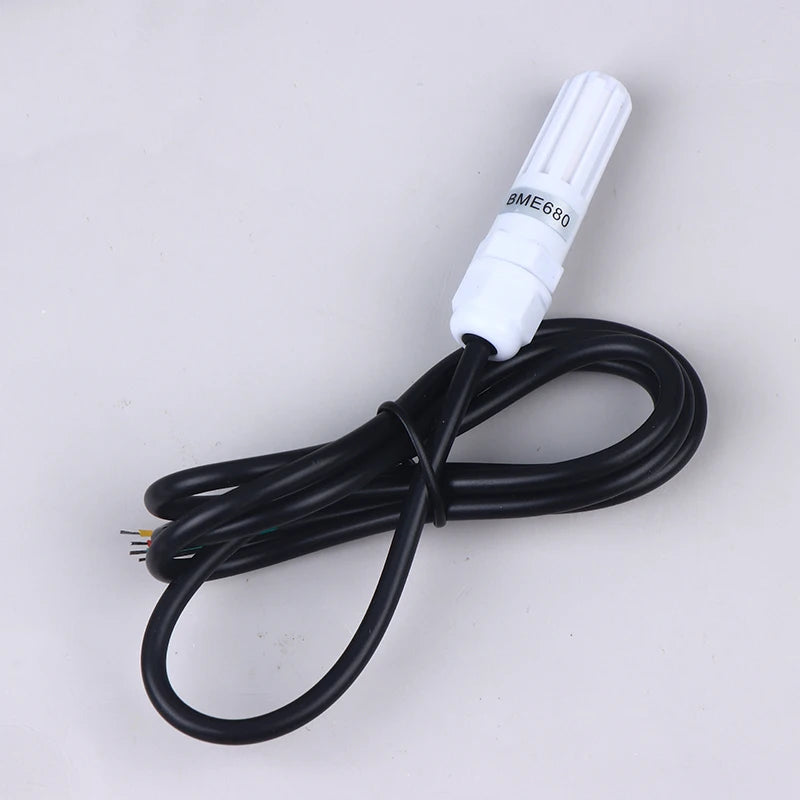

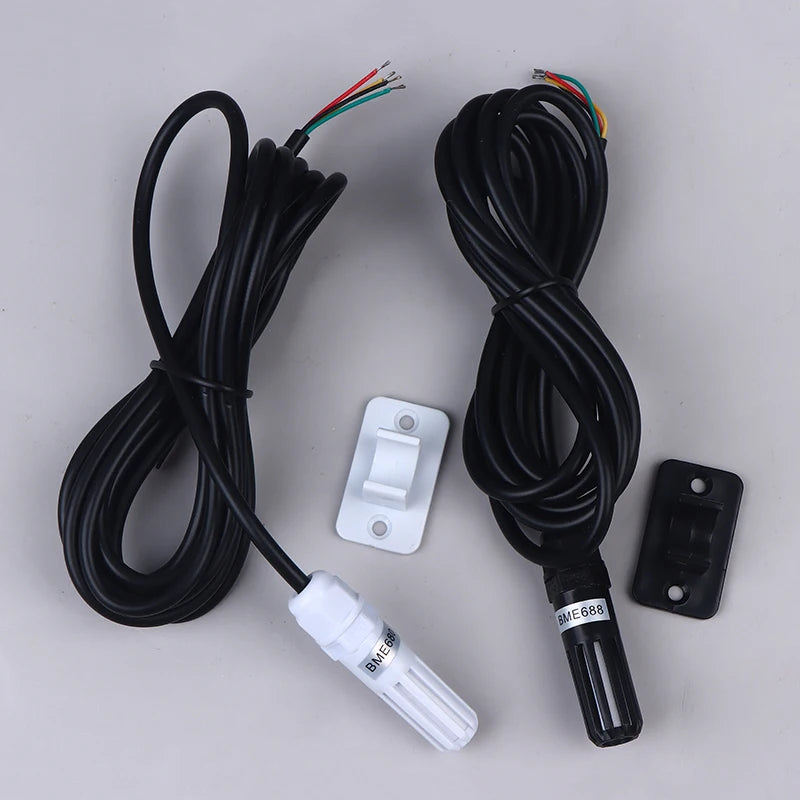

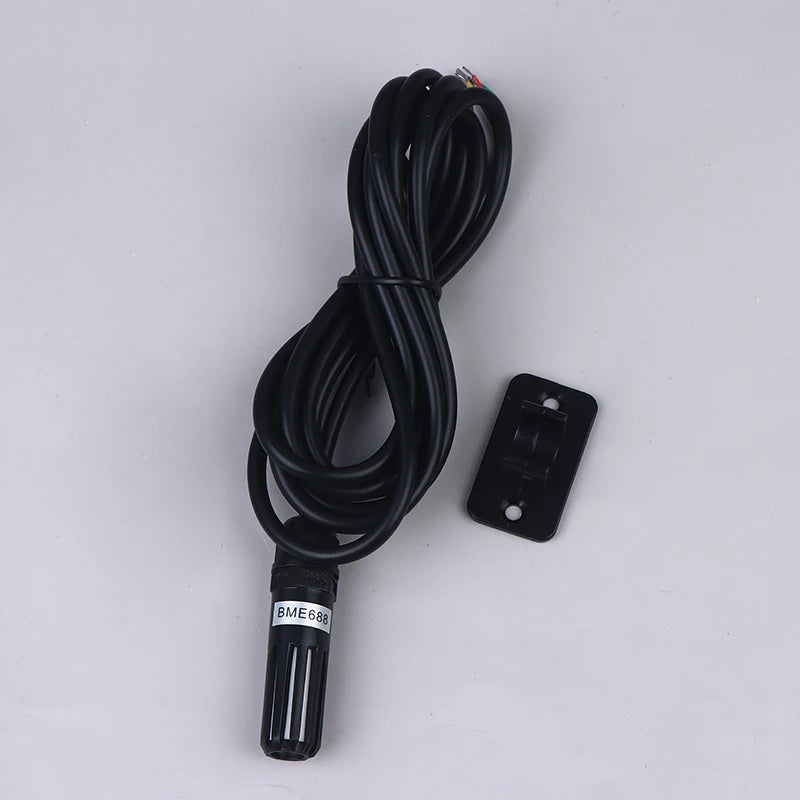

BME680 BME688 Environmental Sensor Module Air Atmospheric Pressure

Discover the BME680 BME688 Environmental Sensor Module Air Atmospheric Pressure — a standout decor pick featuring compact, soft design for dependable, everyday performance.

Specifications

Brand Name: ZOHMYIY

Type: Intake Air Pressure Sensor

semi_Choice: yes

Report Item

BME680

The BME680 is a low-power gas, pressure, temperature and humidity sensor. The BME680 is a digital 4-in-1 sensor that measures gas, humidity, pressure and temperature based on a proven sensing principle. This sensor module is encapsulated in an extremely compact metal LGA package, with a floor area of only 3.0x3.0 square millimeters and a maximum height of 1.00 millimeters (0.93±0.07 millimeters). Its small size and low power consumption enable it to be integrated into battery-powered or frequency-coupled devices, such as mobile phones or wearable devices.

Typical applications

Indoor air quality Home automation and control Internet of Things Weather forecast GPS enhancement (for example, improvement of the first positioning time, distance calculation, slope detection); Indoor navigation (floor change detection, elevator detection); Vertical speed indication (ascent/descent speed) for outdoor navigation, leisure and sports applications.

BME688

The BME688 environmental sensor is a highly integrated MEMS environmental sensor capable of comprehensively measuring environmental parameters such as temperature, humidity, air pressure, and VOC gases (volatile organic compounds). Its software protocol and hardware size are fully compatible with the BME680, so no adjustments are needed to directly replace the BME680 in the existing system. Meanwhile, BME688 has enhanced the accuracy of temperature measurement and hollowed out the area around the chip on the circuit board to reduce the impact of heat generated by external components on the measurement.

Another major improvement of BME688 is the introduction of a "heating layer" technology at the bottom of the chip. Traditional VOC sensors are prone to interference from ambient temperature, leading to measurement errors. However, the heating layer of BME688 enables users to precisely control the temperature of the sensor, thereby reducing the impact of ambient temperature on VOC measurement. By taking advantage of this feature, users can also collect the response data of specific composite gases at different temperatures by adjusting the temperature of the heating layer.

Product Parameters

Product Model:BME680/BME688

Supply Voltage:3-3.6V

Output:IIC Signal

Temperature Range:-40 to 85°C

Humidity Range:0-100% RH

Pressure Range:300-1100 hPa

Gas Output Data Processing:

IAQ Index Output(BME680)

IAQ, bVOC, CO2(BME688)

Humidity Accuracy:+3%

Temperature Accuracy (Typical):±0.5°C

Color: Black/White

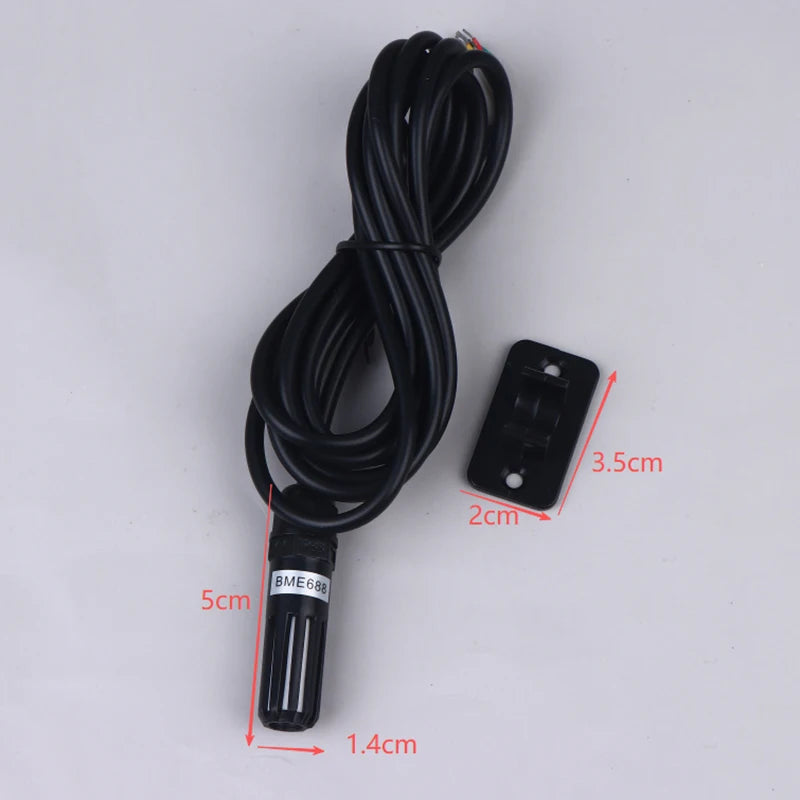

Size:As the pictures show

Package quantity:1Pc

As different computers display different colors, thank you for your understanding, the actual product color may be slightly different from the image.

Options

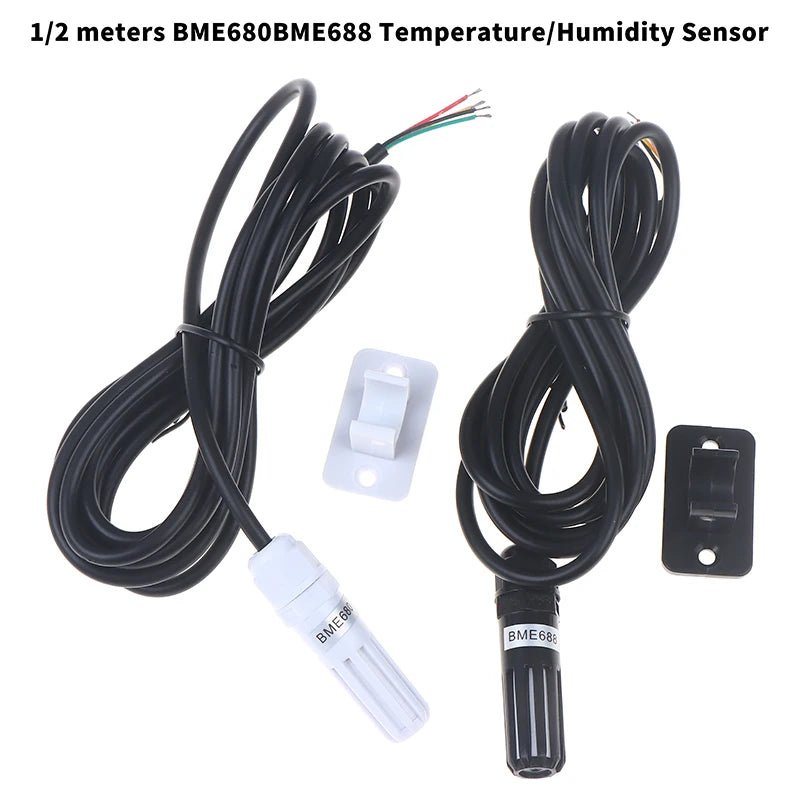

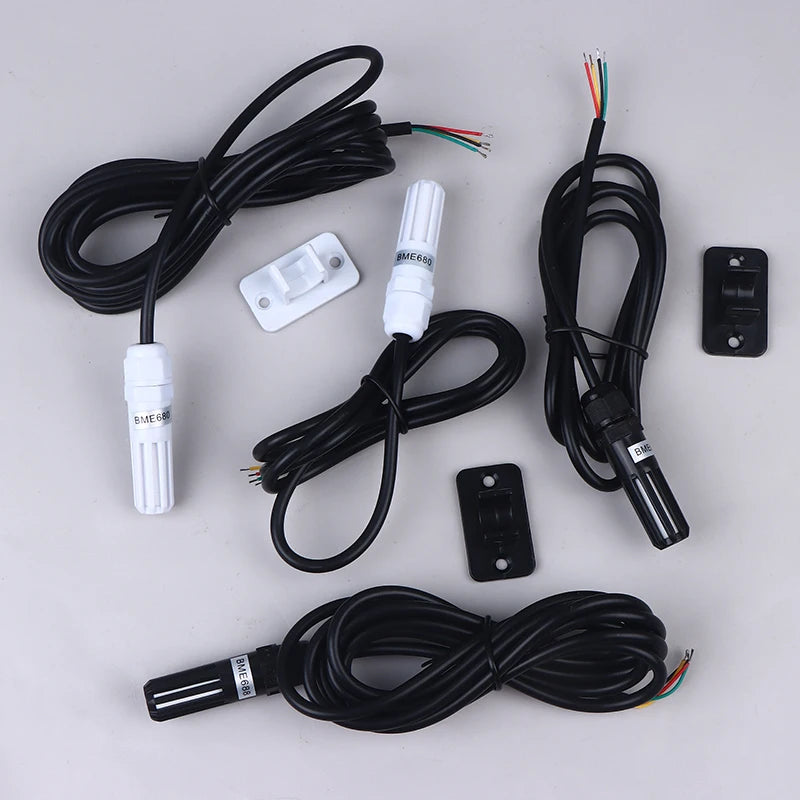

• Color: BME680 1meter, BME688 1meter, BME688 2meters, BME680 2meters
