BMS 10S 36V 15A Lithium Battery Charge Board PCB 18650 Balanced
$19.40
Sale price
$19.40
Regular price
$24.03
Shipping calculated at checkout.
Discover the BMS 10S 36V 15A Lithium Battery Charge Board PCB 18650 Balanced, a standout decor pick designed for dependable everyday performance and lasting value.
Specifications
DIY Supplies: Electrical
Electronic: No
Semi-finishedproduct: No
Product Features:

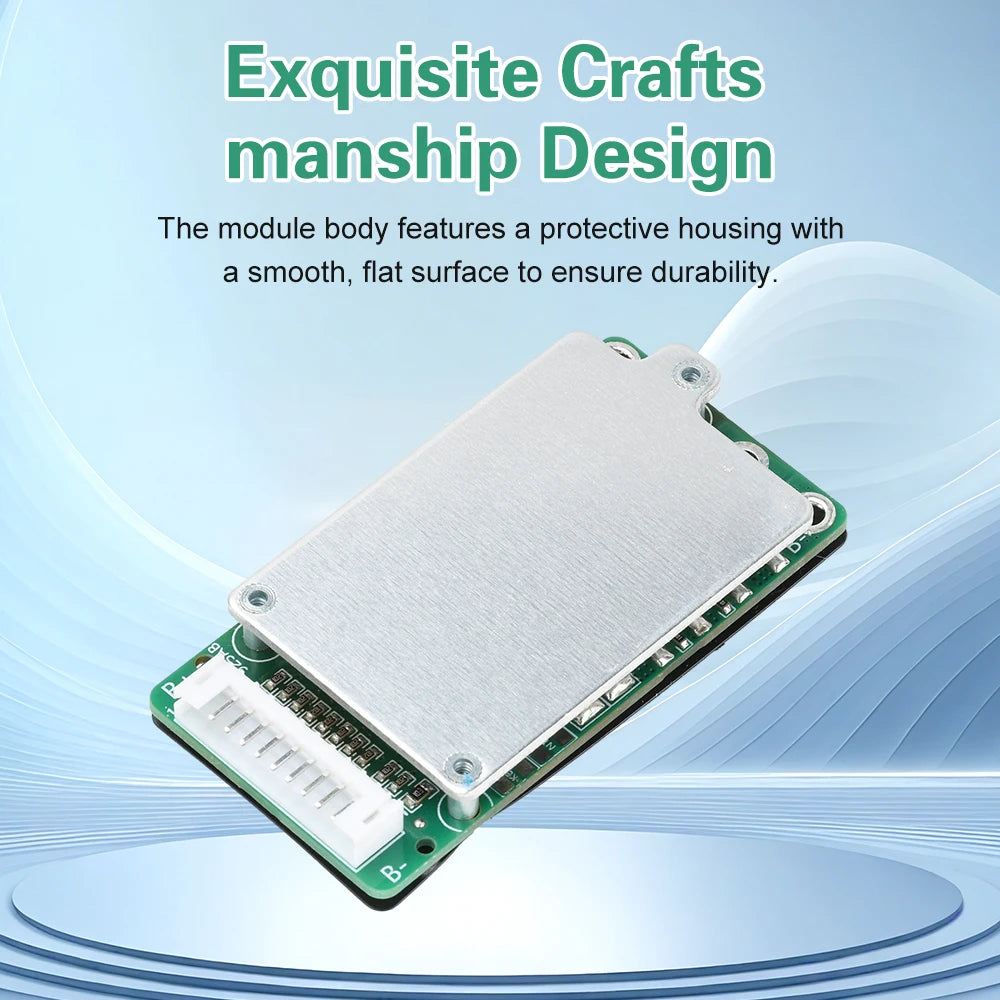

1. Refined Craftsmanship: The module body features a blue protective casing with a smooth, flat surface for enhanced durability.

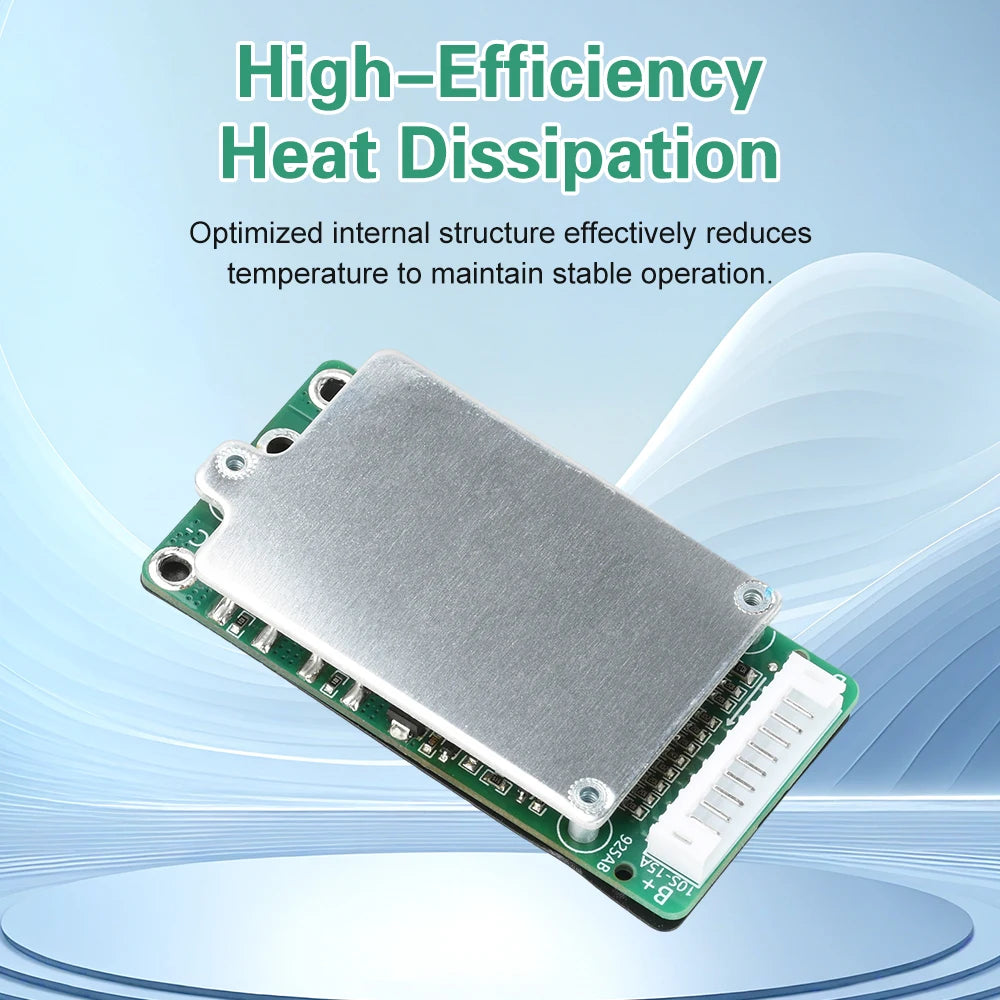

2. Efficient Heat Dissipation: Optimized internal structure effectively reduces temperature, ensuring stable operation.

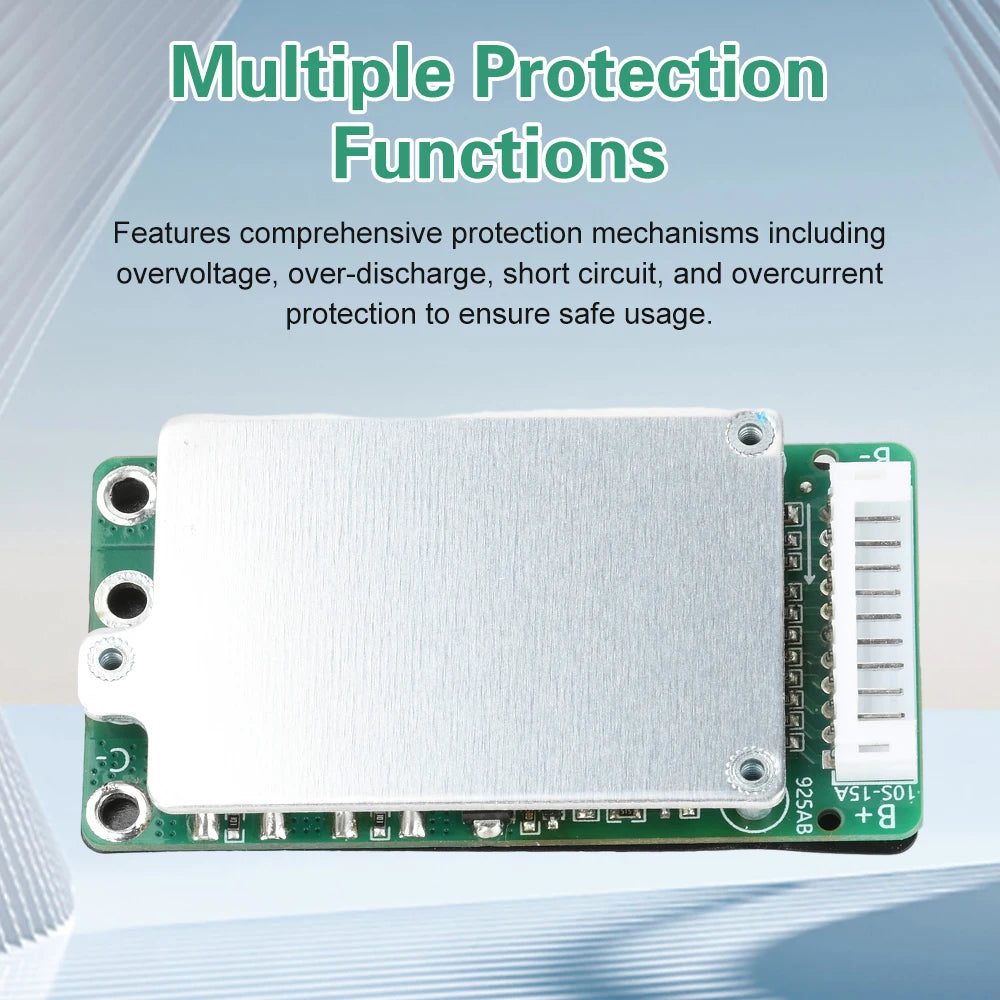

3. Multi-Layer Protection: Comprehensive safeguards against overvoltage, over-discharge, short circuits, and overcurrent ensure safe usage.

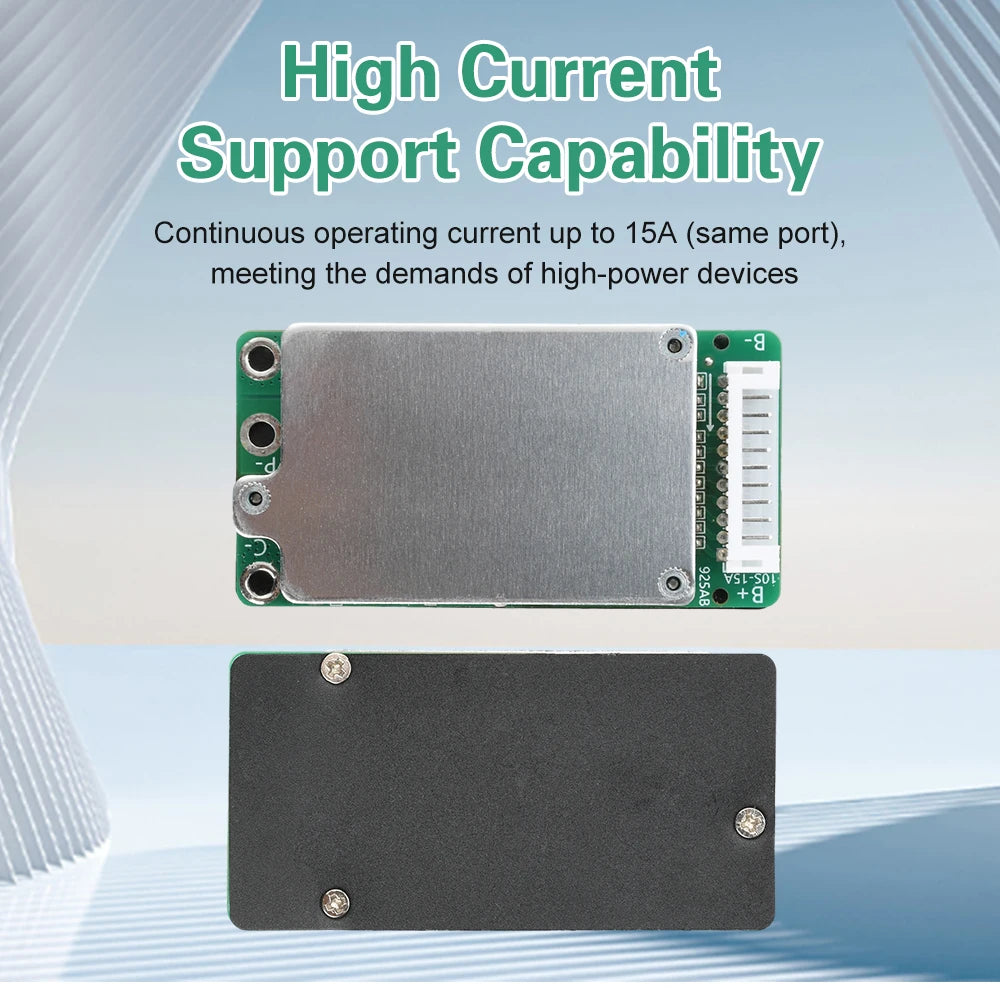

4. High Current Support: Continuous operating current up to 15A (same port), meeting high-power device demands

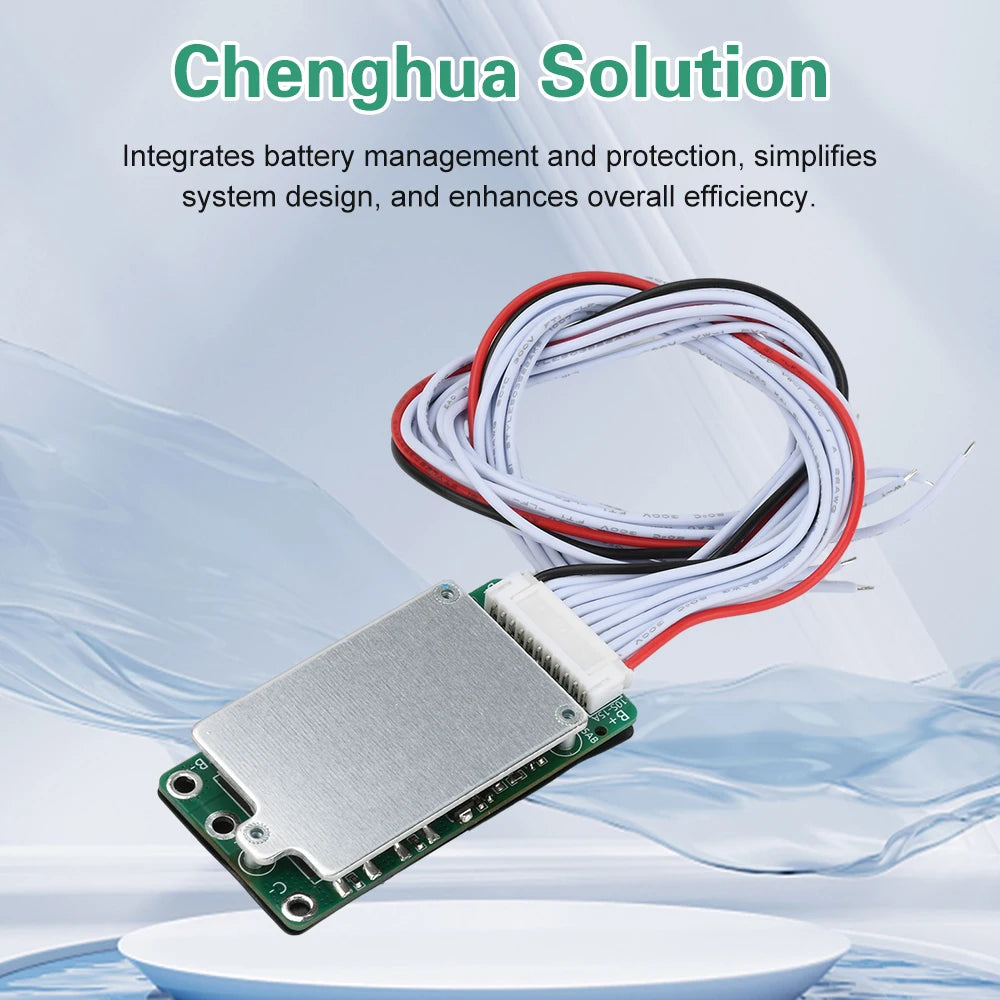

5. Integrated Solution: Combines battery management and protection, simplifying system design and enhancing overall efficiency
Product Specifications:
Product Name: 10S Lithium Battery Protection Board
Type: 10S 36V 15A
Wiring Method: Same Port/Split Port (Optional)
Operating Power Consumption: ≤40μA
Main Circuit On-Resistance: ≤15mΩ
Temperature Range: -40 to +80°C
Open-Circuit Protection: Yes
Cable Specifications: 2.0mm pitch / 40cm length
Discharge:
Single-Cell Over-Discharge Voltage: 2.7V ±0.08V
Continuous Operating Current: 15A
Instantaneous Protection Current: 80A
Overcurrent Recovery Condition: Charge Recovery/Disconnect Load
Short Circuit Recovery Condition: Charge Recovery/Disconnect Load
Charging:
Single-Cell Overcharge Voltage: 4.25V ± 0.025V
Continuous Charge Current: 15A
Charger Voltage: 56V-60V (Recommended)
Shipping List:

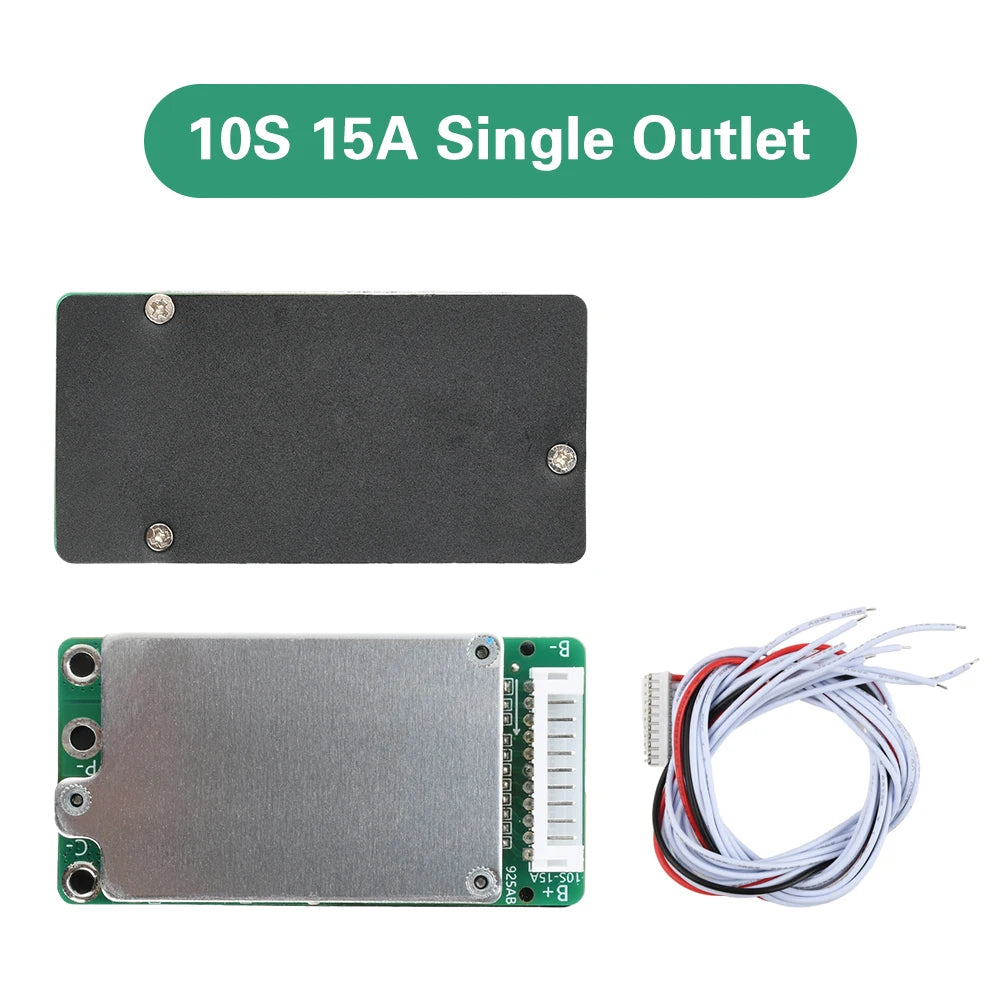

Protection Board x1
Data Acquisition Cable x1
Options
- Color: Separate Mouth, Same Mouth
