BMS 3S 8A 11 1V Same Port 18650 Li-ion Battery Charging Protection
$7.15
Sale price
$7.15
Regular price
$8.86
Shipping calculated at checkout.
Discover the BMS 3S 8A 11 1V Same Port 18650 Li-ion Battery Charging Protection — a standout decor pick featuring adjustable design for dependable, everyday performance.
Specifications
Brand Name: Aideepen
Condition: New
Type: Module
Features:

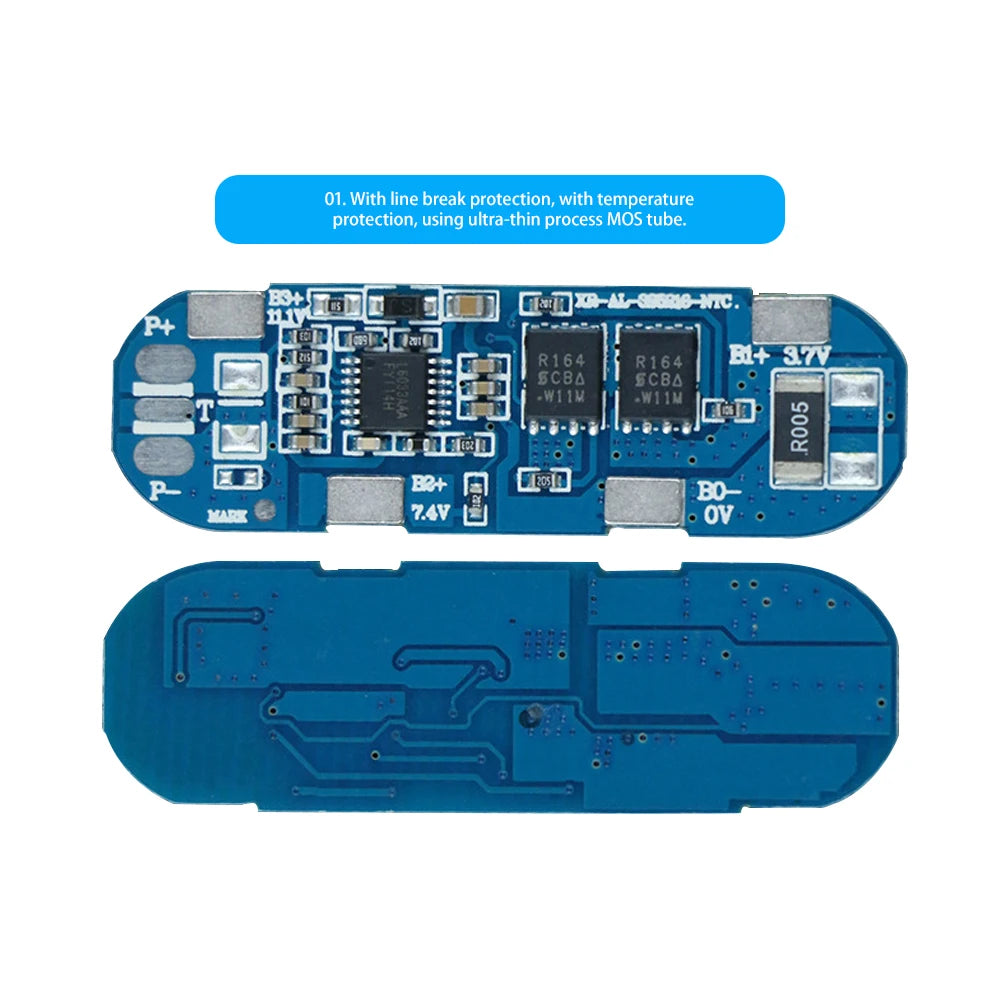

1. Features wire break protection and temperature protection, utilizing ultra-thin MOSFET technology

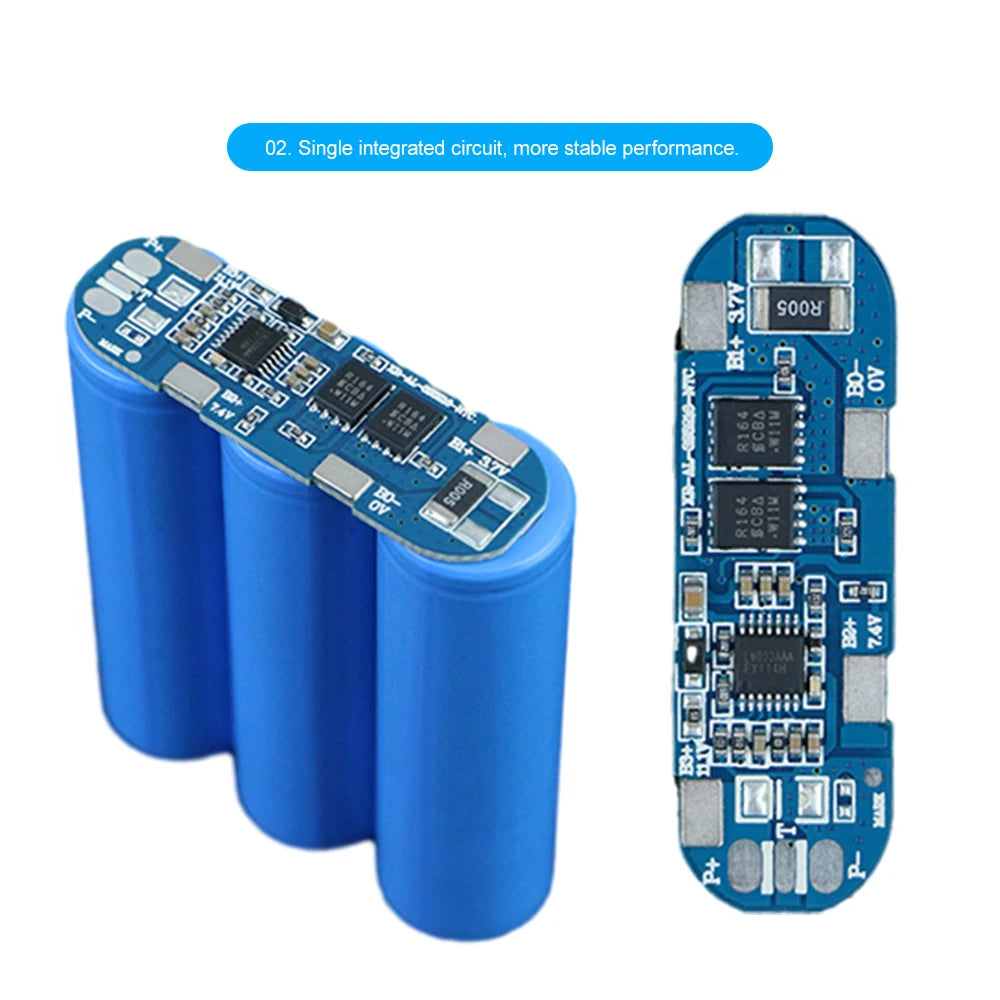

2. Incorporates a single integrated circuit for enhanced stability
3. Short-circuit protection instantly disconnects the circuit upon detecting a short in the battery or charger, preventing fires and circuit damage caused by short circuits
4. Overcurrent protection: Halts current output when battery or charger current exceeds set value, preventing fires caused by excessive heat from high currents
5. Temperature control protection: Disconnects circuit upon detecting excessive battery or charger temperature to prevent fires from overheating
6. Precision craftsmanship with stable heat dissipation; includes overvoltage protection, over-discharge protection, charging protection, short-circuit protection, and overcurrent protection
Product Specifications:
Battery Type: Ternary/3S/11.1V

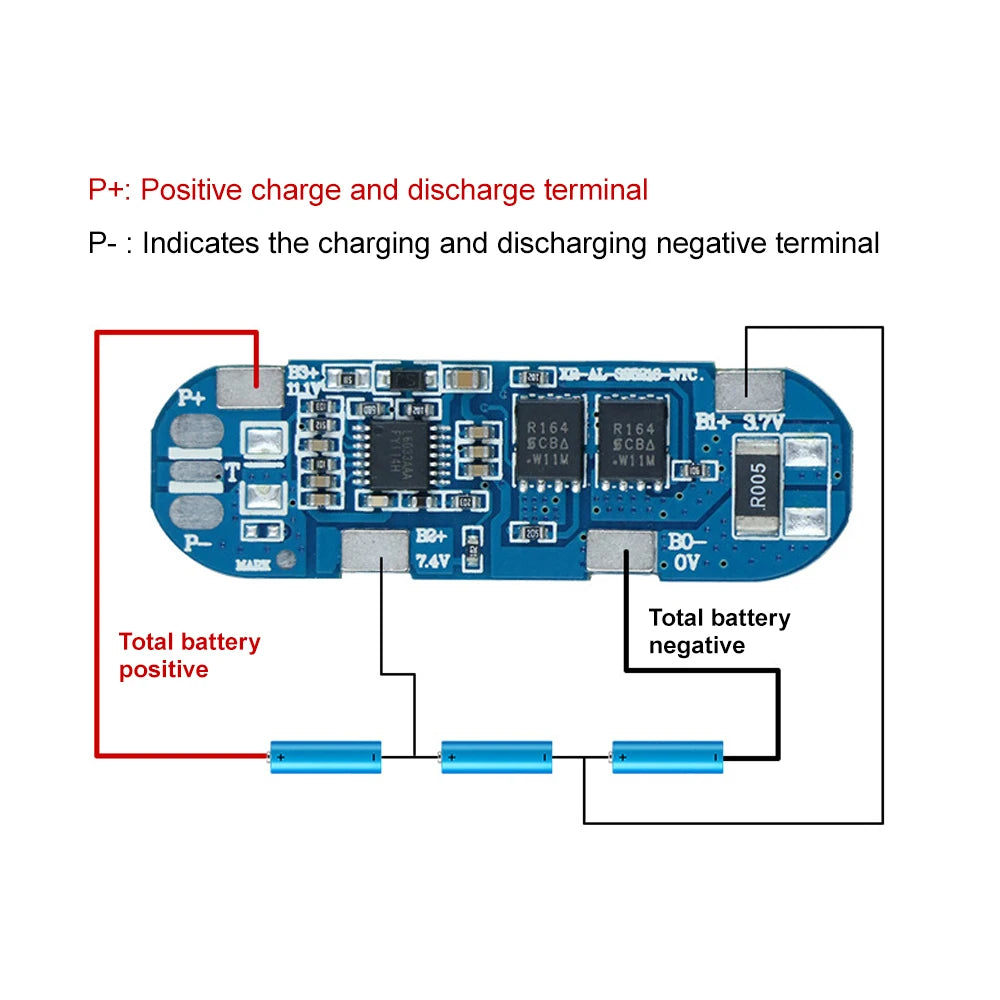

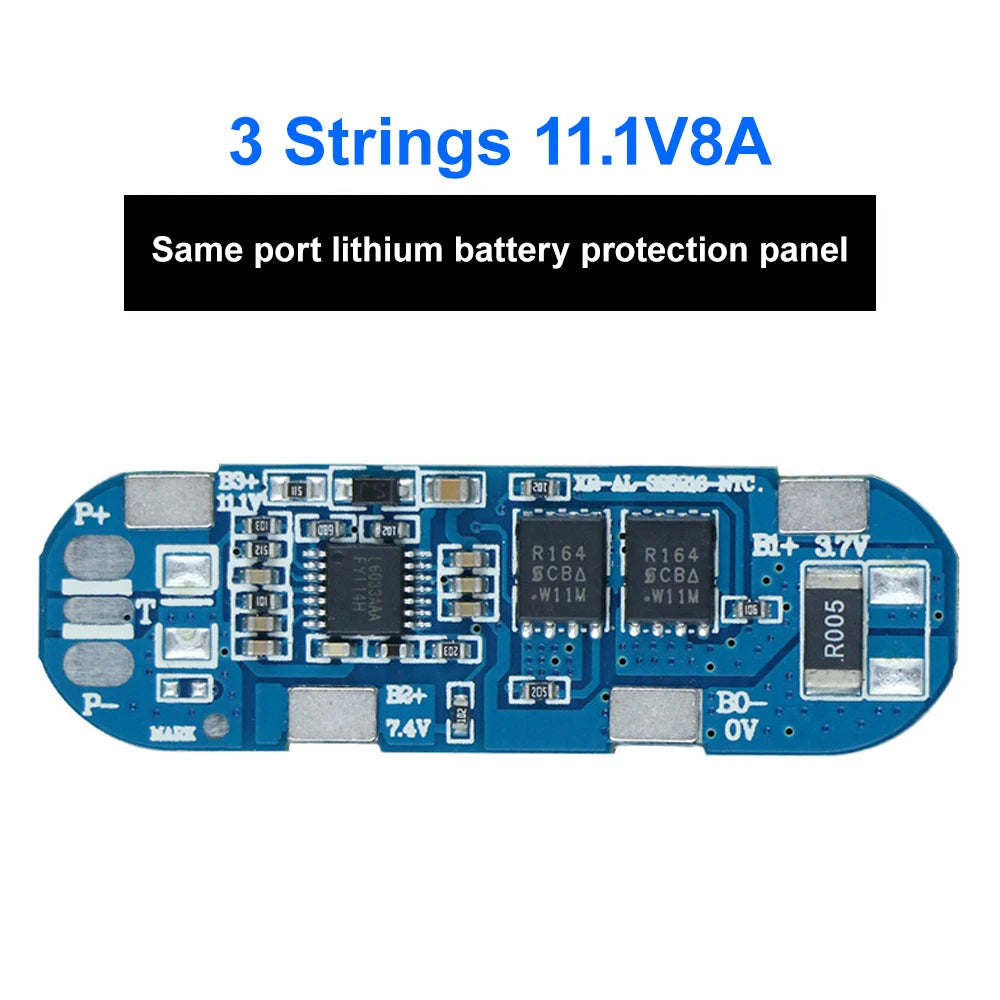

Connection Method: Same-port
Single-cell Over-discharge Voltage: 2.7V ± 0.08V
Continuous Operating Current: 8A
Instantaneous Protection Current: 20A
Overcurrent Recovery Condition: Charge recovery or disconnect load
Short Circuit Recovery Condition: Charge recovery or disconnect load
Single Cell Overcharge Voltage: 4.25V ± 0.025V
Continuous Charge Current: 5A
Charge Overcurrent Protection: 10A
Charge Balancing Voltage: None
Charge Balancing Current: None
Charger Voltage: 12.6V (Recommended)
Charging over-temperature: Default: High 50℃, Low 0℃ (adjustable)
Discharging over-temperature: Default: High 70℃, Low 0℃ (adjustable)
Operating power consumption: 20μA
Main circuit conduction resistance: 15mΩ
Temperature range: -40 to +80℃
Open-circuit protection: Yes

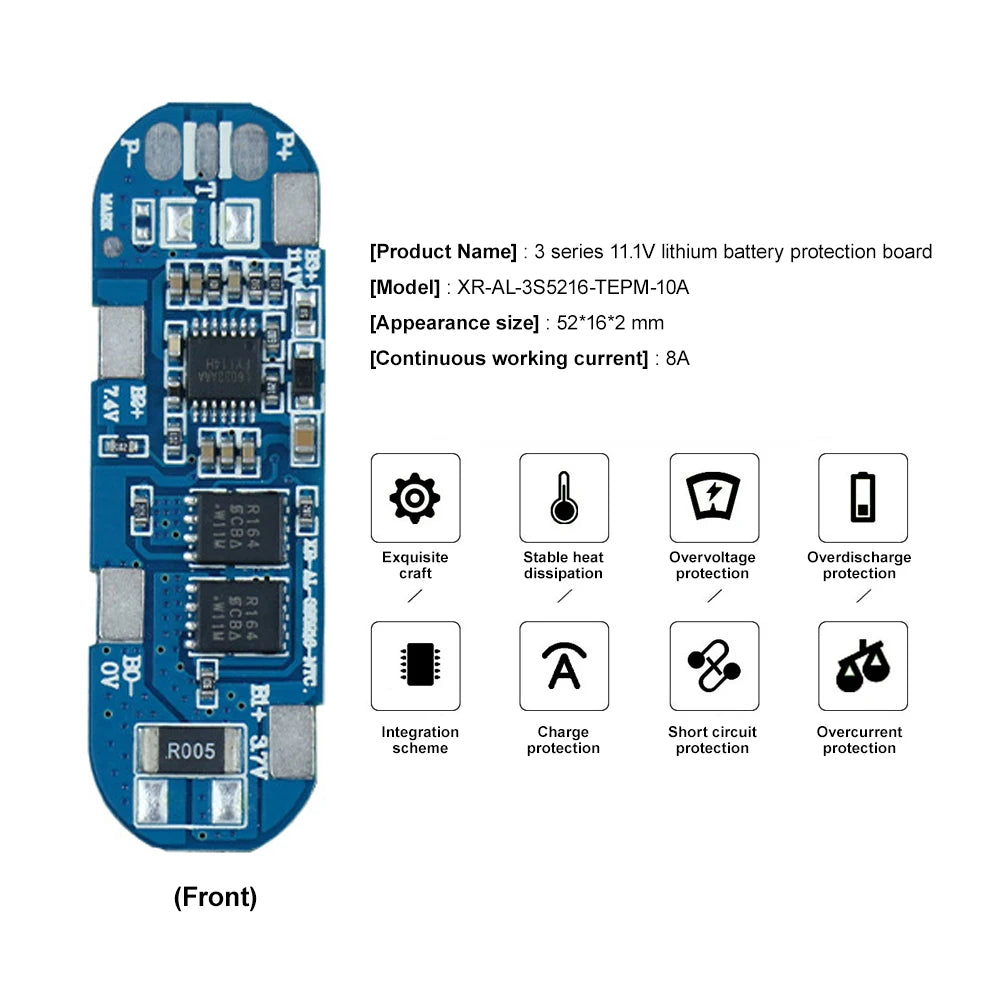

Product dimensions: 52*16*2mm
Product List
1X Protection Board
