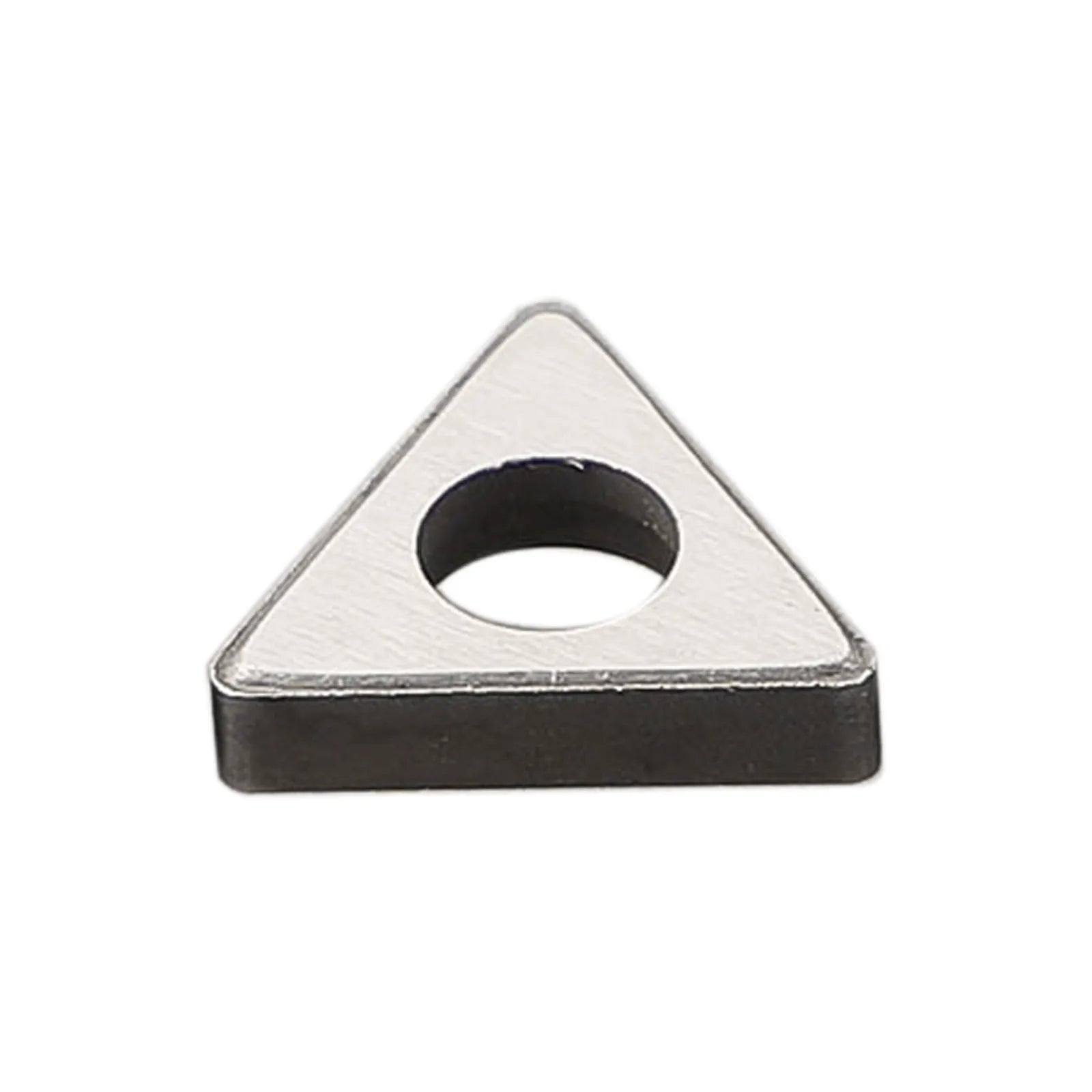

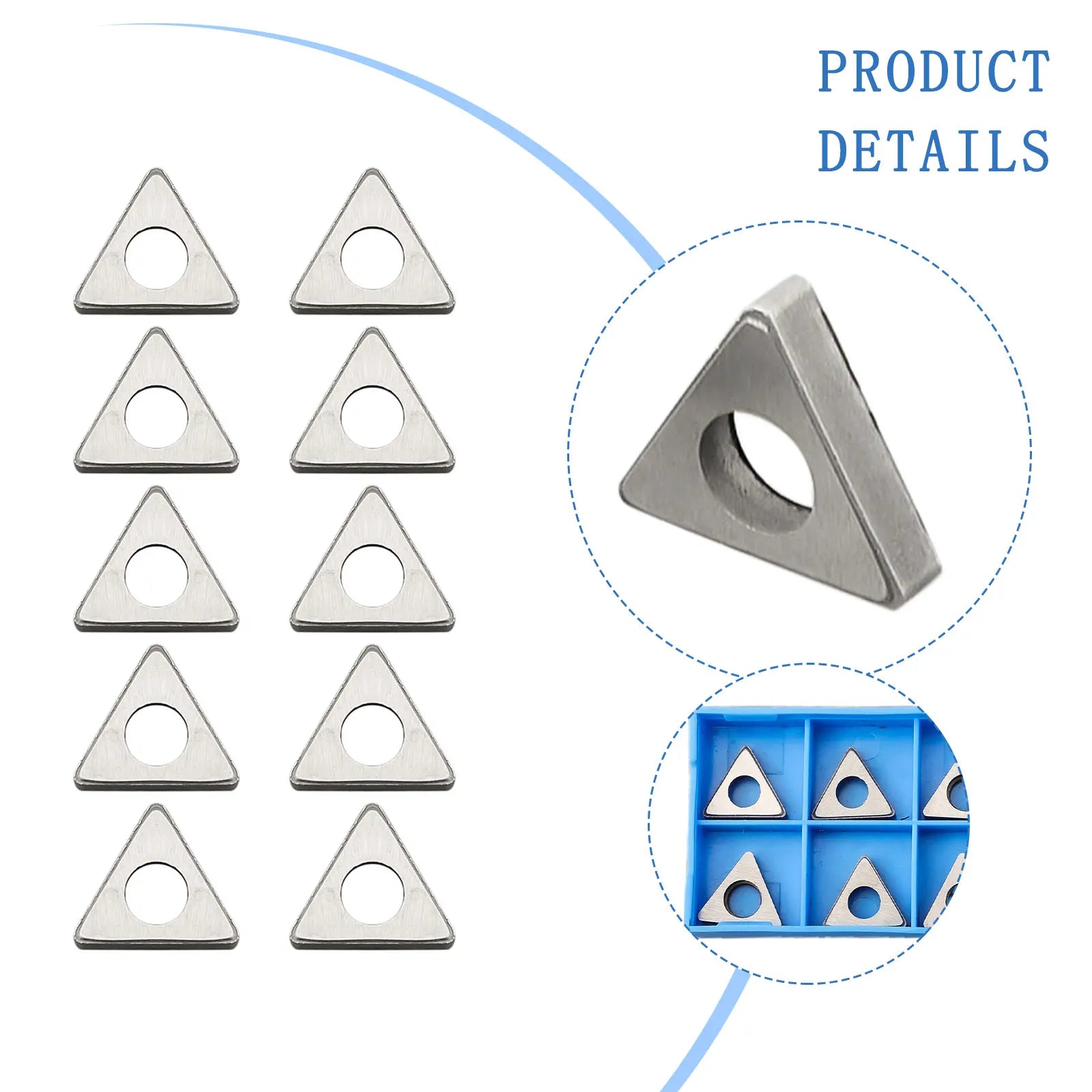

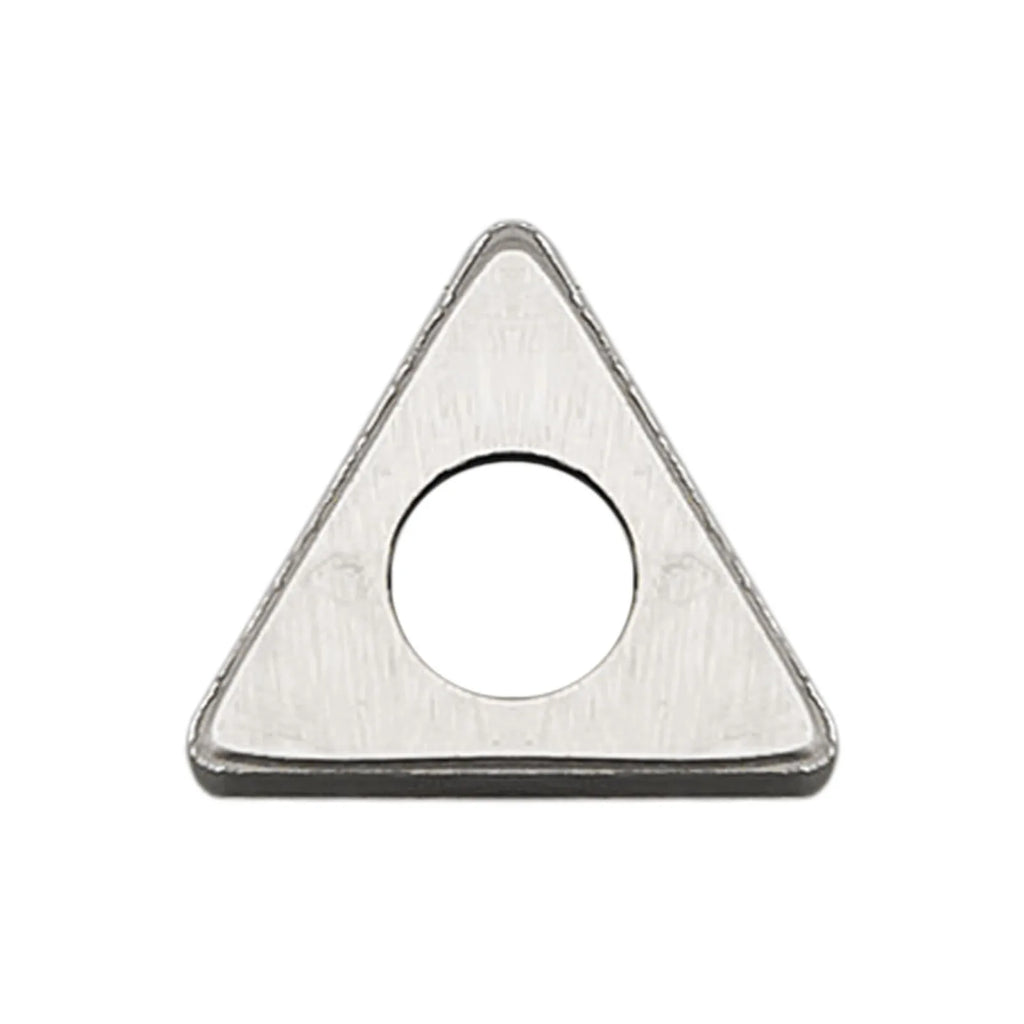

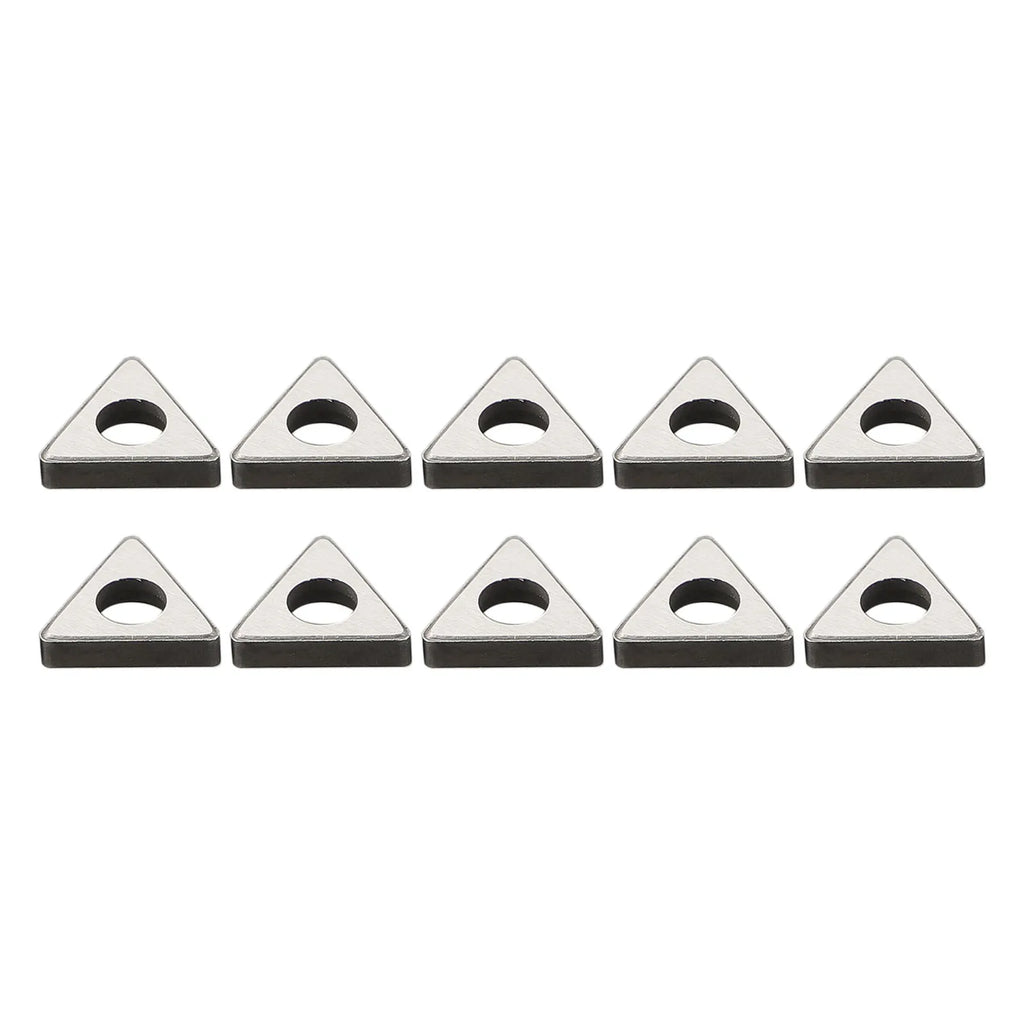

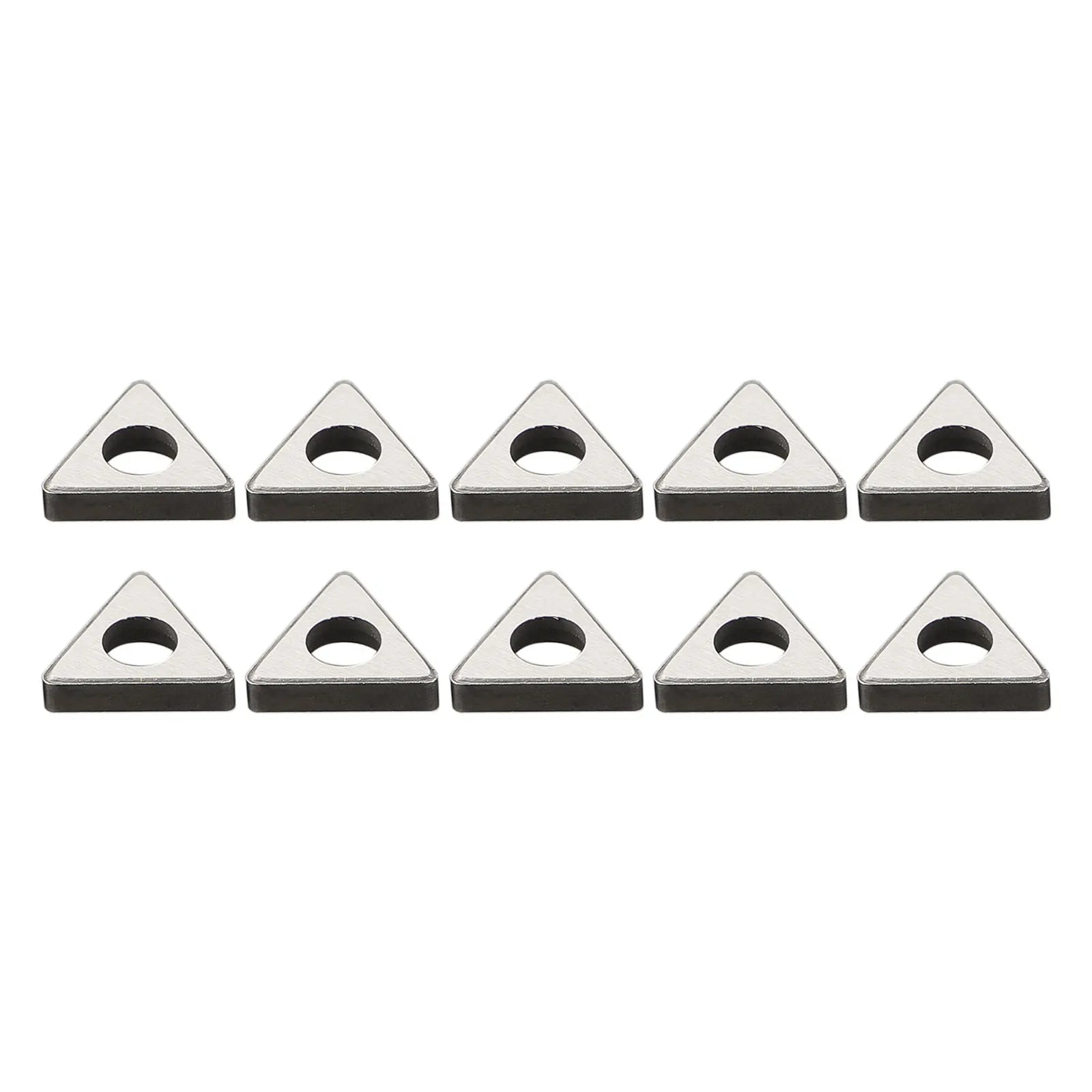

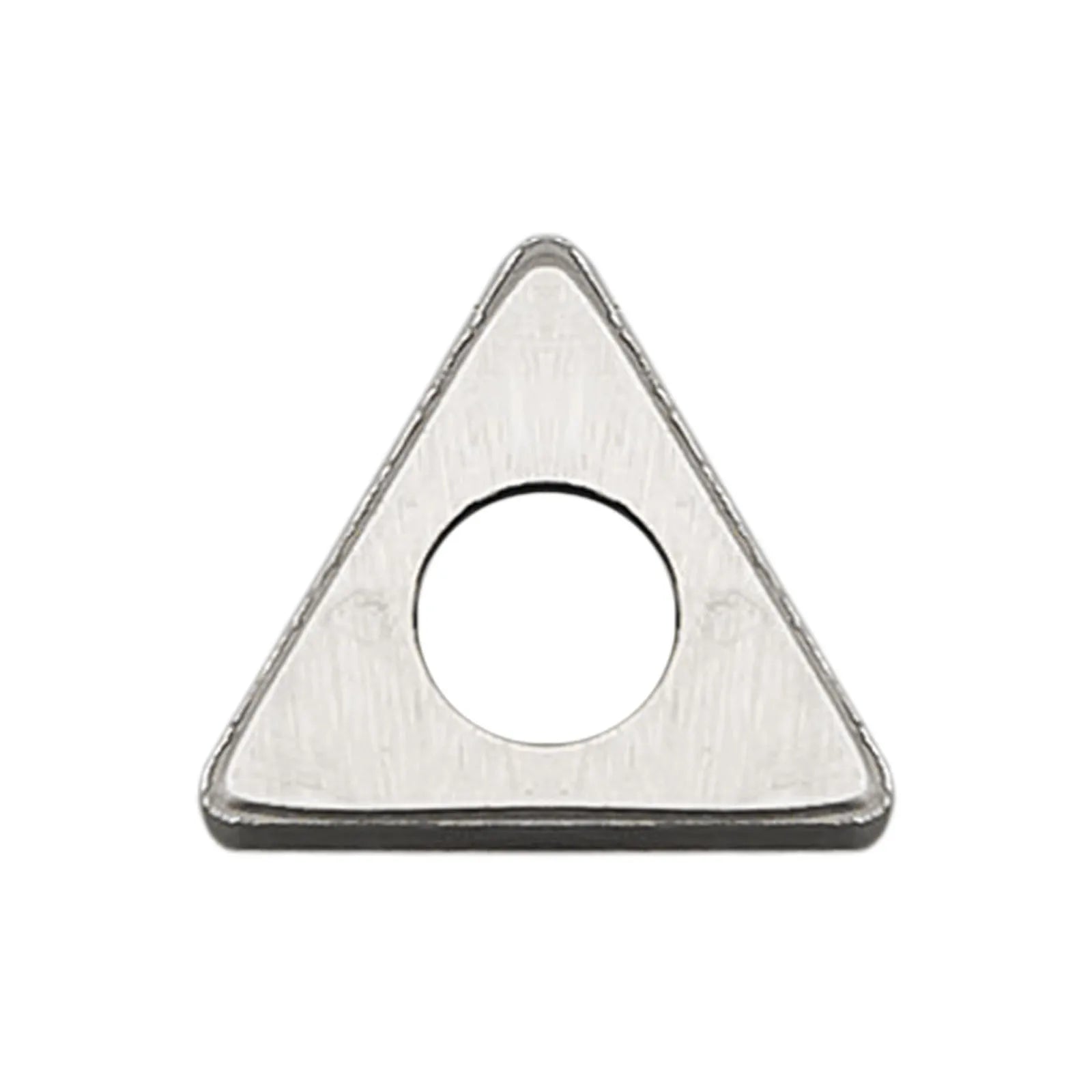

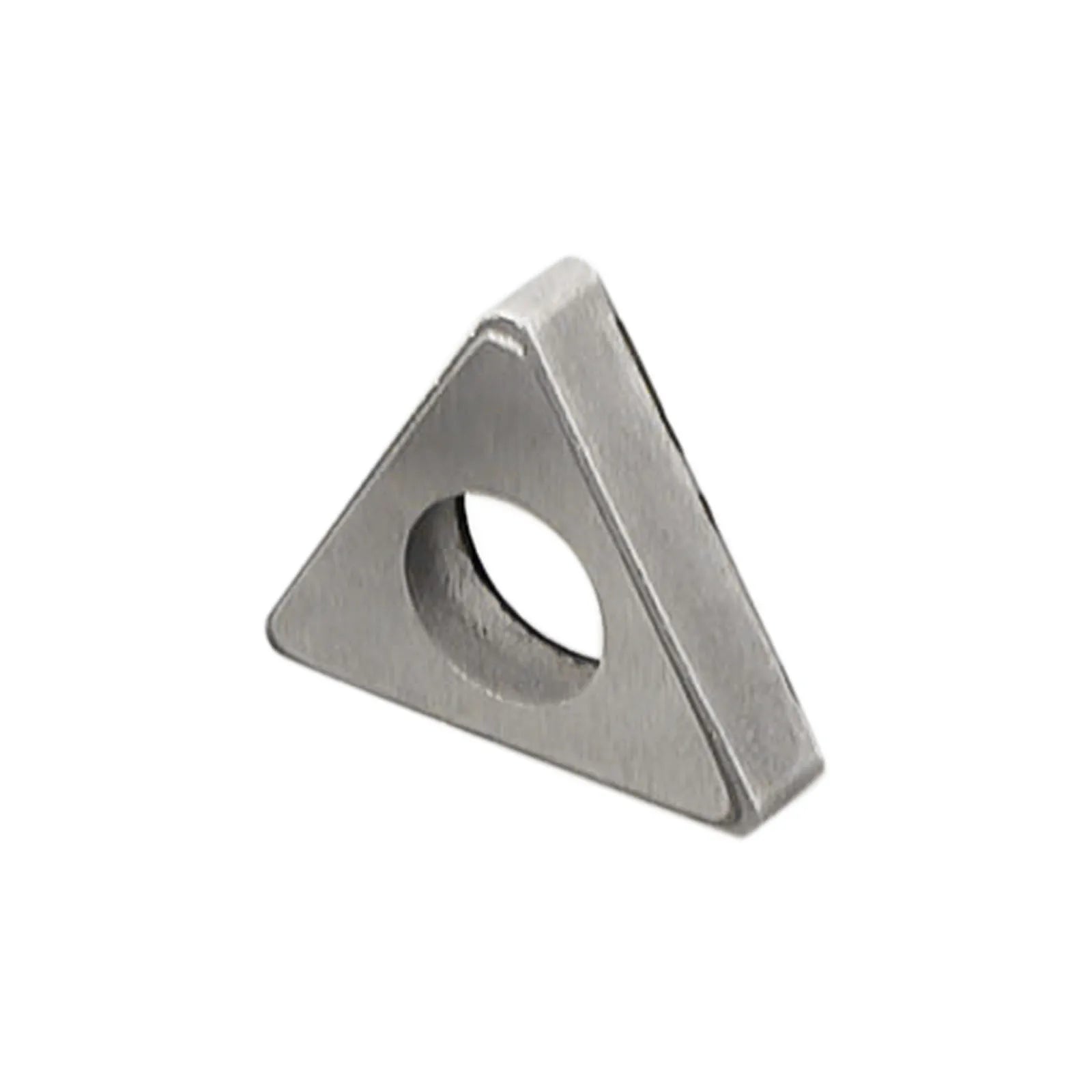

10-Piece CNC Turning Tool Holder Triangular Wedge Shim Set – MT1603 & MT2204

Keep your CNC lathe running at peak performance with this precision-engineered set of 10 triangular wedge shims. Compatible with MT1603 and MT2204 tool holders, these protective shims are designed to secure insert blades, minimize wear on cutting tools, and maintain consistent stability during turning operations — all in a compact, easy-to-install format.

Key Features

Dual Model Compatibility: Fits MT1603 and MT2204 CNC turning tool holders for versatile workshop use.
Reduced Tool Wear: Well-made shim design effectively reduces wear on cutting inserts, extending the life of your tooling.
High Strength & Stability: Engineered for rigidity, these wedge shims maintain a secure grip and resist movement under load.
Lightweight Construction: High strength-to-weight ratio ensures stable performance without adding unnecessary bulk to your tool holder setup.
Silver Finish: Clean, corrosion-resistant silver-tone surface for durability in demanding machining environments.
Simple Installation: Easy to fit and replace — no special tools required, keeping your downtime to a minimum.

Specifications

Models: MT1603 & MT2204
Quantity: 10 pieces
Color: Silver

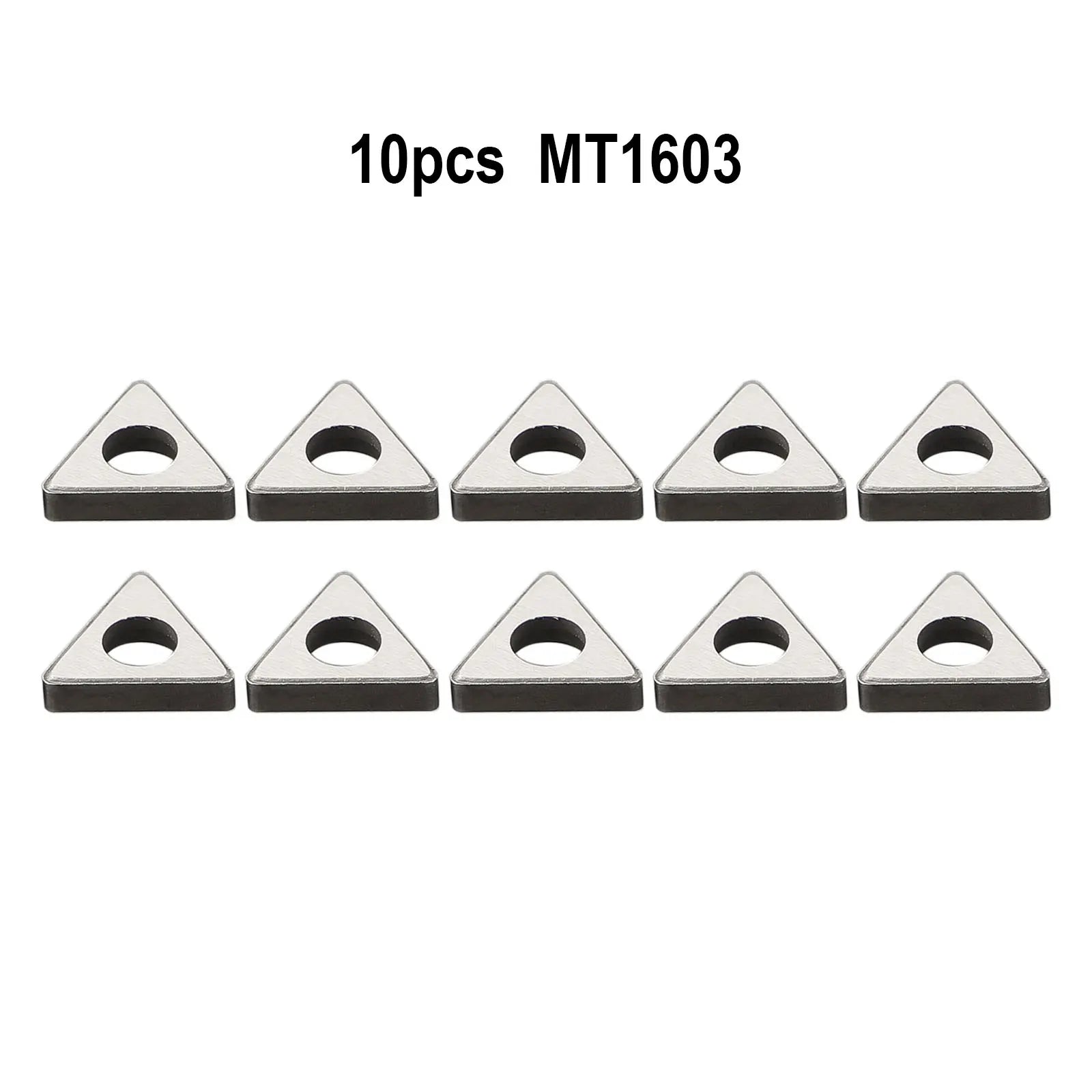

MT1603 Size: 1.46 × 1.20 × 0.32 cm

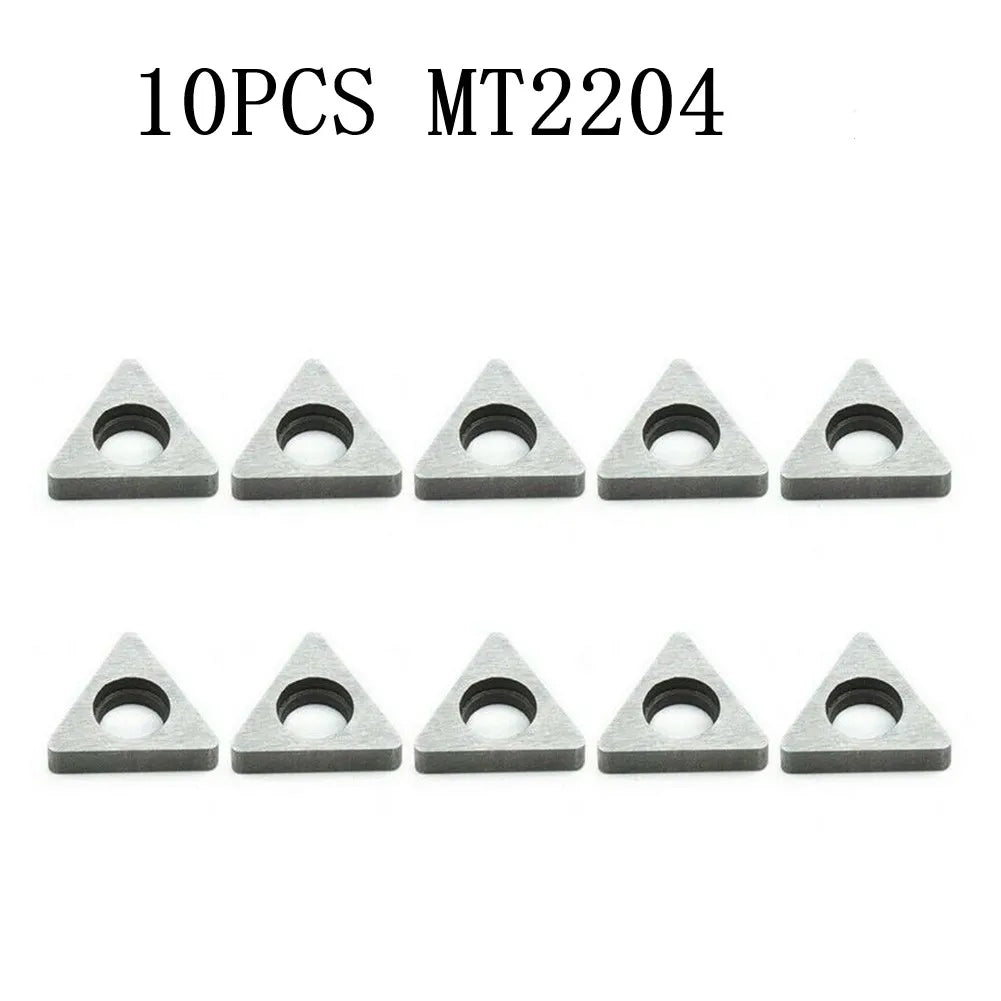

MT2204 Size: 2.00 × 1.76 × 0.47 cm
Material: High-strength alloy
Brand: VIBRATITE
Made in Mainland China

What's in the Box

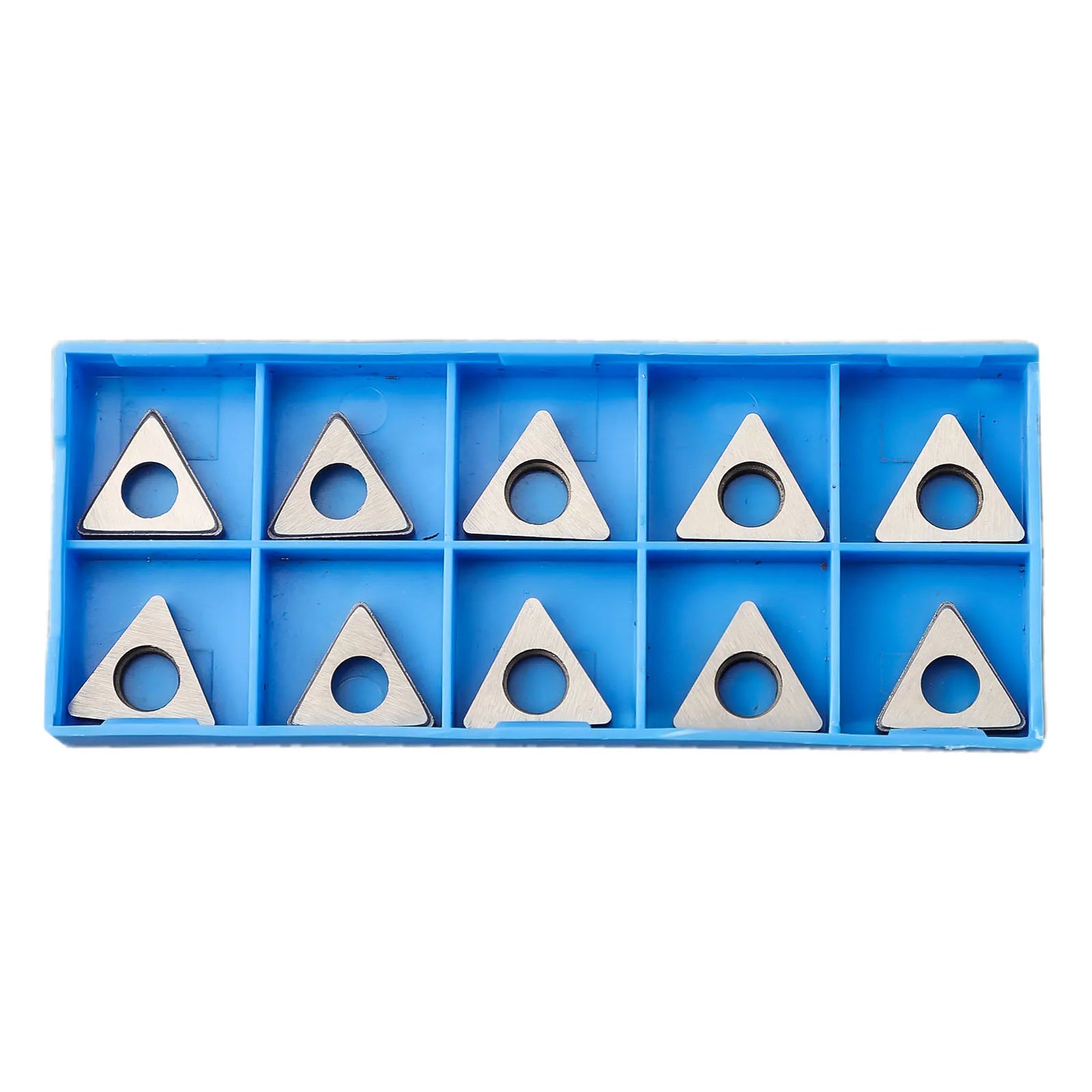

10 × MT1603 / MT2204 CNC Turning Tool Holder Triangular Wedge Shims

Related Products You May Like

Machining Safety & Best Practices

For general machining tool safety guidance, refer to the OSHA Machine Guarding resource to ensure safe operation of CNC and turning equipment in your workshop.

Note: Due to display settings and lighting conditions, the actual product color may vary slightly from images shown. Please allow a minor dimensional tolerance of ±0.05 mm compared to listed measurements.

Frequently Asked Questions

Q: What CNC tool holder models are these shims compatible with?

A: These triangular wedge shims are specifically designed for MT1603 and MT2204 CNC turning tool holders. Always verify your tool holder model number before ordering to ensure a proper fit.

Q: How many shims are included in the set?

A: Each set includes 10 pieces of CNC turning tool holder wedge shims, giving you plenty of replacements and spares for continuous machining operations.

Q: What is the purpose of a wedge shim in a CNC tool holder?

A: Wedge shims (also called protective shims or insert shims) sit between the cutting insert and the tool holder pocket. They protect the tool holder seat from wear, ensure a stable clamping surface for the insert, and help maintain cutting accuracy over time.

Q: Are these shims easy to install?

A: Yes. These shims are designed for quick and straightforward installation with no special tools required. Simply place the shim into the tool holder pocket before seating your cutting insert and securing the clamping screw.
