CNC Wire EDM Jig Holder Clamp – Stainless Steel M6 M8 M10

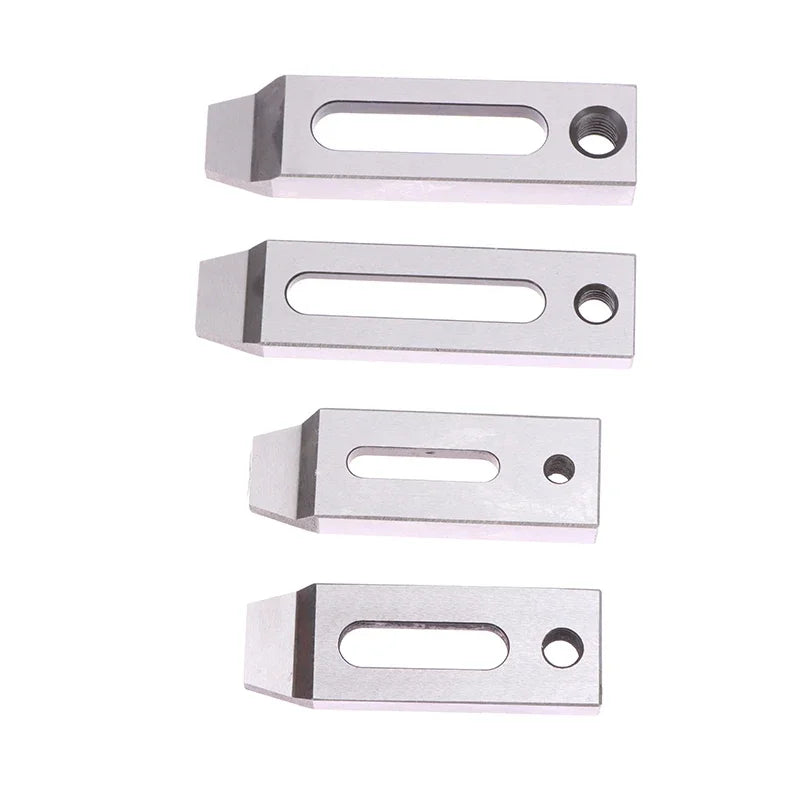

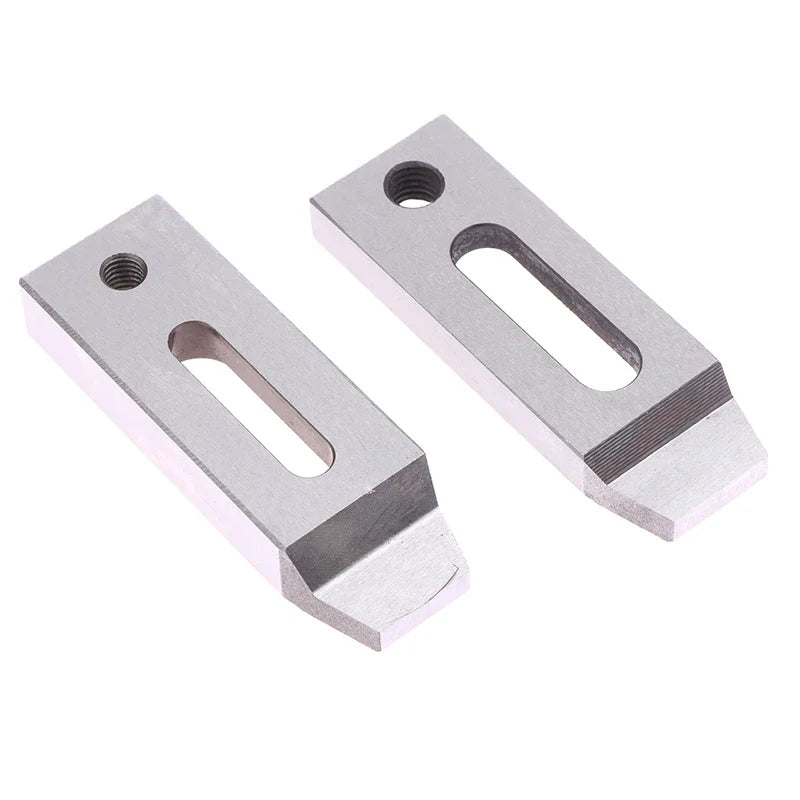

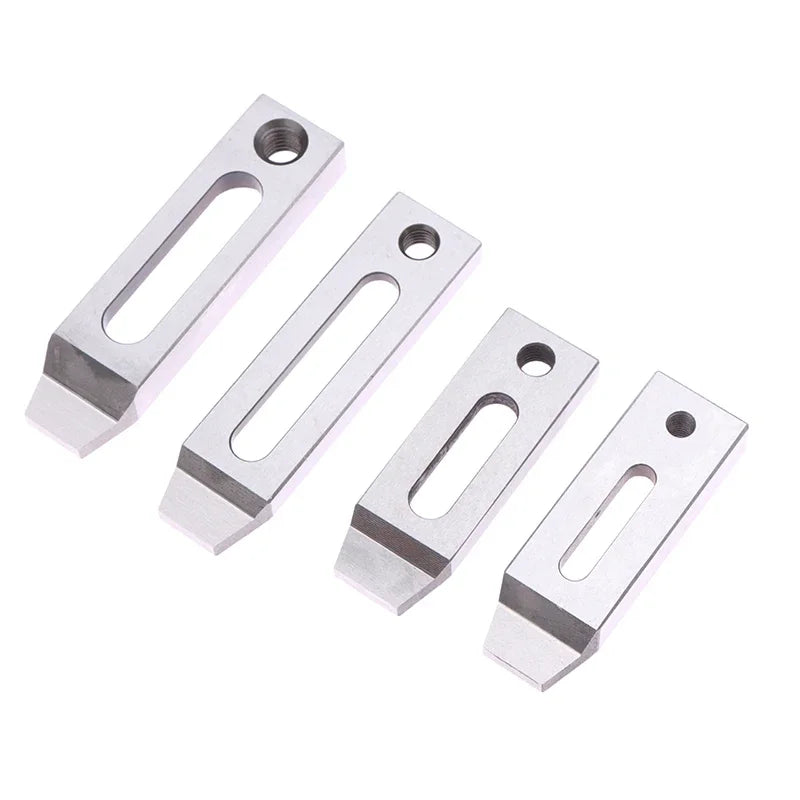

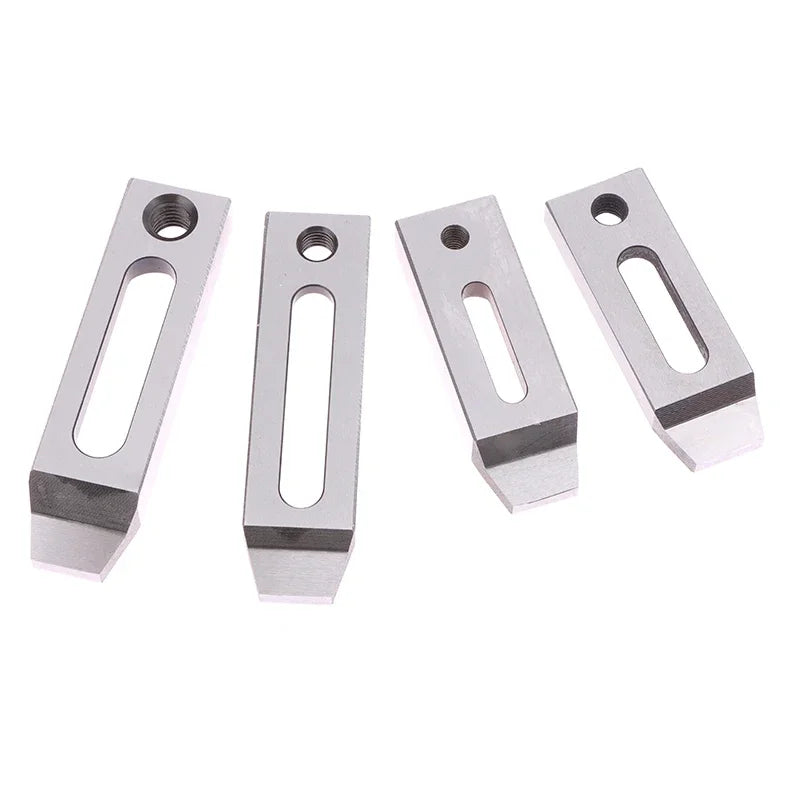

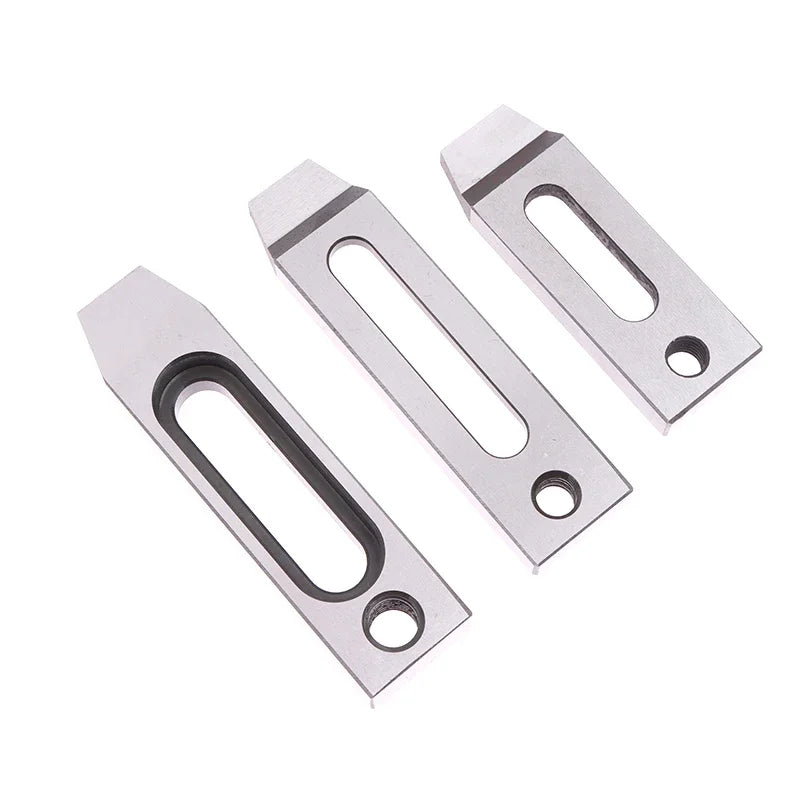

CNC Wire EDM Stainless Steel Jig Holder & Pressure Plate Clamp

Upgrade your wire EDM machining setup with this precision-engineered stainless steel jig holder clamp. Designed specifically for CNC slow-wire EDM machines, this pressure plate securely holds workpieces in place for accurate, repeatable cuts. Compatible with M6, M8, and M10 thread sizes, it's a versatile addition to any machine shop or CNC workshop.

Key Features

• Material: High-grade stainless steel – corrosion-resistant and built for long-term workshop use
• Thread Compatibility: M6, M8, M10 – fits a wide range of EDM machine configurations
• Available Sizes:

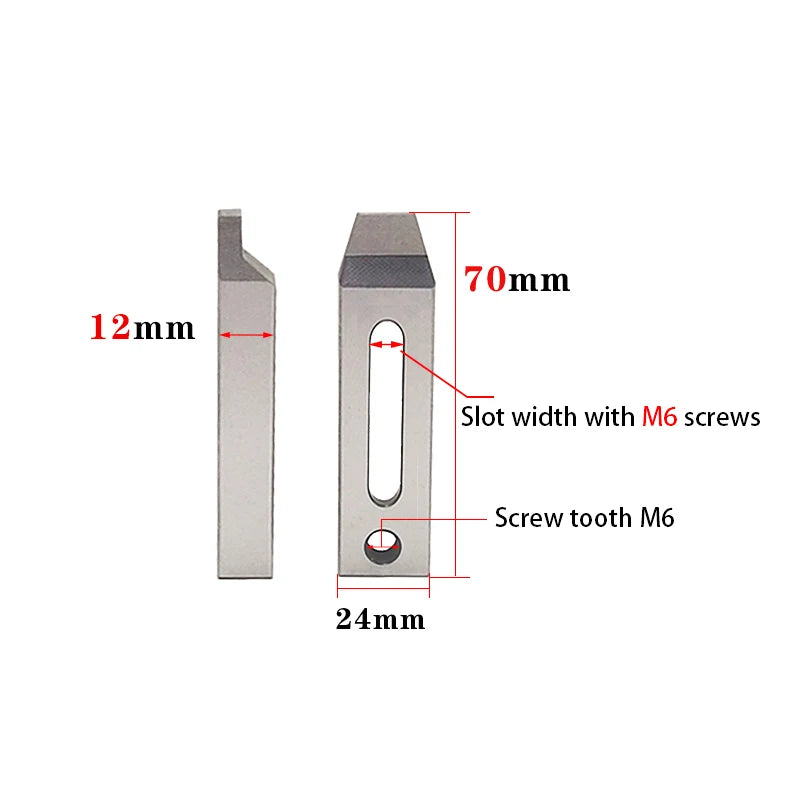

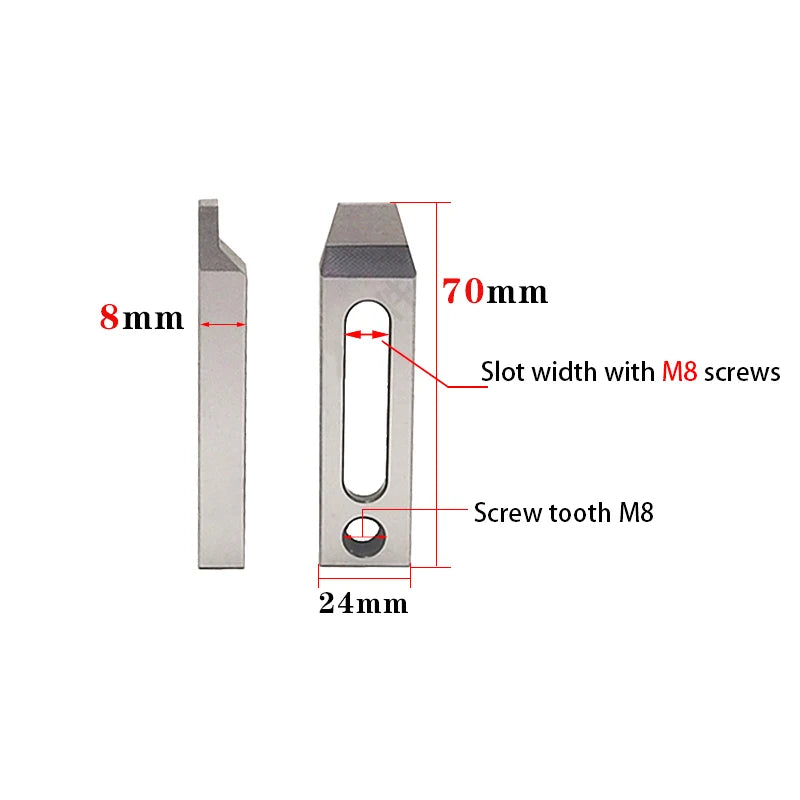

  • A1 & A2: 7 × 2.4 cm (2.75 × 0.94 in)

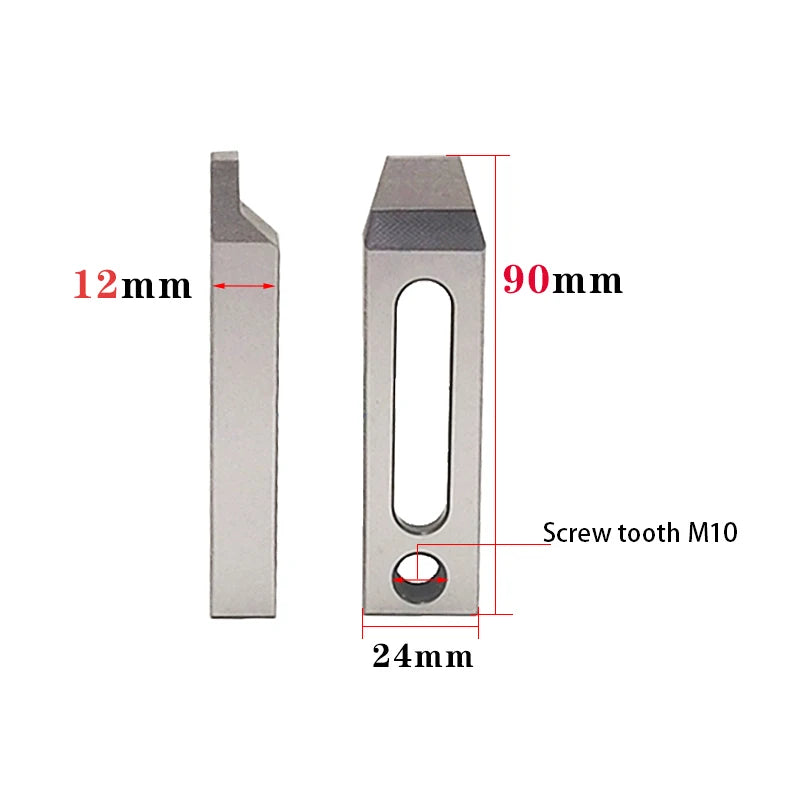

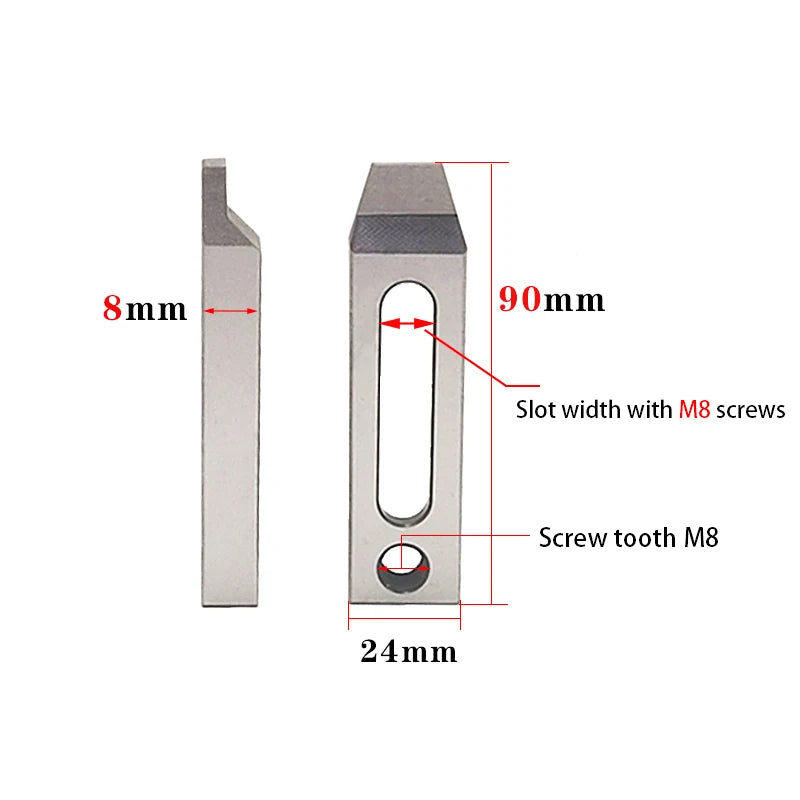

  • A3 & A4: 9 × 2.4 cm (3.54 × 0.94 in)
• Color: Silver
• Construction: 100% brand new, precision manufactured for consistent performance
• Application: Ideal for CNC slow-wire EDM machines – provides firm clamping pressure to keep workpieces stable during cutting operations
• Made in Mainland China

What's Included

• 1 × Stainless Steel EDM Jig Holder Pressure Plate Clamp

Important Notes

• Photos are for reference only and may not reflect actual size — always refer to the dimensions listed above.
• Please allow 5–10 mm variance due to manual measurement.
• Actual colour may vary slightly from images due to monitor calibration differences.

Related Products You May Also Need

• 1/4" Hex Wire Twister Drill Attachment – Rebar Tie Wire Tool
• 1/2" & 3/4" PPR Water Pipe Tap – Alloy Steel Anti-Corrosion

For more information on machining safety standards and workplace tool guidelines, visit OSHA Machine Guarding.

Frequently Asked Questions

Q: What thread sizes does this CNC Wire EDM jig holder clamp support?

A: This stainless steel pressure plate clamp is compatible with M6, M8, and M10 thread sizes, making it suitable for a wide variety of slow-wire EDM machine configurations.

Q: What are the available sizes for this EDM jig holder?

A: The clamp comes in two size options — A1/A2 at 7 × 2.4 cm (2.75 × 0.94 in) and A3/A4 at 9 × 2.4 cm (3.54 × 0.94 in). Please refer to these measurements when selecting the right size for your machine.

Q: Is this clamp suitable for high-precision CNC machining applications?

A: Yes. Made from high-grade stainless steel, this jig holder is designed to provide firm, stable clamping pressure during CNC wire EDM operations, supporting accurate and repeatable workpiece positioning.

Q: How many clamps are included in the package?

A: Each purchase includes 1 stainless steel EDM jig holder pressure plate clamp. If you need multiple units, simply increase the quantity at checkout.
