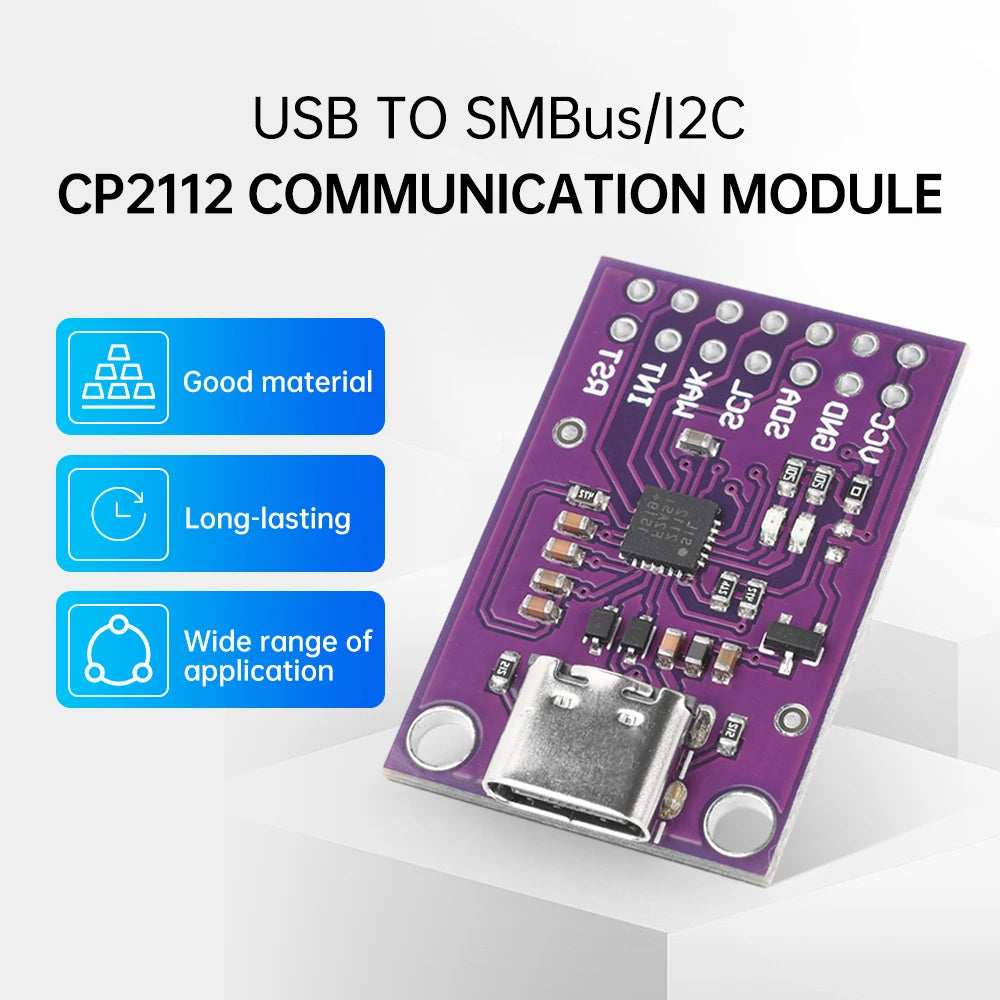

CP2112 Module Usb Smbus I2C Communication CCS811 Debugging Board

Discover the CP2112 Module Usb Smbus I2C Communication CCS811 Debugging Board — a standout electronics accessories pick featuring portable, long-lasting, premium design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Condition: New

Type: Module

Features:

1. Constructed with premium materials for long-lasting durability, featuring an integrated 194-byte one-time programmable ROM for storing customizable product information;

2. The highly integrated CP2112 USB-to-SMBus bridge controller incorporates a USB 2.0 full-speed functional controller, USB transceiver oscillator, and 8 GP10 pins;

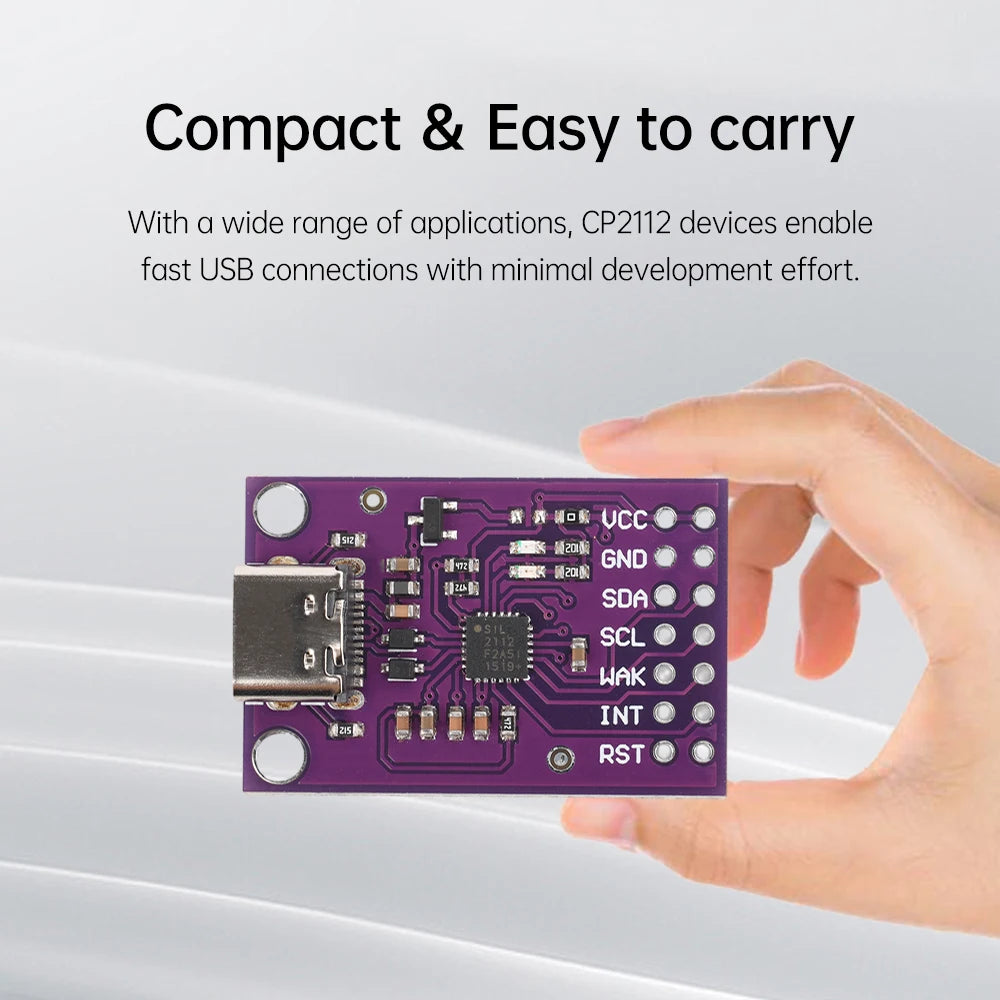

3. Compact and elegant design with dimensions of 32mm x 21mm for easy portability;

4. All customization and configuration options selectable via a simple GUI-based configurator; standard HID class device requires no complex firmware or driver development;

5. Wide application range enables rapid USB connectivity with minimal development effort.

Product Features:

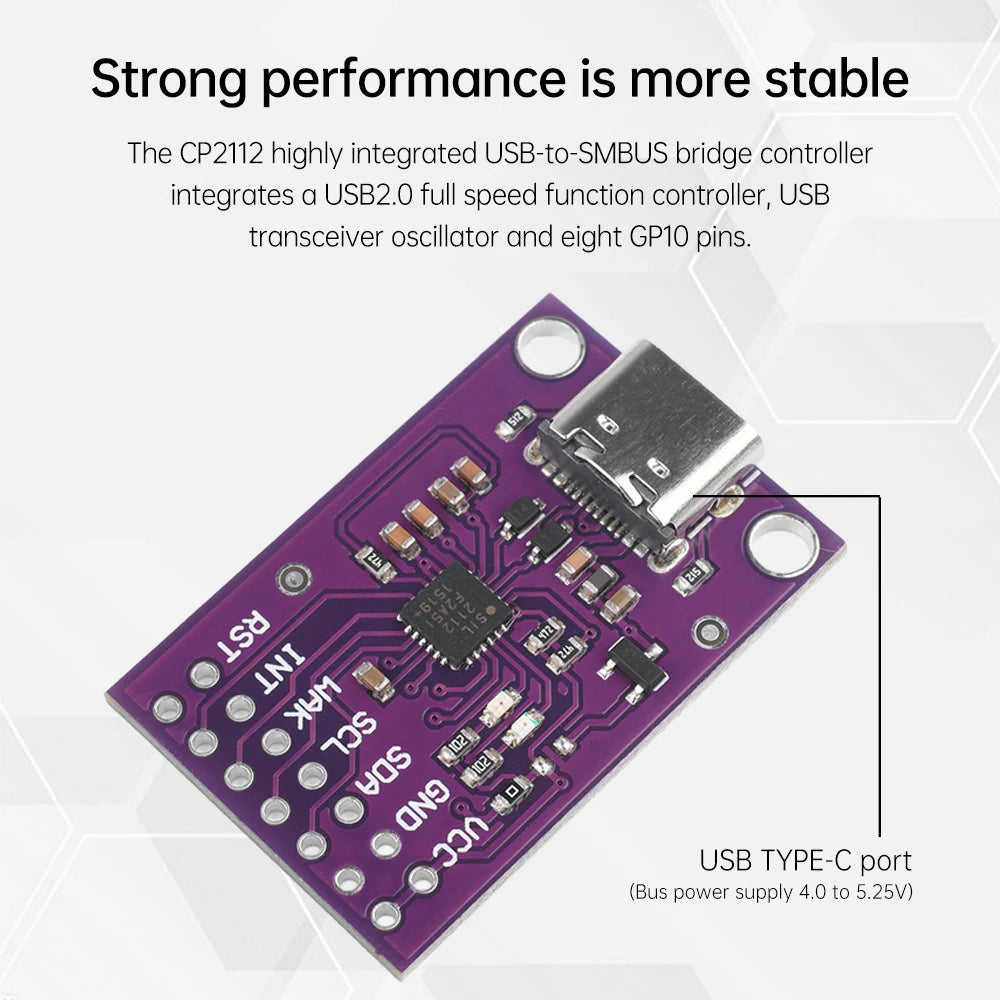

The CP2112 highly integrated USB-to-SMBus bridge controller integrates a USB 2.0 full-speed function controller, USB transceiver oscillator, and 8 GPIO pins. All customization and configuration options are selectable via a simple GUI-based configurator. Standard HID class devices require no complex firmware or driver development, enabling CP2112 devices to achieve rapid USB connectivity with minimal development effort.

Product Parameters:

1. USB Type-C interface bus power supply: 4.0 to 5.25V

2. Self-powered: 3.0 to 3.6V; I/O voltage: 1.8V to VDD

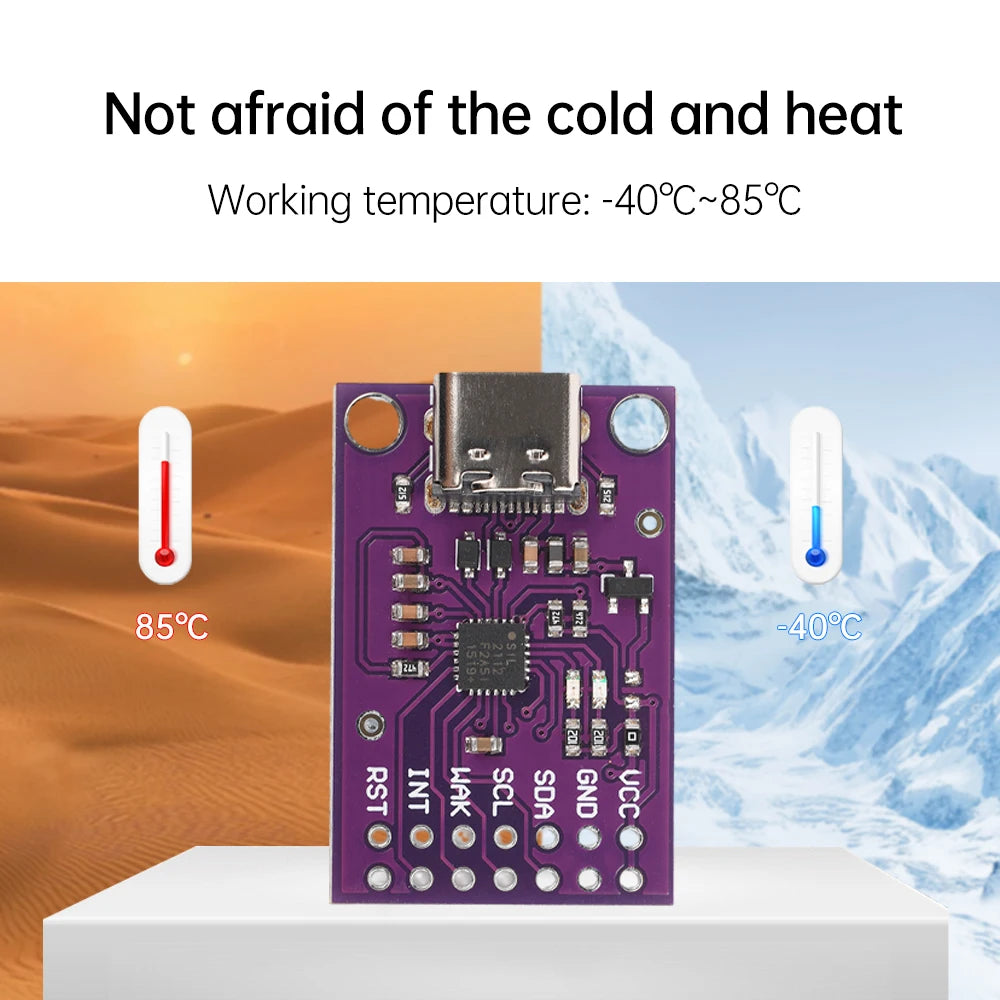

3. Operating temperature range: -40°C to 85°C

4. On-chip power-up reset circuit; on-chip regulator: 3.45V output

5. Compliant with USB 2.0 specification; Full-Speed (12Mbps)

6. Supports USB suspend state via SUSPEND pin

7. Integrated 194-byte one-time programmable ROM for storing customizable product information

8. 512-byte SMBus data buffer, configurable clock speed Device address 7-bit value (i.e., CP2112 slave address)

9. Windows, Mac, and Linux HID-to-SMBus libraries provide APIs for rapid application development, open access interface specifications.

10. 8 GPIO pins configurable as input/output and open-drain/pull-up, with configurable clock output from 48MHz to 94kHz for external devices, and read/write SMBus device status LED

11. Applications: Portable controllers, USB dongles, data logging

12. Dimensions (approx.): 32mm x 21mm

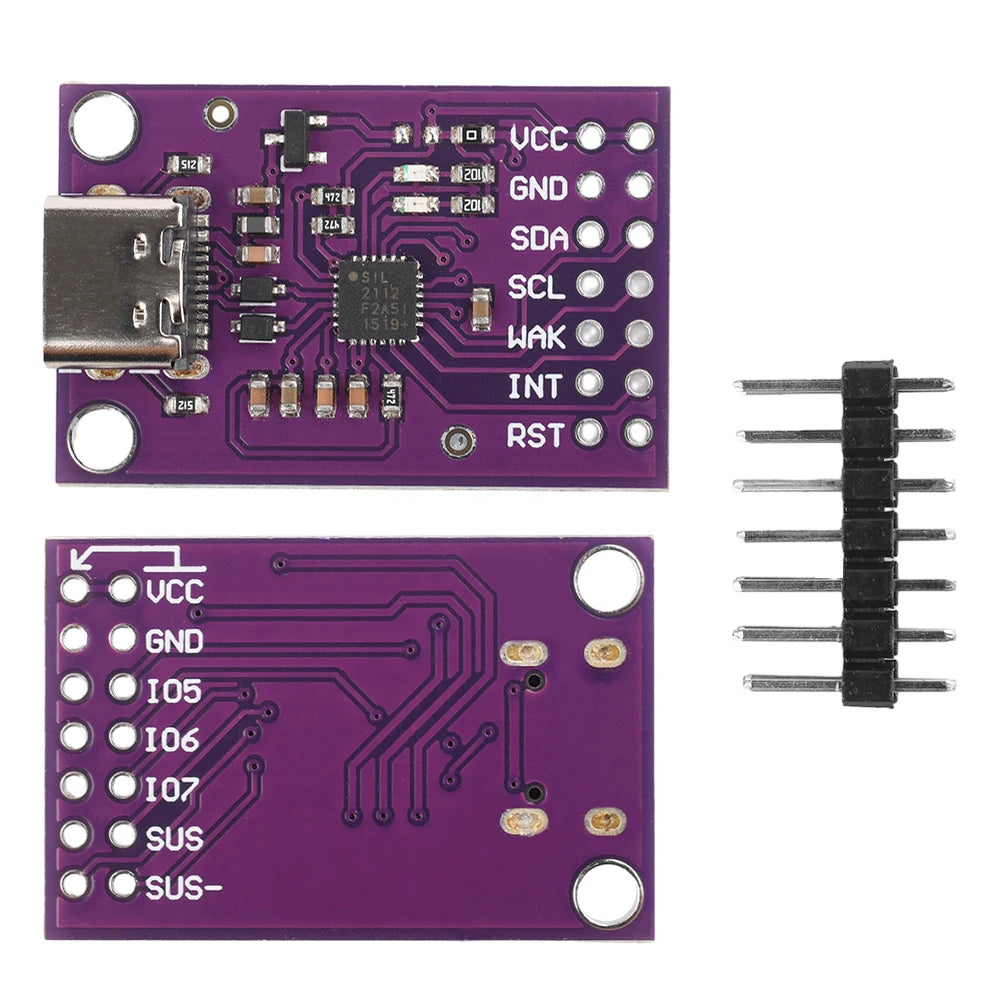

Product Listing:

1x Module

1x Dual-Row Pin Header

Frequently Asked Questions

Q: What is the CP2112 Module Usb Smbus I2C Communication CCS811 Debugging?

A: The CP2112 Module Usb Smbus I2C Communication CCS811 Debugging is a quality electronics accessories pick. Constructed with premium materials for long-lasting durability, featuring an integrated 194-byte one-time programmable ROM for storing customizable product information; 2.

Q: How do I use the CP2112 Module Usb Smbus I2C Communication CCS811 Debugging?

A: The CP2112 Module Usb Smbus I2C Communication CCS811 Debugging is ready to use right out of the box and makes an easy addition to your electronics accessories lineup.

Q: Why choose the CP2112 Module Usb Smbus I2C Communication CCS811 Debugging?

A: The CP2112 Module Usb Smbus I2C Communication CCS811 Debugging stands out in our electronics accessories range — The highly integrated CP2112 USB-to-SMBus bridge controller incorporates a USB 2.0 full-speed functional controller, USB transceiver oscillator, and 8 GP10 pins; 3.
