DC 0-300V 10A 50A 100A LED Digital Voltmeter Ammeter Car Motocycle
10A
$12.28
Sale price
$12.28
Regular price
$15.21
Skip to product information
DC 0-300V 10A 50A 100A LED Digital Voltmeter Ammeter Car Motocycle
$12.28
Sale price
$12.28
Regular price
$15.21
Shipping calculated at checkout.
Discover the DC 0-300V 10A 50A 100A LED Digital Voltmeter Ammeter Car Motocycle — a standout decor pick featuring compact design for dependable, everyday performance.
Specifications
Brand Name: Aideepen
Condition: New
Type: Module
Features:

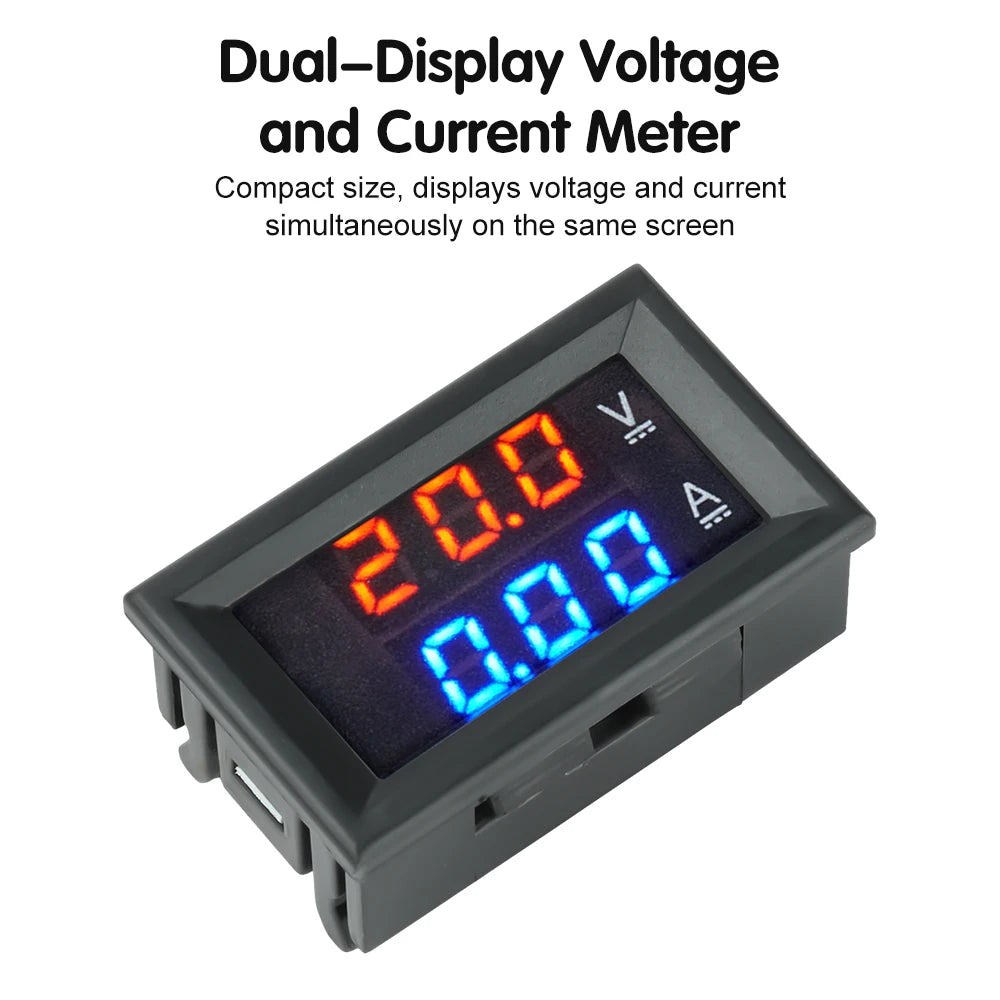

1. Dual-display voltage and current meter with compact size, capable of simultaneously showing voltage and current on the same screen

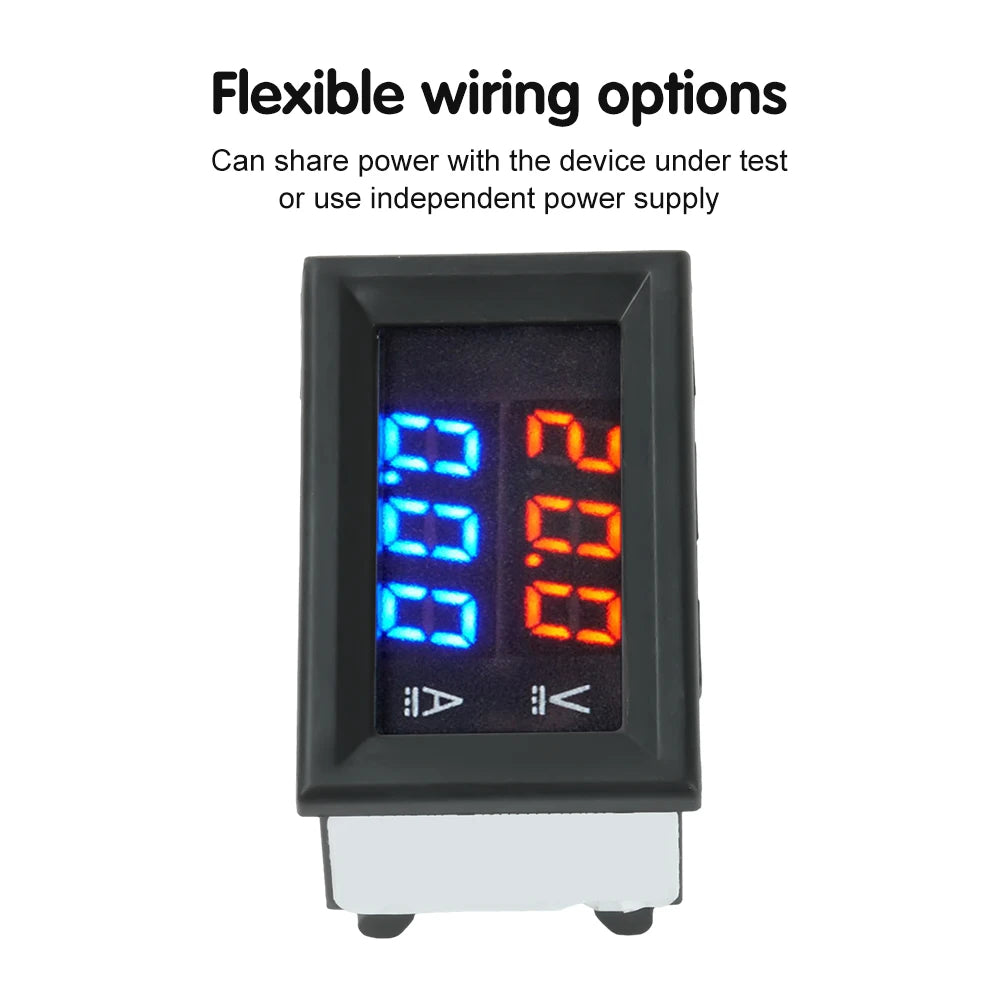

2. Flexible wiring options: can share power with the device under test or use independent power supply

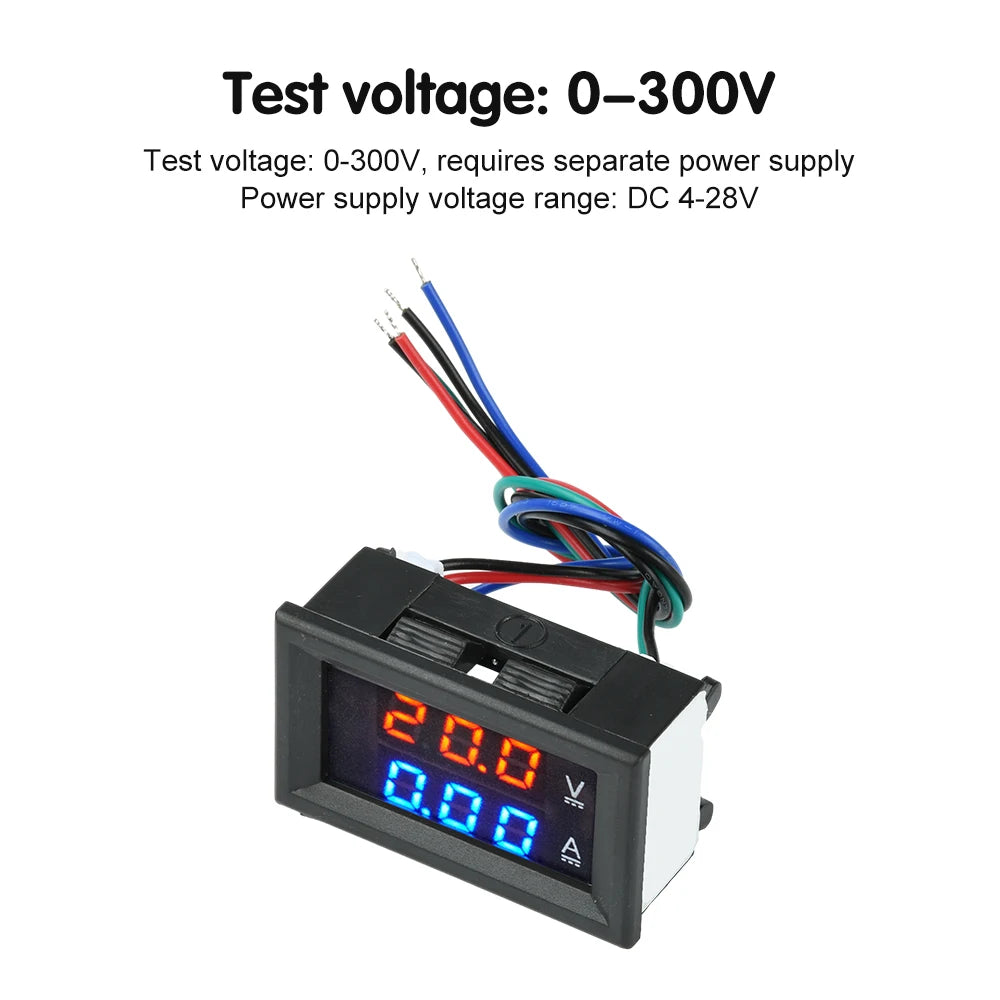

3. Test voltage range: 0-300V (requires separate power supply; power supply voltage range: DC 4-28V)

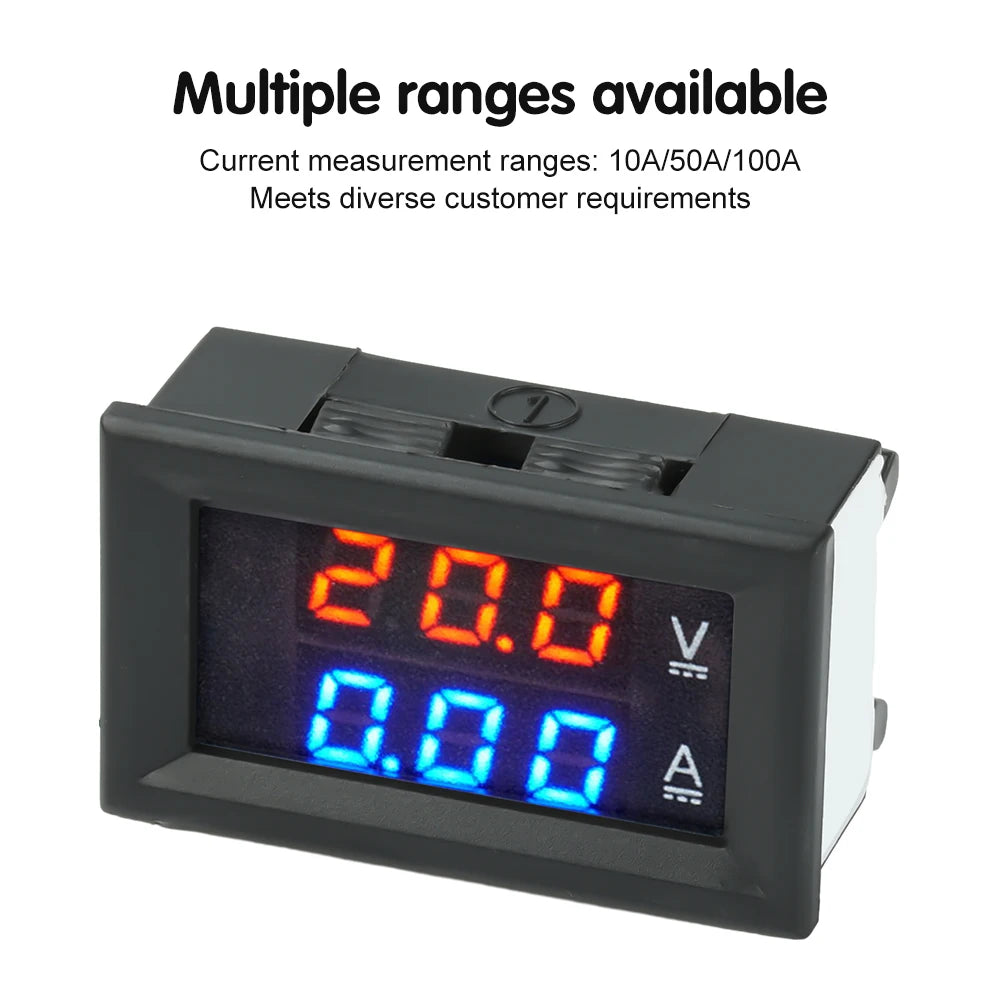

4. Selectable current measurement ranges: 10A/50A/100A to meet diverse customer requirements

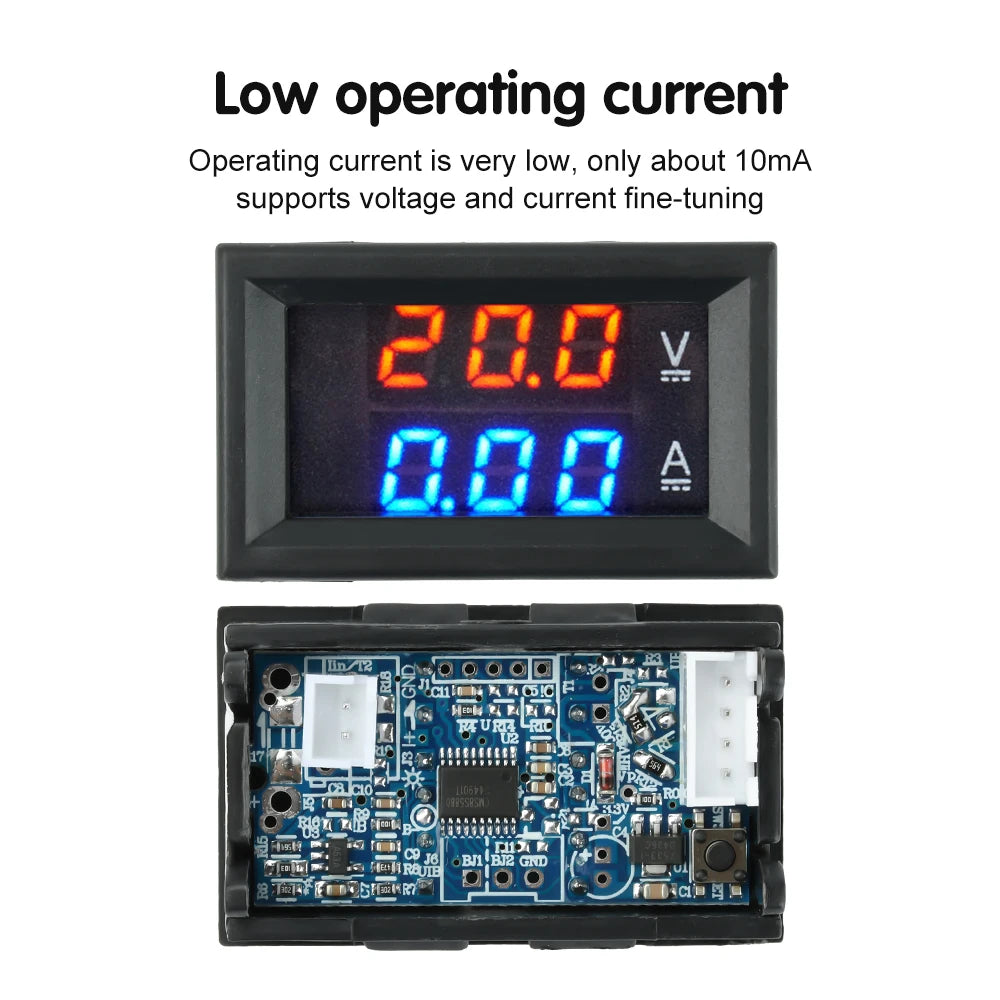

5. Ultra-low operating current of approximately 10mA; supports fine adjustment of voltage and current

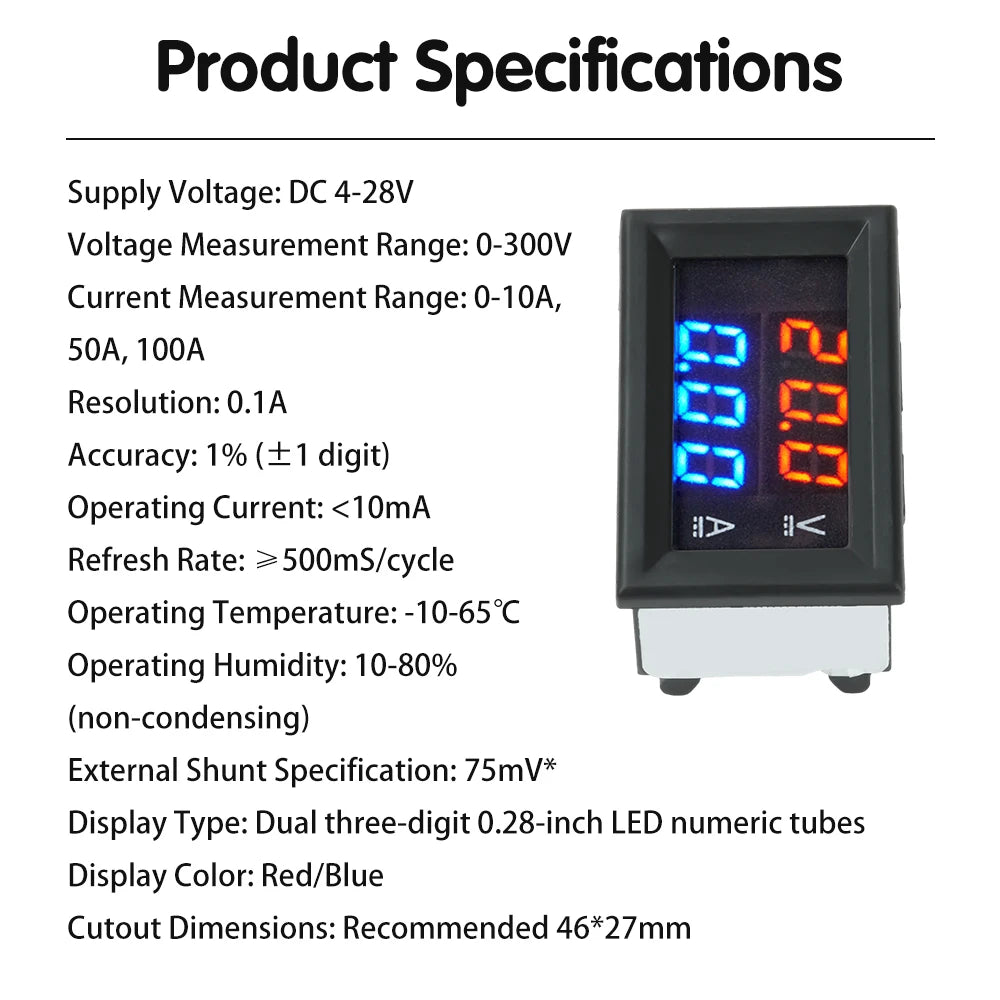

Product Specifications:
Supply Voltage: DC 4-28V
Voltage Measurement Range: 0-300V
Current Measurement Range: 0-10A, 50A, 100A
Resolution: 0.1A
Accuracy: 1% (±1 digit)
Operating Current: <10mA
Refresh Rate: ≥500mS/cycle
Operating Temperature: -10-65℃
Operating Humidity: 10-80% (non-condensing)
External Shunt Specification: 75mV*
Display Type: Dual 3-digit 0.28-inch LED numeric tubes
Display Color: Red/Blue
Product Dimensions: 48*29*22mm
Cutout Dimensions: Recommended 46*27mm
Package Contents:

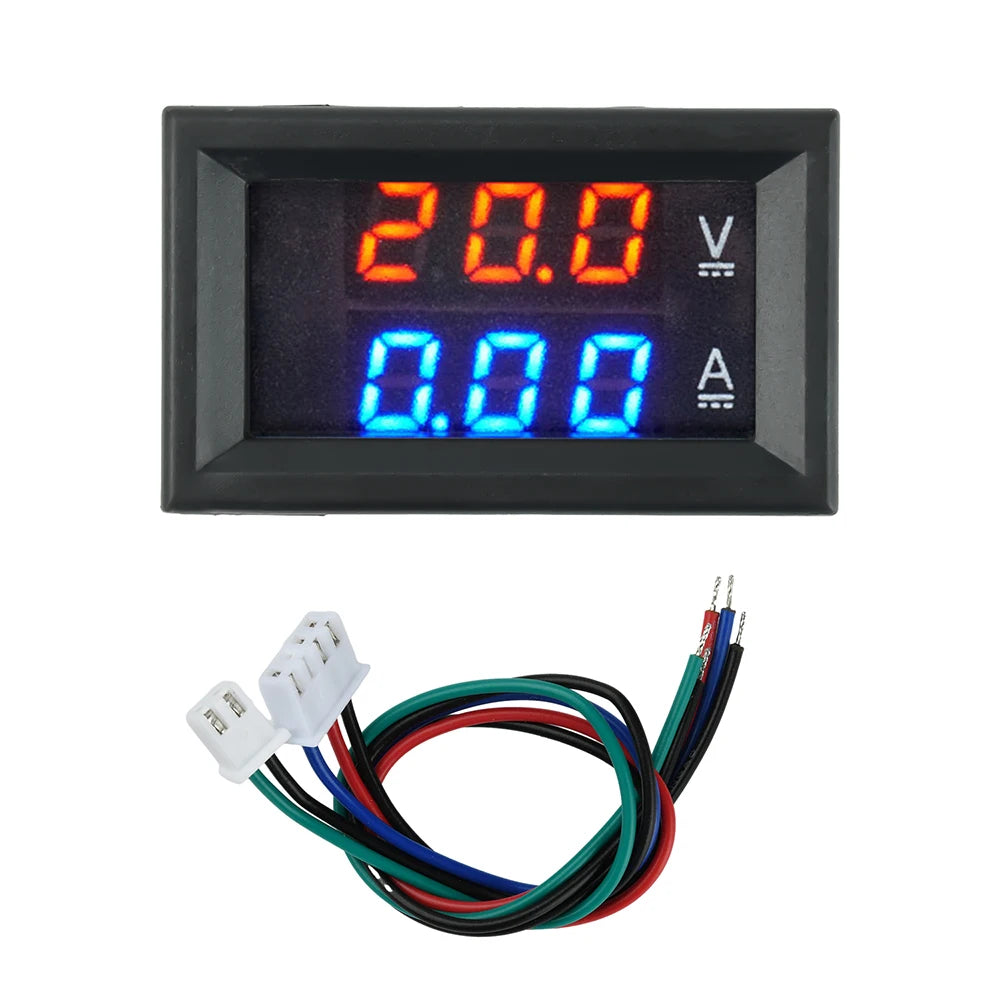

Voltage/Current Meter*1
Wiring Harness*1
Options
- Color: 10A, 50A, 100A
