DC 12V 3A 24W 36W 3S Lithium Battery UPS Module Charging Discharging
$12.31
Sale price
$12.31
Regular price
$15.25
Shipping calculated at checkout.
Discover the DC 12V 3A 24W 36W 3S Lithium Battery UPS Module Charging Discharging — a standout decor pick featuring compact design for dependable, everyday performance.
Specifications
Brand Name: Aideepen
Condition: New
Type: Switch
Features:

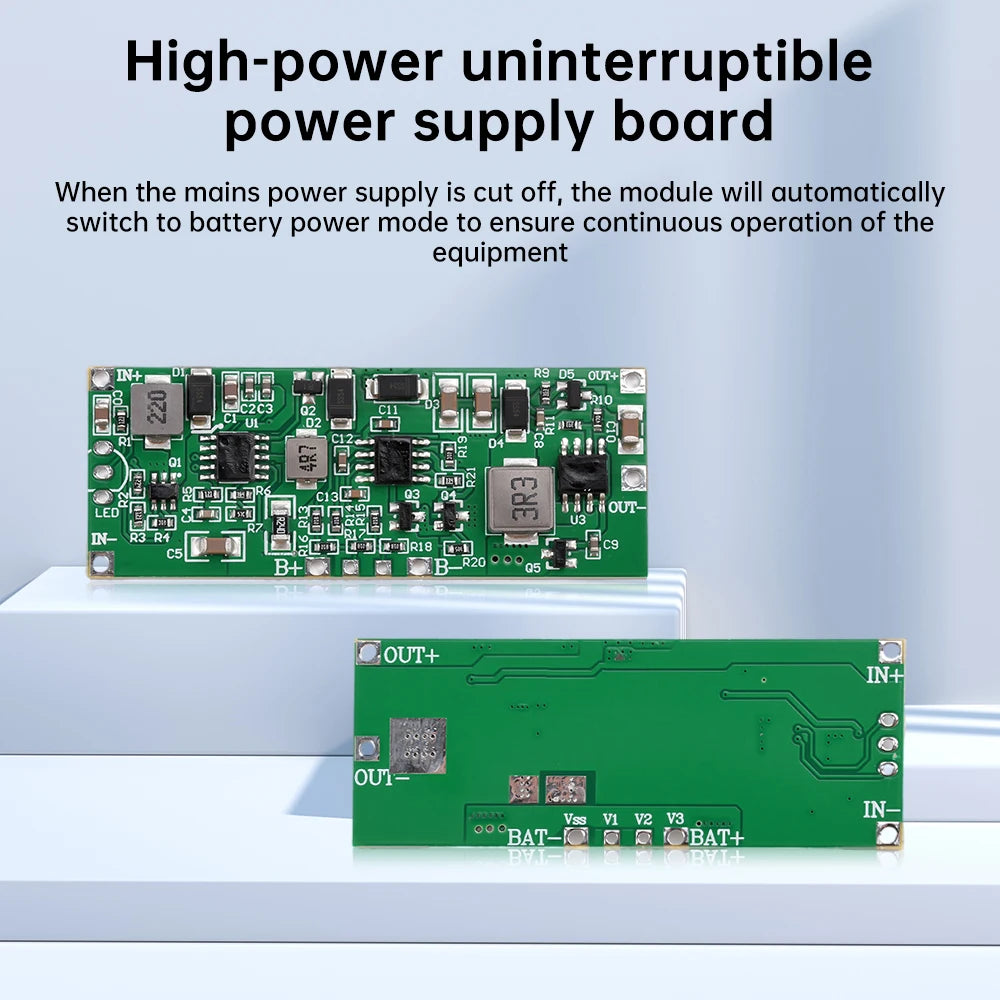

1. When the main power supply fails, the module automatically switches to battery power mode to ensure continuous operation of the equipment.

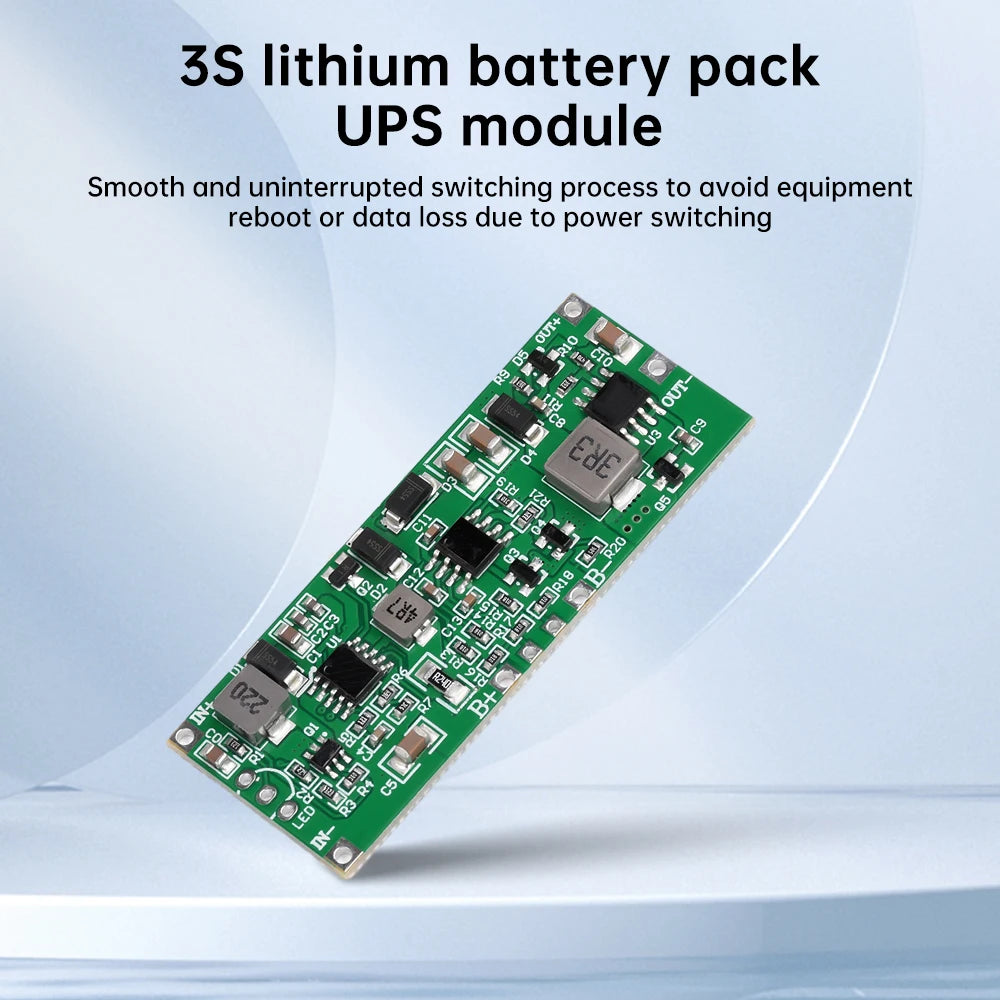

2. The transition is seamless and uninterrupted, preventing device reboots or data loss caused by power switching

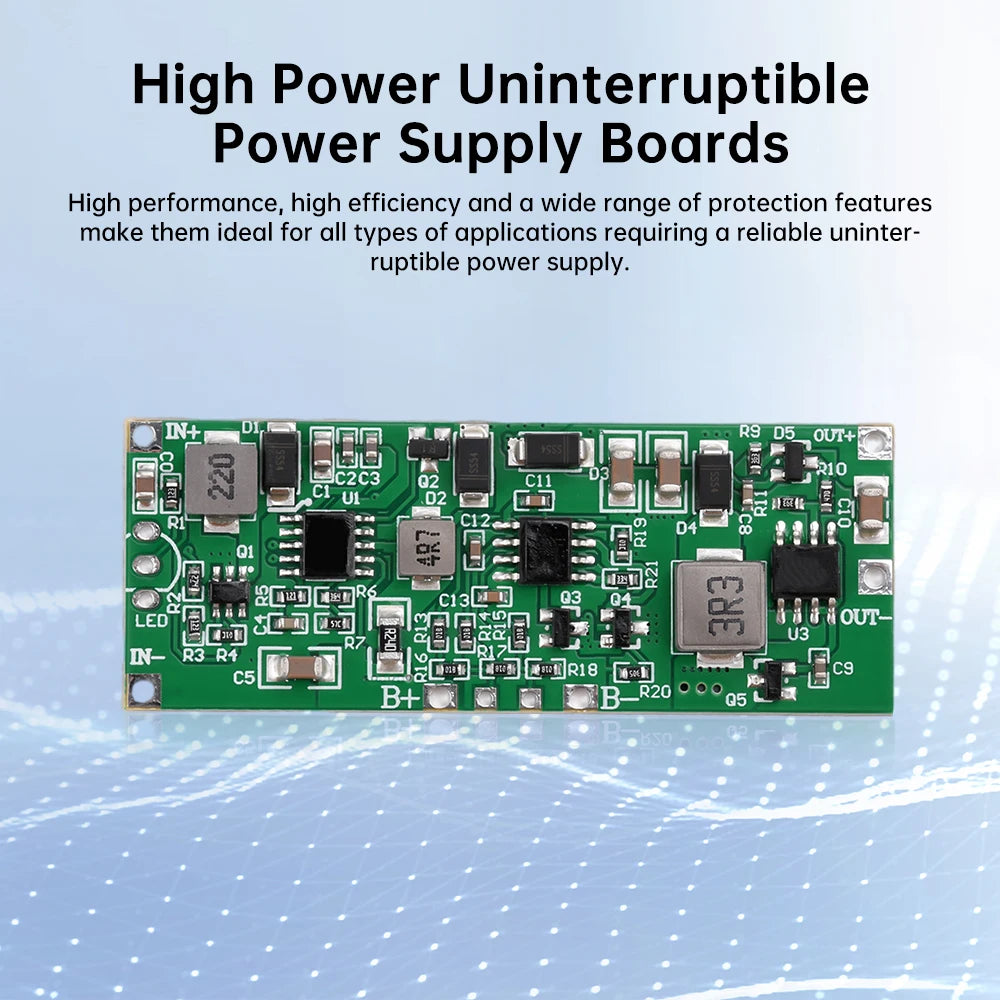

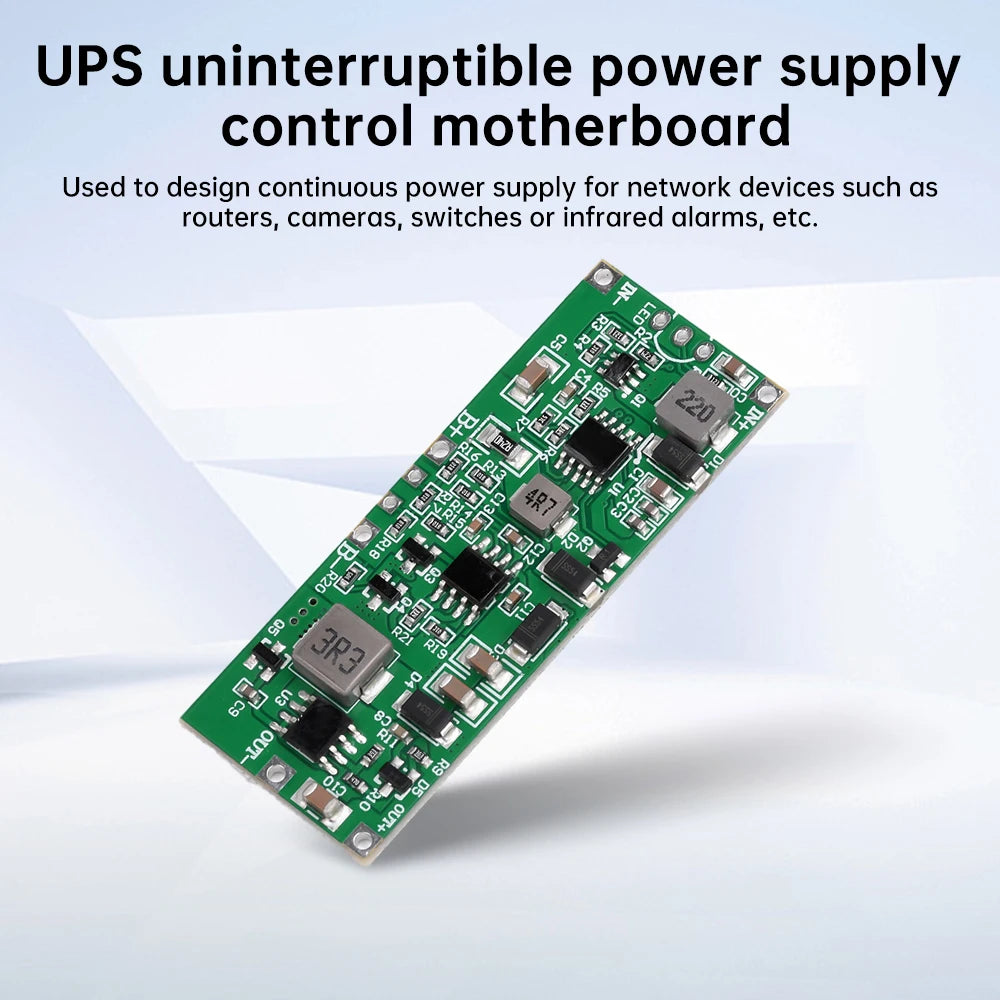

3. DC UPS uninterruptible power supply control board designed for continuous power supply to network devices like routers, cameras, switches, or infrared alarms. Output power reaches 36W when the battery is fully charged. The power supply must be sufficient to handle the combined load power and charging requirements
4. Compact and elegant appearance with aesthetically arranged components
5. This high-power UPS board, with its high performance, efficiency, and comprehensive protection features, is an ideal choice for various applications requiring reliable uninterruptible power.
Product Specifications:
Input Voltage: DC12V
Output Voltage: DC12V (11V to 13V)
Output Power: 36W (MAX)
Battery Charging Current: 0.5A (MAX)
Actual input current depends on connected load; sum of load operating current and charging current (0.5A) equals input power consumption
Built-in battery pack charge/discharge protection

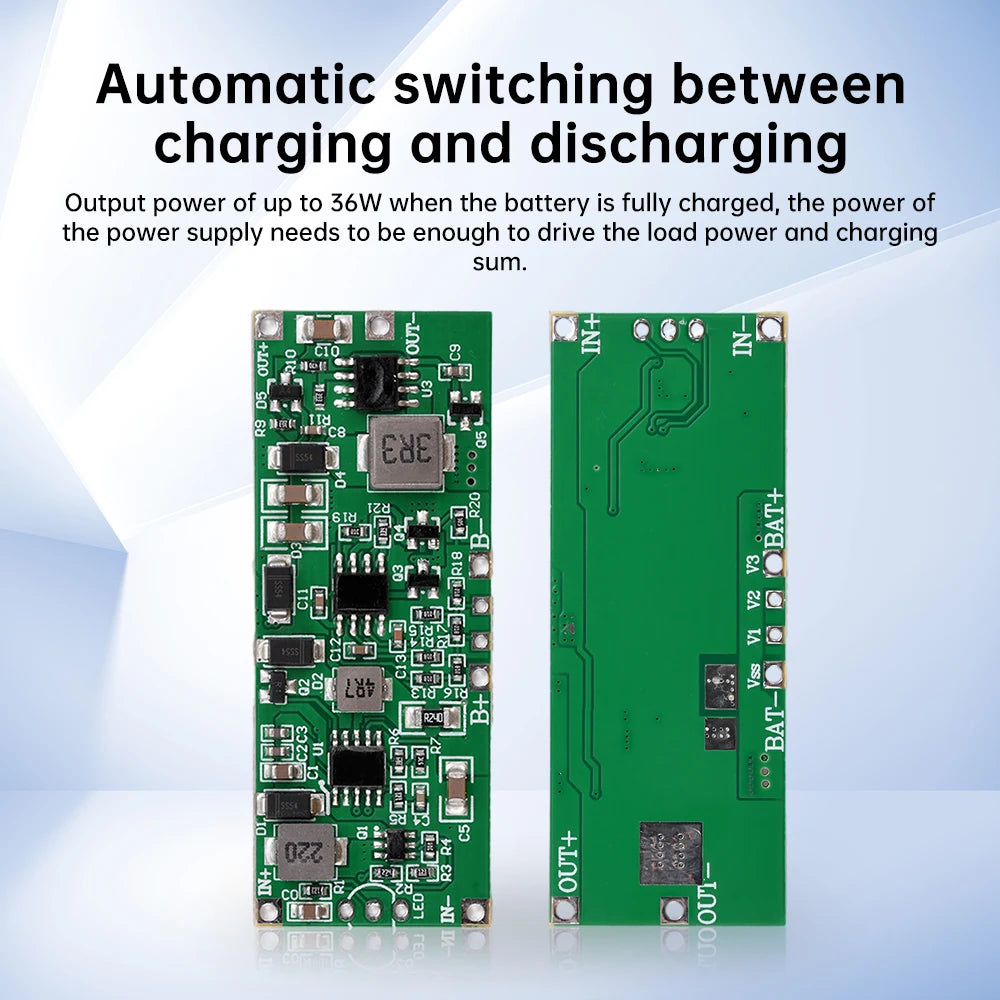

Automatic power source switching between battery and mains supply
Important Notes:

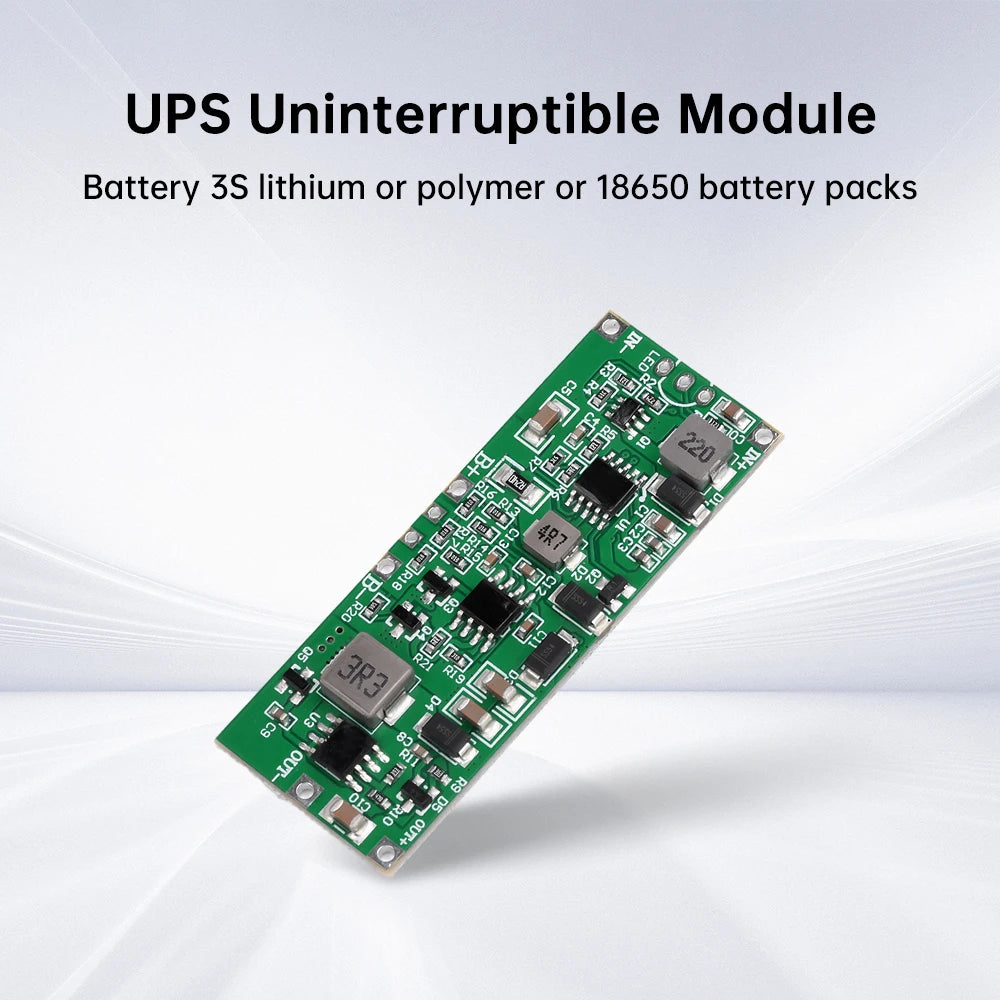

Connect battery only as the final step—this is critical!!! Compatible battery types: 3S lithium cells, polymer batteries, or 18650 battery packs
Default battery configuration: 2-wire connection (positive and negative terminals only). 4-wire connection is possible by removing resistors R16, R17, and R18.
Connect the battery only as the final step. Use at least 20 AWG wire for input/output connections, with a maximum length of 10 cm. Ensure wires are as thick and short as possible.
The control board generates heat during operation, so maintain adequate distance from the battery during installation!
Indicator Lights: Customer-supplied 3mm common-anode red/green LEDs required; red indicates charging, green indicates full charge.
Shipping List:
UPS Uninterruptible Module*1
