DC 12V PWM Speed Controller Fan Governor 4 Wire Computer Temperature

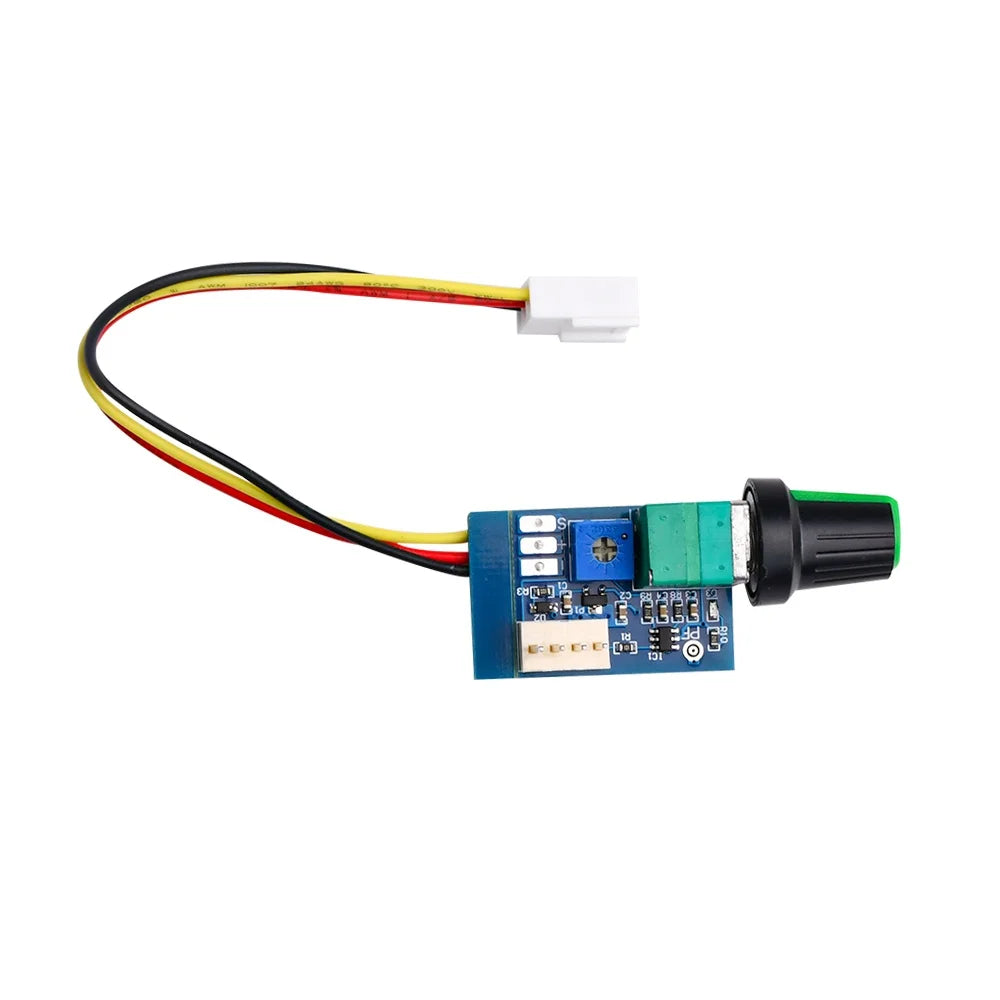

With 3P plug cable
$8.82
Sale price
$8.82
Regular price
$10.93
Skip to product information
DC 12V PWM Speed Controller Fan Governor 4 Wire Computer Temperature
$8.82
Sale price
$8.82
Regular price
$10.93
Shipping calculated at checkout.
Discover the DC 12V PWM Speed Controller Fan Governor 4 Wire Computer Temperature — a standout decor pick featuring adjustable, premium design for dependable, everyday performance.
Specifications
Brand Name: Aideepen
Condition: New
Type: Switch
Features:
Made with premium materials for guaranteed quality
Equipped with a switch for on/off control
Exquisite product appearance
Simple and convenient wiring
Stable performance
Product Specifications:
Operating Voltage: DC12V (Operates within 8-15V range; ensure consistent fan voltage)
Fan Current: ≤3A (current limited by switch and connectors; can be expanded with separate power cable)
PCB Power Draw: <20mA without fan connected
PWM Signal Mode: 5V 25kHz
PWM Output Range: 0%-100%
Initial PWM Adjustment Range: 0%-60%
Input type: Red/black wires / 2510-3P output optional
Output connector type: 2510-4P staggered, standard CPU/chassis fan socket, 2.54mm pin pitch
Function description:

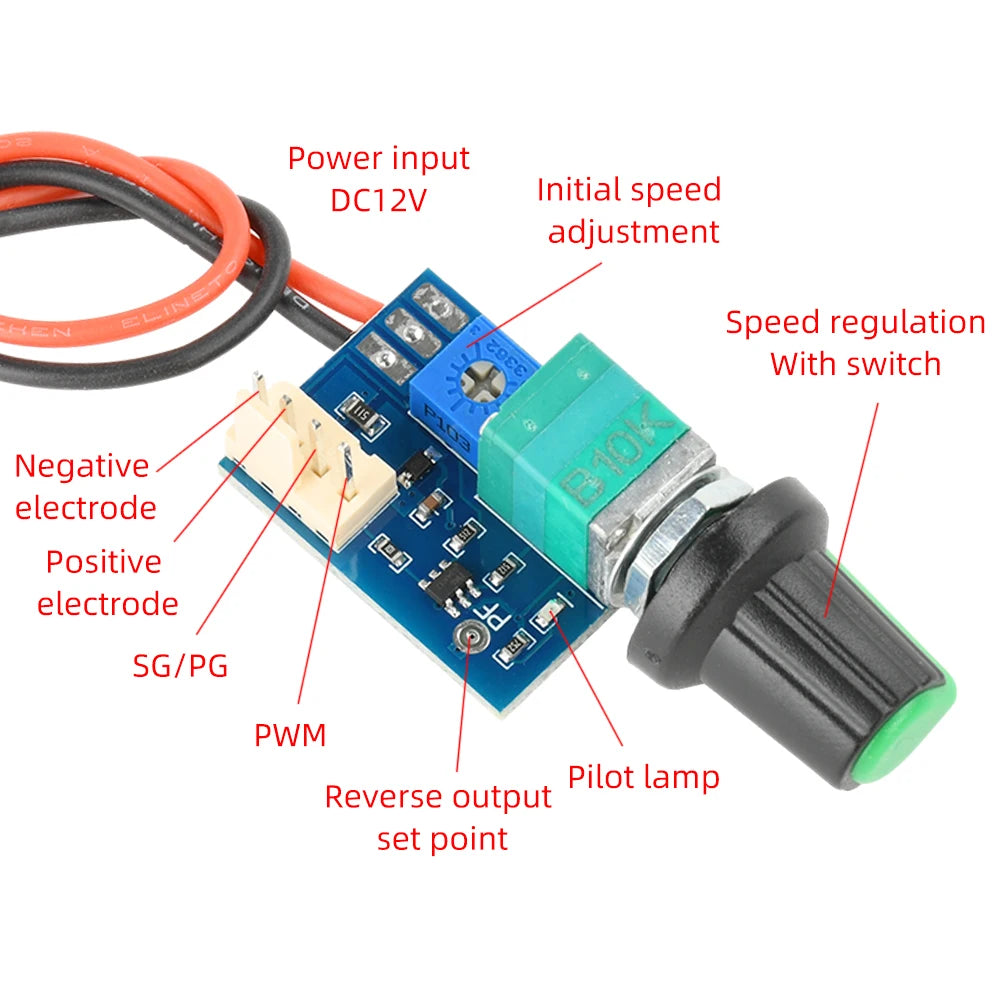

Ensure correct polarity and power supply voltage. Connect power and fan for operation. Potentiometer fully counterclockwise for off, fully clockwise for maximum output.
The separate small adjustable resistor on the board (start-up speed adjustment) regulates the initial rotational speed upon power-up.

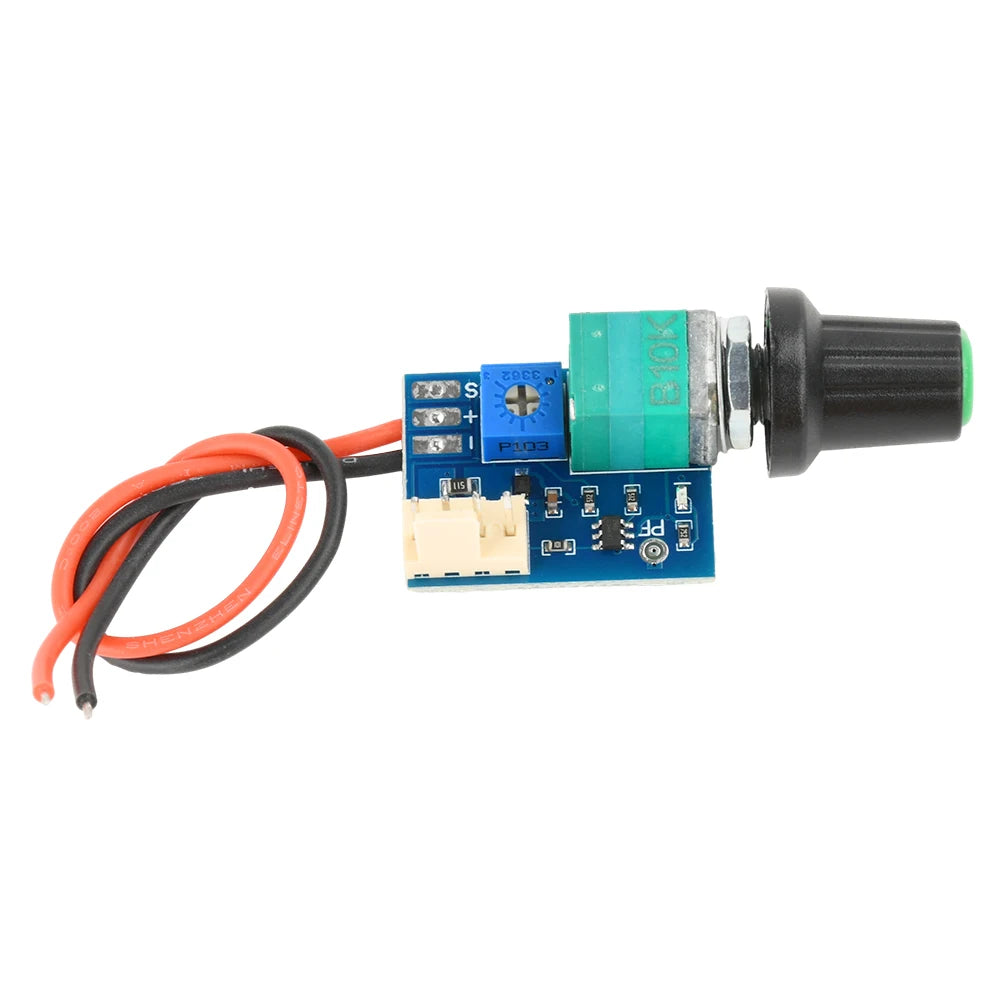

If fan speed changes in the opposite direction to adjustment, the fan is reverse-sequence type. Solder-bridge the (PF) setting point. Always disconnect power before operation to prevent damage! After bridging, the PWM signal will change in the opposite direction to adjustment, enabling forward regulation for reverse-sequence fans.
Important Notes:
This is a 4-wire PWM fan controller. It can only control 12V fans that support PWM speed regulation, such as many 12V 4-wire case or CPU fans. It cannot control 2- or 3-wire fans.
Shipping List
Speed Control Module x1
Options

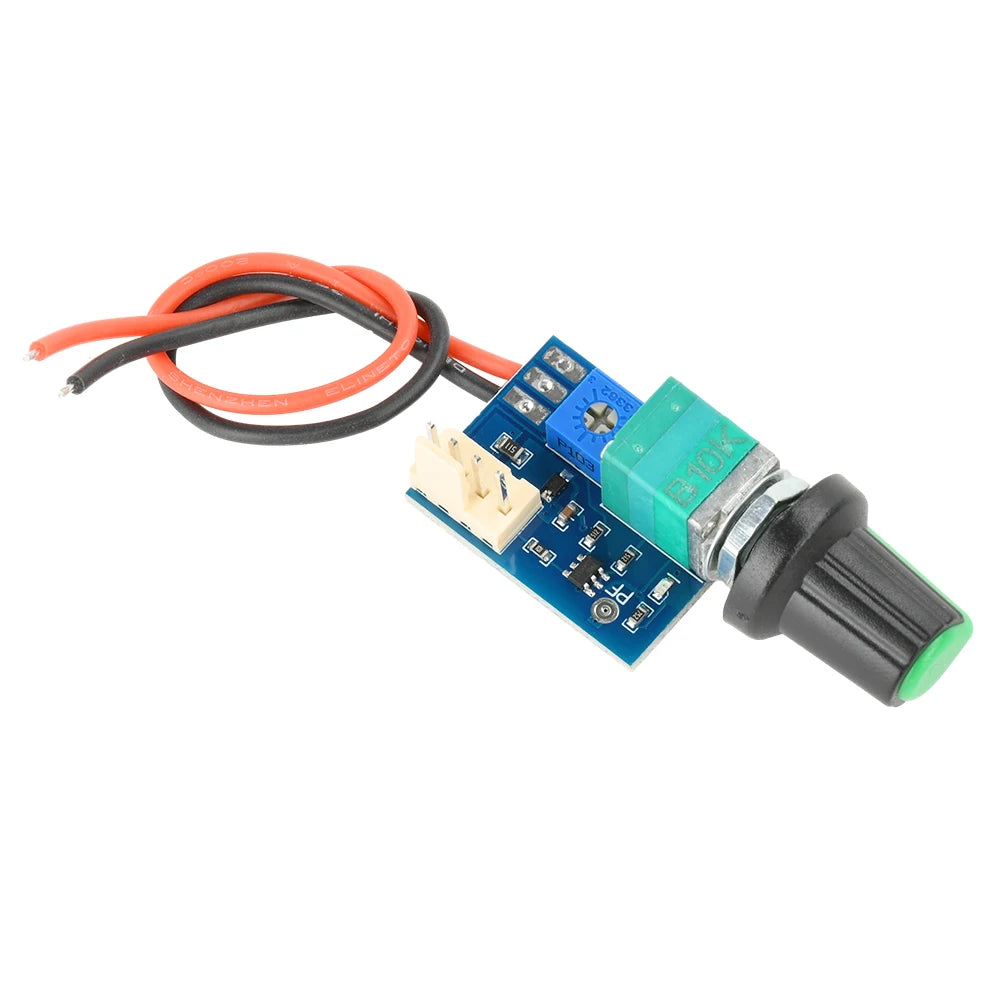

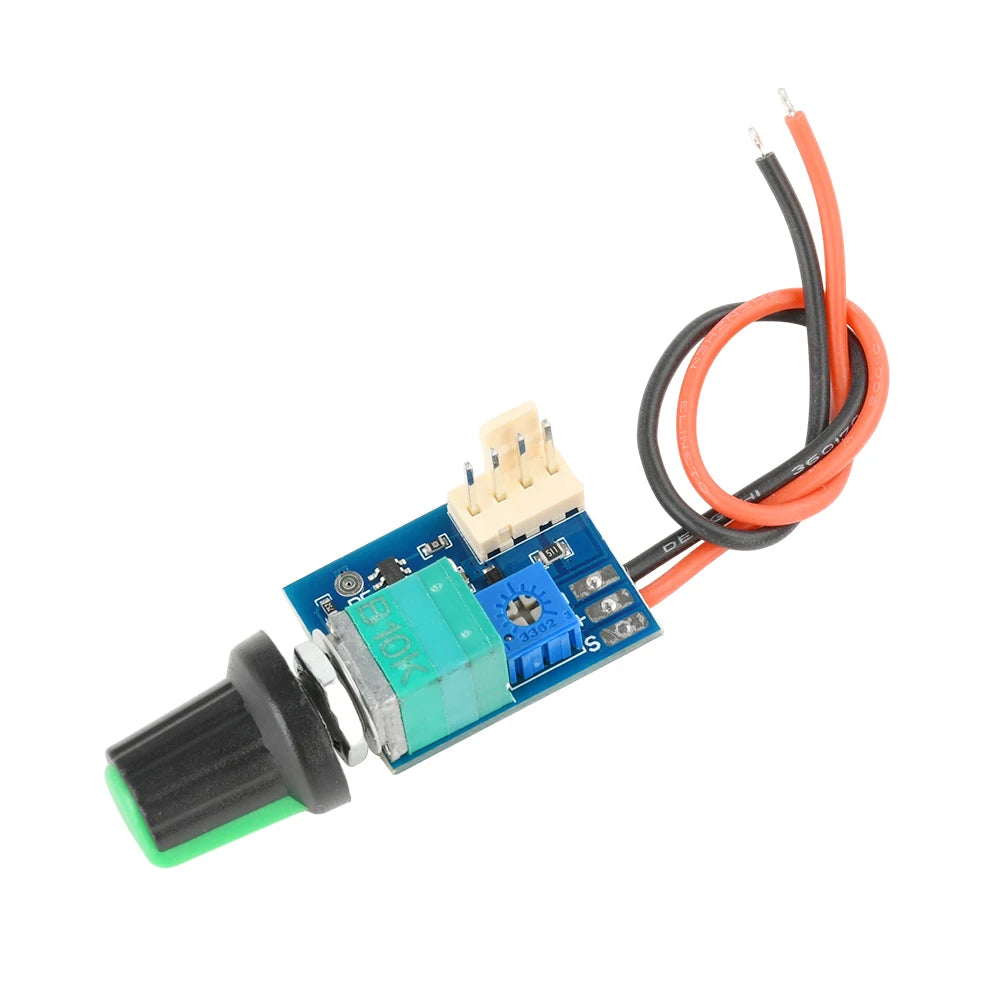

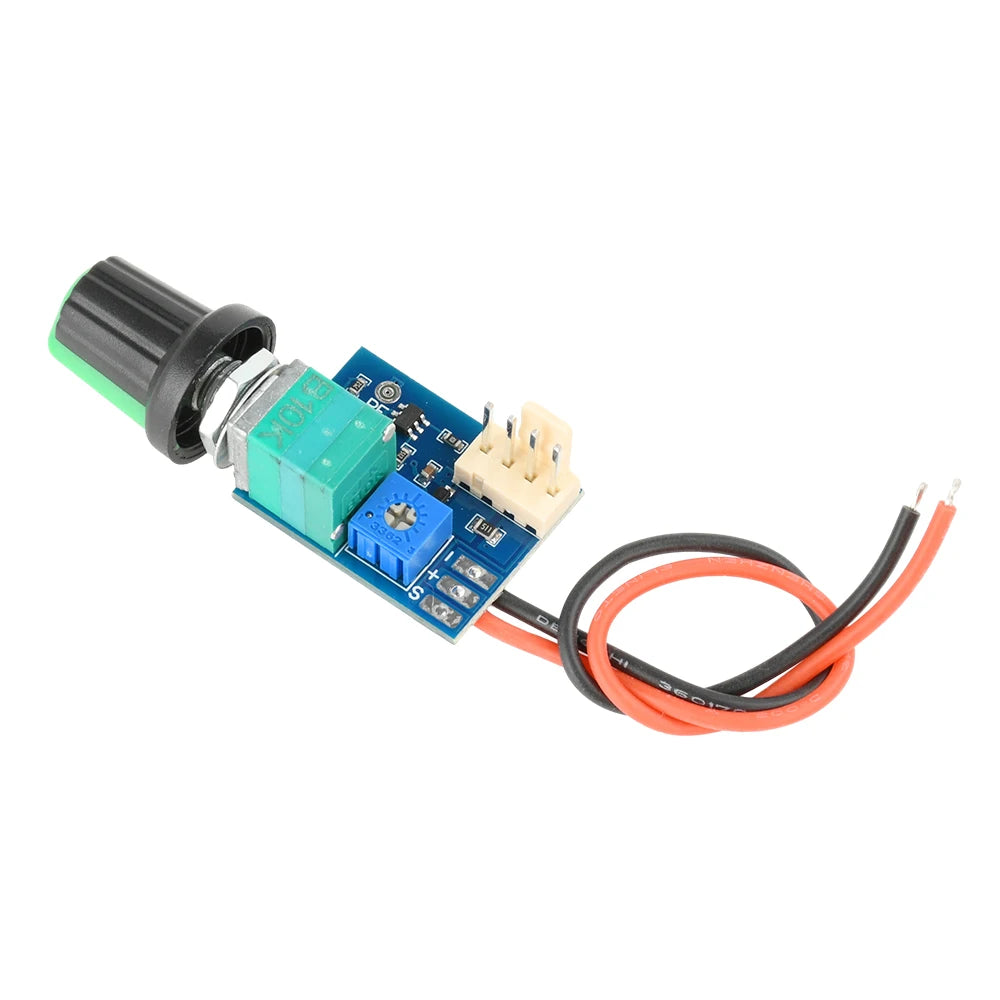

- Color: With 3P plug cable, With red black lines
