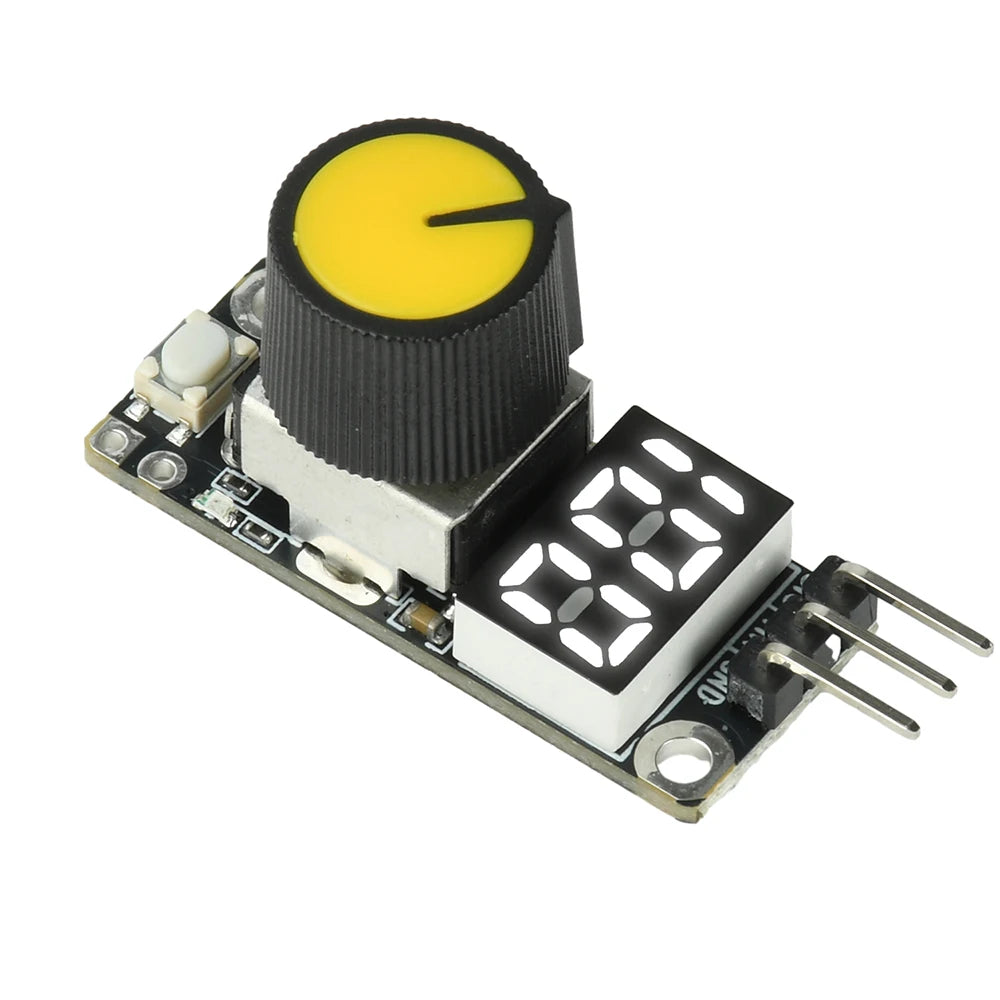

DC 3-24V PWM Speed Controller Module Real-time Percentage LED Display

Discover the DC 3-24V PWM Speed Controller Module Real-time Percentage LED Display, a standout decor pick designed for dependable everyday performance and lasting value.

Specifications

Brand Name: Aideepen

Certification: NONE

DIY Supplies: Electrical

Data Record: No

Electronic: No

Material: Plastic

Model Number: Motor Controller

Output Voltage: Motor Controller

Semi-finishedproduct: No

Size: Motor Controller

Style: Motor Controller

Type: Motor Controller

Features:

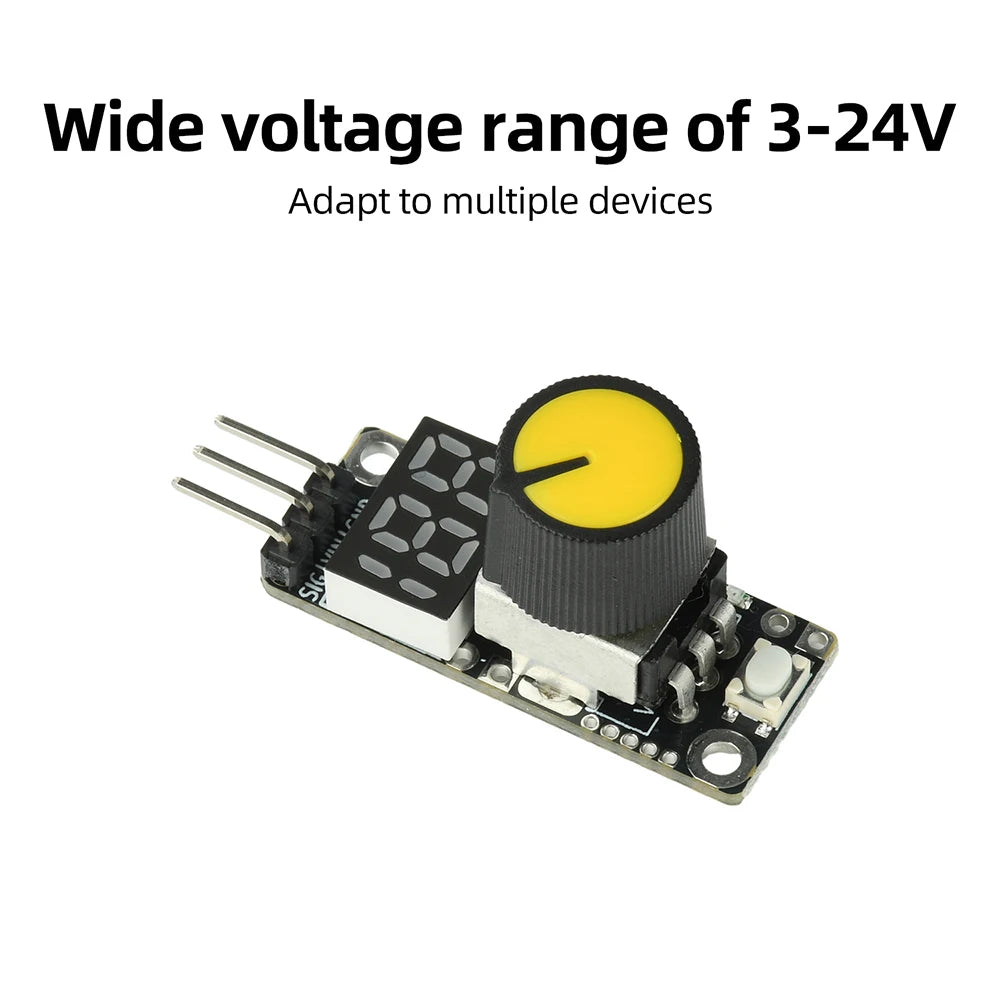

1. Wide voltage range of 3–24V, compatible with a variety of devices

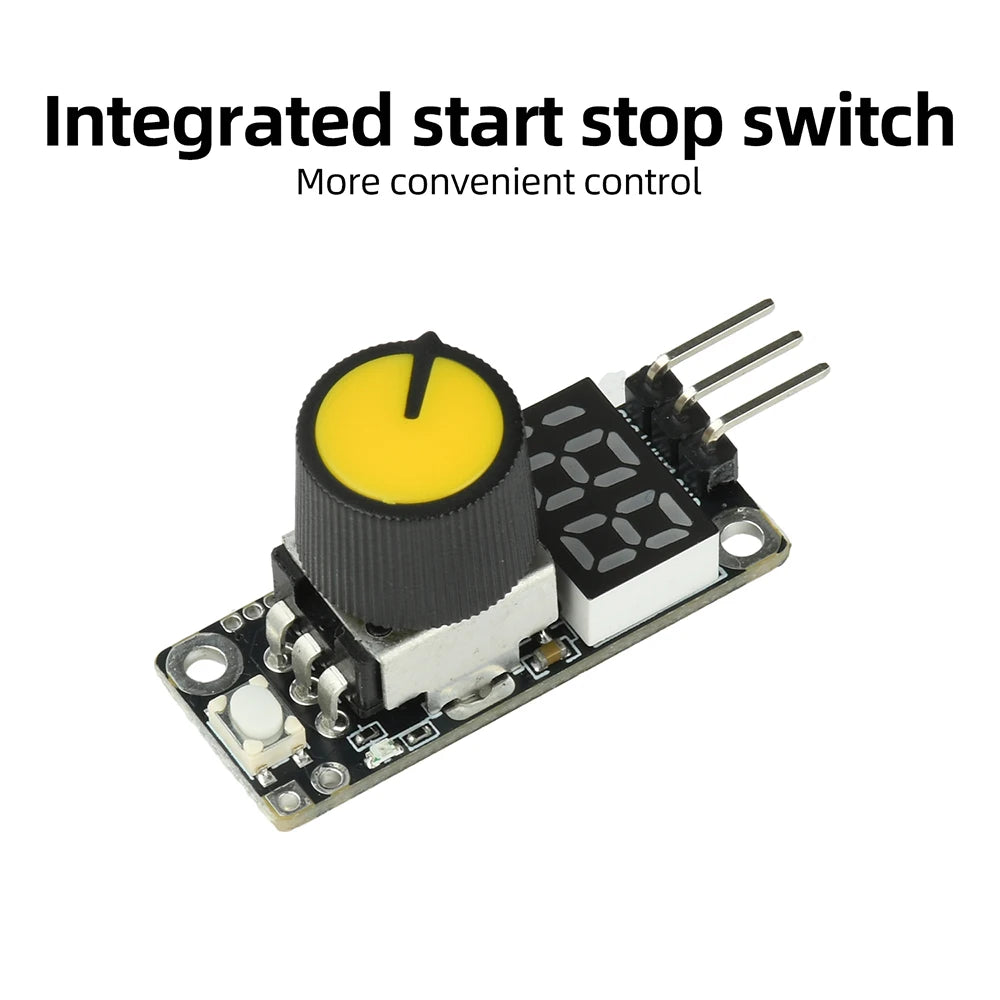

2. Built-in on/off switch for more convenient operation

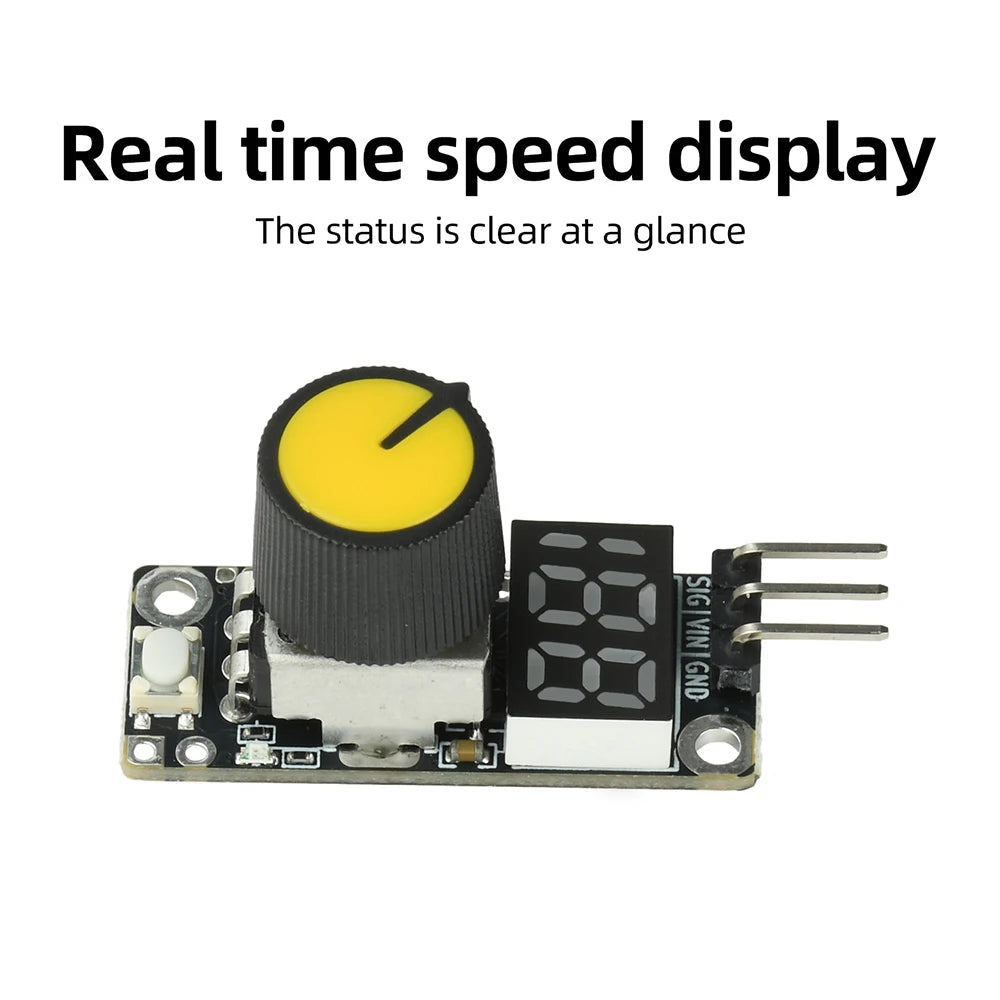

3. Real-time speed display for clear status monitoring

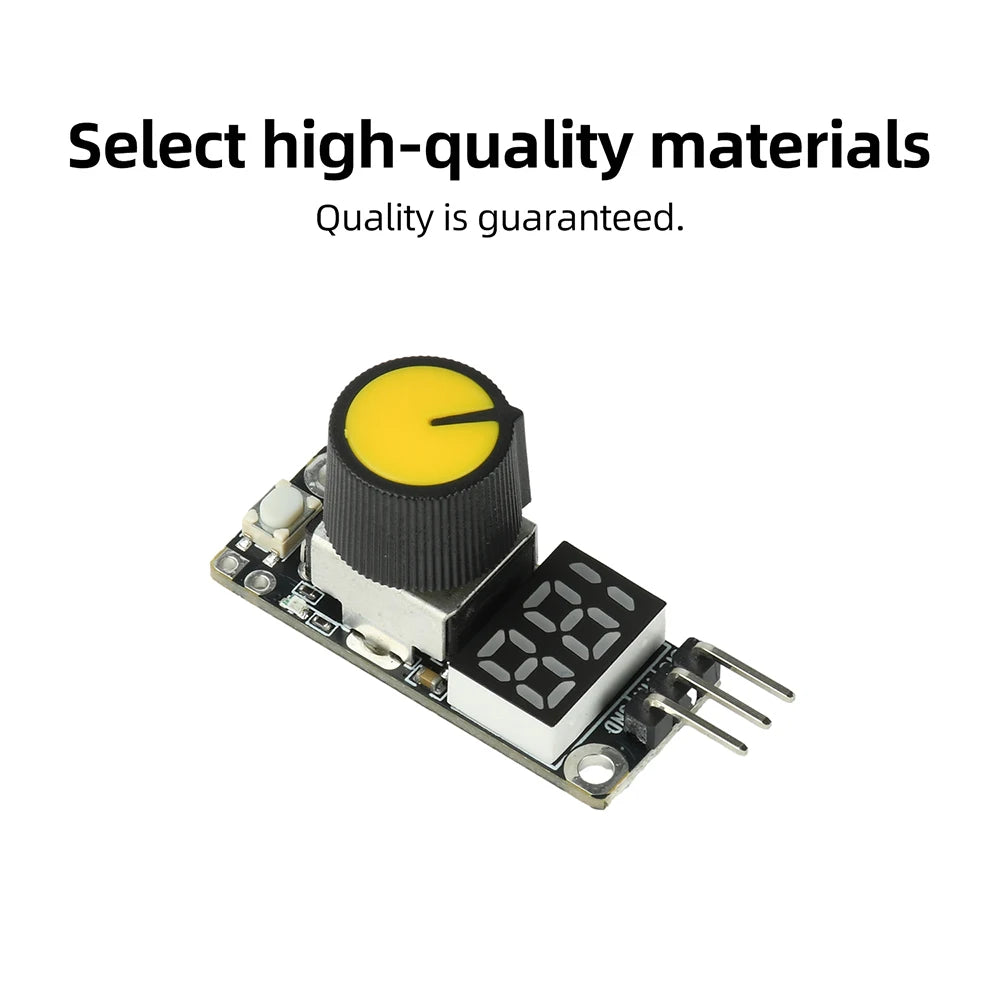

4. Made from high-quality materials to ensure reliability

5. Optimized for standard servo signal protocols

Product Specifications

DC 3–24V power supply

3-pin power supply and PWM signal output

LED indicator showing speed percentage

Digital display showing speed percentage

When connecting to a servo or brushless ESC:

Fixed PWM frequency of 50 Hz

Speed control adjusts the positive pulse width within the range of 0.95–1.95 ms

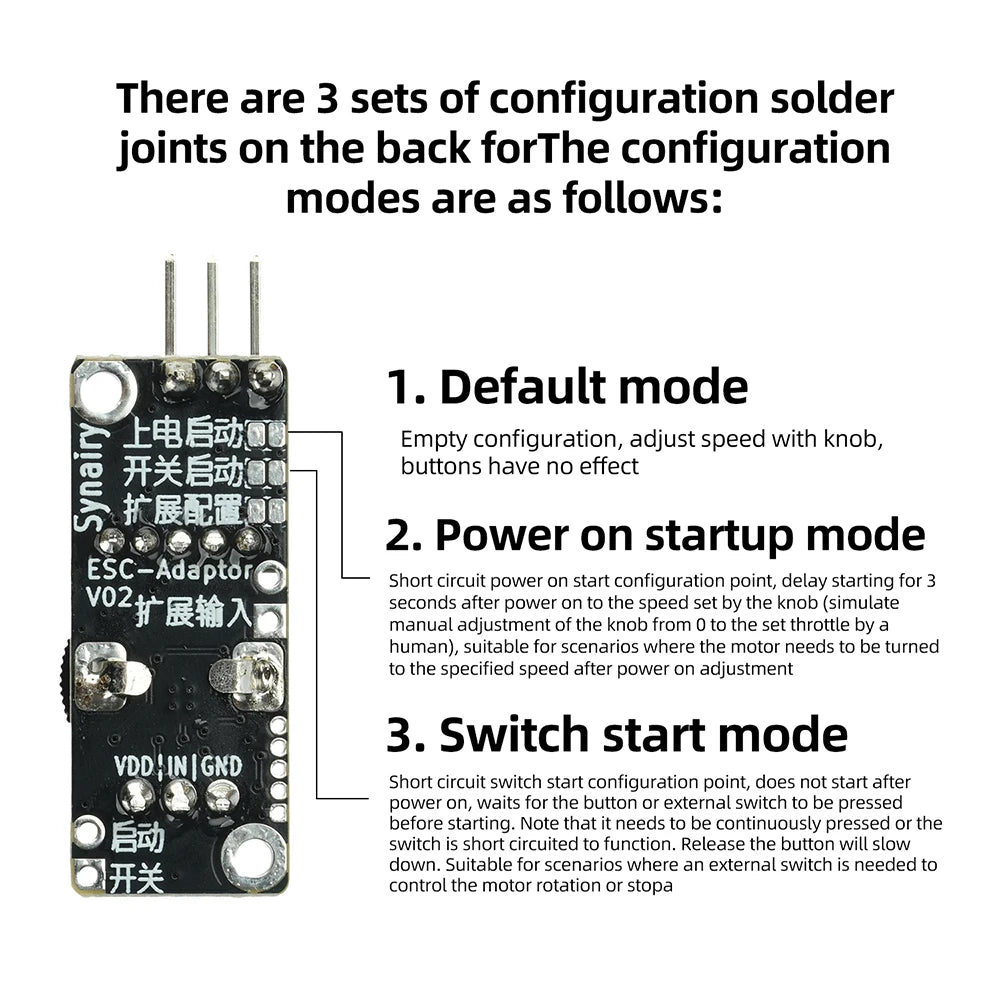

There are 3 sets of configuration solder pads on the back for mode selection, as follows:

1. Default Mode

No configuration; speed is adjusted via the knob; buttons have no function

2. Power-On Start Mode

Short the power-on start configuration points; after power-up, the motor starts at the knob-set speed after a 3-second delay (simulating manual throttle adjustment from 0 to the set speed)

Suitable for scenarios where the ESC needs to spin the motor to a specified speed immediately upon power-up

3. Switch Start Mode

Short-circuit the switch-start configuration points. The motor will not start upon power-up; it will wait until a button or external switch is pressed to start. Note that the button must be held down or the switch short-circuited for the motor to operate; releasing the button will cause the motor to decelerate.

Suitable for scenarios requiring an external switch to control motor rotation/stop.

Package Contents

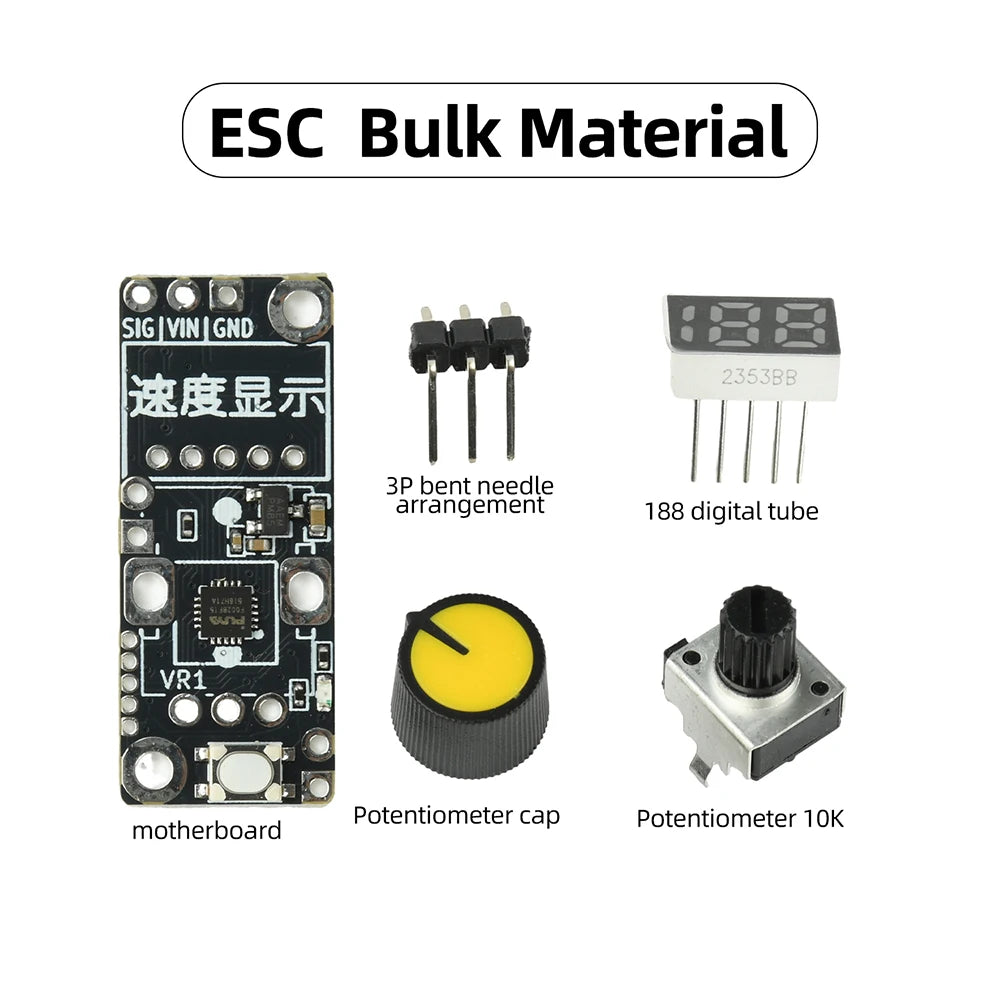

Mainboard *1

188 LED display *1

3-pin bent header *1

10K potentiometer *1

Potentiometer cap *1

Options

• Color: A
