DC 3 3-5V MM238RW Wireless FPV Image Video Transmission Reception
Blue
$185.35
Sale price
$185.35
Regular price
$229.63
Skip to product information
DC 3 3-5V MM238RW Wireless FPV Image Video Transmission Reception
$185.35
Sale price
$185.35
Regular price
$229.63
Shipping calculated at checkout.
Discover the DC 3 3-5V MM238RW Wireless FPV Image Video Transmission Reception — a standout decor pick featuring portable, lightweight, wireless design for dependable, everyday performance.
Specifications
Brand Name: Aideepen
Certification: NONE
DIY Supplies: Electrical
Data Record: No
Electronic: No
Material: Plastic
Model Number: Video Module
Output Voltage: Video Module
Semi-finishedproduct: No
Size: Video Module
Style: Video Module
Type: Video Module
Features:
1. Compact size and low-power design: The module is lightweight and energy-efficient, making it ideal for embedded installations and meeting the needs of portable devices.
2. Wide high-frequency reception range: Supports frequencies from 4900 to 5945 MHz, providing broad coverage to ensure stable and reliable signal transmission.
3. High sensitivity: Accurate signal capture, long transmission range, and clear, smooth video quality with no delay.
4. High compatibility with 75Ω impedance matching: The video output impedance is 75Ω, ensuring compatibility with mainstream display devices and easier connectivity.
5. Wide operating temperature range: Operates within a temperature range of -10 to +65°C, making it suitable for various scenarios, such as wireless audio and video transmission.
Product Specifications:
DC Characteristics
Supply Voltage: 3.3–5.0 V
Current Consumption: 220 mA
Operating Environment
Operating Temperature: -10 to +65°C
Storage Temperature: -30 to +85°C
Operating Humidity: 85% RH
RF
Receive Frequency Range: 4900–5945 MHz
Input VSWR: 2:1
Demodulation Method: FM/PLL
Intermediate Frequency (IF): 480 MHz
Antenna Port Impedance: 50 Ω (typ.)
Local Oscillator Frequency Stability: ±100 kHz
Local Oscillator Frequency Accuracy: ±100 kHz
Local Oscillator Control: PLL
Local Oscillator Leakage at Input: -55 dBm
Receiver Sensitivity: -90 dBm
Input Level Range: -90 dBm to +5 dBm
Video
Video Output Impedance: 75 Ω, typical
Video Output Level: 1 ± 0.2 Vp-p
Video Polarity: Negative Polarity
Video Frequency Response: ±5 dB, Max. 50 Hz – 6 MHz
Differential Gain: ±5%, Max
Differential Phase: ±5 Deg, Max
3 dB IF Bandwidth: 16.5 MHz
Signal-to-Noise Ratio: 38 dB, Min

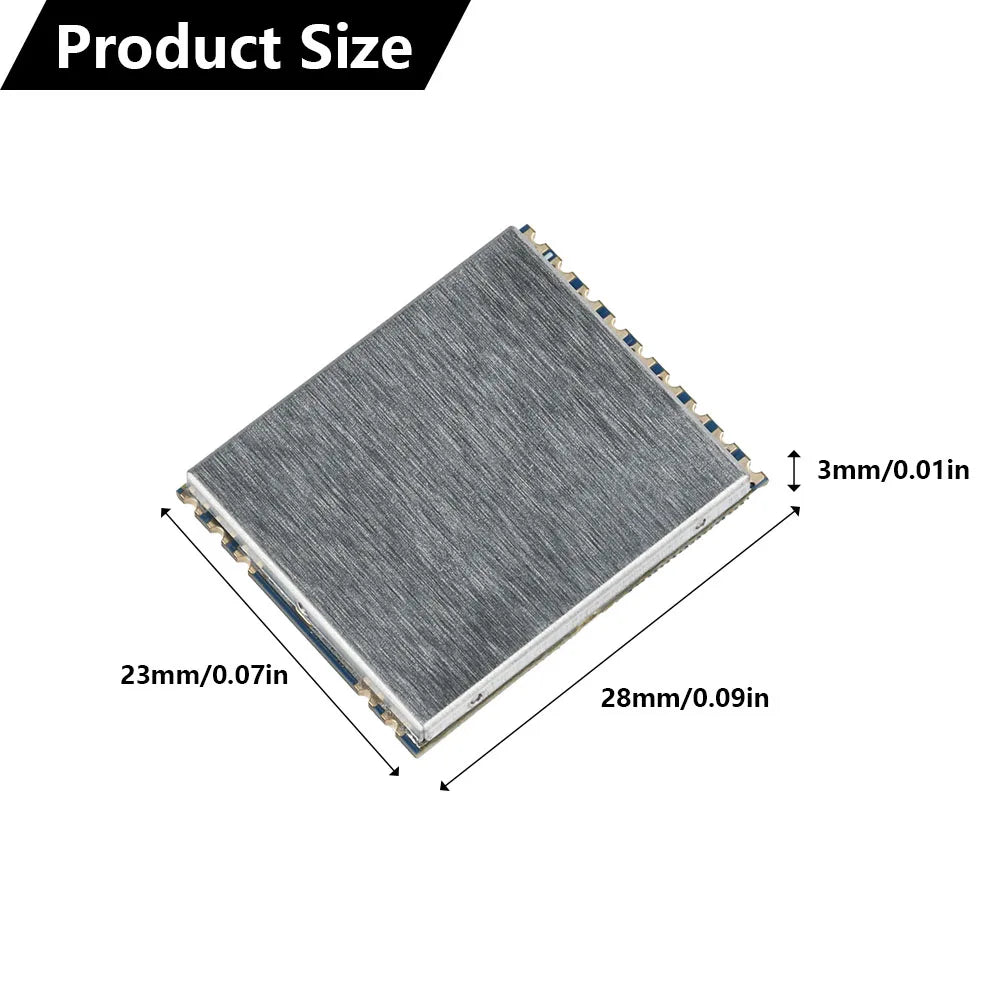

Product Dimensions: 28 × 23 × 3 mm
Package Contents:
Module × 1
