DC 3 6-20V 120 300V 150 500V Boost Module Voltage Power Conversion

Discover the DC 3 6-20V 120 300V 150 500V Boost Module Voltage Power Conversion — a standout decor pick featuring adjustable, compact design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Certification: NONE

DIY Supplies: Electrical

Data Record: No

Electronic: No

Material: Plastic

Model Number: Power Module

Output Voltage: Power Module

Semi-finishedproduct: No

Size: Power Module

Style: Power Module

Type: Power Module

Features:

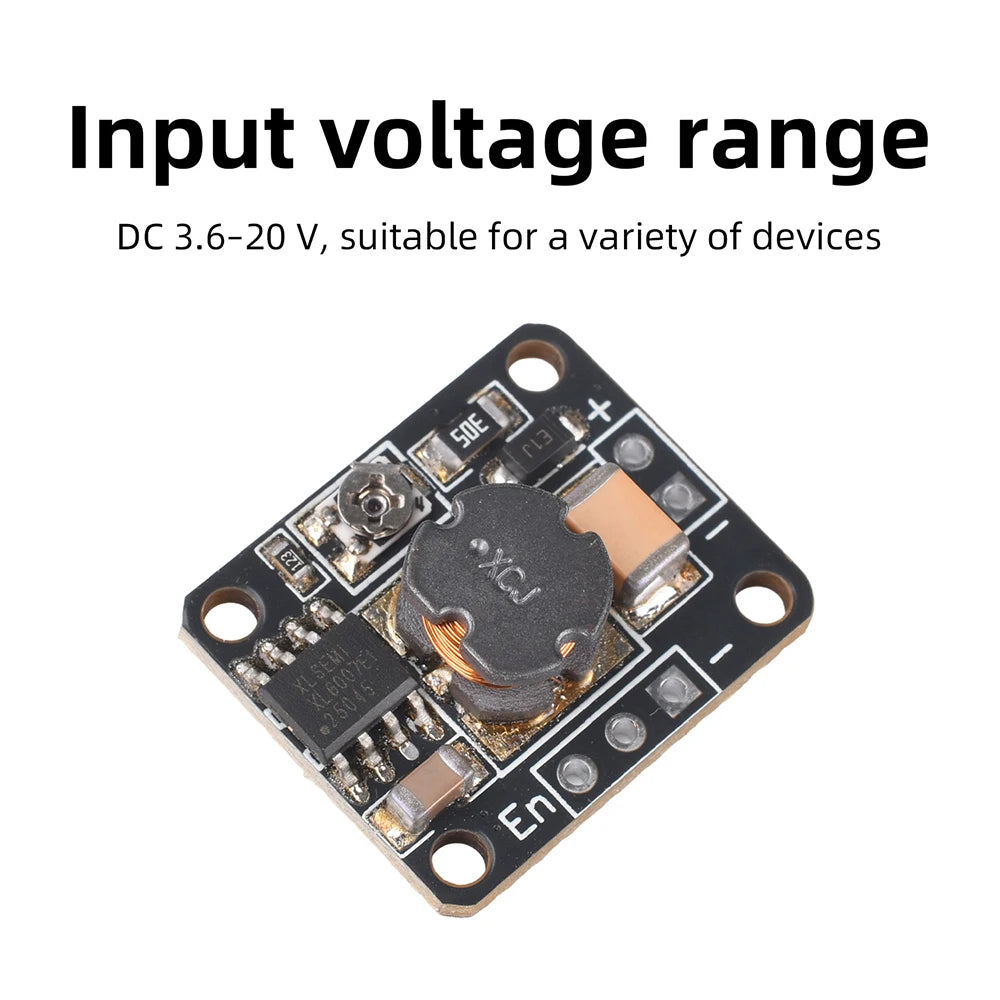

1. Wide input voltage range: DC 3.6–20V, suitable for various device requirements

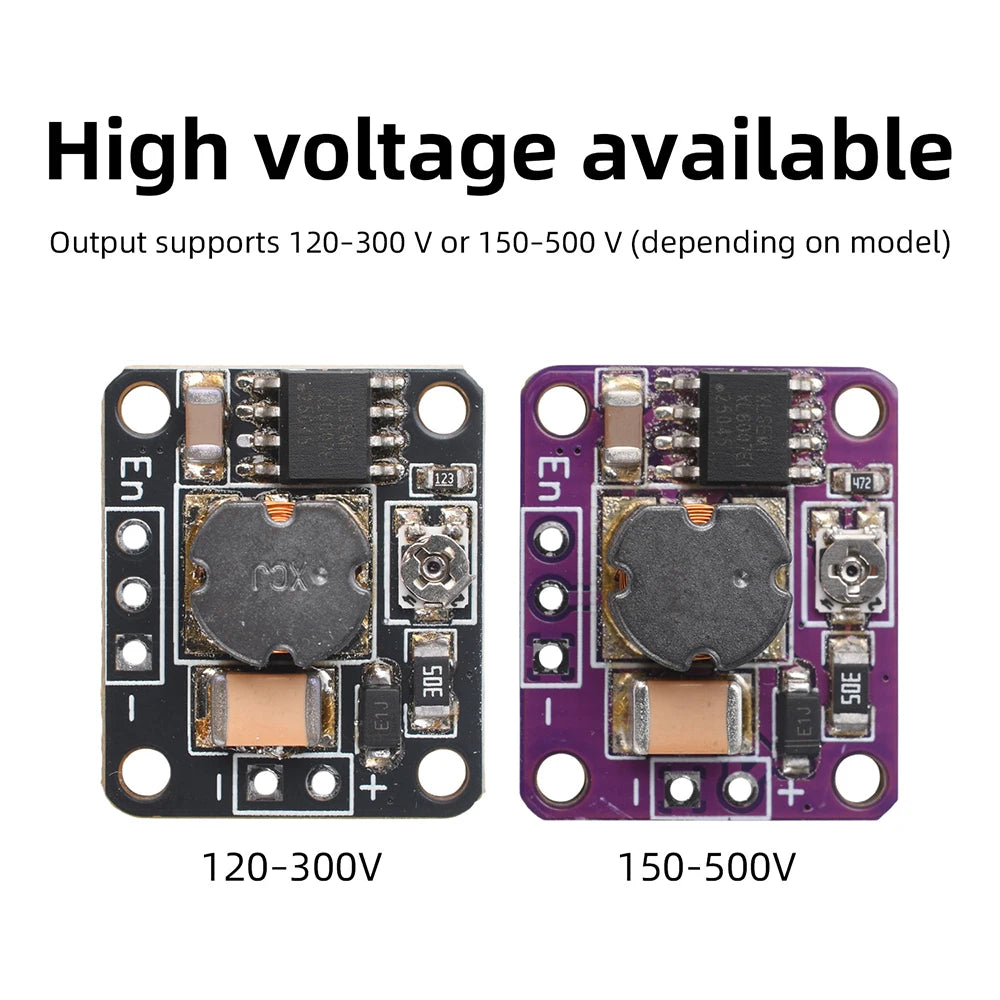

2. Selectable high voltage: Output supports 120–300V or 150–500V (depending on model)

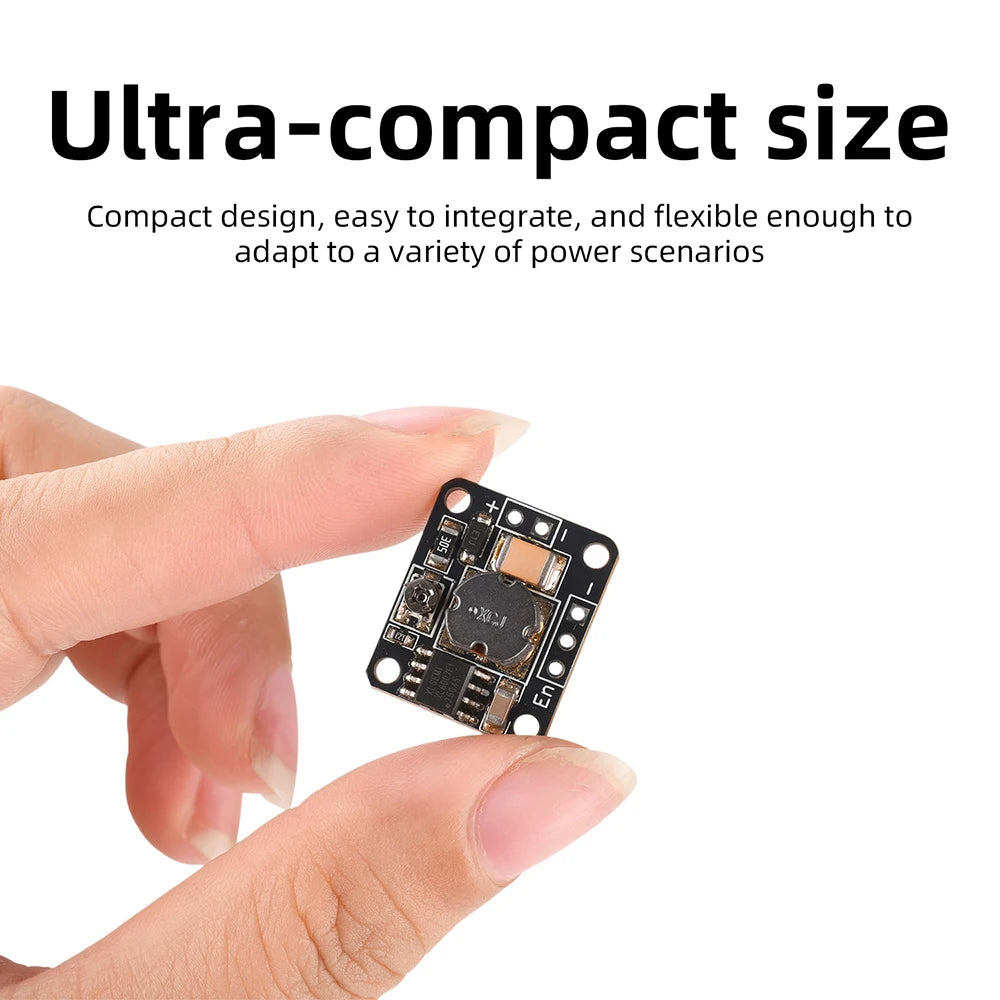

3. Ultra-compact size: Miniature design, ideal for embedded applications, and flexible for various power supply scenarios

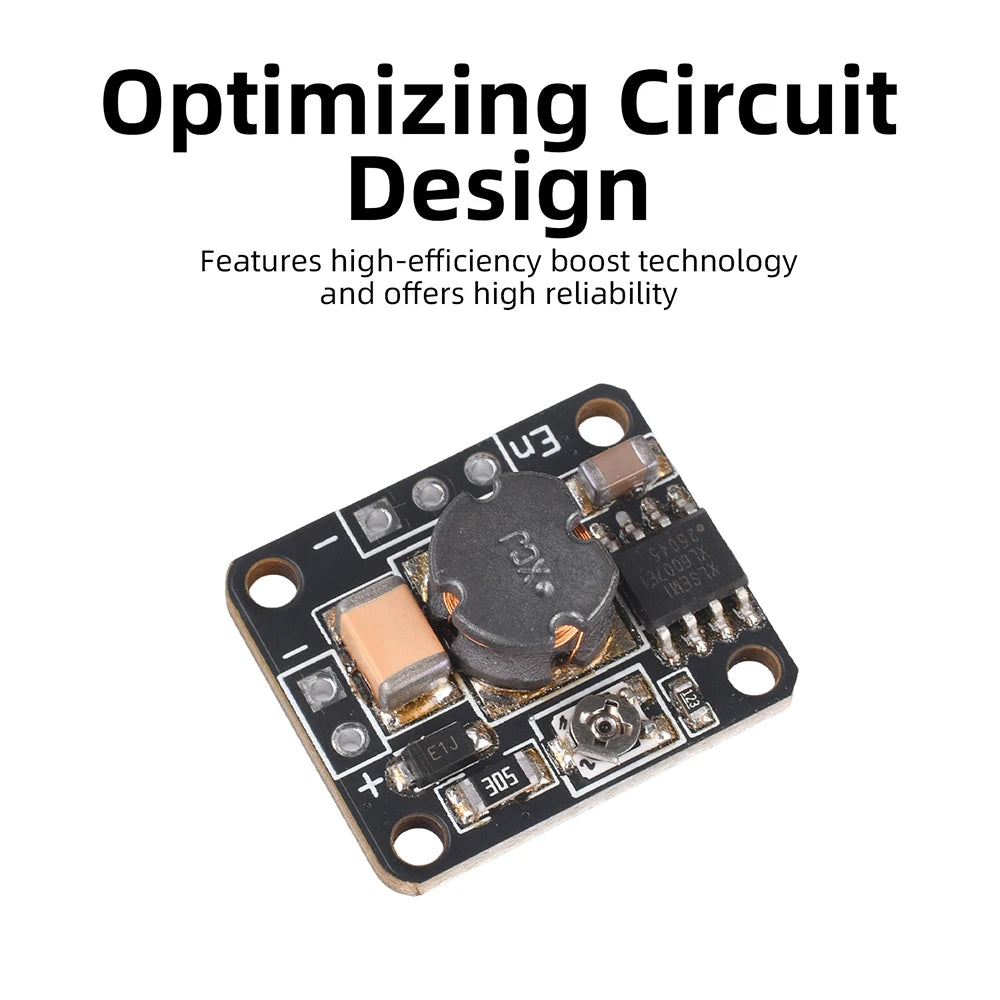

4. Optimized circuit design: Utilizes high-efficiency boost technology for enhanced reliability

5. Wide range of applications: Suitable for various DIY projects such as high-voltage power supplies and small ion generators

Product Specifications

Input Voltage: DC 3.6–20V

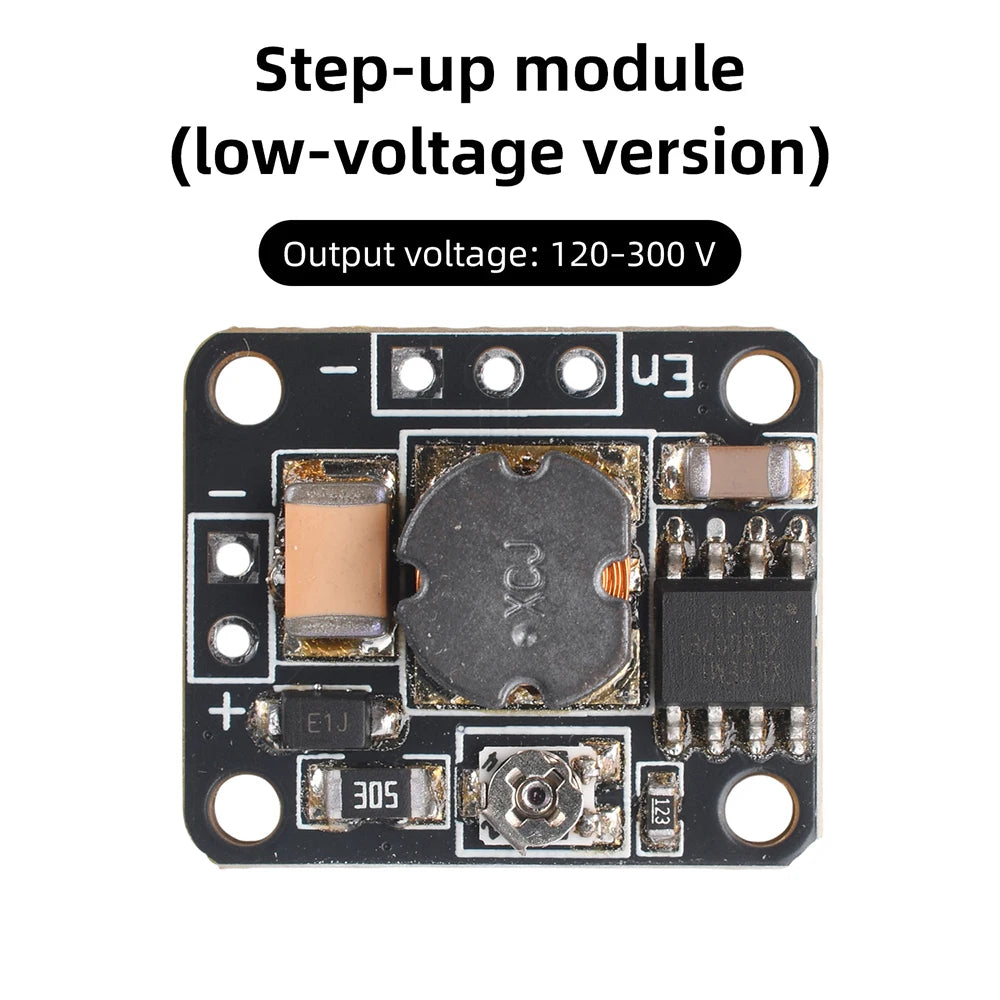

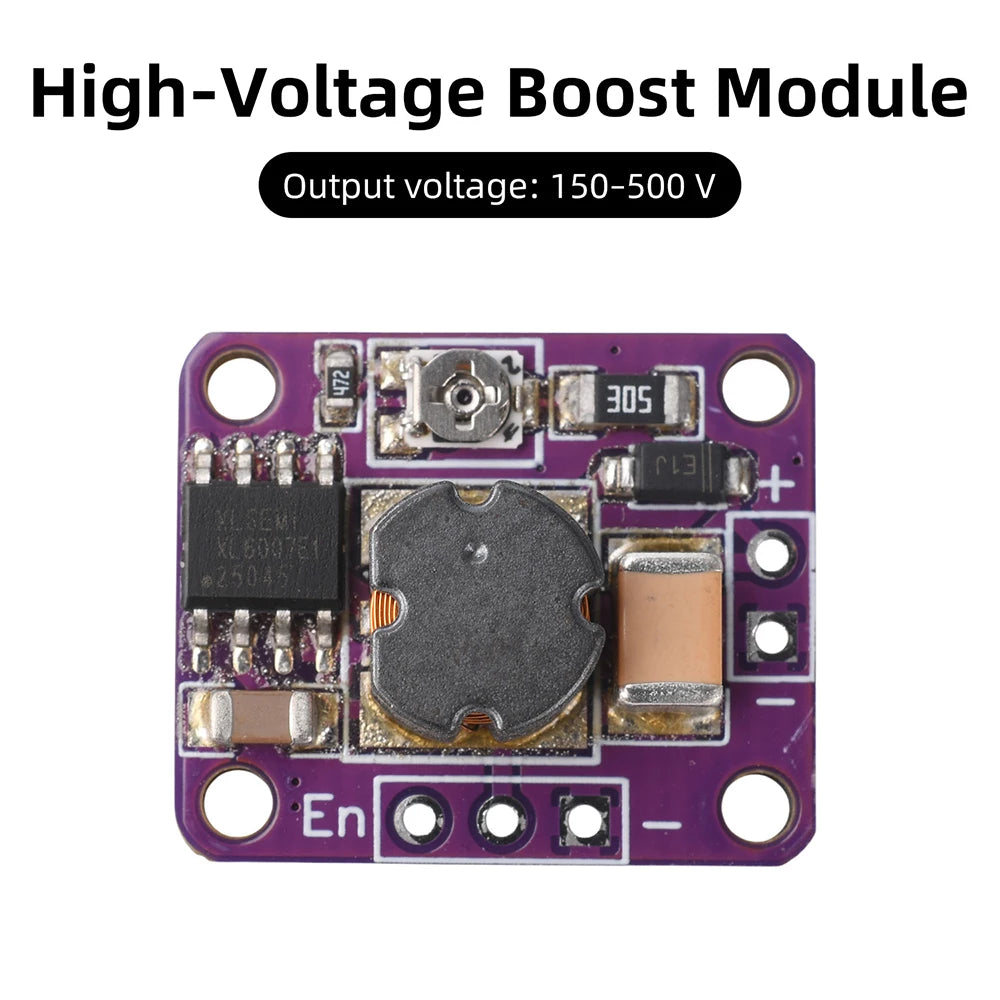

Output Voltage: DC 120–300V; DC 150–500V (selectable)

Dimensions: 20mm x 17mm

Thickness: 6.95mm

Package Contents:

Module x 1

Usage Instructions:

1. Wide input voltage range; do not exceed 24V.

2. The boost module does not have reverse polarity protection; pay attention to polarity.

3. The module generates heat during operation; do not touch it with your hands.

4. With a 12V input, it can stably power 4 LEDs.

5. EN is the enable pin; the output is enabled by default and disabled when the pin is at a low level.

6. The recommended output current is less than 15mA.

7. The adjustable resistor is used to adjust the output voltage; use an insulated screwdriver when adjusting.

8. The module has a high-voltage output; be careful of electric shock.

Options

• Color: DC 120-300V, DC 150-500V
