DC 4-30V 10A LED Digital Voltmeter Ammeter Car Motocycle Voltage

Discover the DC 4-30V 10A LED Digital Voltmeter Ammeter Car Motocycle Voltage — a standout decor pick featuring compact design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

DIY Supplies: Electrical

Semi-finishedproduct: No

Voltage range: Other

Features:

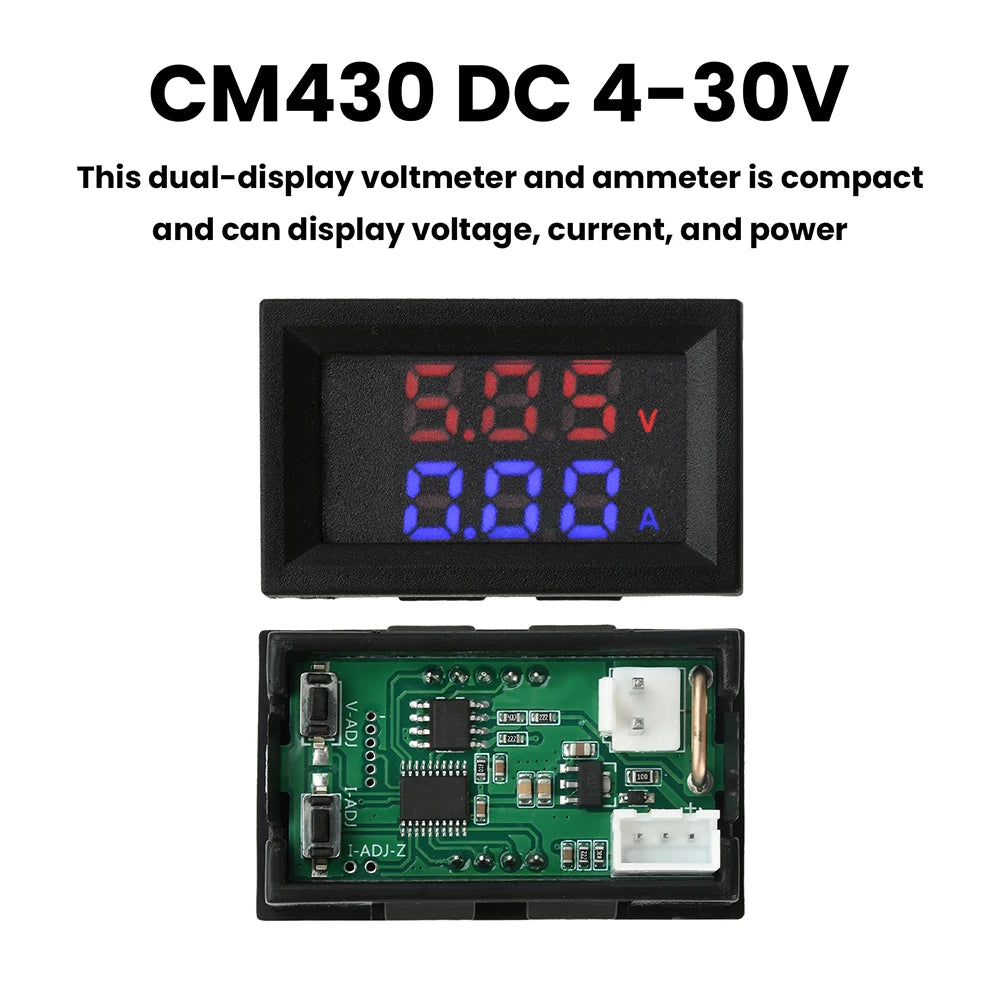

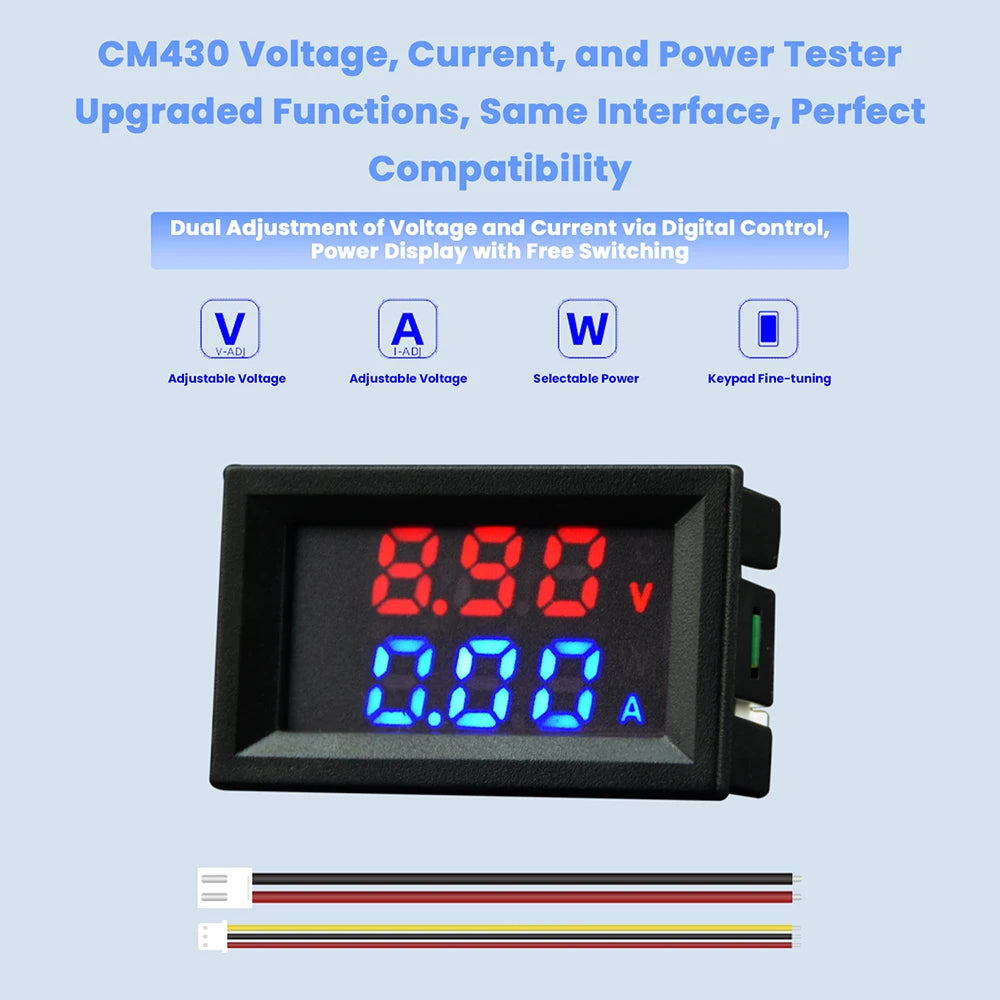

1. Dual-display voltage and current meter with compact size, capable of showing voltage, current, and power

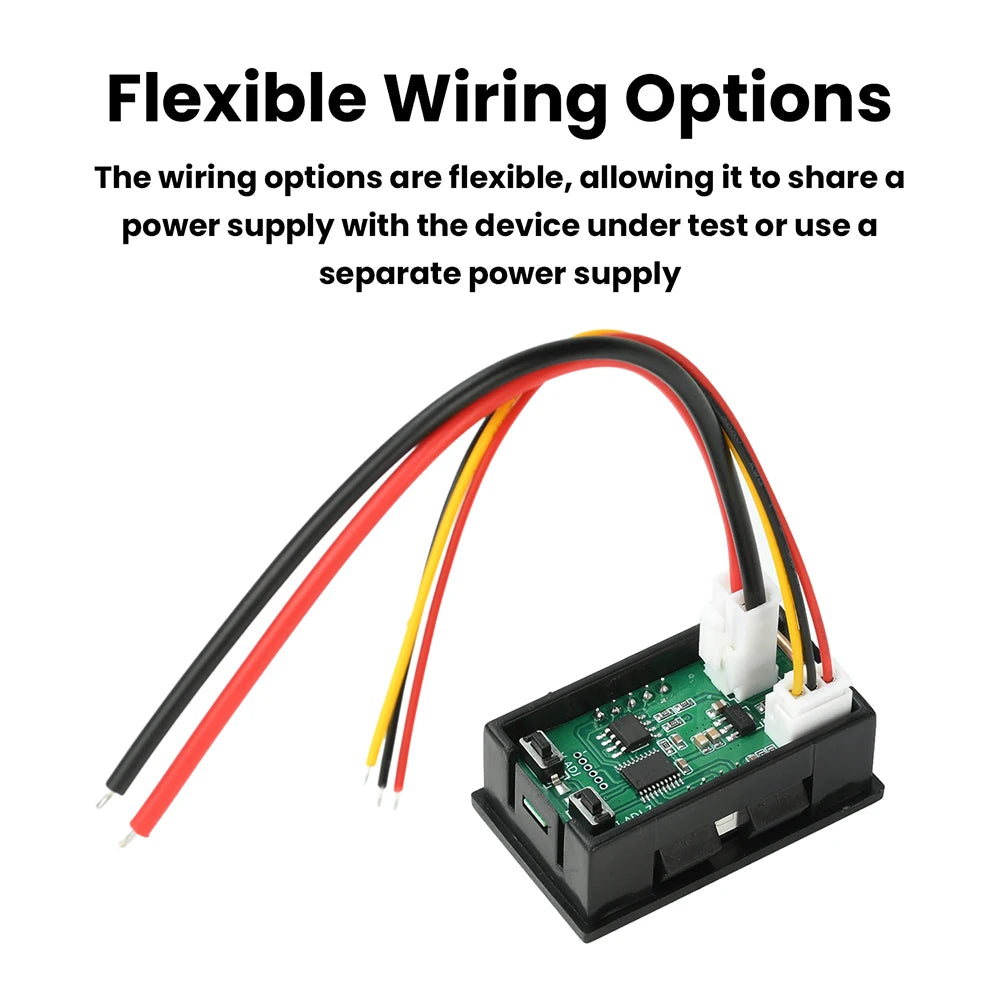

2. Flexible wiring options: can share power with the device under test or use independent power supply

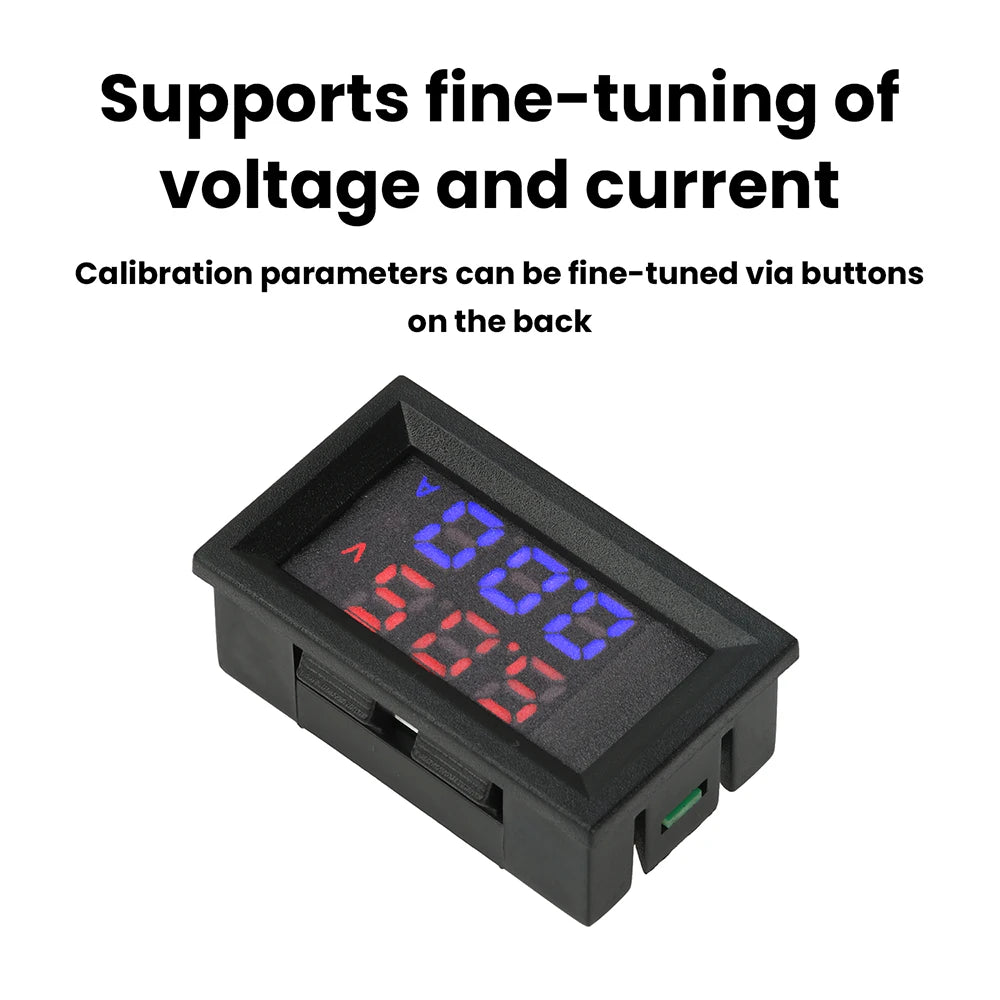

3. Supports voltage and current fine-tuning: calibration parameters can be adjusted via rear buttons

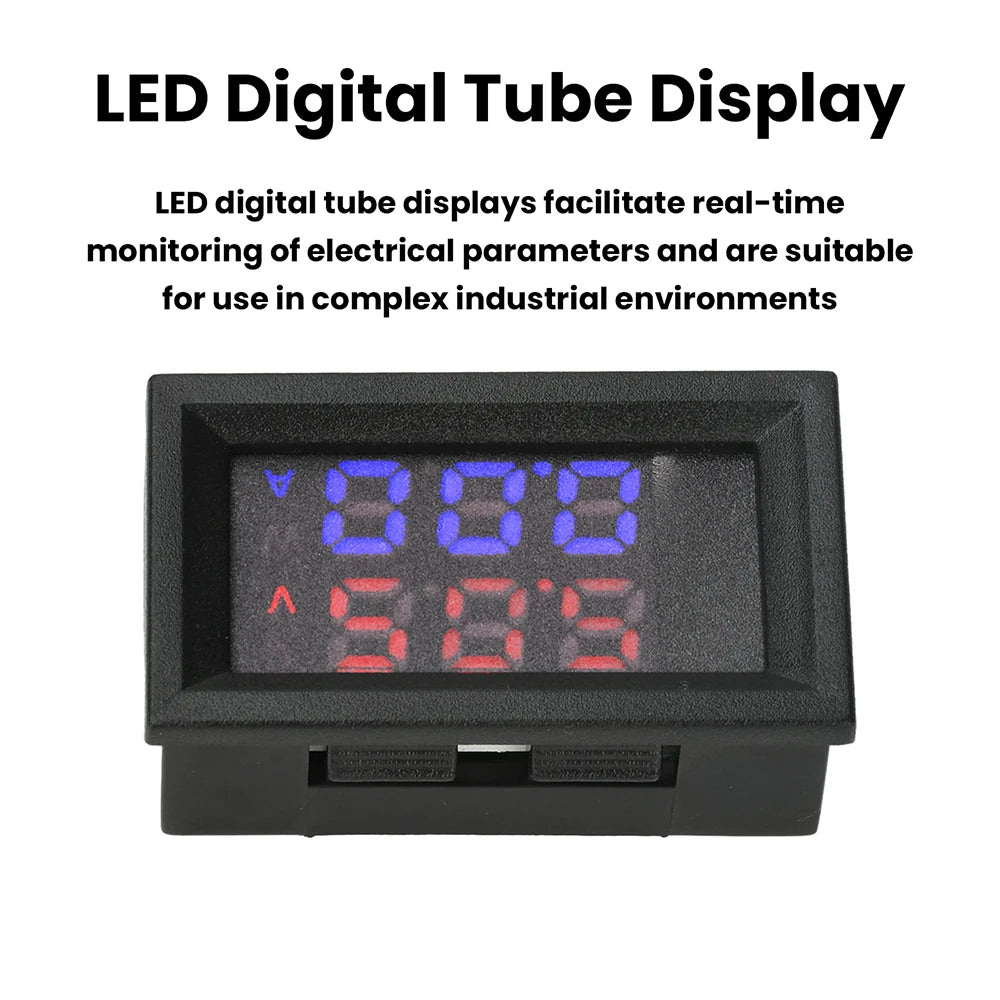

4. LED display for real-time monitoring of electrical parameters, suitable for harsh industrial environments

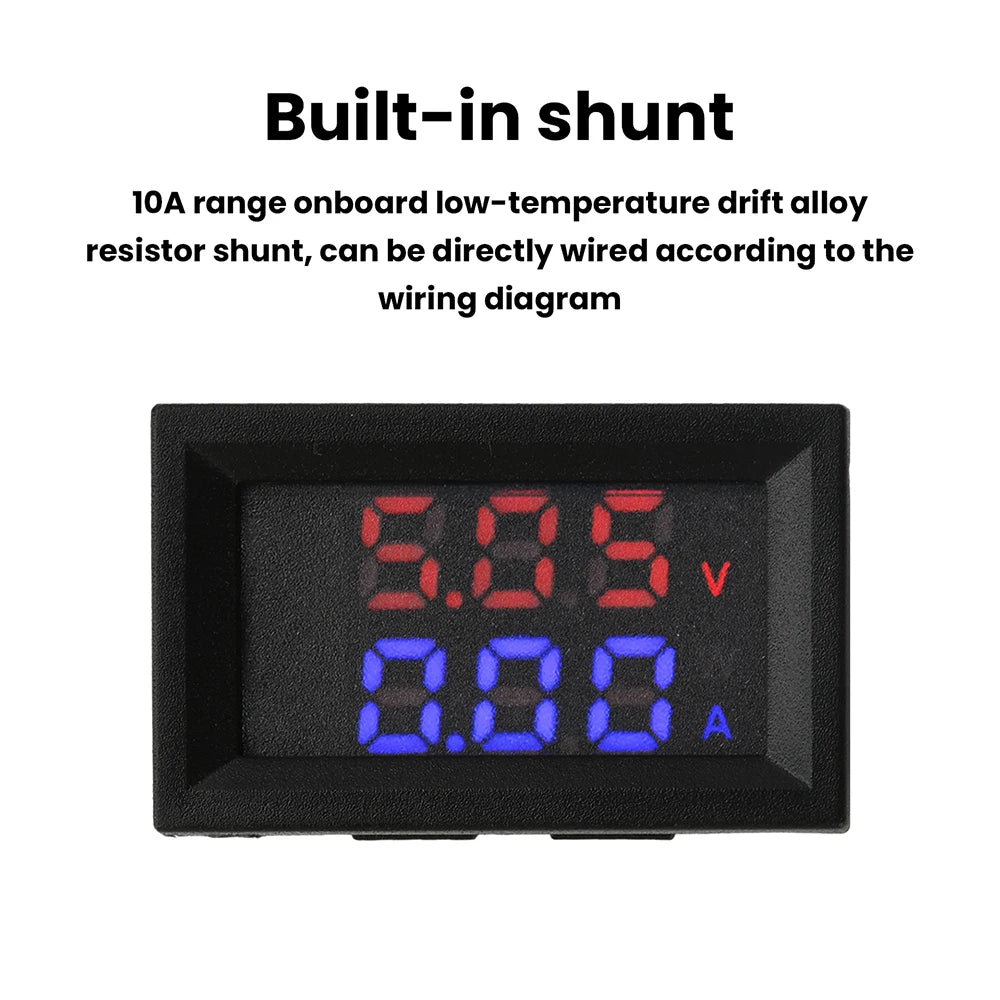

5. Built-in shunt: 10A range with onboard low-drift alloy resistor shunt, ready for direct connection per wiring diagram

Product Specifications:

Supply Voltage: DC 4-30V

Voltage Measurement Range: DC 0~100V Accuracy ±1.00V Resolution 0.1V

Current Measurement Range: Unidirectional, 0.00A~10.00A Accuracy ±0.1A Resolution 0.03A

Power Measurement Range: 0.00~999W

Standby Power Consumption: 10mA (measured at DC12V)

Unit Dimensions: 47.7×28.7×25.8mm

Mounting Hole: 45×26mm

Wire Definition:

XH-2.54-3P Red-Black-Yellow Wires (Thin Wires, Total Length: 155mm)

○ Thin Red Wire (VCC): Positive terminal of operating power supply. Do not connect to power sources exceeding 30V.

○ Thin Black Wire (GND): Negative terminal of operating power supply. Shared with thick black wire. Not required when using a common power source.

○ Thin Yellow Wire (V++): Voltage test lead, connects to positive terminal of test circuit power source

VH-3.96-2P Thick Red/Black Wire (Thick Wire, Total Length: 165mm) Current test lead. Thick wire in parallel with shunt resistor. Do not connect directly to power source terminals—will cause short circuit!!!

○ Thick red wire (I+): Current test positive terminal, connected in series after the load's negative terminal

○ Thick black wire (I-): Current test negative terminal, connected to the power supply's negative terminal

Package Contents:

Meter head*1

Red/black/yellow wires*1

Thick red/black wires*1
