DC 5-24V Dual Signal Generator Square Pulse Wave Frequency Meter
$57.43
Sale price
$57.43
Regular price
$71.15
Shipping calculated at checkout.
Discover the DC 5-24V Dual Signal Generator Square Pulse Wave Frequency Meter — a standout decor pick featuring adjustable design for dependable, everyday performance.
Specifications
Brand Name: Aideepen
Condition: New
Type: Module
Features:

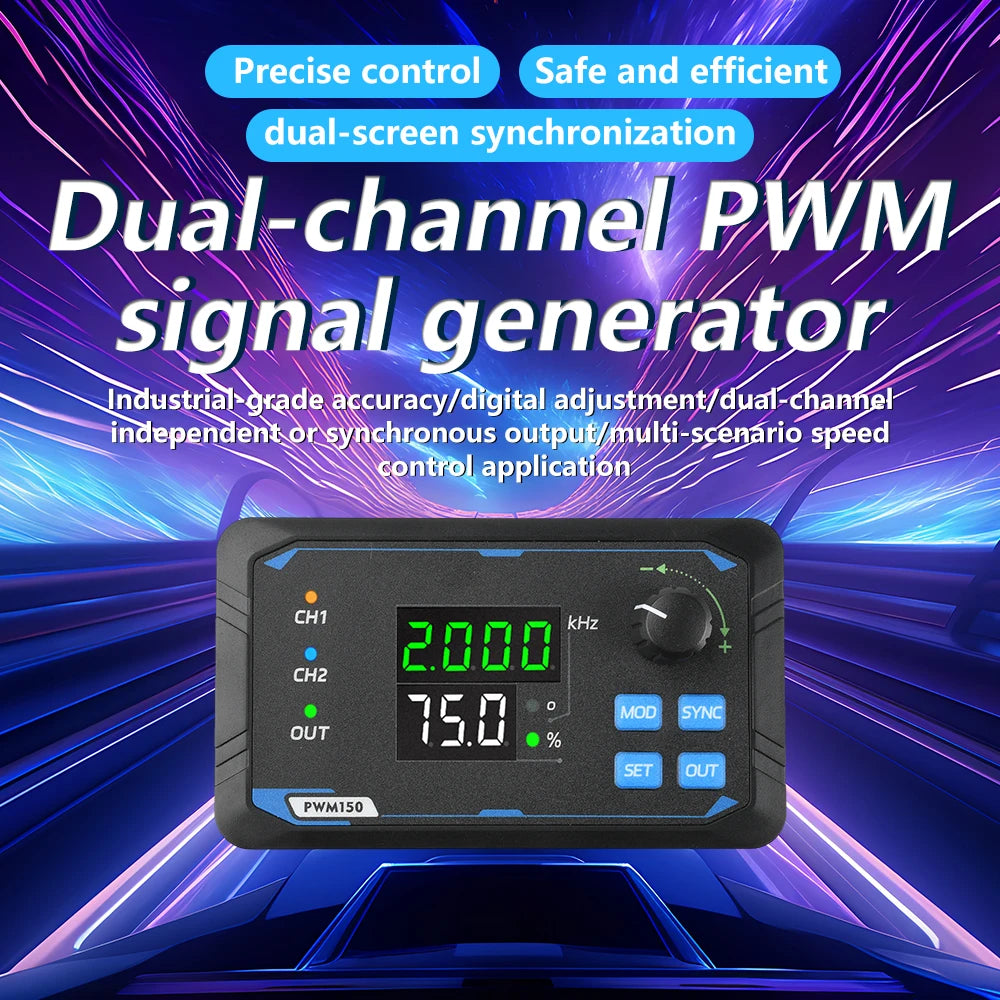

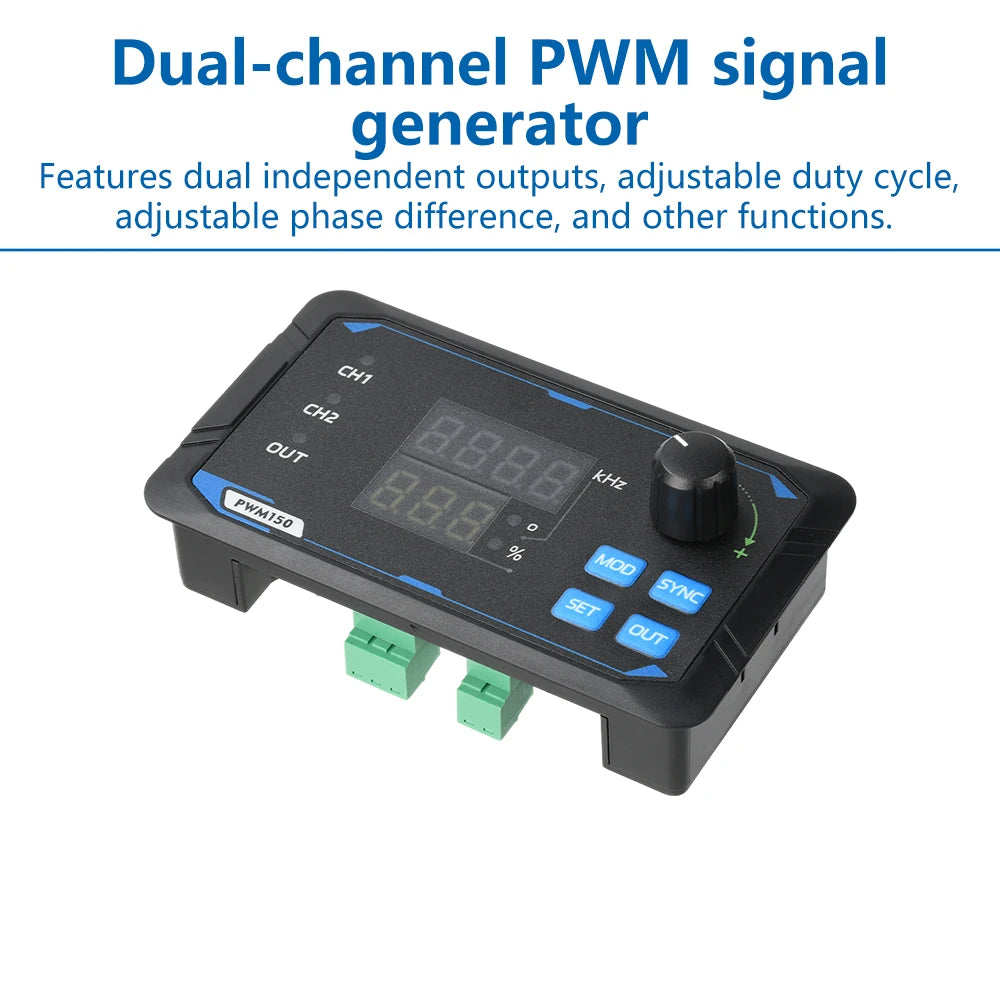

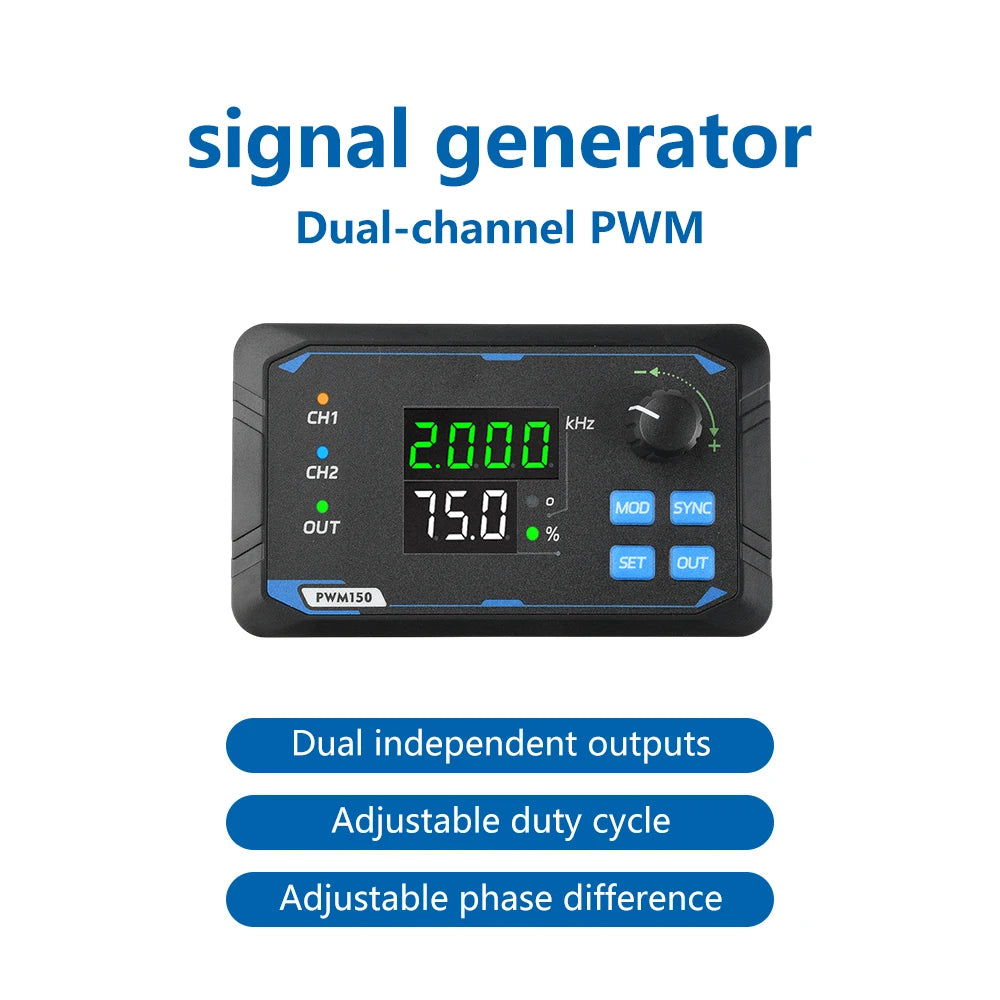

1. Dual-channel PWM signal generator: Features dual independent outputs, adjustable duty cycle, and adjustable phase difference.

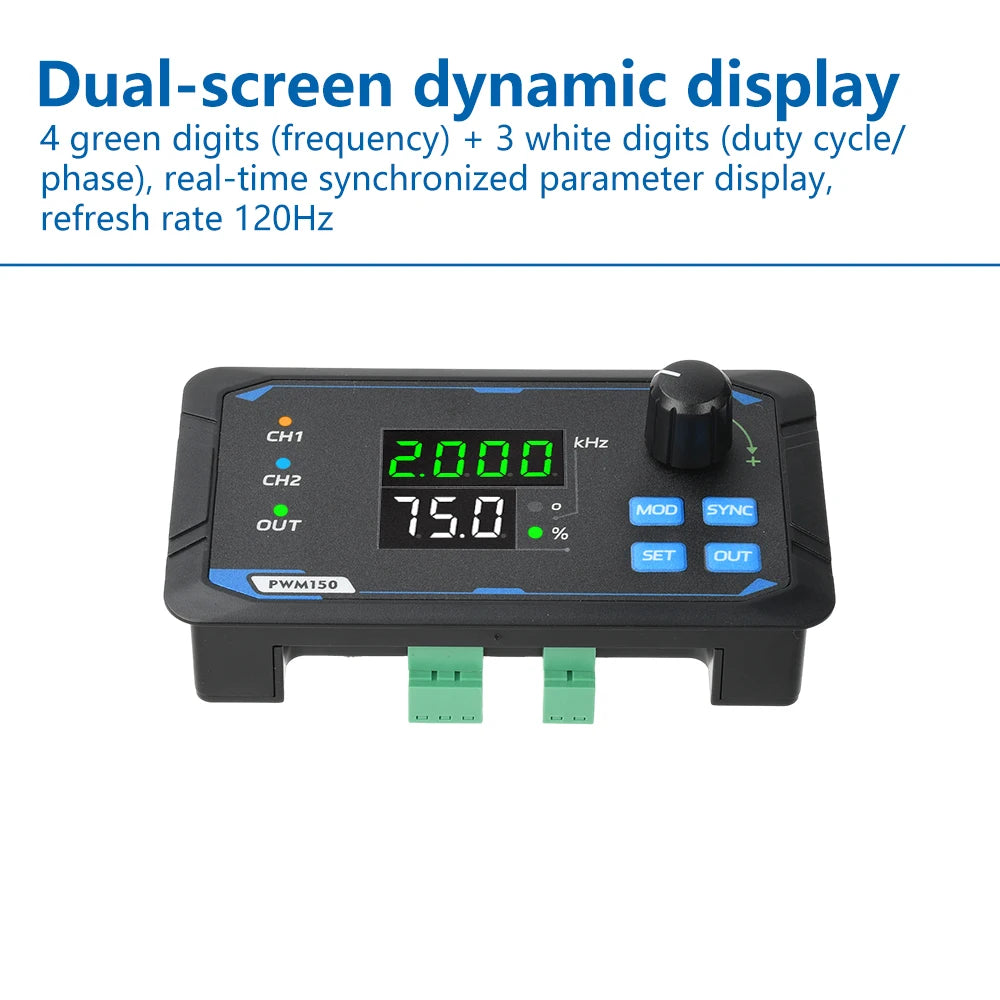

2. Dual-screen dynamic display: 4-digit green (frequency) + 3-digit white LED (duty cycle/phase), real-time synchronous parameter display with 120Hz refresh rate.
3. Multi-level Safety Protection: Provides output short-circuit protection within 60 seconds under 20V voltage conditions

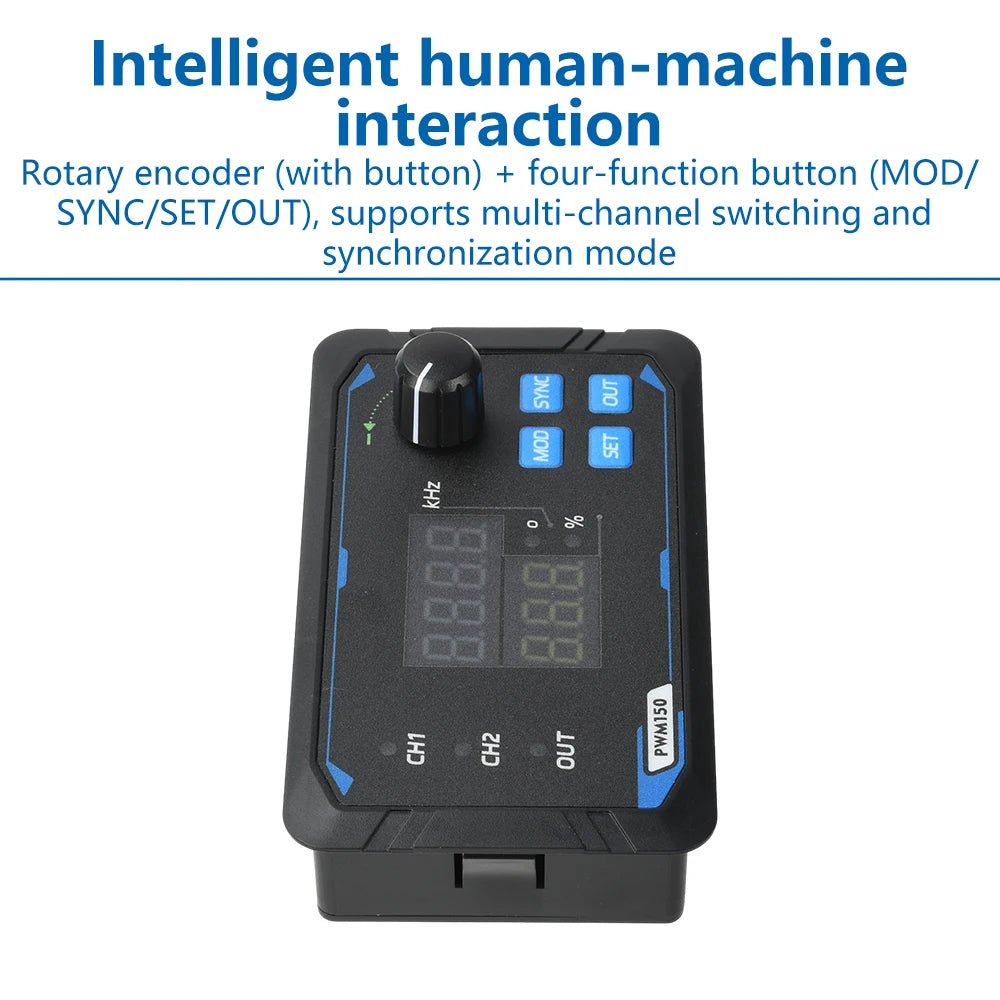

4. Intelligent HMI: Rotary encoder (with button) + four function keys (MOD/SYNC/SET/OUT) for multi-channel switching and synchronization modes

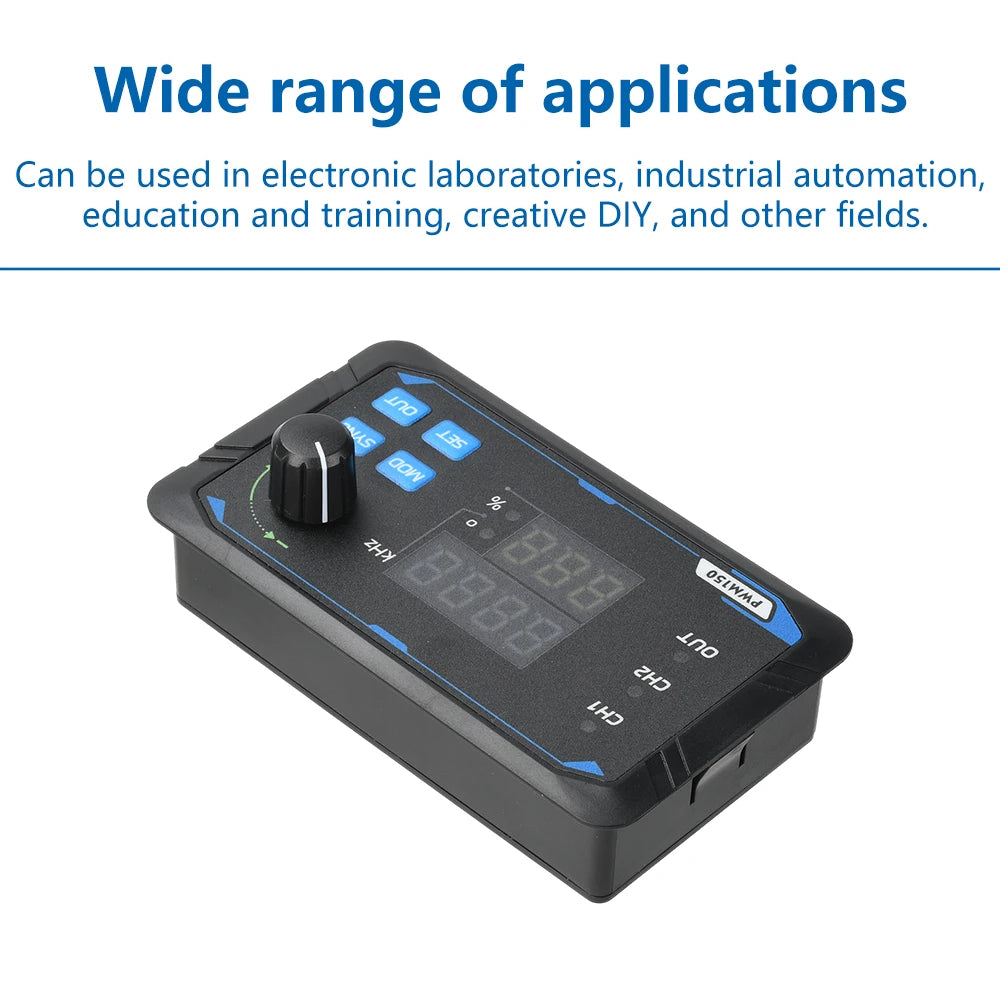

5. Wide Application Range: Suitable for electronics labs, industrial automation, education/training, creative DIY projects, etc.
Product Specifications:
Output Frequency: 1Hz–150kHz
Duty Cycle Accuracy: 0–100%, adjustable in 0.1% increments
Rise Time: 20ns
Phase Adjustment: 0–360° (1° increments, available in sync mode)
Output Voltage: DC 5–24V, max output current 0.2A
Display: 4-digit green + 3-digit white LED
Power Supply: External power supply (DC 5-24V)
Product Dimensions: 108*63*24mm
1Hz-10kHz (Accuracy: 0.2%)
10Hz-50kHz (Accuracy: 0.4%)
50Hz-150kHz (Accuracy: 2%)
Package Contents:
Display Meter*1
Instruction Manual*1
