DC 5V 12V 24V 36V 48V Adjustable Switching Power Supply 60V 80V 120V
Not adjust Curret / 0-24V 0-20A
$221.51
Sale price
$221.51
Regular price
$274.43
Skip to product information

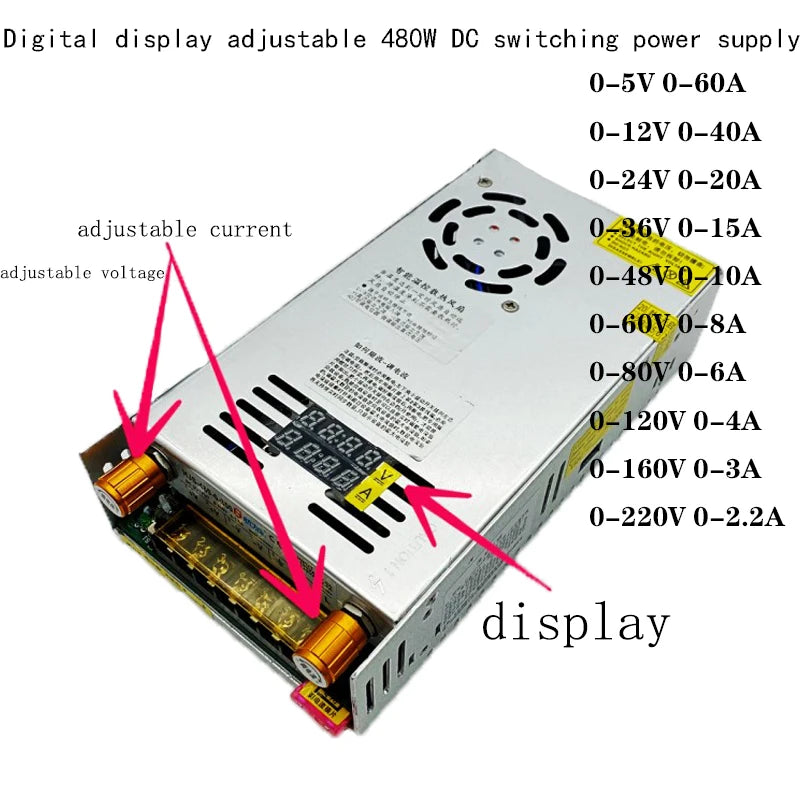

1. Output voltage range: 0-- 5V continuously adjustable output current: 60A
Output voltage range: 0-12V continuously adjustable output current: 40A
Output voltage range: 0-24V continuously adjustable output current: 20A
Output voltage range: 0-36V continuously adjustable output current: 15A
Output voltage range: 0-48V continuously adjustable output current: 10A
Output voltage range: 0-60V continuously adjustable output current: 8A
Output voltage range: 0-80V continuously adjustable output current: 6A
Output voltage range: 0-120V continuously adjustable output current: 4A
Output voltage range: 0-220V continuously adjustable output current: 2.2A
2, Ripple voltage; no more than 100mV
3, The equivalent internal resistance of the regulator: not more than 0.O5Ω
4, Voltage adjustment rate:
5, with short circuit, overload protection, automatic recovery function

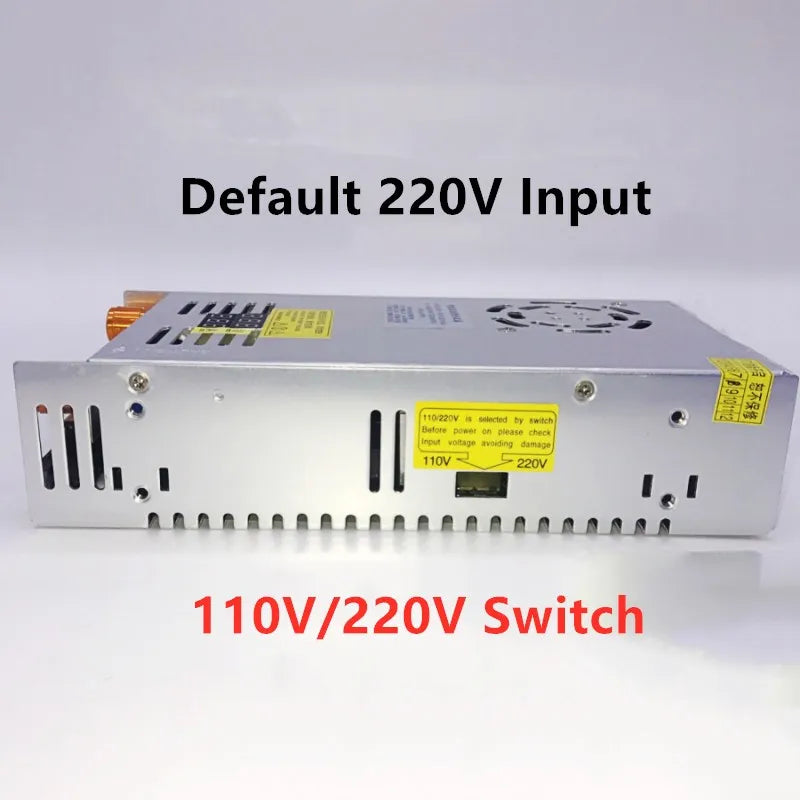

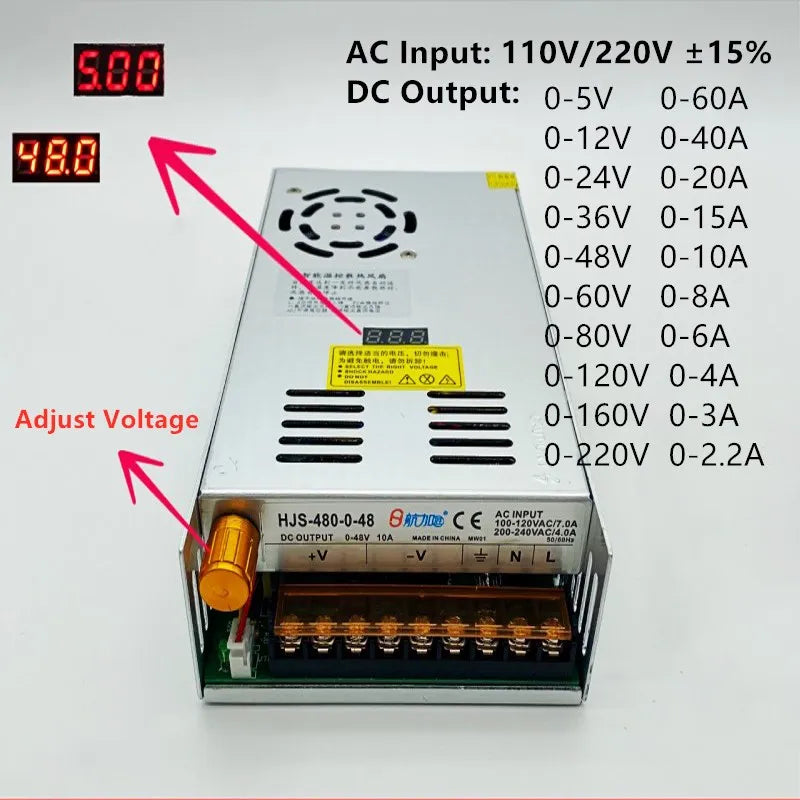

Input voltage: AC110V/220V±15%
Rated power: 480W
Product size: 21.5CM (length) * 11.5CM (width) * 5CM (height),
The Output current depends on the load ,can't more than the max output current
Instructions for use:
Uses: Mainly used in various DC equipment, DC motor stepless speed regulation, LED stepless dimming, chemical electroplating speed regulation, scientific research test, student experiment, etc., and a wide range of uses.
Special attention: If using inductive load such as motor or fan, please pay attention to the motor starting current parameter. This parameter must not be higher than the power supply current. Otherwise, the power supply may be damaged. You should select a higher current power supply or provide soft start protection for the motor. The circuit absorbs the inrush current. Power formula) voltage X current = power Terminal description and wiring method L, N AC input terminal FG ground mark V+ DC output positive terminal V-DC output negative terminal ADJ adjustable potentiometer Fine-tuning output DC voltage ● Full voltage input ● Miniaturization ● Protection function Short circuit / overload / over voltage ● 100% full load aging test Input Voltage & Frequency Range----------110V/220VAC/47 ～ 63Hz Start surge current ---------------20A@120VAC (cold start) Output adjustment range --------------- ±100% (rated output voltage) Overload protection -------------------105%~200% (rated load), self-recovery Overvoltage protection -------------------115%~135% (rated output voltage) Short circuit protection ------------------- self-recovery Output start time --------------- ≤ 2S@120VAC ≤1.0S@230VAC Output hold time --------------- ≥ 10mS@120VAC, ≥20mS@230VAC Insulation strength ------------------- Input - Output: AC1500V, 1min Input - housing: AC1500V, 1min Output - Case: DC500V, 1min Working environment ------------------ -10 ° C ~ 50 ° C; 20% ~ 90% RH (no condensation)
DC 5V 12V 24V 36V 48V Adjustable Switching Power Supply 60V 80V 120V
$221.51
Sale price
$221.51
Regular price
$274.43
Shipping calculated at checkout.
Discover the DC 5V 12V 24V 36V 48V Adjustable Switching Power Supply 60V 80V 120V — a standout decor pick featuring adjustable, soft design for dependable, everyday performance.
Specifications
Brand Name: AEVYVKV
Certification: CE,RoHS
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
Feature 1: power supply
Feature 2: adjustable power supply
Feature 3: 48v power supply
Feature 4: power supply 12v
Feature 5: Power supply 500w
Model Number: Switching Power Supply,480W Adjustable Power Supply
Output Current: 0-100A
Output Frequency: 50/60HZ,47~63HZ
Output Power: >500w,＞500
Output Type: SINGLE
Rated Capacity: 40-1000VA（include40VA）
Type: Power Supply
Use: Other
is_customized: Yes
DC 5V 12V 24V 36V 48V Adjustable Switching Power Supply 60V 80V 120V 220V 480W With Digital Display Power Supply Voltage 12V 10A
First, technical performance indicators1. Output voltage range: 0-- 5V continuously adjustable output current: 60A
Output voltage range: 0-12V continuously adjustable output current: 40A
Output voltage range: 0-24V continuously adjustable output current: 20A
Output voltage range: 0-36V continuously adjustable output current: 15A
Output voltage range: 0-48V continuously adjustable output current: 10A
Output voltage range: 0-60V continuously adjustable output current: 8A
Output voltage range: 0-80V continuously adjustable output current: 6A
Output voltage range: 0-120V continuously adjustable output current: 4A
Output voltage range: 0-220V continuously adjustable output current: 2.2A
2, Ripple voltage; no more than 100mV
3, The equivalent internal resistance of the regulator: not more than 0.O5Ω
4, Voltage adjustment rate:
5, with short circuit, overload protection, automatic recovery function
Input voltage: AC110V/220V±15%
Rated power: 480W
Product size: 21.5CM (length) * 11.5CM (width) * 5CM (height),
The Output current depends on the load ,can't more than the max output current
Instructions for use:
Uses: Mainly used in various DC equipment, DC motor stepless speed regulation, LED stepless dimming, chemical electroplating speed regulation, scientific research test, student experiment, etc., and a wide range of uses.
Special attention: If using inductive load such as motor or fan, please pay attention to the motor starting current parameter. This parameter must not be higher than the power supply current. Otherwise, the power supply may be damaged. You should select a higher current power supply or provide soft start protection for the motor. The circuit absorbs the inrush current. Power formula) voltage X current = power Terminal description and wiring method L, N AC input terminal FG ground mark V+ DC output positive terminal V-DC output negative terminal ADJ adjustable potentiometer Fine-tuning output DC voltage ● Full voltage input ● Miniaturization ● Protection function Short circuit / overload / over voltage ● 100% full load aging test Input Voltage & Frequency Range----------110V/220VAC/47 ～ 63Hz Start surge current ---------------20A@120VAC (cold start) Output adjustment range --------------- ±100% (rated output voltage) Overload protection -------------------105%~200% (rated load), self-recovery Overvoltage protection -------------------115%~135% (rated output voltage) Short circuit protection ------------------- self-recovery Output start time --------------- ≤ 2S@120VAC ≤1.0S@230VAC Output hold time --------------- ≥ 10mS@120VAC, ≥20mS@230VAC Insulation strength ------------------- Input - Output: AC1500V, 1min Input - housing: AC1500V, 1min Output - Case: DC500V, 1min Working environment ------------------ -10 ° C ~ 50 ° C; 20% ~ 90% RH (no condensation)
Options

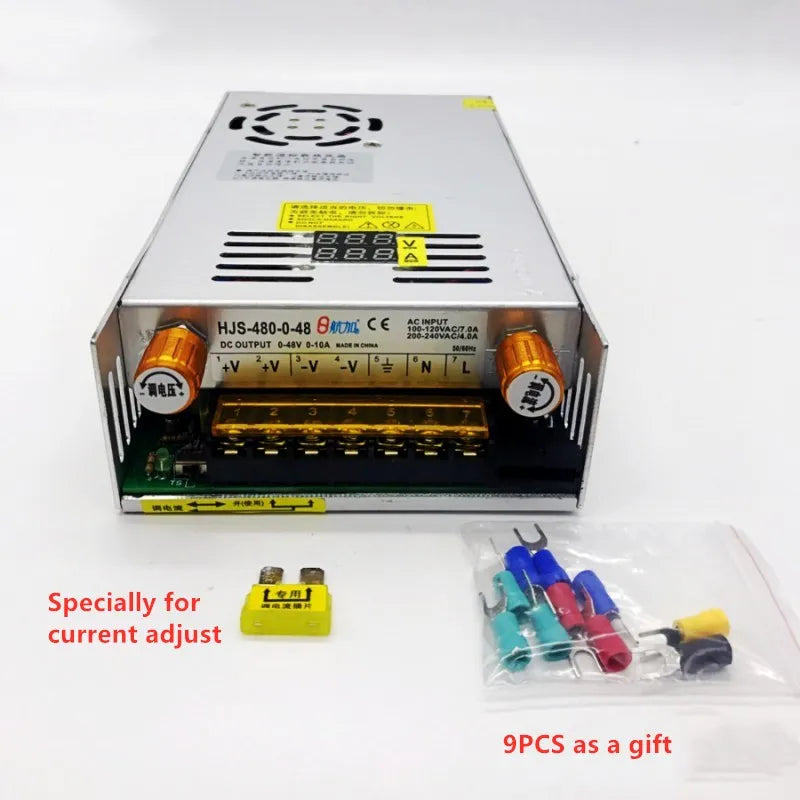

- Color: Not adjust Curret, Adjust Current

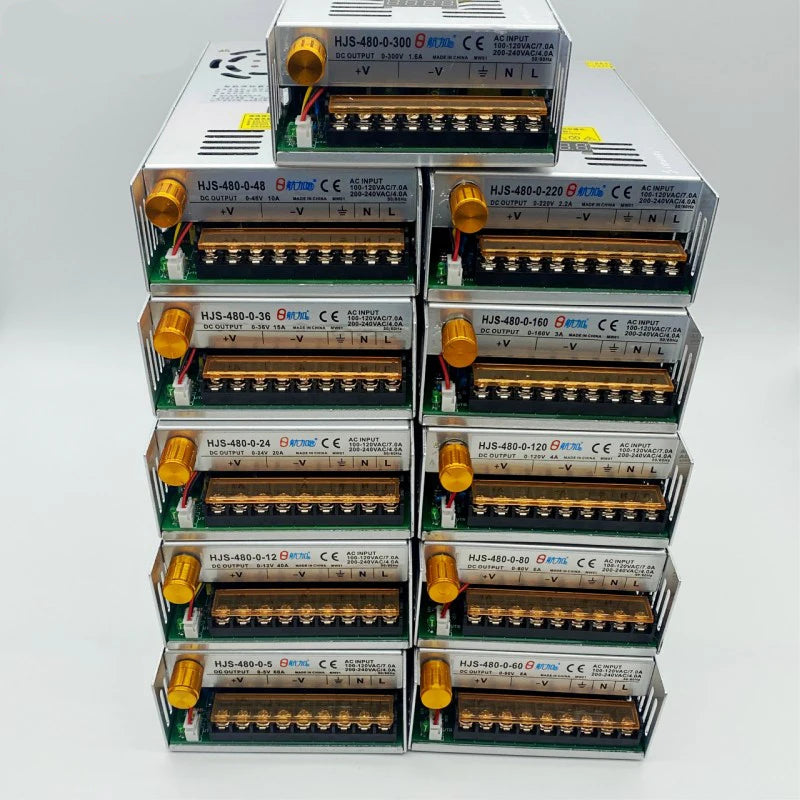

- Power (W): 0-24V 0-20A, 0-36V 0-15A, 0-5V 0-60A, 0-12V 0-40A, 0-160V 0-3A, 0-220V 0-2.2A, 0-80V 0-6A, 0-120V 0-4A, 0-48V 0-10A, 0-60V 0-8A
