DC 5V DIY Mini Digital Oscilloscope Electronic STC Soldering Project
$39.53
Sale price
$39.53
Regular price
$48.97
Shipping calculated at checkout.
Discover the DC 5V DIY Mini Digital Oscilloscope Electronic STC Soldering Project, a standout decor pick designed for dependable everyday performance and lasting value.
Specifications
Brand Name: Aideepen
DIY Supplies: Electrical
Semi-finishedproduct: No
Description:

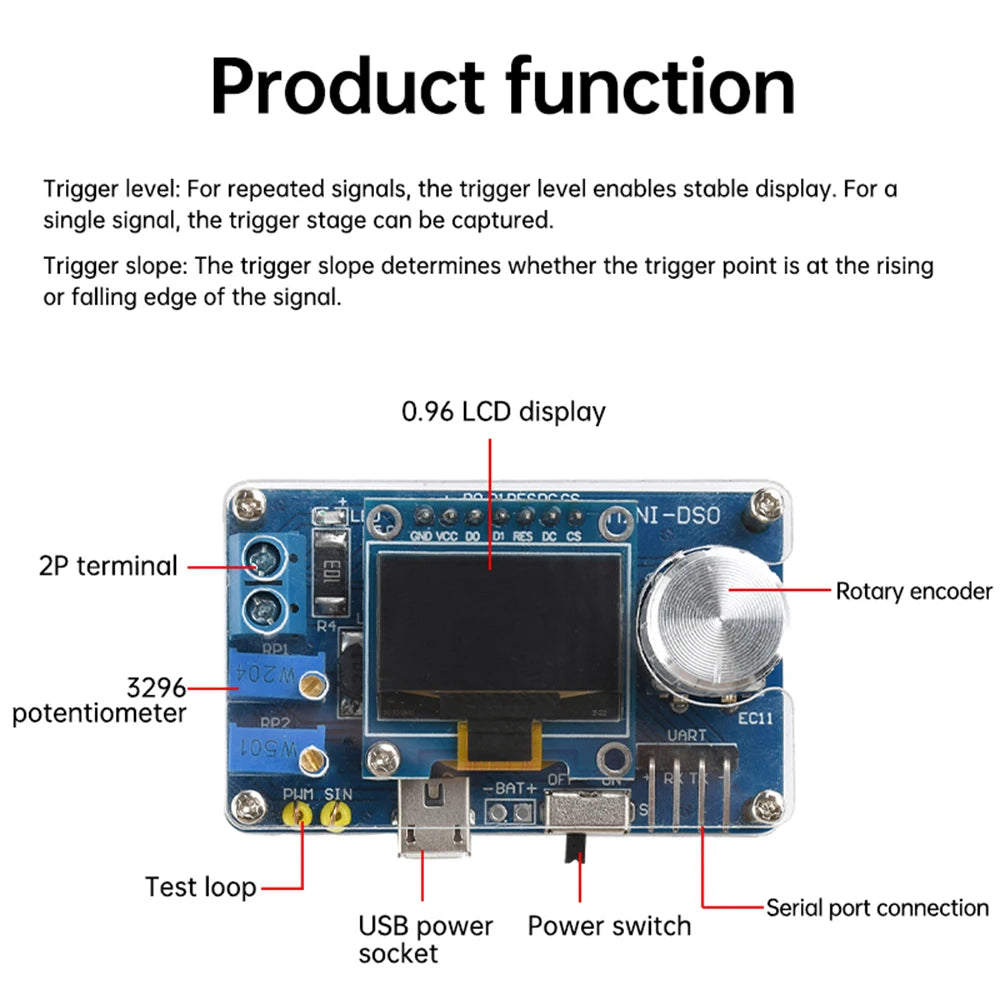

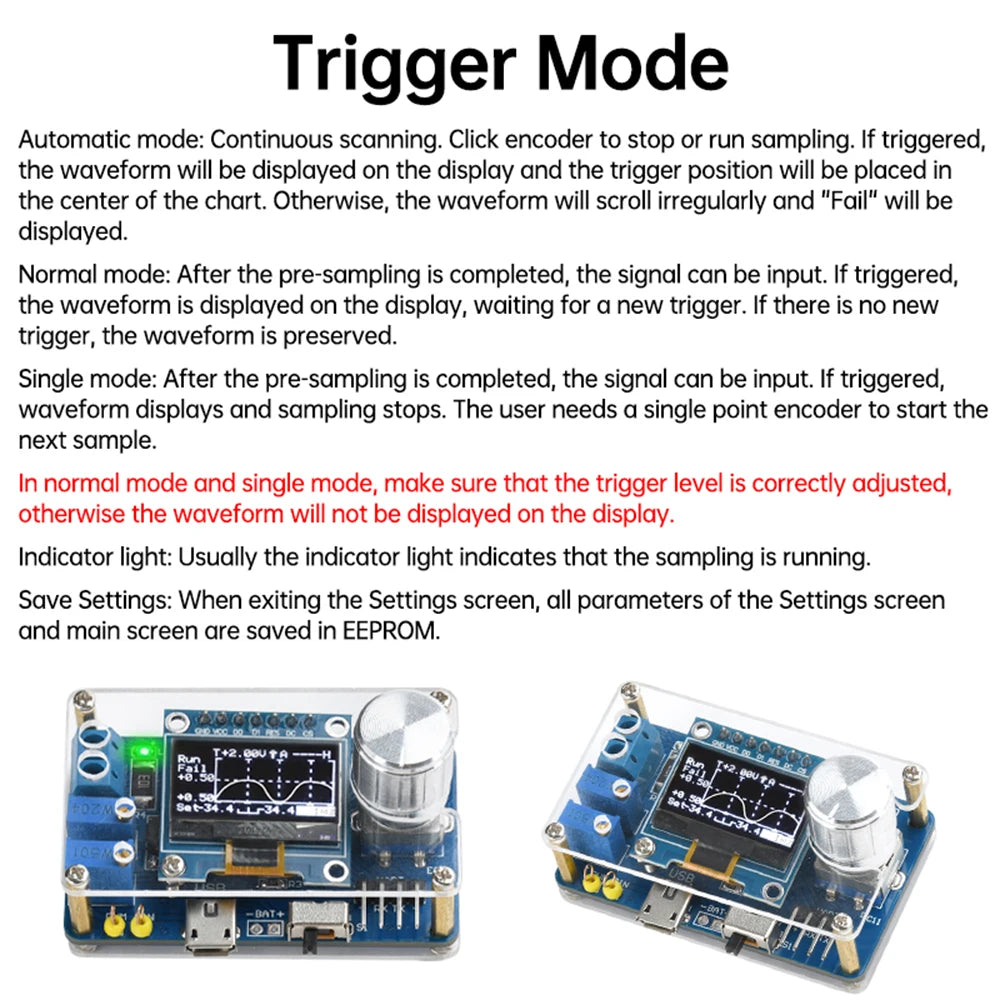

1. Indicator light: Typically, a lit indicator signifies that sampling is in progress.
2. Three trigger modes: Auto mode, Normal mode, and Single mode.
3. Trigger slope: The trigger slope determines whether the trigger point occurs on the rising or falling edge of the signal.
4. Trigger Level: For repetitive signals, the trigger level ensures stable display. For single-shot signals, the trigger level captures the signal.
5. Save Settings: Upon exiting the settings menu, all parameters from both the settings and main screens are saved to EEPROM.
6. Waveform Generator: PWM (PWM generator) and SIN (sine wave generator). Adjusting RP1 and RP2 changes the amplitude respectively.
Product Specifications:
Supply Voltage: DC 5V (micro USB)
Voltage Range: 0~30V (requires LSB adjustment)
Graded Sampling: 10kHz @ 100μs/div
Sec/div: 500ms, 200ms, 100ms, 50ms, 20ms,
10ms, 5ms, 2ms, 1ms, 500μs, 200μs, 100μs
PCB Dimensions: 57×35mm
Finished Product Dimensions: 57×35×30mm
Package Contents:
DIY Kit Components*1
Options
- Color: With shell, Without shell
Frequently Asked Questions
Q: What is the DC 5V DIY Mini Digital Oscilloscope Electronic STC?
A: The DC 5V DIY Mini Digital Oscilloscope Electronic STC is a quality decor pick. For single-shot signals, the trigger level captures the signal.
Q: How do I use the DC 5V DIY Mini Digital Oscilloscope Electronic STC?
A: The DC 5V DIY Mini Digital Oscilloscope Electronic STC is ready to use right out of the box and makes an easy addition to your decor lineup.
Q: Why choose the DC 5V DIY Mini Digital Oscilloscope Electronic STC?
A: The DC 5V DIY Mini Digital Oscilloscope Electronic STC stands out in our decor range — Adjusting RP1 and RP2 changes the amplitude respectively.
Details
This product is crafted with quality materials to ensure durability and performance. Designed with your convenience in mind, it seamlessly fits into your everyday life.
Shipping & Returns
We strive to process and ship all orders in a timely manner, working diligently to ensure that your items are on their way to you as soon as possible.
We are committed to ensuring a positive shopping experience for all our customers. If for any reason you wish to return an item, we invite you to reach out to our team for assistance, and we will evaluate every return request with care and consideration.
