DC 5V DSO183 0-500KHz Digital Oscilloscope DIY Parts Beginner
Default Title
$75.21
Sale price
$75.21
Regular price
$93.18
Skip to product information
DC 5V DSO183 0-500KHz Digital Oscilloscope DIY Parts Beginner
$75.21
Sale price
$75.21
Regular price
$93.18
Shipping calculated at checkout.
Discover the DC 5V DSO183 0-500KHz Digital Oscilloscope DIY Parts Beginner — a standout skin care pick featuring compact design for dependable, everyday performance.
Specifications
Brand Name: Aideepen
DIY Supplies: Electrical
Semi-finishedproduct: No
Product Features:
1. Single-board design: Compact integrated structure for easy installation and high stability, suitable for various experimental environments
2. Built-in signal generator: Integrates multiple waveform outputs including sine and triangle waves to meet diverse testing needs
3. Waveform storage and recall: Supports waveform saving and quick retrieval for comparison analysis and reuse
4. 500KHz High Bandwidth: High-frequency response capability for precise capture of complex signal details

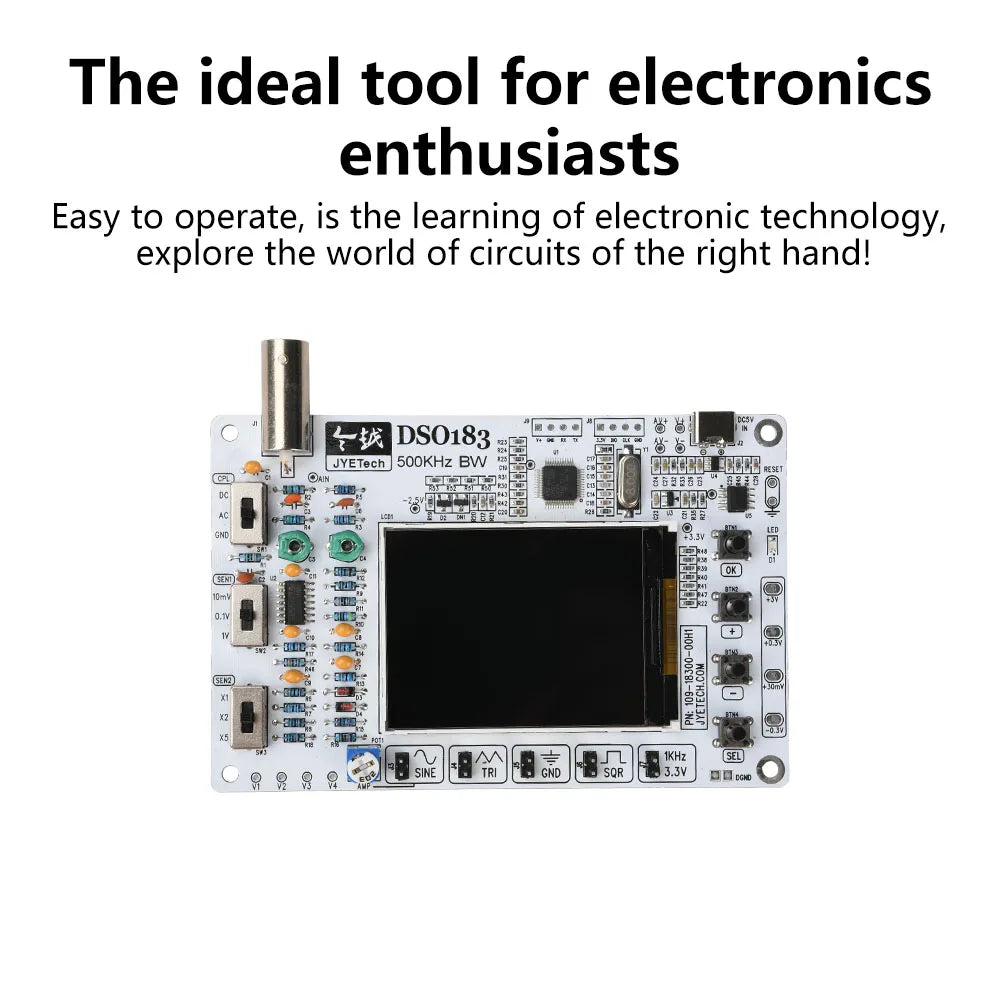

5. Ideal Tool for Electronics Enthusiasts: Simple operation and powerful functionality make it an excellent assistant for learning electronics and exploring circuitry
Product Specifications:
Bandwidth: 500KHz
ADC Resolution: 12Bit
Real-time Sampling Rate: 1.5Msps
Waveform Buffer Length: 1024 points
Vertical Sensitivity Range: 10mV/div - 5V/div
Input Impedance: 1MΩ
Maximum Input Voltage: 50Vpk
Coupling Mode: DC, AC, GND
Horizontal Time Base Range: 1μs/div - 500s/div
Trigger Mode: Auto, Normal, Single
Trigger edge: 1μs/div - 500s/div
Power supply: DC 5V (powered via USB [Type-C port])
Current consumption: <100mA
Product dimensions: 118 × 76 × 12mm
Package contents:

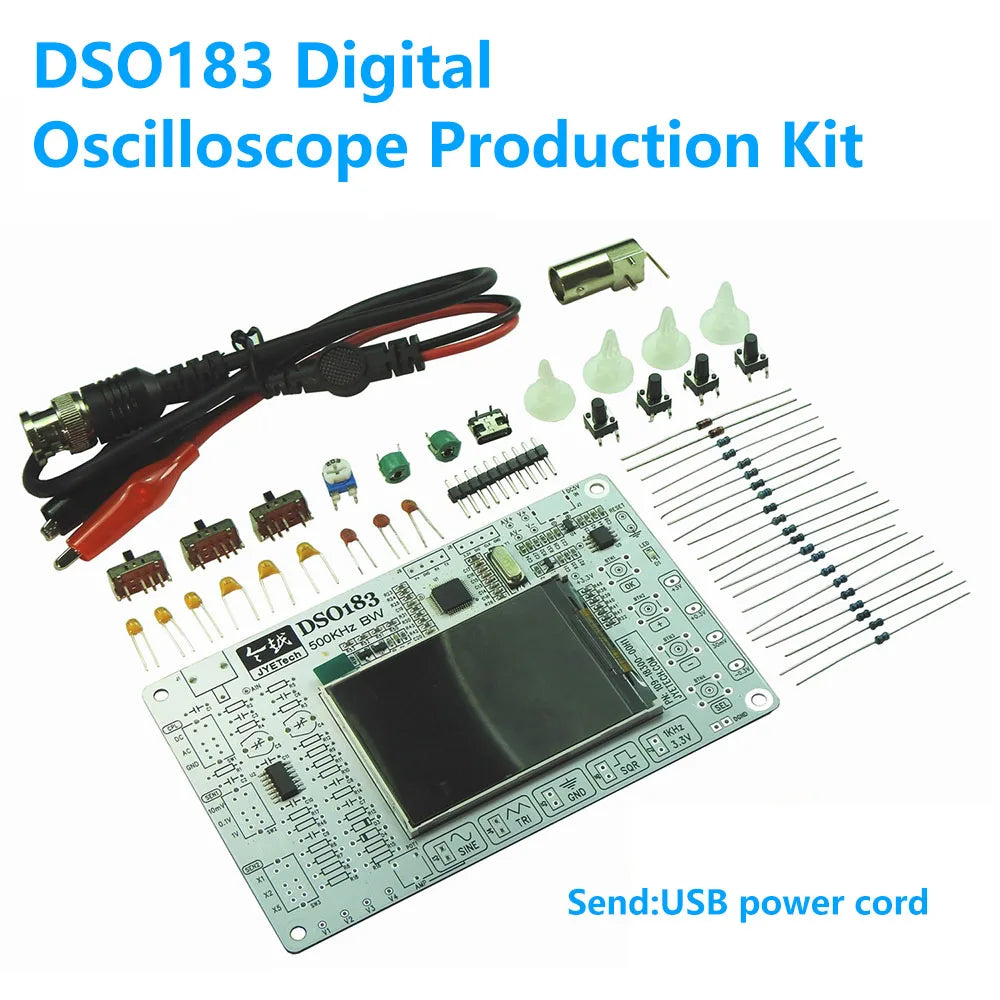

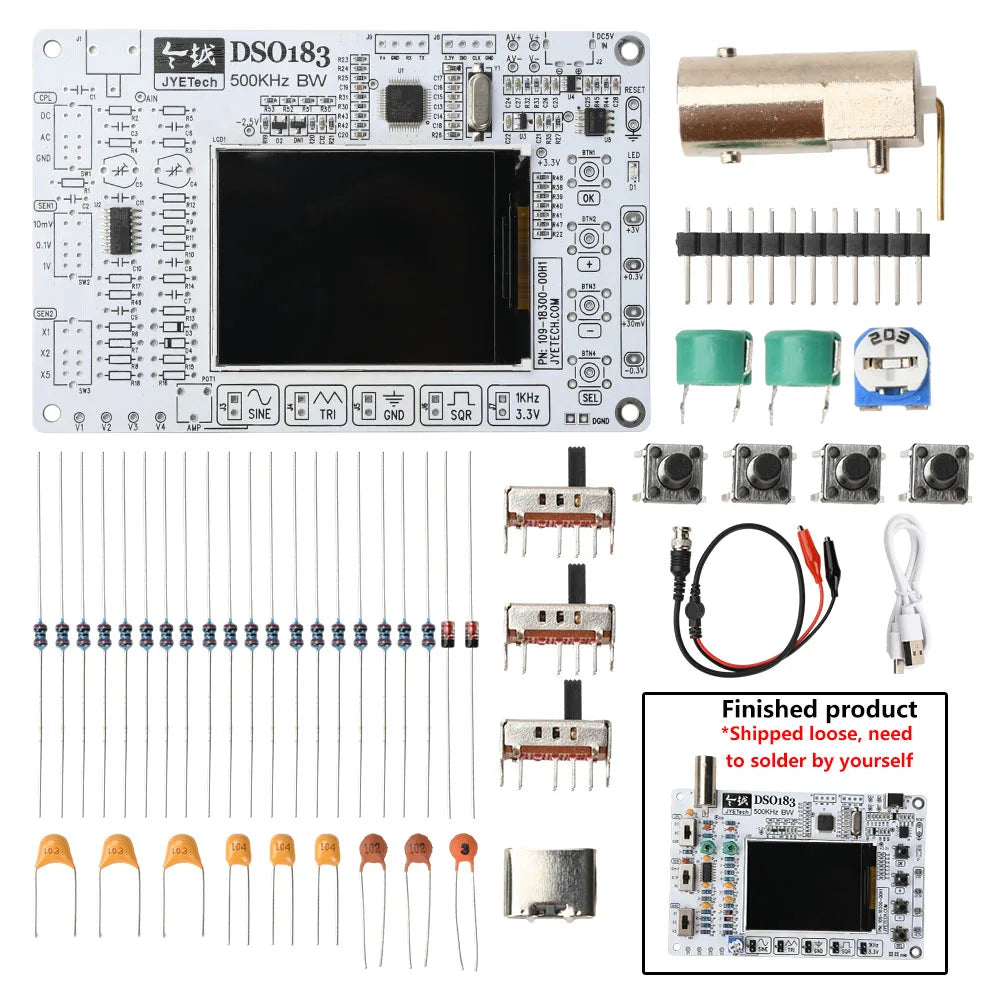

DIY kit components ×1
