DC 5V Dual Channel 18650 Lithium Battery Capacity Tester Electronic

A

$48.64

$48.64 $60.26

DC 5V Dual Channel 18650 Lithium Battery Capacity Tester Electronic

$48.64

$48.64 $60.26

Shipping calculated at checkout.

Discover the DC 5V Dual Channel 18650 Lithium Battery Capacity Tester Electronic — a standout decor pick featuring adjustable design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Certification: NONE

DIY Supplies: Electrical

Power Source: None

Semi-finishedproduct: No

Type: Electronic Device Battery Tester

Features:

1. Power-off memory function: Automatically saves the most recent measurement data (curves are not saved)

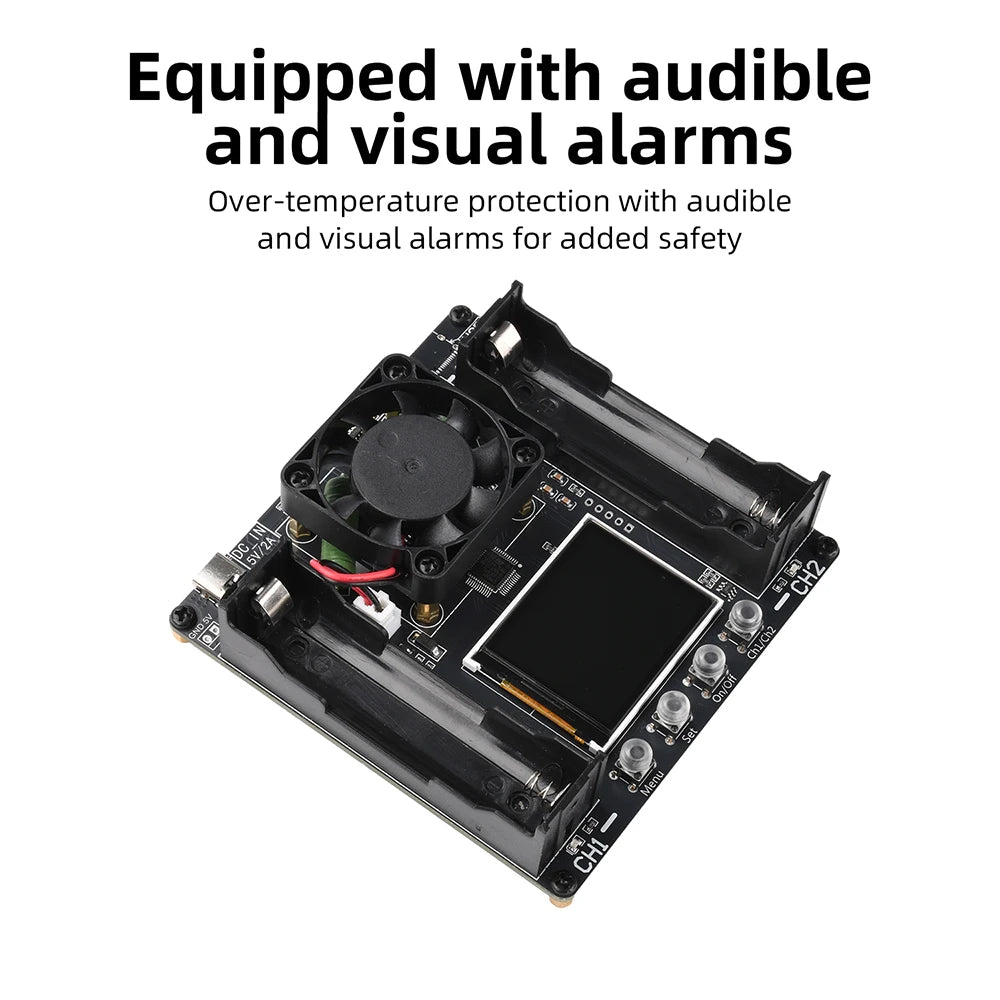

2. Audible and visual alarm function: Over-temperature protection with audible and visual alerts for enhanced safety

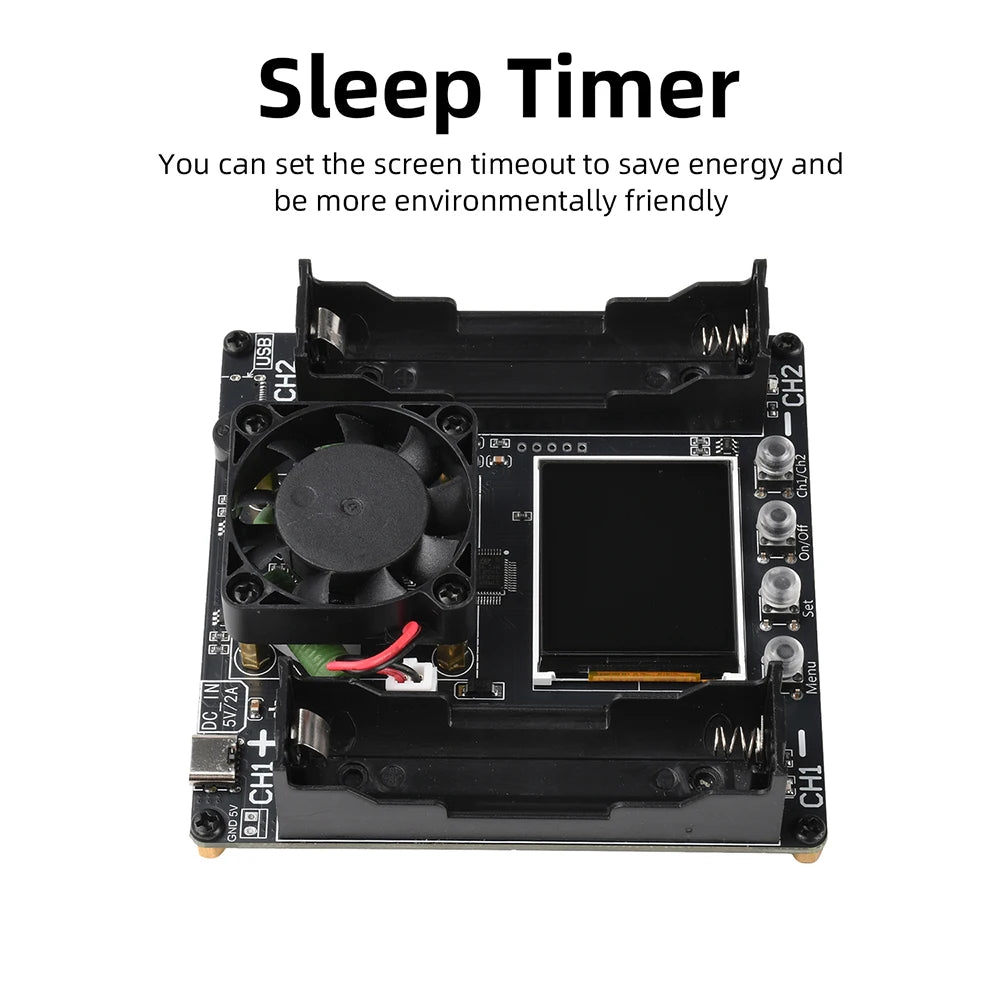

3. Screen timeout: Configurable screen timeout for greater energy efficiency and environmental friendliness

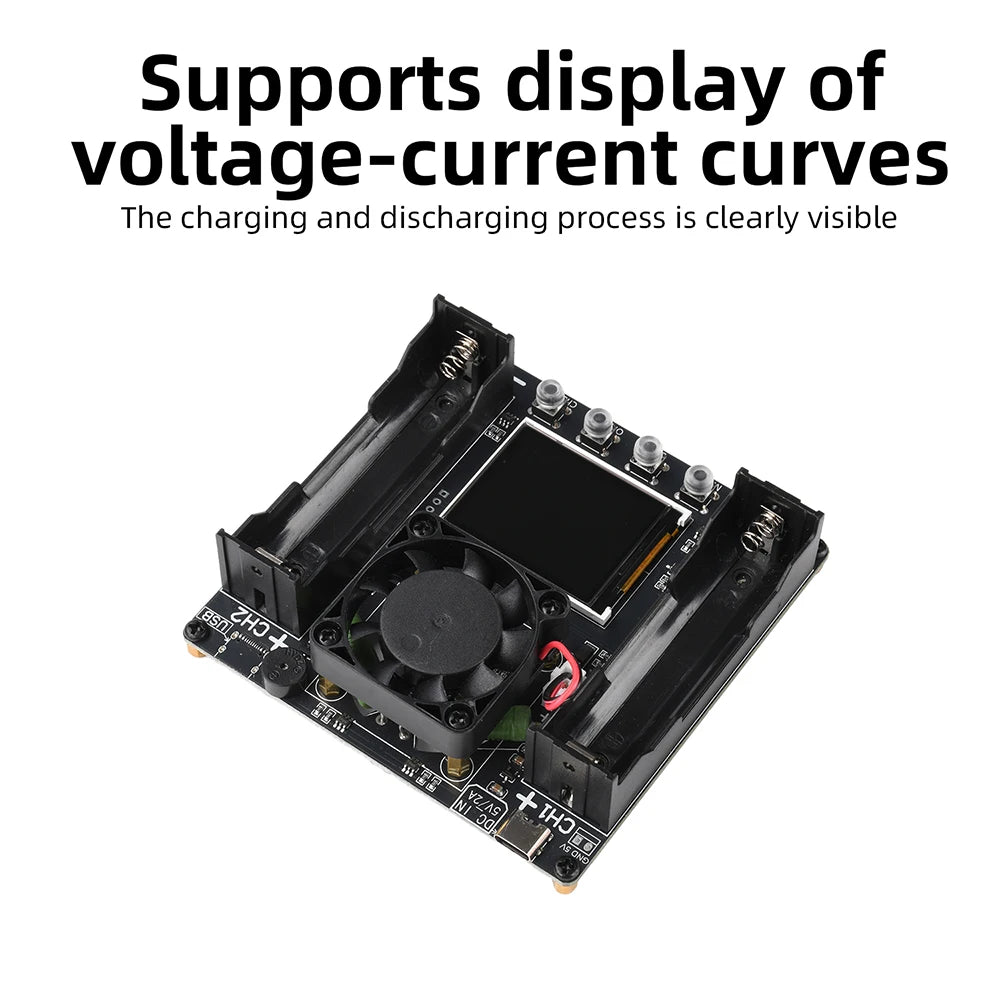

4. Supports voltage and current curve display, providing a clear overview of the charging and discharging process

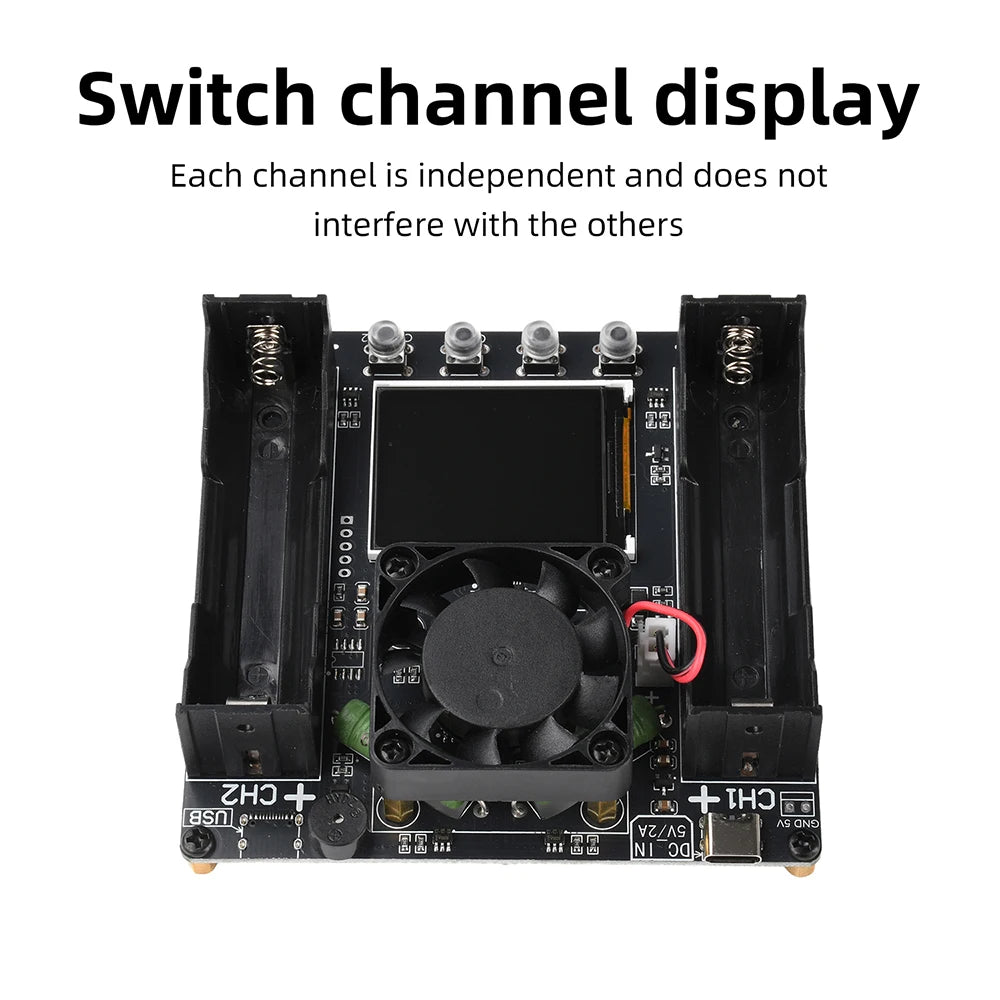

5. Channel display switching: Each channel operates independently without interference

6. Chinese/English language switching: Press and hold the “Menu” button while powering on; release the button to switch

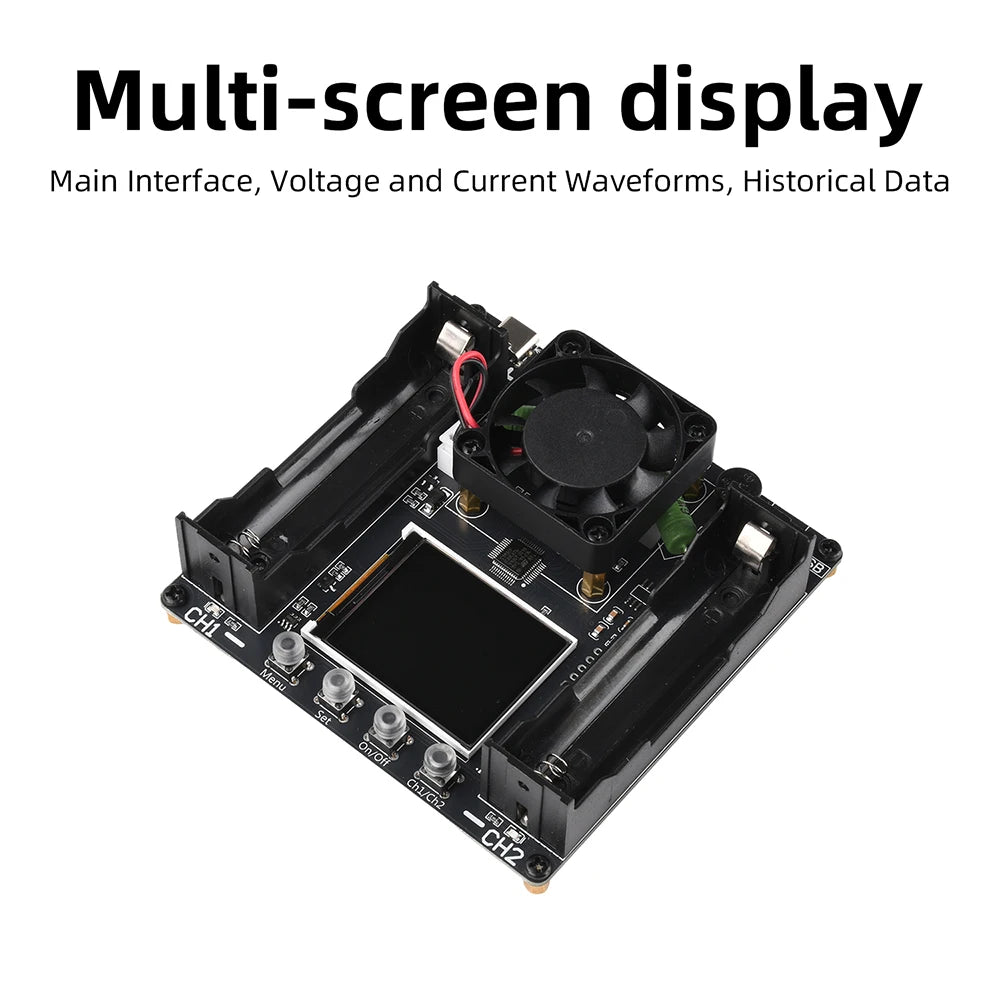

7. Multi-interface display: Main interface, voltage and current waveforms, historical data

Product Specifications:

Number of channels: 2 x 18650 lithium-ion batteries

Compatible Batteries: 18650 lithium batteries charged at 4.2V

Cooling Method: Active cooling

Power Supply: DC 5V/2A

Standby Time: 1–9 minutes, adjustable (default 1 minute)

Operating Modes: Auto mode, Charge mode, Discharge mode

Over-temperature protection: Supported (automatically detected by the program)

Initial charge voltage: 3.7–4.2V

Initial Discharge Voltage: 2.0–3.6V

Recharge Voltage: 3.0–4.2V

Cut-off Current: 0.1–0.3A

Capacity Measurement Range: 0–99,999 mAh

Energy Measurement Range: 0–99,999 mWh

Voltage Accuracy: ±(1% + 2 counts)

Current Accuracy: ±(1% + 5 counts)

Discharge Voltage: 2.5V–3.5V (11 adjustable levels)

Discharge Current: Maximum current approx. 1A, non-adjustable

Status Indication: LED indicator, buzzer

Screen Sleep Time: Supported, adjustable from 0–9 minutes (default 0 minutes, screen stays on)

Product Dimensions: 100 × 100 × 29 mm

Package Contents:

Tester × 1
