DC 5V Single Module Dual Spray Three Electrified Direct No Switch

Discover the DC 5V Single Module Dual Spray Three Electrified Direct No Switch — a standout decor pick featuring lightweight, compact design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Condition: New

Type: Module

Features:

1. Multiple specifications available: Choose from dual-nozzle or triple-nozzle configurations to meet diverse environmental needs with enhanced adaptability.

2. High-efficiency atomization: Micro-pore atomization plate with a resonant frequency of 108-110KHz delivers fine, uniform mist.

3. Low-power design: Rated power of 1.5-2W effectively conserves electricity, ideal for prolonged stable operation.

4. Compact and lightweight structure: Small footprint facilitates integration into various devices.

5. User-friendly operation: Simple installation with no switch required—automatically activates upon water contact for convenient use.

Module Specifications:

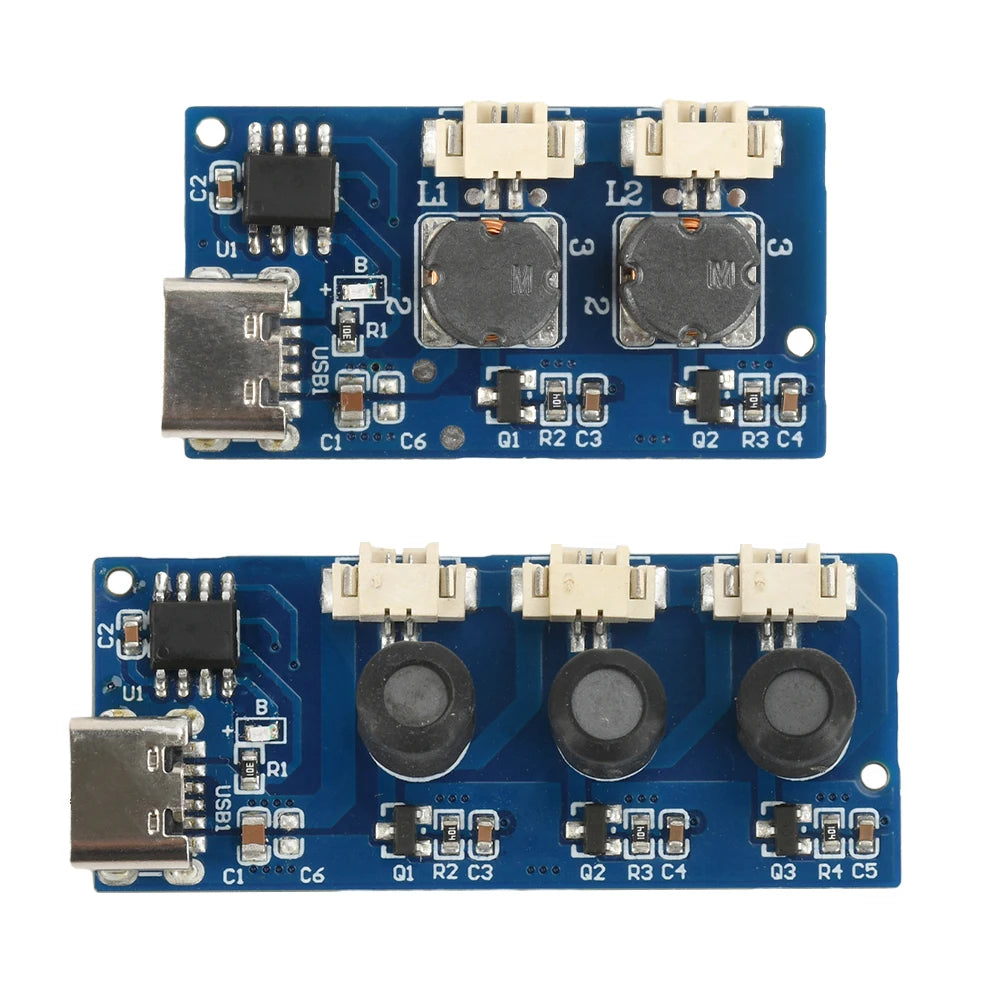

Model: Dual-nozzle, Triple-nozzle

Material: 1.2mm FR-4

Power Interface: Type-C

Terminal Interface: PH1.25 connector

Power Supply Voltage: DC 5V

Rated Current: 300mA

Power: 1.5-2W

Atomization Frequency: 108kHz ±5kHz

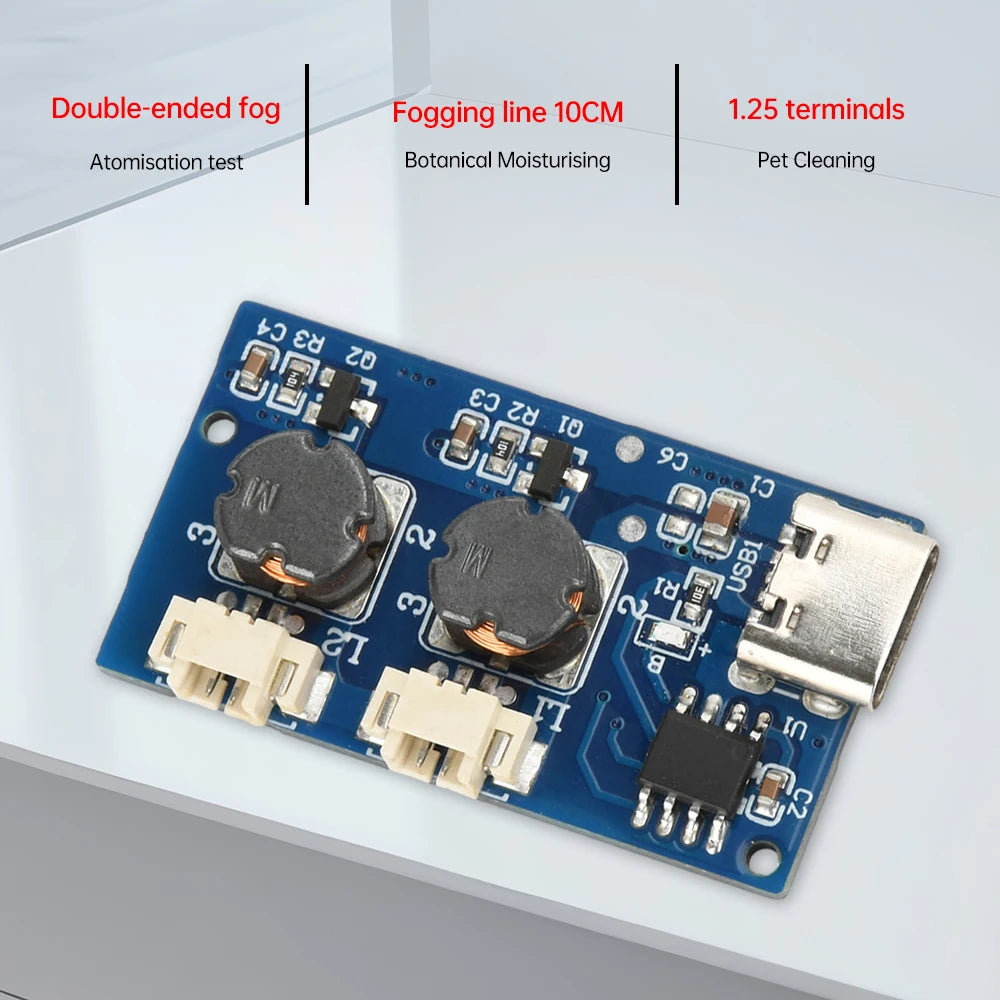

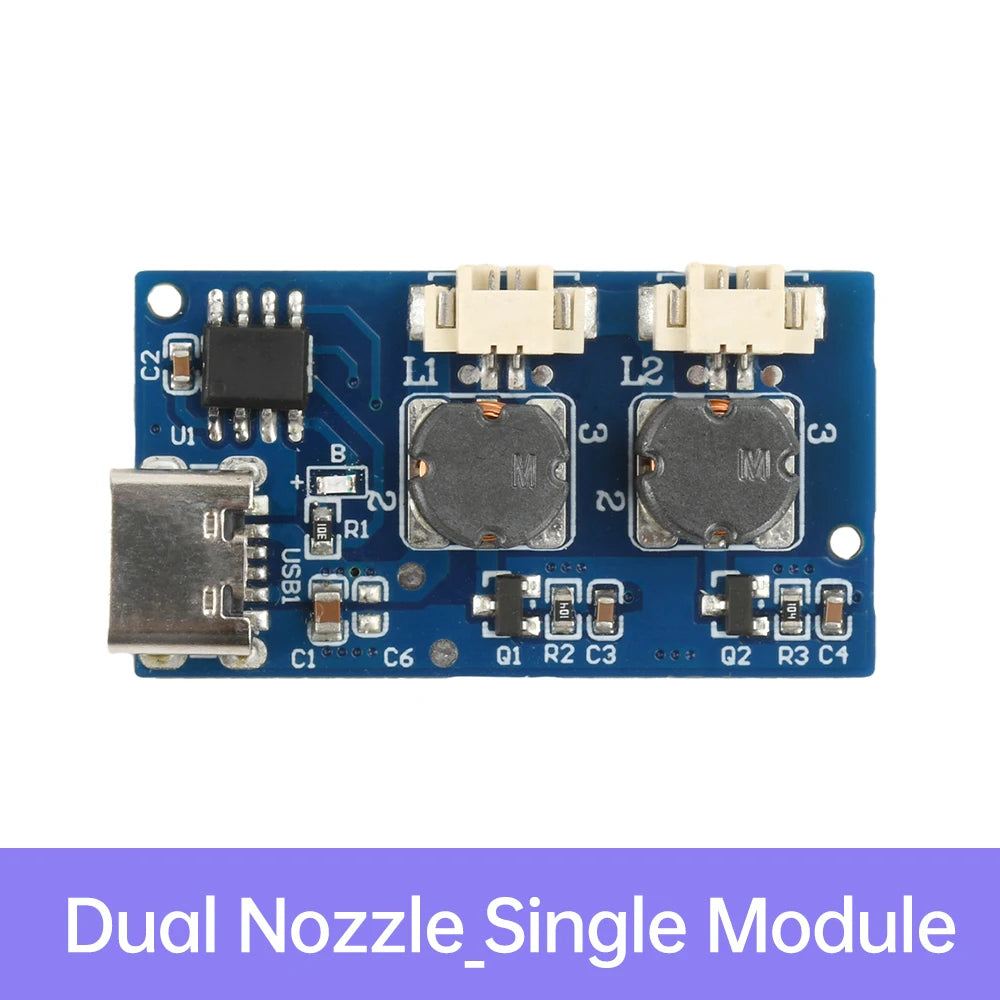

Dual-Spray Mainboard Dimensions: 35mm × 19mm (Board Thickness: 1.2mm)

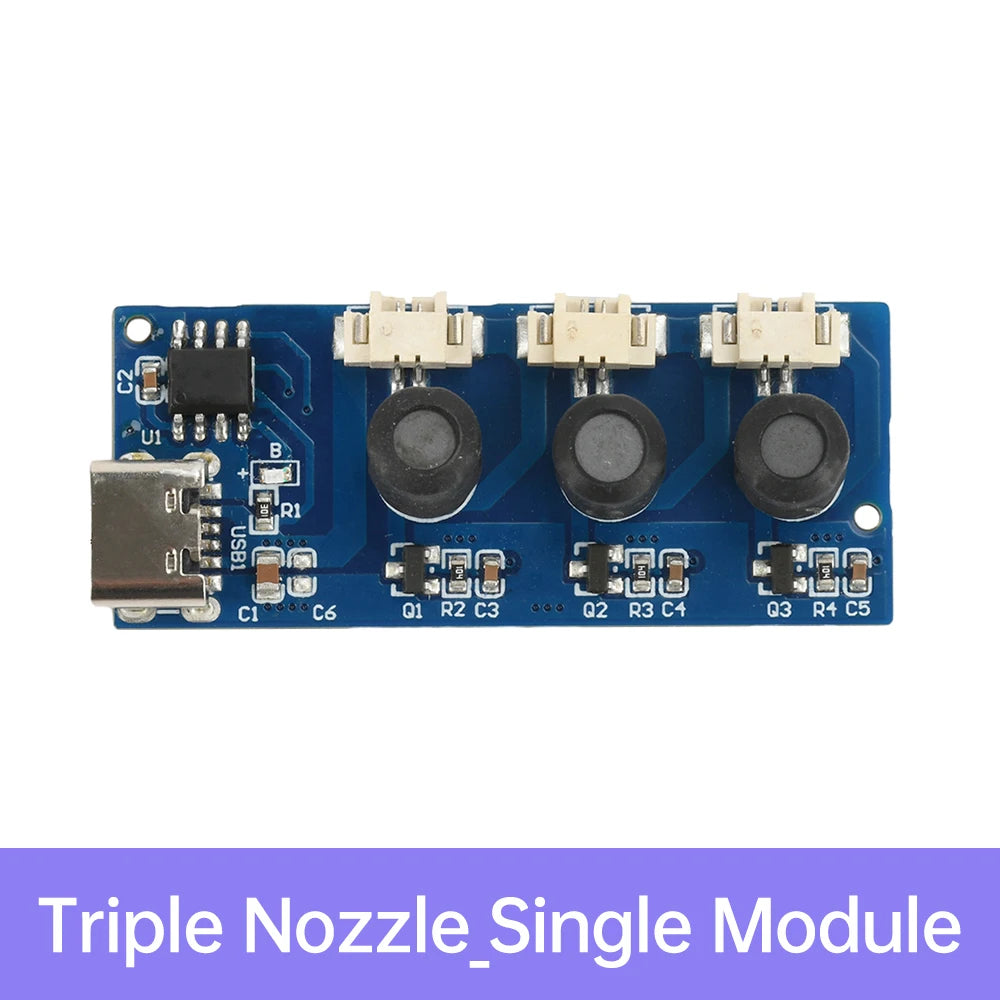

Triple-Spray Mainboard Dimensions: 47mm × 19mm (Board Thickness: 1.2mm)

Atomization Plate Parameters:

Name: Micro-pore Atomization Plate

Drive Voltage: 5V

Resonance Frequency: 108-110kHz ±5kHz

Rated Power: 2W

Pore Size: 4-5μm

Number of Holes: 800

Silicone Sleeve Outer Diameter: 20mm

Rubber Ring Thickness: 3mm

Steel Plate Diameter: 16mm

Wire Length: 100mm

Wire Terminal: PH1.25

Plastic Support Cotton Swab: 100mm x 8mm

Usage Instructions:

1. Install the atomizer plate support cotton swab first

2. Connect the atomizer plate to the module's atomizer port

3. Connect the power supply to the module's power port

4. Press the power switch

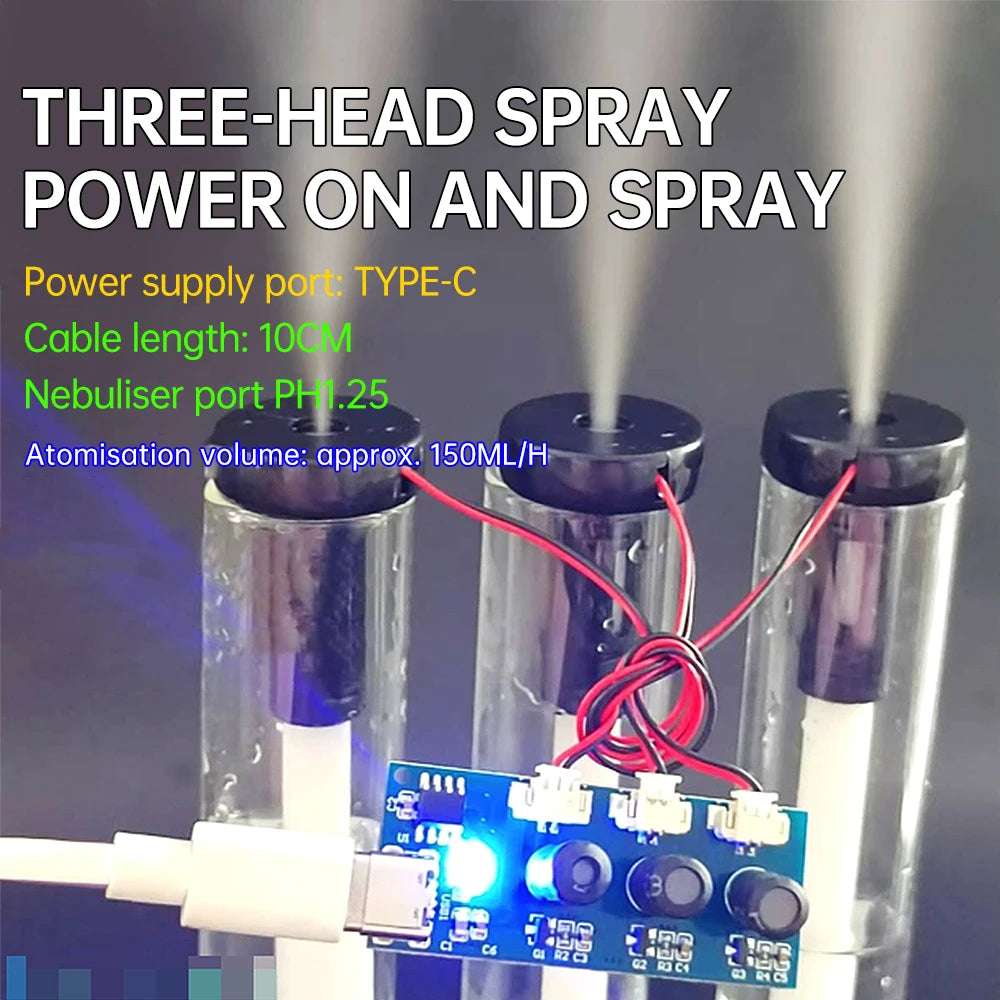

5. The atomizer plate will spray mist upon contact with water

Precautions:

1. Never puncture the atomizer plate; do not bend or pull its solder joints.

2. Never power on without an atomizer plate connected.

3. Never use a rapid charger.

4. Never modify the module.

5. Keep the module dry; avoid water contact.

6. Position the full steel plate (凸起面) facing downwards for contact; the cotton swab absorbs water.

7. Use rated power input.

Product List:

Set 1:

1x Humidifier Module

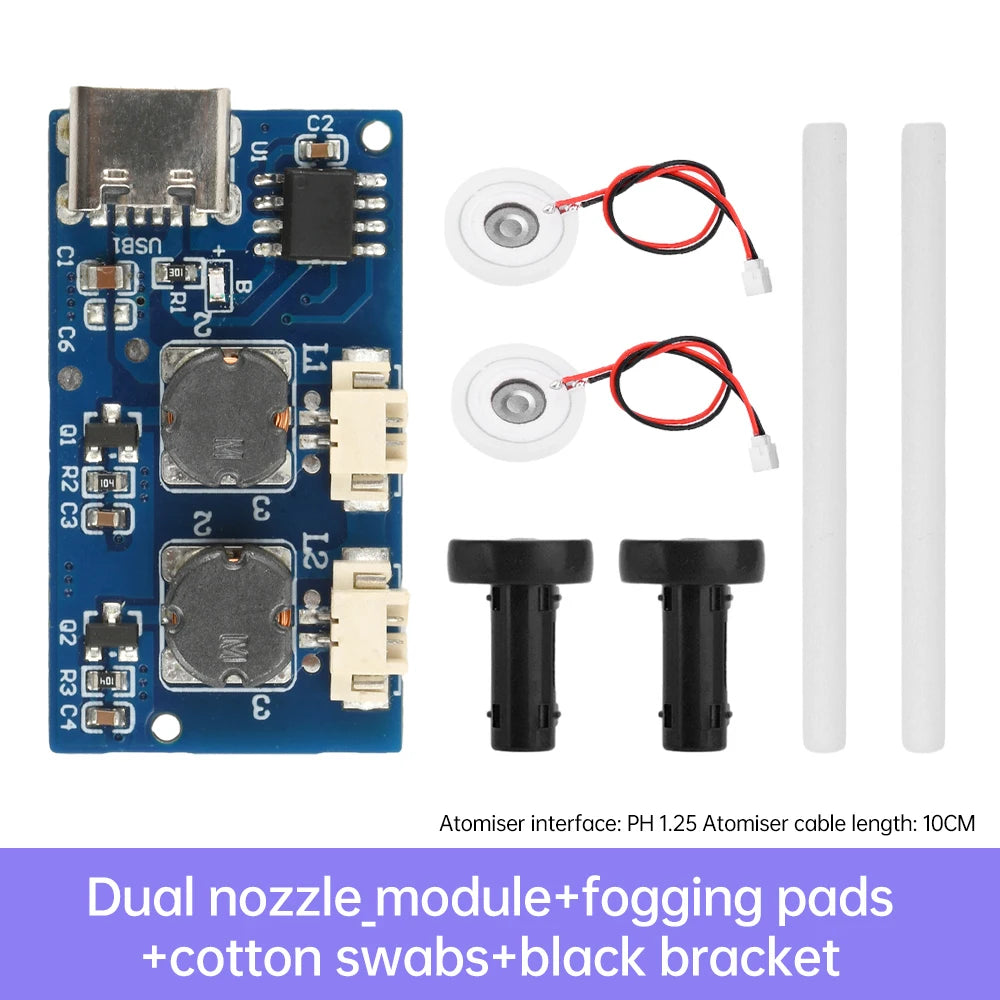

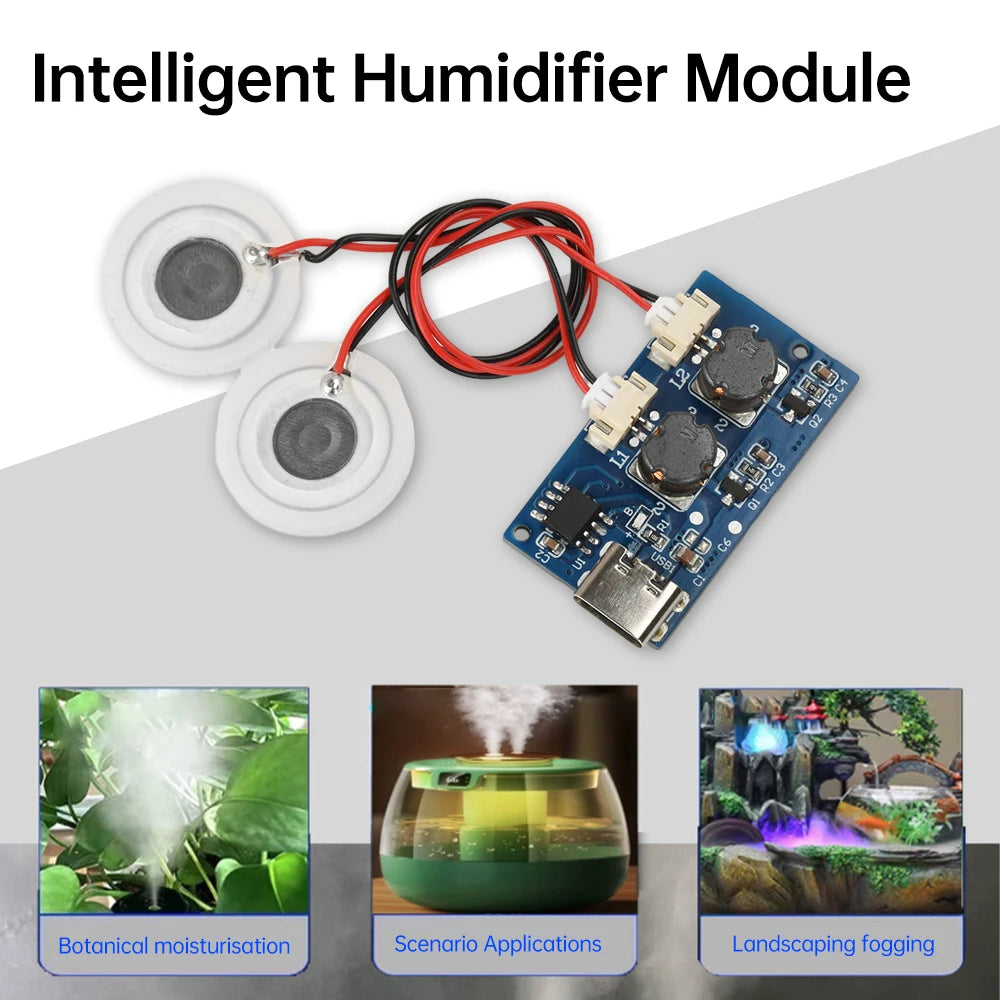

Set 2: Dual-Spray Ultrasonic Humidifier Module

1x Humidifier Module

2x Atomization Discs

2x Mounting Brackets

2x Cotton Swabs

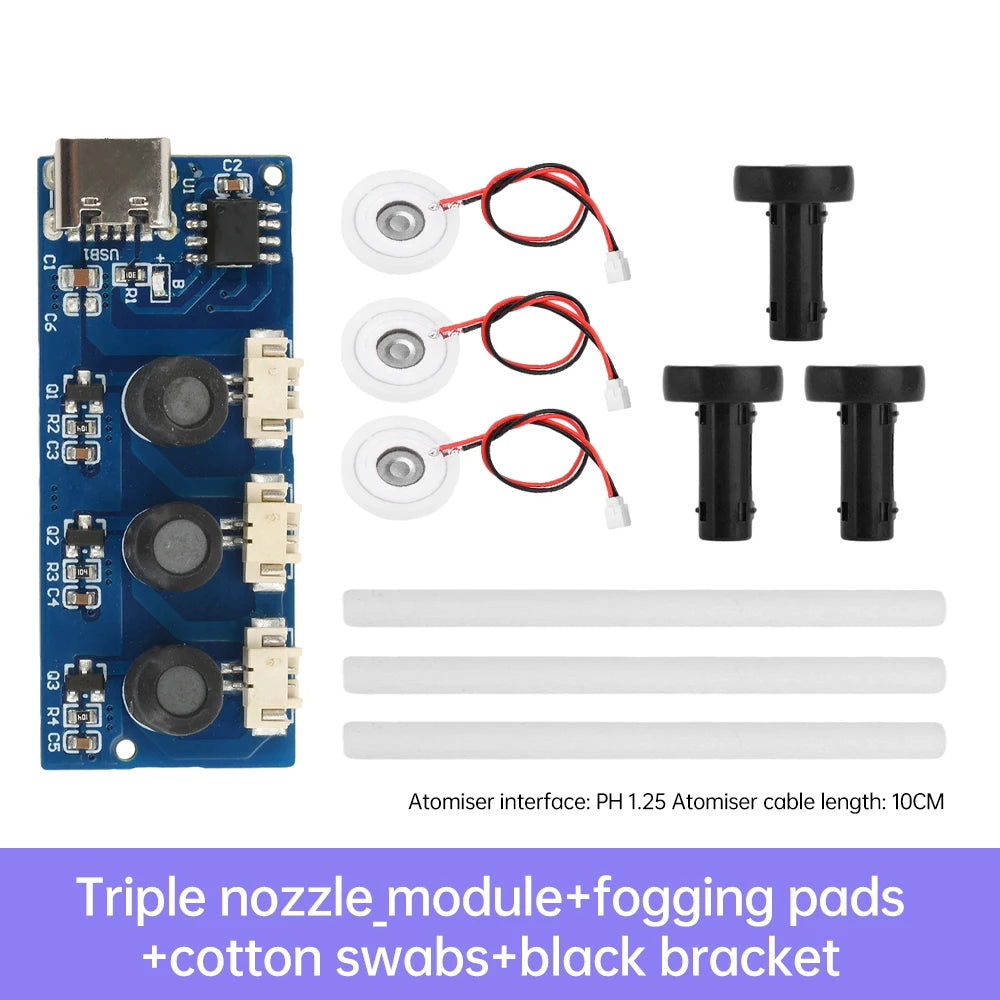

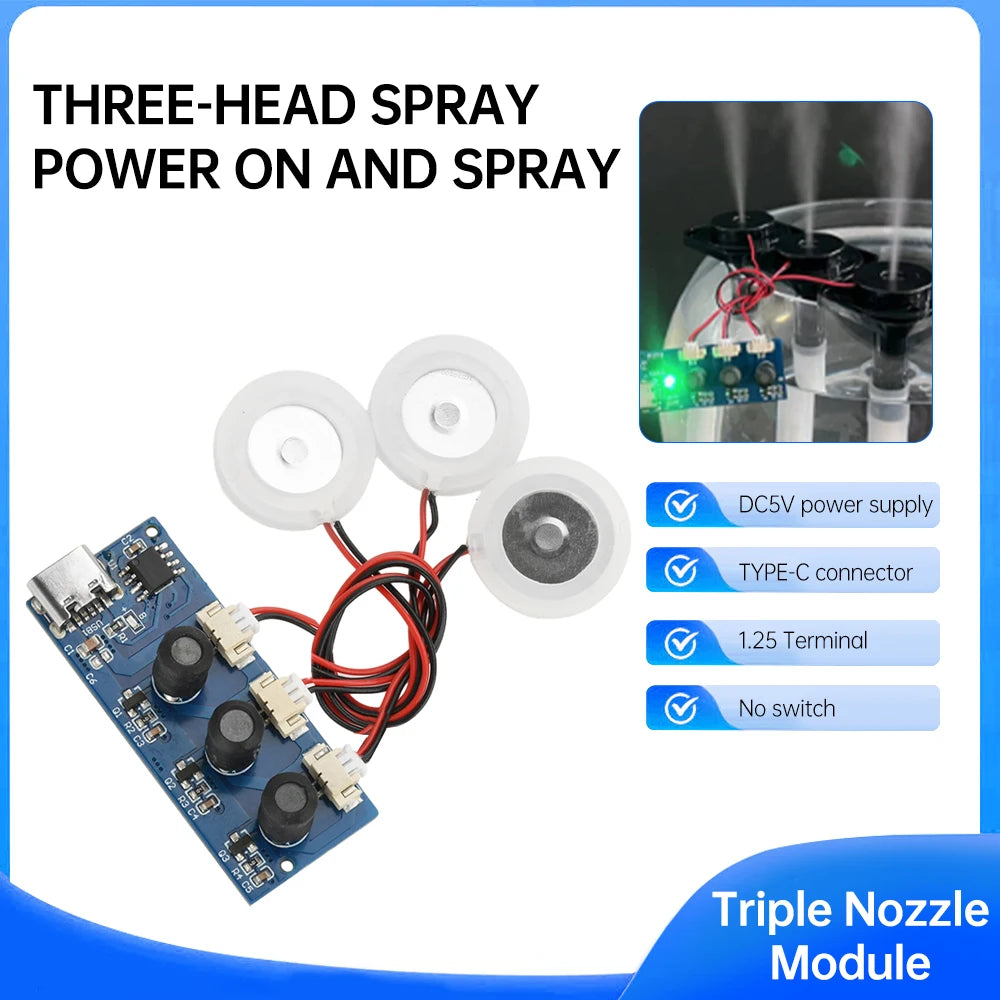

Set 3: Triple-Spray Ultrasonic Humidifier Module

1x Humidifier Module

3x Atomization Discs

3x Mounting Brackets

3x Cotton Swabs

Options

• Color: Single module, Kit, Single module 1, Kit 1
