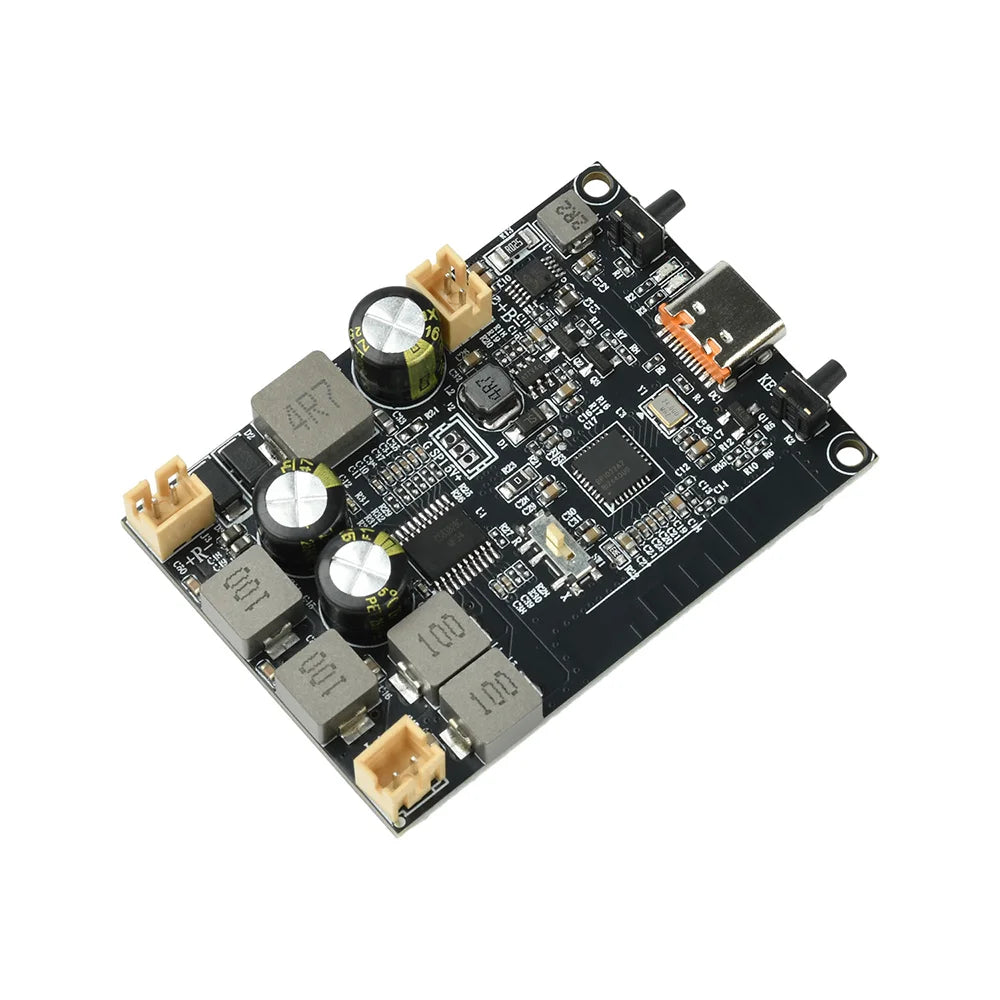

DC 5V TWS Bluetooth Amplifier Module 2X10W Dual Channel Bass

Discover the DC 5V TWS Bluetooth Amplifier Module 2X10W Dual Channel Bass, a standout electronics accessories pick designed for dependable everyday performance and lasting value.

Specifications

Brand Name: Aideepen

Certification: NONE

DIY Supplies: Electrical

Data Record: No

Electronic: No

Material: Plastic

Model Number: Audio Amplifier Board

Output Voltage: Audio Amplifier Board

Semi-finishedproduct: No

Size: Audio Amplifier Board

Style: Audio Amplifier Board

Type: Audio Amplifier Board

Features:

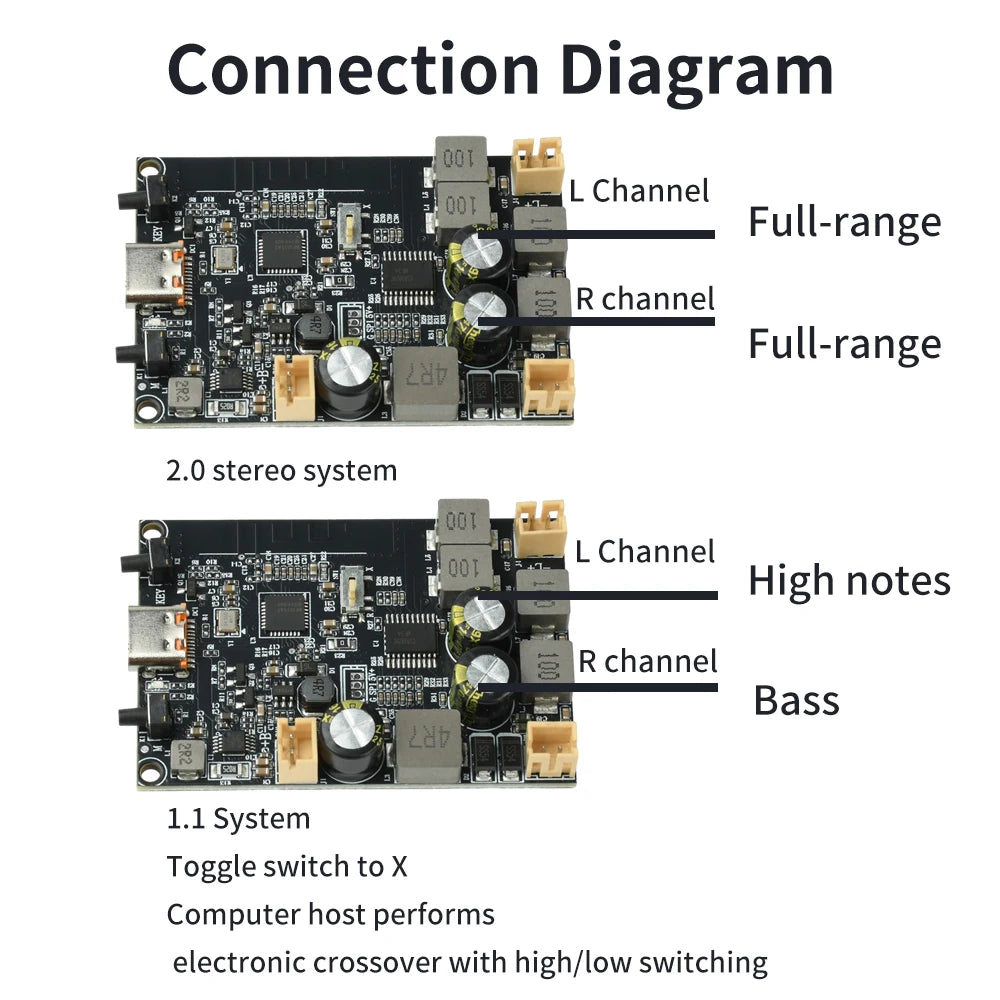

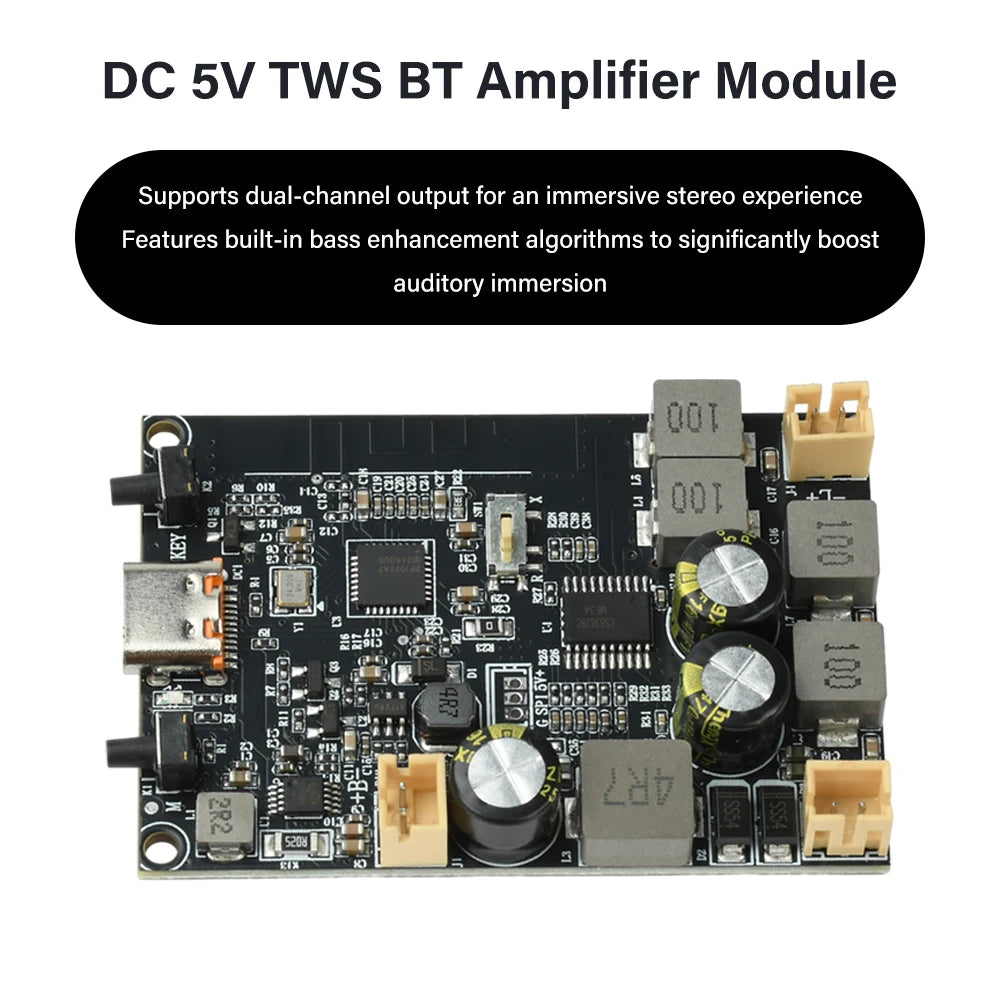

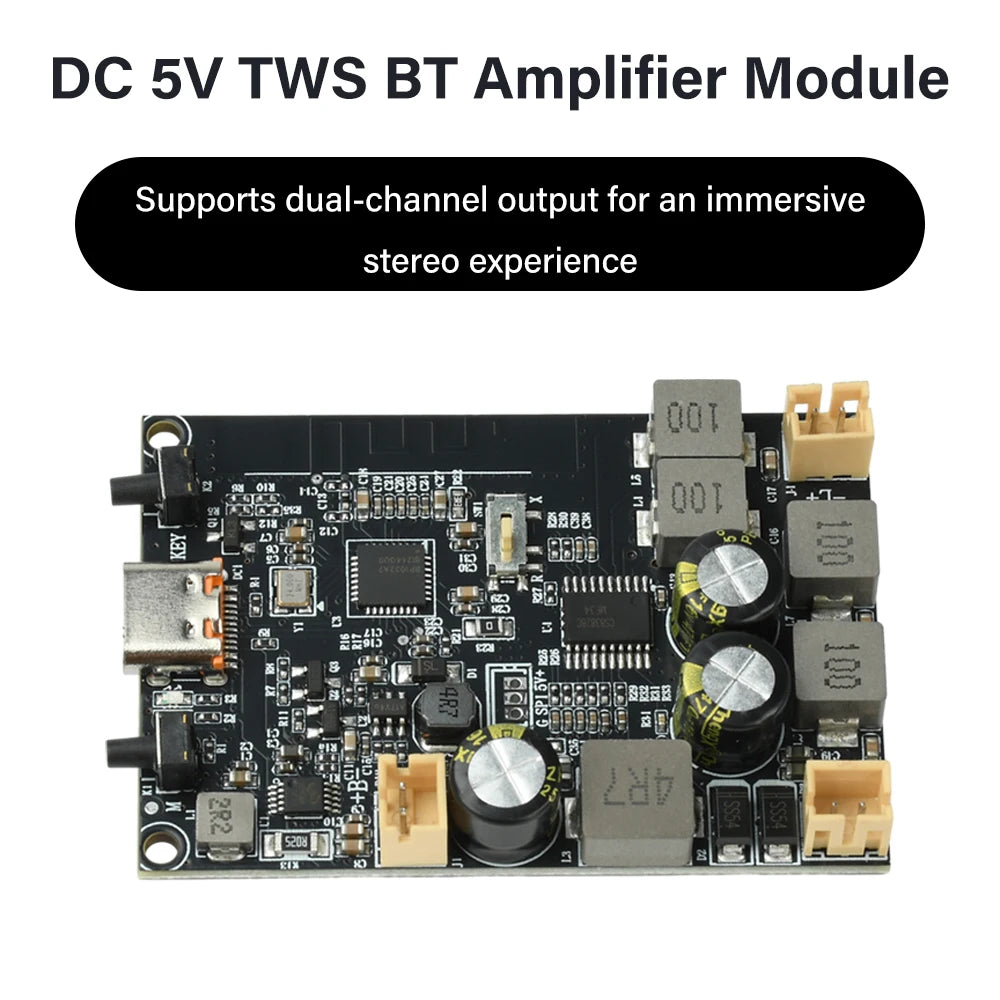

1. Supports dual-channel output for a stereo listening experience.

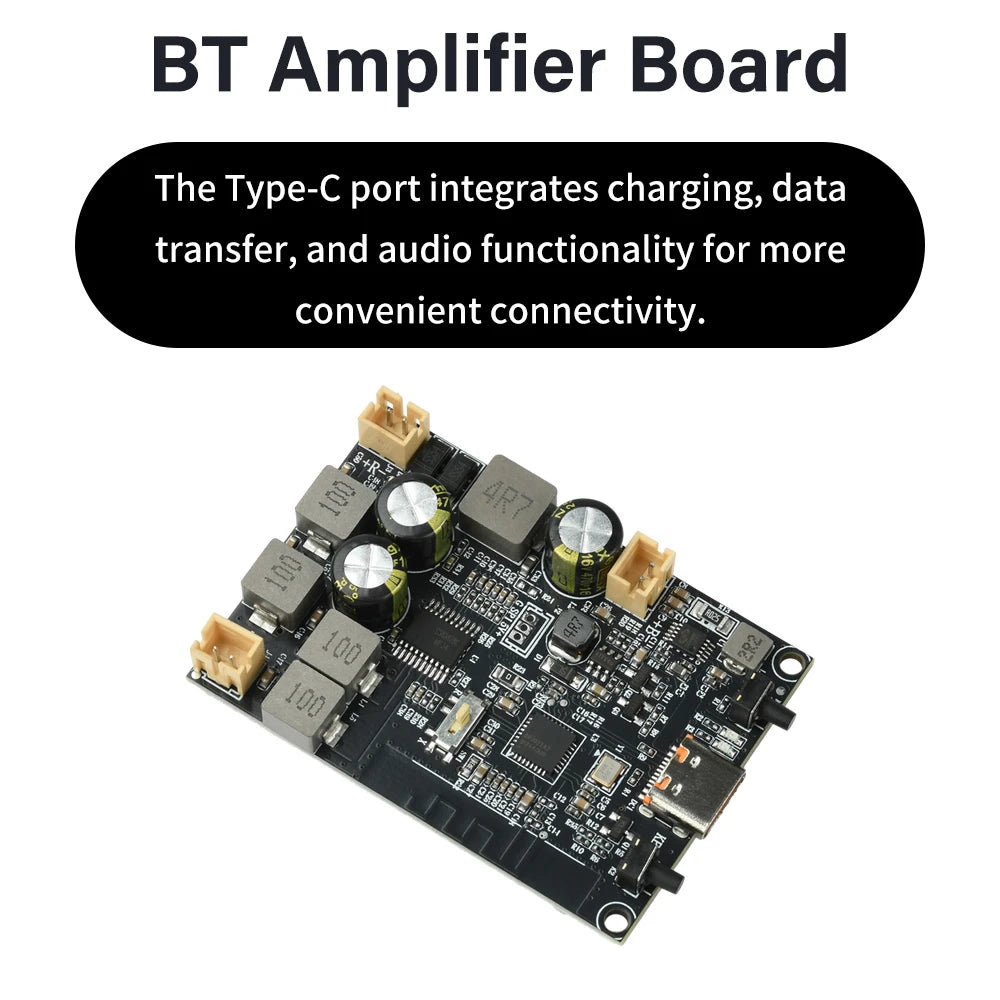

2. The Type-C port integrates charging, data transfer, and sound card functionality for more convenient connectivity.

3. Maximum power output of 2×10W, compatible with 4Ω speakers, delivering powerful and clear sound.

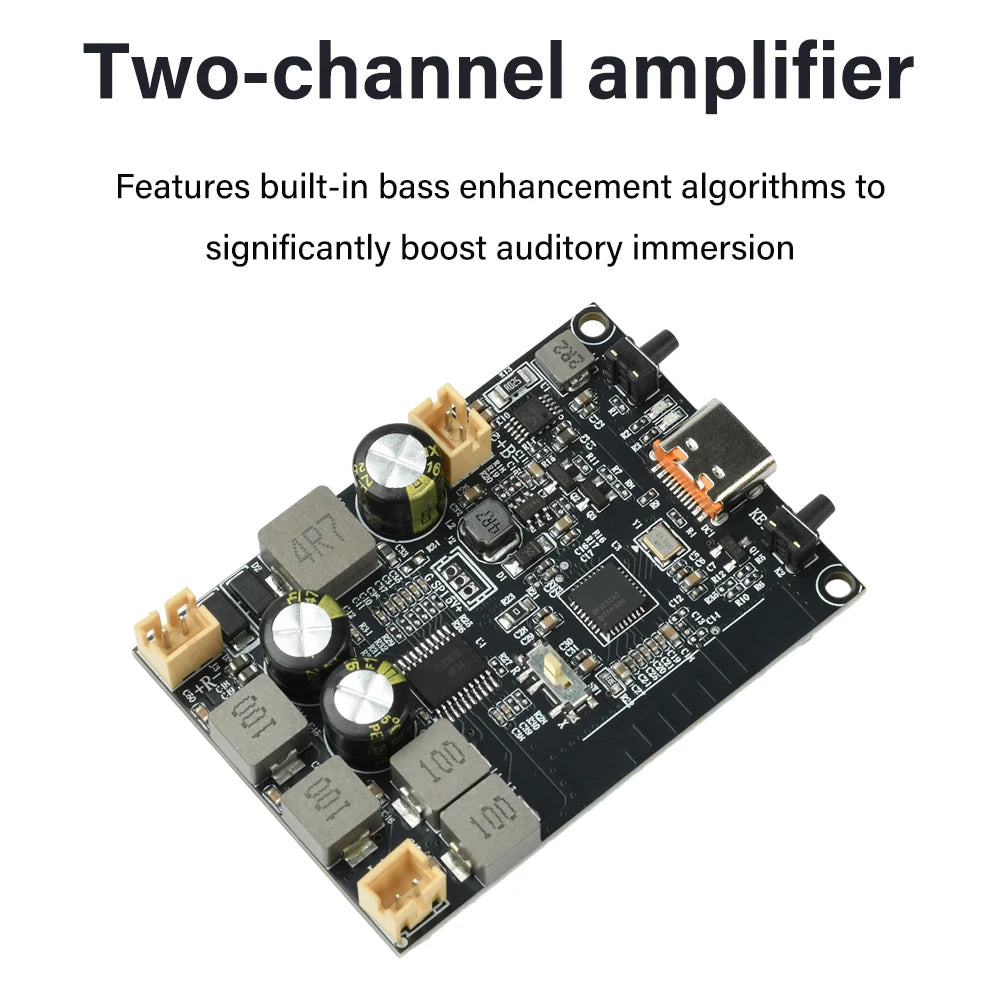

4. Built-in bass enhancement algorithm effectively enhances audio immersion.

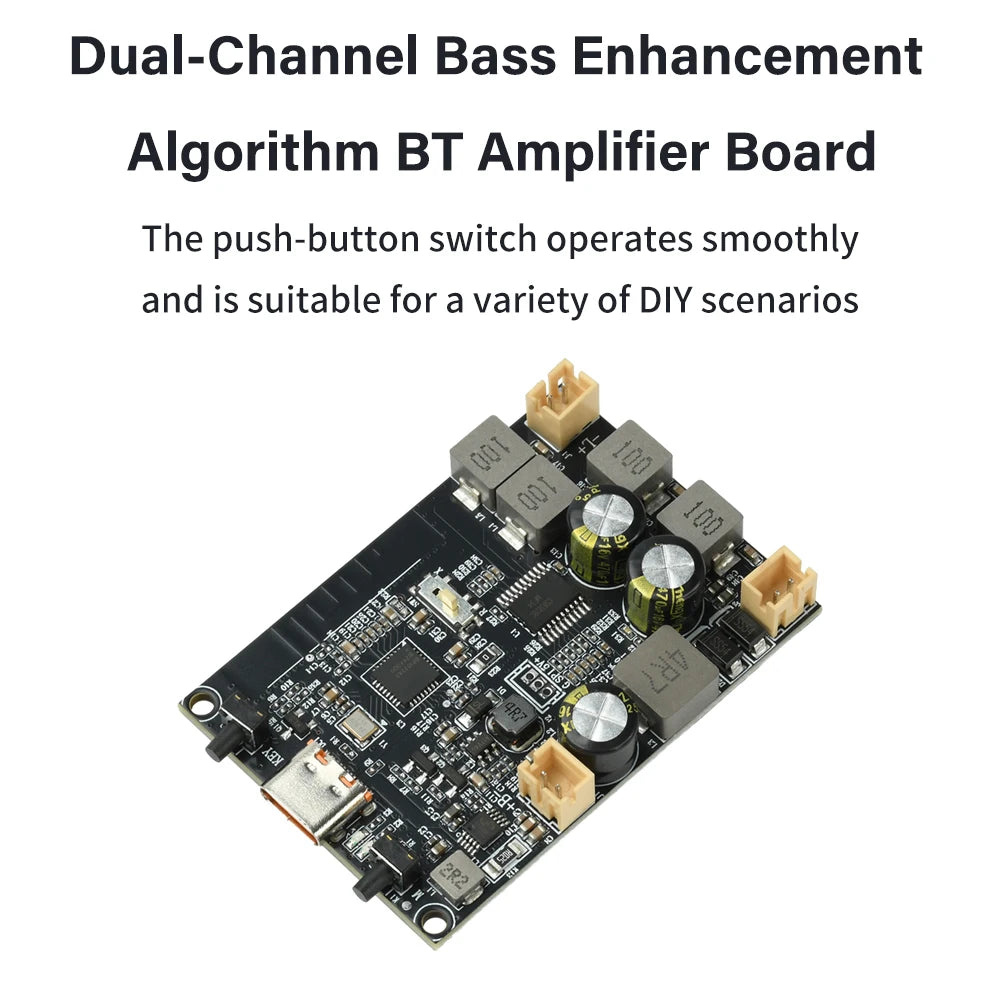

5. Flexible push-button operation, suitable for a variety of DIY scenarios.

Product Specifications:

Interface: Type-C (supports charging, data transfer, and sound card functions)

USB Power Supply Voltage: DC 5V

Power: 2×10W

PH2.0 Battery Socket: 3.3V–4.2V power supply

PH2.0 Speaker Socket: 4Ω; 1.75–3-inch speakers

PCB Dimensions: 54mm × 38mm

Button Instructions:

Single press: Power on / Long press: Power off

Single press: Pause / Play

Triple press: TWS pairing

Quadruple press: Cancel pairing

Single tap to cycle through lighting modes

Long press to switch audio sources

Double tap to skip to the next track

Triple tap to skip to the previous track

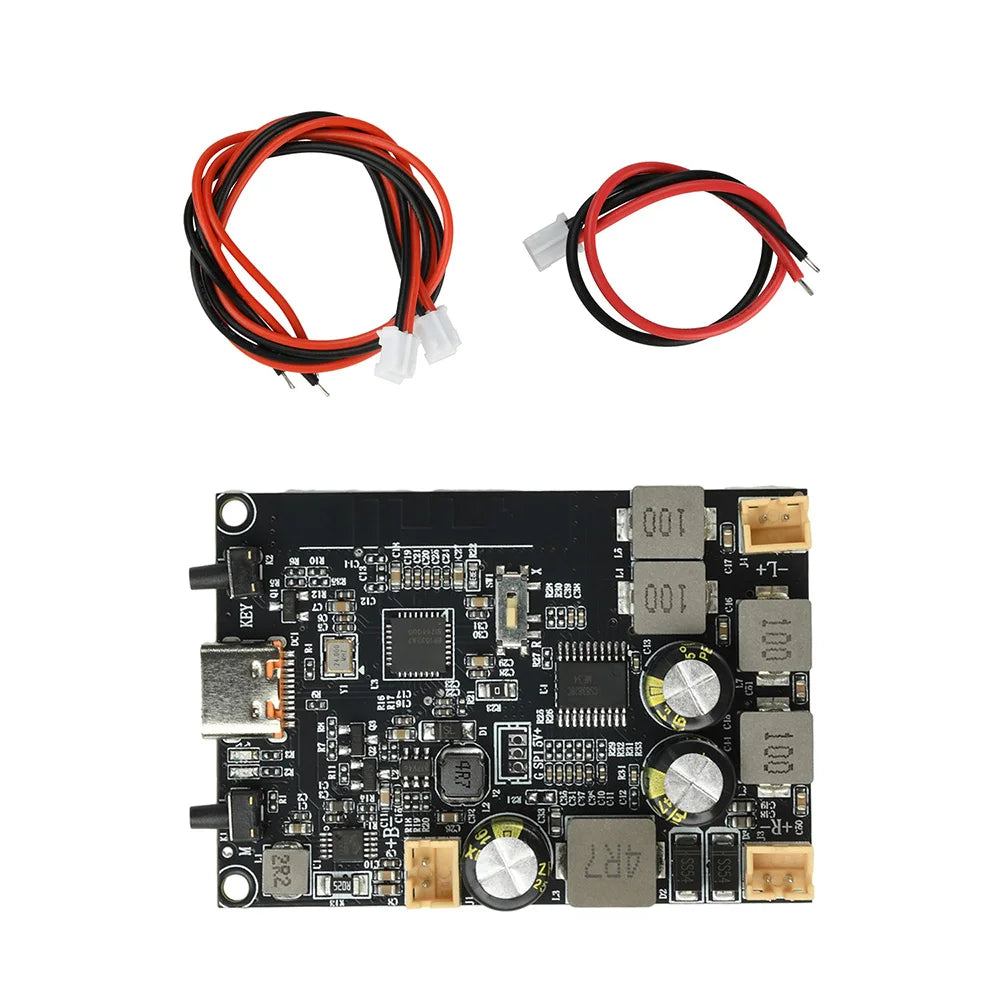

Product Contents:

1 module

3 terminal wires (optional: with or without wires)

When using battery power, the battery must meet the following requirements: 3.7V, 6A continuous discharge, and 8A peak discharge. For example, a 3000mAh battery with 3C discharge rating or higher, or a 2000mAh battery with 5C discharge rating or higher.

Options

• Color: With Wire, Without Wire

Frequently Asked Questions

Q: What is the DC 5V TWS Bluetooth Amplifier Module 2X10W Dual Channel Bass?

A: The DC 5V TWS Bluetooth Amplifier Module 2X10W Dual Channel Bass is a quality electronics accessories pick. Supports dual-channel output for a stereo listening experience.

Q: What is the DC 5V TWS Bluetooth Amplifier Module 2X10W Dual Channel Bass made of?

A: The DC 5V TWS Bluetooth Amplifier Module 2X10W Dual Channel Bass is made from Plastic Model Number, measuring Audio Amplifier Board Style.

Q: Why choose the DC 5V TWS Bluetooth Amplifier Module 2X10W Dual Channel Bass?

A: The DC 5V TWS Bluetooth Amplifier Module 2X10W Dual Channel Bass stands out in our electronics accessories range — The Type-C port integrates charging, data transfer, and sound card functionality for more convenient connectivity.
