DC 5V Ultrasonic Radar Scanner DIY HXFB Graphical Programming Arduino

Discover the DC 5V Ultrasonic Radar Scanner DIY HXFB Graphical Programming Arduino — a standout decor pick featuring soft design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Certification: NONE

DIY Supplies: Electrical

Data Record: No

Electronic: No

Material: Plastic

Semi-finishedproduct: No

Features:

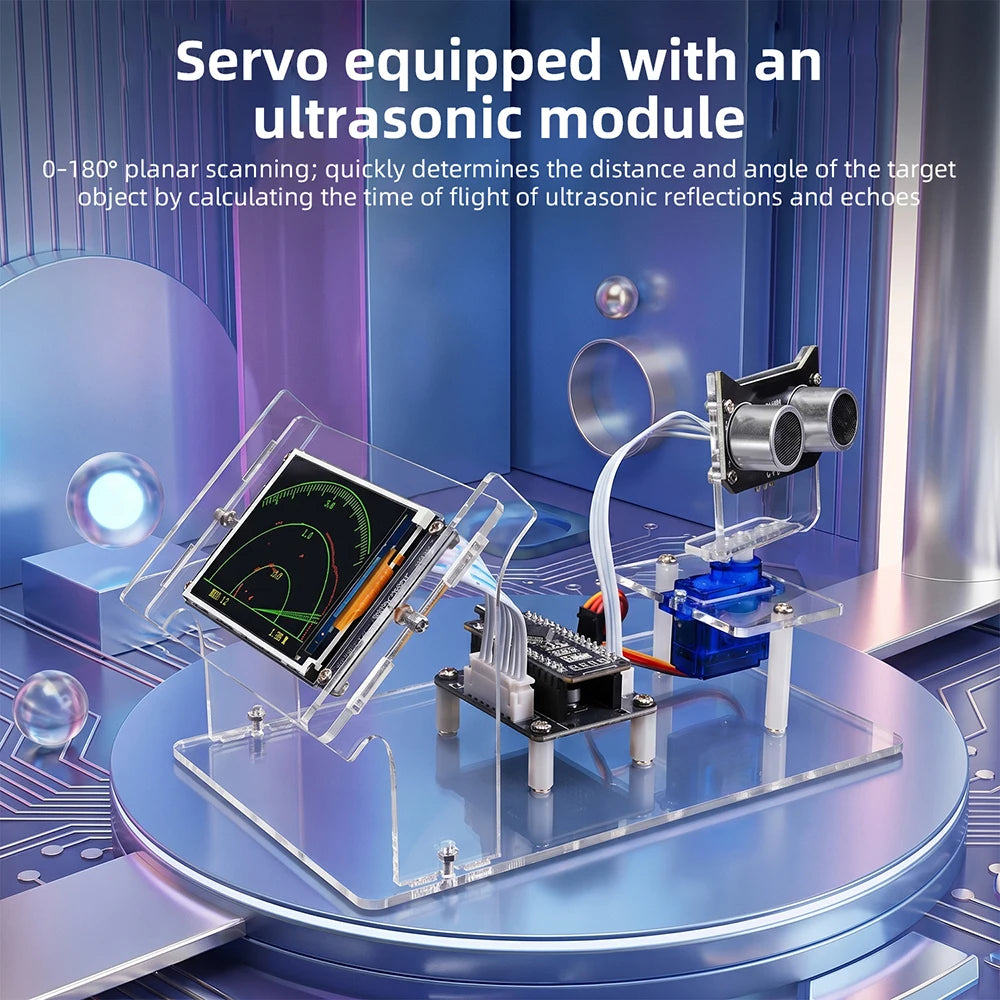

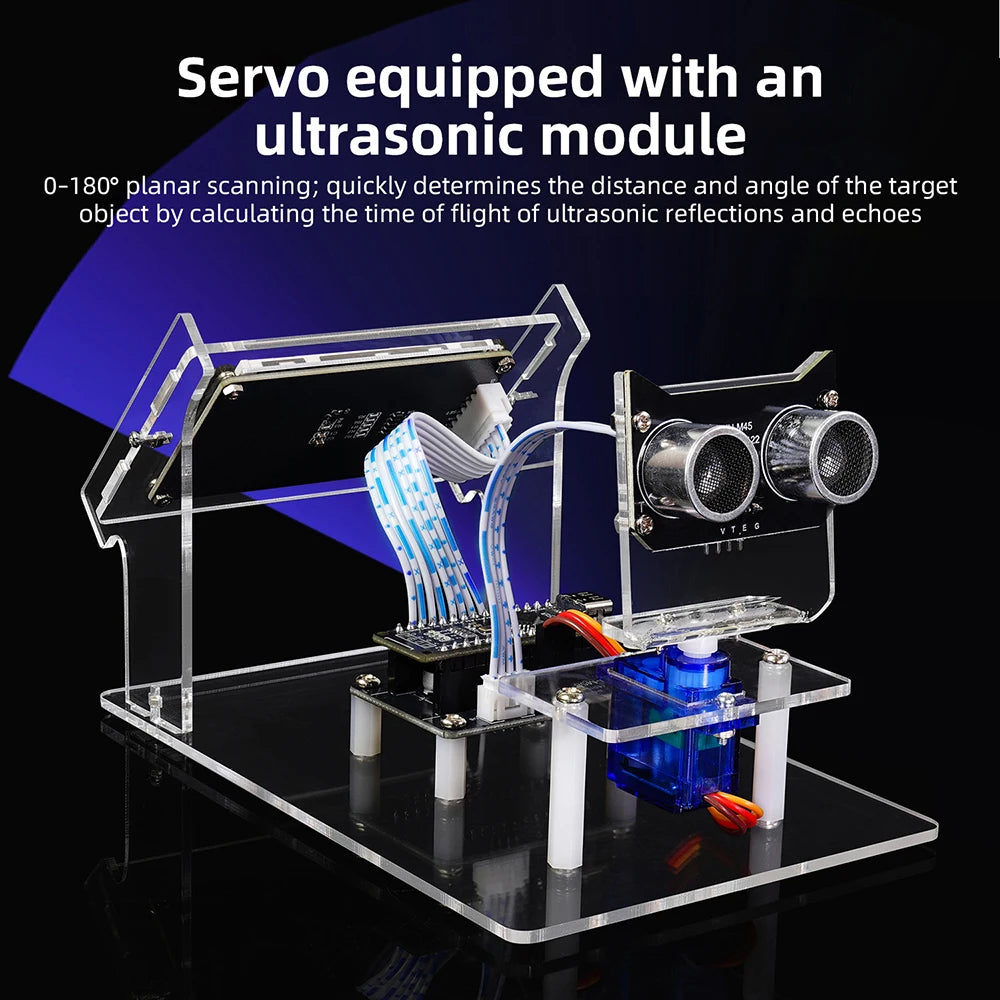

1. 0–180° servo scanning for precise angle and distance measurement

2. Includes drag-and-drop graphical programming software to develop programming skills

3. Real-time LCD display of a sector diagram with a red dot to intuitively mark targets

4. Supports HXFB graphical programming, making it easy to learn programming from scratch

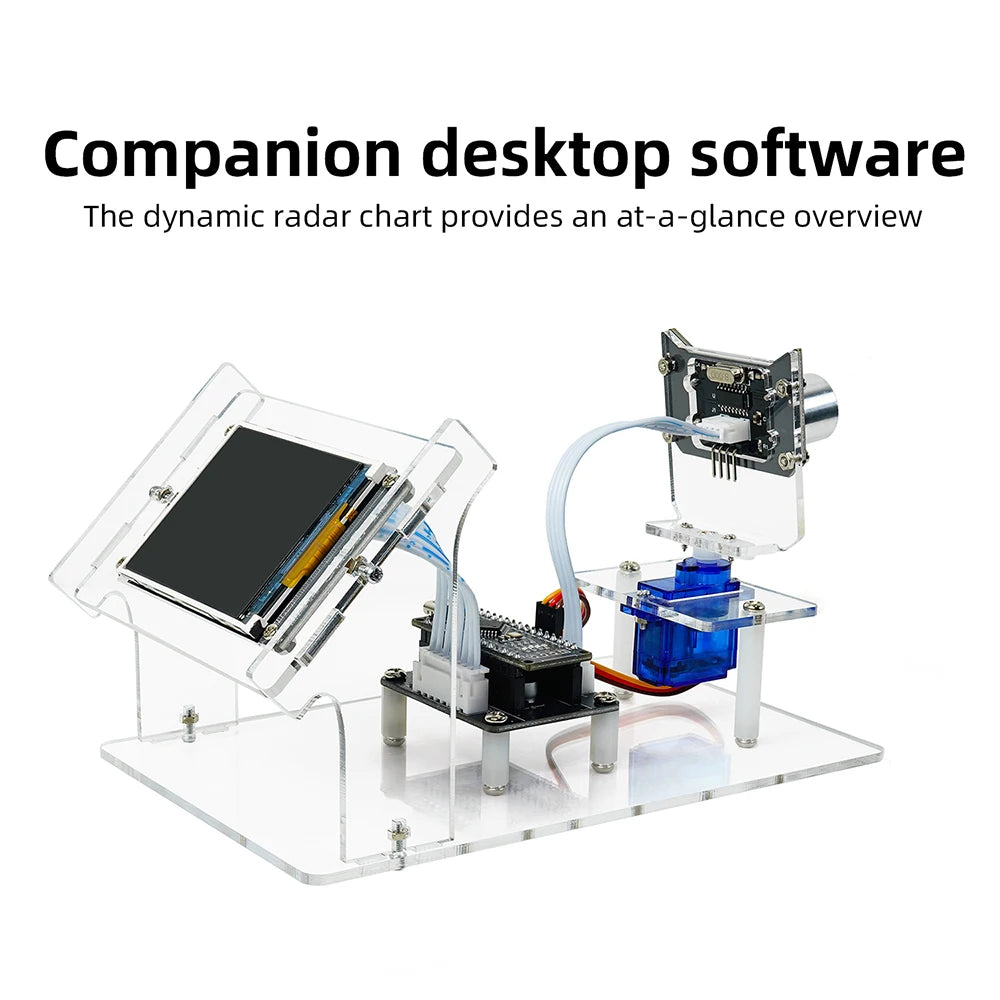

5. Includes PC software for clear, dynamic radar displays

Kit Introduction:

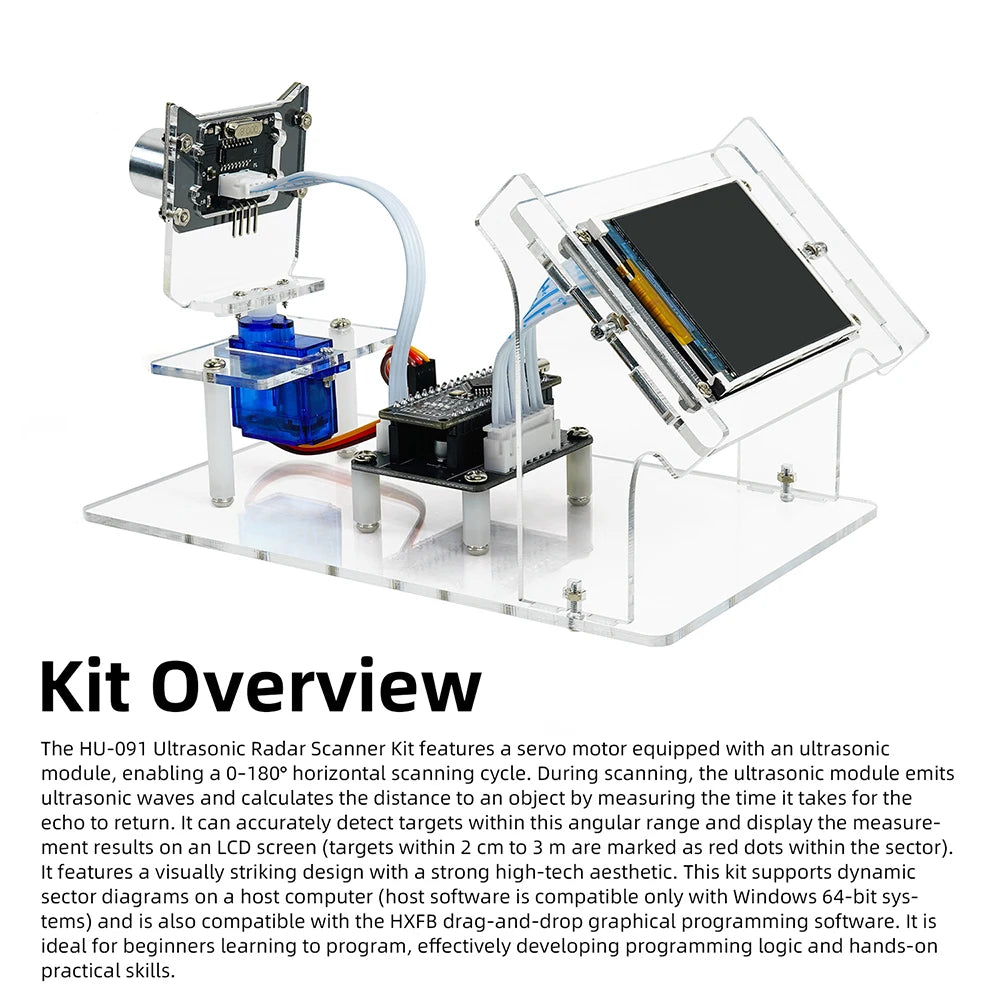

The HU-091 Ultrasonic Radar Scanner Kit features a servo motor equipped with an ultrasonic module, enabling 0–180° horizontal cyclic scanning. During scanning, the ultrasonic module emits ultrasonic waves and calculates the distance to the target object by measuring the time it takes for the echo to return. It can accurately detect targets within this angular range and display the measurement results on the LCD screen (targets within 2 cm to 3 m are marked with red dots on the sector diagram). The visual effect is impressive and highly tech-savvy. This kit supports dynamic sector diagrams on a host computer (host software supports only Windows 64-bit systems) and is compatible with the HXFB drag-and-drop graphical programming software. It is ideal for beginners learning to program and effectively develops programming thinking and hands-on practical skills.

Kit Information

Kit Name: Ultrasonic Radar Scanner Kit

Operating Voltage: USB DC 5V

Maximum Operating Current: Approx. 150mA

Features:

DIY assembly to develop hands-on skills

0–180° horizontal scanning to capture object angle and distance data, with sector diagram displayed on the LCD

Compatible with drag-and-drop graphical programming software to develop programming logic

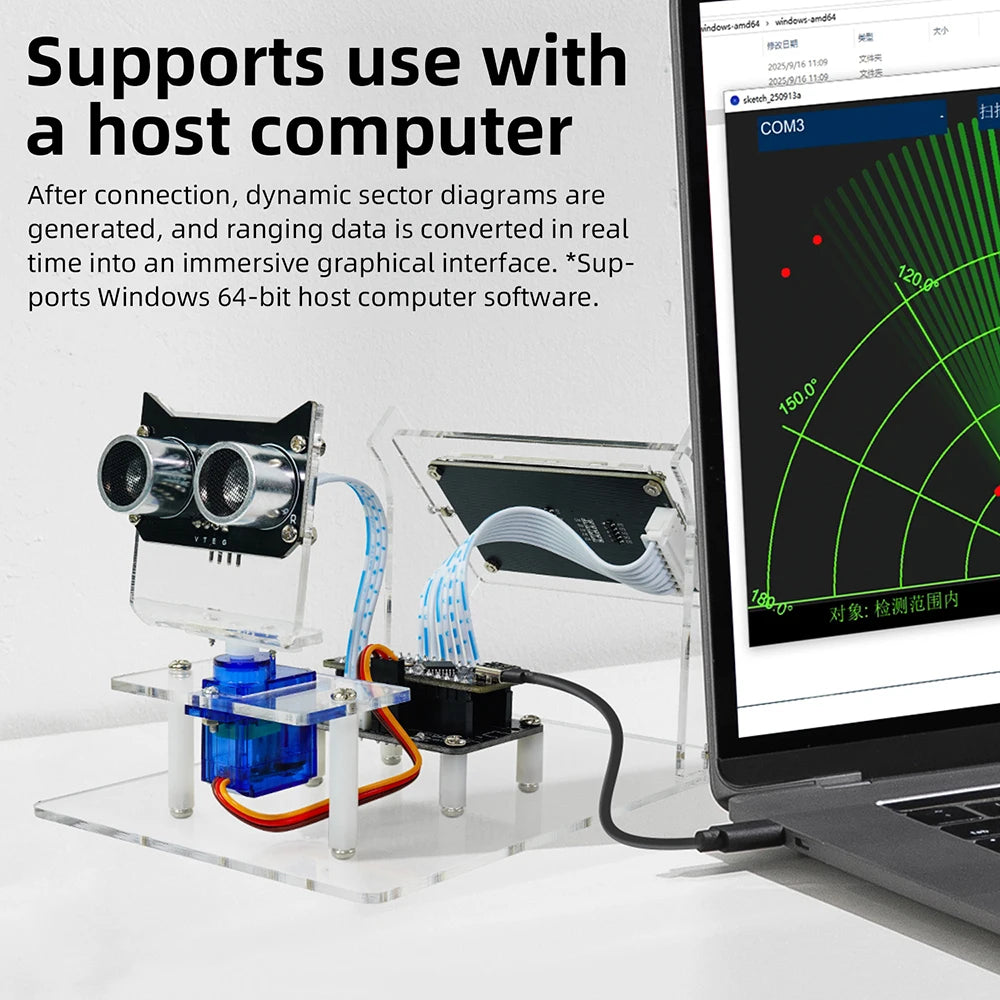

Host computer software provides a dynamic radar sector diagram, converting distance measurement data into an intuitive graphical interface in real time

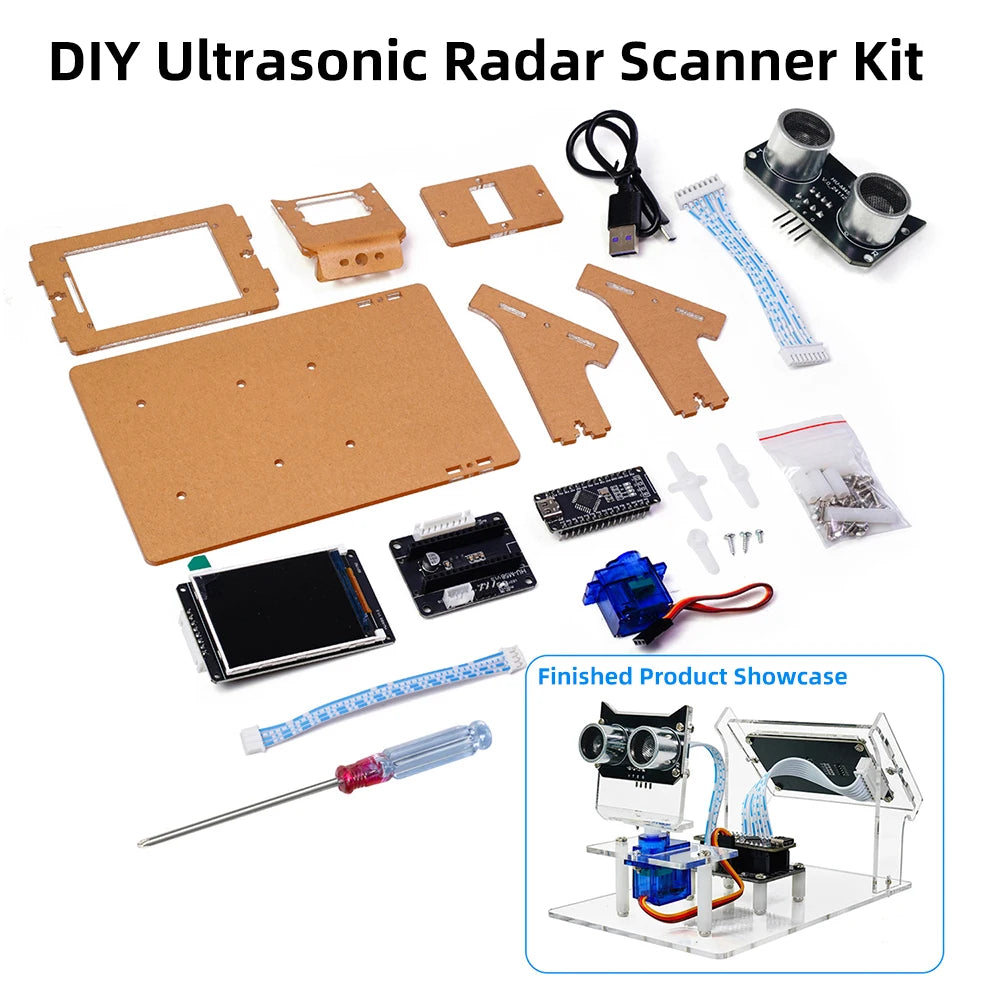

Product List:

HXFB Graphical Programming Core Board × 1

Ultrasonic Radar Scanner Base Board × 1

2.4-inch LCD Display Module × 1

Ultrasonic Module × 1

Servo Motor × 1

Screw Set × 1

4-pin Flex Cable × 1

8-pin Flex Cable × 1

Enclosure × 1

Options

• Color: A
