DC 5V USB RS485 RS232 Communication Module Bidirectional Half Duplex
$36.33
Sale price
$36.33
Regular price
$45.01
Shipping calculated at checkout.
Discover the DC 5V USB RS485 RS232 Communication Module Bidirectional Half Duplex, a standout decor pick designed for dependable everyday performance and lasting value.
Specifications
Brand Name: Aideepen
Condition: New
Type: Module

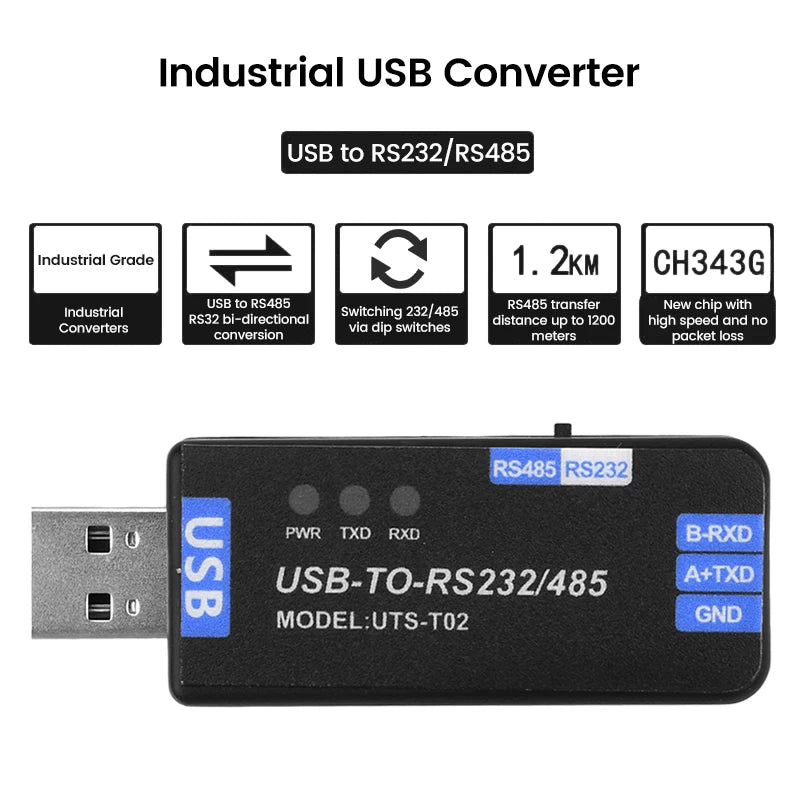

Features:
1. Supports USB to RS485/RS232 communication (switchable via DIP switch).
2. Utilizes the new CH343G chip for plug-and-play operation, compatible with Windows, macOS, Linux, and other systems.
3. On-board TVS (Transient Voltage Suppressor) effectively suppresses surge voltages and transient spikes in the circuit, providing lightning and static protection.
4. Onboard self-resetting fuse and protection diode ensure stable current and voltage output, prevent overcurrent/overvoltage, and enhance surge resistance.
5. Three onboard LED indicators facilitate monitoring of power and signal transmission status.
Product Specifications:
Product Type: Industrial-grade USB to RS485/232 Converter
Communication Rate: 50bps~1000000bps
Host Interface: USB
Device Interface: RS485/RS232 (switchable via DIP switch)
USB Interface:
Operating Voltage: 5V
Interface Type: USB Type-A
Interface Protection: 200mA resettable fuse, ESD protection
Transmission Distance: Approx. 5 meters
RS485/RS232 Interface:
Interface Type: Terminal blocks
Pinout: GND, A+ (TXD), B- (RXD)
Direction Control: Hardware auto-detection and control of data transmission direction
Interface Protection: Provides 600W lightning protection, surge protection, and 15KV ESD protection (on-board 120Ω balanced resistor)
Transmission Distance: RS485 (approx. 1200 meters), RS232 (approx. 10 meters) at low data rates
Transmission Mode: Point-to-multipoint (up to 32 nodes; repeater recommended for 16+ nodes). RS232 (point-to-point; one device per port; repeater required for multiple connections).

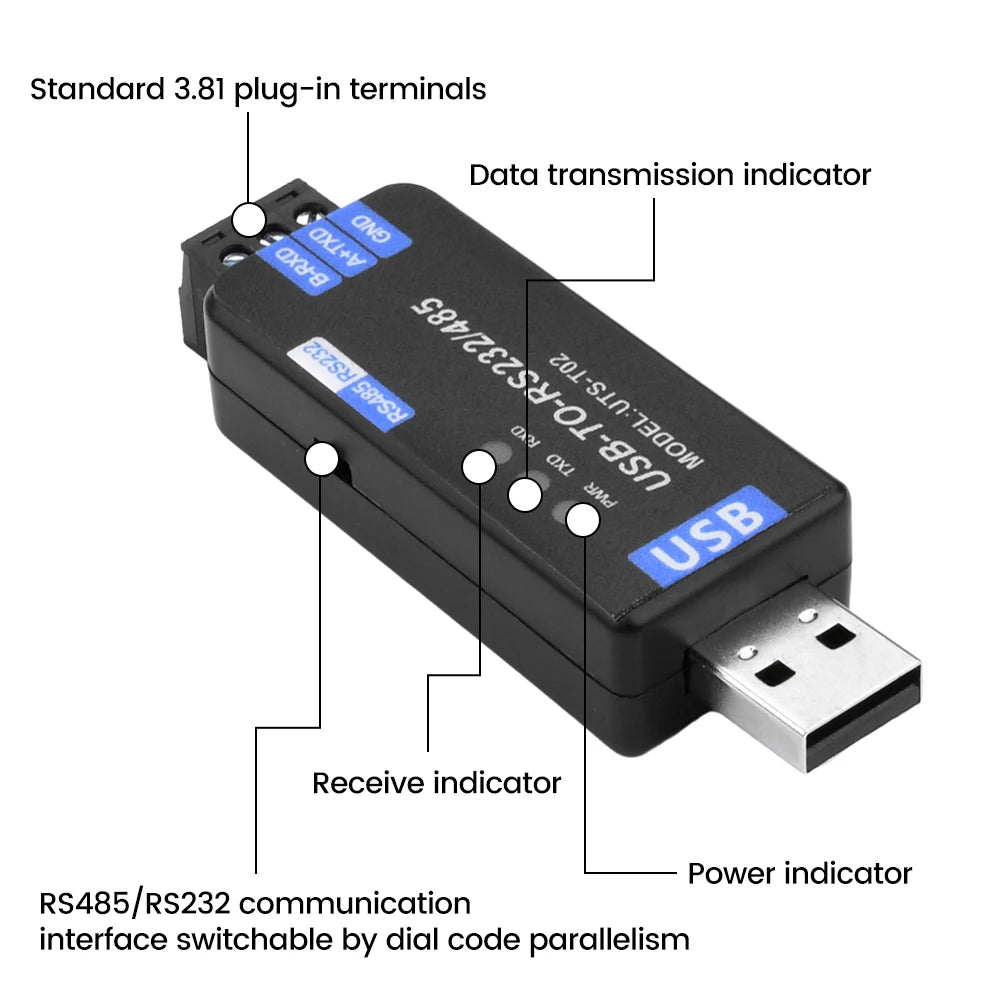

Indicator Lights:
PWR: Power indicator. Lights up when USB connection detects voltage.
TXD: Transmission indicator. Lights up when data is sent from USB port.
RXD: Receive indicator, illuminates when data is received via USB

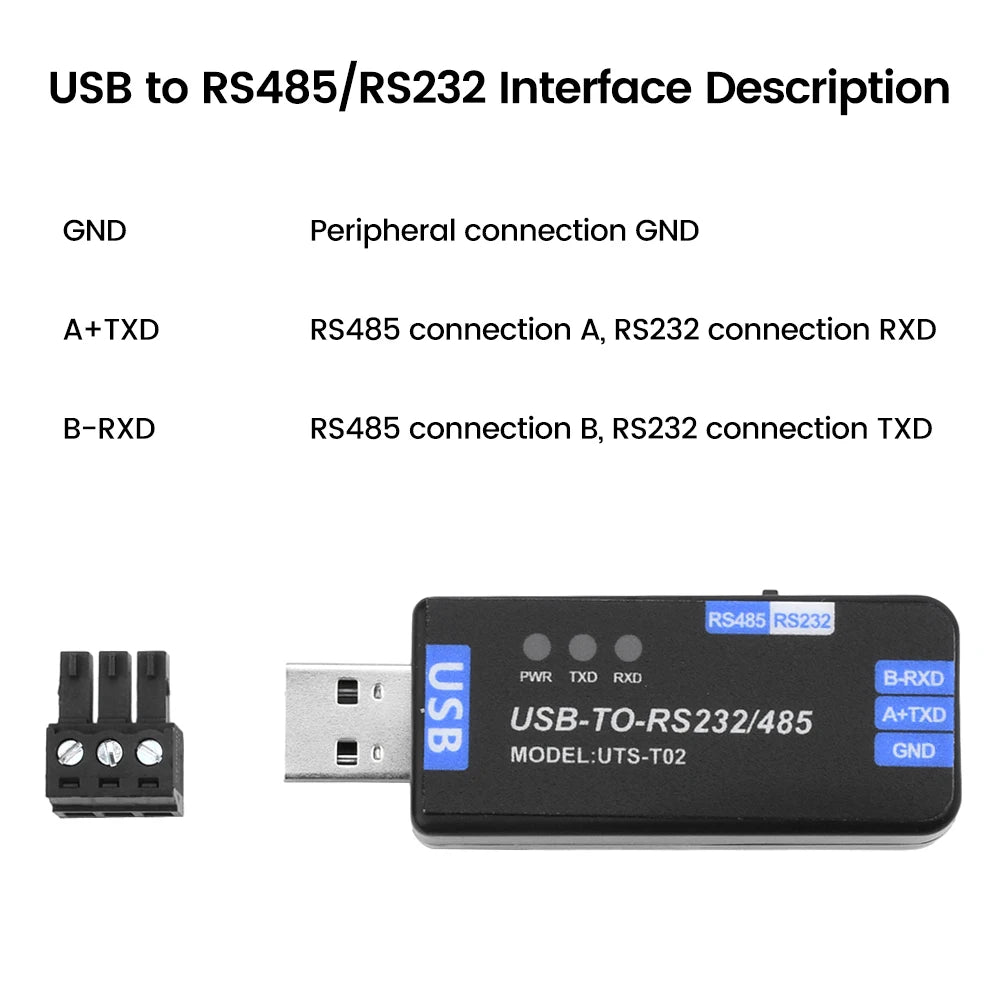

USB to RS485/RS232 Interface Description:
GND: Peripheral connection ground
A+TXD: Connects to RS485 Line A or RS232 Line RXD
B-RXD: Connects to RS485 Line B or RS232 Line TXD
Product Listing:
1X Module
