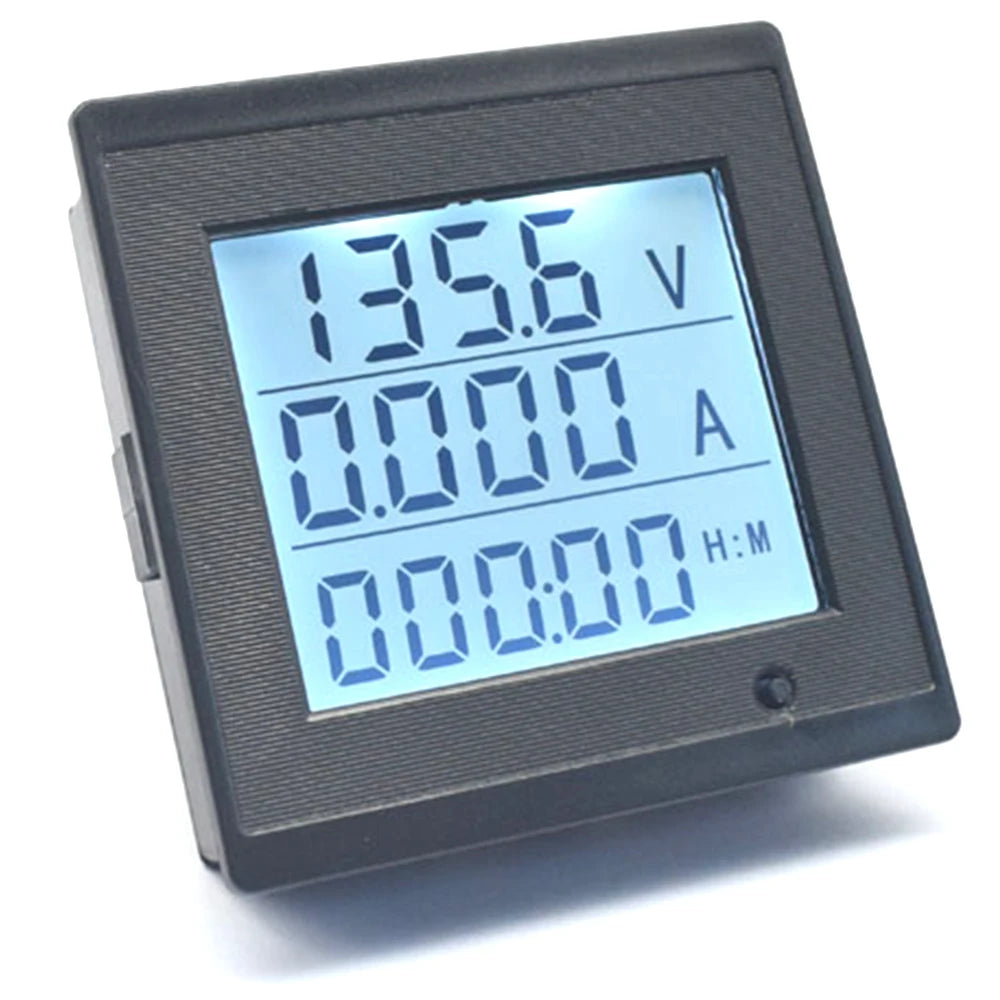

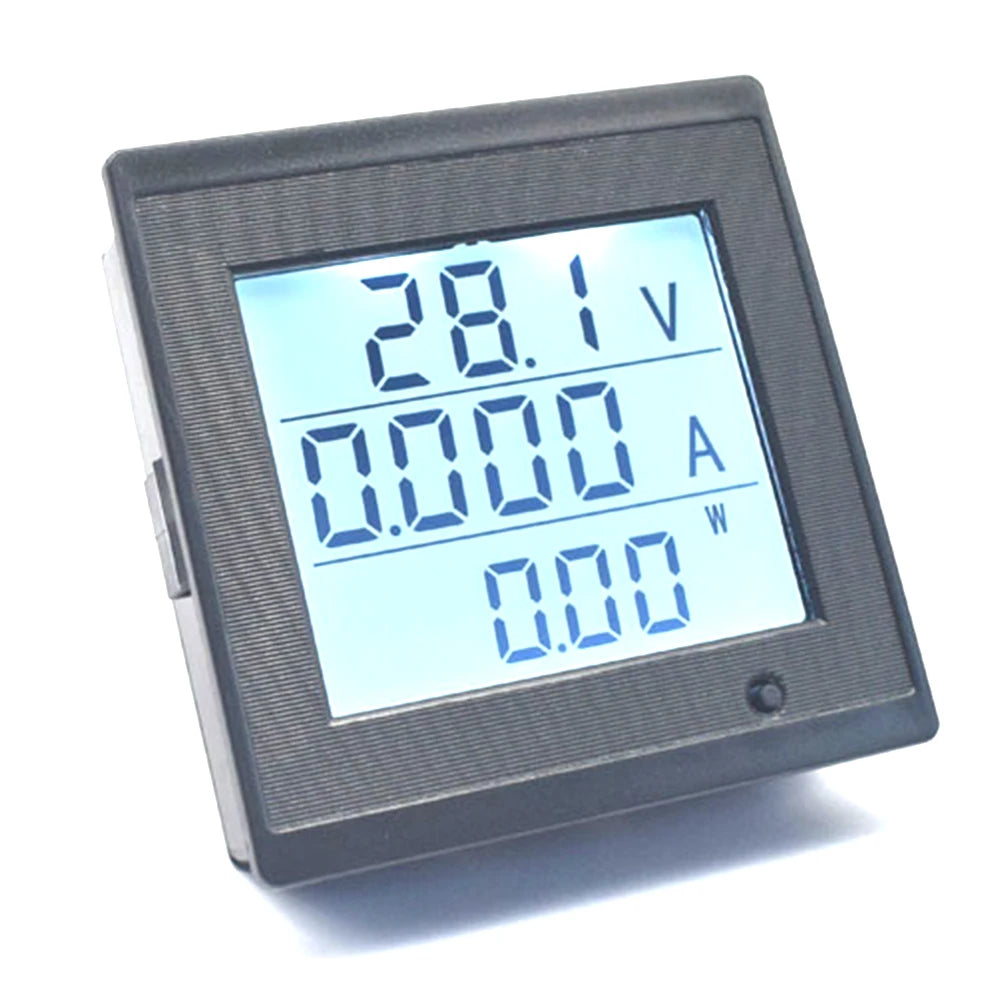

DC 6-200V 20A Voltage Current Meter LCD Digital Display Power
Default Title
$28.30
Sale price
$28.30
Regular price
$35.07
Skip to product information
DC 6-200V 20A Voltage Current Meter LCD Digital Display Power
$28.30
Sale price
$28.30
Regular price
$35.07
Shipping calculated at checkout.
Discover the DC 6-200V 20A Voltage Current Meter LCD Digital Display Power, a standout decor pick designed for dependable everyday performance and lasting value.
Specifications
DIY Supplies: Electrical
Semi-finishedproduct: No
Features:

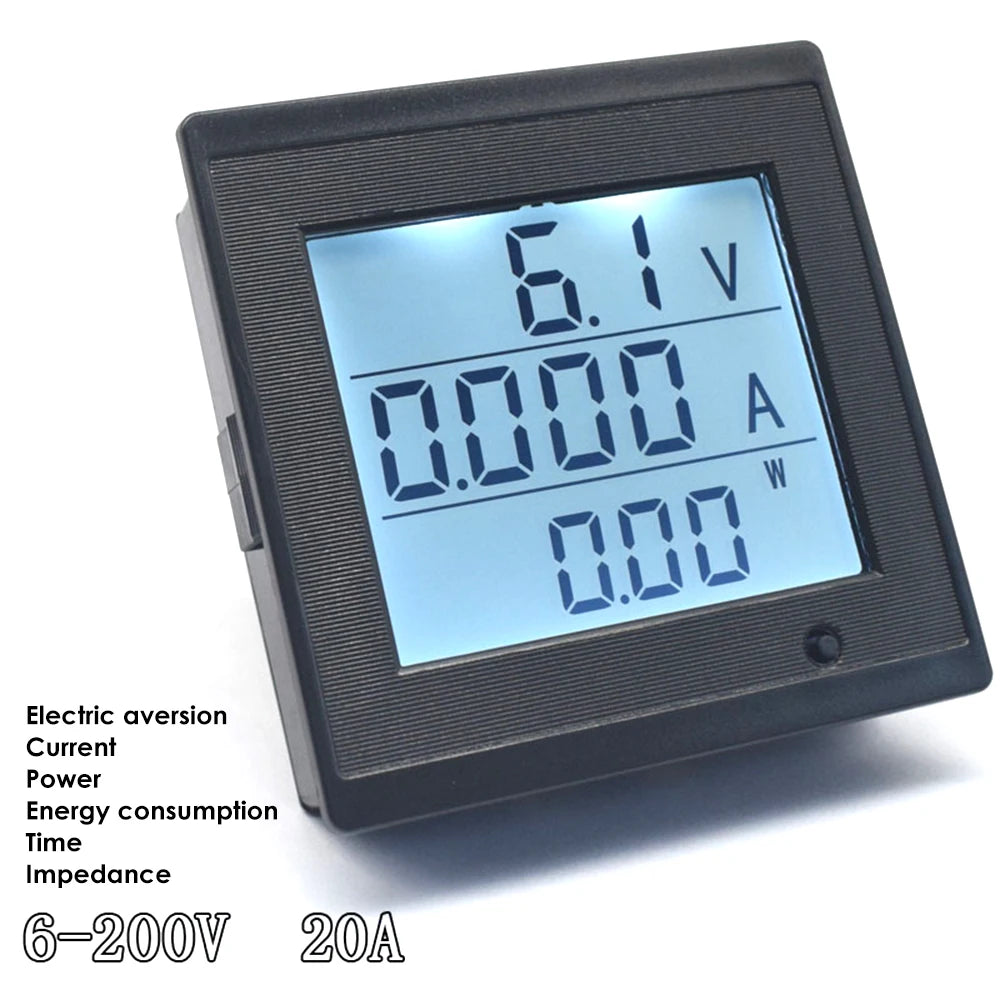

1. Electrical parameter measurement (voltage, current, power, energy consumption, time, impedance)
2. Voltage alarm function (backlight and voltage flashing alerts when exceeding voltage threshold)
3. Overload alarm function (backlight and power flashing alerts when exceeding power threshold)
4. Energy and time reset buttons
5. Power-off data retention
6. Backlight function.
Product Specifications
Measured Voltage: DC 6-200V
Measured Current: 0-20A
Measured Power: 0-4kW
Measured Energy Consumption: 0-99999kWh
Load Timing: 0-999 hours (resets upon overflow)
Measured Impedance: 0-999Ω (out-of-range display)
Overload Alarm: Configurable
Voltage Alarm: Configurable for overvoltage/undervoltage
Terminal Type: Barrier-type terminal blocks
Mounting Method: Flush-mounted

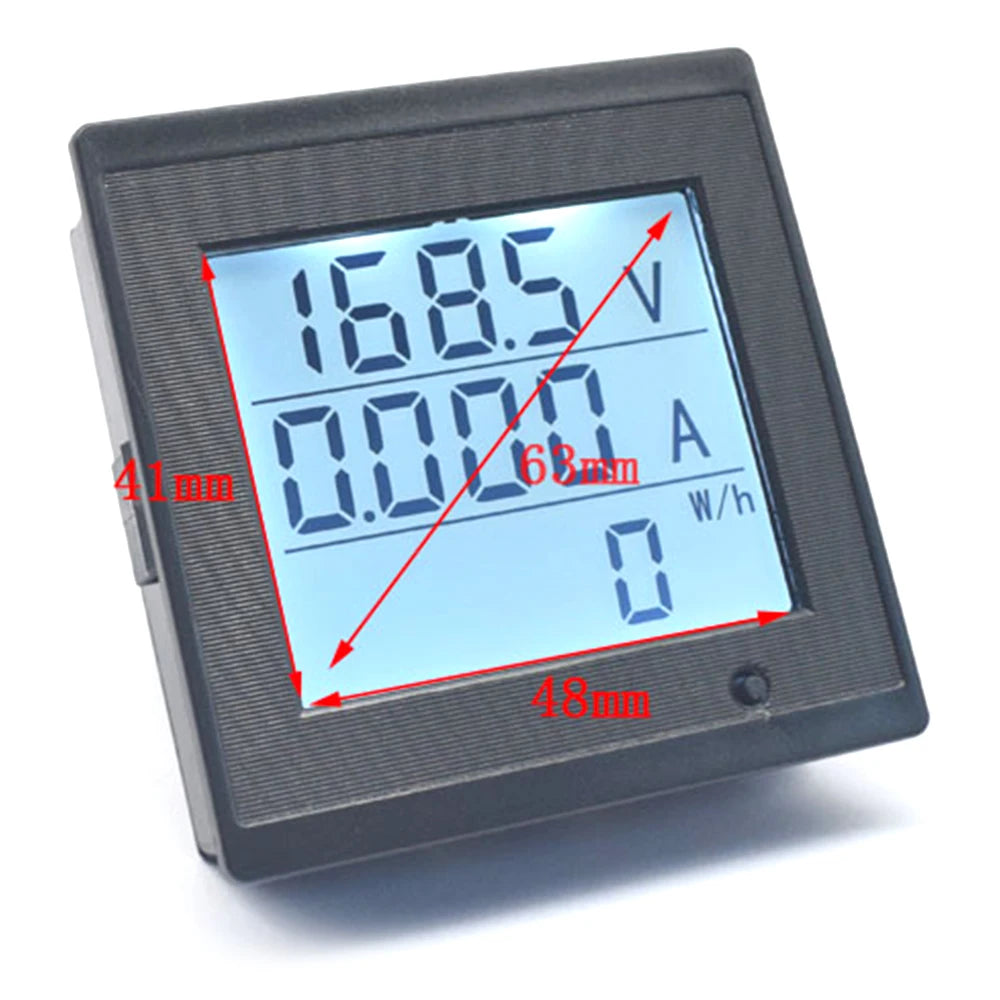

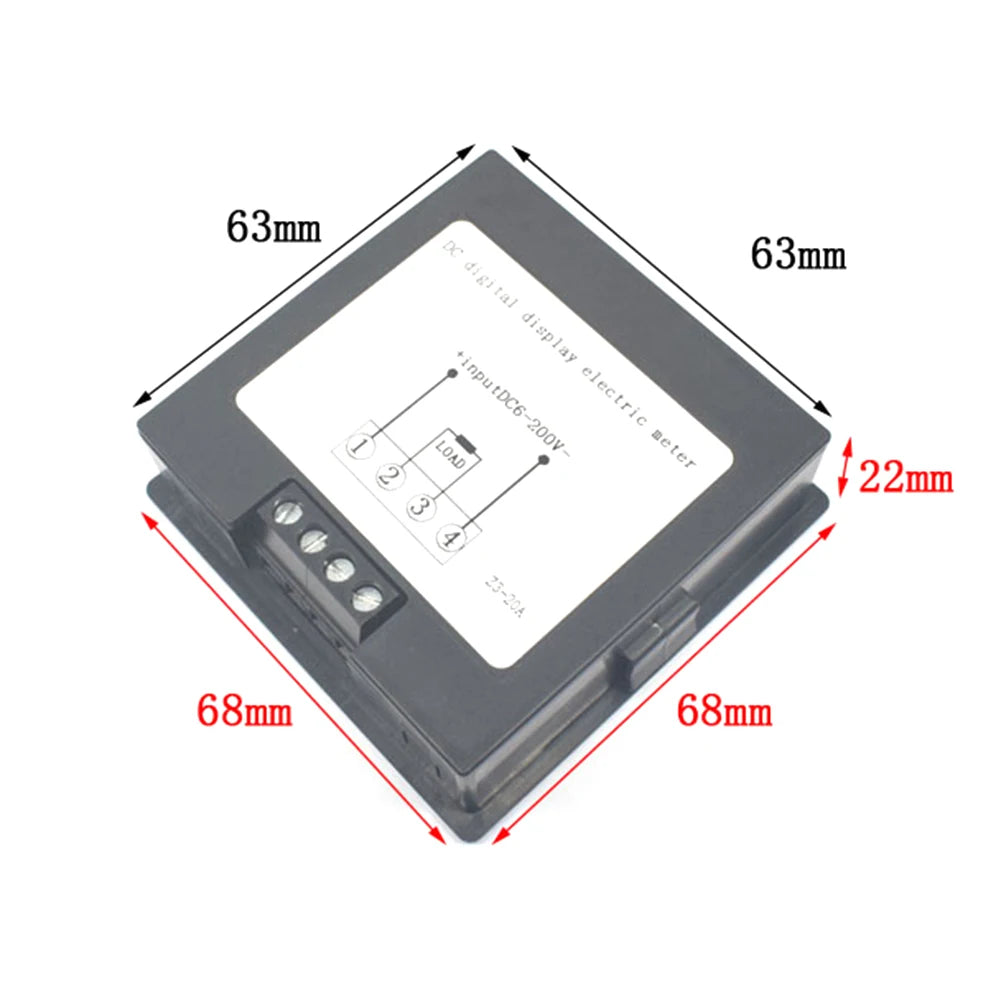

Module Dimensions: L*W*H 68mm*68mm*22mm
Net Weight: 58g
Panel Cutout: L*W 63mm*63mm
Product Parameters
Measured Voltage: DC 6-200V
Measured Current: 0-20A
Measured Power: 0-4kW
Measured Energy Consumption: 0-99999kWh
Load Timing: 0-999 hours (Overflow resets to zero)
Measured Impedance: 0-999Ω (Out of range display)
Overload Alarm: Configurable
Voltage Alarm: Configurable for Overvoltage/Undervoltage
Terminal Type: Barrier-type Terminal Blocks
Mounting Method: Flush-mounted
Module Dimensions: L*W*H 68mm*68mm*22mm
Net Weight: 58g
Panel Cutout: L*W 63mm*63mm

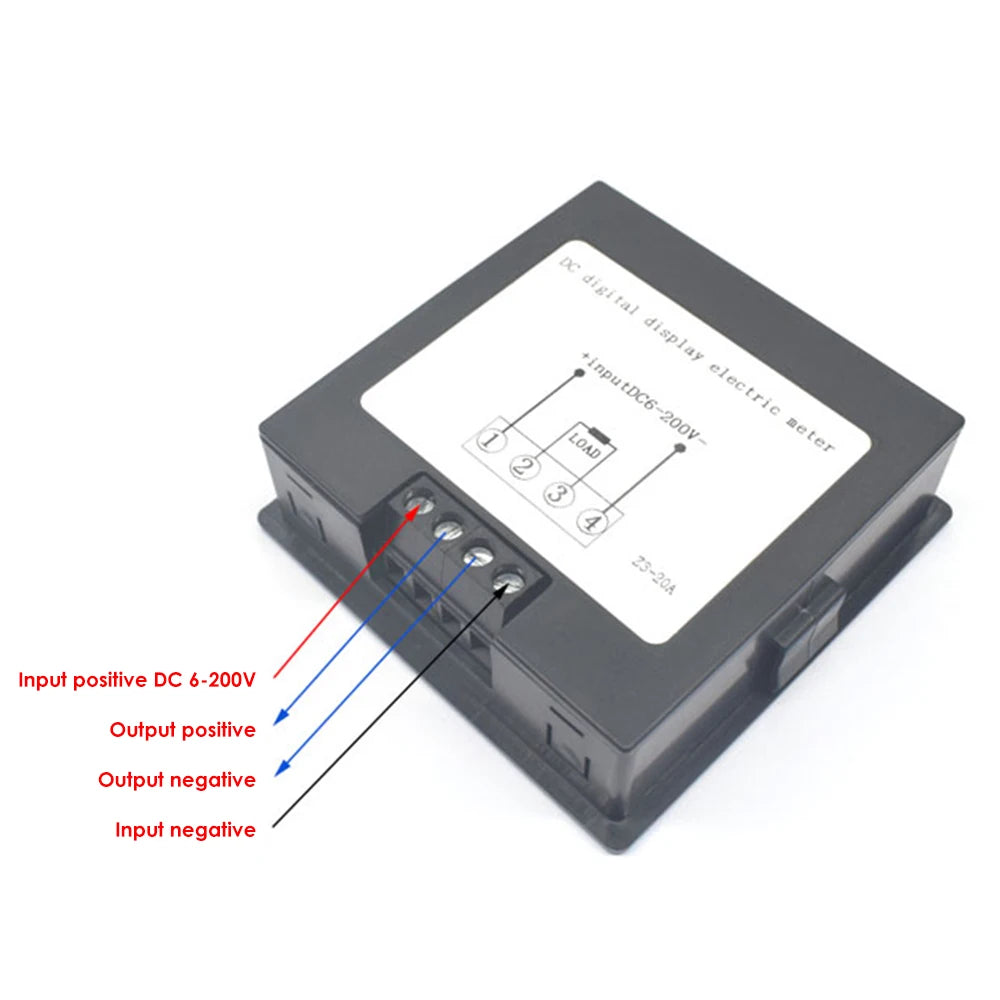

Note: Connect wires with correct polarity; do not input AC power
Button Instructions
1. Short press to cycle through Power, Energy Consumption, Time, Impedance.
2. Double-press quickly to toggle backlight on/off.
3. Long press for 6 seconds to enter setup mode.
4. Long press for 3 seconds to shift to next parameter group.
5. Hold button down to pause 2 seconds per group before auto-advancing.
6. No operation for 10 seconds exits and saves data.
Product List
Monitor x1
