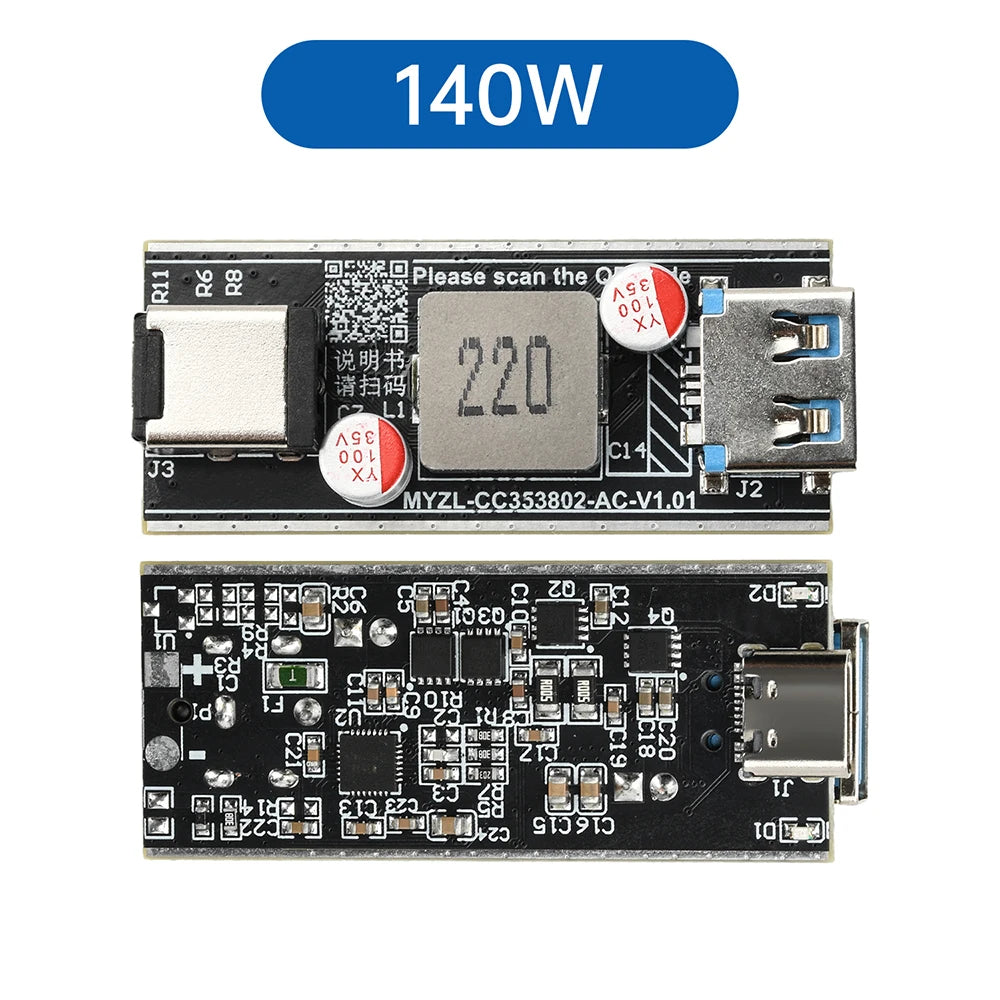

DC 6-30V Fast Charging Module PD140W Full Protocol DIY Motherboard
Dual-channel
$40.90
Sale price
$40.90
Regular price
$50.67
Skip to product information
DC 6-30V Fast Charging Module PD140W Full Protocol DIY Motherboard
$40.90
Sale price
$40.90
Regular price
$50.67
Shipping calculated at checkout.
Discover the DC 6-30V Fast Charging Module PD140W Full Protocol DIY Motherboard — a standout electronics accessories pick featuring adjustable design for dependable, everyday performance.
Specifications
DIY Supplies: Electrical
Electronic: No
Product Features
1. Supports multiple fast charging protocols, fully compatible with various device charging needs
2. DIY modular design allows selection of single or dual output channels to accommodate personalized desktop charging scenarios

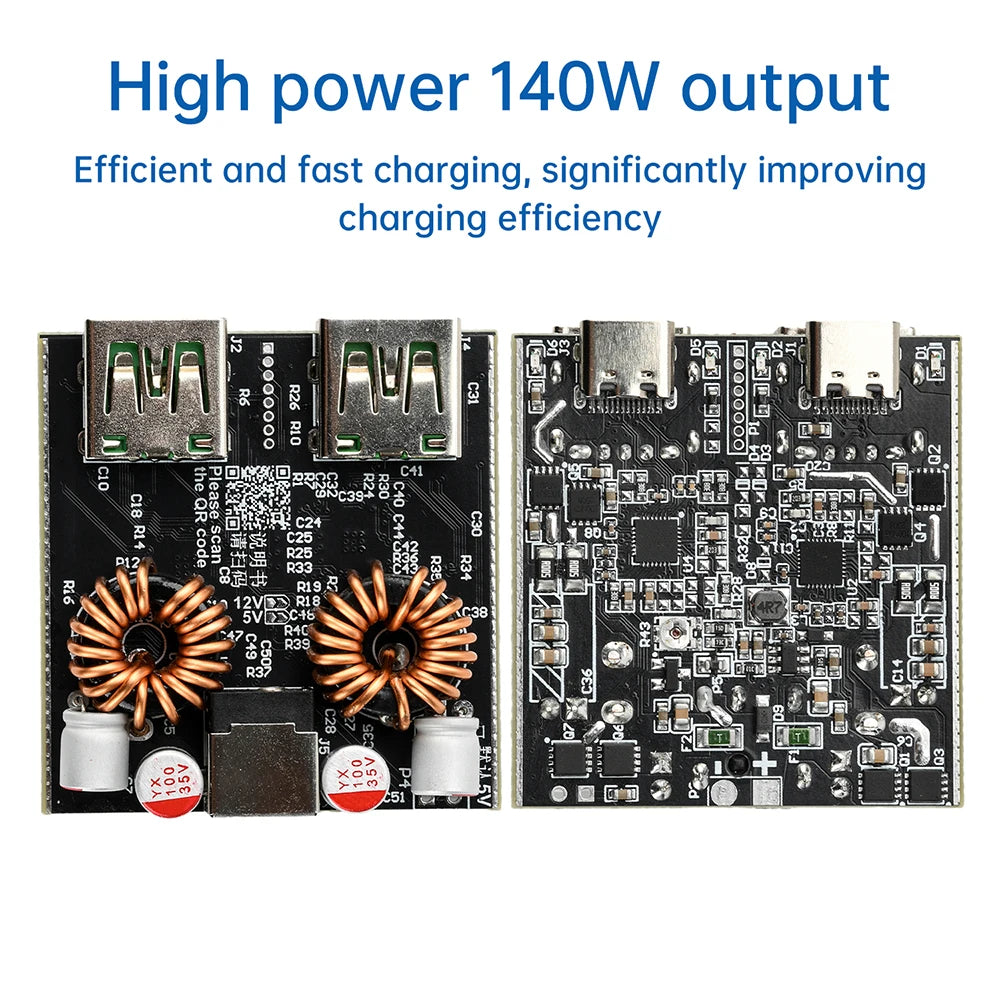

3. High-power 140W output delivers efficient and rapid charging, significantly boosting charging efficiency

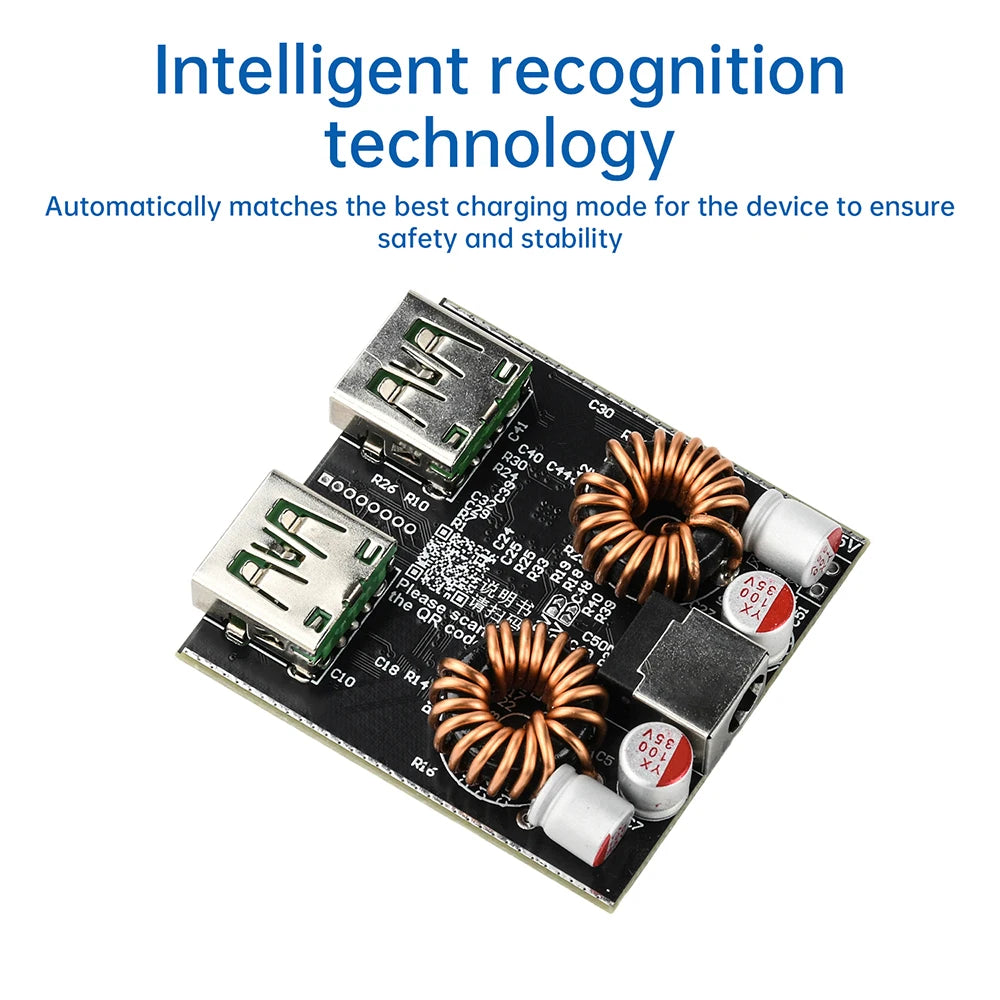

4. Intelligent recognition technology automatically matches devices with optimal charging modes, ensuring safe and stable operation

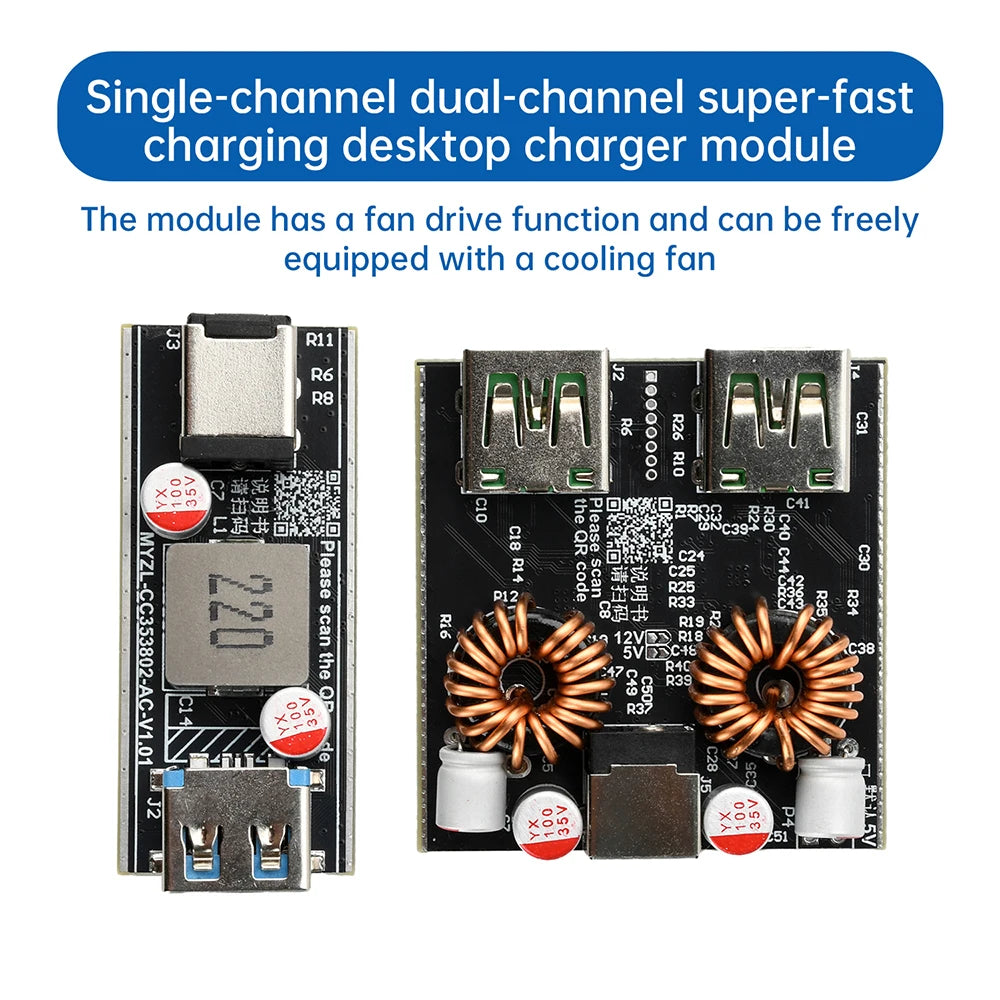

5. Modules feature fan drive functionality, enabling custom installation of cooling fans

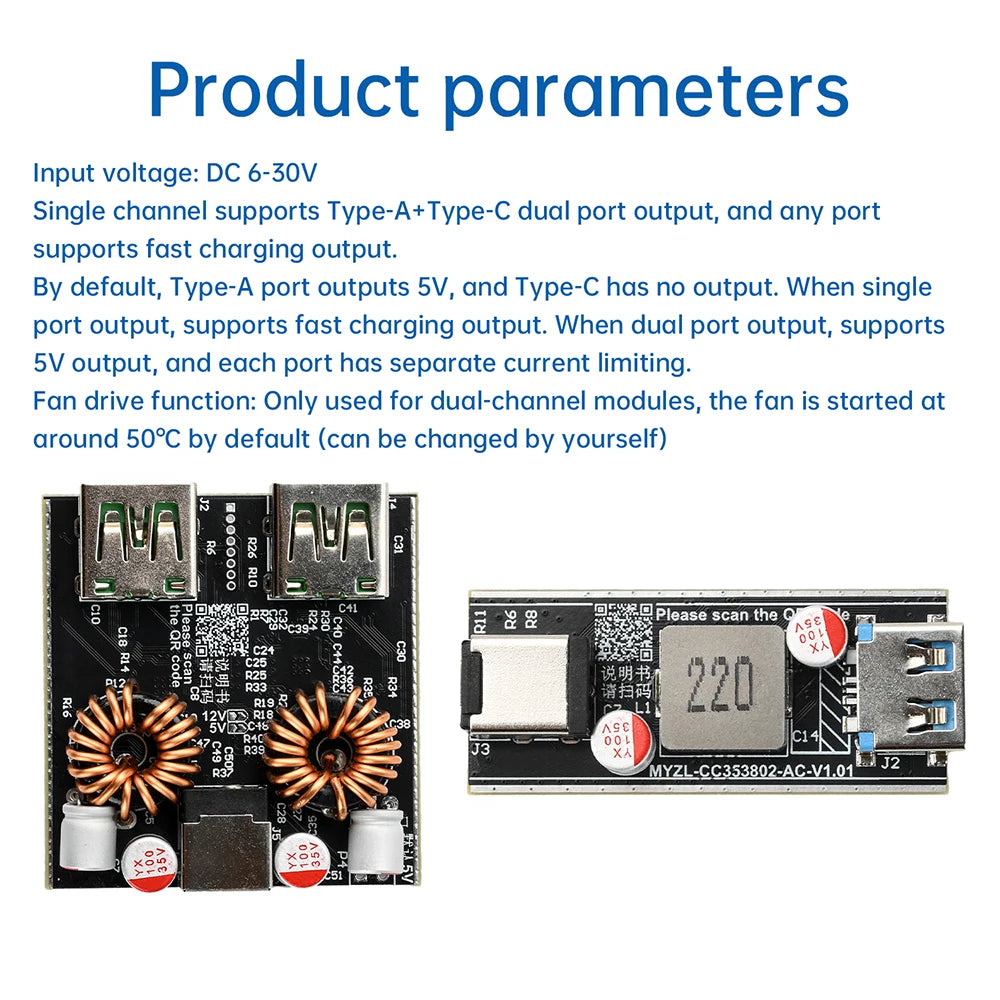

Product Specifications:
Input Voltage: DC 6-30V
Single-port supports Type-A + Type-C dual-port output, with either port capable of fast charging.
By default, Type-A outputs 5V while Type-C has no output. Single-port operation supports fast charging. Dual-port operation supports 5V output with independent current limiting per port.
Fan Control Function: Applicable only to dual-port modules; fan activates around 50°C by default (Adjustable)
Fast Charging Protocols:
PPS/PD3.0/PD2.0: PPS output supports 3.3~21V max. PD3.0/PD2.0 output supports 5V/9V/12V/15V/20V max. with 140W max output power (20V@7A).
QC5/QC4+/QC3+/QC3.0/QC2.0: QC2.0 output supports 5V/9V/12V/20V; QC3.0 output supports 3.6V–20V.
AFC: Output supports 5V, 9V, 12V.
FCP: Output supports 5V, 9V, 12V.
SFCP: Output supports 5V, 9V, 12V.
SCP: Supports low-voltage SCP and high-voltage SCP. Low-voltage SCP supports 低压SCP支持5V@4.5A, 4.5V@5A. High-voltage SCP supports 10V@2A.
PE2.0/PE1.1: PE2.0 output supports 5V~20V; PE1.1 output supports 5V/7V/9V/12V.
TFCP Fast Charging: Output supports four power curves: 25W/33W/45W/65W.
VOOC: VOOC1.0输出支持5V@4.25A; VOOC 4.0 output supports 5V@6A.

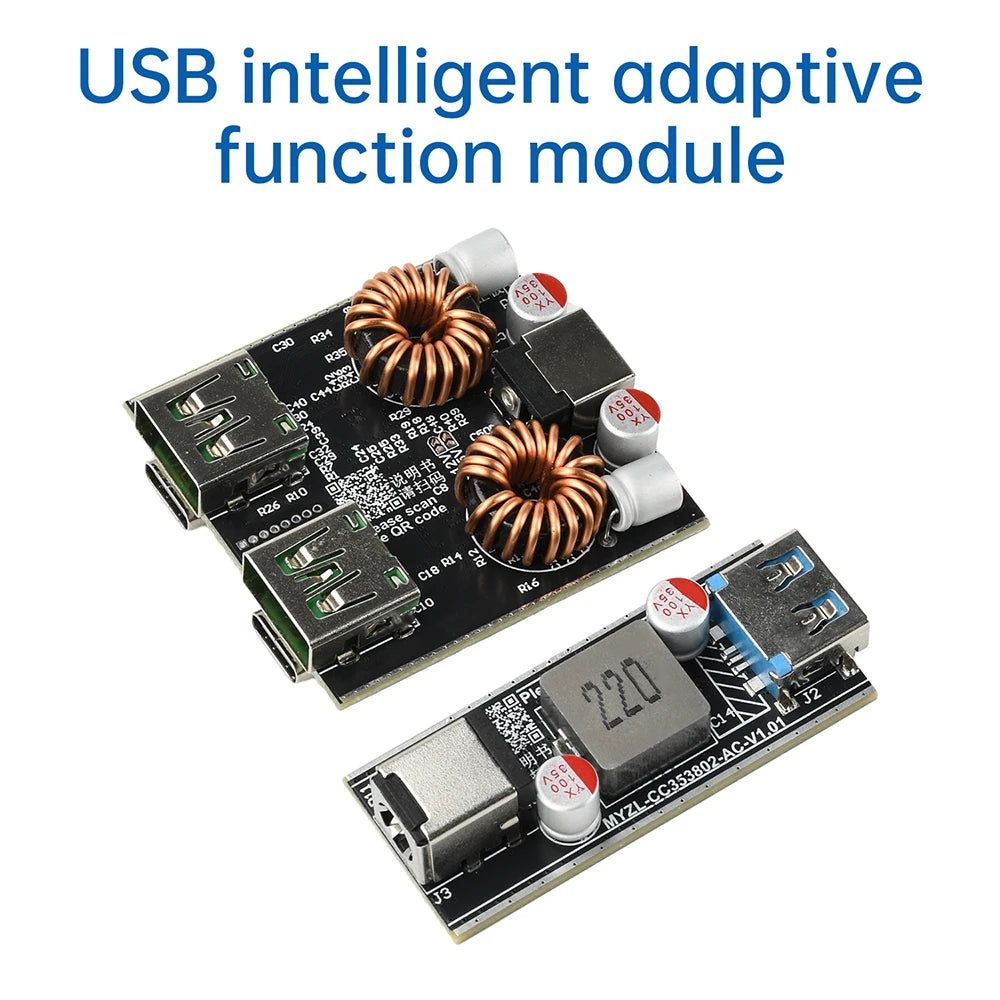

BC1.2 Functionality: Includes USB Smart Adaptive Function Module, supporting not only BC1.2 and Chinese mobile charger standards but also excellent compatibility with Apple and Samsung high-current output recognition.
Package Contents
Fast Charge Module*1
Options
- Color: Dual-channel, Dual-channel 1, Single-channel, Single-channel 1
