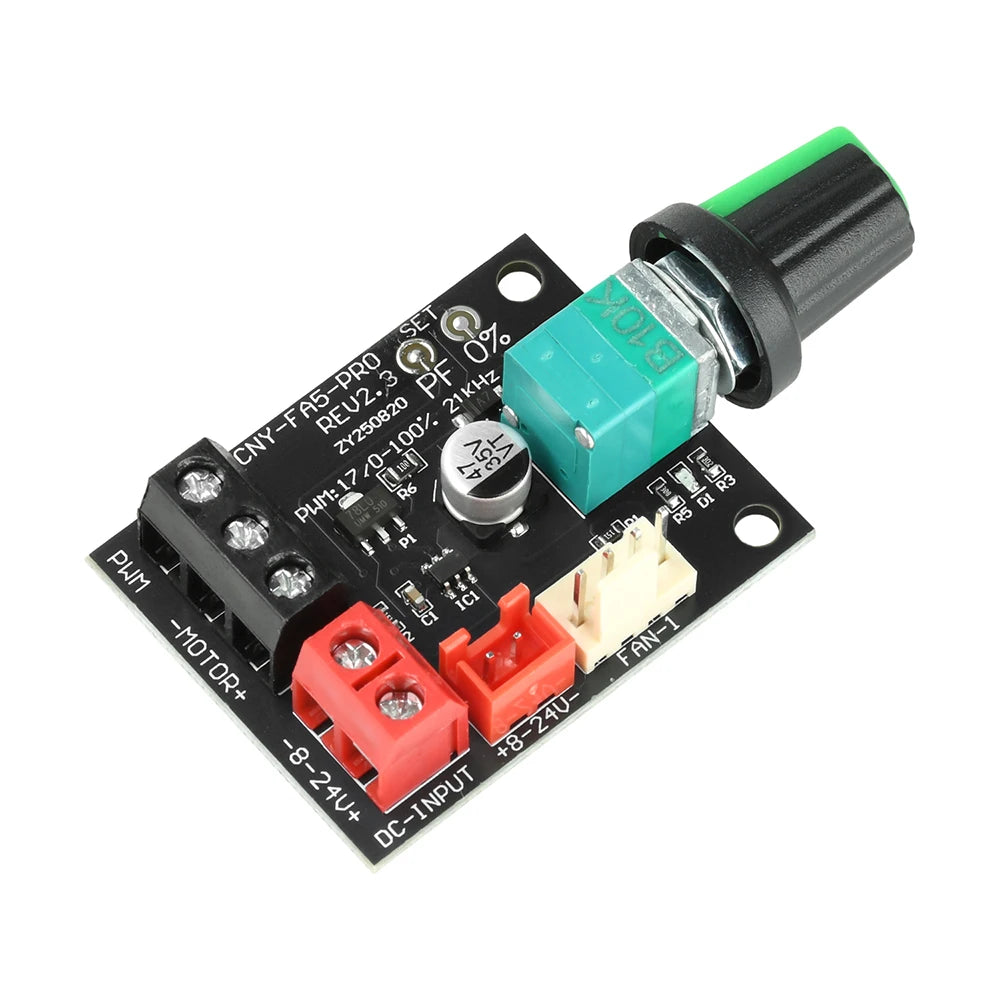

DC 8-24V 5A 4-wire Fan Speed Regulator Brushless Motor PWM Controller

Discover the DC 8-24V 5A 4-wire Fan Speed Regulator Brushless Motor PWM Controller — a standout decor pick featuring adjustable design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Condition: New

Type: Module

Features:

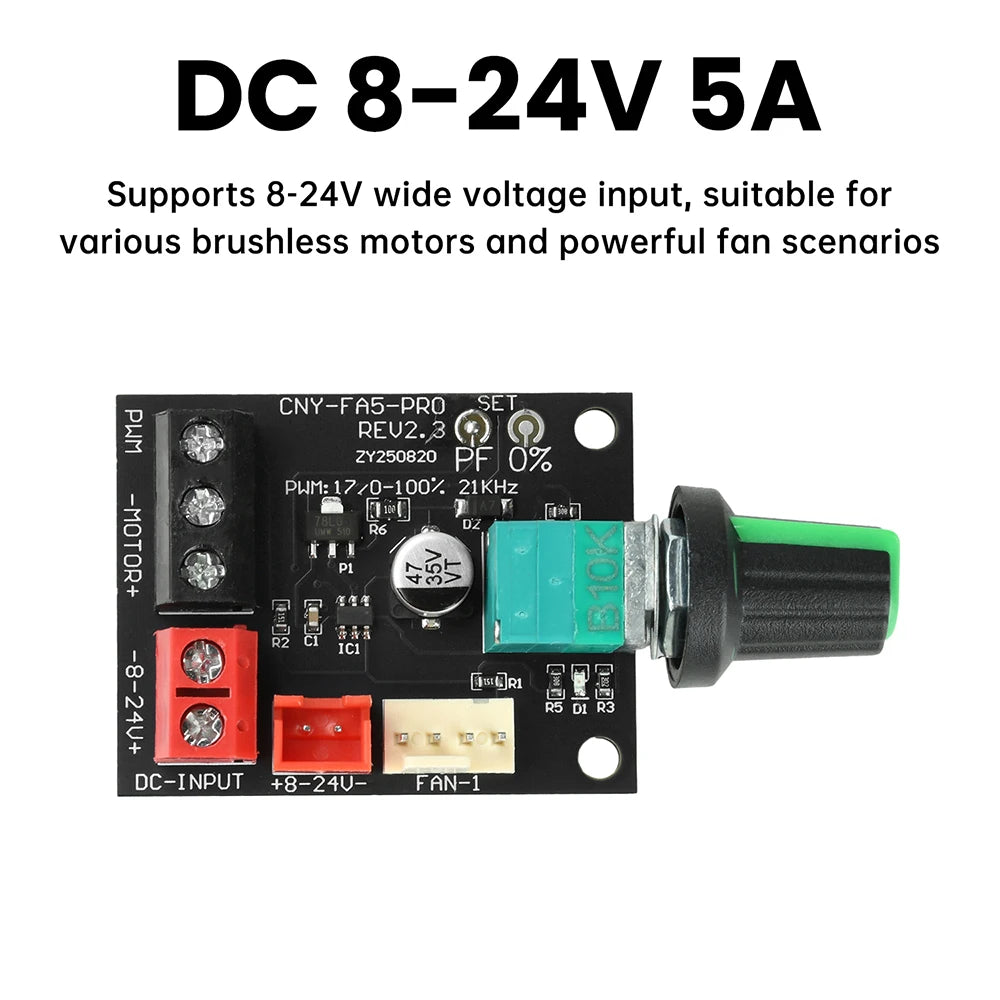

1. Supports a wide input voltage range of 8–24V, compatible with a variety of brushless motors and high-performance fan applications

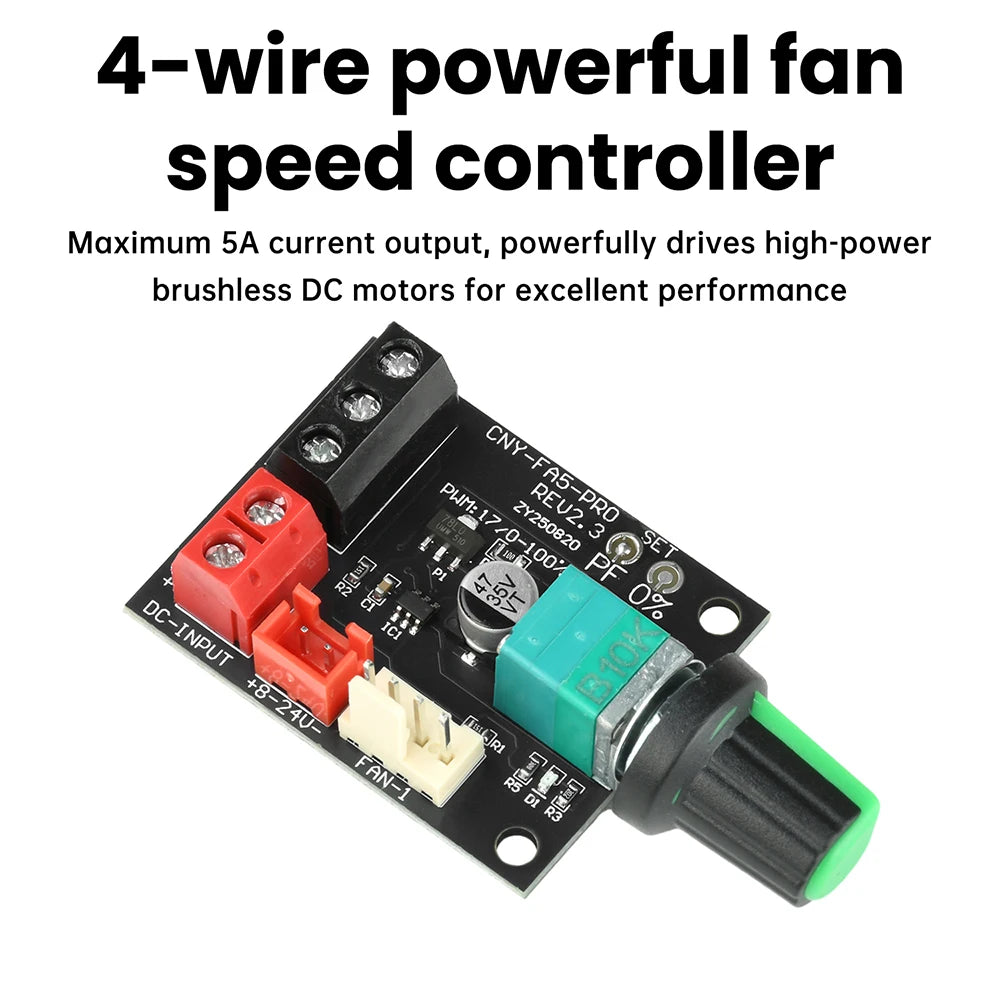

2. Maximum current output of 5A, powerfully drives high-power brushless DC motors with outstanding performance

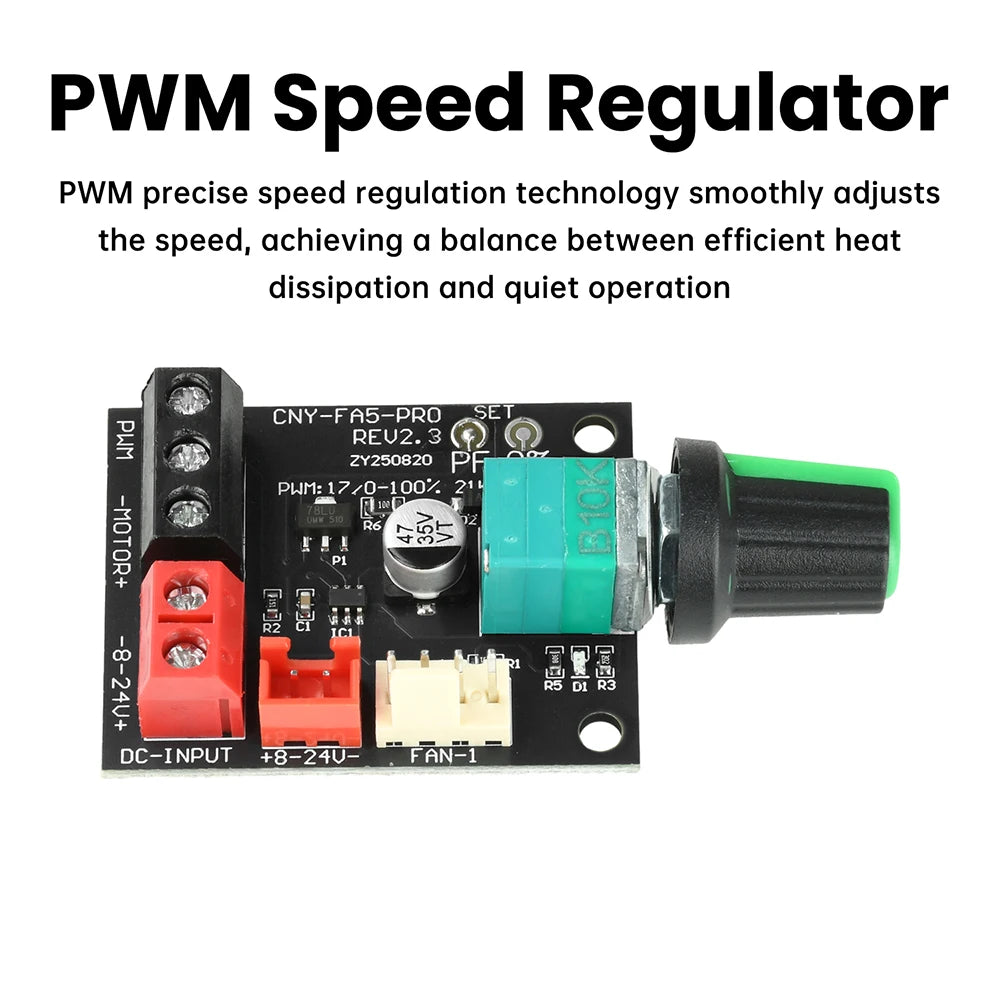

3. Precise PWM speed control technology smoothly adjusts RPM, achieving a balance between efficient heat dissipation and quiet operation

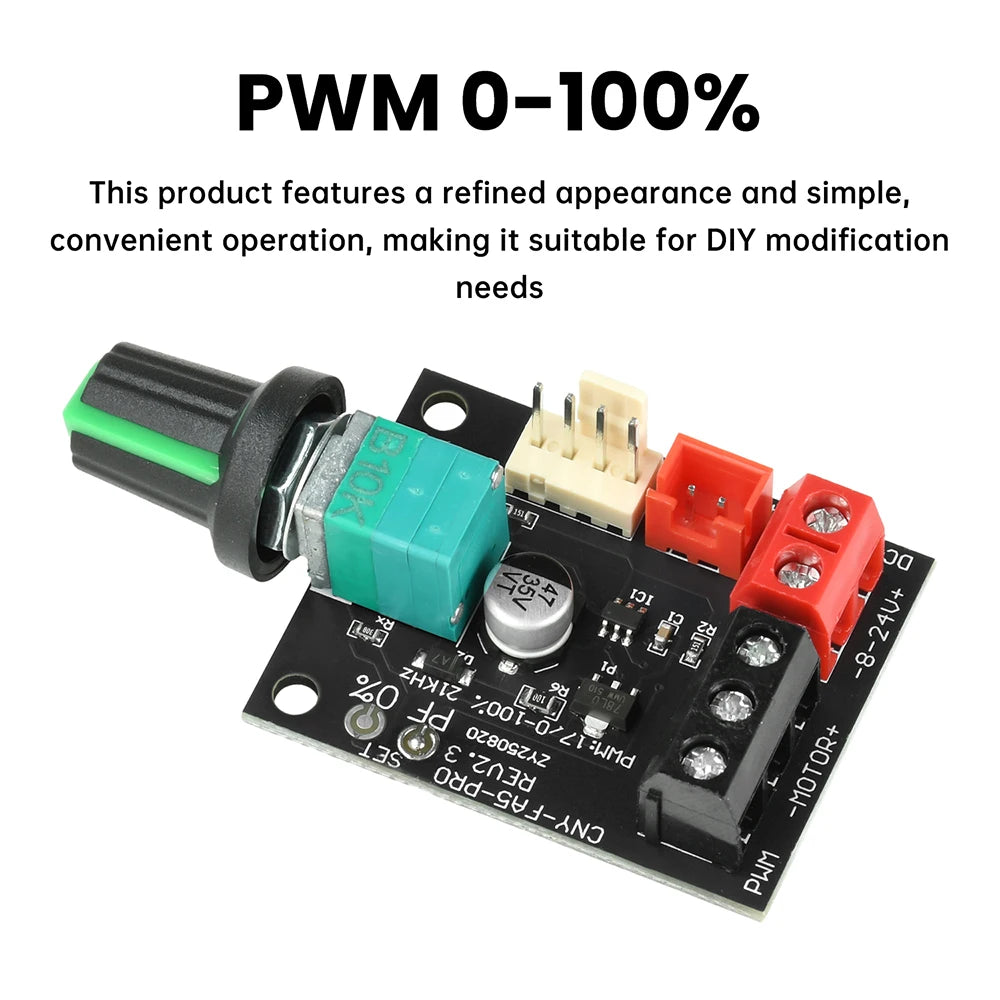

4. Sleek design and simple, convenient operation, ideal for DIY modification needs

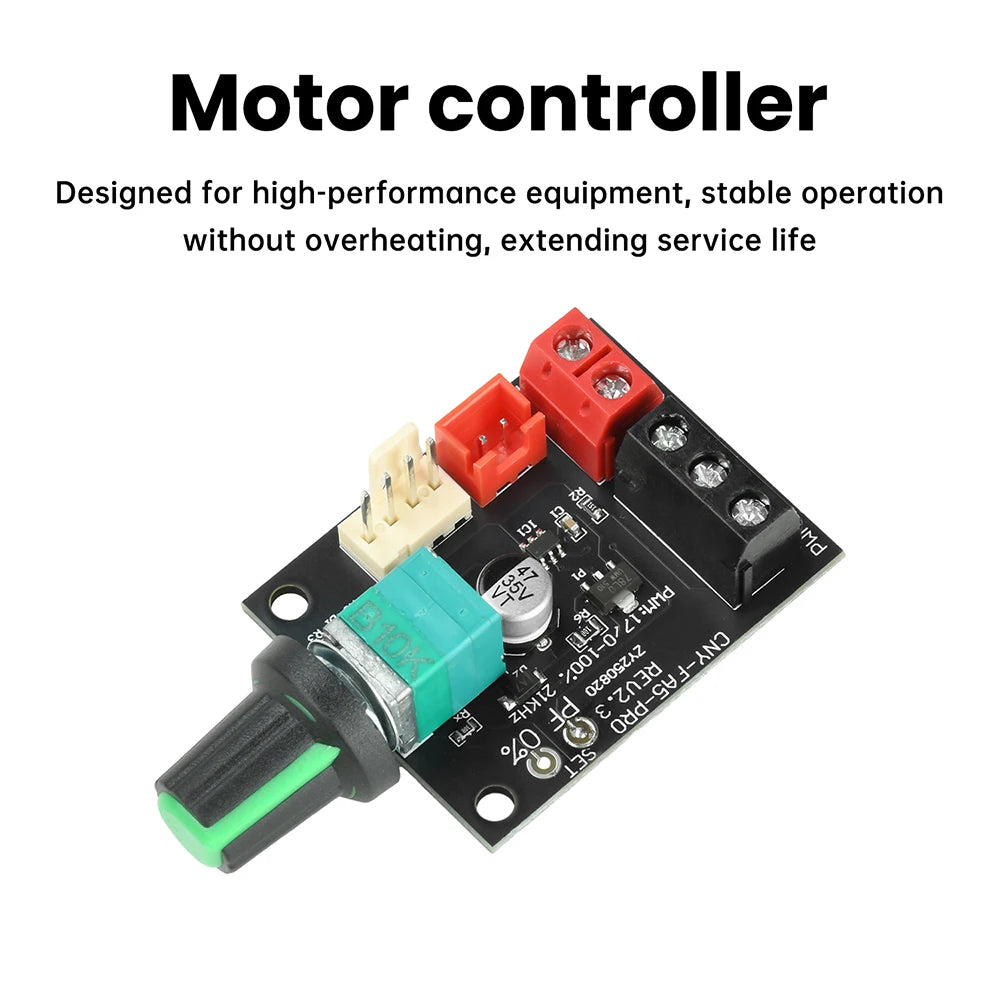

5. Designed specifically for high-performance devices, it operates stably without overheating, extending service life

Product Specifications

Operating Voltage: DC 8–24V

Operating Current: 5A (12V: 60W, 24V: 120W)

Maximum Adjustable Duty Cycle: 0–100% PWM 5V square wave

PWM Frequency: 22KHz

Operating Power Consumption: 20mA

Standby Current: 0 mA (when powered off)

This speed control module is suitable for: 4-wire or 5-wire brushless DC cooling fans or brushless DC motors with PWM/CLK signal control inputs (e.g., computer case cooling fans)

Product Description: This product is a brushless DC motor speed control module with signal output. It accepts input voltages ranging from a minimum of 6V to a maximum of 28V and operates stably between 8V and 24V. The speed control knob incorporates a built-in power switch; when turned all the way down until a “click” is heard, the input power is cut off, and the module and fan stop receiving power. The switch allows a maximum current of 5A to pass through;

1. An XH2.54 connector has been added to the power input; it can serve as both a power input and a power output to supply other peripheral devices.

2. A 2510-4P cooling fan connector has been added, allowing speed control via both this connector and the terminal blocks.

3. Soldering a short between the PF points reverses the PWM output direction, suitable for reverse-sequence fans where the fan speed is highest when PWM = 0.

4. Soldering a short between the 0% points causes the PWM output to vary from 0 to 100. By default (without a short), the PWM output varies from 17% to 100. This primarily prevents certain fans from failing to spin immediately after startup.

Package Contents

PWM Speed Controller *1
