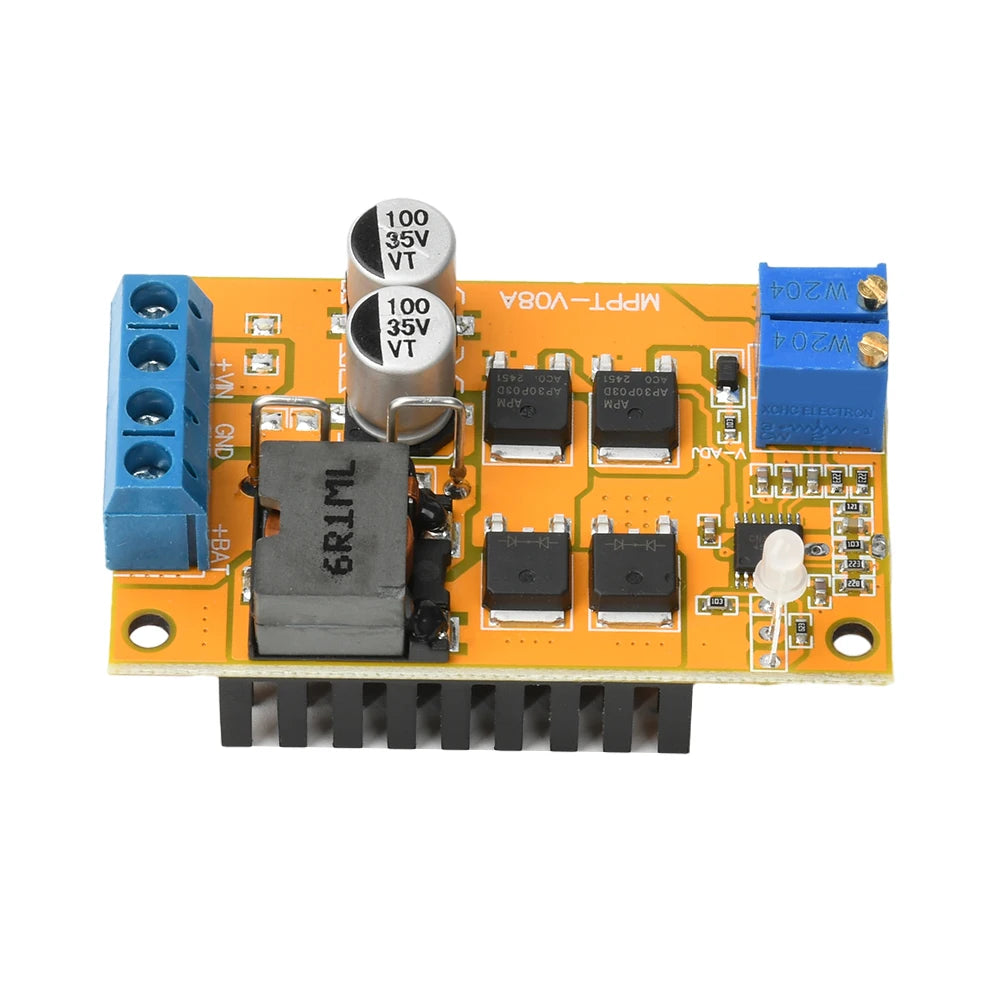

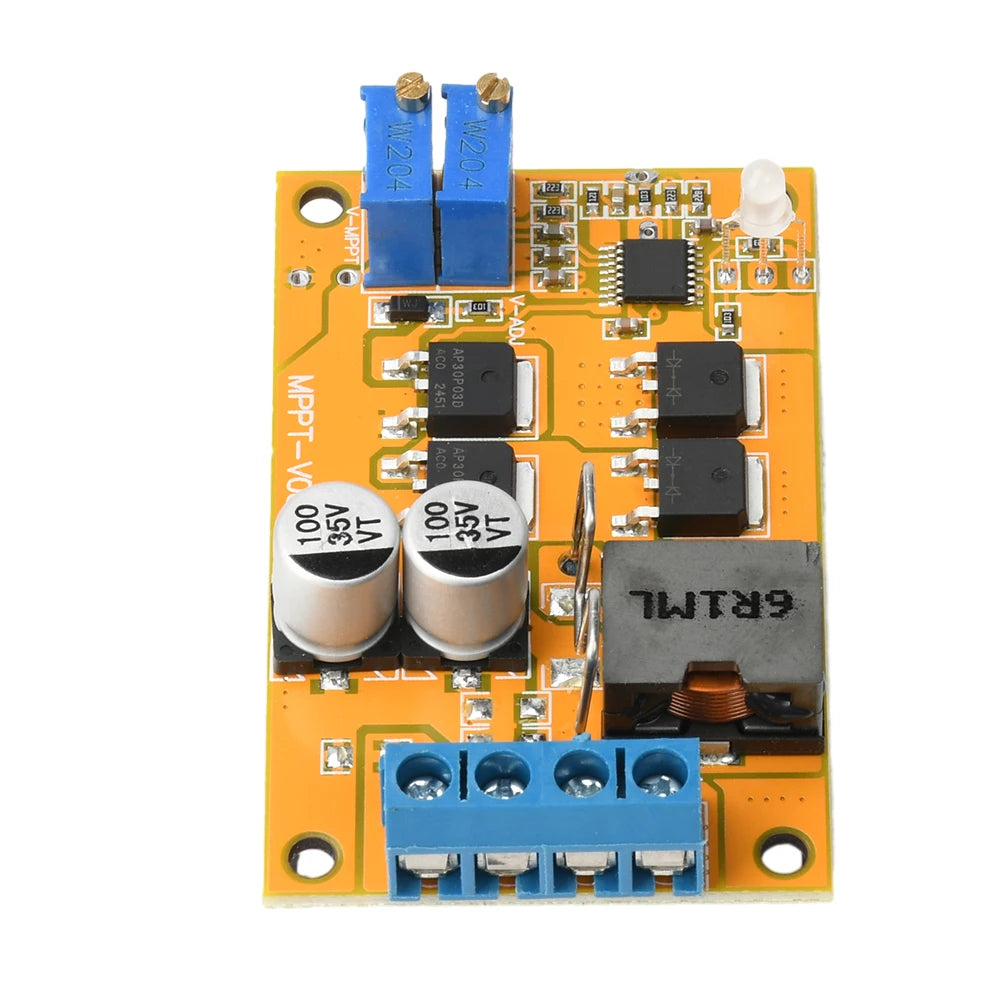

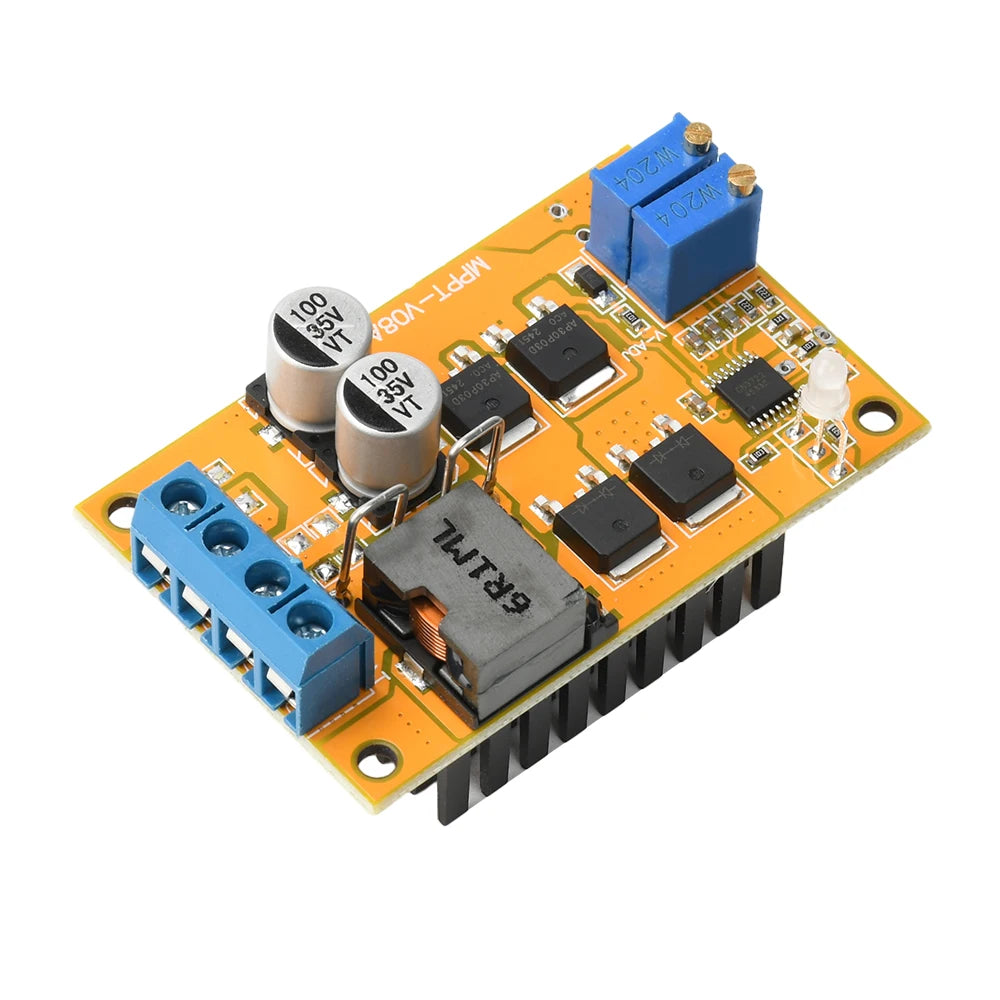

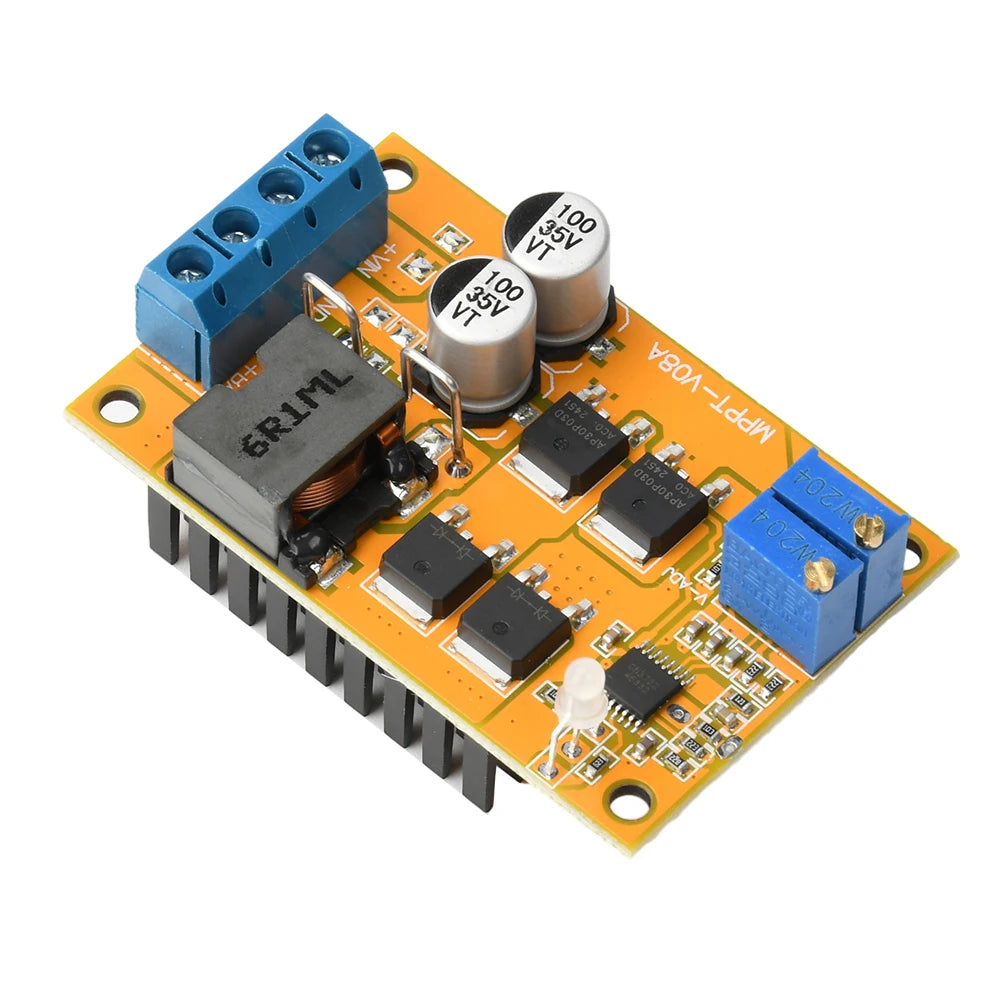

DC 8-28V 5A 100W MPPT Solar Board Regulator Controller 9V 12V 24V

Discover the DC 8-28V 5A 100W MPPT Solar Board Regulator Controller 9V 12V 24V — a standout decor pick featuring adjustable, professional, soft design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Condition: New

Type: Switch

Product Features:

1. MPPT Maximum Power Point Tracking technology automatically adjusts output current to maximize solar energy utilization

2. Wide input voltage range (DC 8-28V) accommodates multiple battery types with strong compatibility

3. Ultra-low power consumption design minimizes voltage loss, boosting conversion efficiency to 95% peak

4. Multiple protection features including reverse polarity protection and nighttime backflow prevention for enhanced safety

5. Industrial-grade operating temperature range (-40°C to +85°C) ensures stability and reliability in extreme environments

Product Specifications:

Product Name: MPPT Solar Panel

Input Voltage: DC 8-28V (Supports charging 6V or 12V lead-acid batteries; 8.4V, 12.6V, 16.8V lithium batteries; 7.2V, 10.8V, 14.4V LiFePO4 batteries; 2-4 series lithium batteries; LiFePO4 charge management boards)

Output Voltage: DC 5-26V infinitely adjustable

Output Current: 5A

Power: 100W

Charging Indicator: Yes. Red light steady during fast charging; alternating red/blue flashes when fully charged. Auto-stop upon full charge.

MPPT Function: Yes. MPPT maximum power point tracking maximizes solar charging efficiency.

Minimum Voltage Drop: 1V (As a step-down voltage regulator, input must be at least 1V higher than output)

Ultra-Low Power Consumption: Yes. Utilizes ultra-low voltage drop design for low power consumption and higher conversion efficiency, professionally tailored for solar panels.

Operating Temperature: Industrial Grade (-40°C to +85°C)

Load Regulation: ±1%

Voltage Regulation: ±0.5%

Conversion Efficiency: Max: 93% Peak: 95% (Varies under different light conditions)

Charging Mode: Fully automatic intelligent three-stage charging mode. Automatically adjusts charging current based on solar power tracking.

No-Load Current: 3mA. Easily auto-starts even under weak morning sunlight, eliminating manual switching.

Input Reverse Protection: Yes. MOSFET ultra-low voltage drop reverse protection. Unit stops operation upon input reverse connection.

Output Reverse Flow Protection: Yes. Effectively prevents battery backflow charging the panel at night.

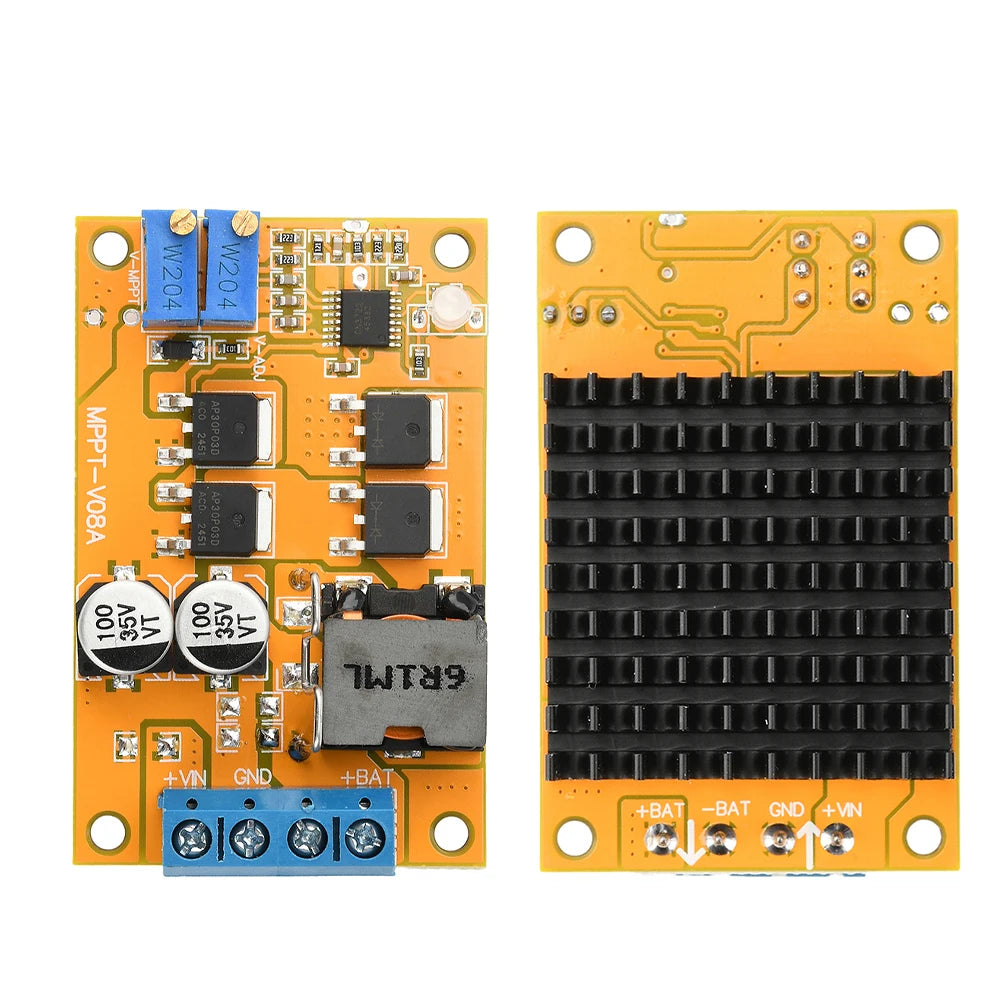

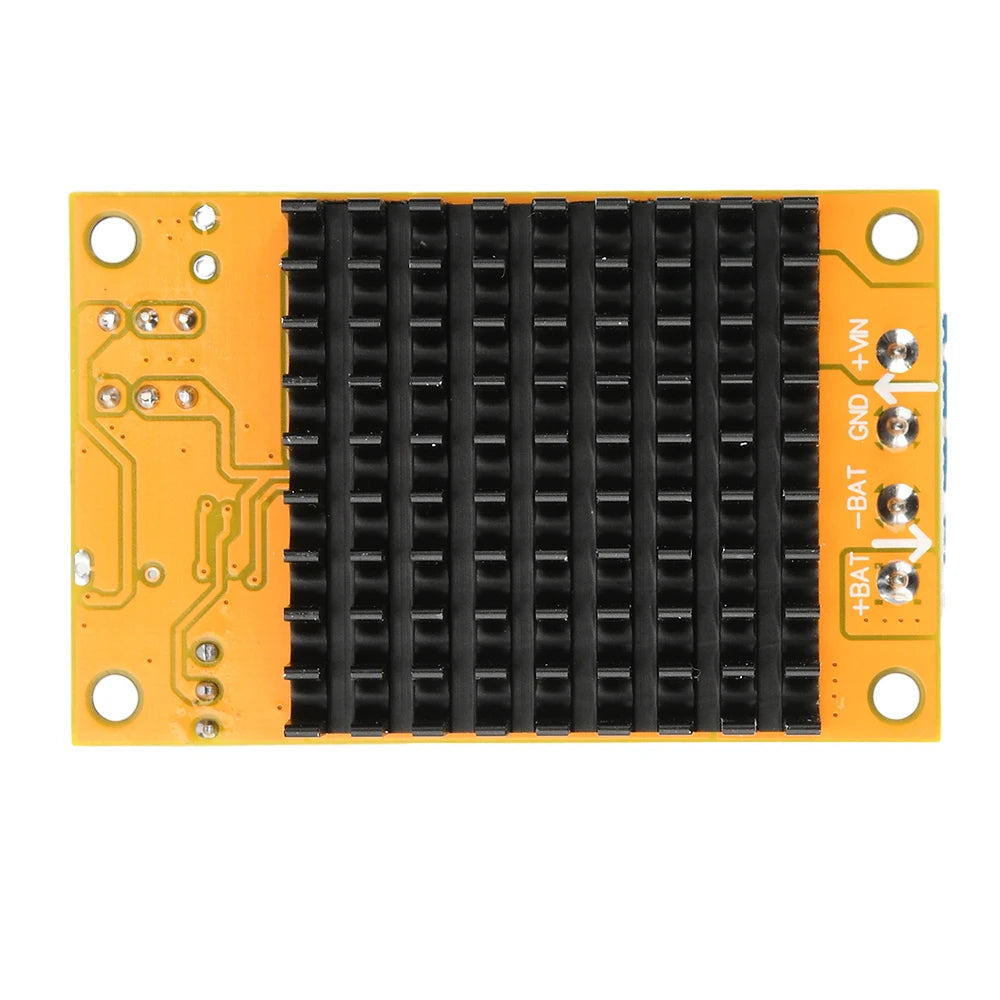

Wiring Method: Terminal blocks provided

MPPT Voltage: Fully adjustable. Different solar panels have varying MPPT voltages. Low-power design minimizes voltage loss. MPPT prevents slow charging caused by batteries dragging down panel voltage

Module Characteristics: True MPPT (Maximum Power Point Tracking) functionality, fully automatic intelligent charging management, low power consumption

Dimensions: 5.8 × 3.7 × 2.2 cm

Description:

Features advanced MPPT (Maximum Power Point Tracking) technology with a 5A high-current intelligent trickle, constant-current, and constant-voltage charging management board. Automatically stops charging when full, enters sleep mode at night, and self-activates during daylight hours for unattended intelligent management.

About MPPT:

MPPT (Maximum Power Point Tracking) ensures photovoltaic modules consistently deliver peak power output despite varying sunlight intensity, maximizing solar energy utilization. Under normal conditions, it automatically adjusts charging current based on real-time solar irradiance, maintaining the solar panel's output at its maximum power point to optimize the product of output voltage and charging current (total power).

Product Application Range:

Suitable for 1W-100W solar panels operating at 9V-28V (9V, 12V, 18V, 24V) to charge batteries, NiCd, NiMH, and Li-ion batteries (battery packs). wind turbines, solar street lights, etc. Both input and output terminals utilize high-grade high-frequency low-impedance electrolytic capacitors (LOWESR) specifically designed for switching power supplies, ensuring effective filtering of output ripple and elimination of switching power supply glitches.

Charging Management Board Features:

1. Maximum Power Point Tracking (MPPT) for solar panels, delivering output current exceeding panel input. True ultra-high efficiency MPPT supports 8-28V solar panels up to 100W. (Recommended one module per solar panel; multiple modules can be paralleled to increase charging current).

2. Fully adjustable output voltage with CC-CW automatic control (supports single/multiple cells of lithium, lithium iron phosphate, or lead-acid batteries; high-power LEDs, etc.).

3. Comprehensive battery charge management.

4. PWM switching frequency: 300KHz.

5. Constant current charging set via external resistor (preset 5000mA/2000mA).

6. Trickle charging for deeply discharged batteries.

7. Dual charging status indicators: Red LED on during charge / Blue LED on when full / Red flashing with blue steady indicates no battery connected.

8. Low-power soft-start function using imported high-frequency dual MOSFETs with low on-resistance, 10A high-current dual diodes, high-efficiency flat-profile power inductor, constantan current sensing resistor, low-dropout reverse polarity protection. Reverse connection prevents operation, safeguarding the charger board from damage.

Debugging Method:

Step 1: Connect the solar panel without connecting the battery to be charged. If output voltage is present, proceed to Step 2. If no output, slowly turn the MPPT knob counterclockwise until output voltage appears.

Step 2: Turn the output voltage knob counterclockwise until the red and blue lights flash. Then coarsely adjust the output voltage to the full-charge cutoff voltage.

Step 3: Connect the discharged battery. Monitor the charging current with an ammeter in series at the output. Fine-tune the MPPT potentiometer until the charging current peaks.

Step 4: Connect a freshly charged battery. If the blue LED illuminates, increase the output voltage clockwise until the red LED activates. Then slowly decrease the output voltage counterclockwise until the blue LED just illuminates. Use a multimeter to verify the cutoff voltage is correct to prevent overcharging.

Method using a regulated power supply instead of solar:

Step 1: Set the regulated power supply to the solar MPPT voltage (e.g., 18V).

Step 2: Connect the regulated power supply to the input terminal without connecting the battery. If output voltage is present, turn the MPPT clockwise until output voltage disappears. Then slowly turn the MPPT counterclockwise until output voltage just appears.

Step 3: Turn the output voltage counterclockwise until the red and blue lights flash. Coarsely adjust the output voltage to the full-charge cutoff voltage.

Step 4: Connect a freshly charged battery. If the blue light illuminates, turn the output voltage clockwise until the red light illuminates. Then slowly turn the output voltage counterclockwise until the blue light just illuminates. Use a multimeter to verify the cutoff voltage is correct to prevent overcharging.

Important Notes:

For the first charge, pre-adjust the output voltage and closely monitor the battery voltage to prevent overcharging! Do not charge unprotected lithium batteries.

Shipping Contents:

Module x1
