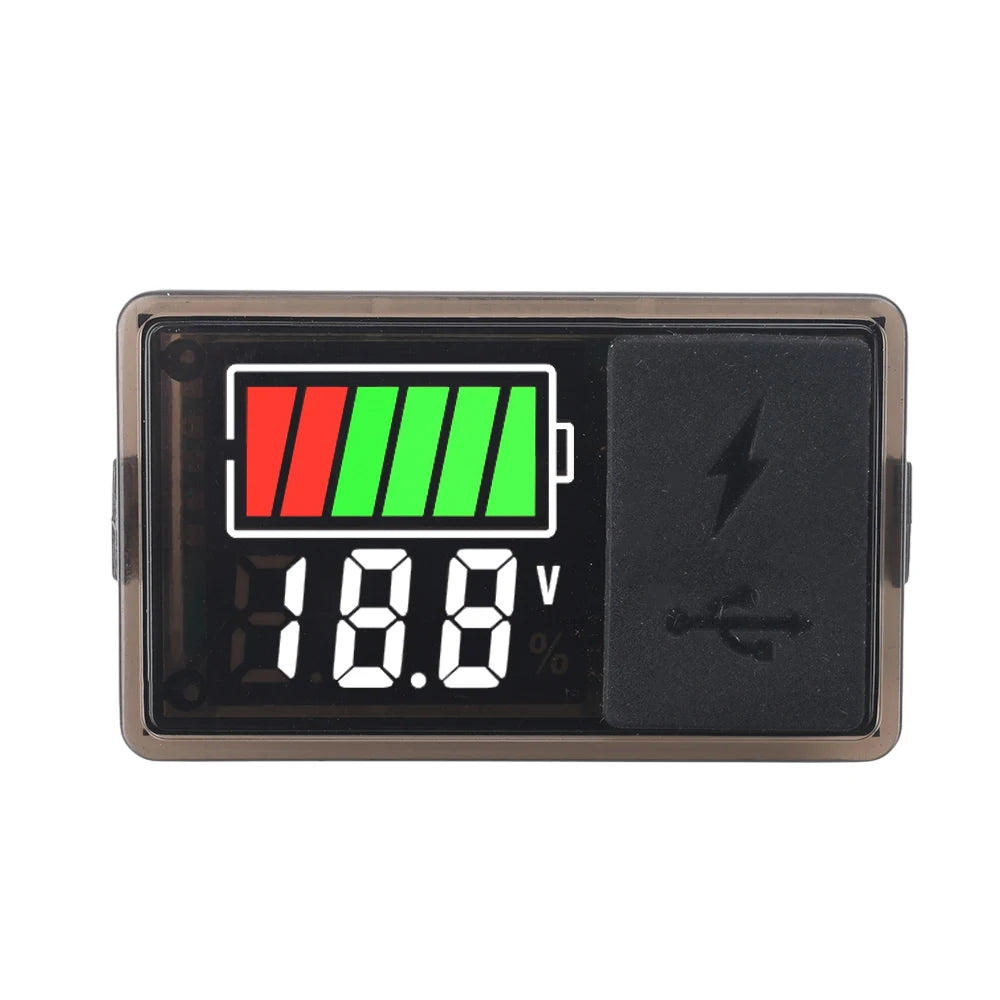

DC 8 30V Type-c USB Car Battery Voltmeter Charge Level Indicator

Discover the DC 8 30V Type-c USB Car Battery Voltmeter Charge Level Indicator, a standout electronics accessories pick designed for dependable everyday performance and lasting value.

Specifications

Brand Name: Aideepen

DIY Supplies: Electrical

Electronic: No

Semi-finishedproduct: No

Description:

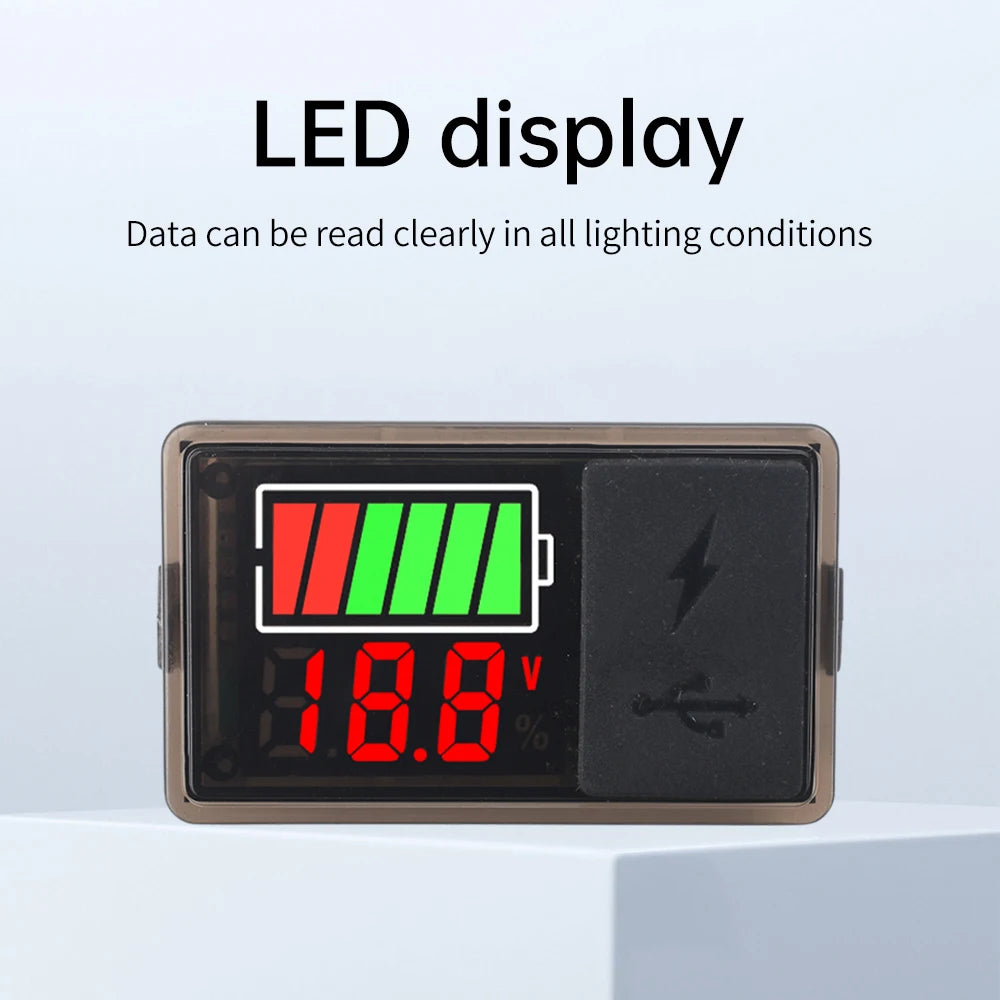

1. High-Brightness LED Display: Features a high-brightness LED screen ensuring clear data readability under all lighting conditions. Users can effortlessly monitor battery voltage and charge status day or night.

2. Reverse Polarity Protection: Incorporates built-in reverse polarity protection circuitry to prevent device damage caused by incorrect battery connection. This feature extends device lifespan while enhancing operational safety.

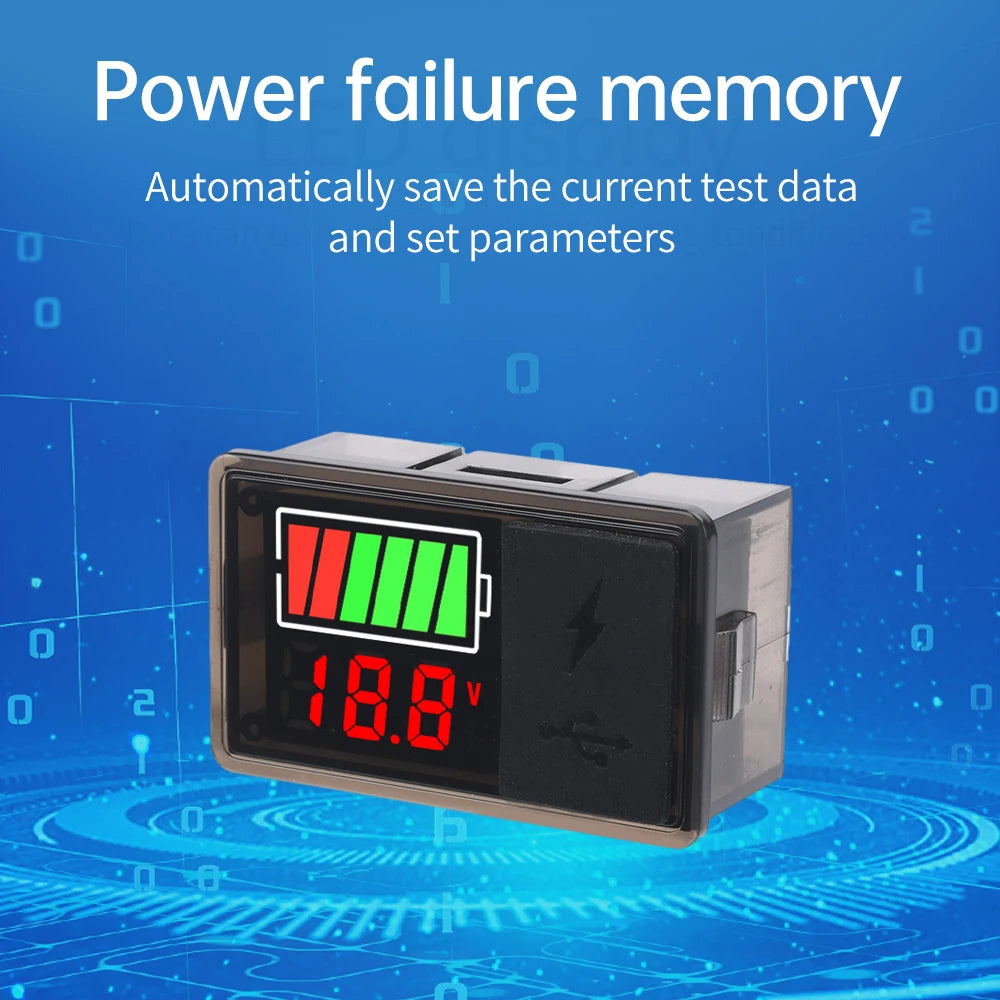

3. Power-off Memory Function: Equipped with power-off memory, the device automatically saves current test data and settings after unexpected power loss or shutdown. Upon restart, users can resume previous tests without reconfiguration, ensuring data continuity and integrity.

4. Clear Display: The LED screen features a simple, intuitive design with crisp numeric and icon displays for easy readability. Whether indoors or outdoors, users can instantly grasp battery status for more convenient operation.

5. Low-Voltage Flashing Alert: When battery voltage falls below the preset threshold, the LED screen flashes with an accompanying audible and visual alarm. This feature helps users promptly detect and address low-power issues, preventing equipment failures due to insufficient battery charge.

6. Wide Application Range: Suitable for high/low-voltage distribution cabinets, display cases/racks, assembly line testing, electronic repair, DIY electronics, and more.

Product Specifications:

Voltage Measurement Range: DC 8~30V

Ternary Lithium Battery (L) Measurement: 3S~7S

Lead-Acid Battery (P) Measurement: DC 12V, DC 24V

Lithium Iron Phosphate Battery (F) Measurement: 3S~8S

Operating Temperature: -10°C to +70°C

Dimensions: 47.6*28.7*19.4mm

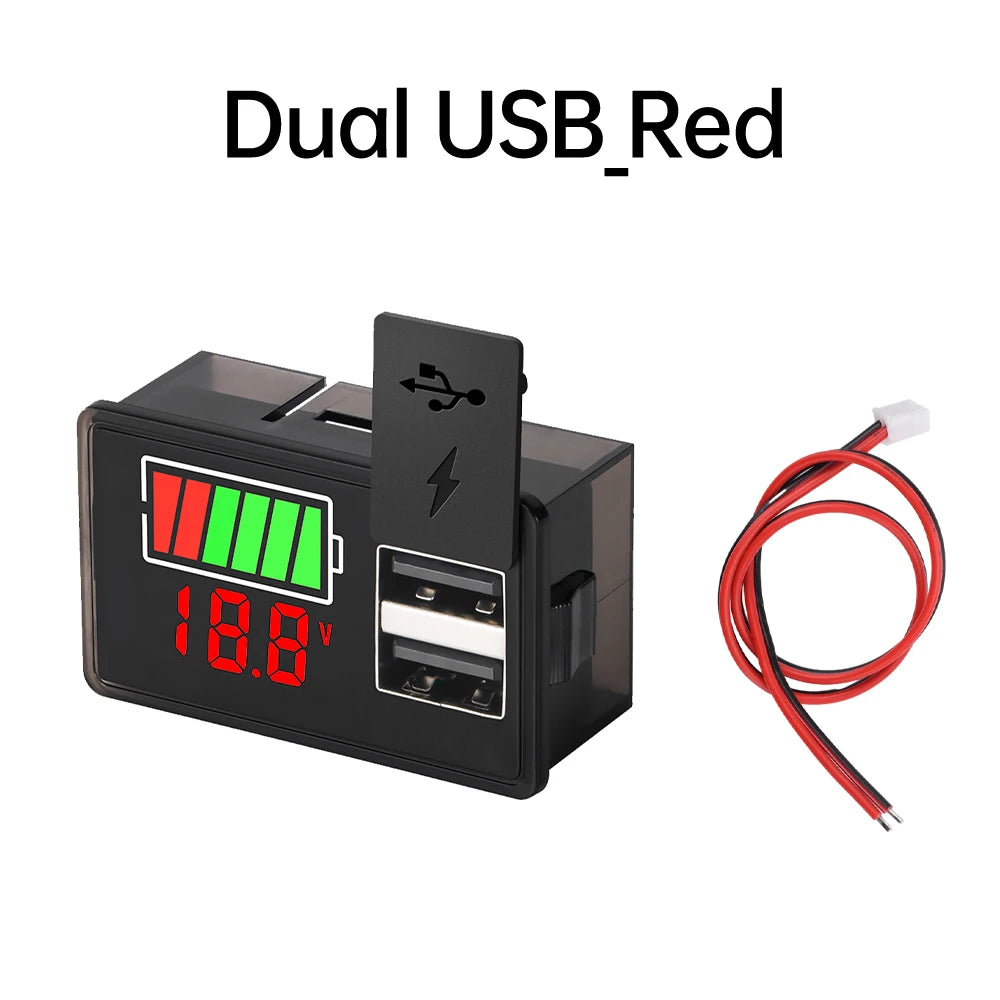

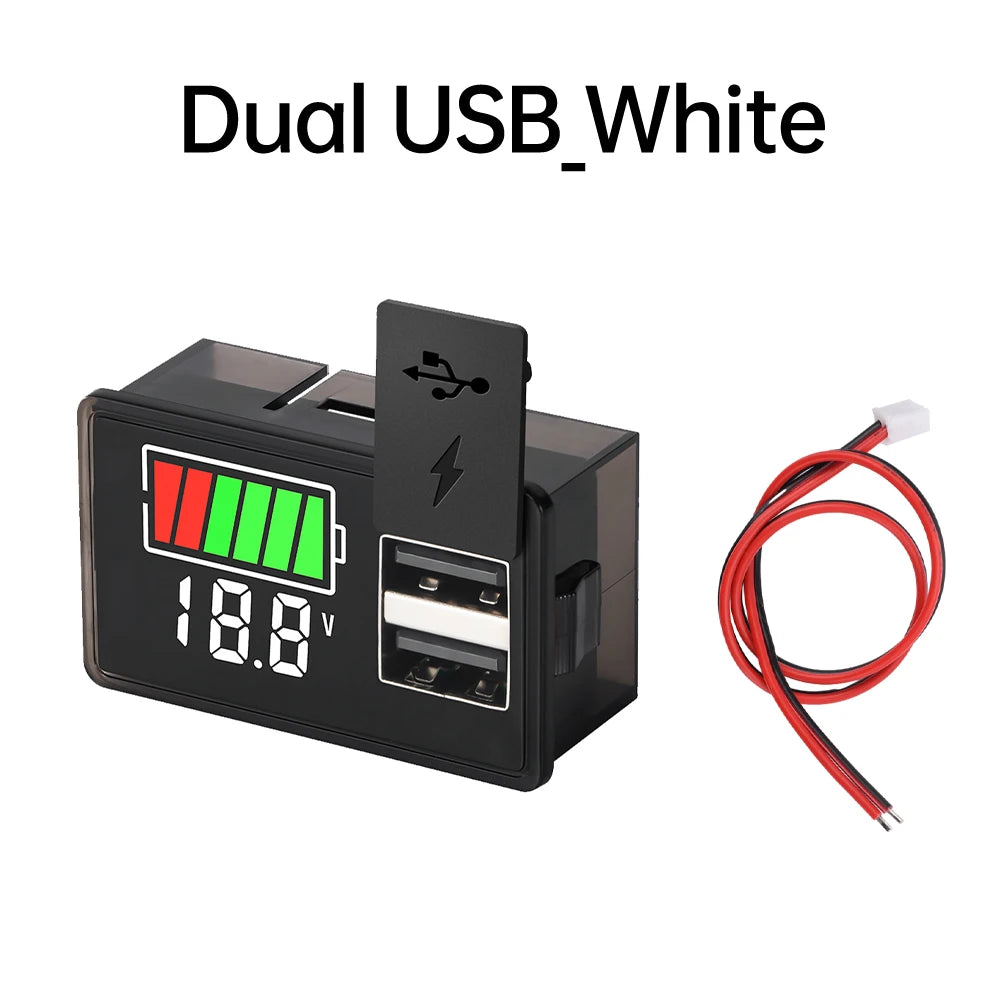

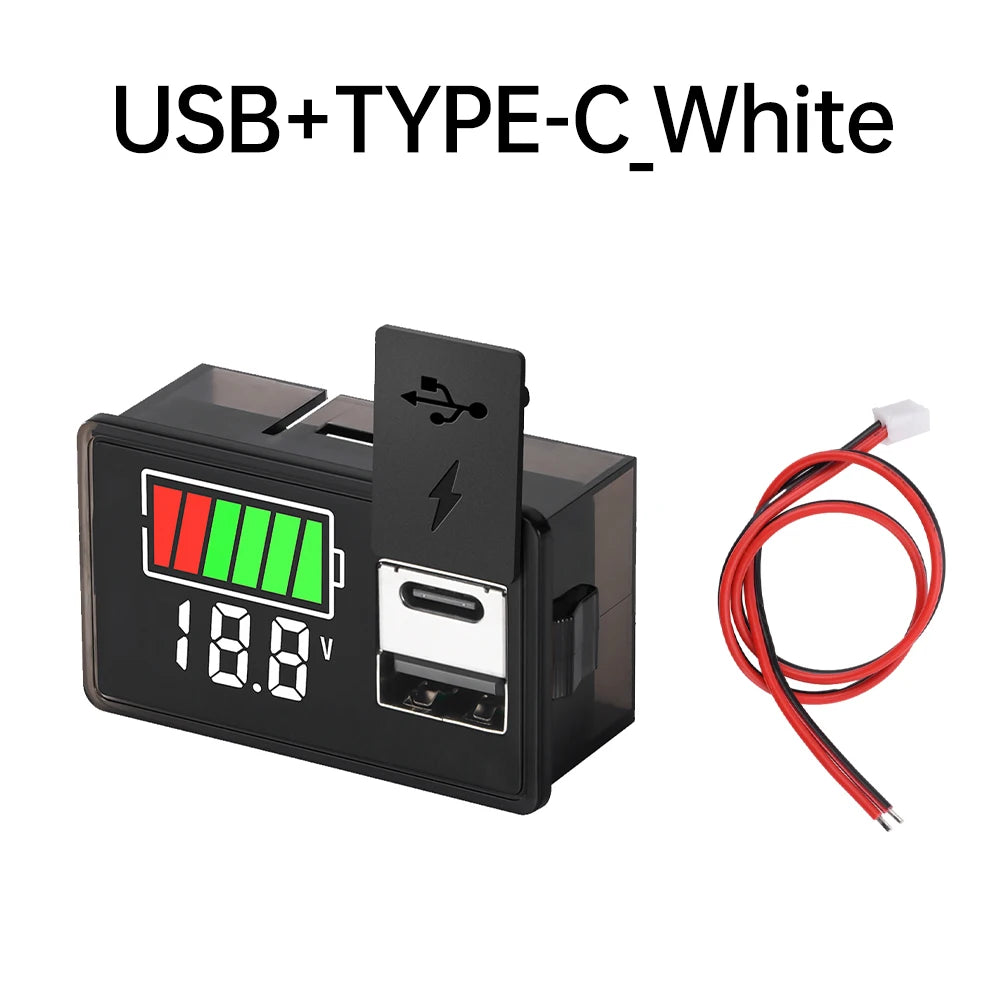

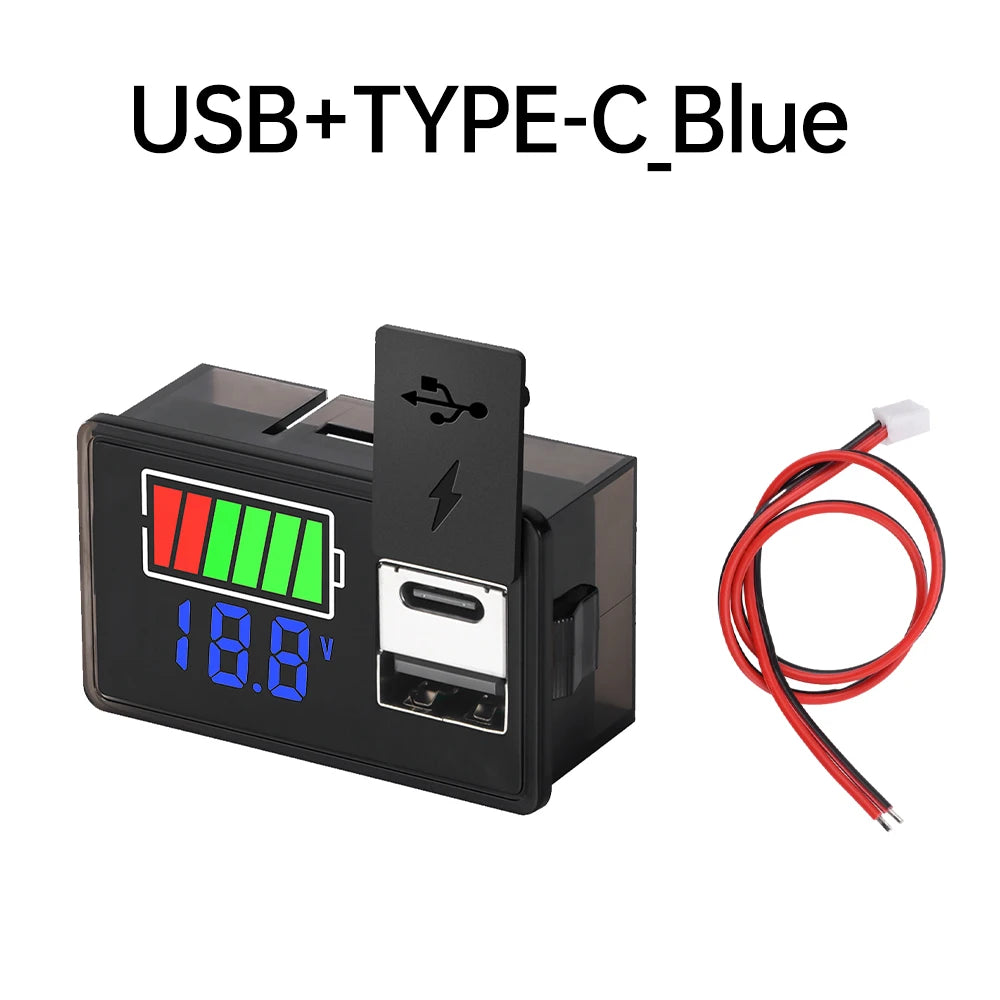

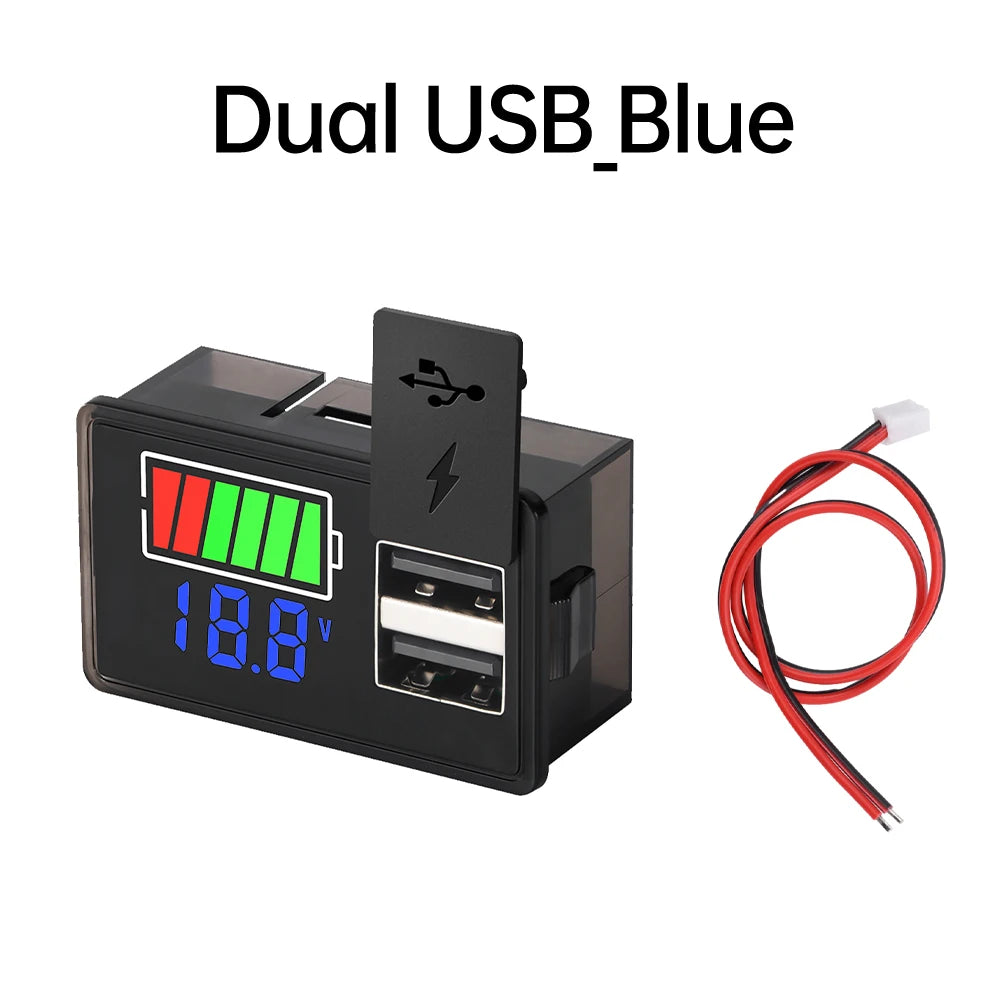

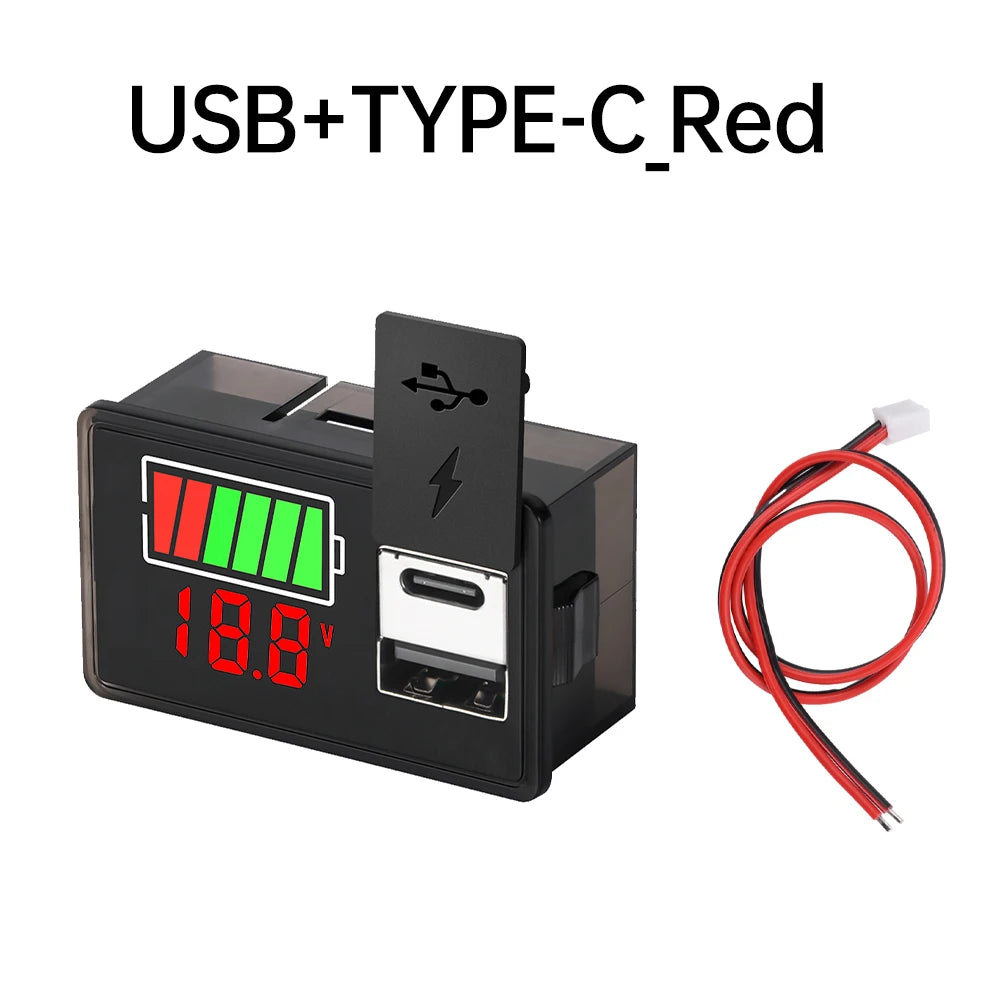

Specifications: Dual USB ports, USB + Type-C port

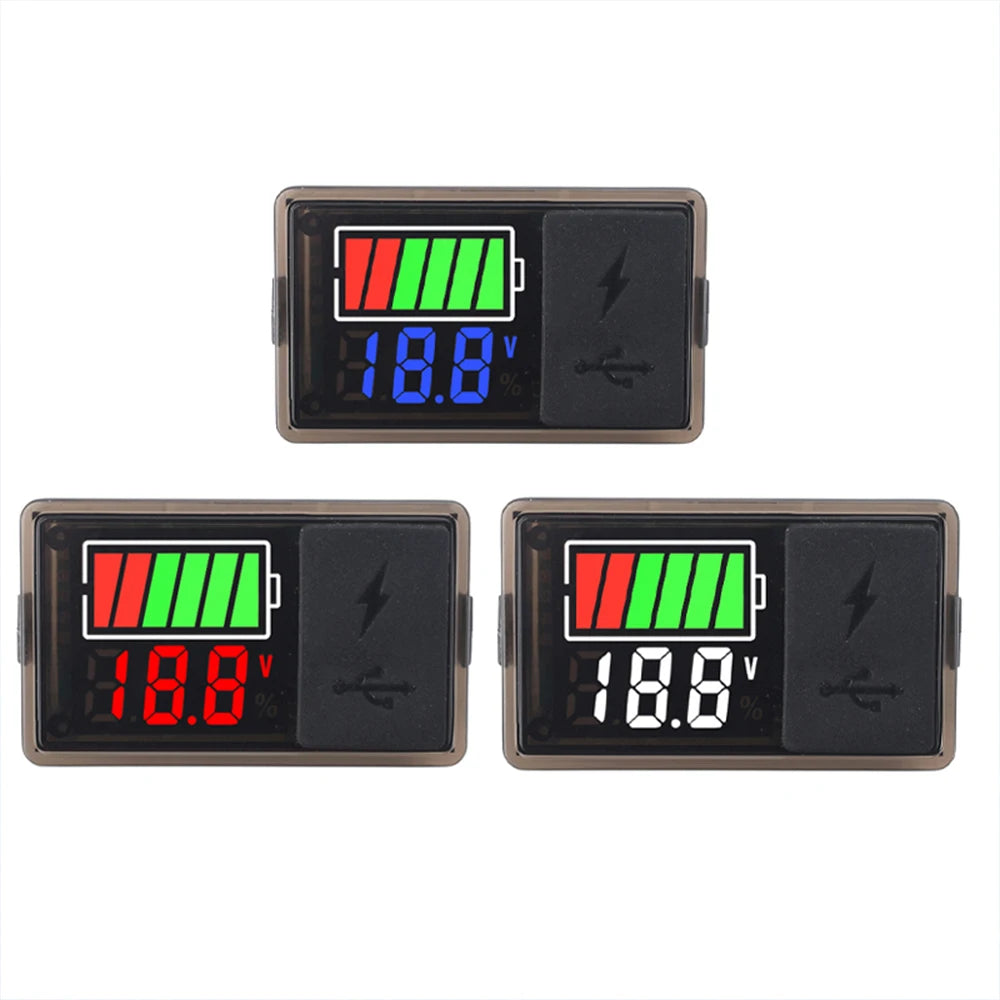

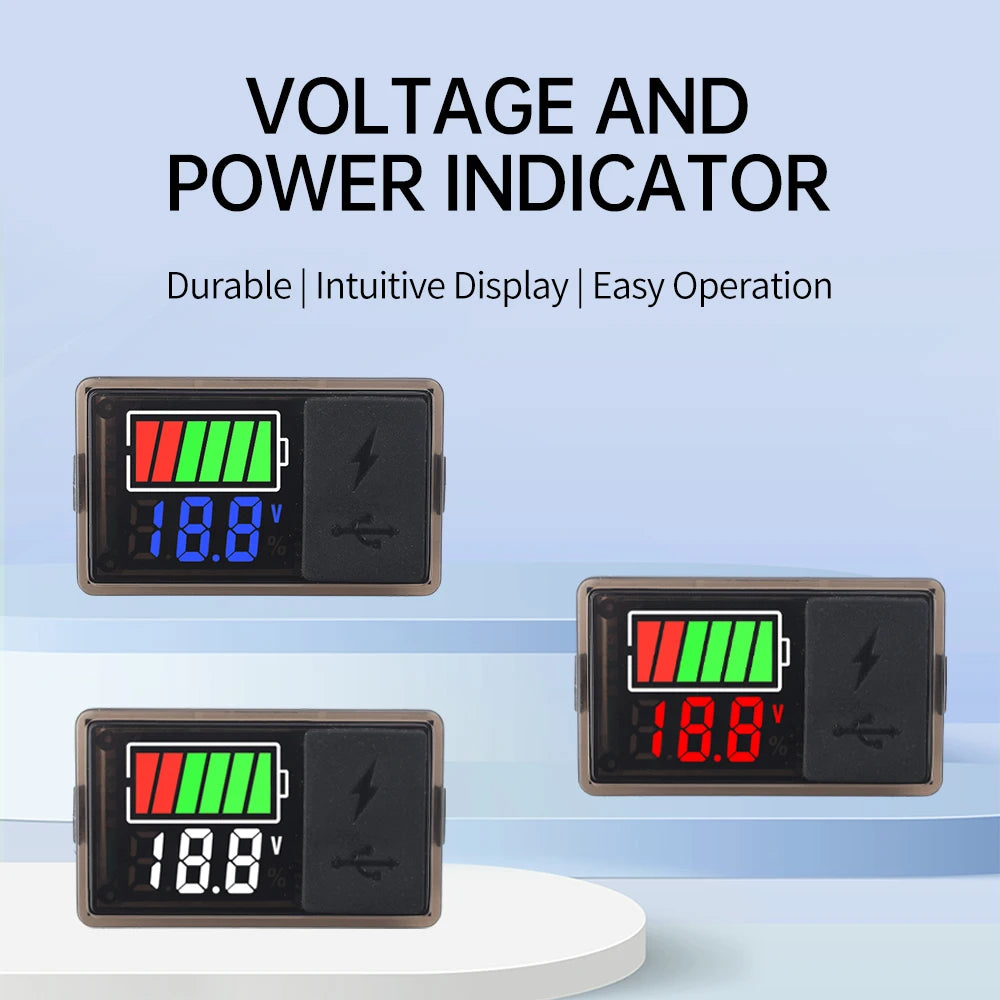

Display Colors: Red, Blue, White

Ternary Lithium Battery Setup:

Press and hold the button for 2 seconds to enter the settings page: L03 is displayed. Press and hold the button for 2 seconds until L03 flashes (3 seconds). Press the button briefly to select the desired cell count. Press and hold the button for 2 seconds until the value remains lit to save. Wait 2 seconds for automatic return to the main page. Setup complete.

Iron Lithium Battery Setup:

Press and hold the button for 2 seconds to enter the setup page:

Short press the button to select battery type F03.

Press and hold the button for 2 seconds until the F03 number flashes (3 seconds).

Short press the button to select the desired number of series.

Press and hold the button for 2 seconds until the value remains lit to save.

Wait 2 seconds for automatic return to the main page. Setup complete.

Lead-Acid Battery Settings:

Press and hold the button for 2 seconds to enter settings mode.

Press the button briefly to select battery type P12.

Press and hold the button for 2 seconds until the P12 indicator flashes (12V).

Press the button briefly to select the voltage setting.

Press and hold the button for 2 seconds until the value remains lit to save.

Wait 2 seconds for the display to automatically return to the main page. Settings complete.

Package Contents:

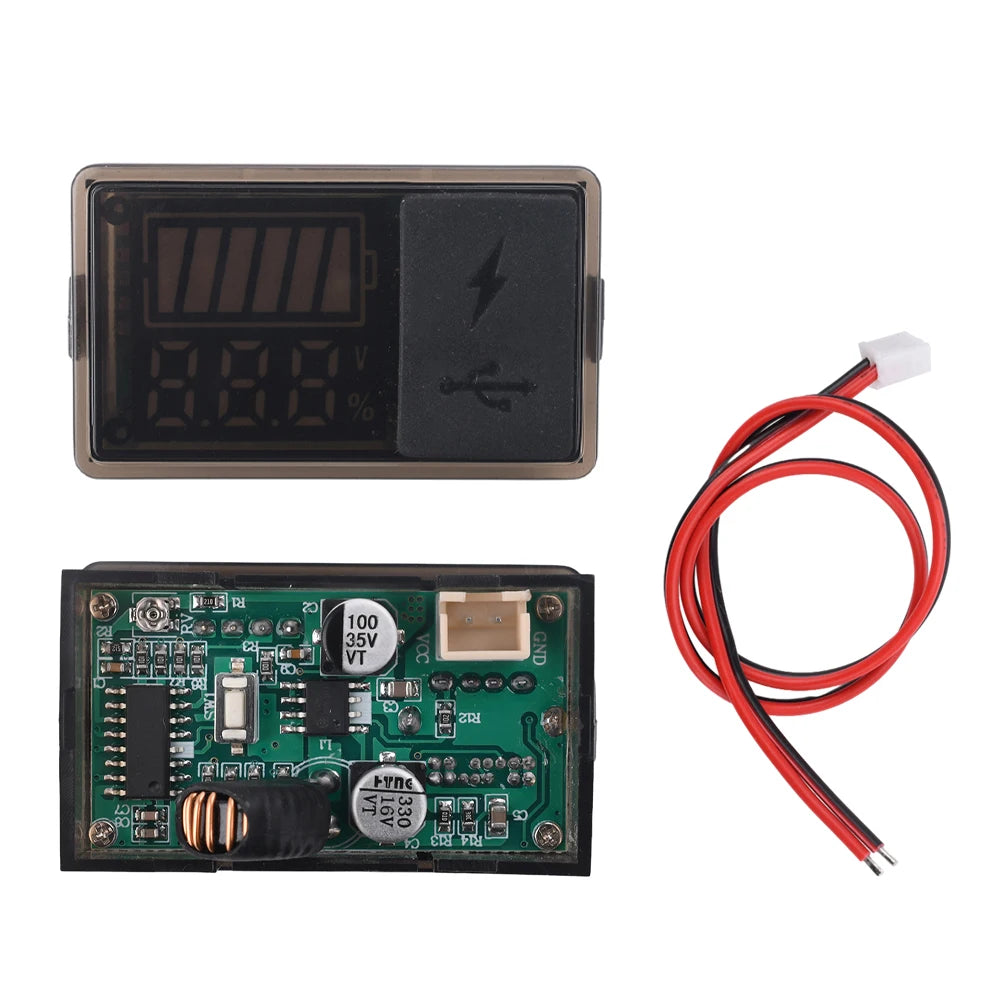

Battery Level Indicator*1

Wiring Harness*1

Options

• Color: Red Light, White light, Blue light, Red light, White light 1, Blue Light
