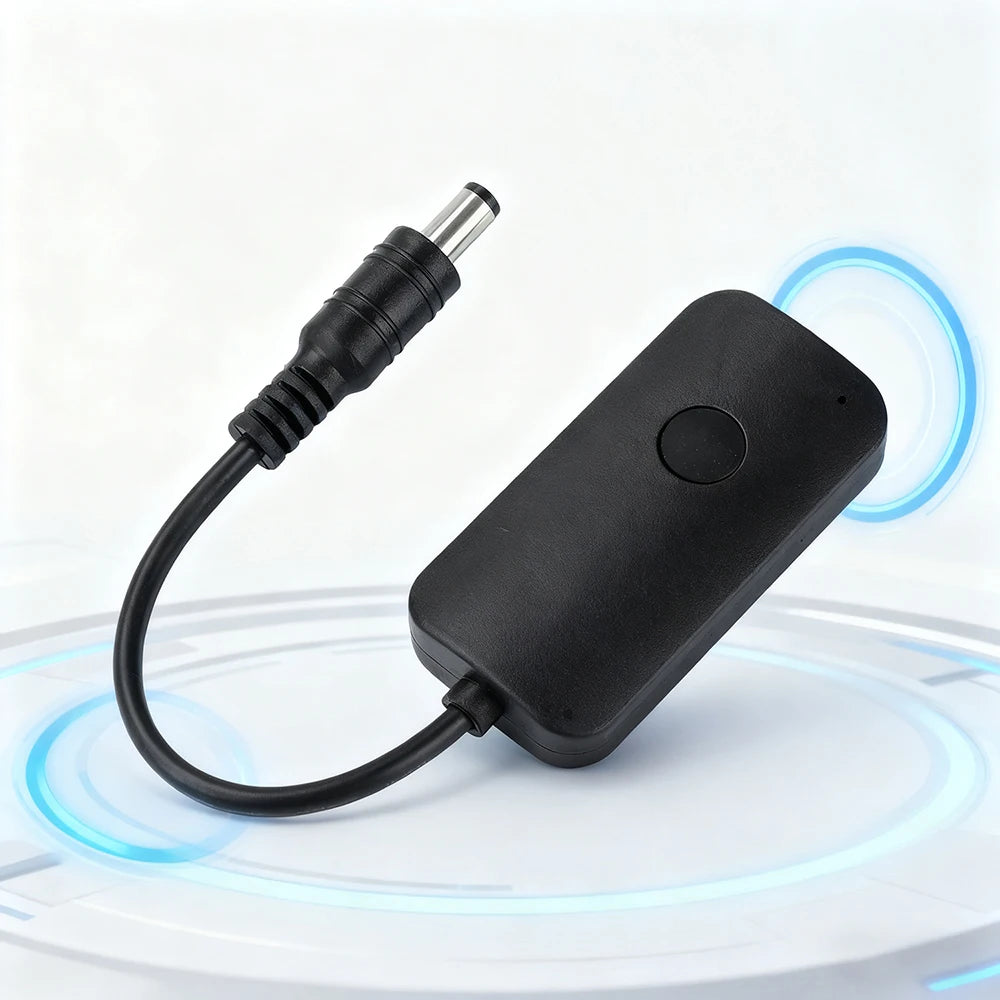

DC 9-12V Intelligent Router Automatic Restart Line Timed 24 48 72

Discover the DC 9-12V Intelligent Router Automatic Restart Line Timed 24 48 72 — a standout decor pick featuring adjustable design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Condition: New

Type: Module

Features:

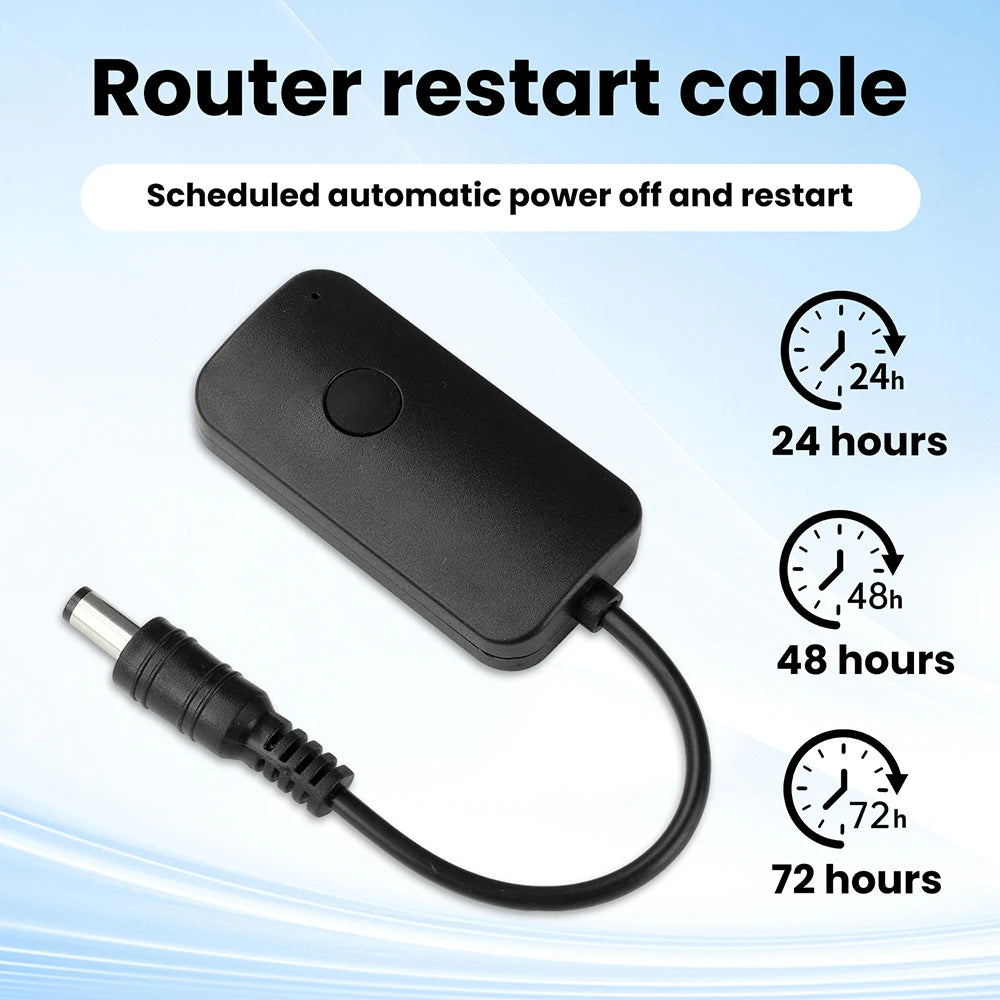

1. Three timer modes available: 24/48/72-hour adjustable cycles with auto-restart to meet diverse needs.

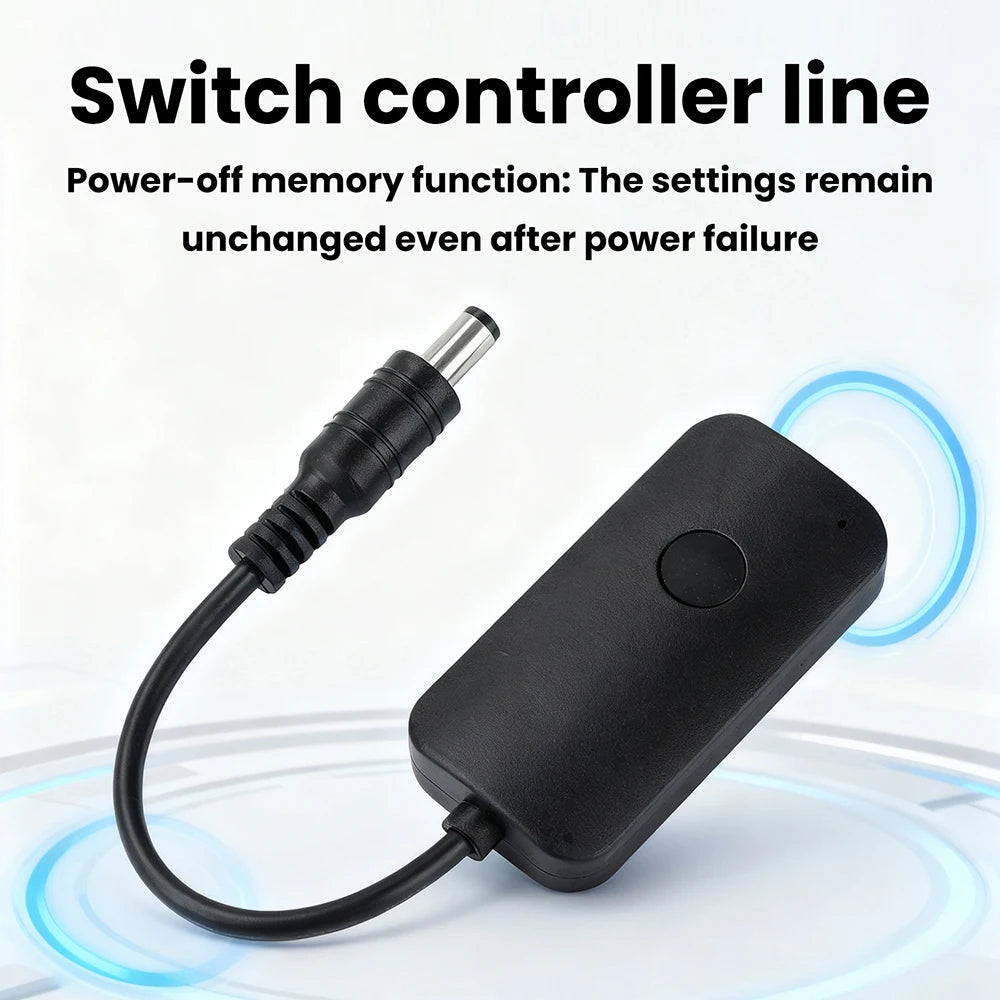

2. Power-off memory function preserves settings after power loss.

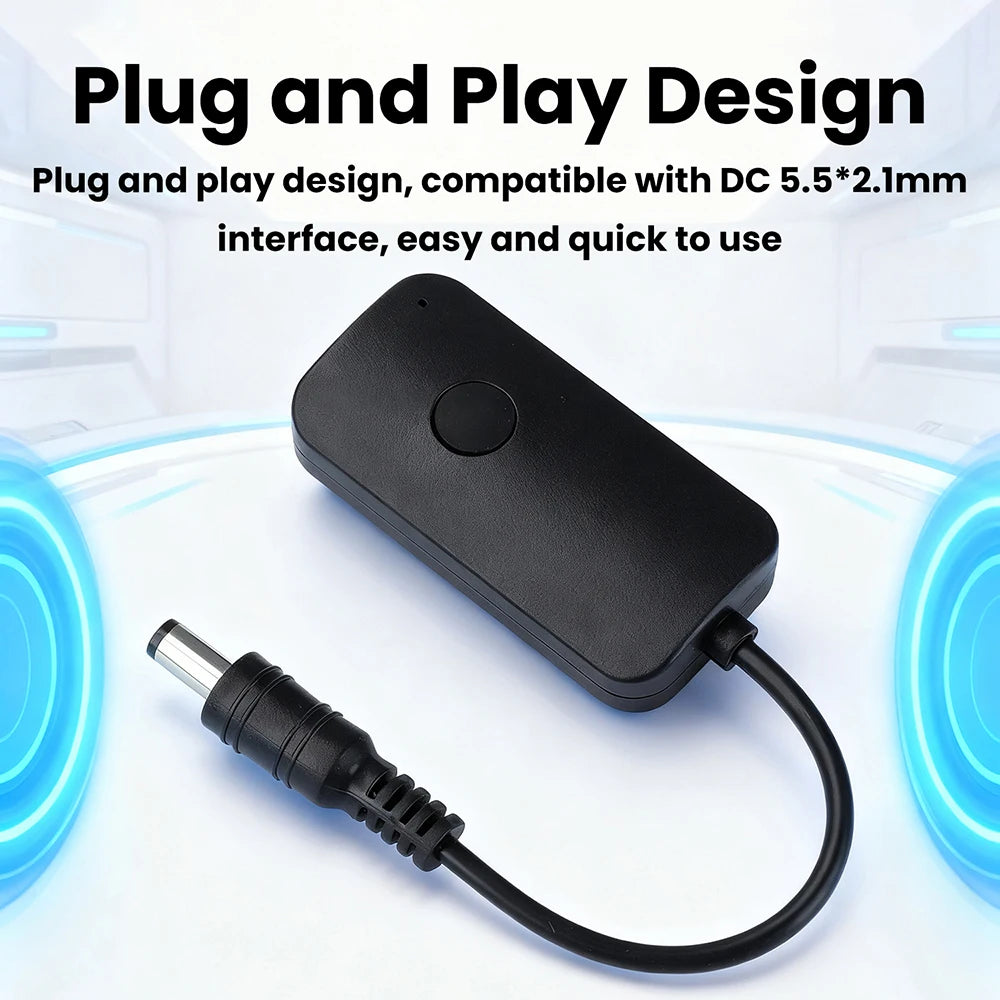

3. Plug-and-play design compatible with DC 5.5*2.1mm connectors for quick and easy use.

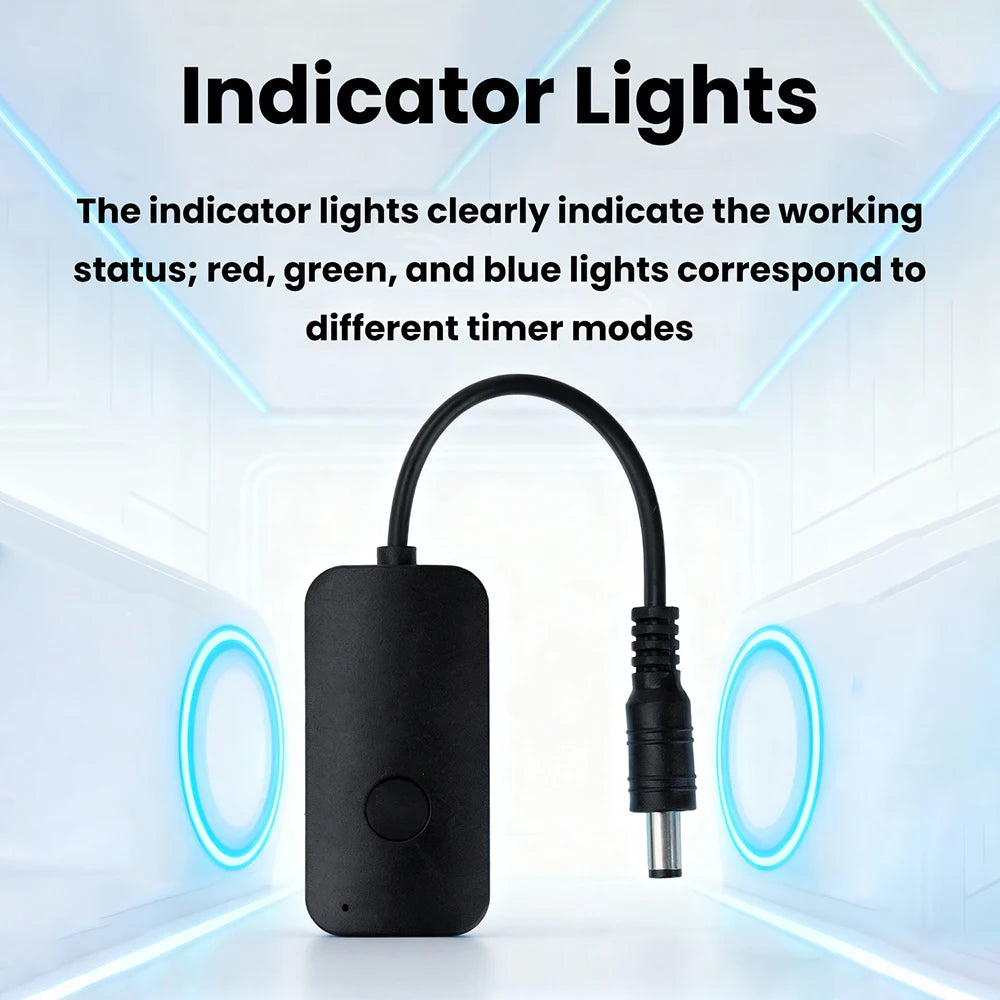

4. Clear indicator lights display operational status: red, green, and blue lights correspond to different timer modes.

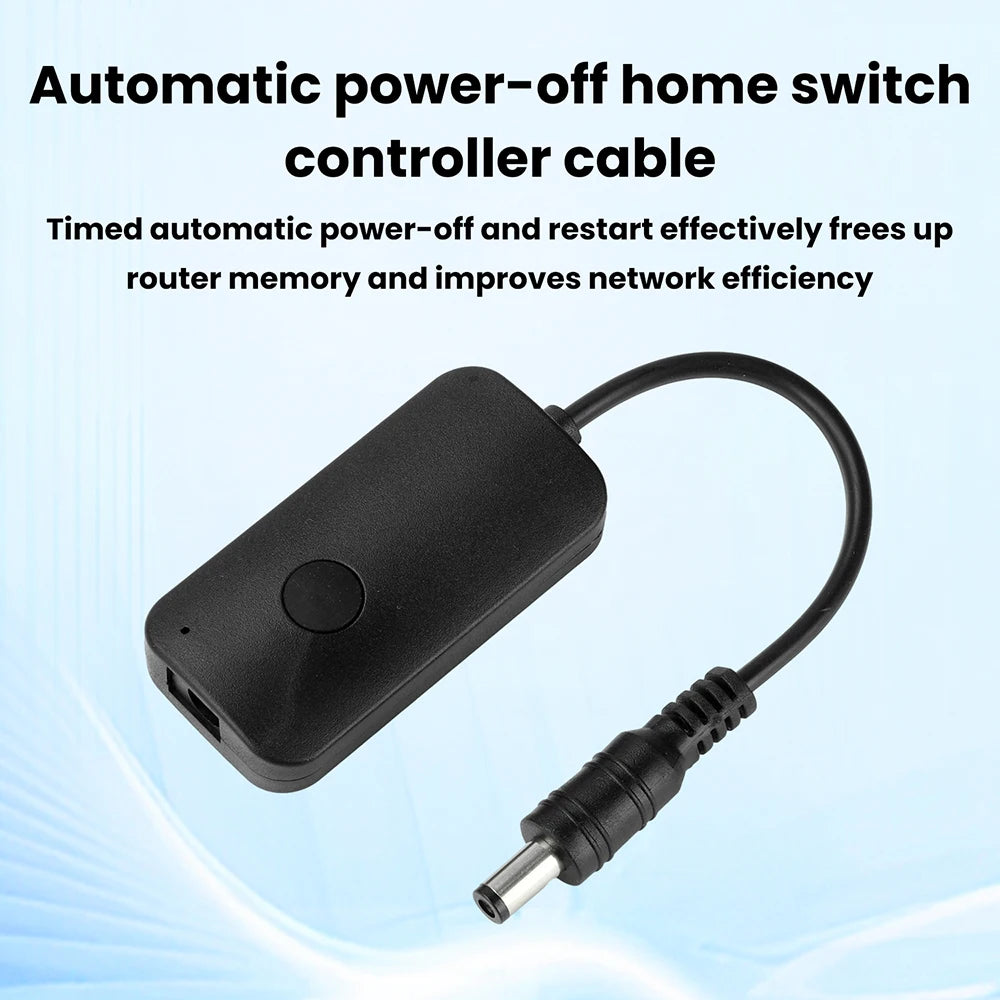

5. Automated power-off and restart effectively frees up router memory, enhancing network efficiency.

Product Description:

Routers benefit from periodic memory release through restarting, significantly improving bandwidth utilization and preventing network congestion. Addressing this vulnerability, our timer-based power-off/restart module automates the process, eliminating manual intervention while ensuring precise timing. Timing Mechanism: Countdown begins upon device power-up. Restart Interval: Duration between power-off and recovery.

Product Specifications:

Input Voltage: DC 9-12V

Maximum Output: DC 9-12V/2A

Connector Type: DC 5.5*2.1mm

Operating Temperature: -20℃~70℃

Restart Interval (3-level adjustment): 24 hours, 48 hours, 72 hours

Dimensions: 60.6mm*30mm*13.3mm; Cable Length: Approx. 130mm (including connector)

Function Description:

Modes: 24-hour mode, 48-hour mode, 72-hour mode. Factory default is 24-hour mode.

After the mode countdown completes, output shuts off for 1 minute before restarting in a cycle.

Mode-specific indicator lights: Red for 24-hour mode, green for 48-hour mode, blue for 72-hour mode. (Indicator lights remain constantly illuminated.)

Button Function:

Single click: Resets the timer; indicator flashes slowly 5 times.

Double click: Switches modes. If no action is taken within 3 seconds, the current mode is saved with power-off memory. Example: Set to 48-hour mode, then power off and restart; it will return to 48-hour mode upon power-up.

Product List:

1X Reset Cable

Frequently Asked Questions

Q: What is the DC 9-12V Intelligent Router Automatic Restart Line Timed 24?

A: The DC 9-12V Intelligent Router Automatic Restart Line Timed 24 is a quality decor pick. Three timer modes available: 24/48/72-hour adjustable cycles with auto-restart to meet diverse needs.

Q: How do I use the DC 9-12V Intelligent Router Automatic Restart Line Timed 24?

A: The DC 9-12V Intelligent Router Automatic Restart Line Timed 24 is ready to use right out of the box and makes an easy addition to your decor lineup.

Q: Why choose the DC 9-12V Intelligent Router Automatic Restart Line Timed 24?

A: The DC 9-12V Intelligent Router Automatic Restart Line Timed 24 stands out in our decor range — Power-off memory function preserves settings after power loss.
