DC 9V 12V 3-Speed Fan Circuit Board Brushless Control Mtherboard
12V
$8.58
Sale price
$8.58
Regular price
$10.64
Skip to product information
DC 9V 12V 3-Speed Fan Circuit Board Brushless Control Mtherboard
$8.58
Sale price
$8.58
Regular price
$10.64
Shipping calculated at checkout.
Discover the DC 9V 12V 3-Speed Fan Circuit Board Brushless Control Mtherboard — a standout decor pick featuring portable design for dependable, everyday performance.
Specifications
Brand Name: Aideepen
Certification: NONE
DIY Supplies: Electrical
Data Record: No
Electronic: No
Material: Plastic
Model Number: Motor Controller
Output Voltage: Motor Controller
Semi-finishedproduct: No
Size: Motor Controller
Style: Motor Controller
Type: Motor Controller
Features:

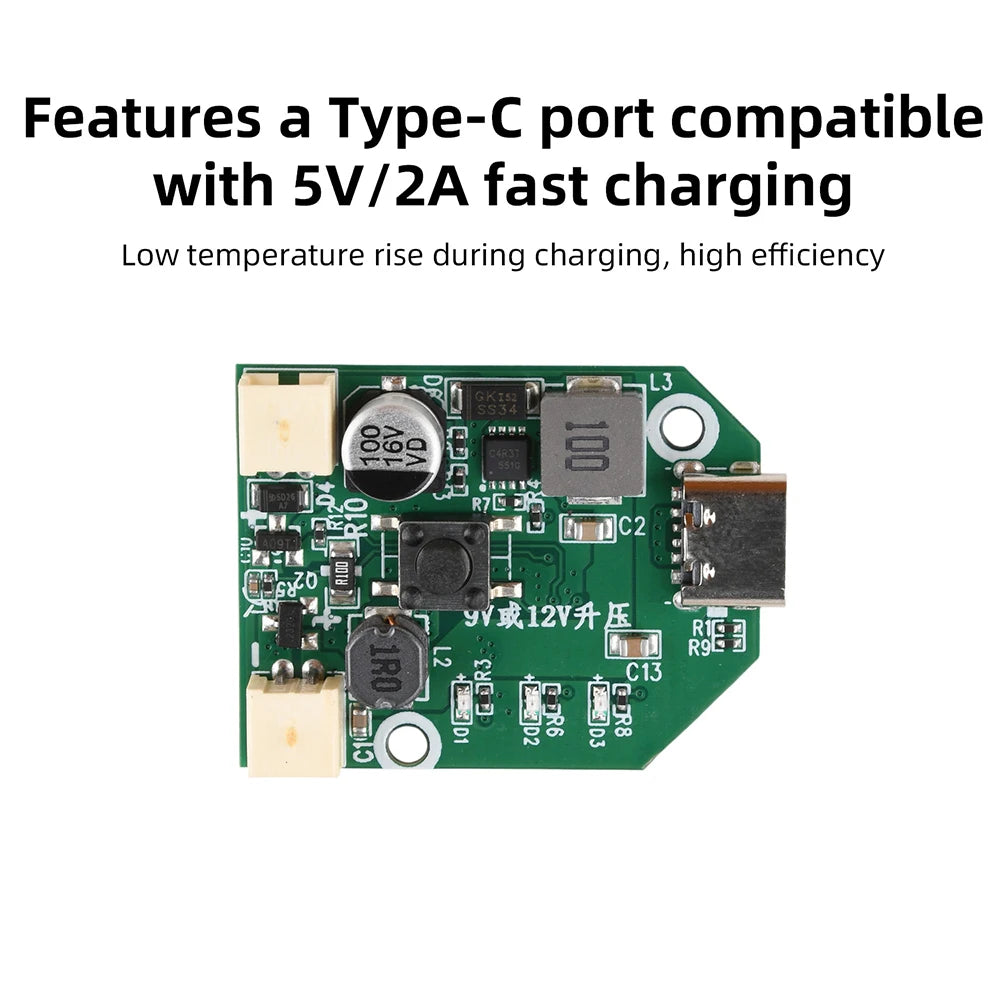

1. Features a Type-C interface, compatible with 5V/2A fast charging, offering low temperature rise and high efficiency during charging.

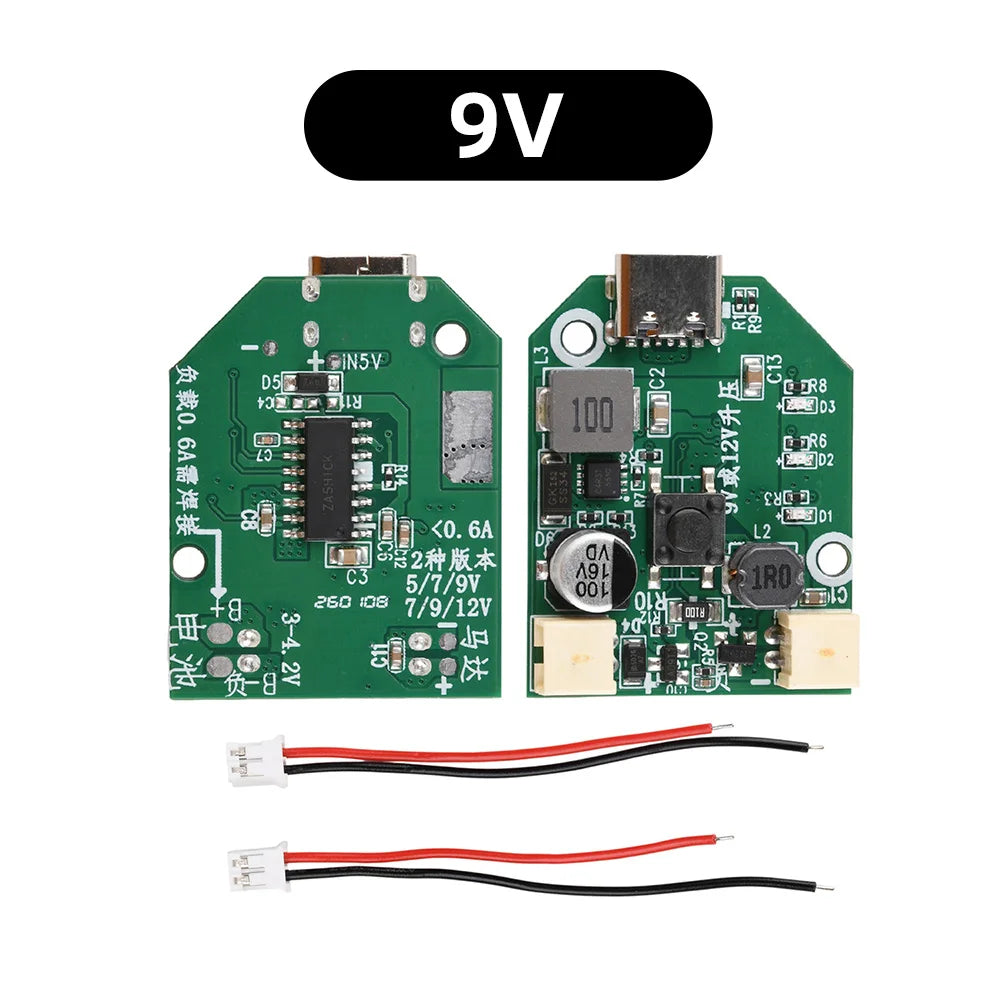

2. Available in 9V and 12V versions, with three-step stepless voltage adjustment to accommodate a wide range of loads.

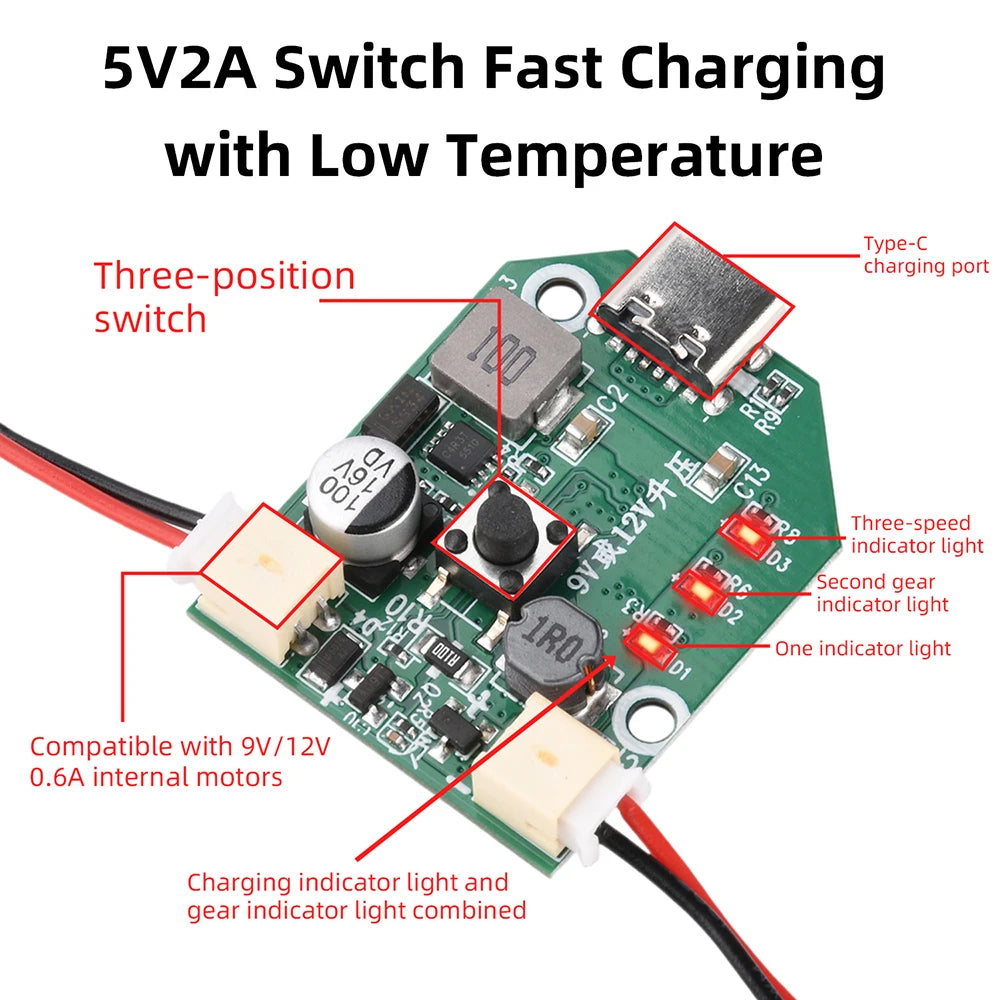

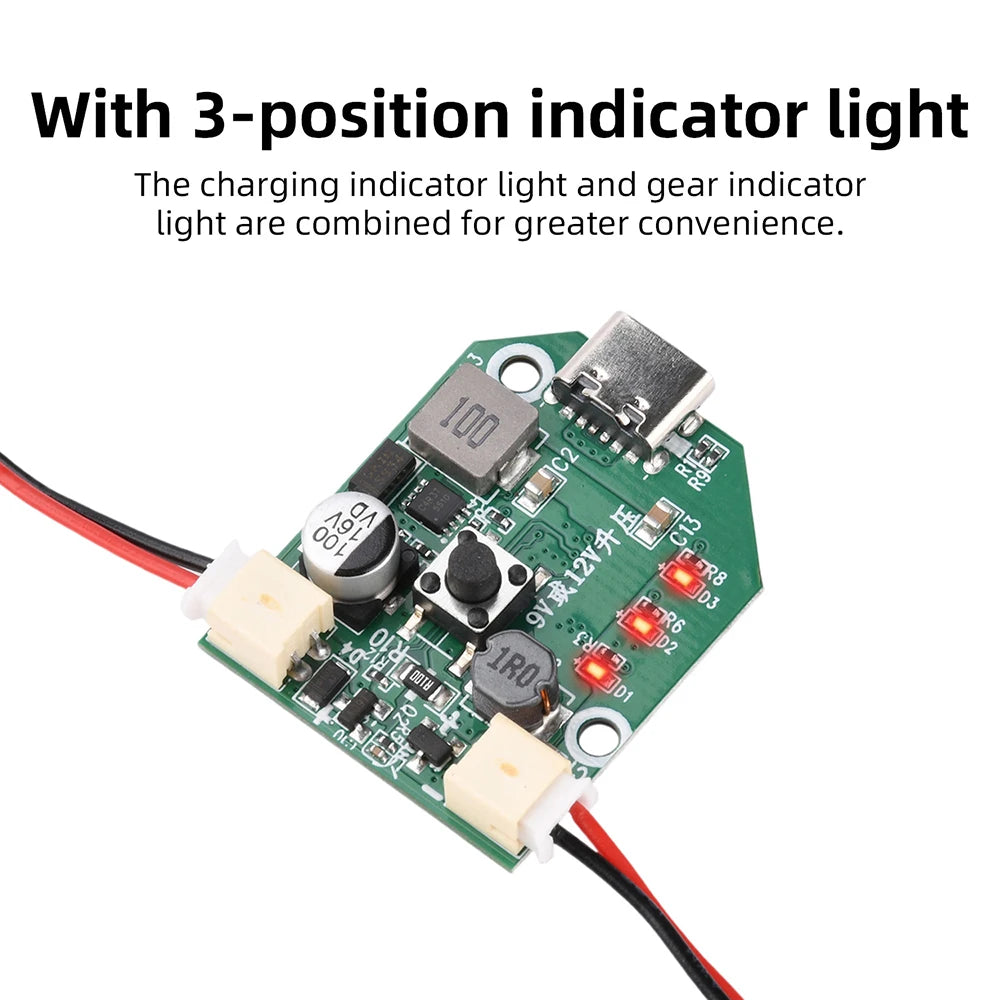

3. Includes a three-level indicator light: the charging indicator and voltage level indicator share the same light for added convenience.
4. Utilizes PWM boost technology with short-circuit protection and ultra-low standby current.
5. Widely applicable for USB portable fans, DIY maker projects, and similar scenarios.
Product Specifications:

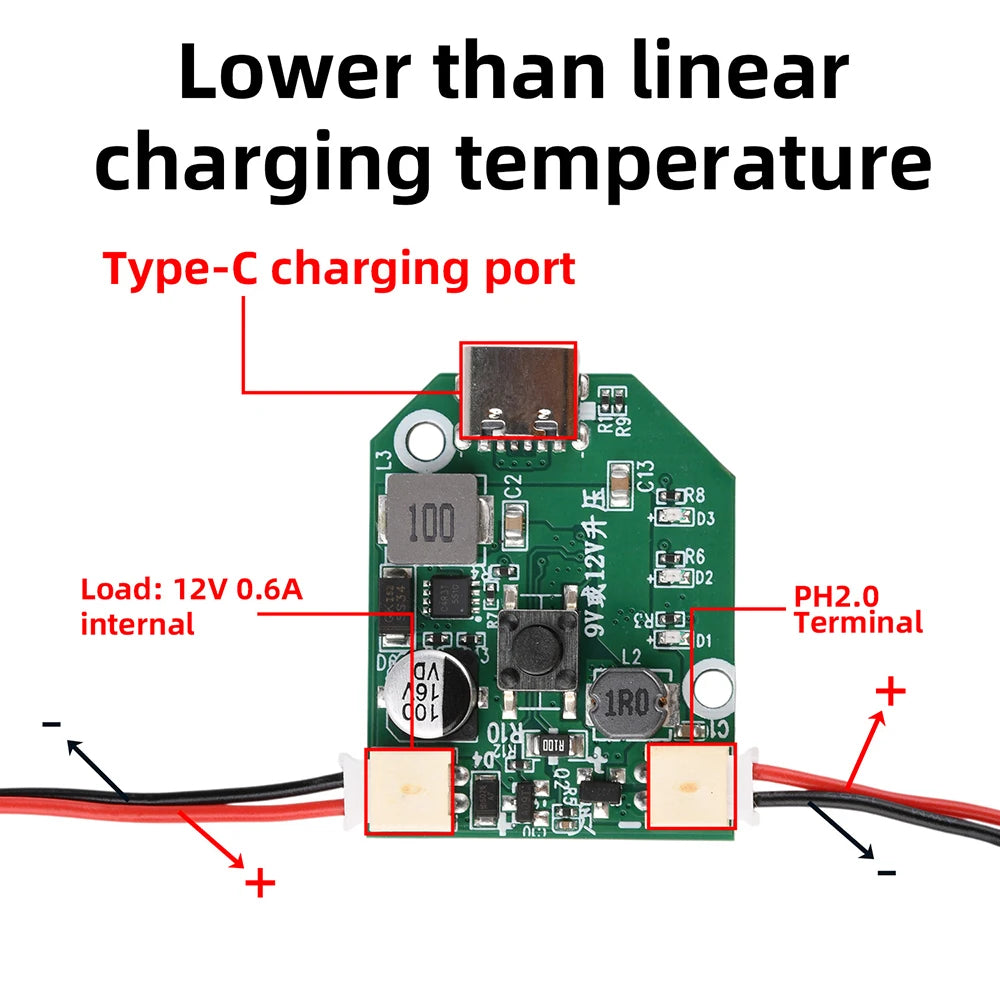

Interface: Type-C
Input: Charging 5V 2A (switching frequency charging method with low temperature rise); maximum 2.4A.

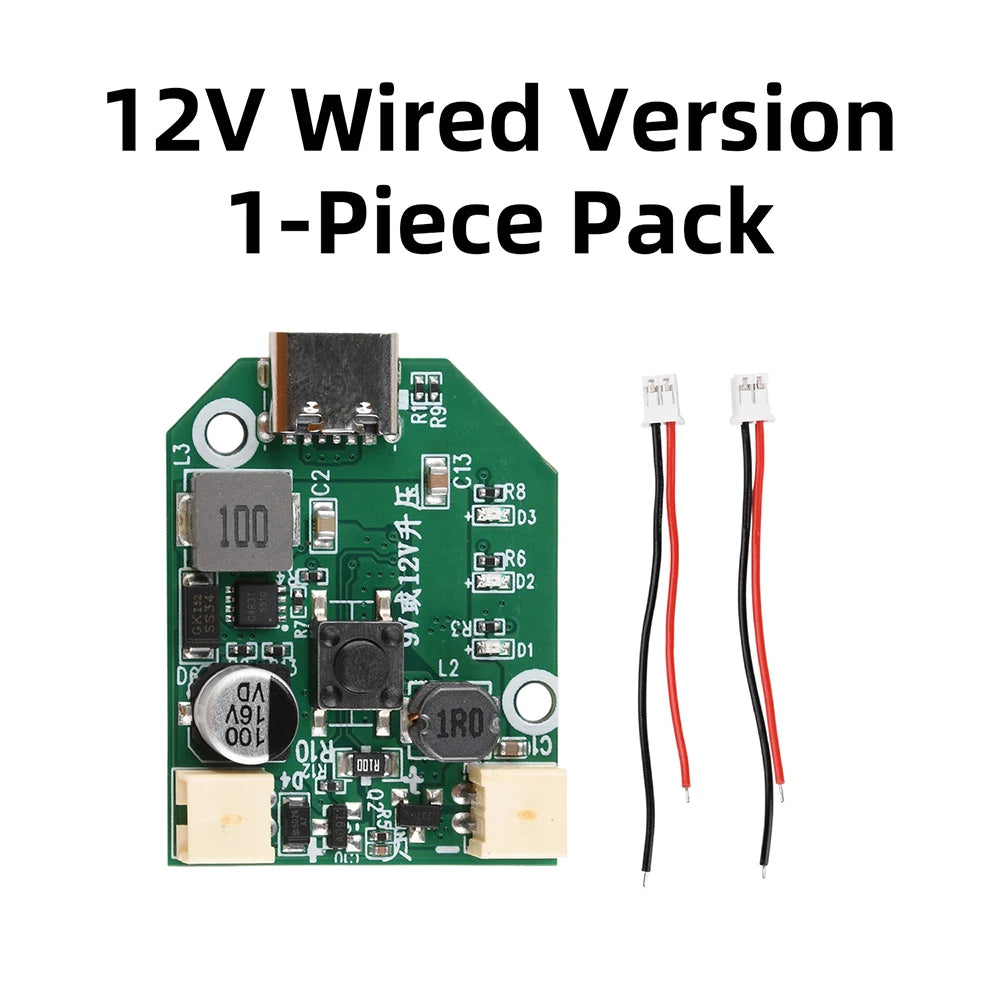

Output: 12V model, 9V model (optional); with short-circuit protection.
Standby Current: Less than 50μA

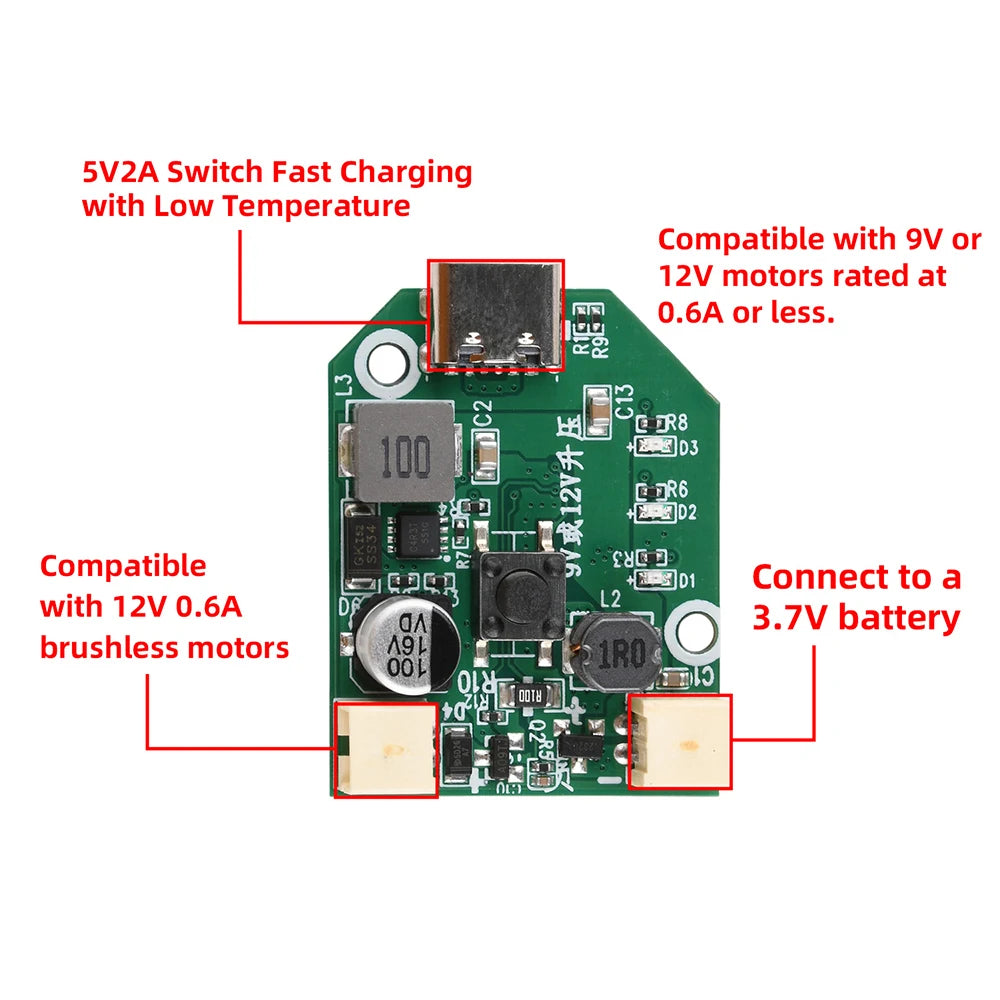

Battery Power: 3.7V lithium battery, fully charged at 4.2V. (Note: Must operate with a battery. Low battery alert: 3.3V with flashing light; shuts down at 2.8V.)
Load:
9V model: Mode 1: 5V, Mode 2: 7V, Mode 3: 9V.
12V model: Mode 1: 7V, Mode 2: 9V, Mode 3: 12V.
Switch button functions: Short press to turn on; press 1-2-3-4 in sequence to cycle through modes and turn off; long press any mode for 2 seconds to turn off; double-click to display battery level.
Boost Method: PWM Boost
Current: Max 0.6A. When the load is at maximum, the battery wires should be as short and thick as possible.
Loads up to 12V and 0.6A are supported, e.g., 12 × 0.6 = 7.2W maximum.
Terminal Interface: PH2.0 terminals
Product List:
1x Module
Options
- Color: 12V, 9V
