DC 12V 24V Step-down 5V 10A Converter Voltage Reducer Waterproof
12V 24V to 5V 10A
$53.94
Sale price
$53.94
Regular price
$66.83
Skip to product information
DC 12V 24V Step-down 5V 10A Converter Voltage Reducer Waterproof
$53.94
Sale price
$53.94
Regular price
$66.83
Shipping calculated at checkout.
Discover the DC 12V 24V Step-down 5V 10A Converter Voltage Reducer Waterproof — a standout decor pick featuring waterproof, adjustable design for dependable, everyday performance.
Specifications
Brand Name: kangwobei
Certification: CE,Dot,RoHS
Some parameters ---- Voltage adjustment rate: <1%; Load adjustment rate :<2%; Ripple & Noise :100mVp-P; Operating temperature :-40°C to +80°C . Input cable type: cable gauge 18AWG (positive red, negative black), output cable type: cable gauge 16AWG (positive yellow, negative black).
Step-down Converter ----12V/24V to 5V 10A DC-DC step-down device, the input high voltage (12V/24V DC) into the lower ideal voltage (5V DC), output current10A, output power50W, no-load loss: 30mA.
Type: DC/DC Converters
Waterproof----Aluminum alloy shell, epoxy resin plastic sealing, excellent waterproof and shock-proof performance, small size, light weight, waterproof rate: IP68.
Product description
- Step-down Converter ----12V/24V to 5V 10A DC-DC step-down device, the input high voltage (12V/24V DC) into the lower ideal voltage (5V DC), output current：10A, output power：50W, no-load loss:30mA.
- Some parameters ---- Voltage adjustment rate :<1%; Load adjustment rate :<2%; Ripple & Noise :100mVp-P; Operating temperature :-40°C to +80°C . Input cable type: cable gauge 18AWG (positive red, negative black), output cable type: cable gauge 16AWG (positive yellow, negative black).

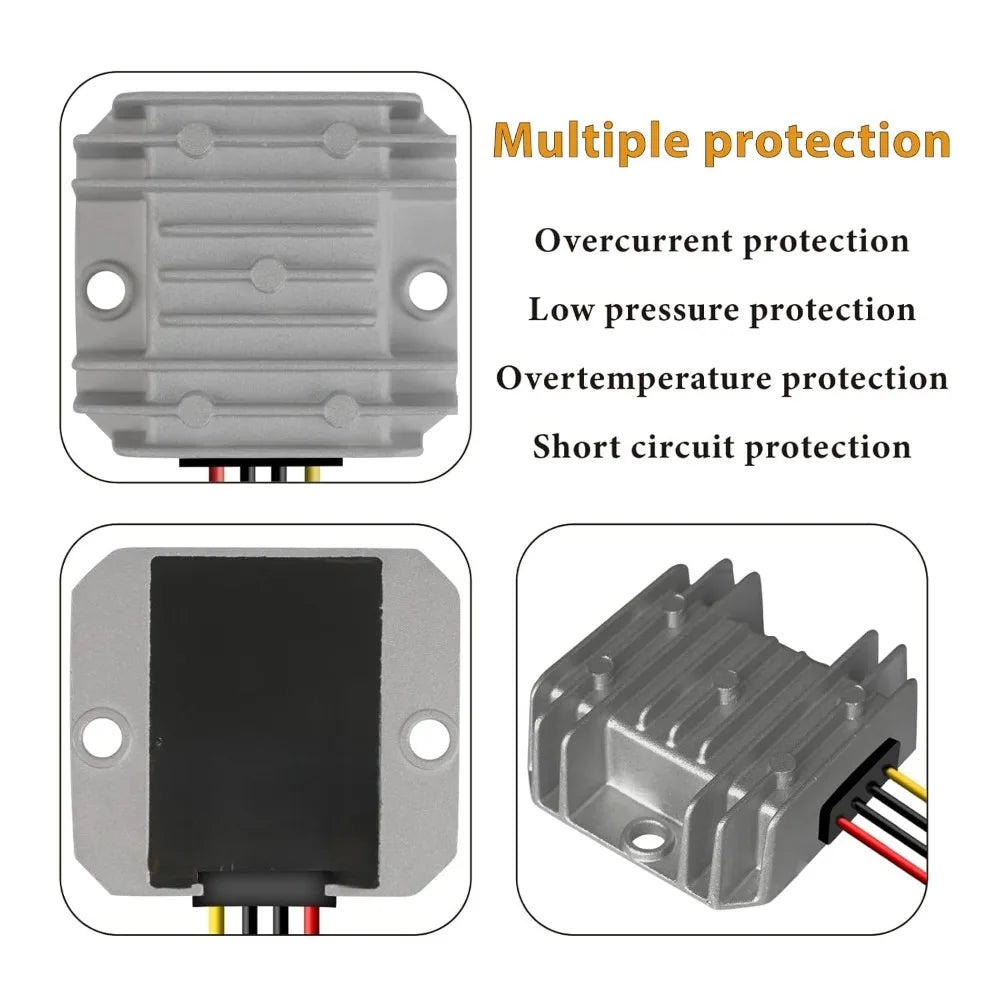

- Multiple Protection---- Built-in over current, low voltage, over temperature, short circuit and other protection functions, automatic recovery after the equipment returns to normal.

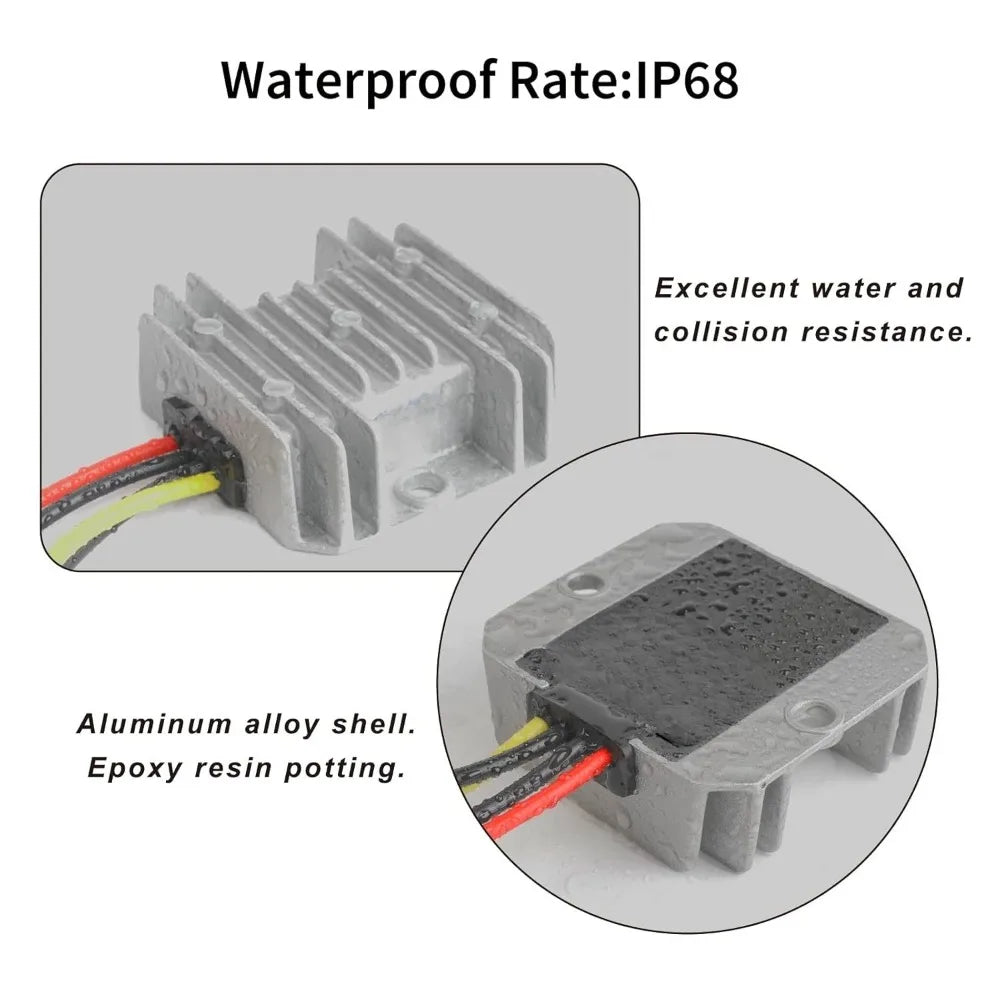

- Waterproof----Aluminum alloy shell, epoxy resin plastic sealing, excellent waterproof and shock-proof performance, small size, light weight, waterproof rate :IP68.
- Others---- Screw installation (screws are not included in the product), the side of the product has a screw hole, easy to install; According CE / RoHS design;Adopts high quality die-cast aluminum shell package, has good heat dissipation function, safe and reliab
PRODUCT FUNCTION
DC Voltage Regulator Buck Converter

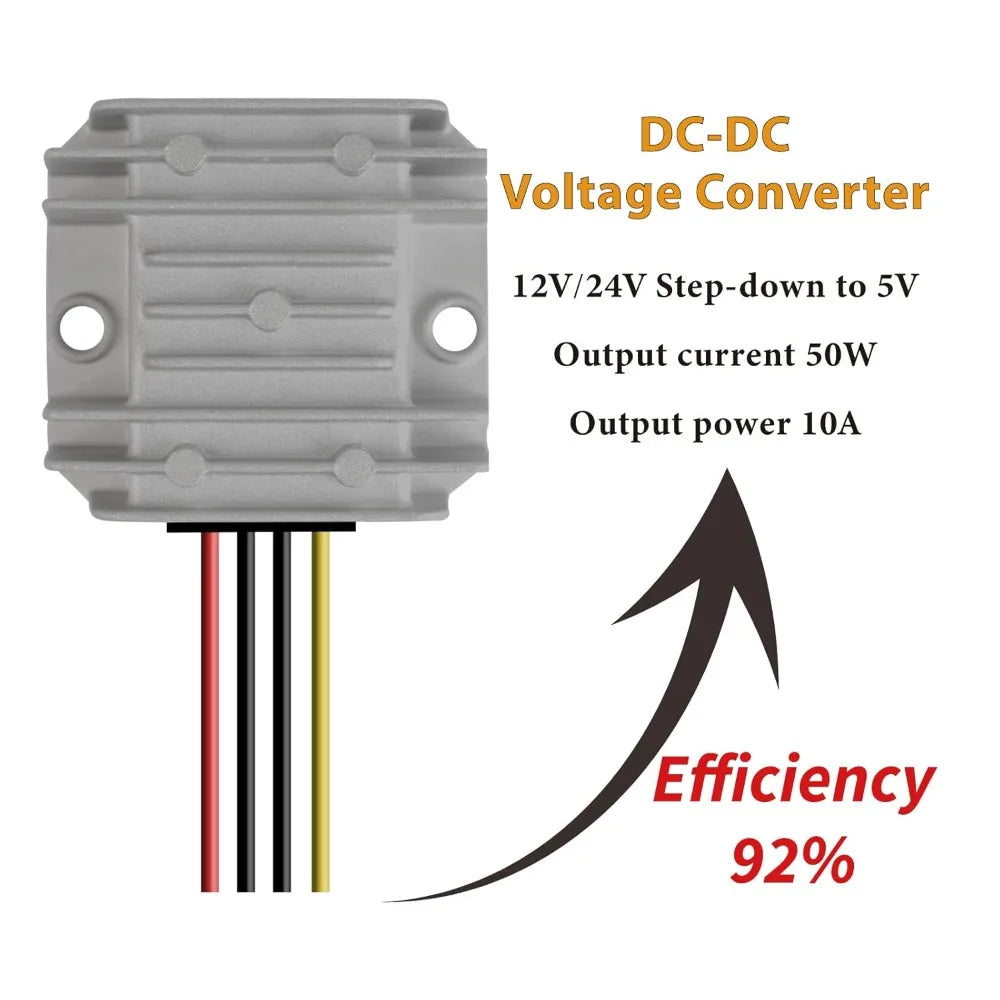

- 12V/24V step-down to 5V DC-DC voltage converter, product line with cover safety device, conversion efficiency:92%, output current/power:10A/50W.
Multiple Protection
- Aluminum alloy shell, built-in over current, low voltage, over temperature, short circuit and other protection functions, automatic recovery after the equipment returns to normal.
Some Parameters
- Voltage adjustment rate :<1%; Load adjustment rate :<2%; Ripple & Noise :100mVp-P; Operating temperature :-40°C to +80°C .

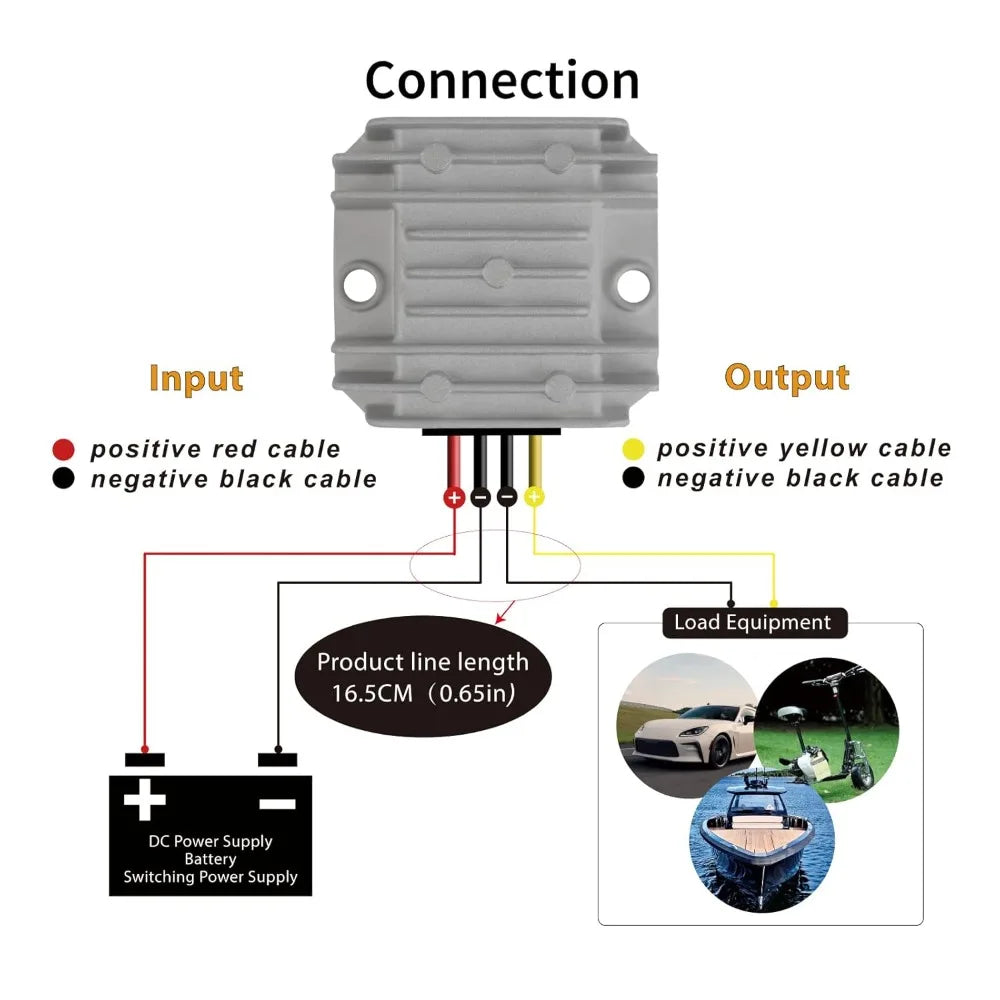

WATERPROOF AND PRODUCT POWER CONNECTION
PRODUCT INSTALLATION&APPLICATION
- Voltage converter is widely used in ships, golf carts, travel trailers, automobiles, posts and telecommunications, communications, electric power, coal mines, aerospace, military, monitoring systems, railway signals, medical equipment, instruments, displays, automation control, cable TV, wind energy photovoltaic systems, LED markets and other fields.

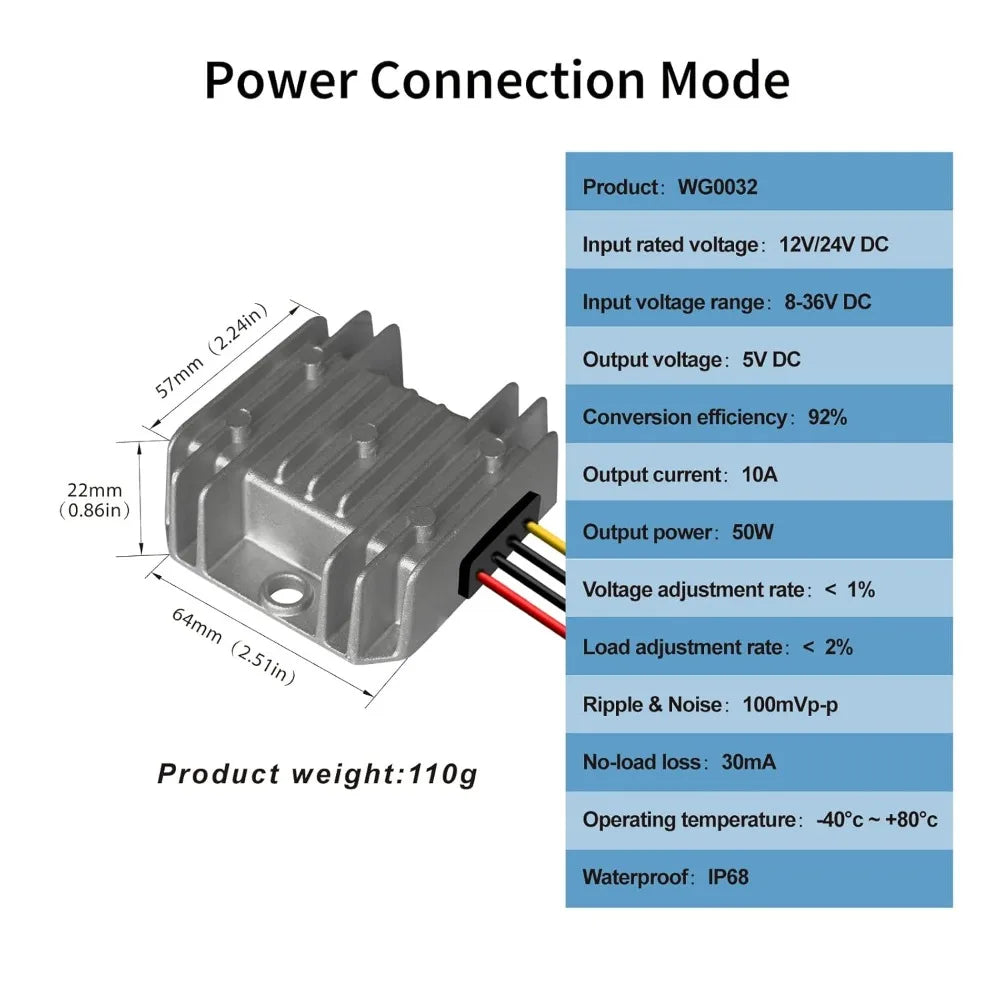

SPECIFICATIONS
| Input Rated Voltage | 12V/24V DC |
| Input Voltage Range | 8-36V DC |
| Output Voltage | 5V DC |
| Conversion Efficiency | 92% |
| Output Current | 10A |
| Output Power | 50W |
| Voltage Adjustment Rate | < 1% |
| Load Adjustment Rate | < 2% |
| Ripple & Noise | 100mVp-p |
| No-Load Loss | 30mA |
| Operating Temperature | -40°c ~ +80°c |
| Waterproof | IP68 |
| Product Size | 64*57*22mm（2.51*2.24*0.86in) |
| Installation Mode | Screw mounting (Screws are not included in the product) |
| Product Weight | 110g |
Options
- Color: 12V 24V to 5V 10A
Frequently Asked Questions
Q: What is the DC 12V 24V Step-down 5V 10A Converter Voltage Reducer?
A: The DC 12V 24V Step-down 5V 10A Converter Voltage Reducer is a quality decor pick. Step-down Converter ----12V/24V to 5V 10A DC-DC step-down device, the input high voltage (12V/24V DC) into the lower ideal voltage (5V DC), output current10A, output power50W, no-load loss: 30mA.
Q: How do I use the DC 12V 24V Step-down 5V 10A Converter Voltage Reducer?
A: The DC 12V 24V Step-down 5V 10A Converter Voltage Reducer is ready to use right out of the box and makes an easy addition to your decor lineup.
Q: Why choose the DC 12V 24V Step-down 5V 10A Converter Voltage Reducer?
A: The DC 12V 24V Step-down 5V 10A Converter Voltage Reducer stands out in our decor range — Product description Step-down Converter ----12V/24V to 5V 10A DC-DC step-down device, the input high voltage (12V/24V DC) into the lower ideal voltage (5V DC), output current：10A, output power：50W, no-load loss:30mA.
