DC 12V 8-23V Step Down 3A Converter Module USB-C Output Compatible
$35.31
Sale price
$35.31
Regular price
$43.74
Shipping calculated at checkout.
Discover the DC 12V 8-23V Step Down 3A Converter Module USB-C Output Compatible — a standout decor pick featuring waterproof, lightweight, compact design for dependable, everyday performance.
Specifications
Brand Name: kangwobei
Certification: CE,Dot,RoHS
Type: DC/DC Converters
Product Description- Converts a 12V input voltage (will operate with any input voltage from 8V to 23V) to 5V DC output at up to 3A
- USB-C output cable - compatible with many cell phones and personal electronics.
- Up to 15W output power (5V at 3A)
- Fully sealed and waterproof (IP68 Rating)
- Overload / over-current / over / low voltage protection, stable performance
- Excellent for converting from a car's 12V battery to 5V for USB-powered devices

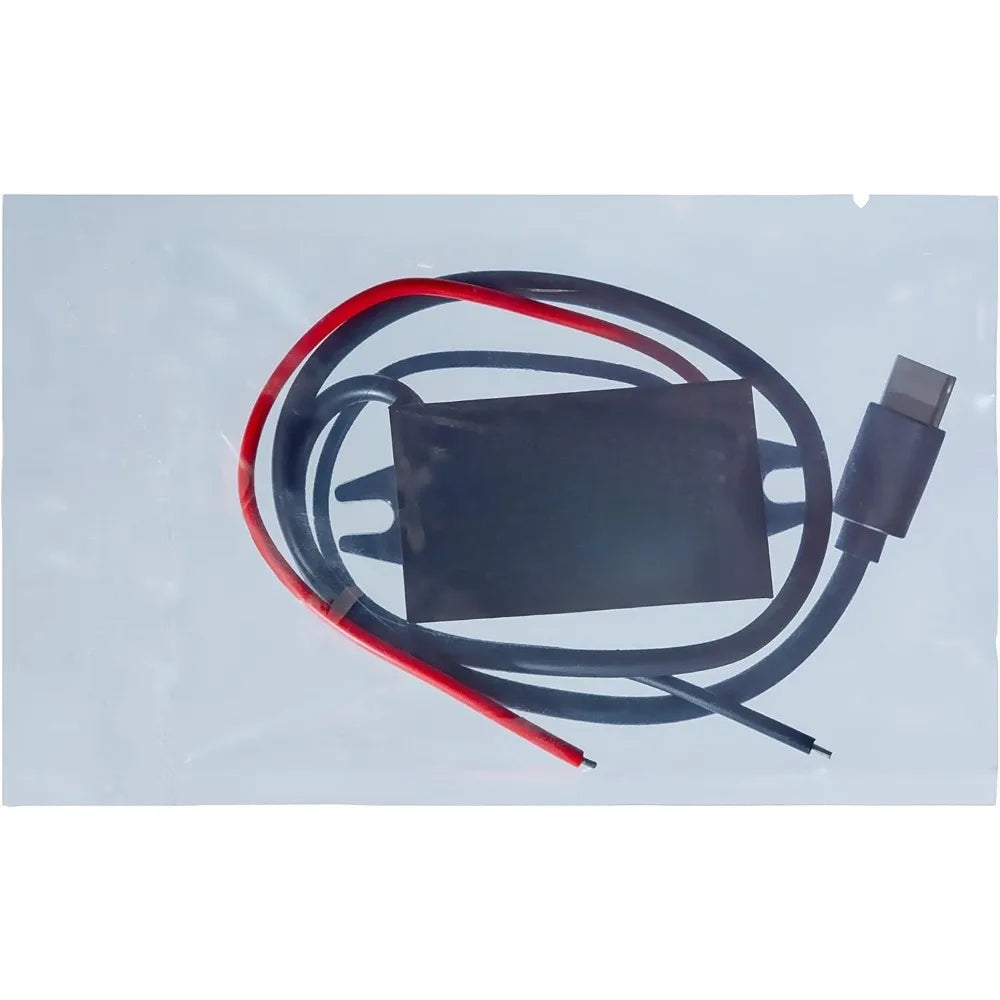

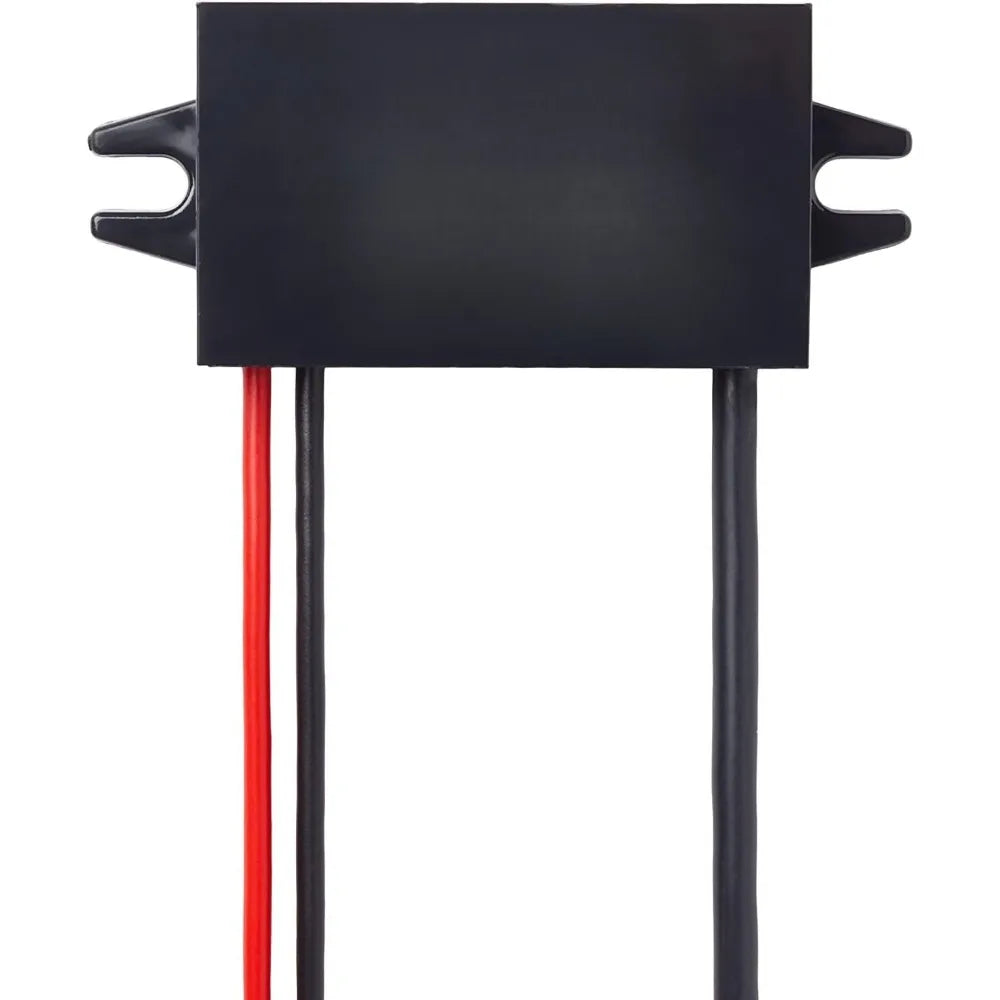

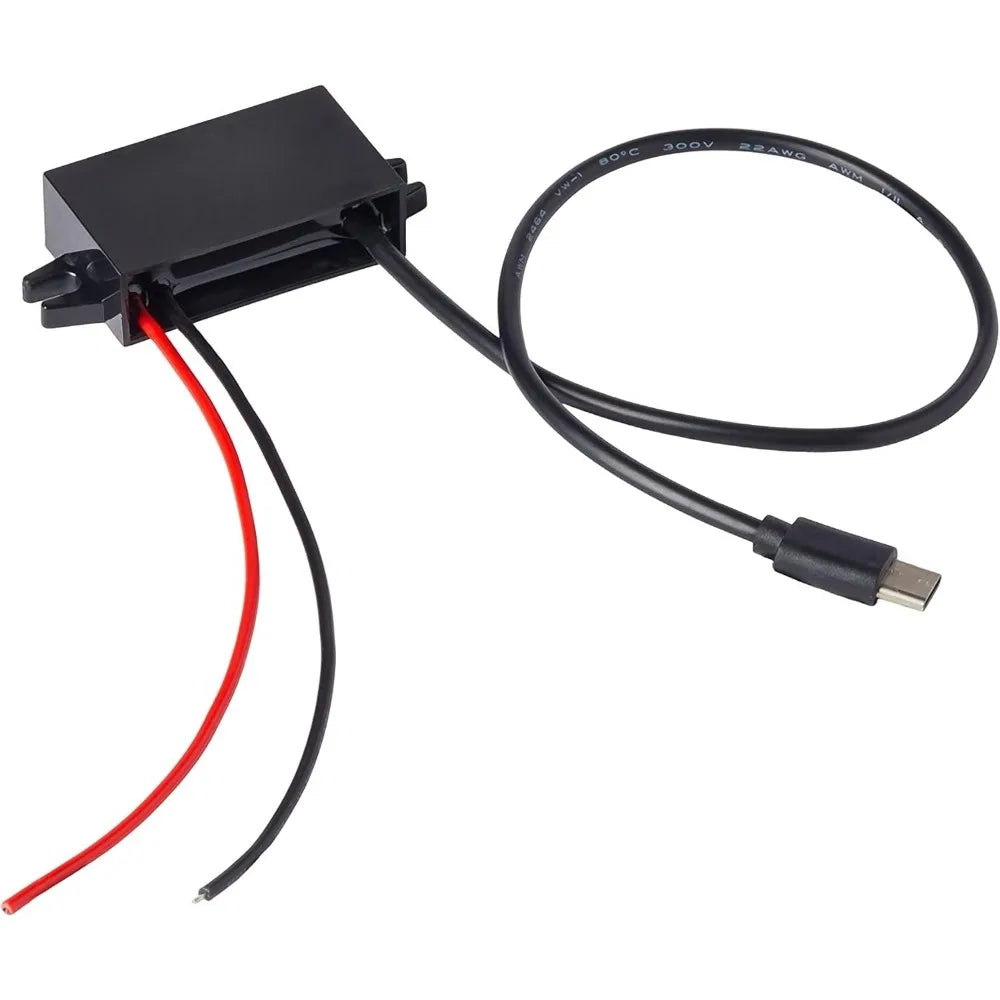

This miniature DC-DC step-down converter module converts an 8V to 23V (nominally 12V) DC input to 5V DC output at up to 3A current (15W maximum). It features a USB-C output connector, compatible with many cell phones and personal electronics.
Specifications:

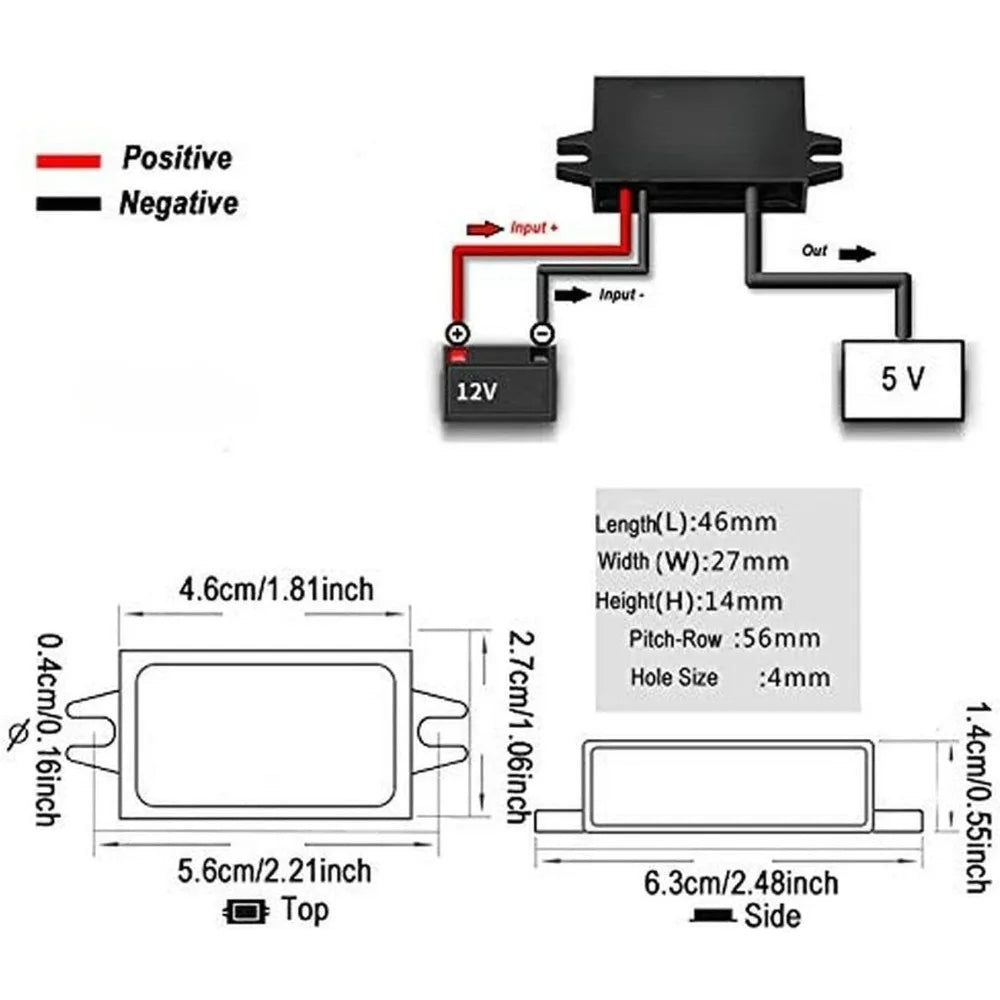

- Epoxy sealed waterproof housing (IP68) Lightweight, compact, convenient to use and transport Non-isolated With overload / over-current / over / low voltage protection, stable performance Auto recovery Input voltage: DC 12V nominal, will operate on any input voltage from 8V to 23V DC Maximum input current at 3A output: Approximately 1.25A at 12V input, 1A at 15V input Output voltage: 5V Maximum output current: 3A Maximum Output Power: 15W Efficiency: 85-90% typical, 95% max Voltage regulation: ±1% Load regulation: ± 2% Ripple (Full load test): <150mV No-load current: <100mA Operating temperature: -25C - +60C Size (L x W x H): 46 * 27 * 14 mm / 1.81" x 1.04" x 0.55" (Length including mounting tabs is 64mm / 2.5") Case color: Black Waterproof rating: IP68 Input wire length: 13.5cm / 5.3" (approx) Output cable length: 33cm / 13" (approx) Output connector: USB-C
Options
- Color: 12V to 5V 3A USB-C
Frequently Asked Questions
Q: What is the DC 12V 8-23V Step Down 3A Converter Module USB-C Output?
A: The DC 12V 8-23V Step Down 3A Converter Module USB-C Output is a quality decor pick. Up to 15W output power (5V at 3A) Fully sealed and waterproof (IP68 Rating) Overload / over-current / over / low voltage protection, stable performance Excellent for converting from a car's 12V battery to 5V for USB-powered devices This miniature DC-DC step-down converter module converts an 8V to 23V (nominally 12V) DC input to 5V DC output at up to 3A current (15W maximum).
Q: How do I use the DC 12V 8-23V Step Down 3A Converter Module USB-C Output?
A: The DC 12V 8-23V Step Down 3A Converter Module USB-C Output is ready to use right out of the box and makes an easy addition to your decor lineup.
Q: Why choose the DC 12V 8-23V Step Down 3A Converter Module USB-C Output?
A: The DC 12V 8-23V Step Down 3A Converter Module USB-C Output stands out in our decor range — It features a USB-C output connector, compatible with many cell phones and personal electronics.
