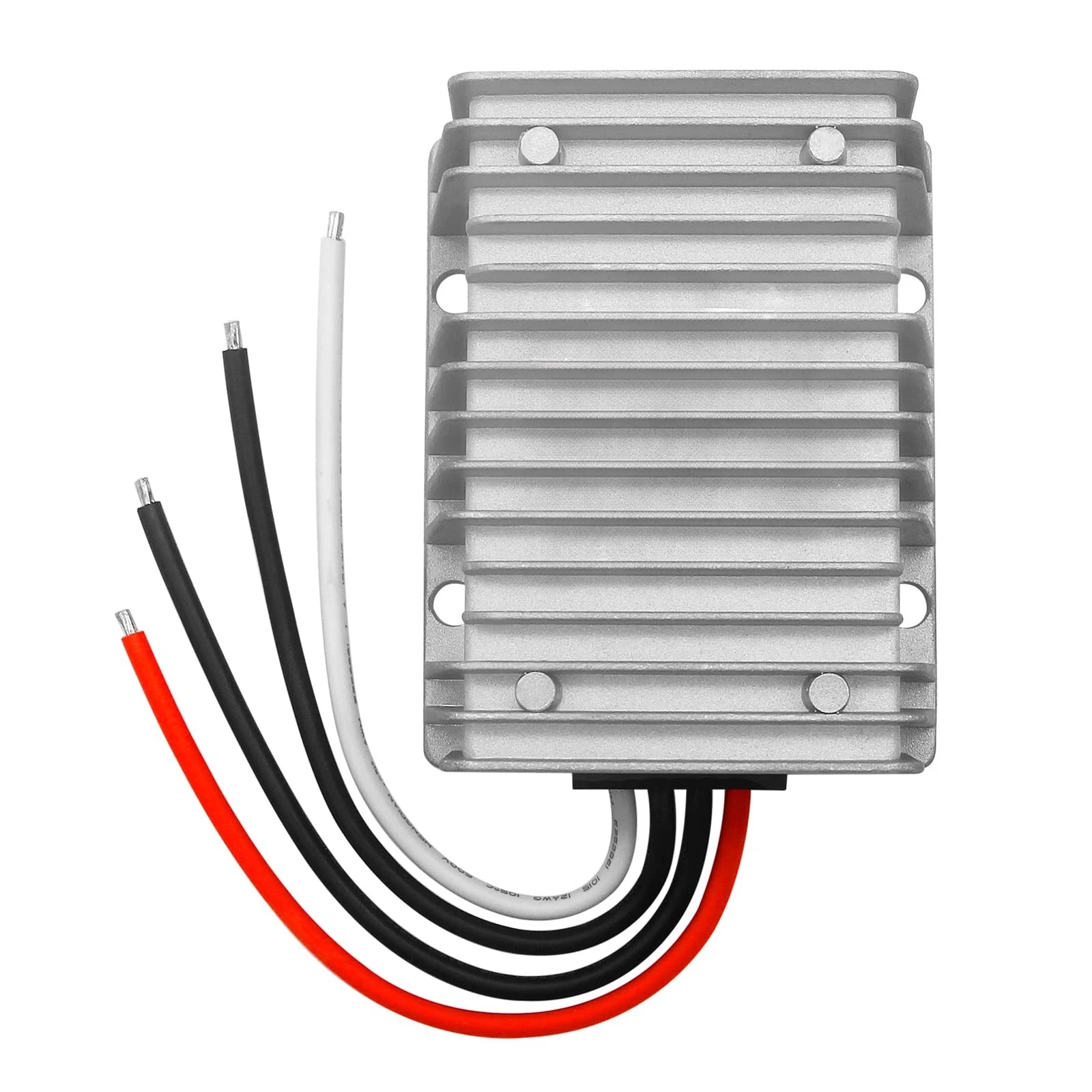

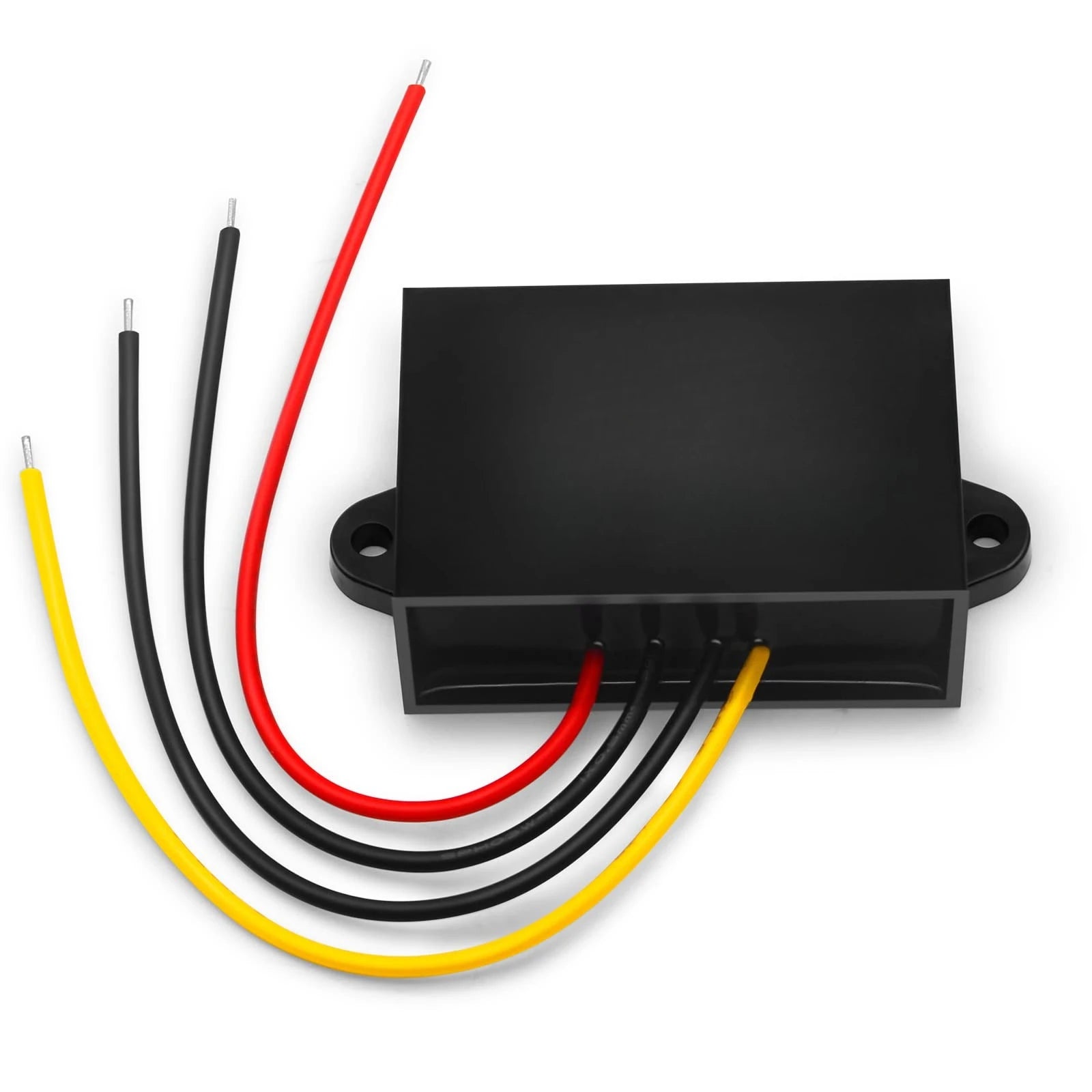

DC Converter Reducer 20-90v 24v 36v 48v 60v 72v 12v Step Down Buck
20-90v To 12v 2A
$40.23
Sale price
$40.23
Regular price
$49.84
Skip to product information
About this item
PARAMETER --- DC-DC converter input voltage range is DC 20~90V (24V 36V 48V 72V); output voltage is DC 12V; output current is 2A; output power is 24W. APPLICATION --- the 12v buck converter module can be used in integrated wiring for monitoring fire alarming system; car radio, audio; bus, minibus, truck display screen, taxi advertising screen; LCD television, LED; solar power generation system; interphone, etc. PROTECTION --- this BUCK voltage comes with over-current protection, over-temperature protection; adopts potting technology, characterized by waterproof, dust-proof, moisture-proof and shock-proof, can be used in various situations such as car, outdoor, underground, etc. FEATURE --- the BUCK power module adopts high-integrated chip, stable and reliable; synchronous rectification technology, with conversion efficiency of over 93% and low heat generated. NOTE --- Leave a margin for the power supply to ensure it can long-term stably working
DC Converter Reducer 20-90v 24v 36v 48v 60v 72v 12v Step Down Buck
$40.23
Sale price
$40.23
Regular price
$49.84
Shipping calculated at checkout.
Discover the DC Converter Reducer 20-90v 24v 36v 48v 60v 72v 12v Step Down Buck — a standout decor pick featuring waterproof design for dependable, everyday performance.
Specifications
Brand Name: kangwobei
Certification: CE,Dot,RoHS
Model Number: WH-12-24 WH-30-57
Type: DC/DC Converters
Product DescriptionAbout this item
PARAMETER --- DC-DC converter input voltage range is DC 20~90V (24V 36V 48V 72V); output voltage is DC 12V; output current is 2A; output power is 24W. APPLICATION --- the 12v buck converter module can be used in integrated wiring for monitoring fire alarming system; car radio, audio; bus, minibus, truck display screen, taxi advertising screen; LCD television, LED; solar power generation system; interphone, etc. PROTECTION --- this BUCK voltage comes with over-current protection, over-temperature protection; adopts potting technology, characterized by waterproof, dust-proof, moisture-proof and shock-proof, can be used in various situations such as car, outdoor, underground, etc. FEATURE --- the BUCK power module adopts high-integrated chip, stable and reliable; synchronous rectification technology, with conversion efficiency of over 93% and low heat generated. NOTE --- Leave a margin for the power supply to ensure it can long-term stably working

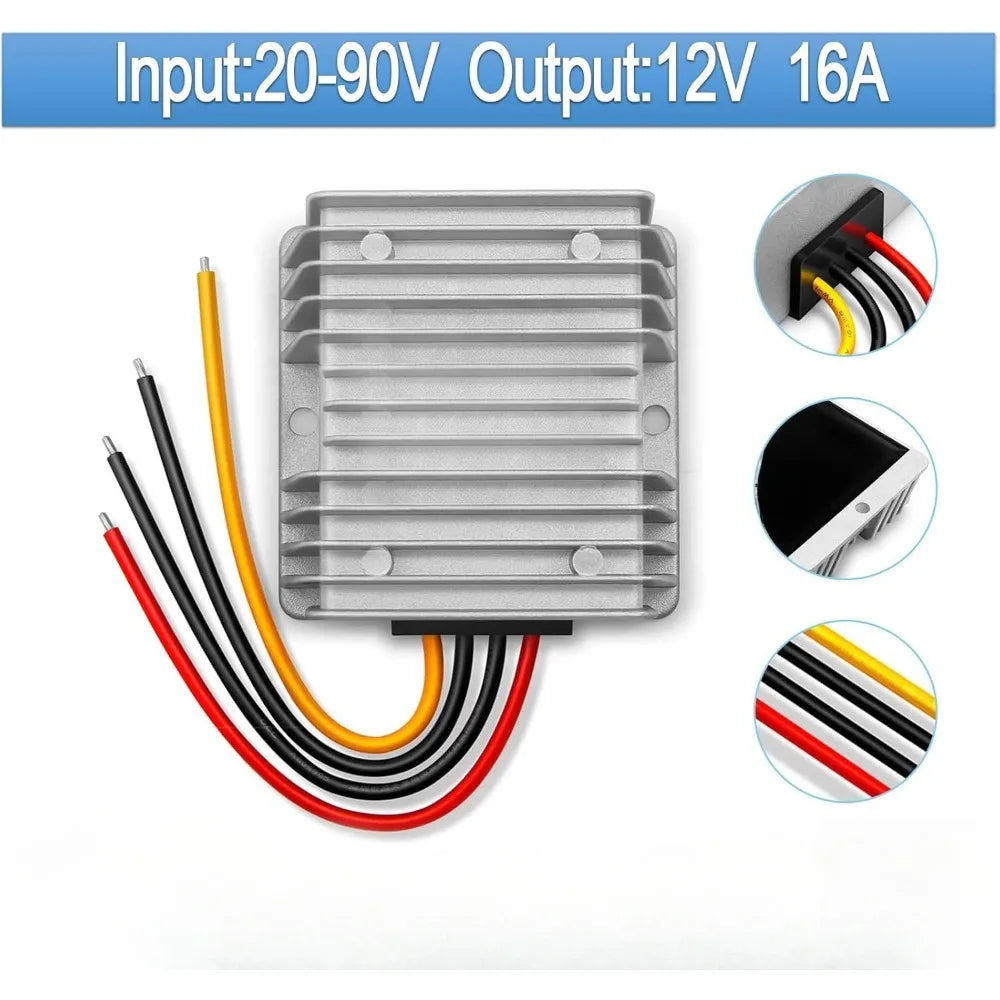

DCDC Power Supply Step Down Buck Module Technical Specification:
Input Voltage: DC 20V~90V (24V 36V 48V 60v 72v)
Output Voltage: DC 12V
Output Current: 16A
Output Power: 192W
Conversion Efficiency: >93%
No Load Voltage Range: Set voltage ±3%
Load Regulation: ±3%
Quiescent Power Dissipation: <10mA
Operating Temperature: -25~65℃
Storage Temprature: -40~80℃
Operating Humidity: 10%~90%

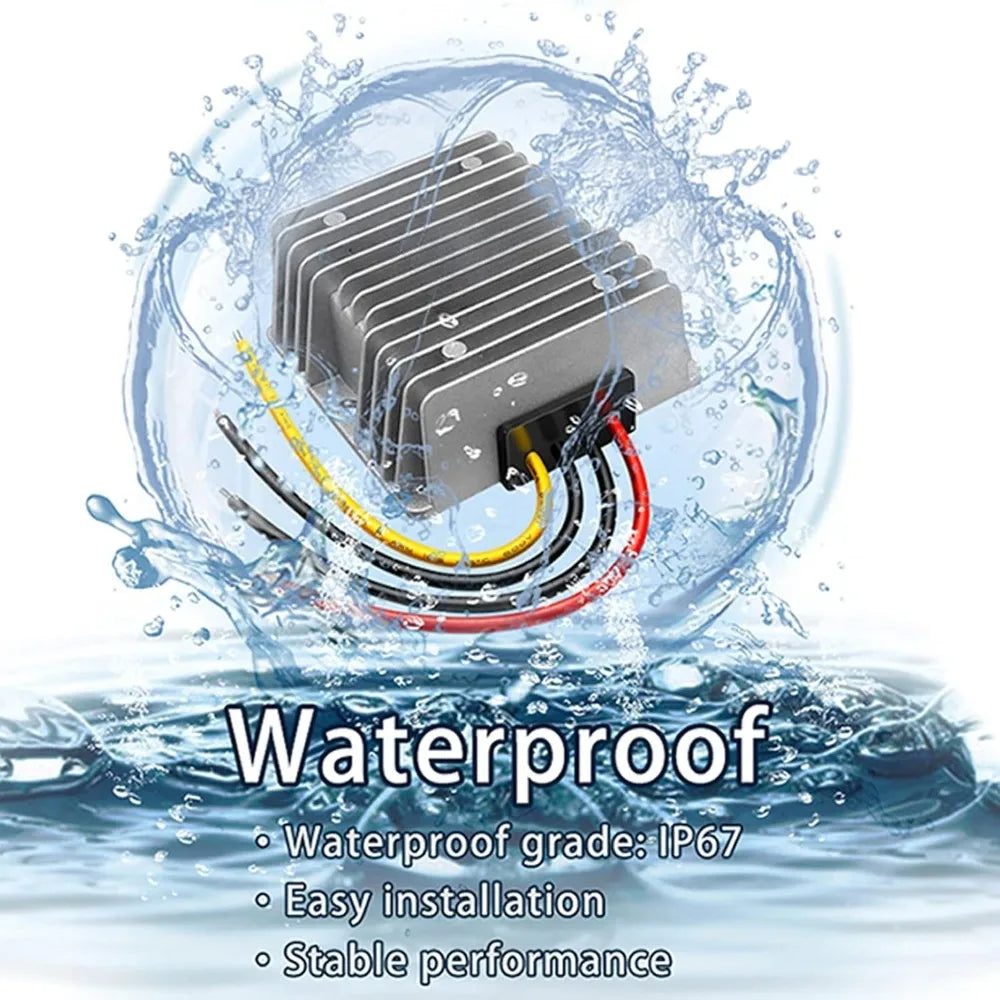

Waterproofing Grade: IP67
Over-current Protection: Yes
Over-temperature Protection: Yes
Short-circuit Protection: No

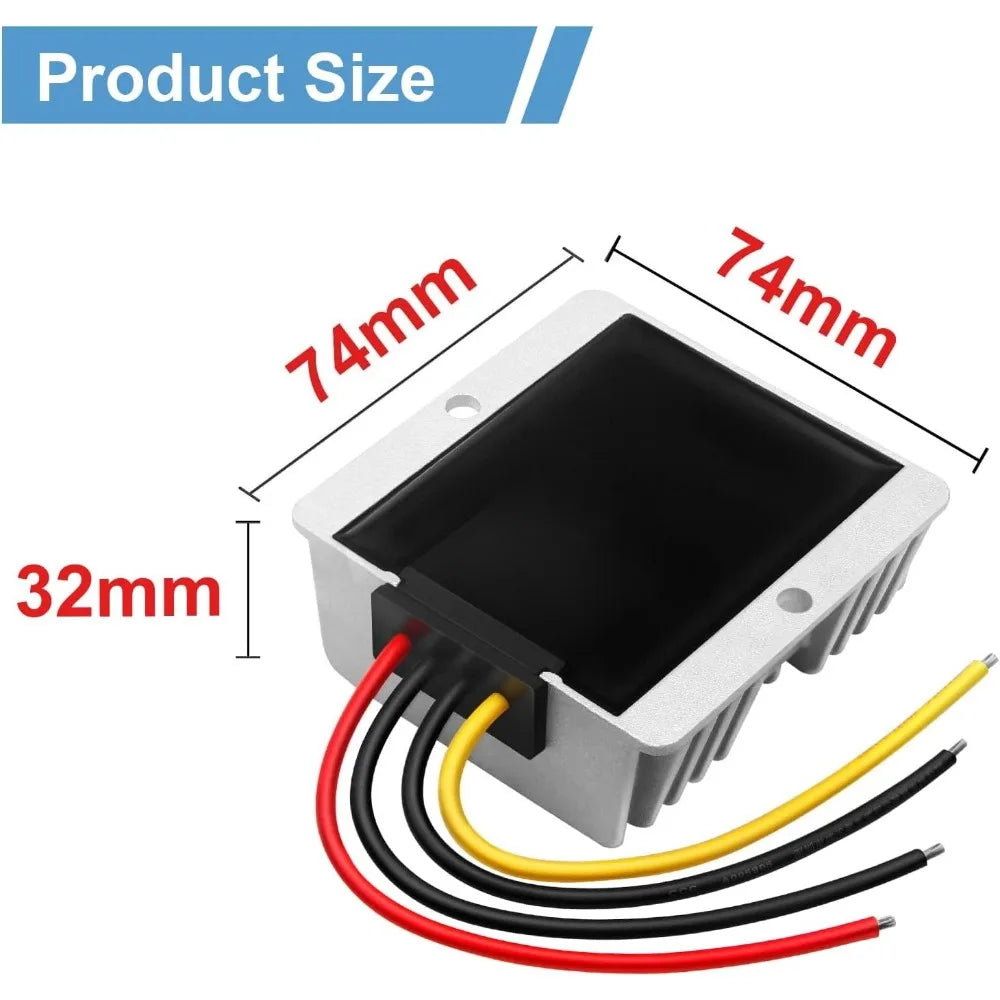

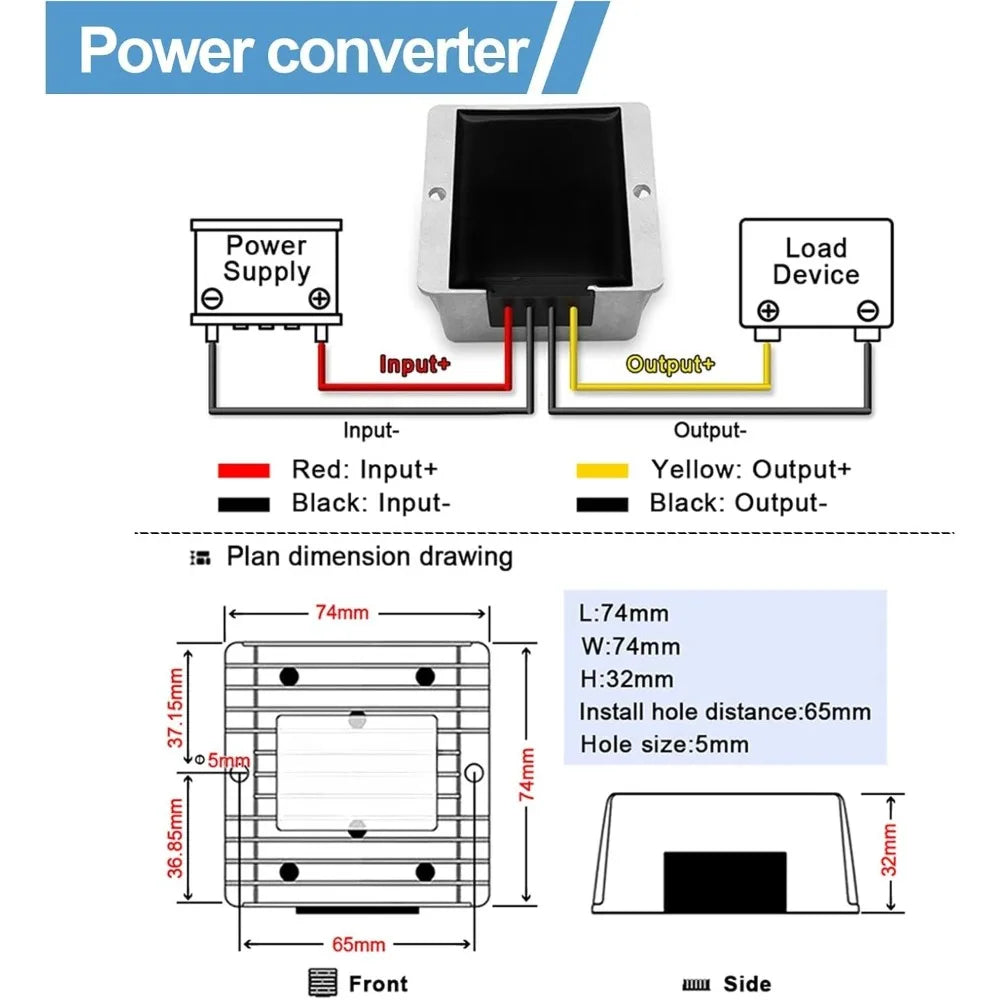

Dimension: 74mm x74mm x 32mm
Material:Aluminum shell
Note:
1. Connect the wiring in strict according with the wiring instruction.
2. Use short and thick input & output wire to ensure output enough voltage and power.
3. If there are multiple output wire, do not combine the load.
4. Leave a margin for the power supply to ensure it can long-term stably working.
Package Included:
1x Step Down Buck Module
Options
- Color: 20-90v To 12v 2A, 20-90v To 12v 5A, 20-90v To 12v 1A, 20-90v To 12v 24A, 20-90v To 12v 16A
Frequently Asked Questions
Q: What is the DC Converter Reducer 20-90v 24v 36v 48v 60v 72v 12v Step?
A: The DC Converter Reducer 20-90v 24v 36v 48v 60v 72v 12v Step is a quality decor pick. APPLICATION --- the 12v buck converter module can be used in integrated wiring for monitoring fire alarming system; car radio, audio; bus, minibus, truck display screen, taxi advertising screen; LCD television, LED; solar power generation system; interphone, etc.
Q: What is the DC Converter Reducer 20-90v 24v 36v 48v 60v 72v 12v Step made of?
A: The DC Converter Reducer 20-90v 24v 36v 48v 60v 72v 12v Step is made from Aluminum shell Note.
Q: Why choose the DC Converter Reducer 20-90v 24v 36v 48v 60v 72v 12v Step?
A: The DC Converter Reducer 20-90v 24v 36v 48v 60v 72v 12v Step stands out in our decor range — PROTECTION --- this BUCK voltage comes with over-current protection, over-temperature protection; adopts potting technology, characterized by waterproof, dust-proof, moisture-proof and shock-proof, can be used in various situations such as car, outdoor, underground, etc.
