DC-DC Step Down Power Supply Module 2A DC 6-100V 5V 9V 12V 24V Mini
12V
$7.03
Sale price
$7.03
Regular price
$8.71
Skip to product information
DC-DC Step Down Power Supply Module 2A DC 6-100V 5V 9V 12V 24V Mini
$7.03
Sale price
$7.03
Regular price
$8.71
Shipping calculated at checkout.
Discover the DC-DC Step Down Power Supply Module 2A DC 6-100V 5V 9V 12V 24V Mini — a standout decor pick featuring compact design for dependable, everyday performance.
Specifications
Brand Name: Aideepen
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
Type: Other
is_customized: No
Product Features:

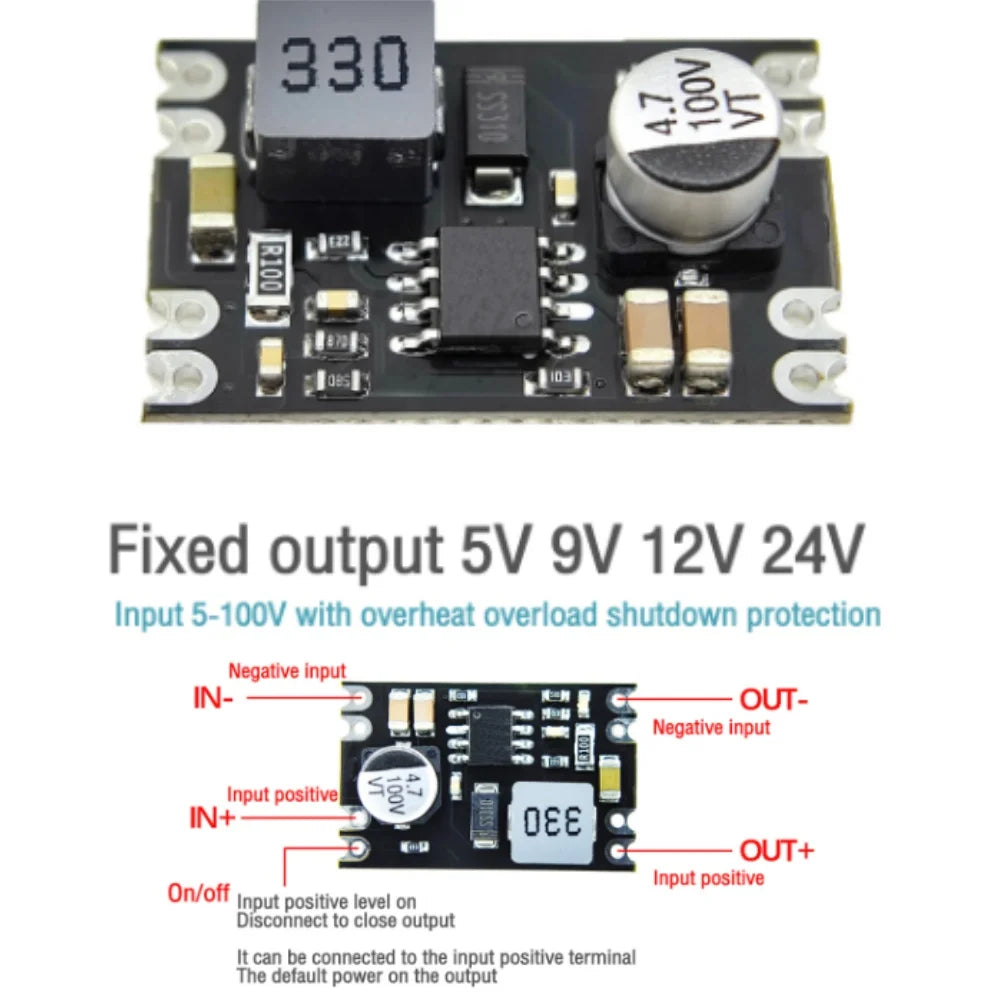

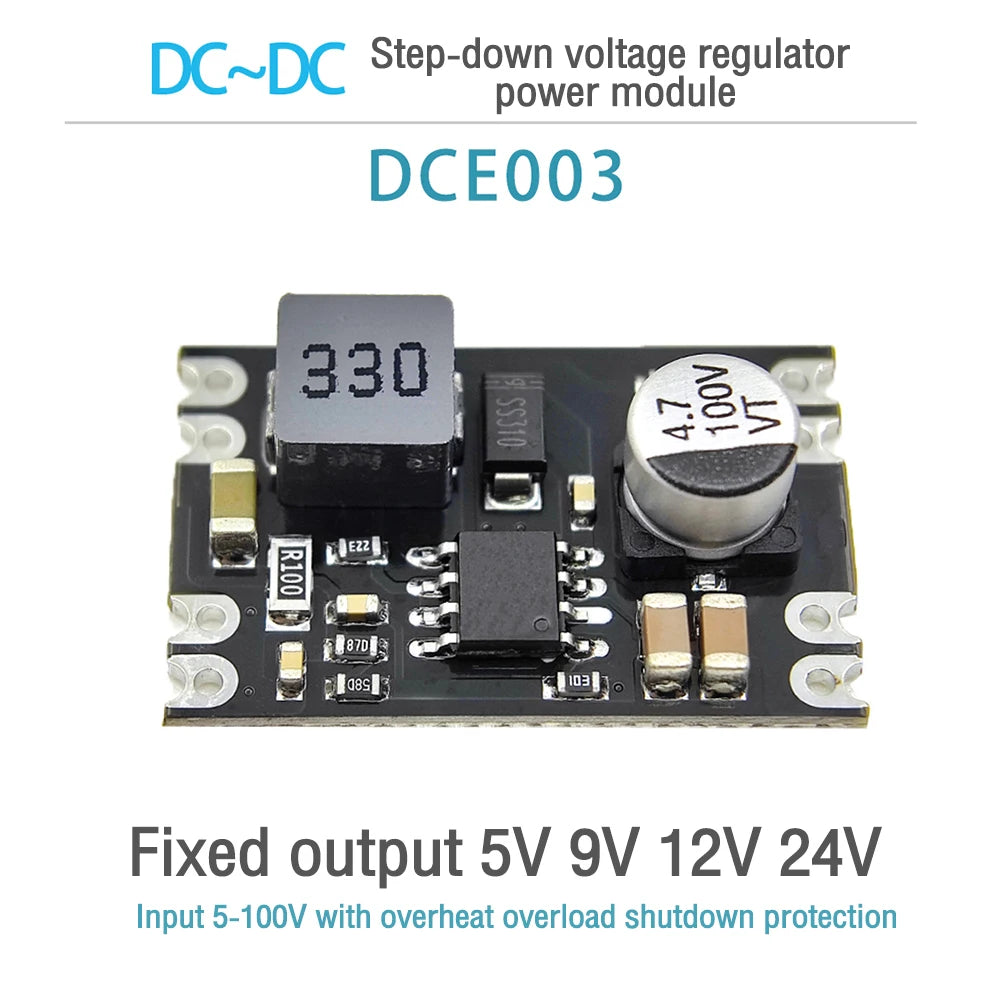

Fixed output 5V, 9V, 12V, 24V; input 7-100V with overheat and overload shutdown protection

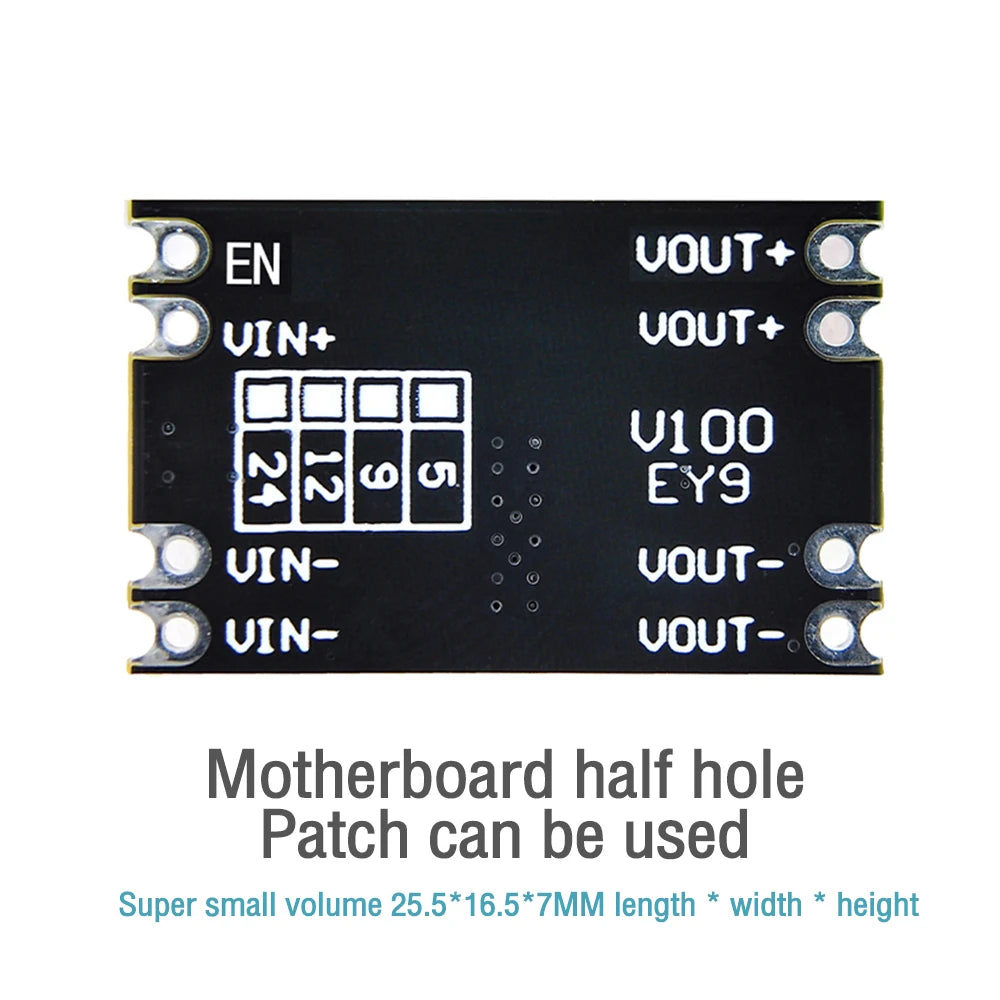

Half-hole PCB design for surface-mount application; ultra-compact size 25.5×16.5×7mm
The DC-DC step-down module is a device that converts high DC voltage into lower voltage. The input voltage must exceed the output voltage (voltage difference required), e.g., 12V to 5V, 24V to 5V.
Utilizing microelectronics technology, it features high efficiency, compact size,
simple operation, and easy installation.
Product Specifications:
Input Voltage: 7V~100V (Input must exceed output)

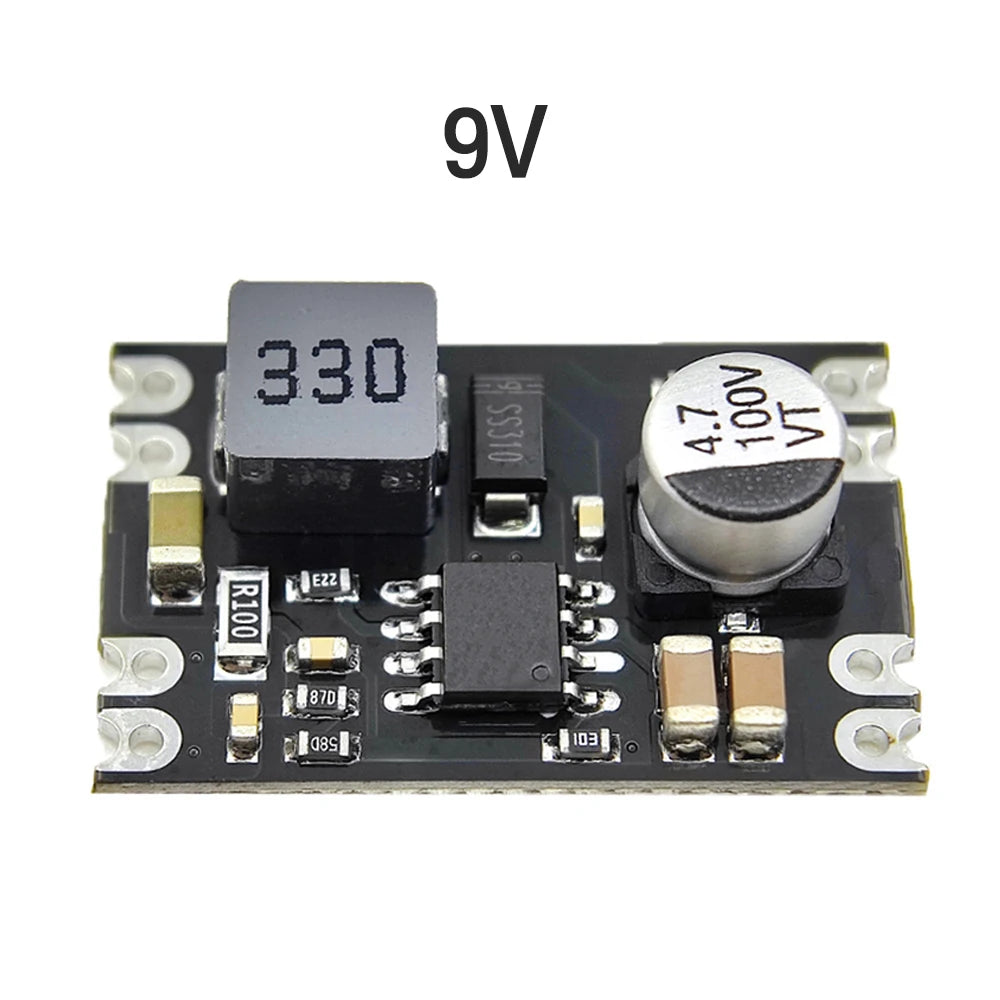

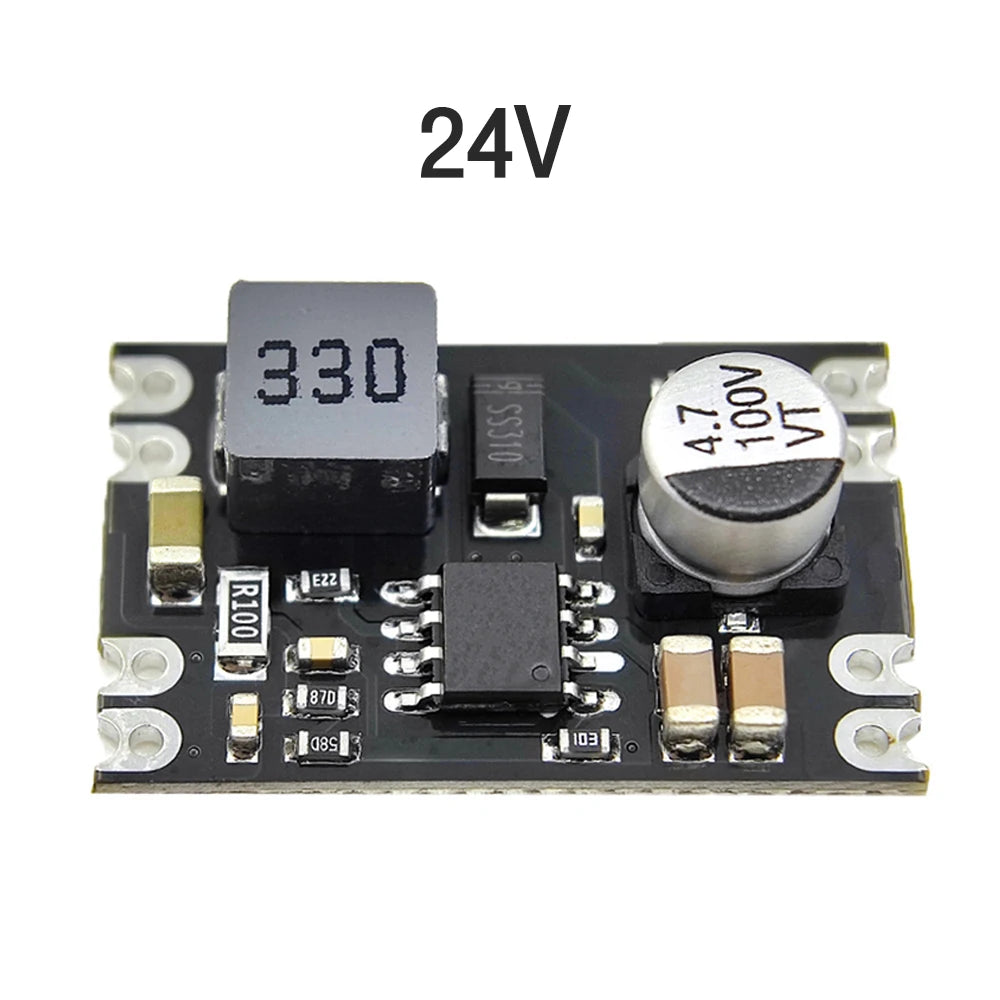

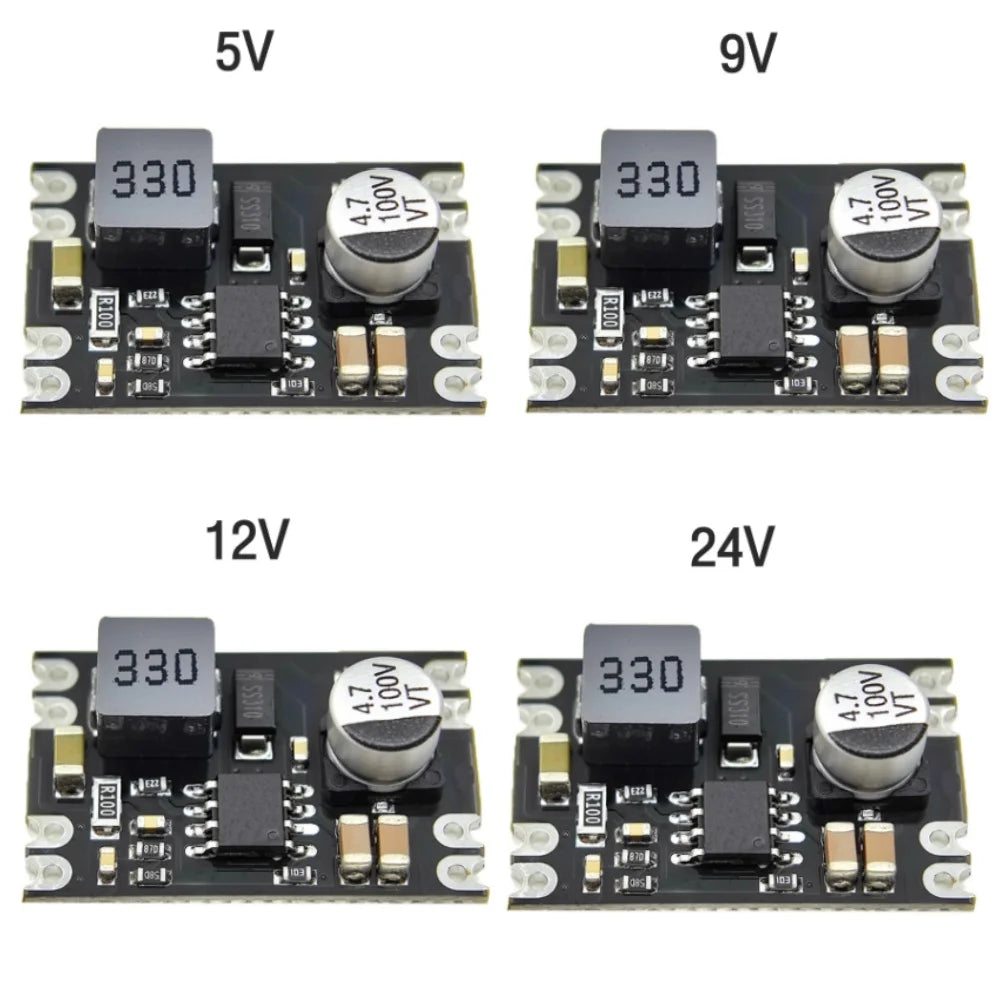

Output Voltage: 5V/9V/12V/24V
Output Current: 3A (Maximum Peak) Continuous current within 2A
Conversion Efficiency: 96% (Maximum)
Output Ripple: <30mA
Output Accuracy: ±0.1V
No-Load Current: 1mA
Operating Temperature: -40°C to +125°C
Operating Humidity: 20% to 90%
Dimensions: 25.5*16.5*7mm (L*W*H)
PCB Layers: 2 layers

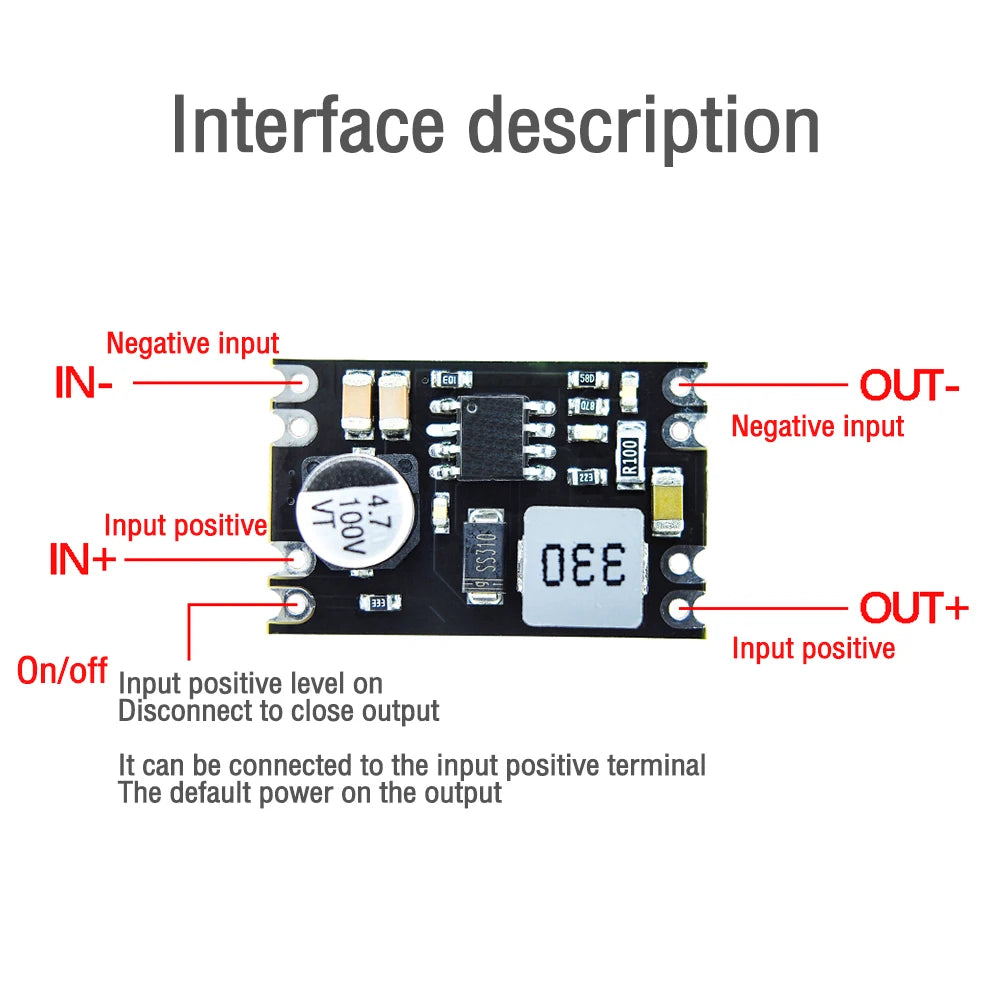

Shutdown Function: With shutdown function
Heat Dissipation: Natural convection
Mounting Method: Wire bonding, SMD
Isolation: Non-isolated
Manufacturing Process: Reflow soldering
Service Life: 35,000 hours MTBF (output current not exceeding rated value)
Special Process: Half-hole PCB
Operating Frequency: 1MHz
Product List
1X Module
Options
- Color: 12V, 24V, 5V, 9V
