DC Efficiency Voltage Converter 36V 48V 12V 30A 360W Buck DIY Power

Discover the DC Efficiency Voltage Converter 36V 48V 12V 30A 360W Buck DIY Power — a standout decor pick featuring waterproof, premium, compact design for dependable, everyday performance.

Specifications

Brand Name: kangwobei

Certification: CE,Dot,RoHS

Input Voltage DC 36V / 48V (Input Range: 35V to 60V). A stable DC power is recommended as the input power supply, and the rated voltage supply should be within the voltage range of 35V to 60V.

Model Number: WH-12-24 WH-30-57

Type: DC/DC Converters

Product Description

• 【Ultrathin DC-DC Buck Converter】It adopts premium quality electronic components and waterproof (IP65) aluminum housing. Widely used for golf cart, club car, motor, speaker, GPS, car display screen, LED strip light, air-conditioner, electric fan, solar energy, DVD and other devices that requires DC 12V voltage.
• 【Input Voltage】 DC 24V (Input Range: 21V to 36V). A stable DC power is recommended as the input power supply, and the rated voltage supply should be within the voltage range of 21V to 36V.
• 【Multiple Protections】Built-in reverse protection, over-temperature, over-current, over-voltage, output short- circuit protection to ensure your devices safely.

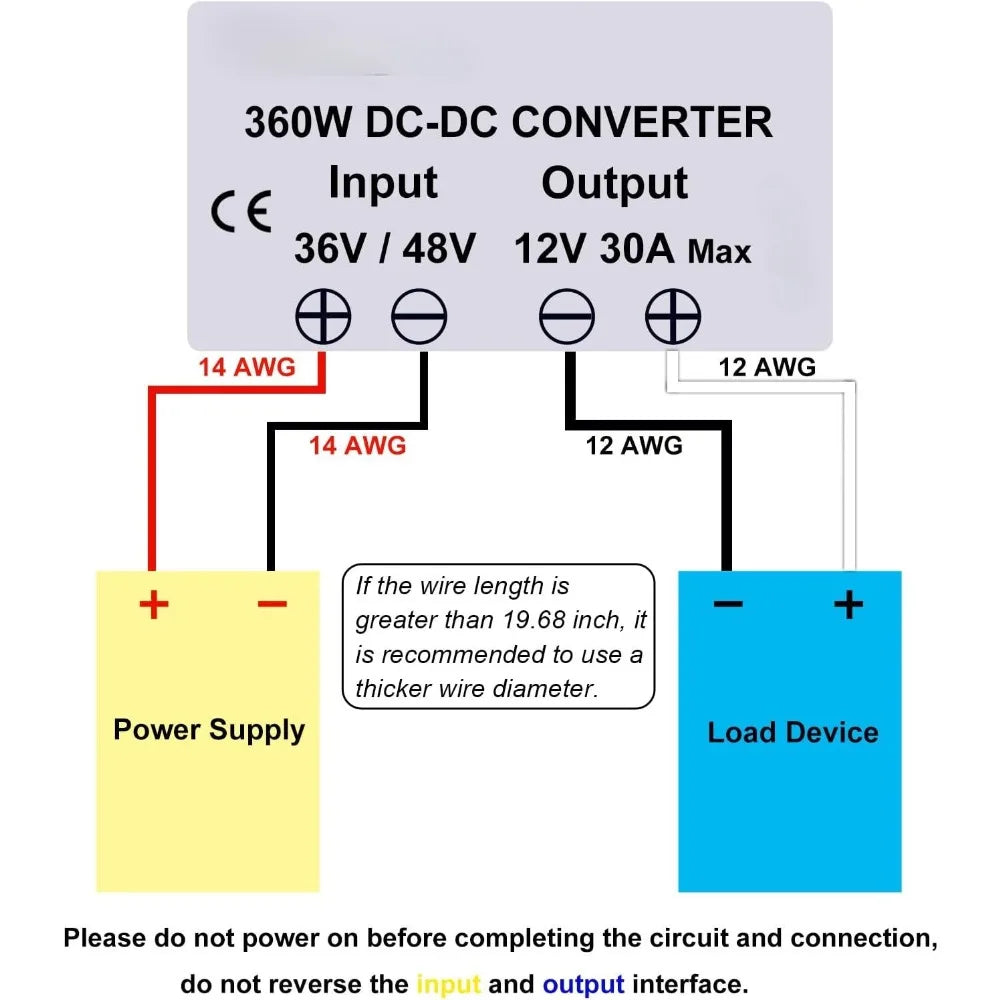

• 【Easy to DIY】Connect INPUT terminals to power source, OUTPUT terminals to your load device. The wiring diagram is printed on the back of buck-boost converter. Please don't power on before completing the circuit and connection, do not reverse the input and output interface.

Features:
- DC-DC 36V / 48V down to 12V 30A 360W voltage transformer
- High reliability and conversion efficiency, wide input voltage range
- Die-cast aluminum shell, sealed with thermal conductive silicone for achieving natural heat dissipation, waterproof, dustproof and shockproof
- Built-in over-temperature , over-current, over-voltage, output short- circuit protection
- Auto-recovery when device is back to normal operating
- Compact in structure, easy to install

Kindly Note:
1. Input voltage must be higher than the output voltage, no boost
2. Do not reverse the input and output interface
3. Give preference to stable DC power as the input power supply, or filter it with capacitor If you use the pulsed DC power provided by the generator

Specifications:
- Input Voltage: DC 36V / 48V
- Input Range: DC 35V - 60V
- Output Voltage: DC 12V
- Output Current: 30A
- Output Rated Power: 360W
- Output Peak Power: 450W
- Conversion Efficiency: > 96%
- No-load Current: <20mA
- Ripple Wave: <100mV
- Operating Temperature: -35℃ to +80℃
- Load Regulation: <2%
- Voltage Regulation: <1%
- Waterproof Rate: IP68
- Housing Material: Die-cast aluminum
- Potting Material: Epoxy sealed

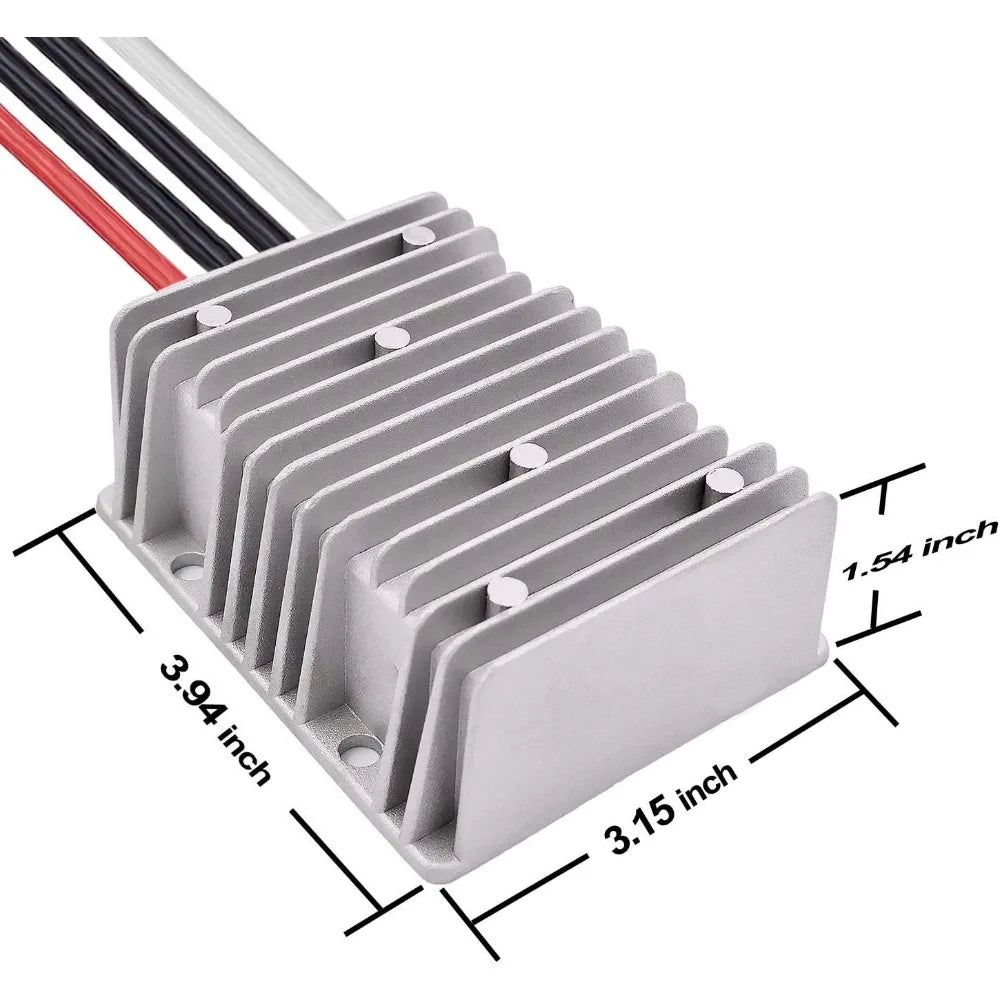

- Size(L x W x H):100*80*39mm / 3.94*3.15*1.54 inch

Package Includes:
1x DC to DC Step-Down Transformer

Options

• Color: 36V48V TO 12V 20A, 24V TO 12V 40A

Frequently Asked Questions

Q: What is the DC Efficiency Voltage Converter 36V 48V 12V 30A 360W Buck?

A: The DC Efficiency Voltage Converter 36V 48V 12V 30A 360W Buck is a quality decor pick. A stable DC power is recommended as the input power supply, and the rated voltage supply should be within the voltage range of 35V to 60V.

Q: What is the DC Efficiency Voltage Converter 36V 48V 12V 30A 360W Buck made of?

A: The DC Efficiency Voltage Converter 36V 48V 12V 30A 360W Buck is made from Die-cast aluminum - Potting Material.

Q: Why choose the DC Efficiency Voltage Converter 36V 48V 12V 30A 360W Buck?

A: The DC Efficiency Voltage Converter 36V 48V 12V 30A 360W Buck stands out in our decor range — Widely used for golf cart, club car, motor, speaker, GPS, car display screen, LED strip light, air-conditioner, electric fan, solar energy, DVD and other devices that requires DC 12V voltage.
