DC3V DIY Electric Magnetic Transmitter Electronics Level Indication

Discover the DC3V DIY Electric Magnetic Transmitter Electronics Level Indication, a standout decor pick designed for dependable everyday performance and lasting value.

Specifications

Brand Name: Aideepen

Condition: New

Type: Module

Description:

1. An electromagnetic cannon is a technology that accelerates projectiles using electromagnetic force, employing electromagnetic pulses to accelerate the projectile to high speeds before firing it at high velocity.

2. The upgraded electromagnetic cannon kit not only adds a charging circuit but also incorporates a level indicator circuit, enabling faster charging, extended range, and increased firing speed.

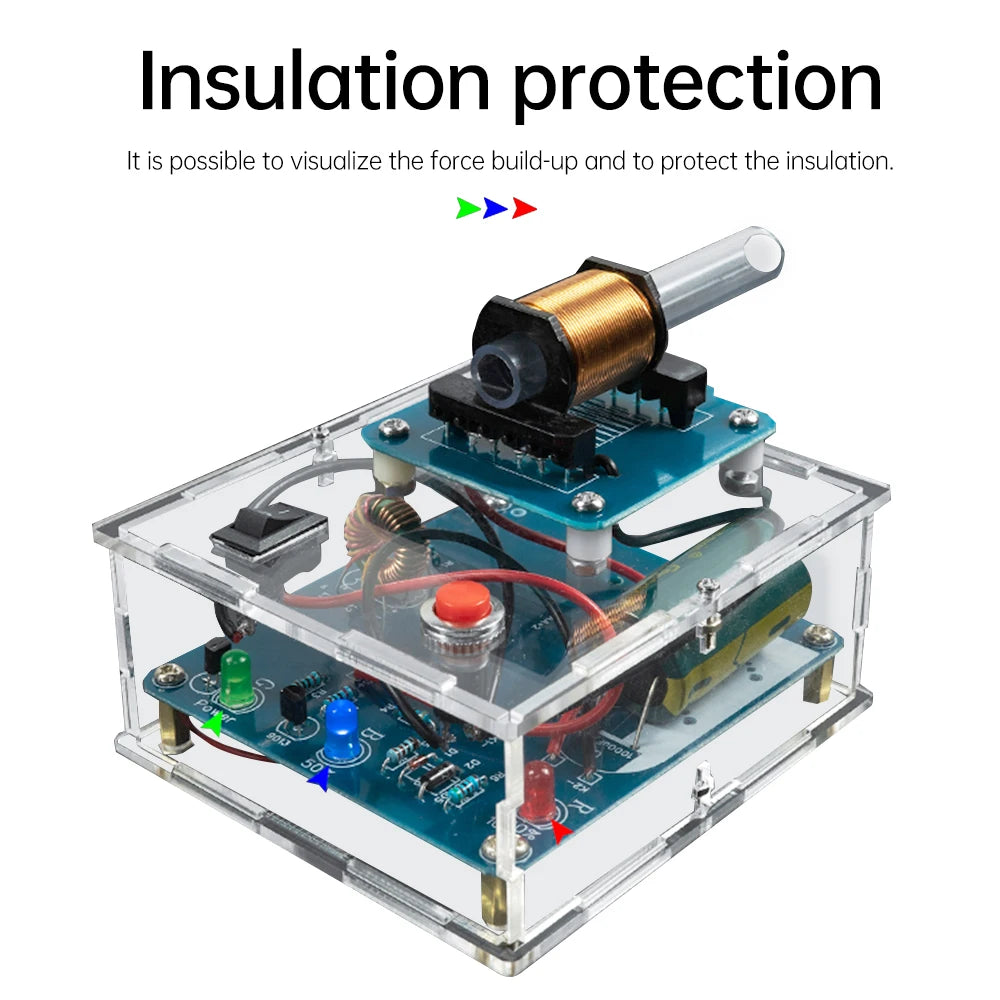

3. Features a level indicator circuit for convenient monitoring of charging status.

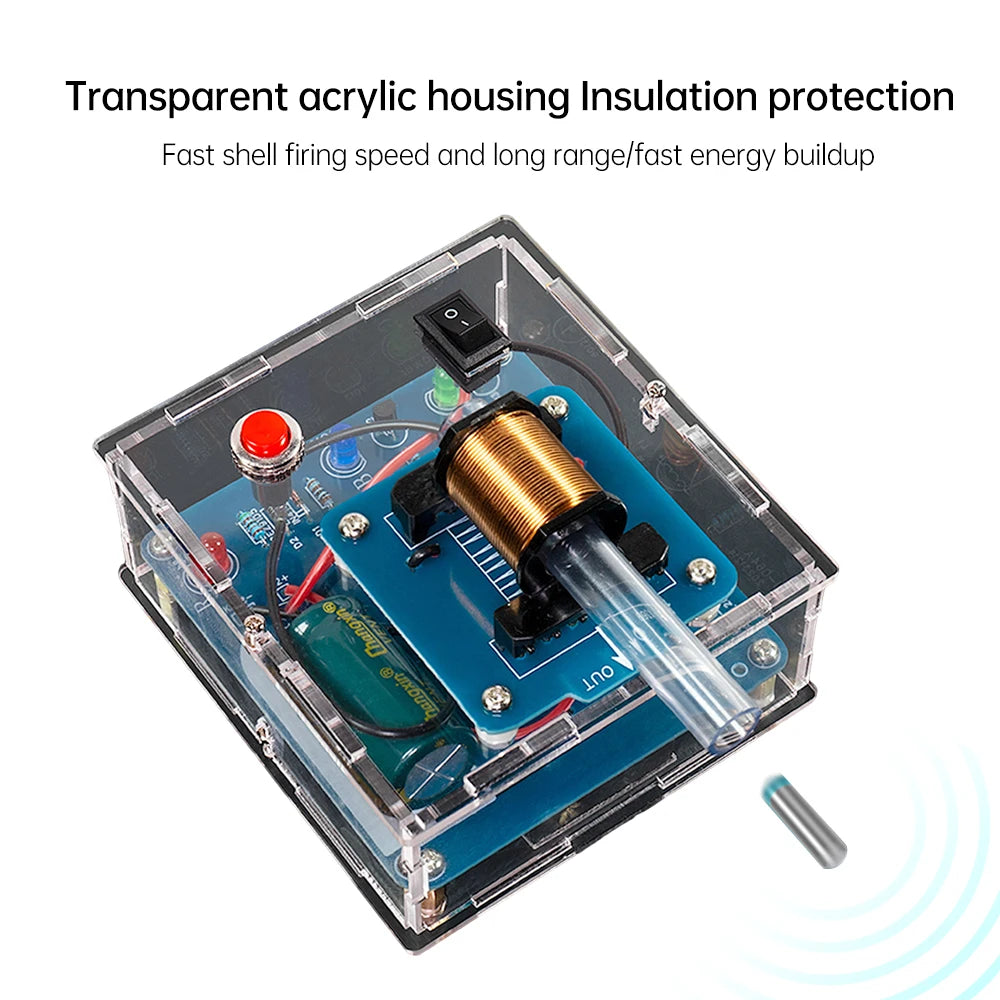

4. Bottom battery compartment design offers aesthetic appeal and convenience. No need to disassemble the casing for effortless battery replacement.

5. This kit is suitable for soldering practice, electronics experimentation, and DIY enthusiasts.

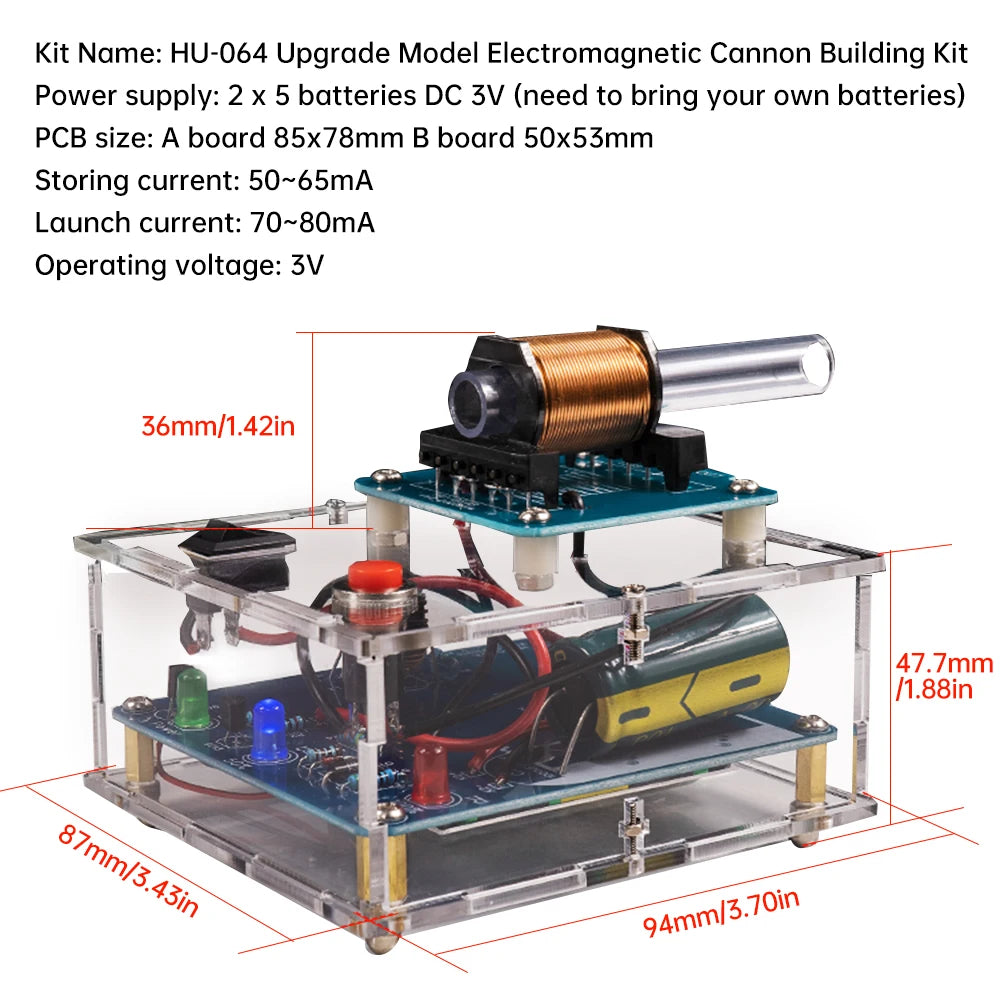

Product Specifications:

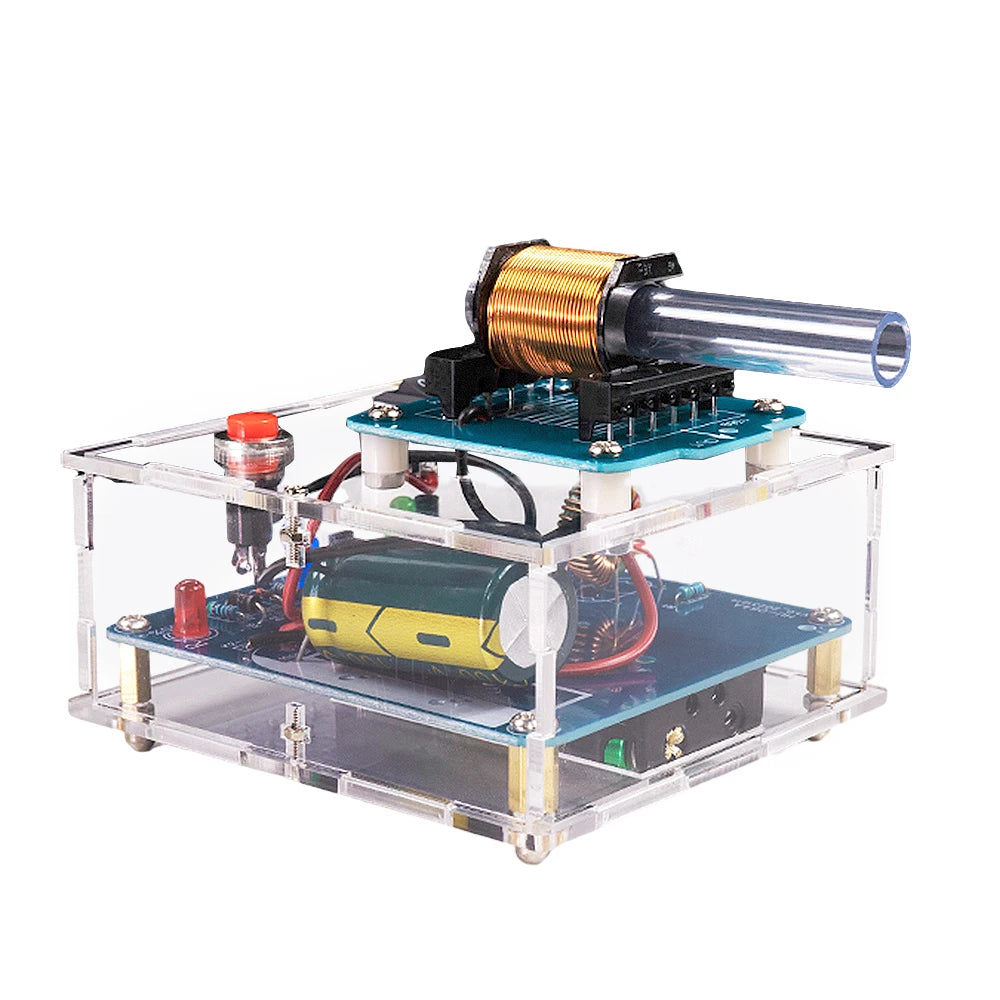

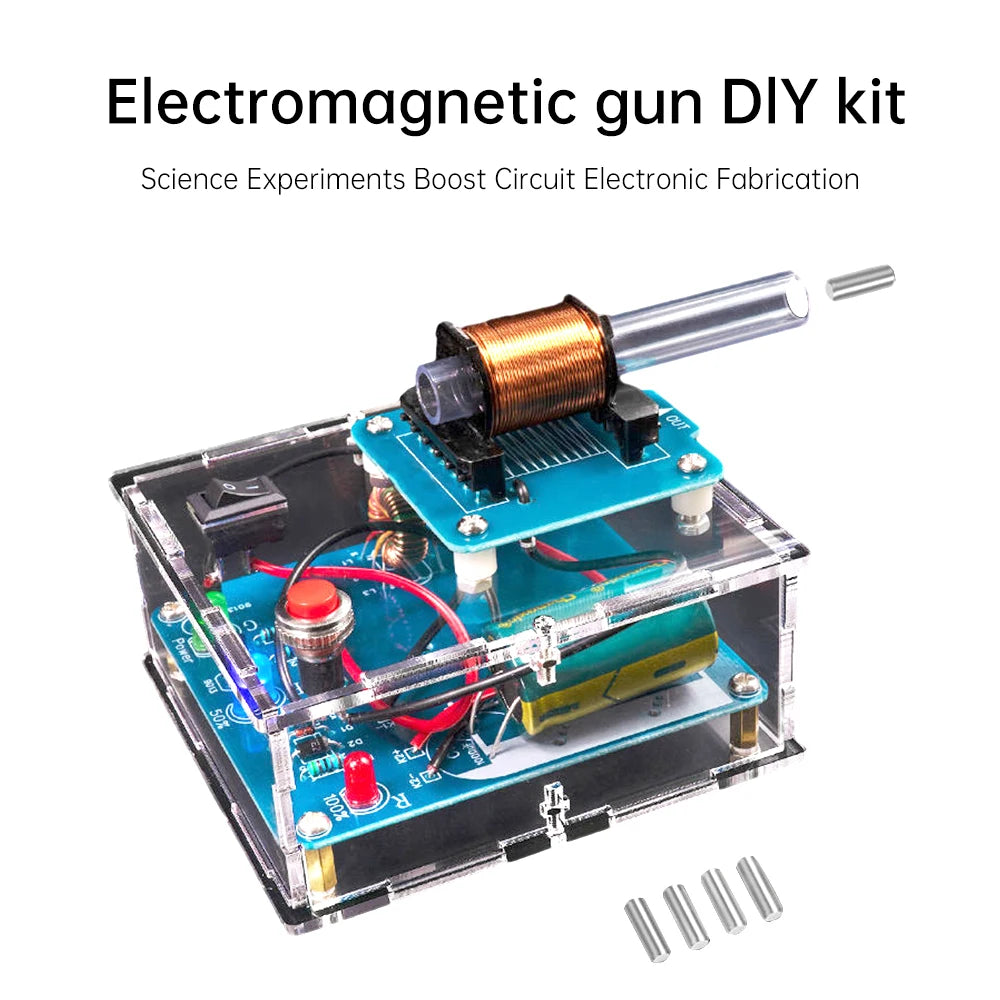

Kit Name: Electromagnetic Cannon Construction Kit

Operating Voltage: 3V

Power Supply: 2 AA batteries, DC 3V (batteries not included)

Charge Current: 50~65mA

Firing Current: 70~80mA

PCB Dimensions: Board A: 85x78mm; Board B: 50x53mm

Usage Instructions:

1. Turn on the power switch (Toggle Switch K1). The green LED will illuminate.

2. Wait approximately 10~30 seconds. The blue LED will illuminate, indicating the charge has reached about half capacity.

3. Insert the projectile into the rear of the barrel. Press the firing button (round button K2) to launch the projectile from the barrel.

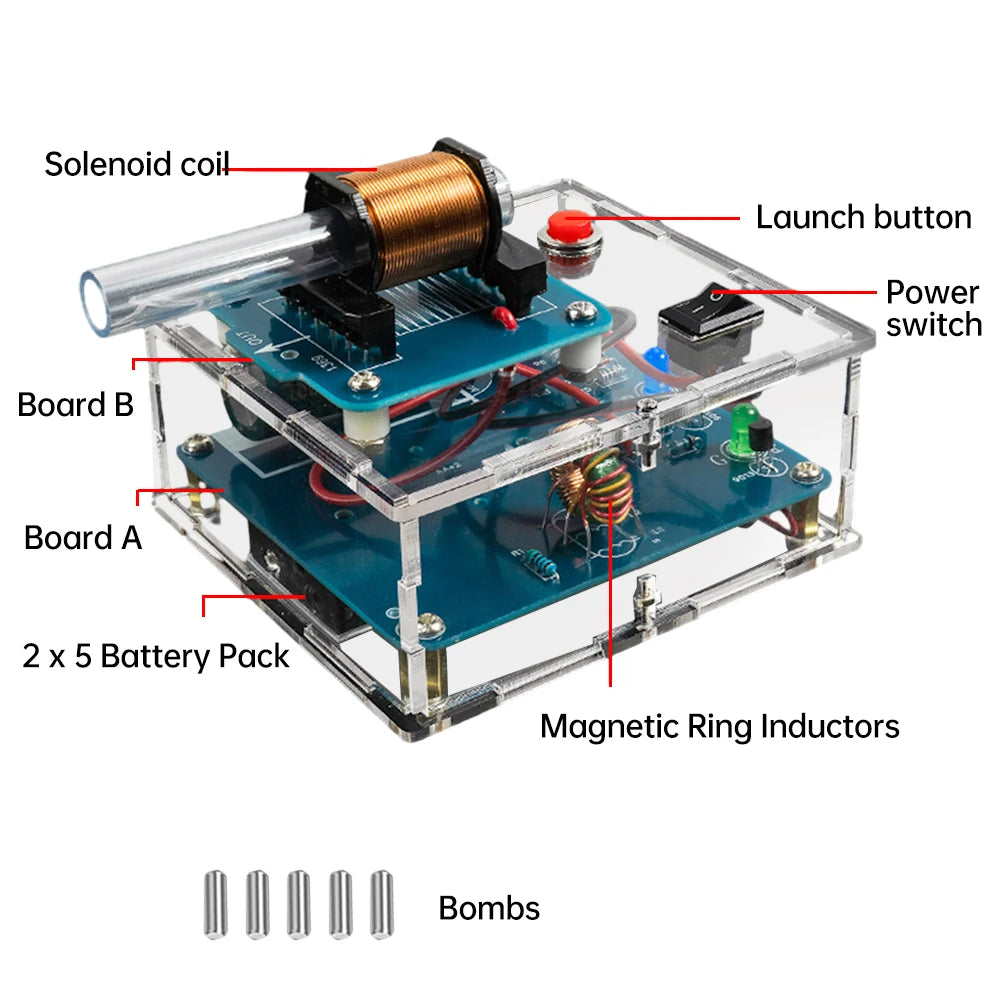

Key Electromagnetic Cannon Technologies:

Power System: Supplies high-voltage electricity to generate powerful electromagnetic forces. Common systems include capacitors or battery packs.

Electromagnetic Accelerator: Accelerates projectiles via electromagnetic coils and supports. When energized, the coil generates a potent magnetic field that acts upon the projectile, accelerating it.

Control System: Precisely manages the electromagnetic cannon's firing sequence, including trigger activation and velocity monitoring.

The red indicator illuminates when the electromagnetic cannon is fully charged. Due to extended charging times and gradual battery depletion, the red light may remain off. Firing is possible when the blue indicator illuminates.

HIGH VOLTAGE DANGER!!! Before installing capacitors or during soldering repairs, discharge capacitors first

(Use a plastic-insulated wire with exposed copper ends. Hold the plastic insulation and touch both copper ends to the capacitor terminals to discharge). Failure to discharge may cause short circuits and trigger hazards!

Requires self-assembly soldering! Soldering tools must be provided by the user. Detailed installation video tutorial included!

***Safety Warning***

Never aim at people or fragile objects during operation to prevent dangerous discharge!

This project operates under high voltage. Do not touch metal components when powered on!

Product List:

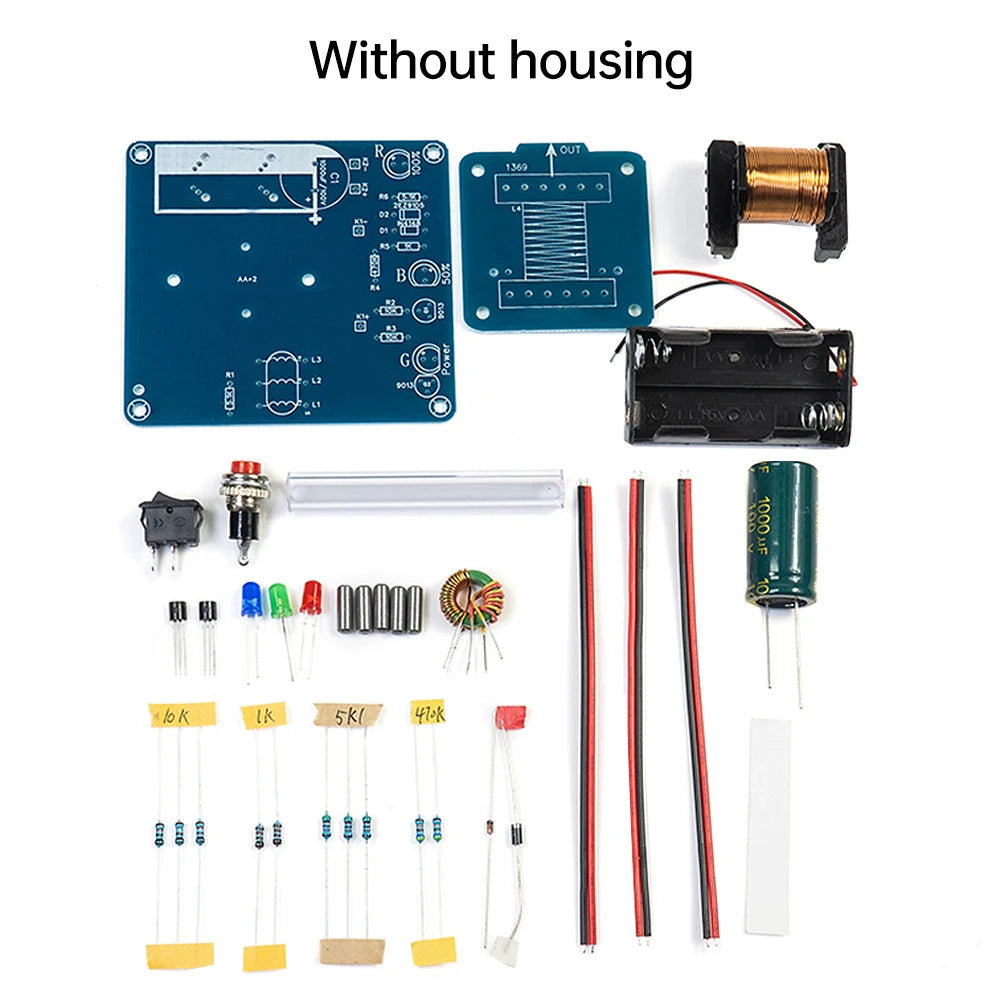

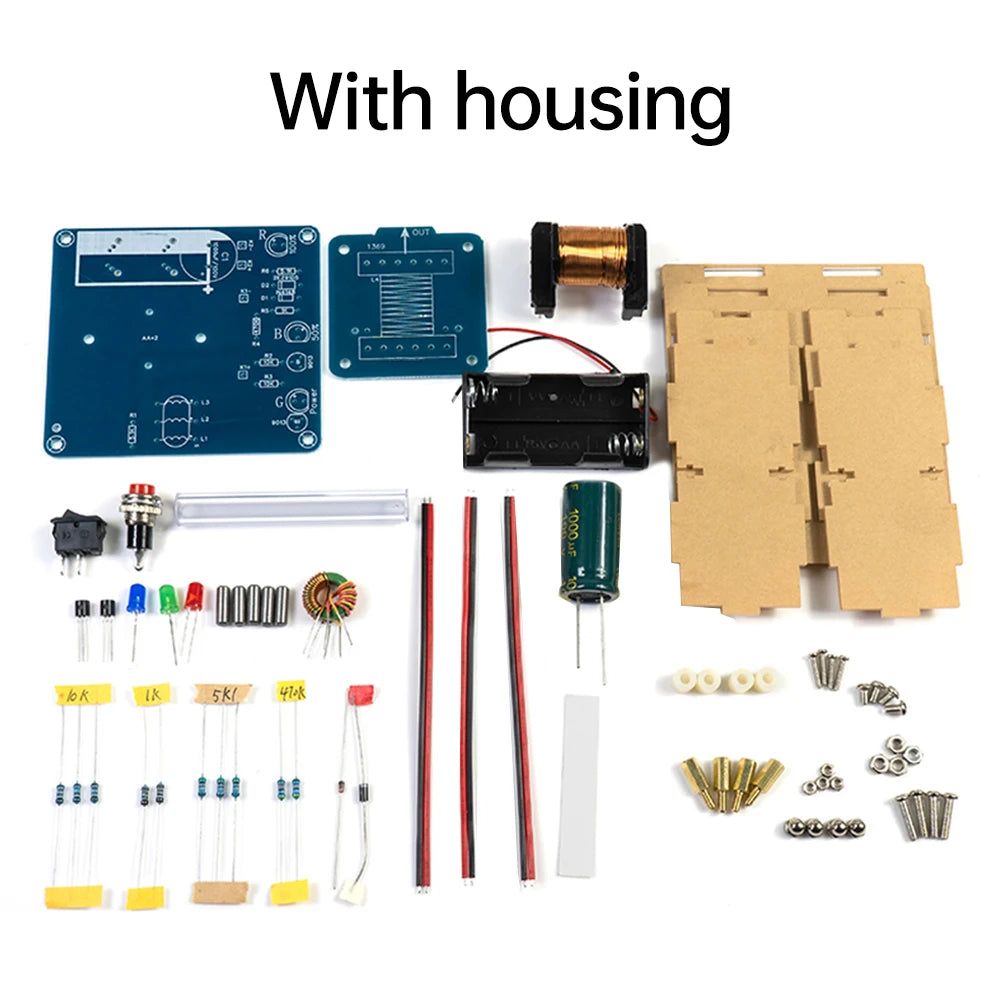

1*DIY Kit (without enclosure / with enclosure - selectable)

Options

• Color: With shell, Without shell
