DC5V Four Spray Second Generation Humidifier Colorful Ambient

Discover the DC5V Four Spray Second Generation Humidifier Colorful Ambient — a standout decor pick featuring premium, compact design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Condition: New

Type: Module

Description:

1. 100% brand-new premium product crafted from high-quality materials, compact size, and simple installation.

2. User-friendly operation with four spray heads delivering powerful mist output. Continuous misting upon power-on without a switch.

3. Upgraded Type-C interface ensures high versatility, substantial mist output, stable performance, and intuitive operation.

4. Efficient and stable performance—mists instantly upon power-on with extended operational lifespan.

5. Versatile applications: DIY projects, plant hydration, product use. Modular kits are ready to install, each set includes a bracket and cotton swabs for simple assembly.

Module Specifications:

Name: Quad-Spray Gen 2 with RGB Ambient Lighting

Rated Voltage: DC5V (Power Supply)

Atomization Frequency: 108KHZ±2KHZ

Rated Current: 300MA

Material: 1.2mm FR-4

Power: 2.5-3W

Module Dimensions: 57*19mm

Cap Holder Dimensions: 25*38mm

Cap Holder Cotton Swab Dimensions: 8*100mm

4A Bracket Dimensions: 80mm*80mm*130mm

4B Bracket Dimensions: 160mm*40mm*130mm

4A/4B Bracket Cotton Swab 1: 7*121MM

Atomizer Plate Parameters:

Name: Microporous Atomizer Plate

Silicone Sleeve Outer Diameter: 20MM

Drive Voltage: 5V

Rubber Ring Thickness: 3MM

Resonance Frequency: 108-110KHZ±5

Steel Plate Diameter: 16MM

Rated Power: 2W

Wire Length: 250MM

Pore Size: 4-5μm

Wire Terminal: PH2.0

Number of Holes: 800

Operating Modes:

I. Continuous Four-Spray Mode:

1. Press S1 switch once

2. Four nozzles activate in continuous spray mode; two LEDs remain lit

3. Auto-shutdown protection after 4 hours of spraying

II. Continuous Four-Spray Mode:

1. Press S1 switch a second time

2. Shuts down

III. Dynamic Spray Mode (Power on with S1 first):

1. Press S2 switch once

2. First press: Dynamic spray

3. No. 2 nozzle sprays for 3 seconds starting at second 2

4. No. 3 nozzle sprays for 3 seconds starting at second 3

5. No. 4 nozzle sprays for 3 seconds starting at second 4

IV. Sequential Spray Mode:

1. Press S2 switch a second time

2. Nozzle 1 sprays, corresponding light illuminates

3. Press S2 switch a third time

4. Nozzles 1 and 2 spray, corresponding lights illuminate

5. Press S2 switch a fourth time

6. Nozzles 1, 2, and 3 spray, corresponding lights illuminate

7. Press S2 switch a fifth time

8. Nozzles 1, 2, 3, and 4 spray, corresponding lights illuminate

V. Power Off: Press S1

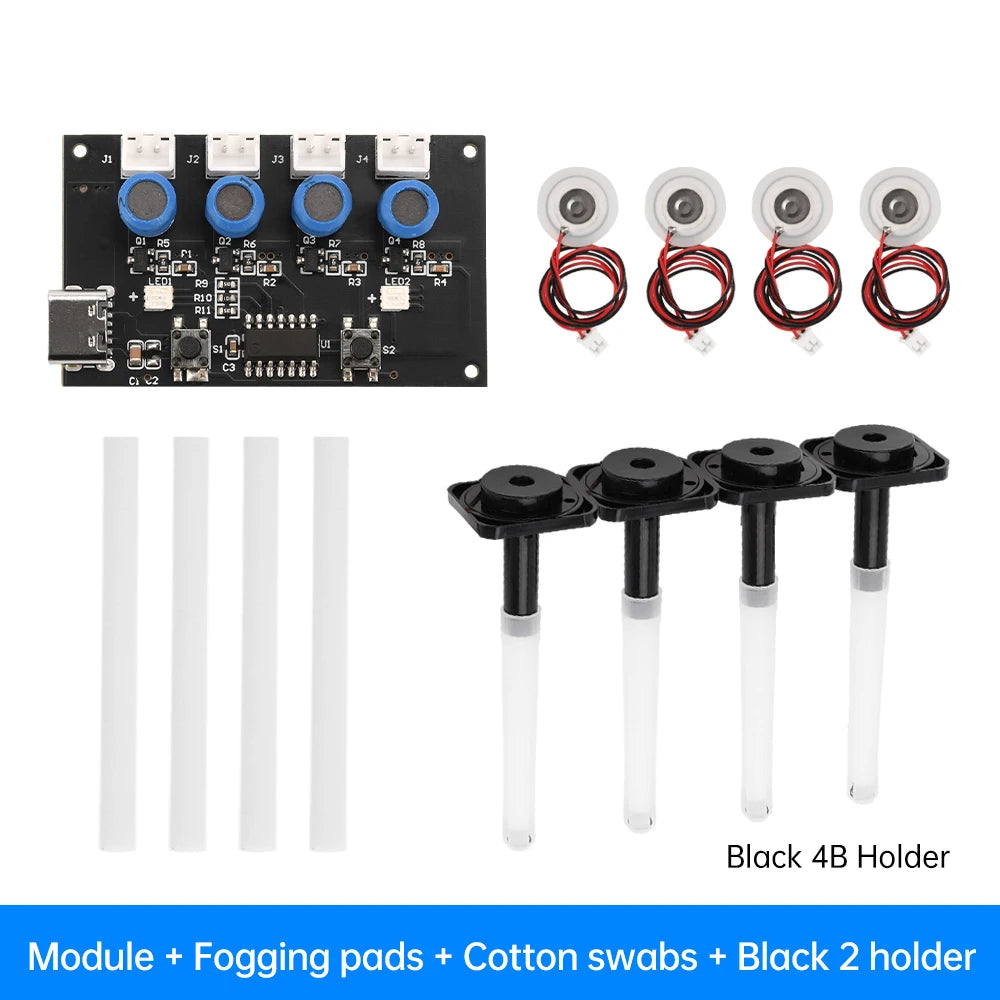

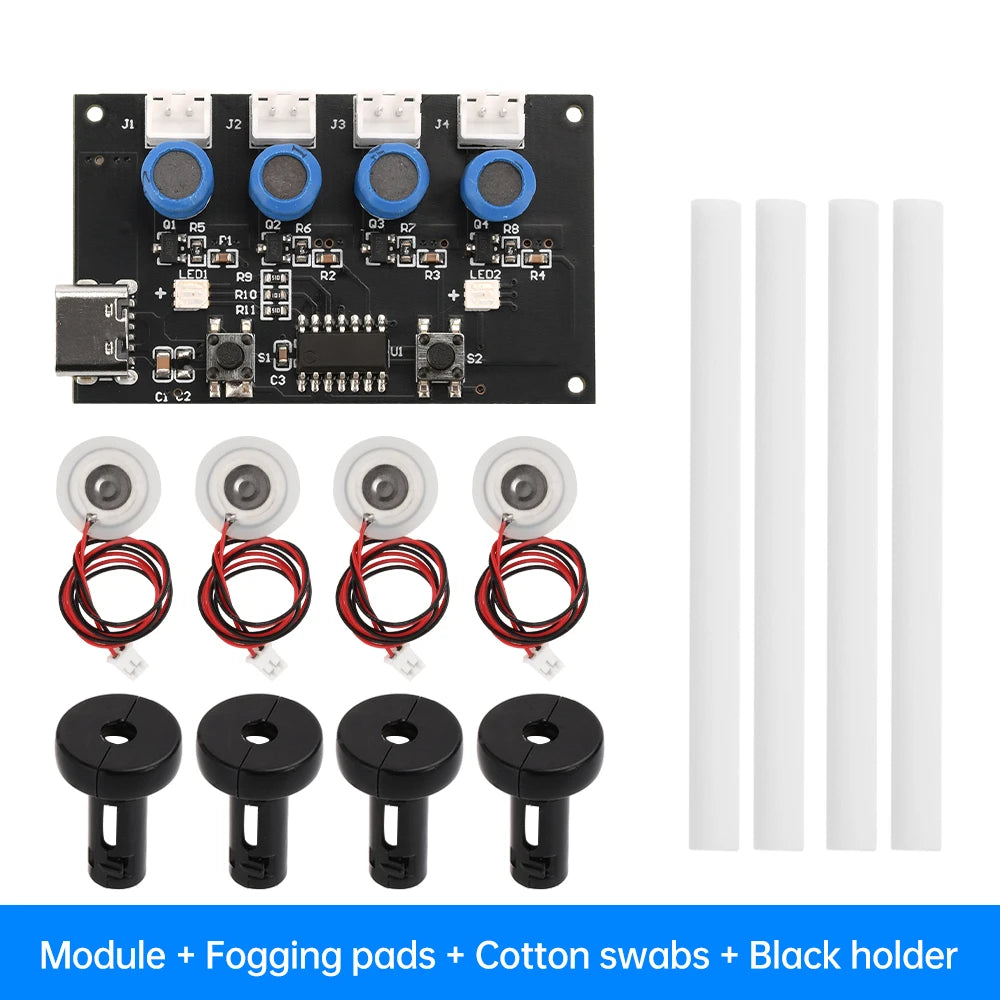

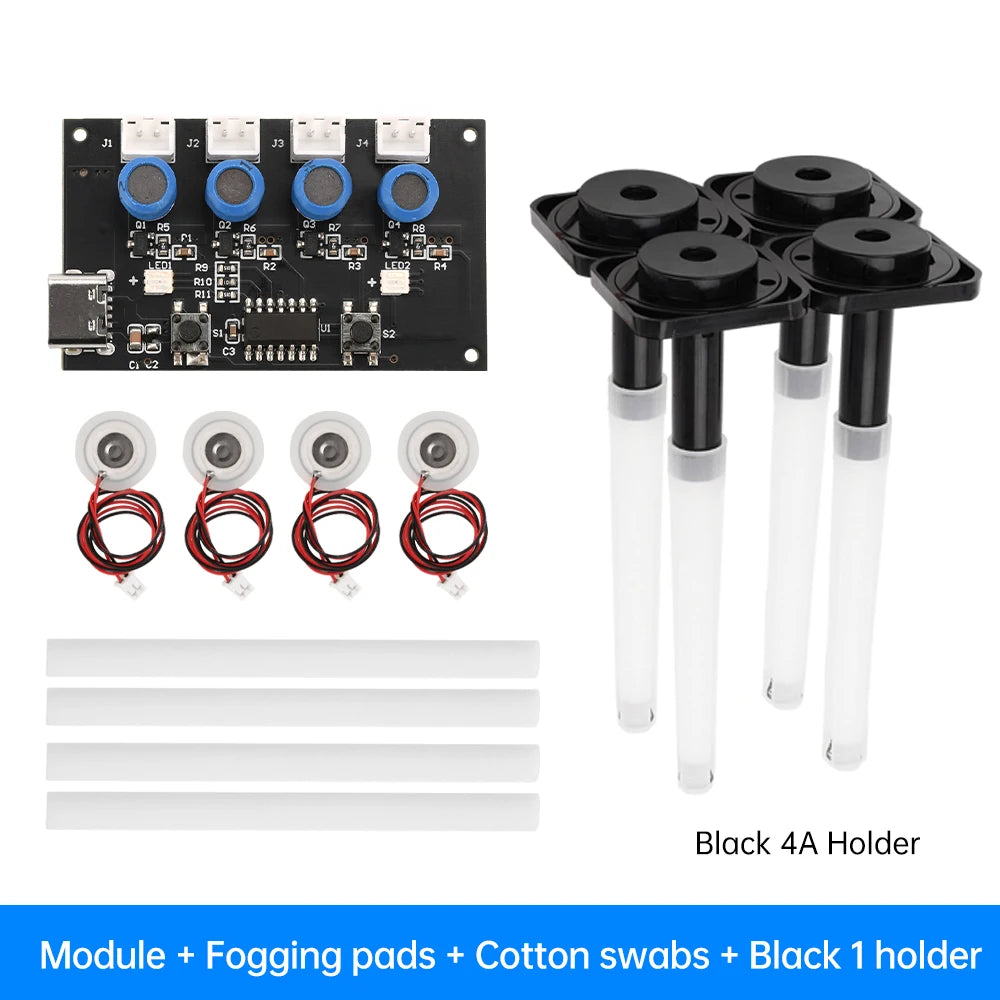

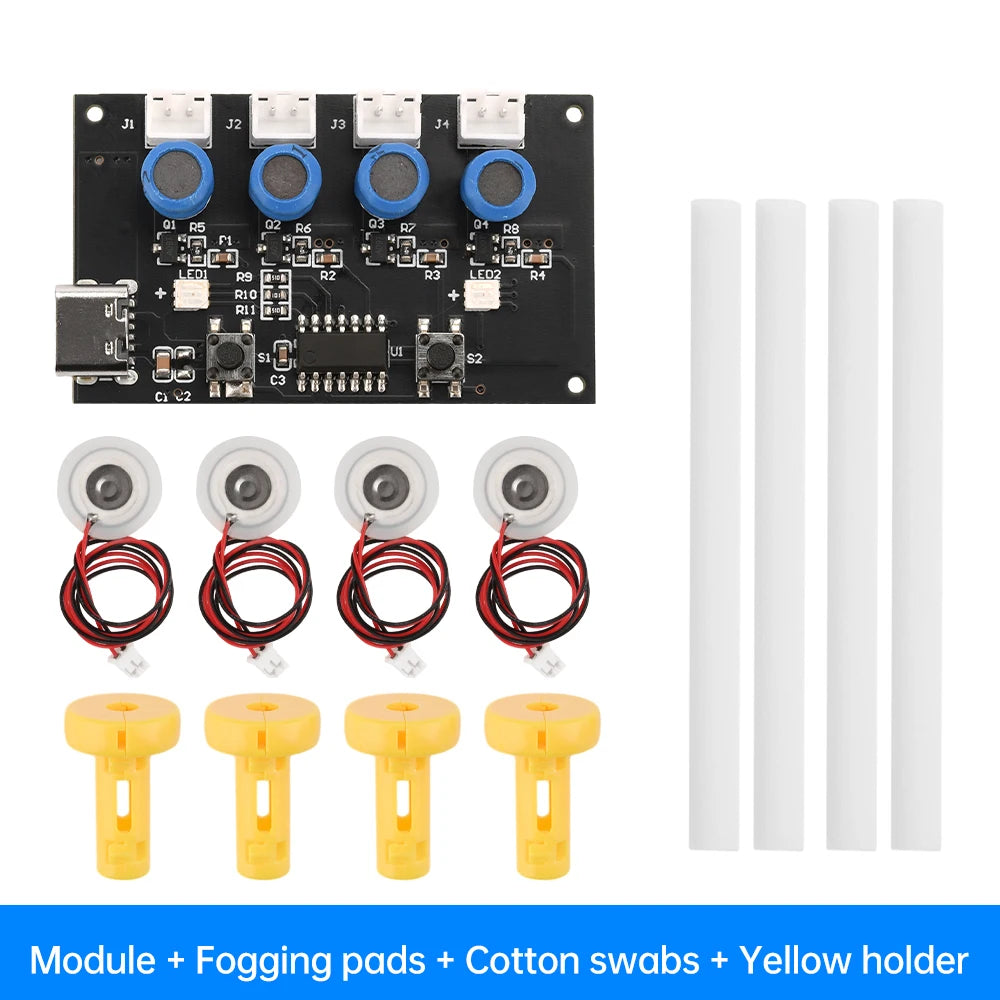

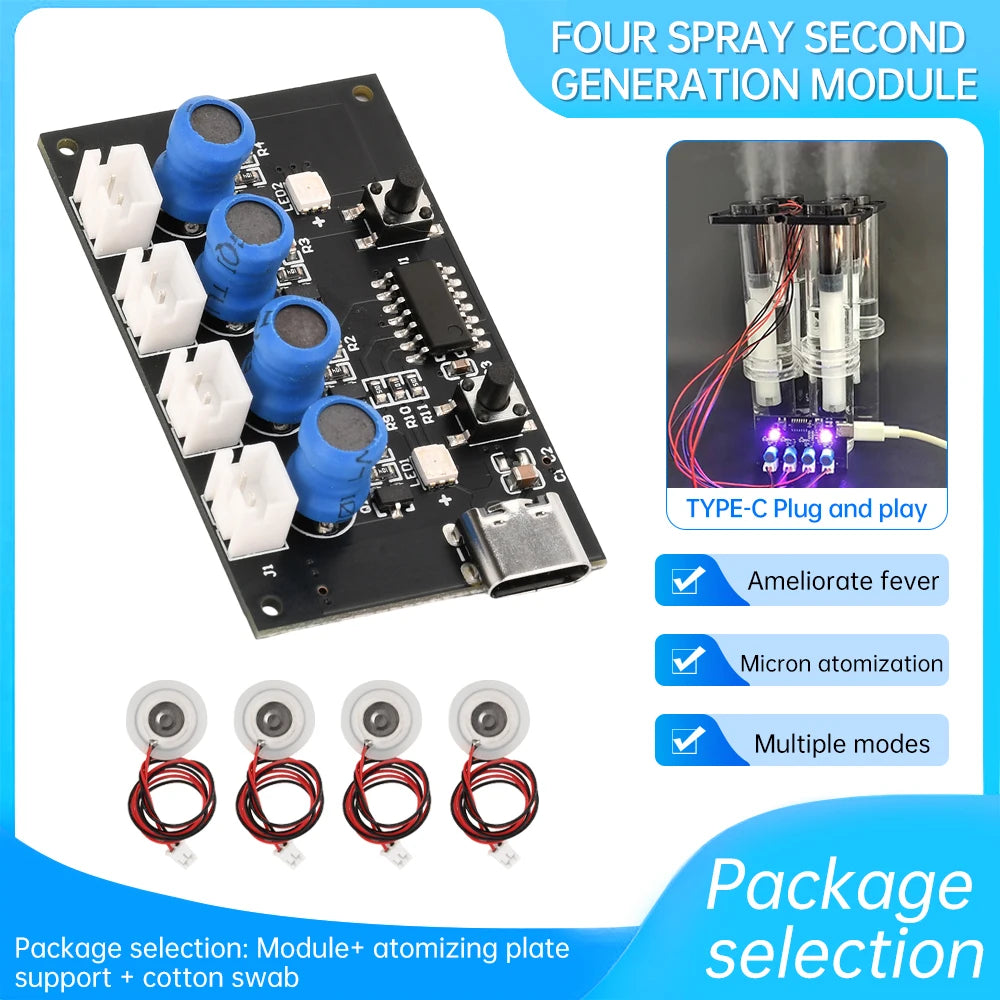

Product List:

1x Module

4x Atomizer Plates

4x Cotton Swabs

4x Brackets (Shipped as separate parts; assembly required)

Options

• Color: Type C, Type D, Type A, Type B

Frequently Asked Questions

Q: What is the DC5V Four Spray Second Generation Humidifier Colorful?

A: The DC5V Four Spray Second Generation Humidifier Colorful is a quality decor pick. 100% brand-new premium product crafted from high-quality materials, compact size, and simple installation.

Q: What is the DC5V Four Spray Second Generation Humidifier Colorful made of?

A: The DC5V Four Spray Second Generation Humidifier Colorful is made from 1.2mm FR-4 Power, measuring 57.

Q: Why choose the DC5V Four Spray Second Generation Humidifier Colorful?

A: The DC5V Four Spray Second Generation Humidifier Colorful stands out in our decor range — User-friendly operation with four spray heads delivering powerful mist output.
