DC5V Single Spray Non-switched Atomization Humidification Module DIY

Discover the DC5V Single Spray Non-switched Atomization Humidification Module DIY, a standout electronics accessories pick designed for dependable everyday performance and lasting value.

Specifications

Electric: No

Type: Humidifier Parts

Features:

1. Constructed with 1.2mm FR-4 material, featuring a well-designed circuit board for extended service life.

2. Upgraded Type-C interface offers high versatility, substantial mist output, stable performance, and intuitive operation.

3. User-friendly design with no switch required—simply power on for instant misting, ideal for devices that activate upon powering up.

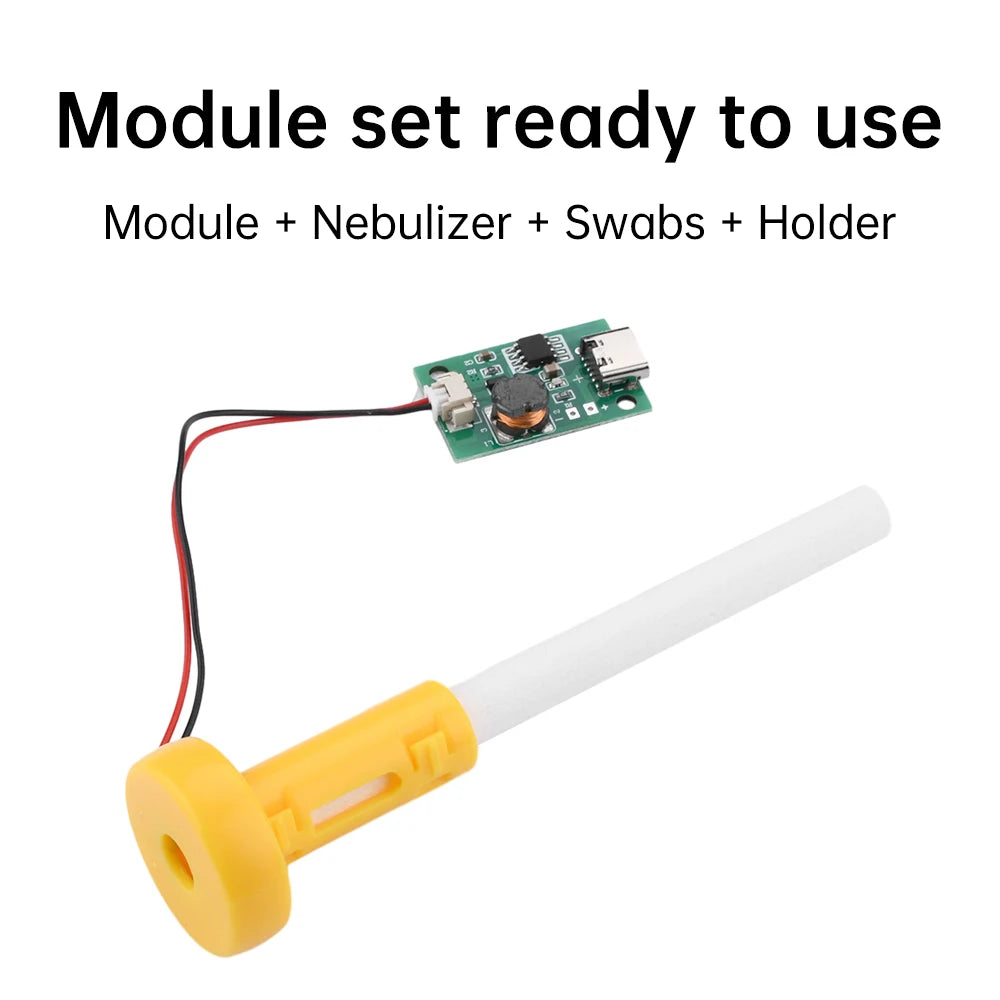

4. Plug-and-play module kit includes mounting bracket and cotton wick for simple assembly.

5. Micron atomization transforms water into fine water molecules through micro-pores, dispersing them into the air.

Product Specifications:

Name: Switchless Single-Spray Humidification Module

Material: 1.2MM FR-4

Rated Voltage: DC5V (Power Supply)

Rated Current: 300mA

Power: 1.5-2W

Atomization Frequency: 108KHZ±2KHZ

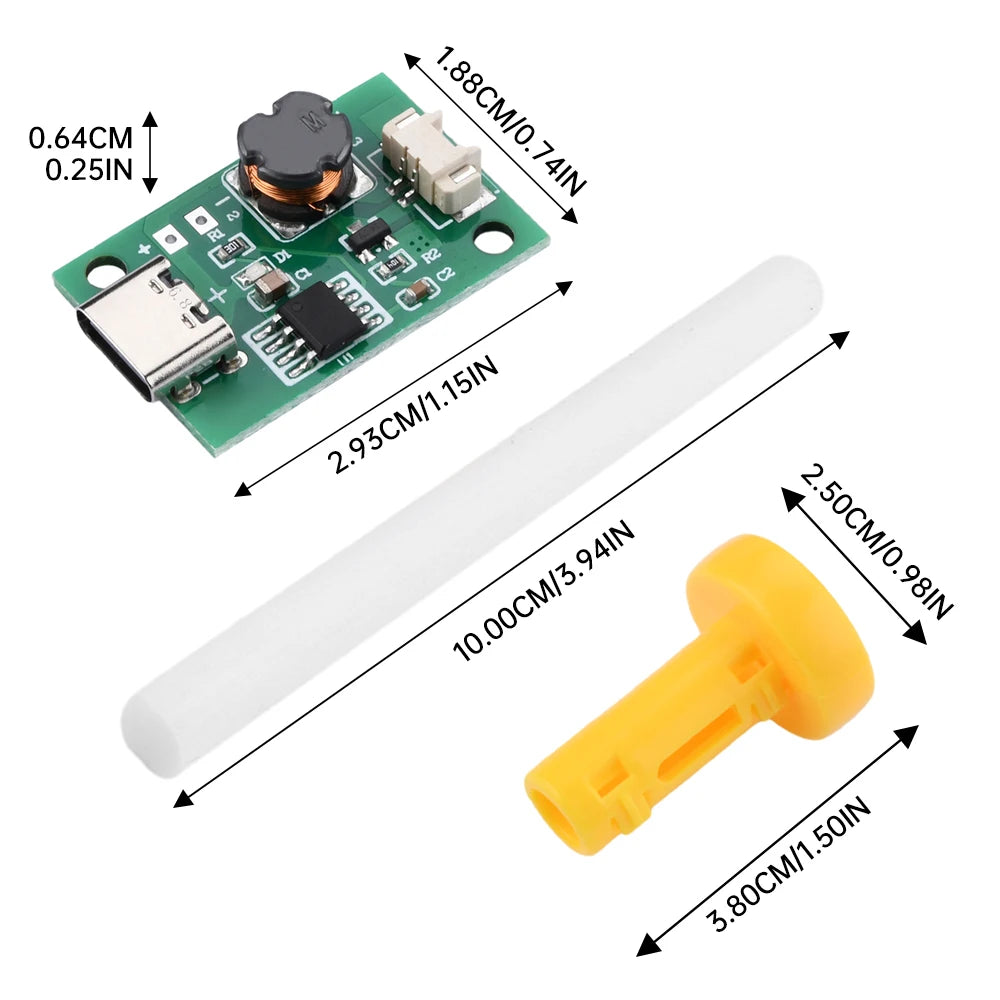

Module Dimensions: 28*18.6MM

Bracket Dimensions: 25*38MM

Cotton Swab Dimensions: 8*100MM

Atomization Disc Parameters:

Name: Micro-Pore Atomization Disc

Drive Voltage: 5V

Resonance Frequency: 108-110kHz ±5

Rated Power: 2W

Number of Holes: 1100

Pore Size: 4-5μm

Silicone Sleeve Outer Diameter: 20mm

Rubber Ring Thickness: 3mm

Steel Disc Diameter: 16mm

Wire Length: 100mm

Wire Terminal: PH2.0

Spray Module:

1. Continuous Spray Mode: No switch required. Activates upon powering on. Input DC5V power to initiate immediate spraying. LED remains constantly lit. Operates continuously in spray mode.

2. Power Off: Disconnect power input to shut down.

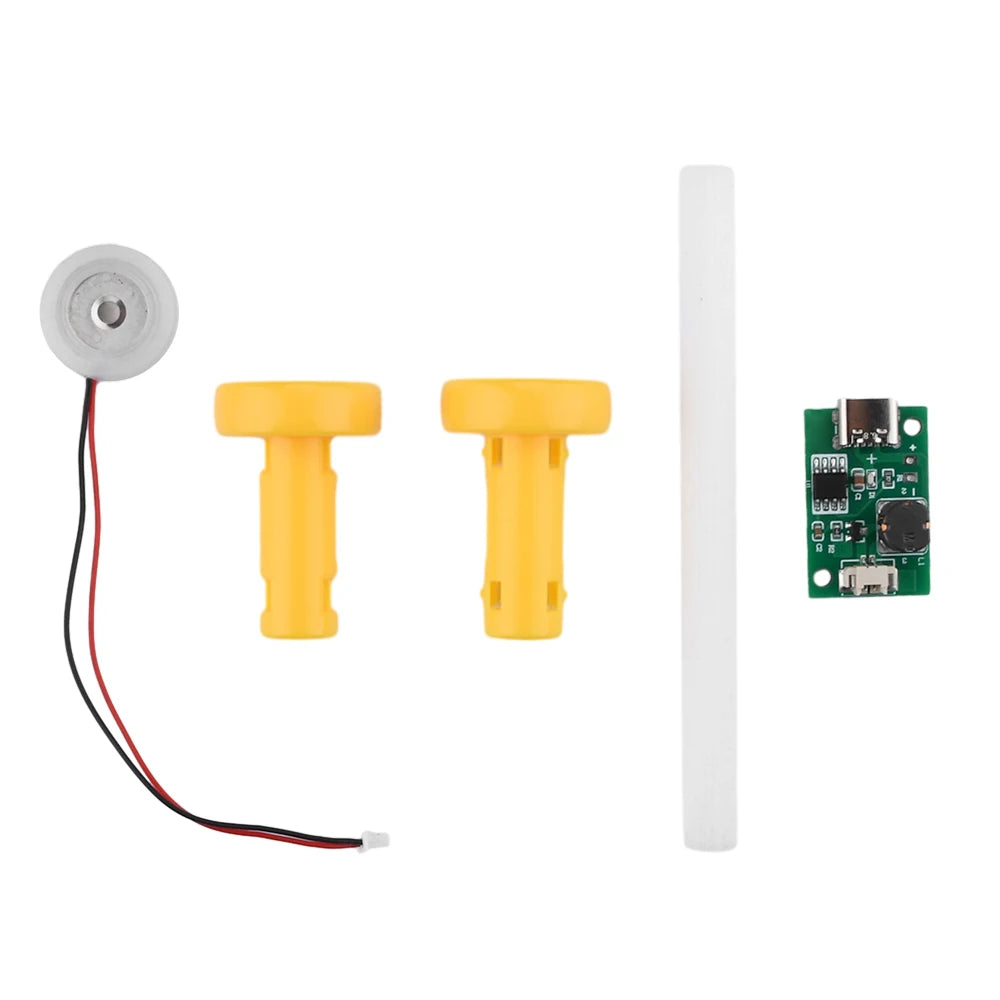

Product List:

1x Module

1x Cotton Swab

1x Mounting Bracket

1x Atomization Plate
