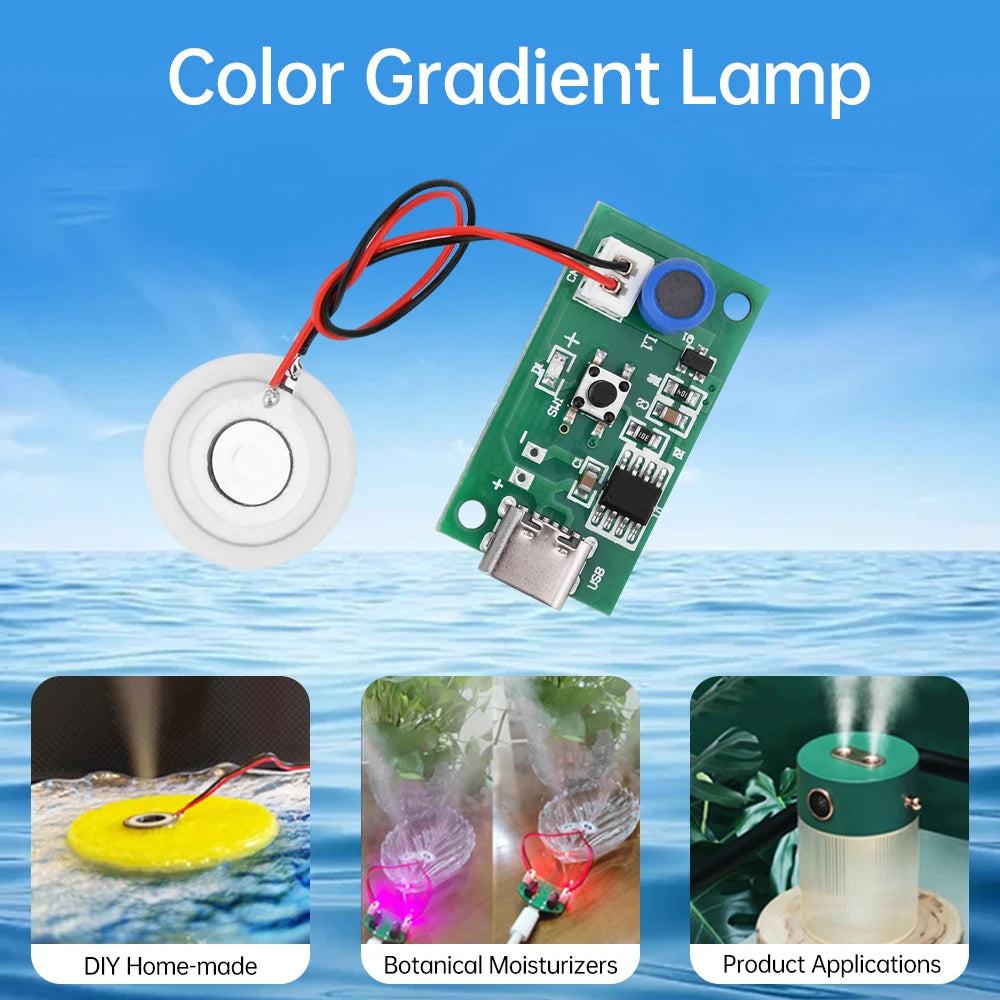

DC5V USB Mini Humidifier Mist Driver Circuit Board Fogger Atomization

Discover the DC5V USB Mini Humidifier Mist Driver Circuit Board Fogger Atomization — a standout electronics accessories pick featuring stainless steel design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Condition: New

Type: Module

Features:

1. Constructed with FR-4 epoxy board material and original factory electronic components, featuring a well-designed circuit board for extended service life.

2. Upgraded to a Type-C interface for enhanced versatility, high mist output, stable performance, and user-friendly operation.

3. Supports both continuous and intermittent mist modes, switchable at will to accommodate diverse functional needs.

4. Chip incorporates automatic timer shutdown. After 4 hours of continuous operation, it automatically powers off for protection. Simply press the power button again to restart.

5. Micron atomization: Water is atomized through micro-pores into fine 4-6 micron water molecules that disperse into the air.

Product Specifications

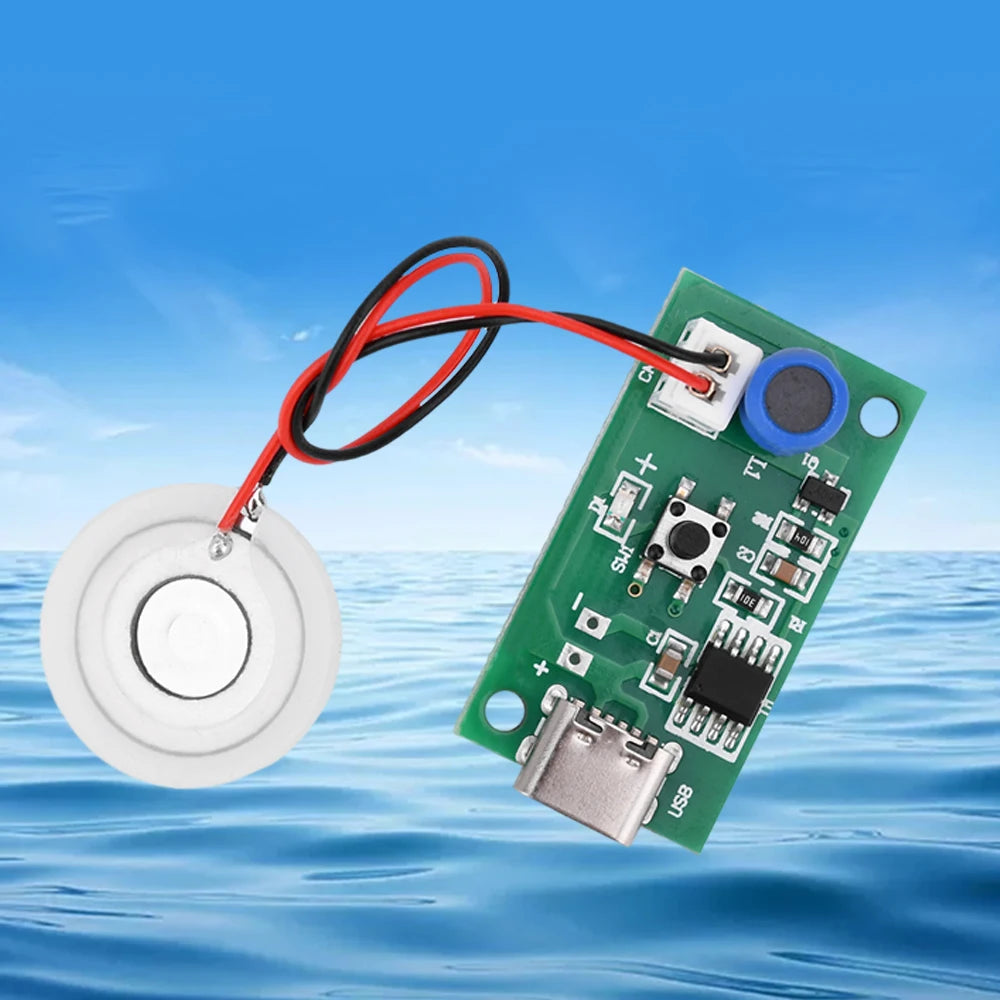

Driver Circuit Board:

Material: 1.2mm FR-4

Rated Voltage: DC 5V

Rated Current: 300mA

Power: 1.5-2W

Resonance Frequency: 108-110KHz

Ambient Lighting: Monochrome LED

Orifice Diameter: 2.3mm

Dimensions: 35×19×12mm (may vary slightly)

Micro-hole Atomization Disc:

Material: Piezoelectric ceramic ring + 304 stainless steel disc

Terminal: PH2.0

Steel disc diameter: 16mm

Silicone ring outer diameter: 20mm, thickness 3.5mm

Wire length: 10mm

Voltage: DC 5V

Current: 300mA

Power: 2W

Resonance frequency: 108-110KHz

Pore Count: 1100 pores

Pore Size: 5μm

Bracket Dimensions: 25mm × 38mm (may have slight variations)

Cotton Swab Dimensions: 8mm × 100mm (may have slight variations)

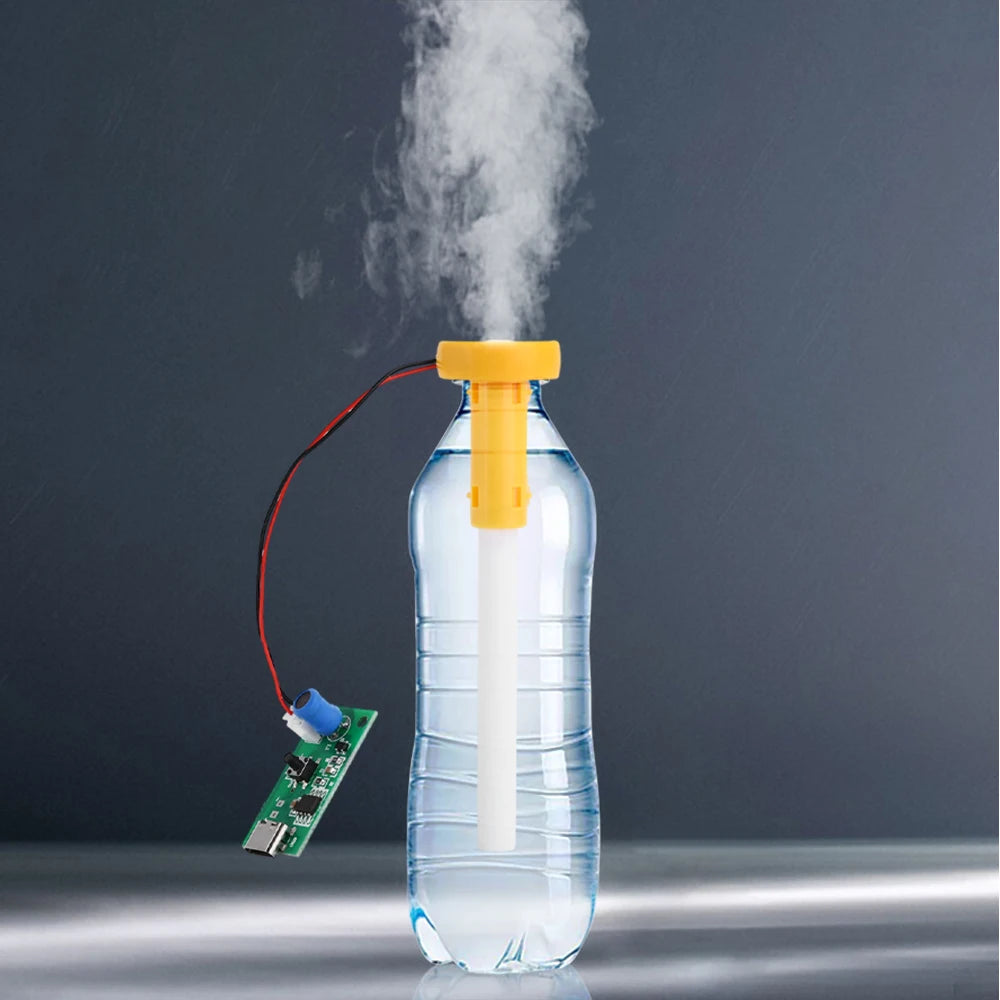

Product Description:

The micro-hole atomization plate features a special glaze protective coating on the ceramic surface, providing acid and alkali resistance to prevent corrosion of the silver layer by liquids.

The micro-hole atomization disc consists of a piezoelectric ceramic ring and a metal steel plate. When driven by PWM (Pulse Width Modulation) signals from the circuit board, the piezoelectric ceramic generates high-frequency resonance at hundreds of thousands of times per second, causing the metal plate to vibrate. Water is sprayed through thousands of micro-holes in the metal steel plate, forming 4-6 micron water molecules. This breaks down the structure of liquid water molecules to produce water mist.

Spray Modes:

1. Continuous Spray Mode: Press the switch once. The LED stays on, indicating continuous spray mode. The device sprays continuously and automatically shuts off after 4 hours for protection.

2. Intermittent Spray Mode: Press the switch a second time. The LED flashes, indicating intermittent spray mode. The device sprays for 10 seconds, pauses for 5 seconds, and repeats this cycle. It automatically shuts off after 12 hours for protection.

3. Power Off: Press the switch a third time to turn off the device.

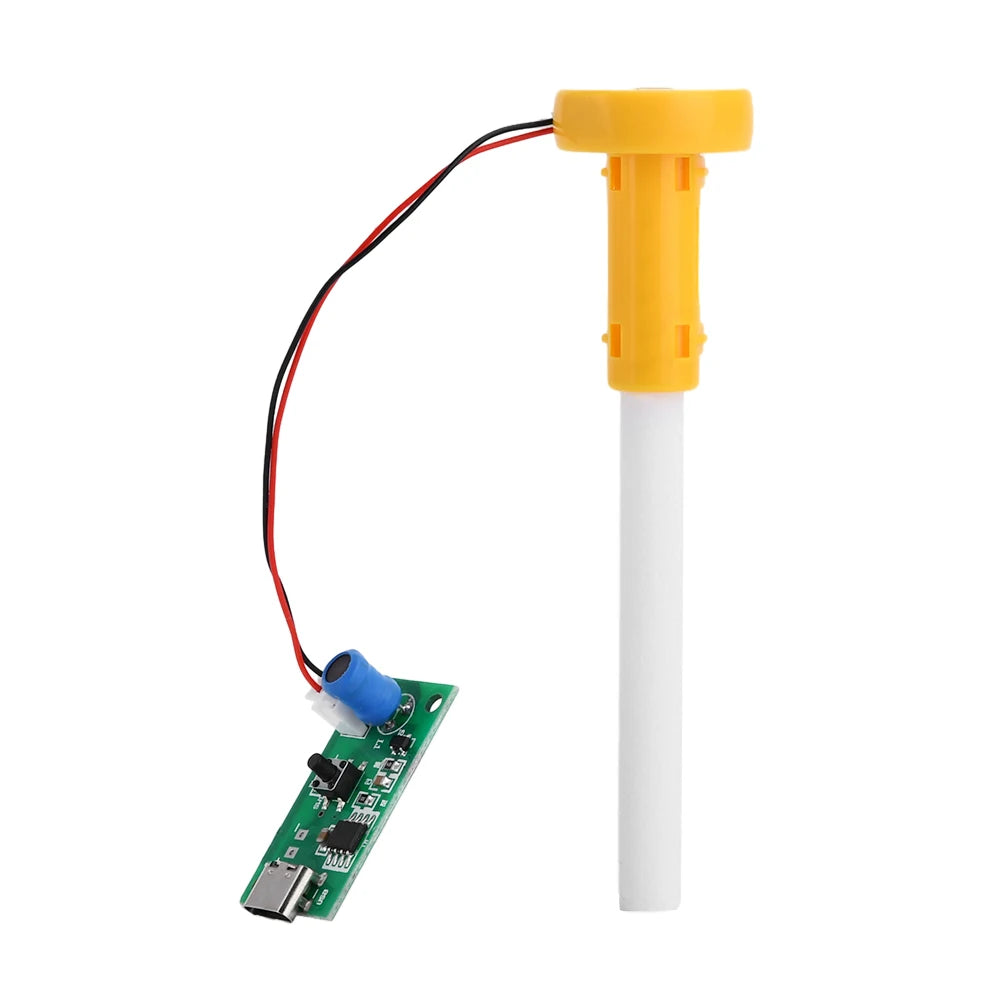

Product List:

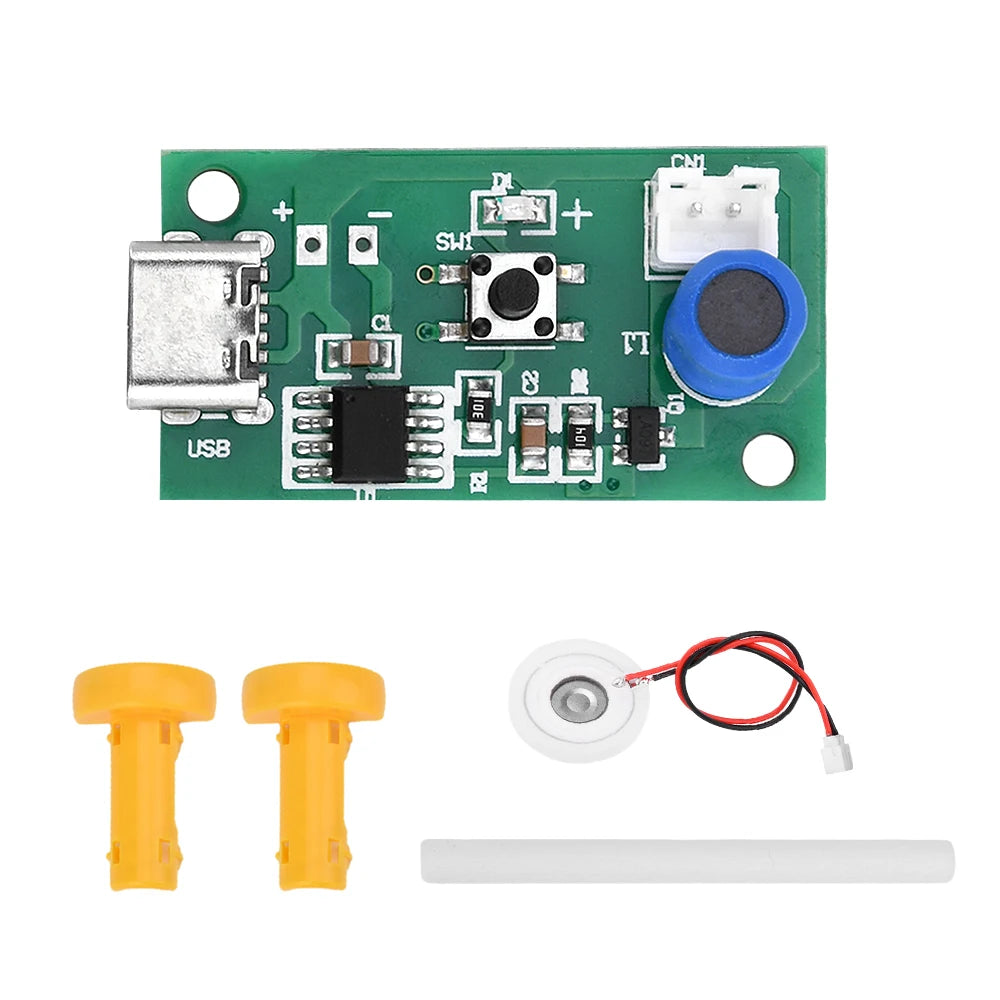

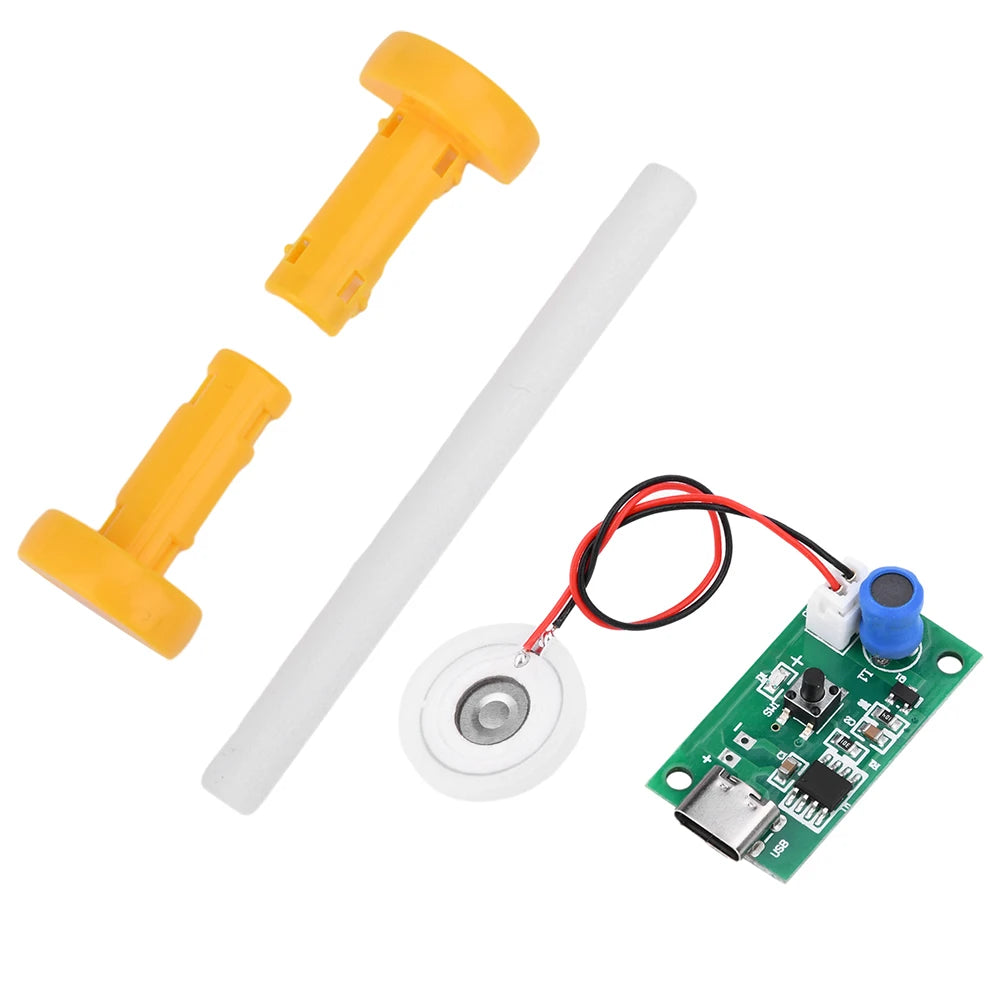

Circuit Board x1

Atomization Plate x1

Support Frame x1

Water-Absorbing Cotton Core x1

Important Notes:

1. Do not modify the circuit board.

2. Do not overload the power supply.

3. Keep the circuit board dry and away from moisture.

4. Must be used with a compatible atomization plate.

5. Component batch variations may cause color differences; do not purchase if this is a concern.
