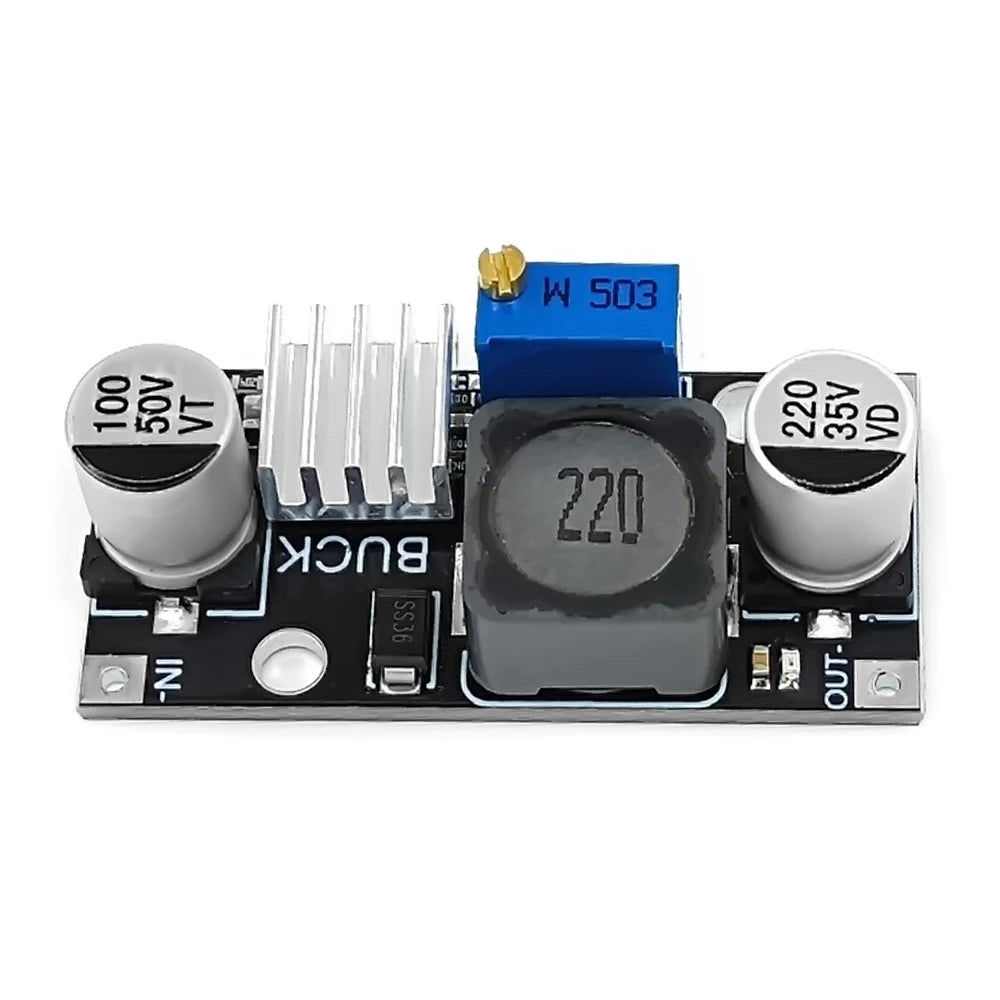

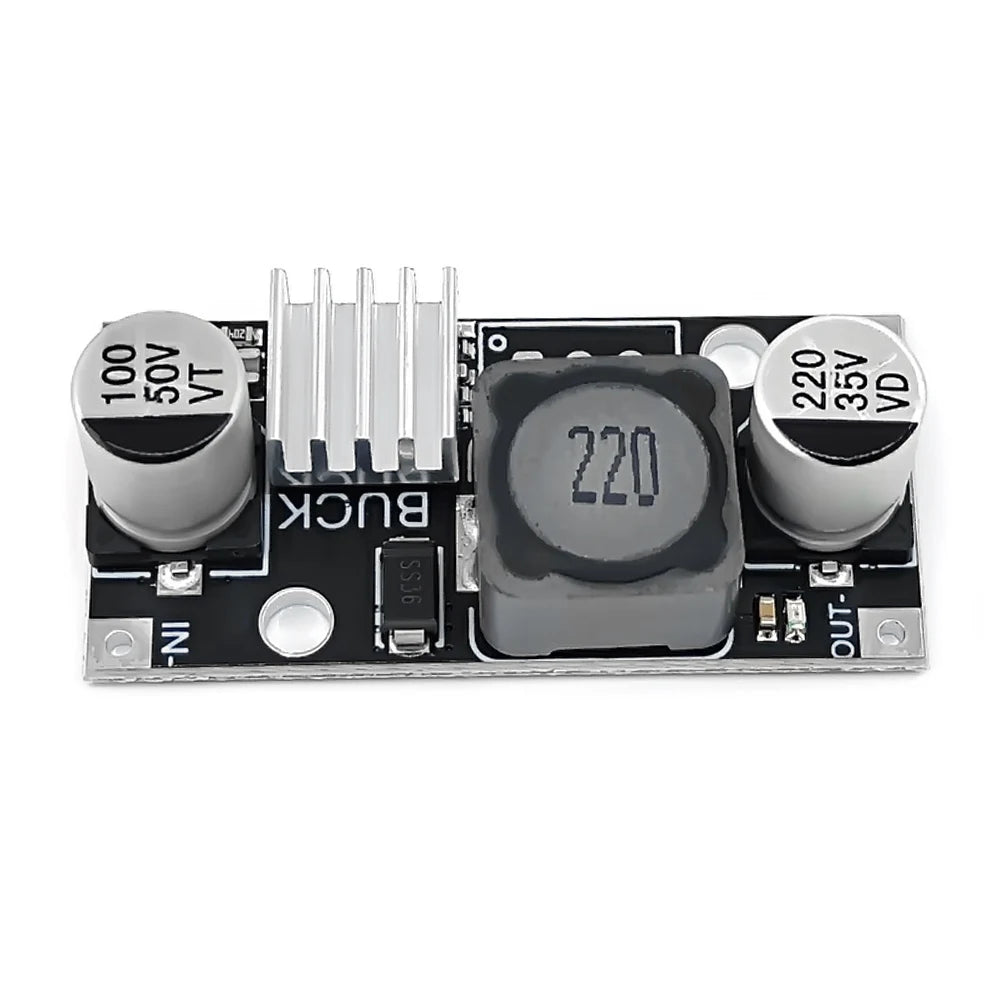

DC6-40V 3 3V 5V 9V 12V 24V DC-DC Buck Converter Adjustable Step Down

Discover the DC6-40V 3 3V 5V 9V 12V 24V DC-DC Buck Converter Adjustable Step Down — a standout decor pick featuring adjustable, premium, compact design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Condition: New

Type: Module

Features:

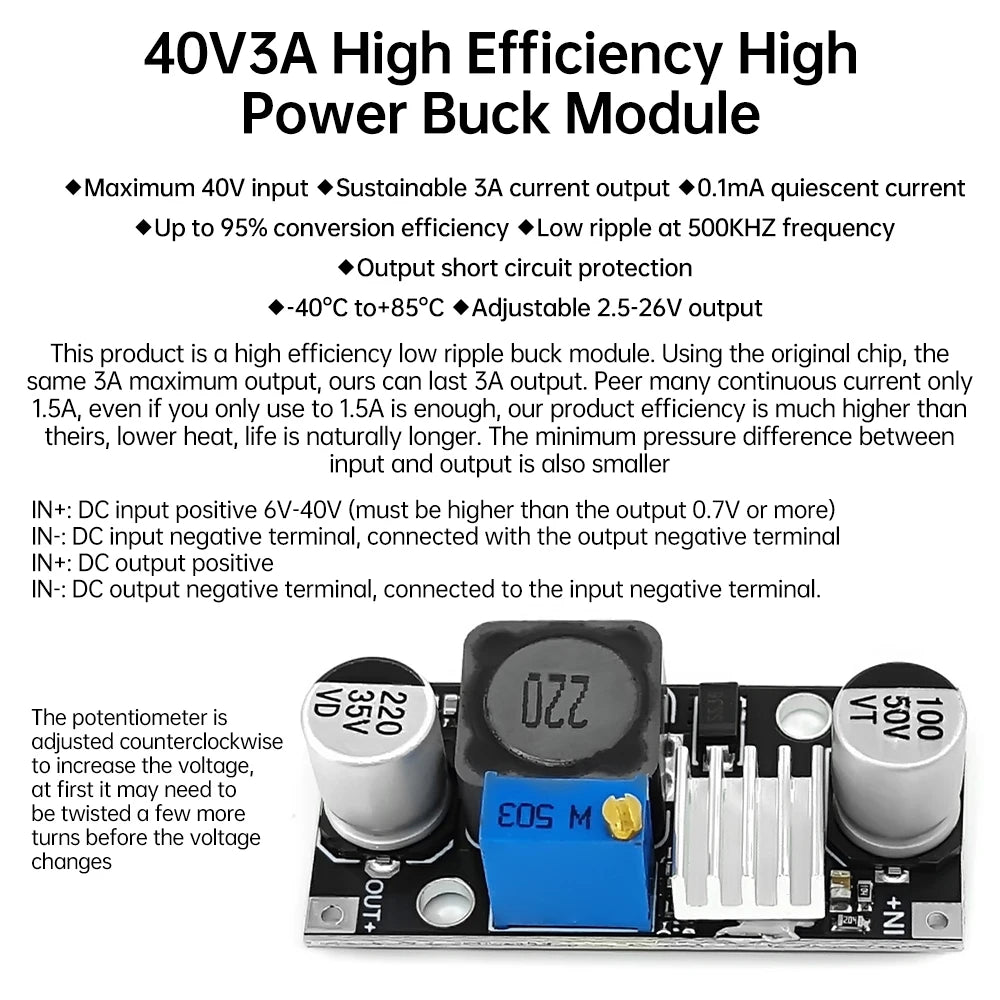

1. This product is a high-efficiency, low-ripple step-down module utilizing genuine chips, supporting a maximum output of 3A with sustained 3A output capability.

2. High efficiency enables smaller form factors, lower heat generation, and sustained higher current output.

3. The module employs low-resistance MOSFETs for superior performance and reduced voltage drop. Filtered by a 500kHz low-ripple ceramic capacitor and electrolytic capacitor, it delivers exceptionally low output ripple.

4. Meticulous attention to product design, component selection, and PCB manufacturing enables this compact module to deliver impressive specifications and functionality.

5. Achieves high conversion efficiency up to 95%, supporting continuous 3A output or sustained 60W power delivery.

Product Specifications:

Input Voltage: 6V-40V (Max 40V)

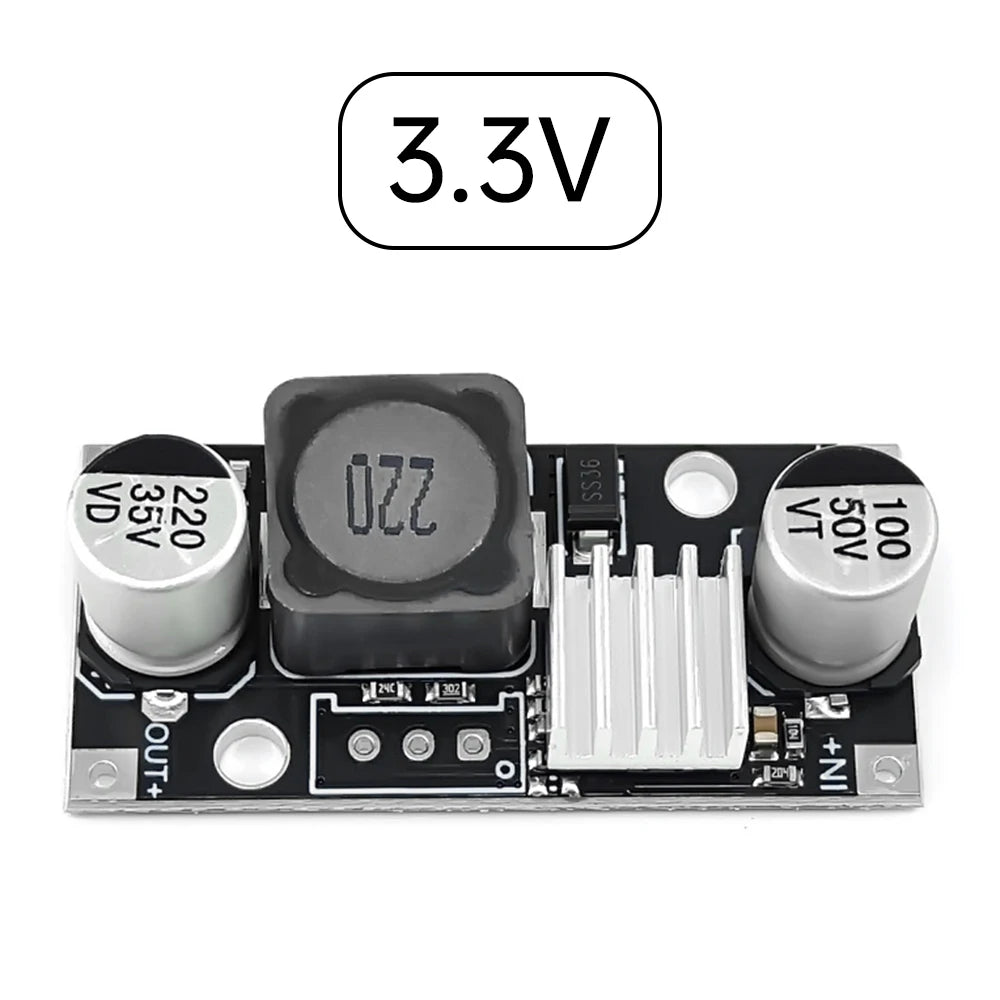

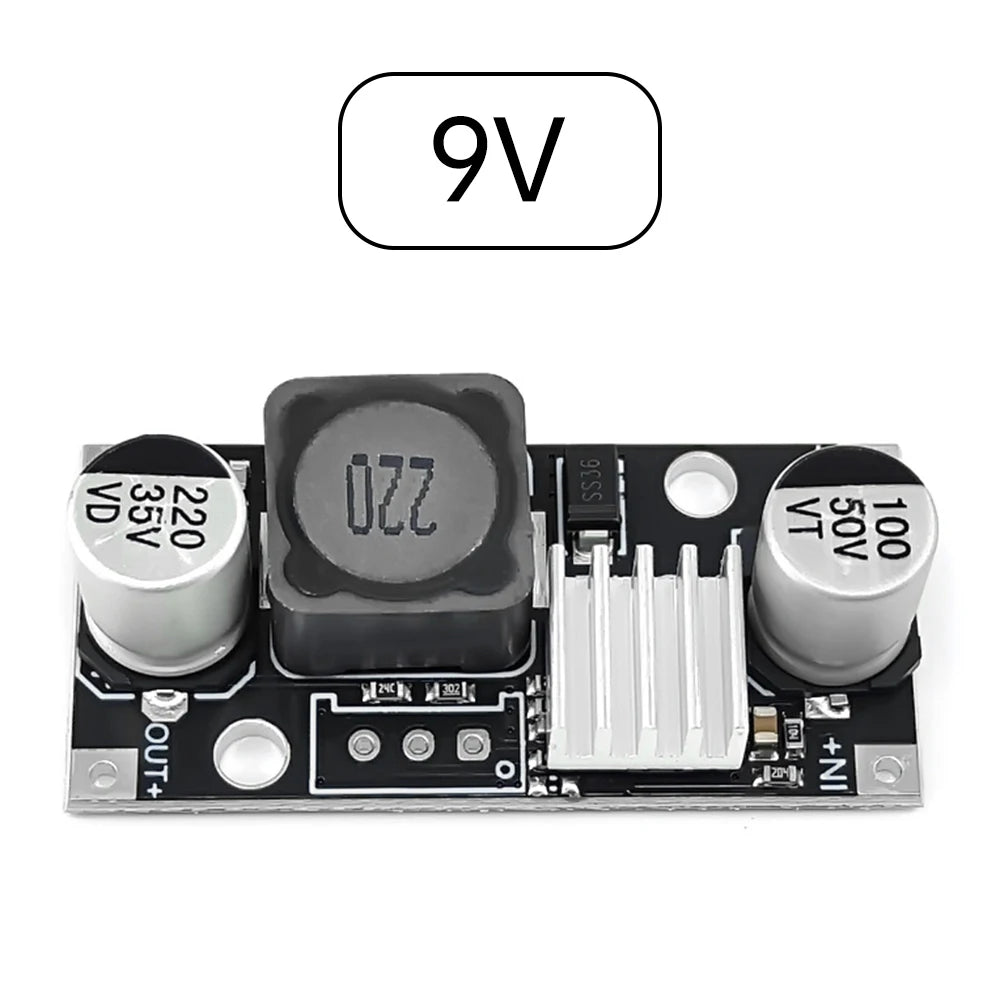

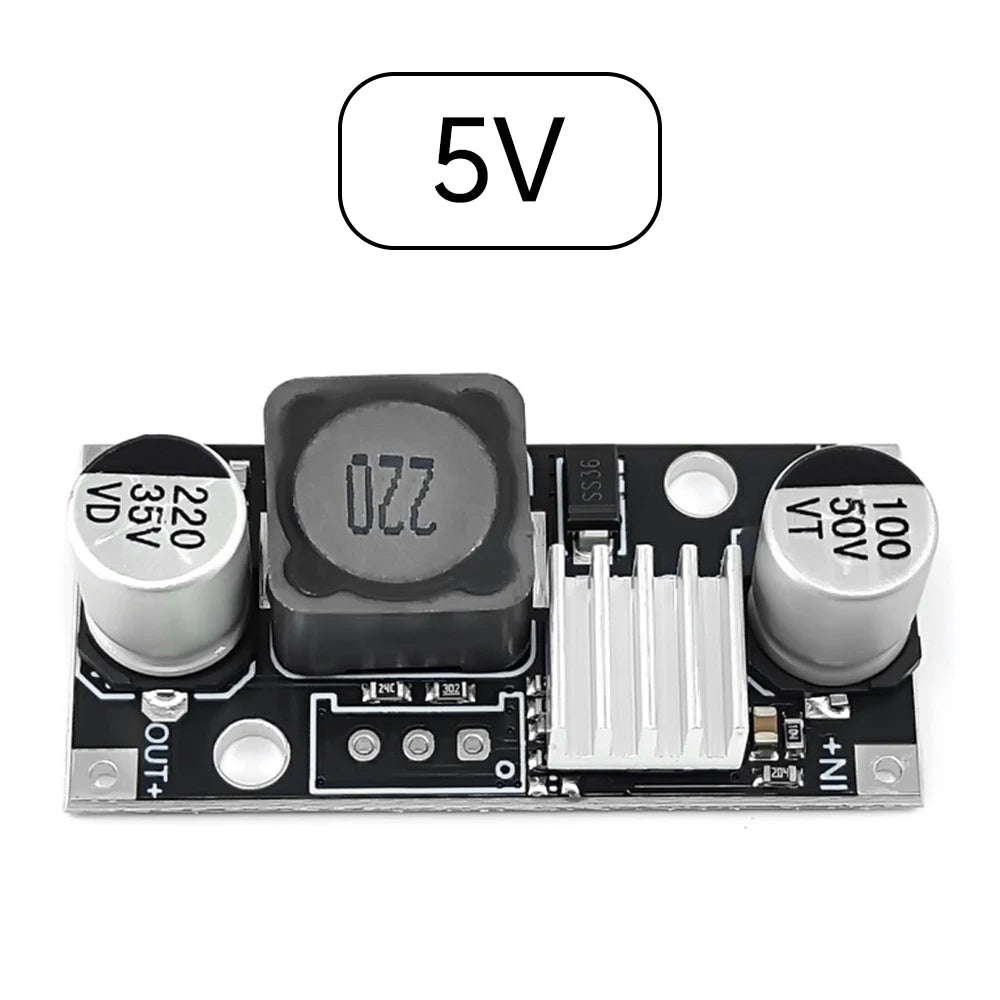

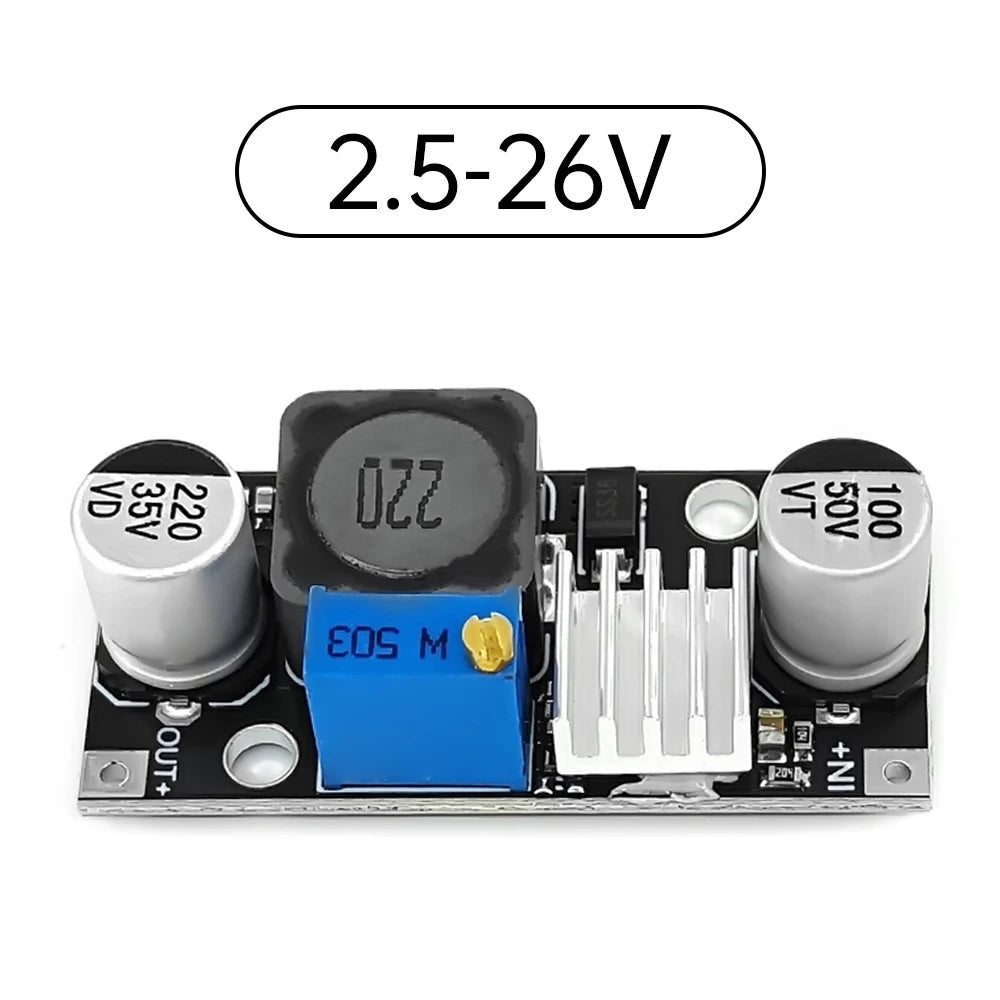

Output Voltage: 3.3V, 5V, 9V, 12V, 24V, 2.5-26V adjustable

Voltage Drop: Requires ≥0.7V input-output voltage difference

Output Current: 3A (Max), capable of sustained 3A output

Power: 60W

Quiescent Current: 1mA

Conversion Efficiency: Up to 95%

Frequency: 500kHz low ripple frequency

Protection: Output short-circuit protection

Operating Temperature: -40°C to +85°C

Output Indicator: Yes

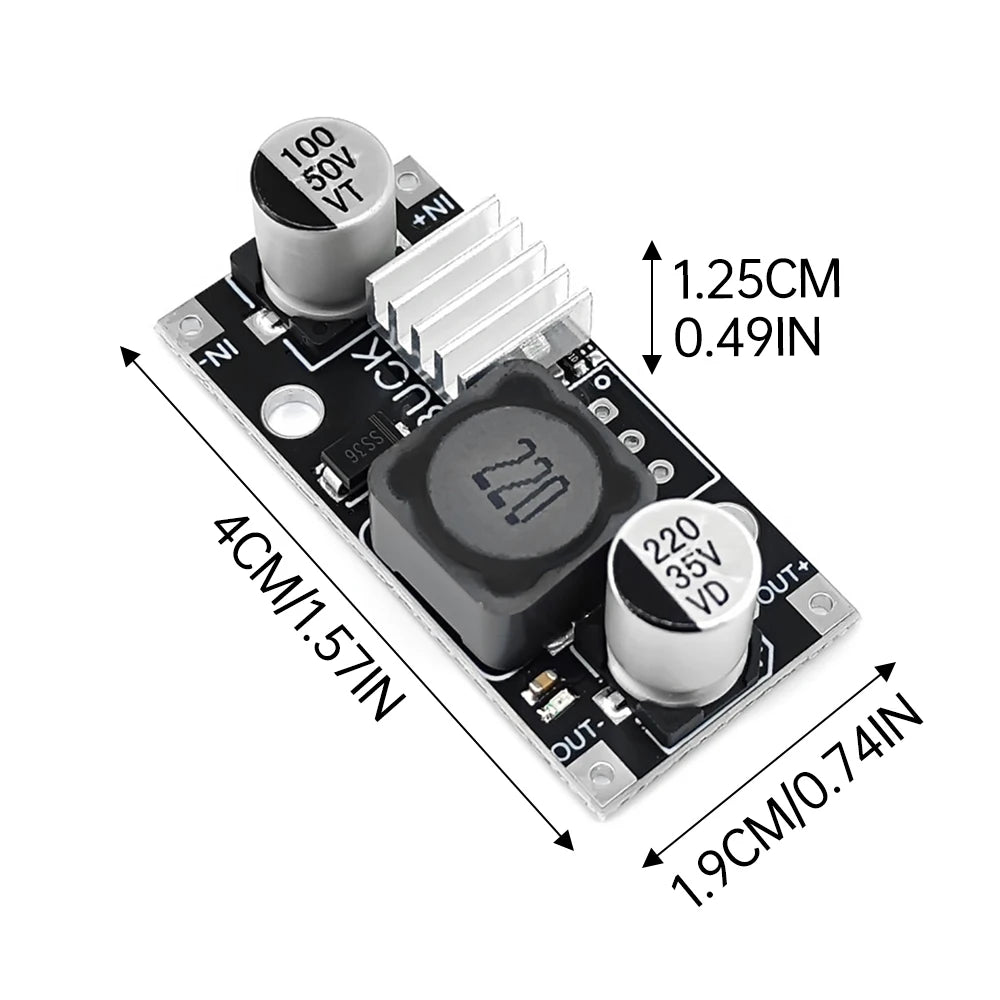

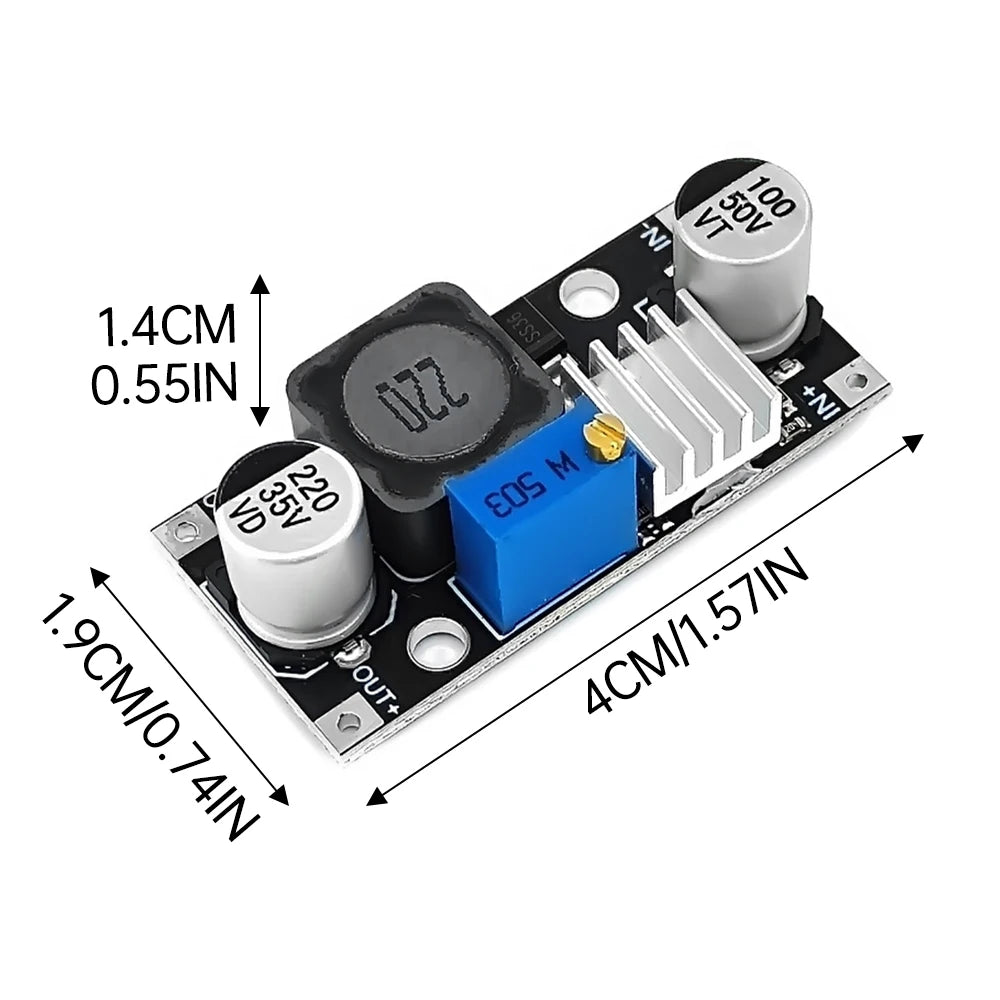

Dimensions: 40*19mm; Board thickness 12.5mm (14mm for potentiometer model), two screw holes 3.1mm diameter

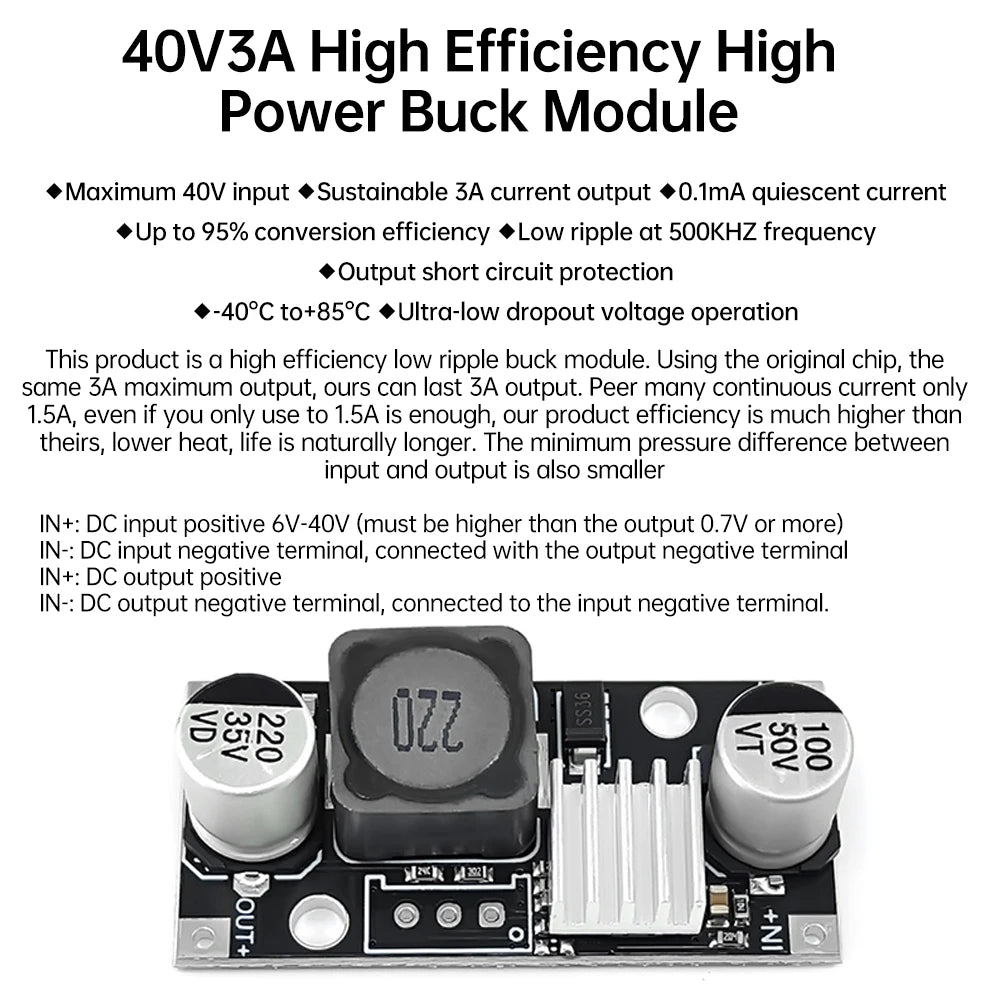

Module Connections:

IN+: Input DC positive terminal 6V-40V (must be at least 0.7V higher than output).

IN-: Input DC negative terminal, connected to output negative terminal.

OUT+: Output DC positive terminal.

OUT-: Output DC negative terminal, connected to input negative terminal.

Usage Instructions:

1. The module is extremely compact with limited heat dissipation area. Heat generation during high-power output is normal. We use premium components, so heat dissipation will not affect lifespan.

2. A voltage difference of at least 0.7V between input and output is required for step-down operation.

Product List:

1x Module

Options

• Color: 2.5-26V, 9V, 5V, 24V, 12V, 3.3V

Frequently Asked Questions

Q: What is the DC6-40V 3 3V 5V 9V 12V 24V DC-DC Buck Converter Adjustable?

A: The DC6-40V 3 3V 5V 9V 12V 24V DC-DC Buck Converter Adjustable is a quality decor pick. This product is a high-efficiency, low-ripple step-down module utilizing genuine chips, supporting a maximum output of 3A with sustained 3A output capability.

Q: How do I use the DC6-40V 3 3V 5V 9V 12V 24V DC-DC Buck Converter Adjustable?

A: The DC6-40V 3 3V 5V 9V 12V 24V DC-DC Buck Converter Adjustable is ready to use right out of the box and makes an easy addition to your decor lineup.

Q: Why choose the DC6-40V 3 3V 5V 9V 12V 24V DC-DC Buck Converter Adjustable?

A: The DC6-40V 3 3V 5V 9V 12V 24V DC-DC Buck Converter Adjustable stands out in our decor range — High efficiency enables smaller form factors, lower heat generation, and sustained higher current output.
