Digital Display AC DC 12V 24V 36V 48V Switching Power Supply 1000W

0-60V 0-17A

$485.76

$485.76 $601.82

Digital Display AC DC 12V 24V 36V 48V Switching Power Supply 1000W

$485.76

$485.76 $601.82

Shipping calculated at checkout.

Color 0-60V 0-17A 0-80V 0-12.5A 0-120V 0-8.5A 0-160V 0-6.5A 0-12V 0-70A 0-24V 0-40A 0-36V 0-28A 0-48V 0-20A 0-220V 0-5A

Discover the Digital Display AC DC 12V 24V 36V 48V Switching Power Supply 1000W — a standout decor pick featuring adjustable, soft design for dependable, everyday performance.

Specifications

Brand Name: AEVYVKV

Certification: CE

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Model Number: Switching power supply

Output Current: 0-100A

Output Frequency: 50/60HZ

Output Power: 10000W,＞500

Output Type: SINGLE

Rated Capacity: ＝1000VA

Type: Power Supply

Use: Other

is_customized: Yes

AC DC 12V 24V 36V 48V Digital Display Switching Power Supply 1000W Adjustable Transformer 60V 80V 120V 160V 220V LED Driver

Specifictation:

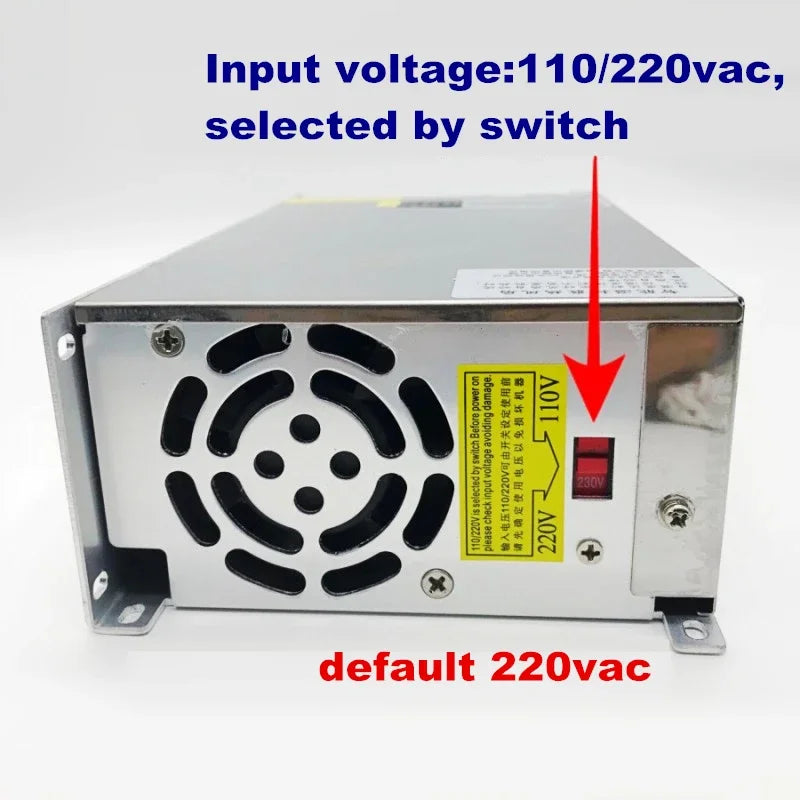

Input voltage: 110V/ 220VAC selected by switch

Output power limiting output voltage range limiting output current range Max current

1000W 0-12V 0-70A 70A

1000W 0-24V 0-40A 40A

1000W 0-36V 0-20A 20A

1000W 0-48V 0-28A 28A

1000W 0-60V 0-17A 17A

1000W 0-80V 0-12.5A 2.5A

1000W 0-120V 0-8.5A 8.5A

10000W 0-220V 0-5A 5A

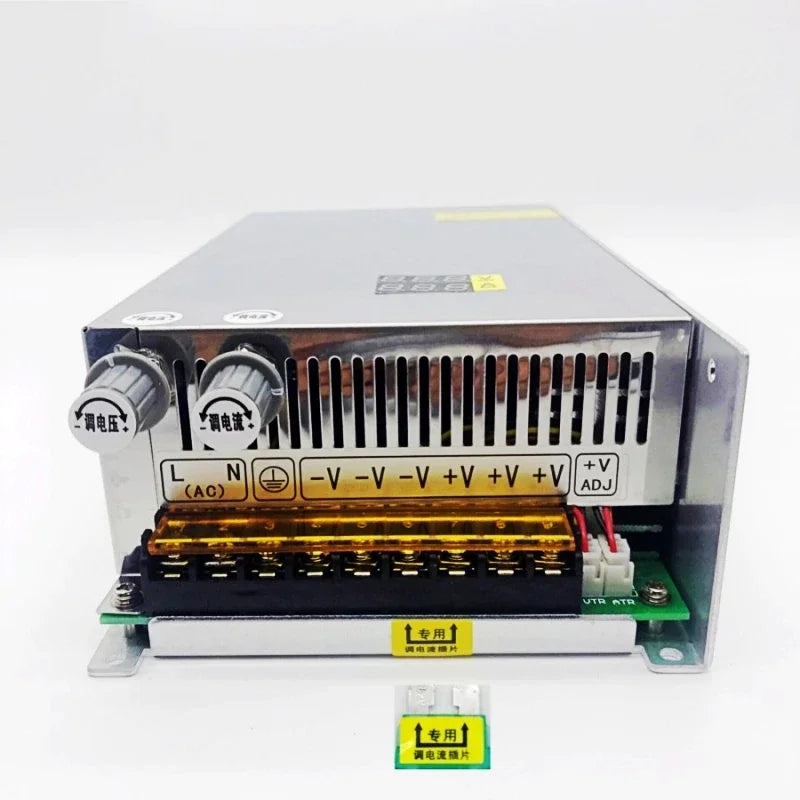

Terminal description and wiring method L, N AC input terminal FG ground mark V+ DC output positive terminal V-DC output negative terminal ADJ adjustable potentiometer Fine-tuning output DC voltage ● full voltage input ● Miniaturization ●Protection function Short circuit / overload / over voltage ●100% full load aging test Input Voltage & Frequency Range----------220VAC/47～63Hz Start surge current ---------------20A@120VAC (cold start) Output adjustment range --------------- ±100% (rated output voltage) Overload protection -------------------105%~200% (rated load), self-recovery Overvoltage protection -------------------115%~135% (rated output voltage) Short circuit protection ------------------- self-recovery Output start time ---------------≤2S@120VAC ≤1.0S@230VAC Output hold time ---------------≥10mS@120VAC, ≥20mS@230VAC Insulation strength ------------------- Input - Output: AC1500V, 1min Input - housing: AC1500V, 1min Output - Case: DC500V, 1min

Working environment ------------------ -10 ° C ~ 50 ° C; 20% ~ 90% RH (no condensation)

When the load device is connected, the current value can be adjusted directly in real time. The maximum current value is the maximum current value of the load device. If the current adjustment knob clockwise exceeds the maximum current value of the device, the digital current value will not last. Real-time synchronized digital display, showing only the maximum current value of the device.

Uses: Mainly used for various battery charging, DC equipment, DC motor stepless speed regulation, LED stepless dimming, chemical electroplating speed regulation, scientific research test, student experiment, etc., and a wide range of uses. Special attention: If using inductive load such as motor or fan, please pay attention to the maximum starting current parameter of the motor. This parameter must not be higher than the maximum operating current of the power supply. Otherwise, the power supply may be damaged. You should select a higher current power supply or soften the motor. The protection circuit is activated to absorb the inrush current. Power formula) voltage X current = power

Options

Color: 0-60V 0-17A, 0-80V 0-12.5A, 0-120V 0-8.5A, 0-160V 0-6.5A, 0-12V 0-70A, 0-24V 0-40A, 0-36V 0-28A, 0-48V 0-20A, 0-220V 0-5A
