Digital Voltmeter Ammeter Wattmeter Voltage Current Energy Meter DC 0

Discover the Digital Voltmeter Ammeter Wattmeter Voltage Current Energy Meter DC 0 — a standout decor pick featuring adjustable, premium design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Condition: New

Type: Module

Description:

1. Constructed with premium ASB material and featuring high-precision LED numeric display for stable and efficient performance.

2. Voltage measurement range: DC 0.000~100.0V, accuracy ±1.00V, resolution 0.1V.

3. Current measurement range: 0.000A~10.00A, accuracy ±0.1A, resolution 0.03A.

4. Power measurement range: 0.000~1000W.

5. Real-time DC voltage, current, and power testing with simultaneous on-screen display for clear readability.

6. Supports fine-tuning of voltage and current display values.

Product Specifications:

Operating Voltage: XH-3P red/black leads DC7~30V (Do not exceed rated voltage)

Voltage measurement range: DC 0.000~100.0V, error ±1.00V, resolution 0.1V

Current measurement range: 0.000A~10.00A, error ±0.1A, resolution 0.03A

Power measurement range: 0.000~1000W

Operating power consumption: 20mA (measured at DC12V)

Voltage display fine-tuning: Supported, adjustable via potentiometer

Current display fine-tuning: Supported, adjustable via potentiometer

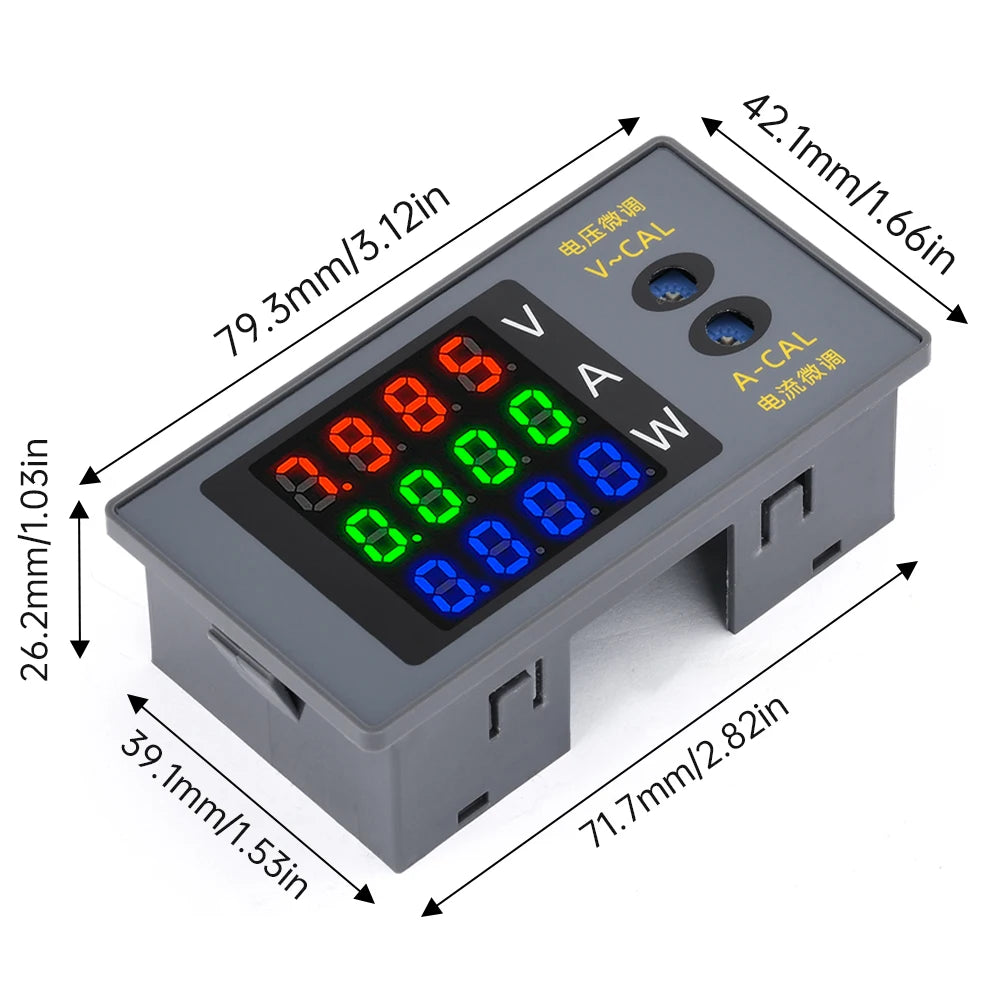

Product dimensions: 79.3 × 42.1 × 26.2 mm

Mounting cutout: 71.7 × 39.1 mm

Wire definition:

XH-2.54-3P red/black/yellow wires (thin gauge, total length: 155 mm)

Thin red wire: Positive terminal of operating power supply. Do not connect to power sources exceeding 30V.

Thin black wire: Negative terminal of operating power supply. Shares ground with thick black wire. Not required when using a shared power source.

Thin yellow wire: Voltage test lead. Connects to positive terminal of test circuit power supply.

VH-3.96-2P Thick red and black wires (Thick wires, Total length: 165mm) Current test leads

Thick wires must be connected in parallel with shunt resistors. Do not connect directly to power supply terminals, as this will cause a short circuit!!!

Thick red wire: Current test positive terminal. Connect in series after the load's negative terminal. When testing an open circuit, connect this wire last and disconnect it first.

Thick black wire: Current test negative terminal. Connect to the power supply negative terminal. When testing an open circuit, connect this wire first and disconnect it last.

Connecting the Shunt: On-board low-temperature drift alloy resistor shunt. Can be connected directly according to the wiring diagram.

Package Contents:

Power Meter*1

XH-2.54-3P Red/Black/Yellow Cables*1

VH-3.96-2P Thick Red/Black Cables*1

Options

• Color: Red Green Blue, Red Red Red
