DIY Electronic Small Airplane CD4017 Flow Lamp Welding Practice
With battery
$12.10
Sale price
$12.10
Regular price
$14.99
Skip to product information
DIY Electronic Small Airplane CD4017 Flow Lamp Welding Practice
$12.10
Sale price
$12.10
Regular price
$14.99
Shipping calculated at checkout.
Discover the DIY Electronic Small Airplane CD4017 Flow Lamp Welding Practice, a standout decor pick designed for dependable everyday performance and lasting value.
Specifications
Brand Name: Aideepen
Condition: New
Type: Module
Features:

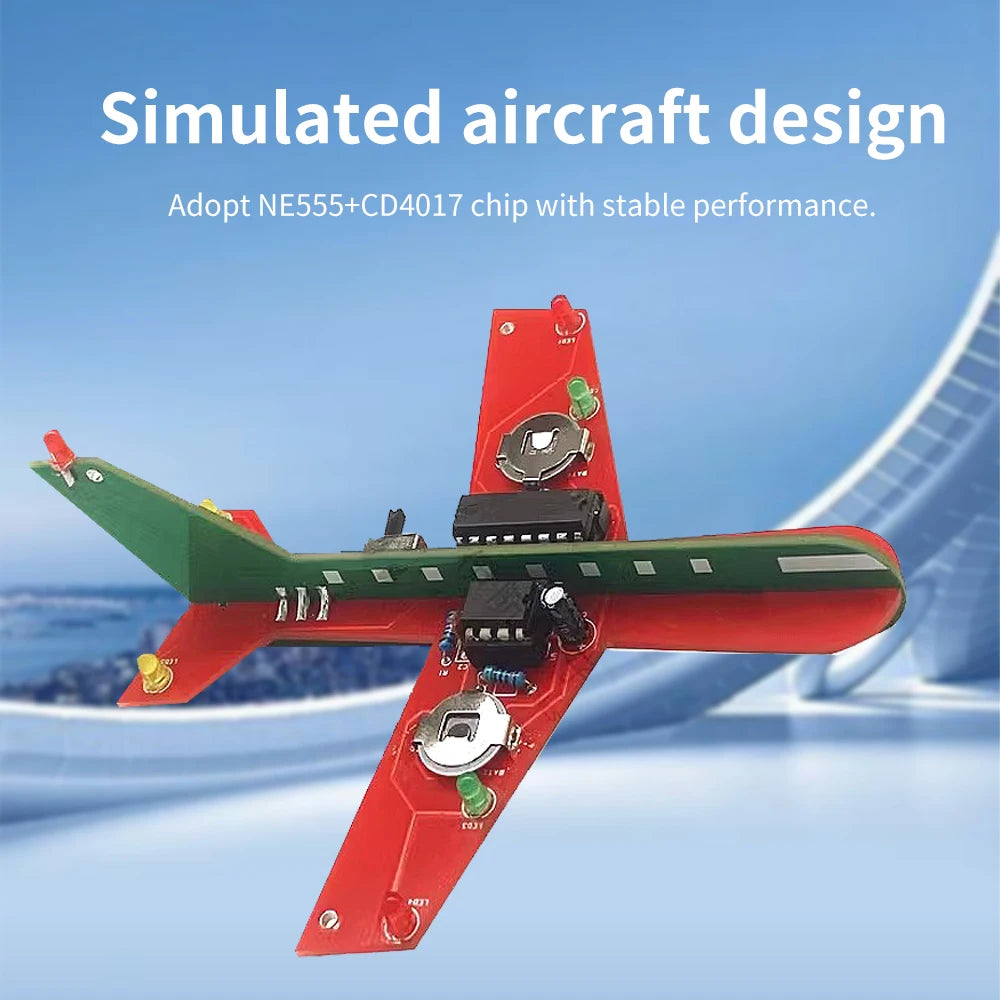

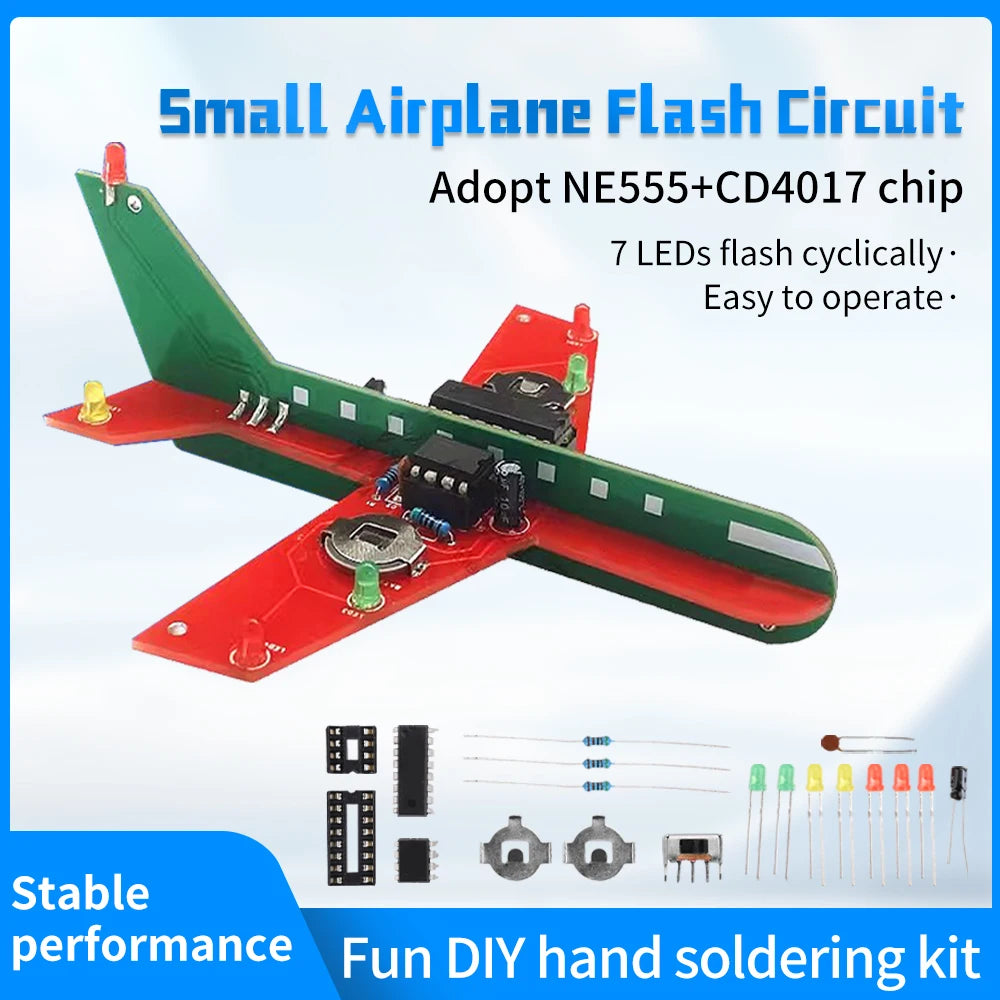

1. Analog aircraft design utilizing NE555+CD4017 chips for stable performance.
2. Powered by two CR1220 coin cell batteries for convenient use.

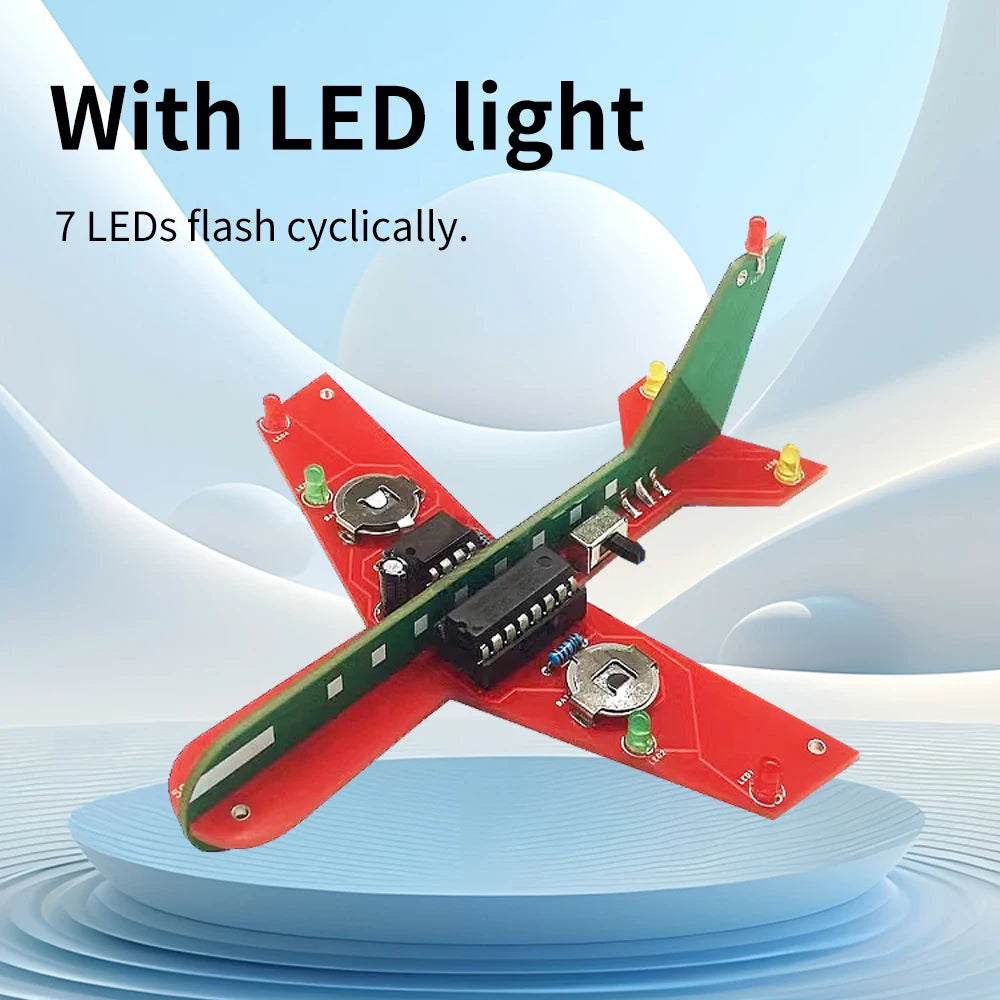

3. Equipped with seven LEDs that cycle through flashing patterns.

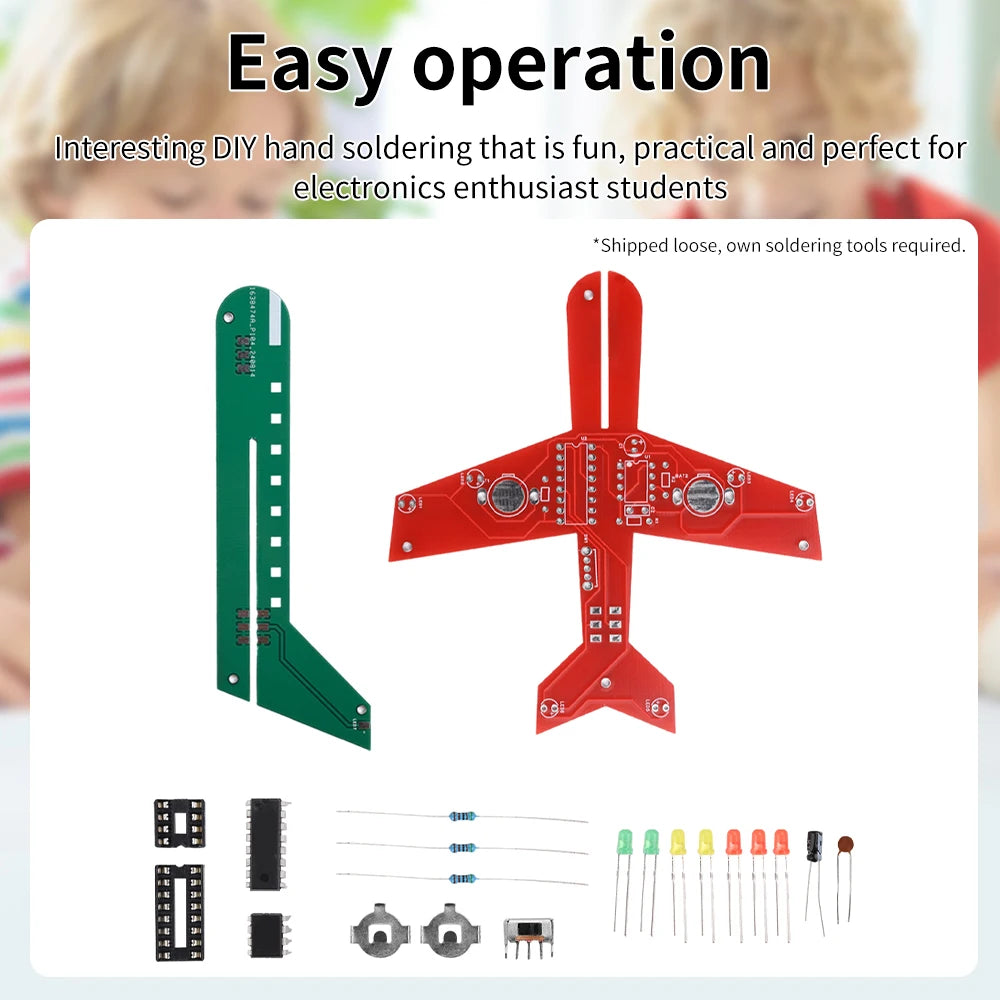

4. Simple operation with minimal components and easy soldering.
5. Engaging DIY soldering project combining fun and practicality—ideal for electronics enthusiasts and students.
Product Description:

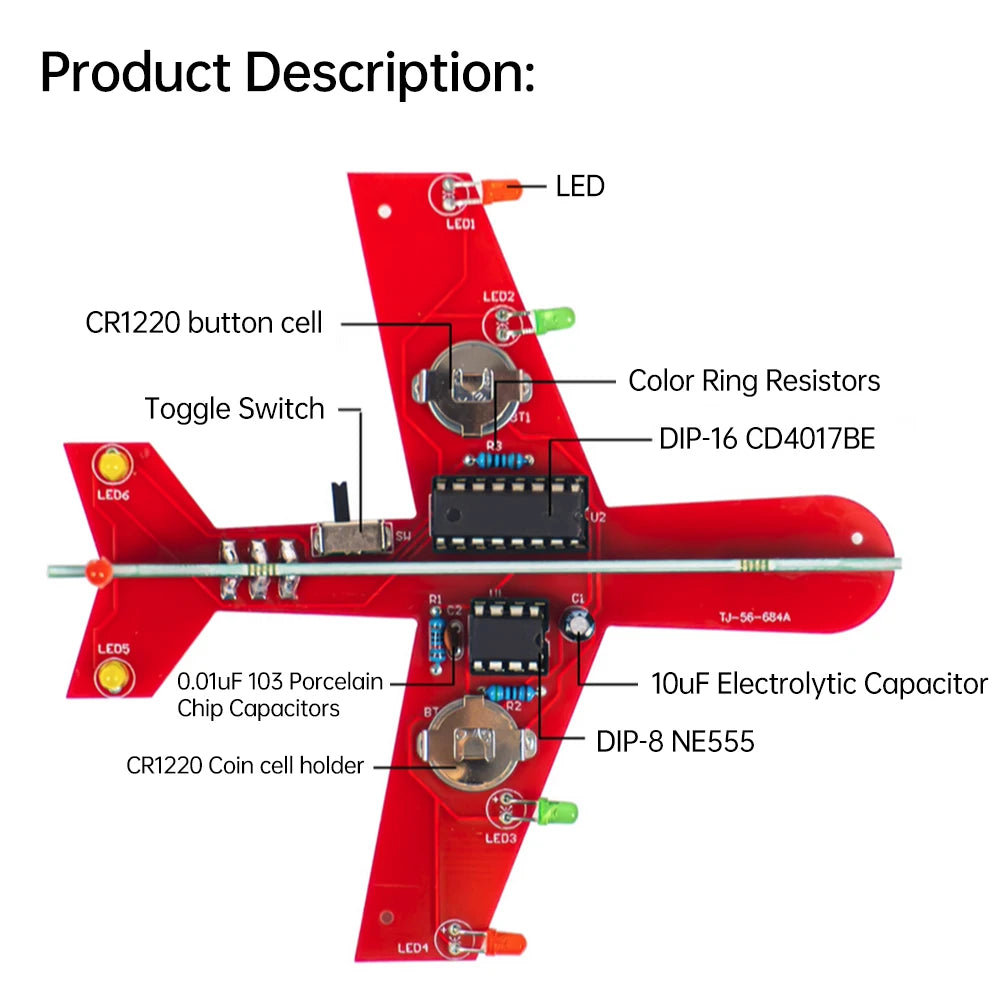

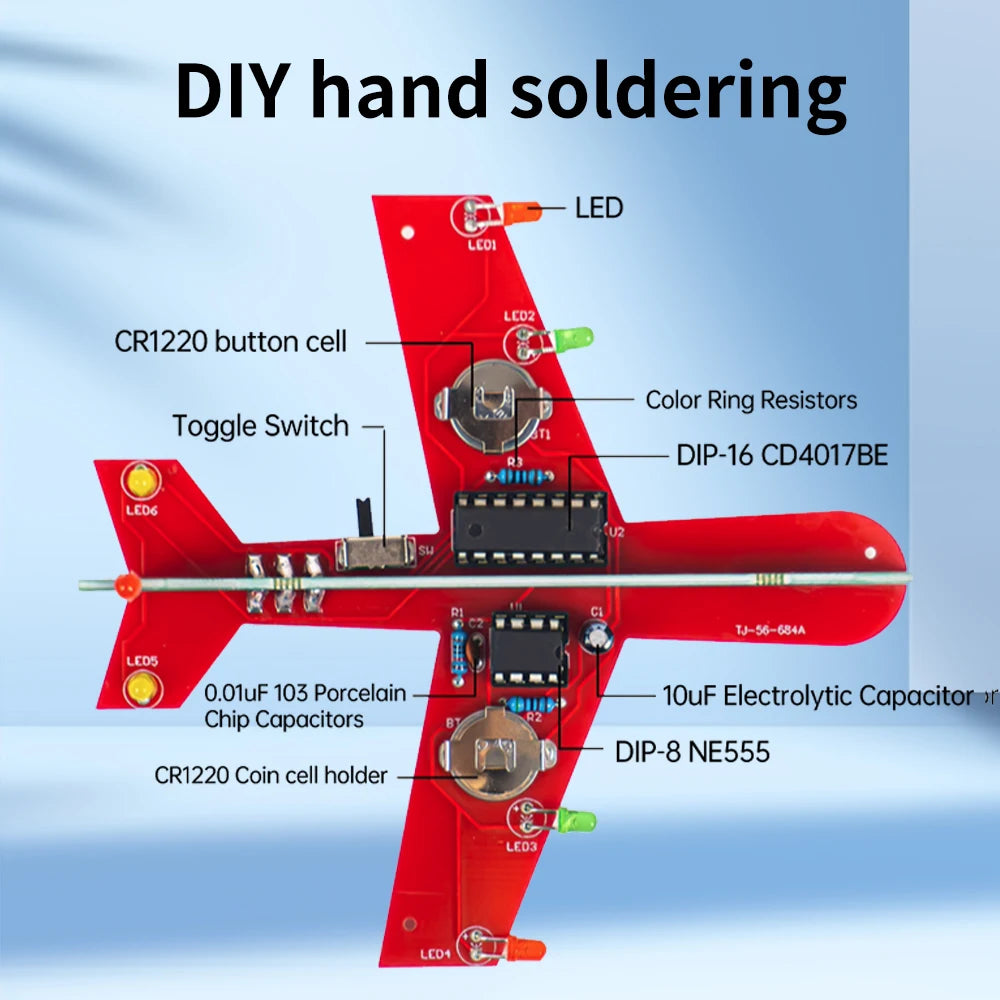

This circuit utilizes NE555+CD4017 chips powered by two CR1220 button batteries, featuring seven LEDs that cycle through flashing patterns. It provides an intuitive demonstration of the CD4017 chip's functionality. The miniature aircraft design combines fun and practicality, making it highly suitable for electronics enthusiasts and students.
Product Specifications:
LED Colors: Red/Green/Yellow
Supply Voltage: DC 3~6V (2 CR1220 button batteries)
Battery Type: CR1220
Operating Temperature: -20°C to 85°C
Dimensions: 10.5 x 10.3 cm
During assembly, ensure the battery compartment remains unobstructed. We recommend soldering the battery contacts first, inserting the battery, then soldering the remaining components. Solder the longer leg of LED7 to the positive (+) terminal on Board B, with the shorter leg as negative (-). When assembling both boards, position this LED on the side of LED5.
Product Listing:

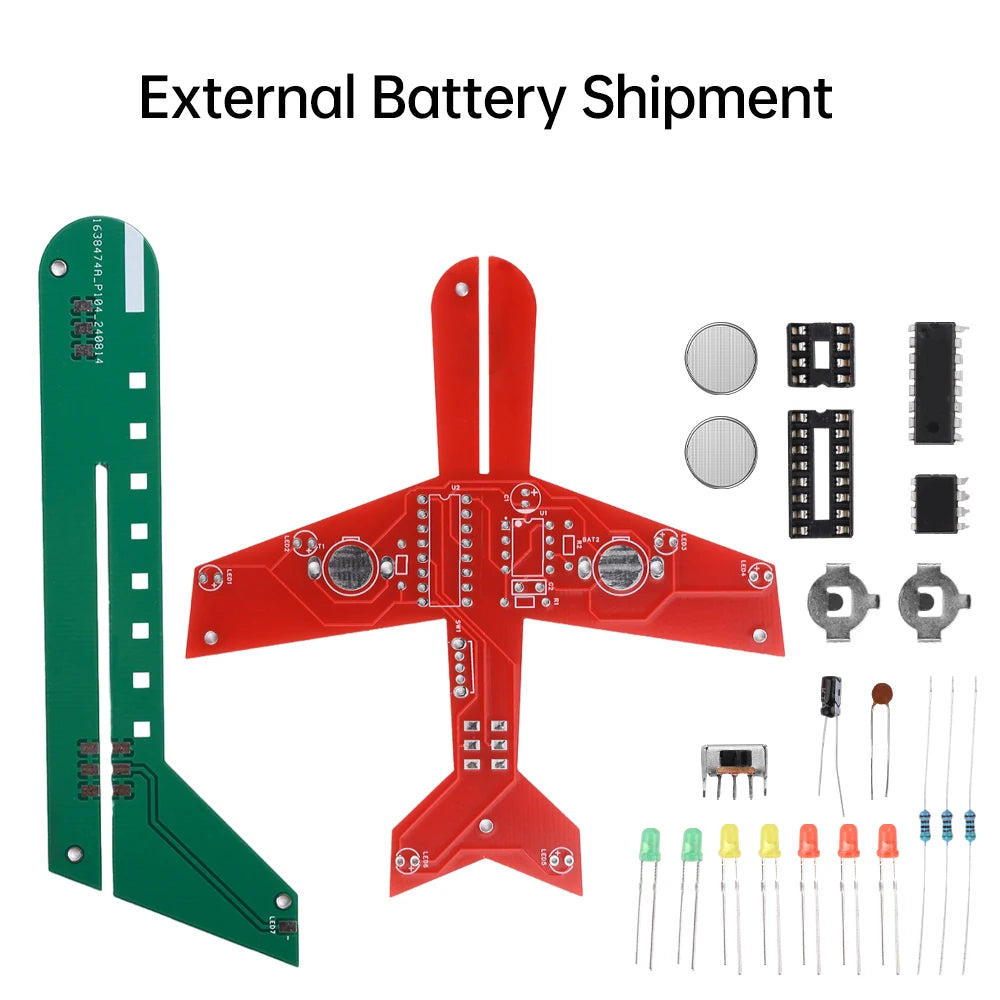

1X Small Airplane DIY Kit (Batteries not included / Battery option available)
