DIY Electronic Small Airplane CD4017 LED Flow Light Lamp Welding
$11.90
Sale price
$11.90
Regular price
$14.74
Shipping calculated at checkout.
Discover the DIY Electronic Small Airplane CD4017 LED Flow Light Lamp Welding — a standout decor pick featuring compact design for dependable, everyday performance.
Specifications
Brand Name: Aideepen
DIY Supplies: Electrical
Electronic: No
Material: Plastic
Semi-finishedproduct: No
Product Features:
1. Utilizes a classic circuit design to achieve a three-color LED running light effect.
2. Compact aircraft-inspired design with rounded edges, offering a sleek and refined appearance.
3. Supports frequency adjustment, enabling light pattern changes by modifying the pulse signal.

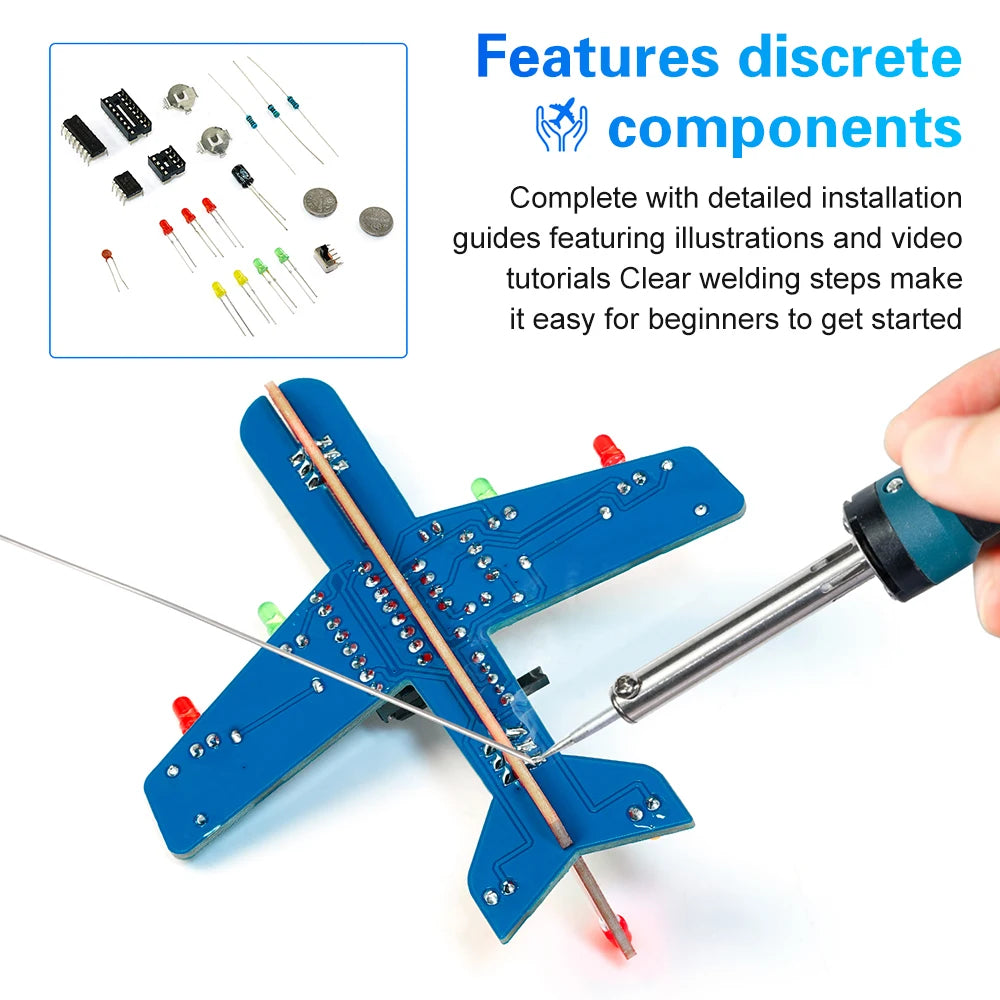

4. Includes detailed illustrated and video tutorials with clear soldering steps, ideal for beginners to practice.
5. Features discrete component assembly for enhanced hands-on fun, boosting electronic DIY skills.
Product Description:

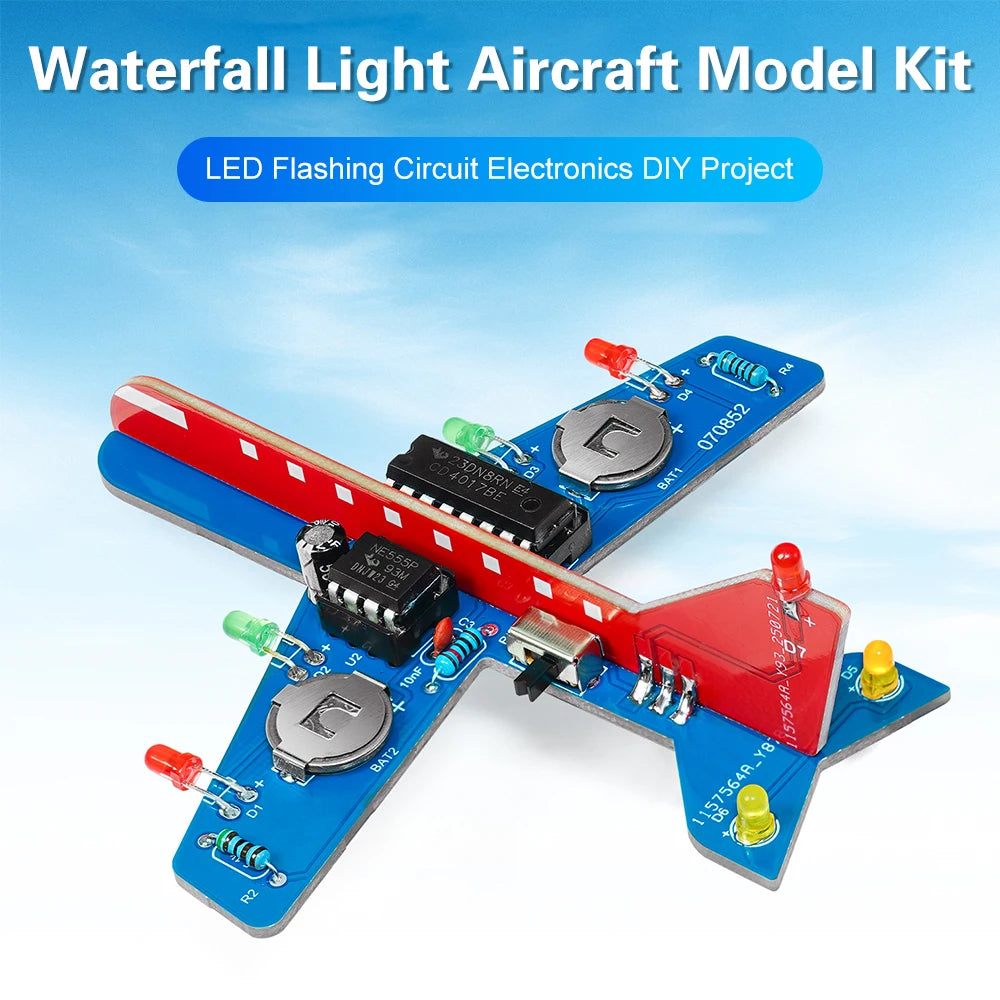

LED Running Light Aircraft Model Kit. This circuit utilizes NE555 + CD4017 chips, powered by two CR1220 coin batteries. The NE555 is configured as a multivibrator via the circuit. Output pulse frequency can be adjusted through R1, R2, and C1, sending square wave signals to the CD4017. Each clock pulse received by the CD4017 triggers a switch in the LED output, the LED lights switch once, achieving the flowing light effect.

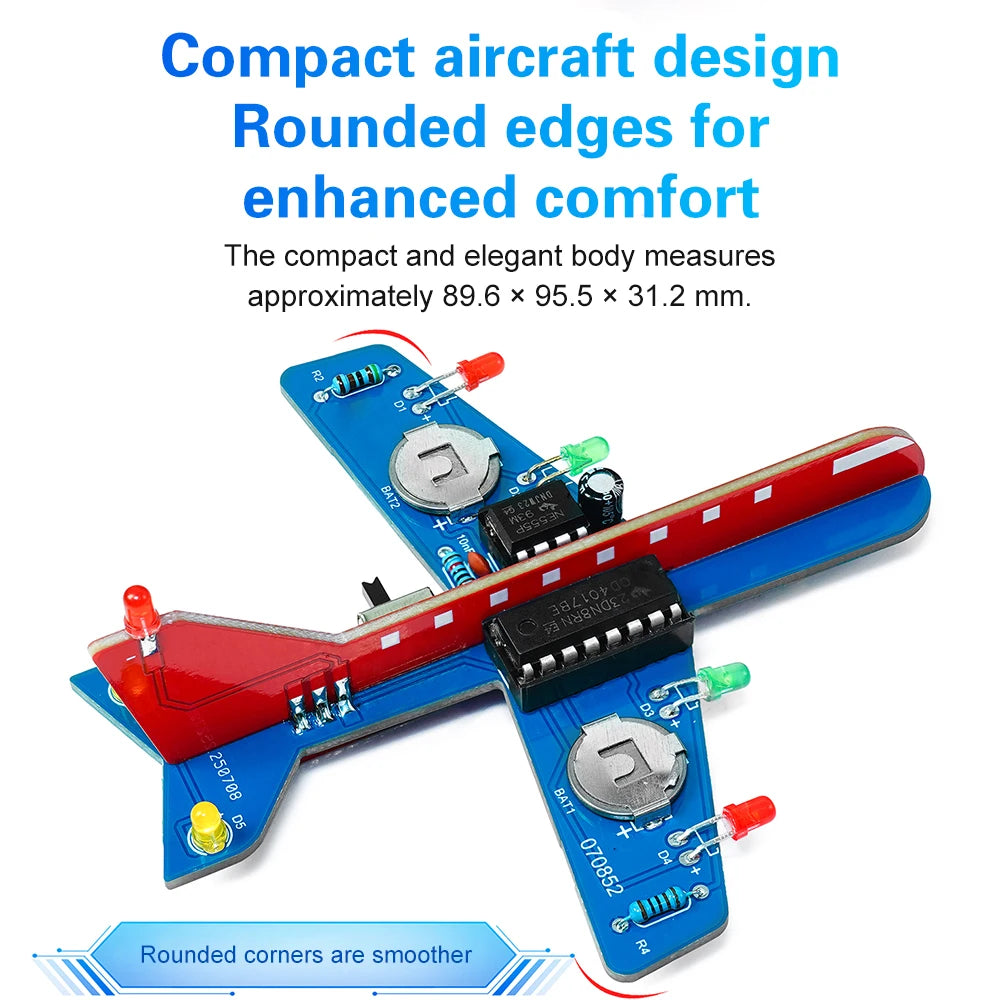

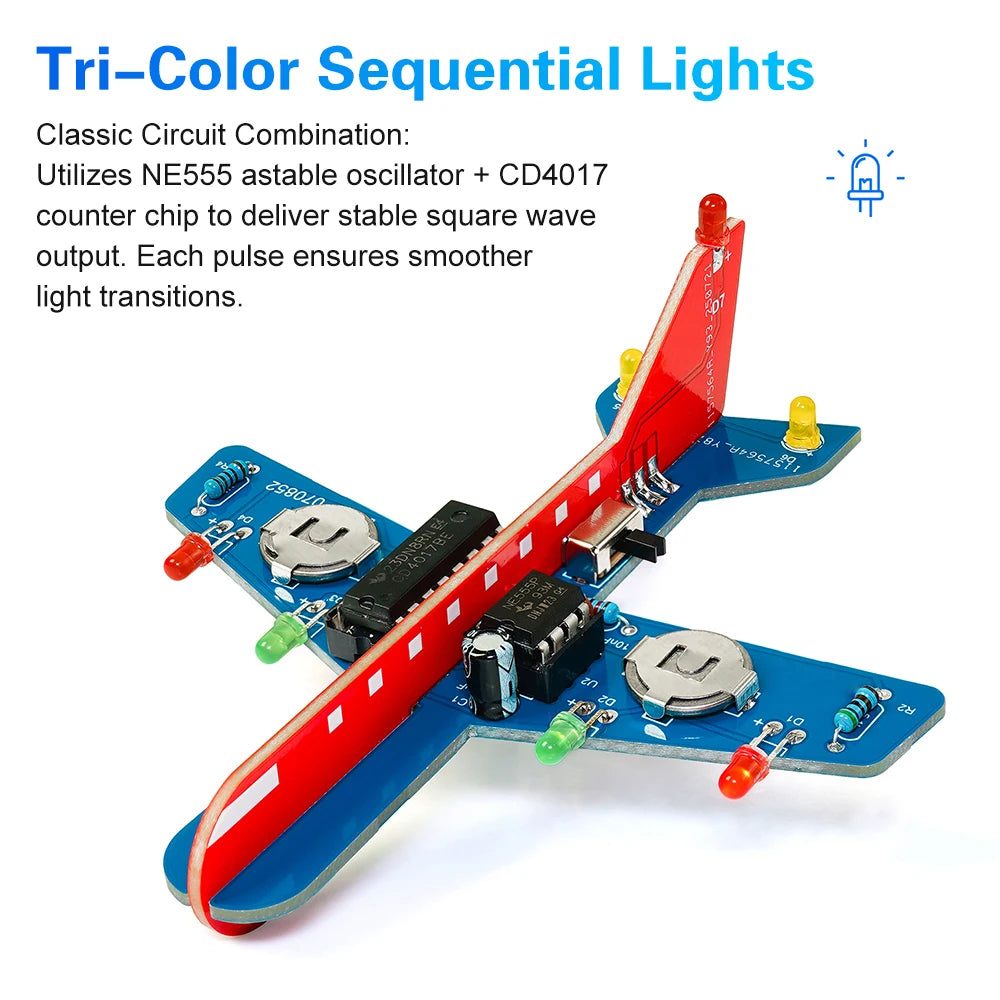

Three-color flowing lights simulate aircraft dynamic lighting. This classic circuit combination uses an NE555 multivibrator + CD4017 counter chip to stably output square wave signals, ensuring smoother light transitions with each pulse. Features discrete components ideal for beginner soldering practice. Includes detailed illustrated assembly instructions and video tutorials with clear soldering steps for easy mastery. Compact aircraft design with rounded edges for added convenience. Dimensions: approx. 89.6*95.5*31.2mm. Compact and elegant.

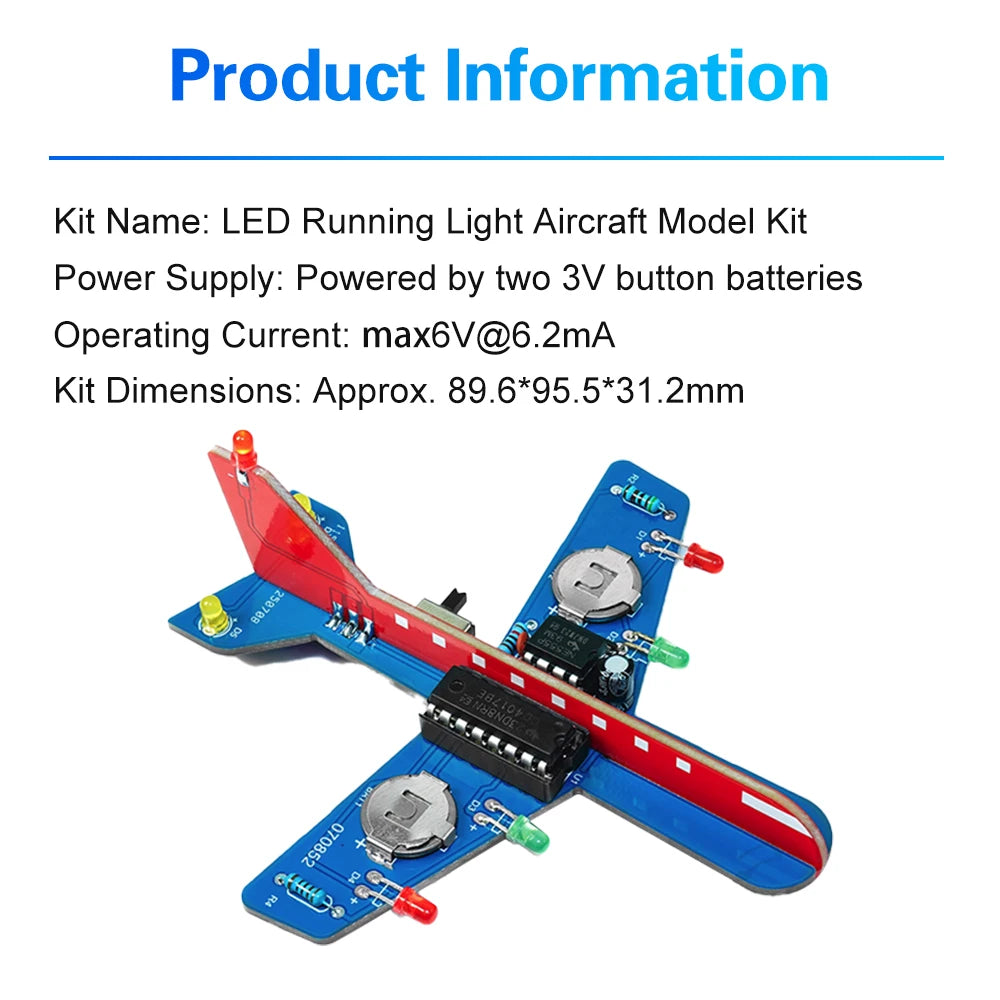

Product Information:
Kit Name: LED Running Light Airplane Model Kit
Power Supply: Two 3V button batteries
Operating Current: 最大约6V@6.2mA
Product List:

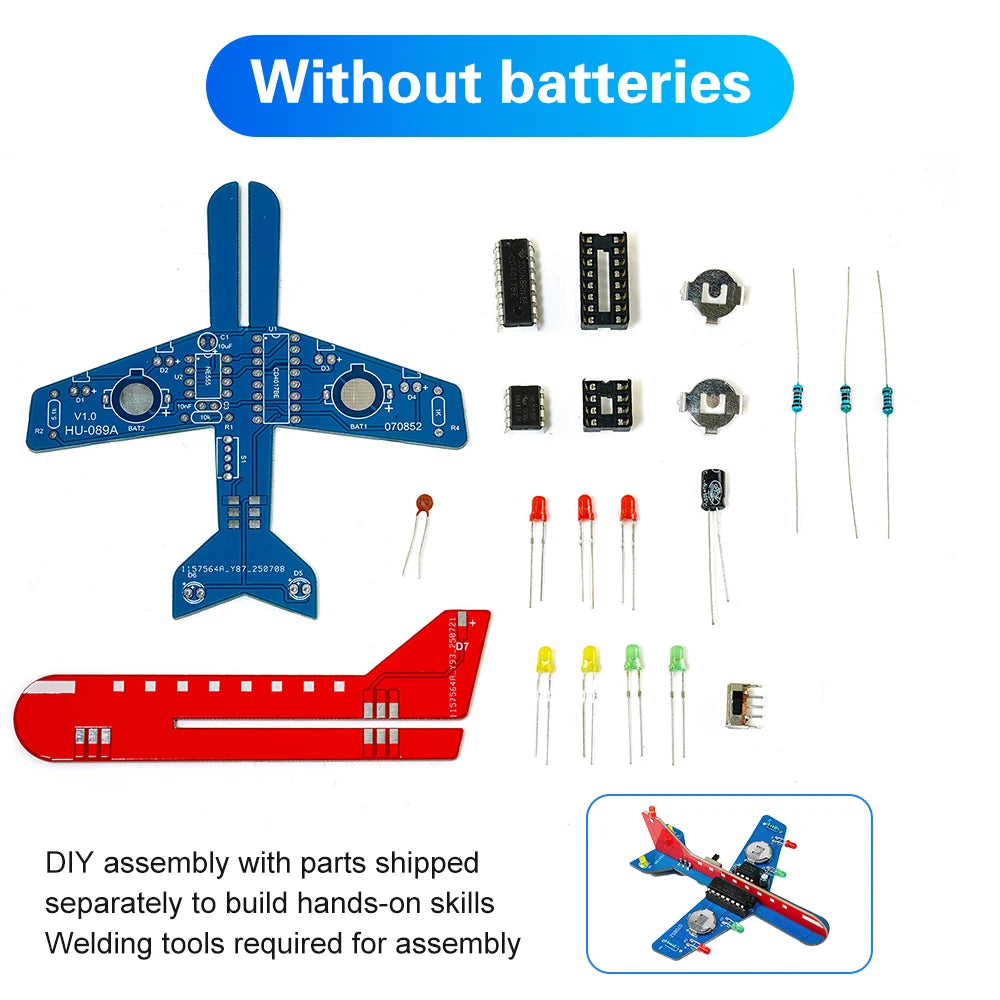

1X Small Airplane DIY Kit
Note: This product ships as a kit. Customers must provide their own soldering tools for assembly.
