DIY Portable Handheld Battery Spot Welder 18650 Lithium Nickel Strip

Discover the DIY Portable Handheld Battery Spot Welder 18650 Lithium Nickel Strip — a standout kitchen & dining pick featuring portable, adjustable, stainless steel design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Certification: NONE

Description:

1. Five-stage power adjustment for precise welding with superior results; fully charged for over 1,000 continuous welds

2. Nickel strip included with spot welder; single-hand grip for convenient operation; welds mobile phone batteries; supports welding common nickel-based mobile phone batteries plus portable design for easier on-site repairs

3. Supports welding nickel sheets 0.1-0.15mm thick. Fully charged, handles 0.15mm nickel sheets. Features smart recognition and fully automatic welding for simplicity. Welds stainless steel and stainless iron sheets with strong, high-quality joints.

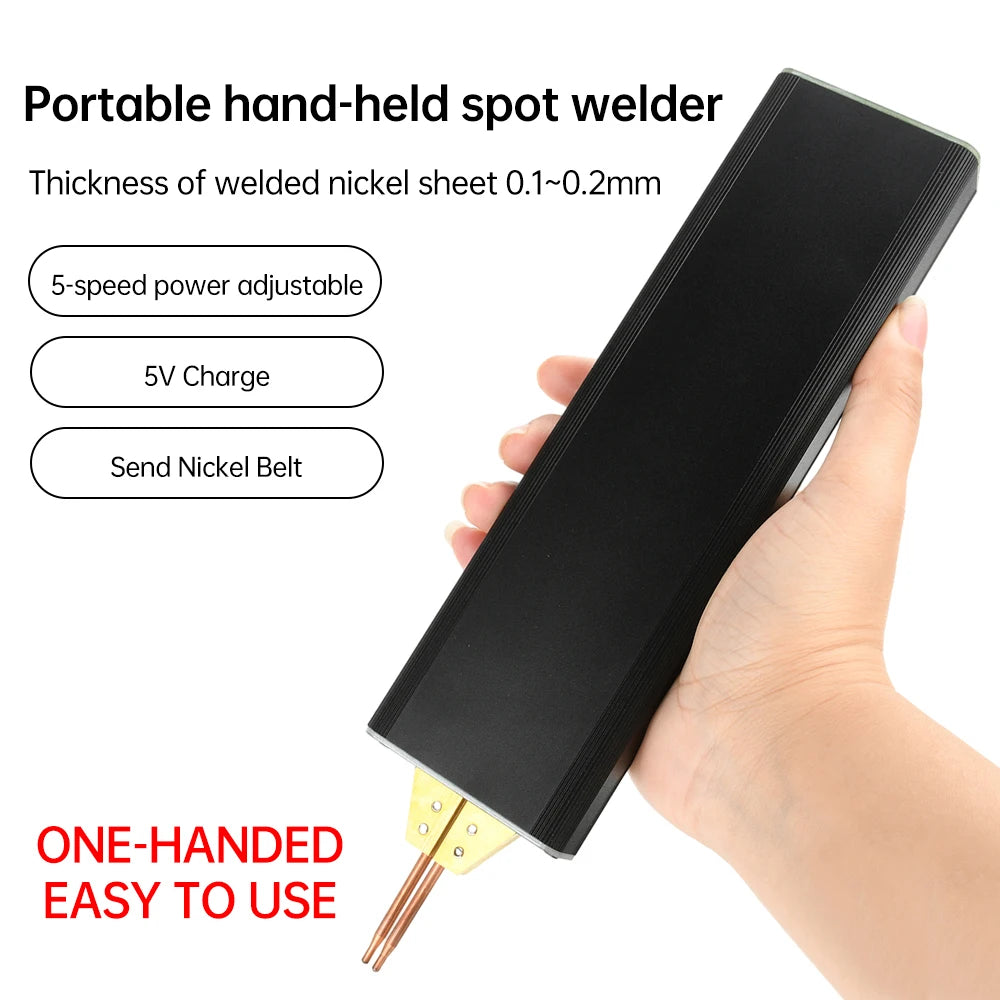

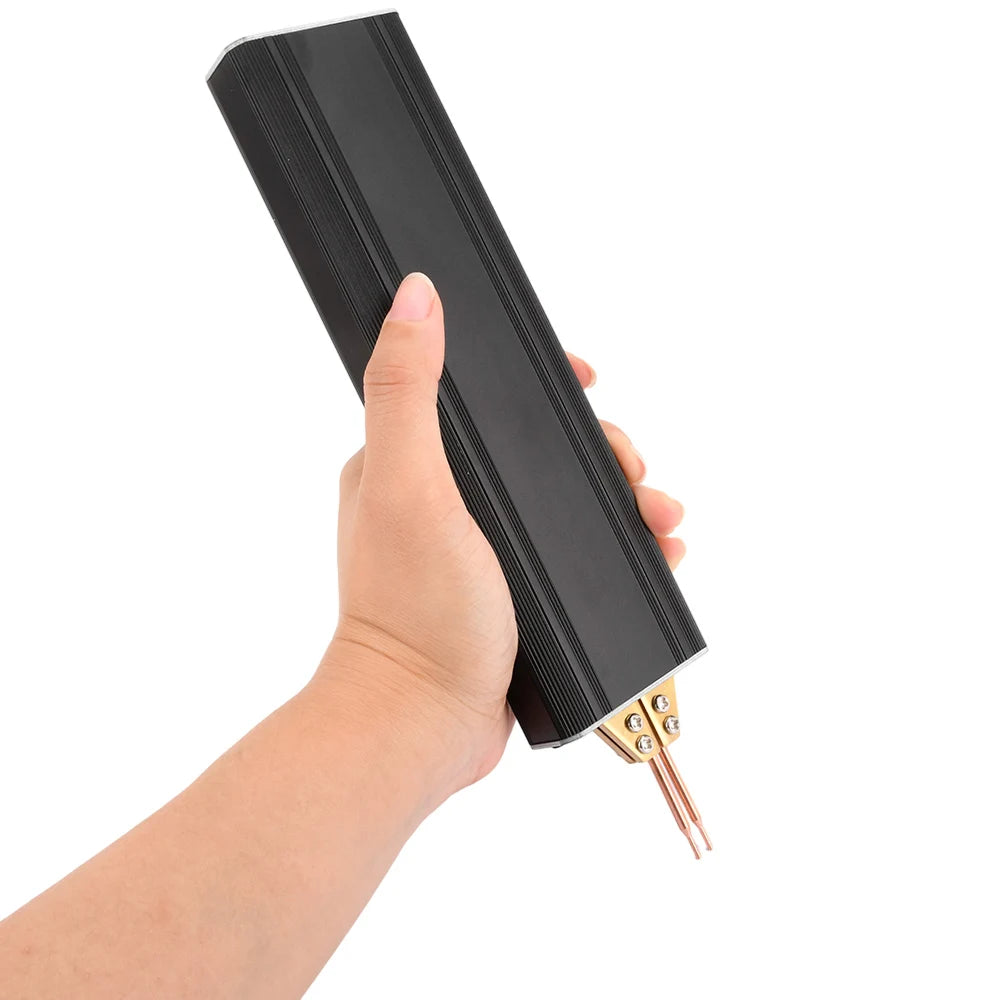

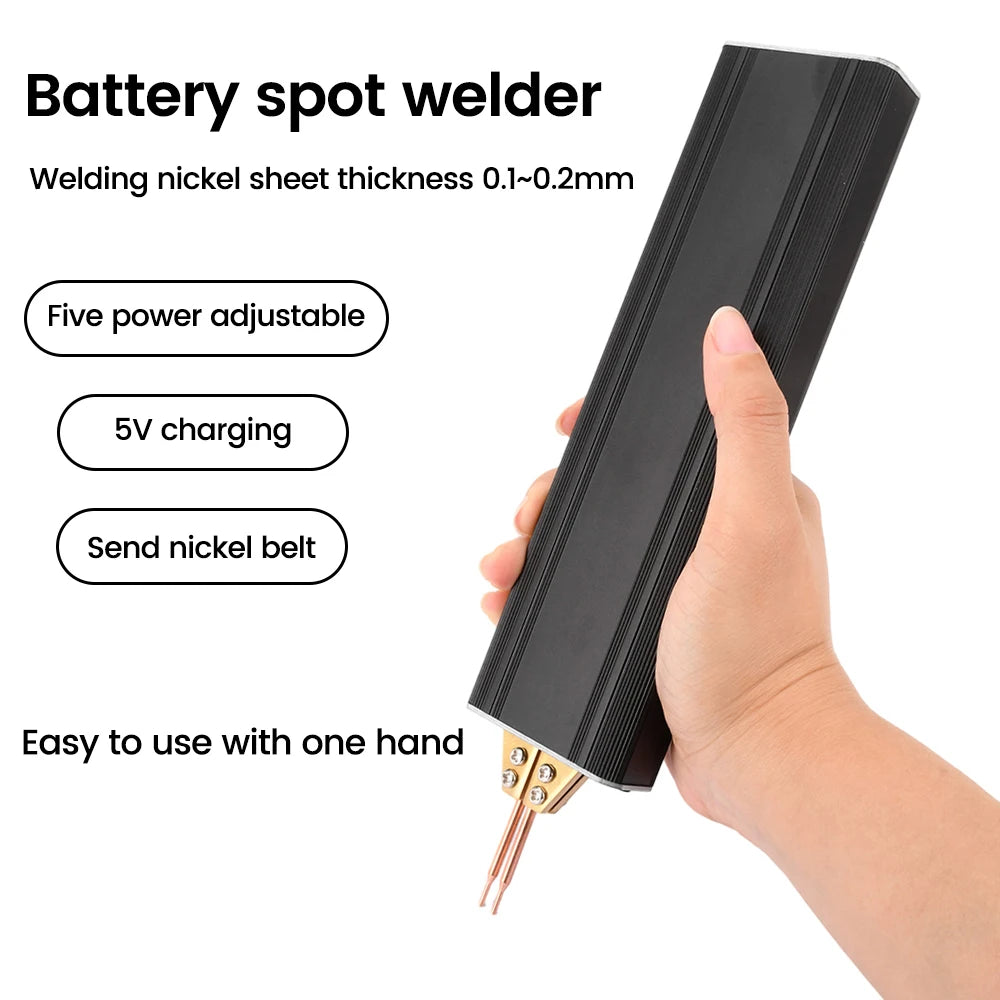

4. Enhanced precision with one-handed operation. Compact design frees one hand to hold nickel sheets or secure batteries.

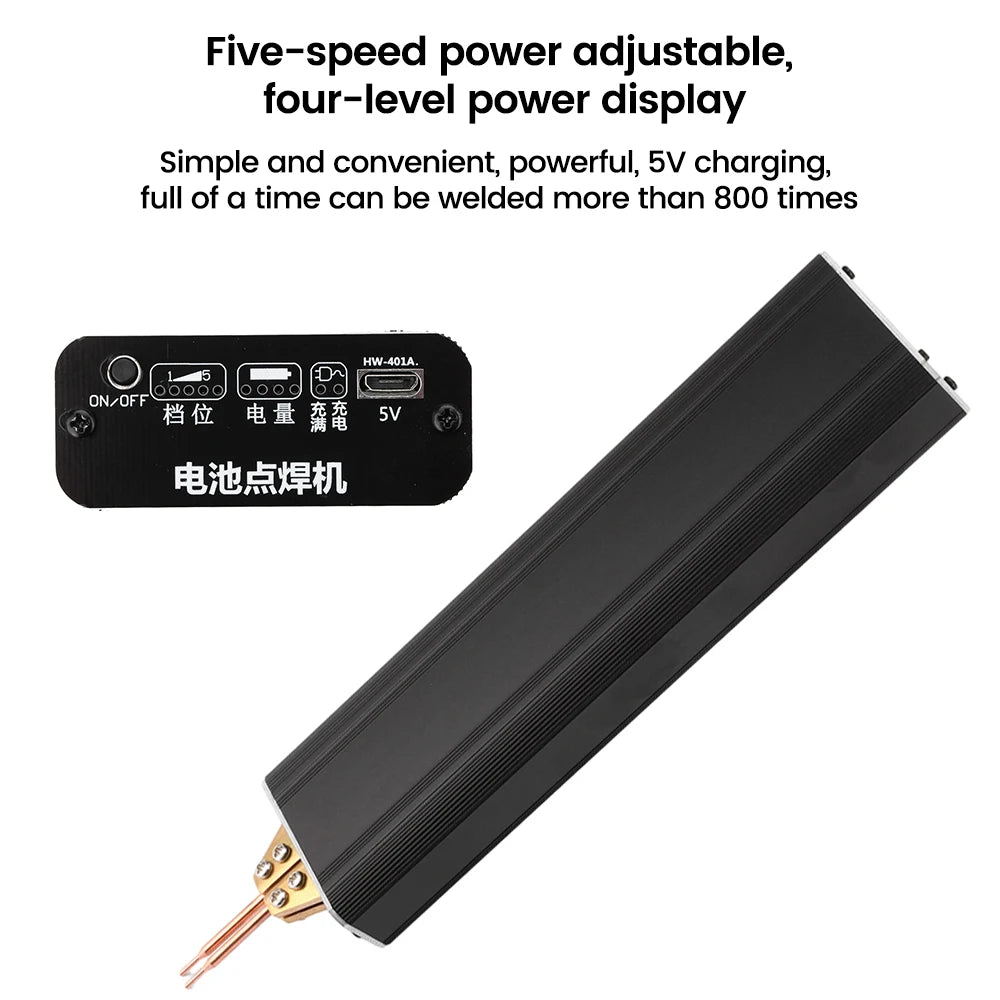

5. Intelligent recognition, fully automatic welding, simple and convenient operation. Supports simultaneous charging and use. Remaining power indicator: Green (High), Green flashing (Medium-High), Red flashing (Medium-Low), Red (Low). Must charge when red light is solid to operate.

Product Specifications:

Model 1: Micro USB Port Version

Battery Voltage: 3.7V

Maximum output current: Up to 1200A

Fully charged battery supports over 1000 continuous welds

Five adjustable power levels controlled by short button presses, indicated by blue light

Charging port: USB plug charging

Charging voltage: 5V input (strictly prohibit higher voltages)

Charging current: 1A (recommended 5V/2A charger)

This product supports simultaneous charging and use. Remaining power indicator: Green (High), Green flashing (Medium-High), Red flashing (Medium-Low), Red (Low). A solid red light indicates charging is required for operation. Low power may affect welding performance.

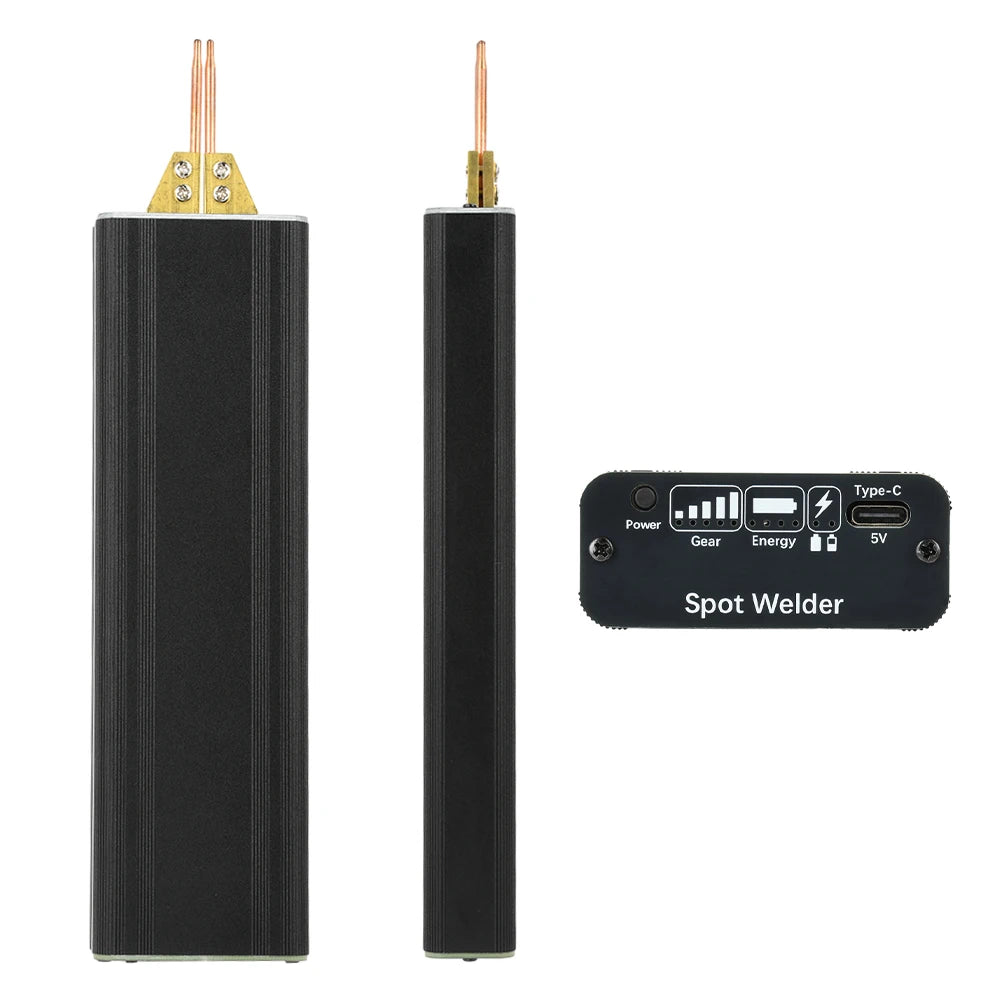

Model 2: Type-C Port Version

Product Name: Portable Handheld Spot Welder

Input Port: Type-C Charging Port

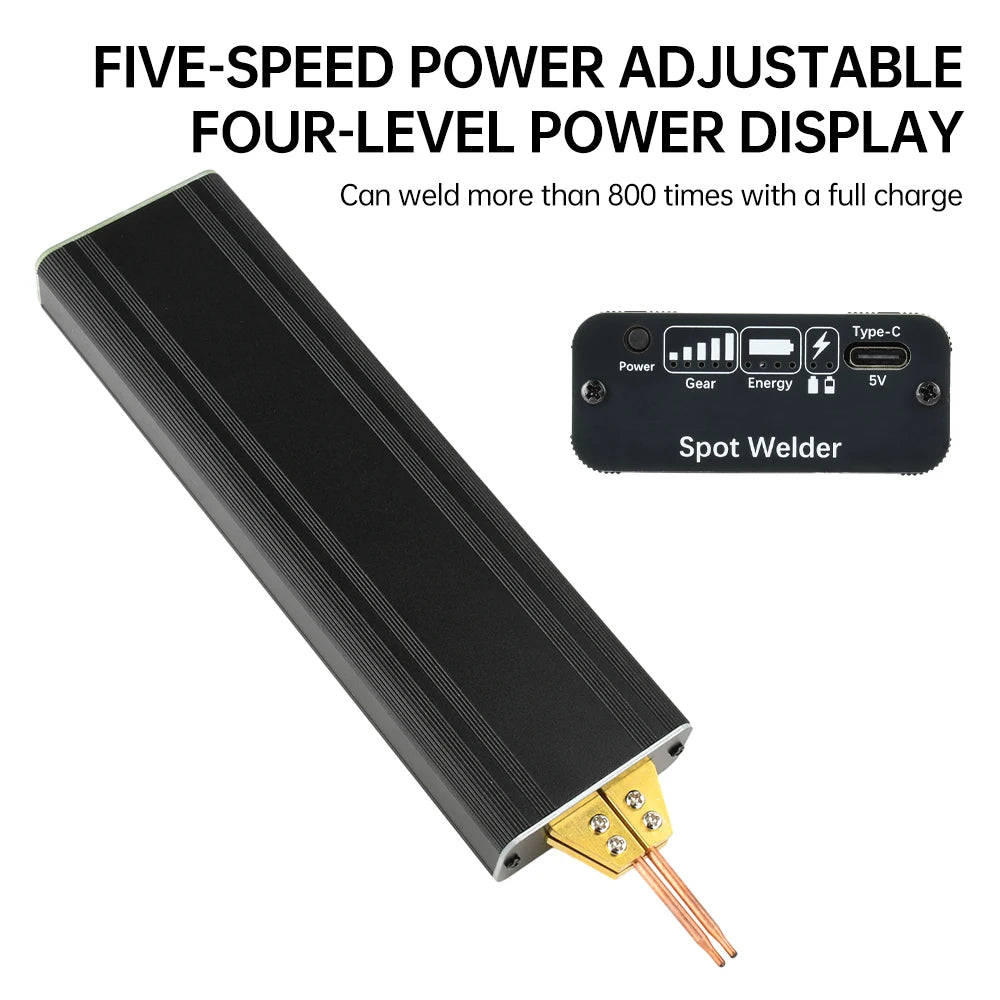

Power Levels: 5-stage adjustment

Battery Type: Lithium Polymer Battery

Rated Current: 800A (MAX)

Nickel Strip Thickness: 0.1-0.15mm

Cannot weld copper or aluminum surfaces. Cannot weld rusted surfaces. Smooth stainless steel surfaces can be welded normally.

Some batteries have one stainless steel electrode and one aluminum electrode. Our spot welder can weld the stainless steel electrode. The aluminum electrode requires ultrasonic welding. Please take note.

Again, aluminum electrodes and copper electrodes cannot be welded.

Common cylindrical batteries like 18650 and 32650 can be welded. Both pins must be firmly pressed against the nickel strip to initiate welding. Lift the pins before welding the next point.

Instructions:

Spot Welding Nickel Strips:

1. Battery must be fully charged. Fully charged only. Nickel strip thickness must not exceed 0.15mm.

2. Control pressure during welding. Heavier pressure reduces heat output; lighter pressure increases heat. However, too light pressure may puncture the plate, while excessive force may cause poor bonding. Apply moderate pressure without excessive force.

3. Ensure the battery surface is smooth and polished, removing oxidation layers and irregularities. If the welding tip becomes oxidized and blackened, polish it smooth with fine sandpaper.

4. Use the very tip of the pen for welding to ensure a stronger bond.

Welding Method:

Hold the welding tip at a 60° angle to the horizontal plane. Press both needle tips firmly against the nickel strip surface to ensure good contact. Current flows from one needle tip to the other, melting the nickel strip with high current to successfully weld the battery to the strip.

Power Operation Guide:

Short press to power on

Long press to power off

Automatically powers off after 6 minutes of inactivity

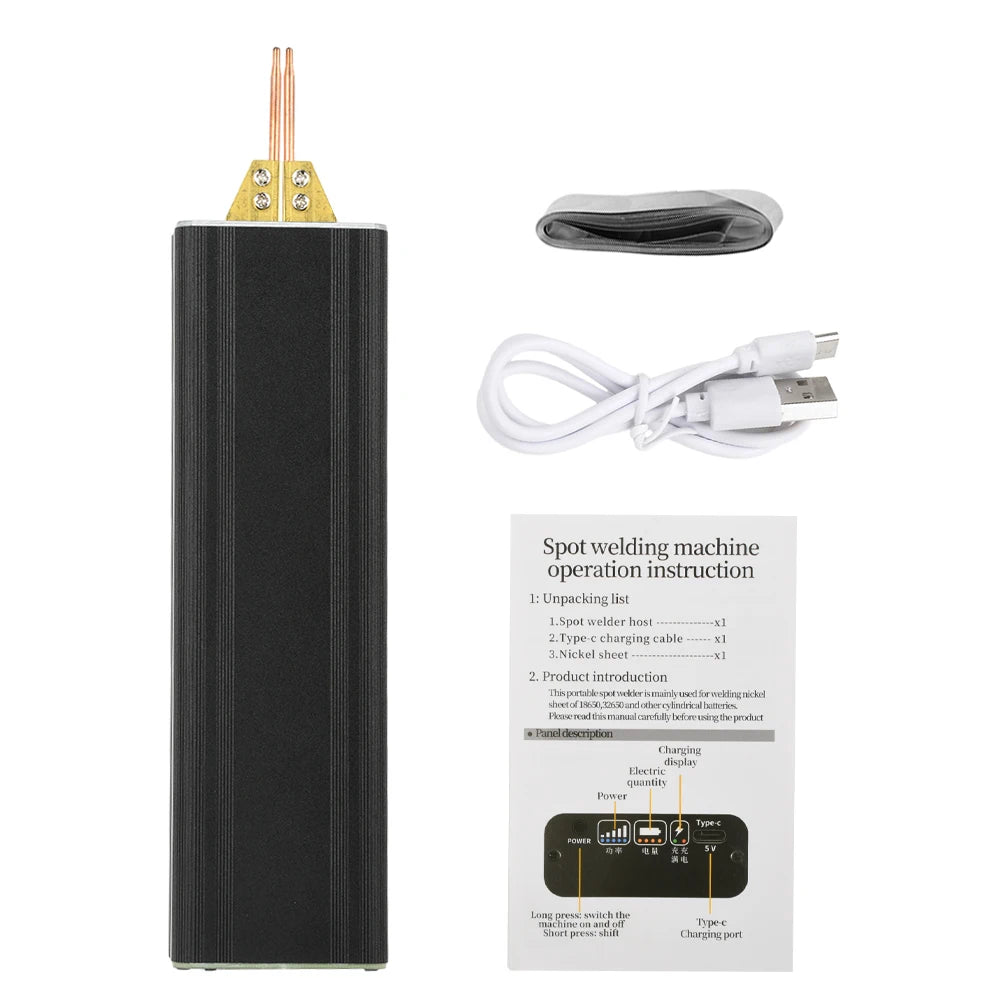

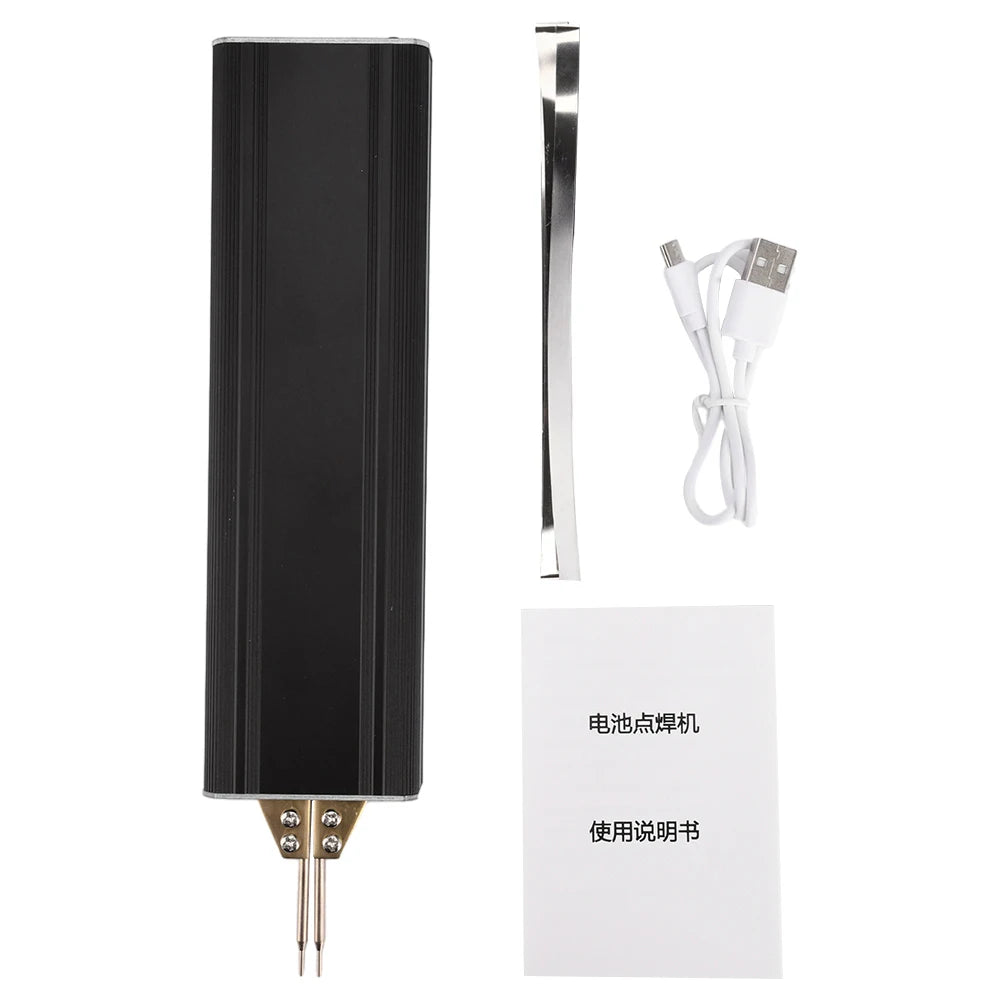

Shipping Contents:

Spot Welder ×1

Nickel Strip ×1

USB Charging Cable ×1

Options

• Color: Micro USB, Type-C
