DM542 DM556 DSP Digital Stepper Motor Driver DC 20-50V 4 2A 5 6A 15

Discover the DM542 DM556 DSP Digital Stepper Motor Driver DC 20-50V 4 2A 5 6A 15 — a standout decor pick featuring professional, high-speed design for dependable, everyday performance.

Specifications

Brand Name: Aideepen

Certification: NONE

DIY Supplies: Electrical

Data Record: No

Electronic: No

Material: Plastic

Model Number: Motor Controller

Output Voltage: Motor Controller

Semi-finishedproduct: No

Style: Motor Controller

Type: Motor Controller

Features:

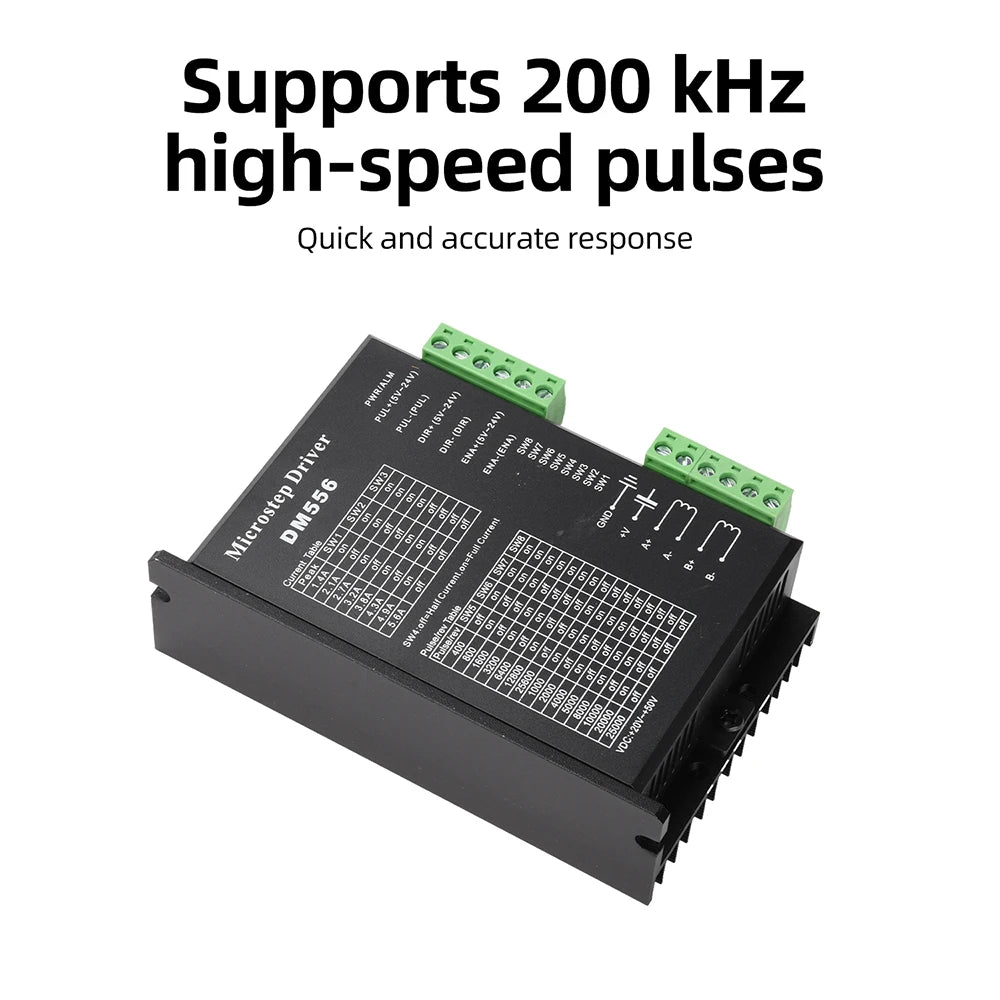

1. Supports high-speed 200 kHz pulses for fast and precise response

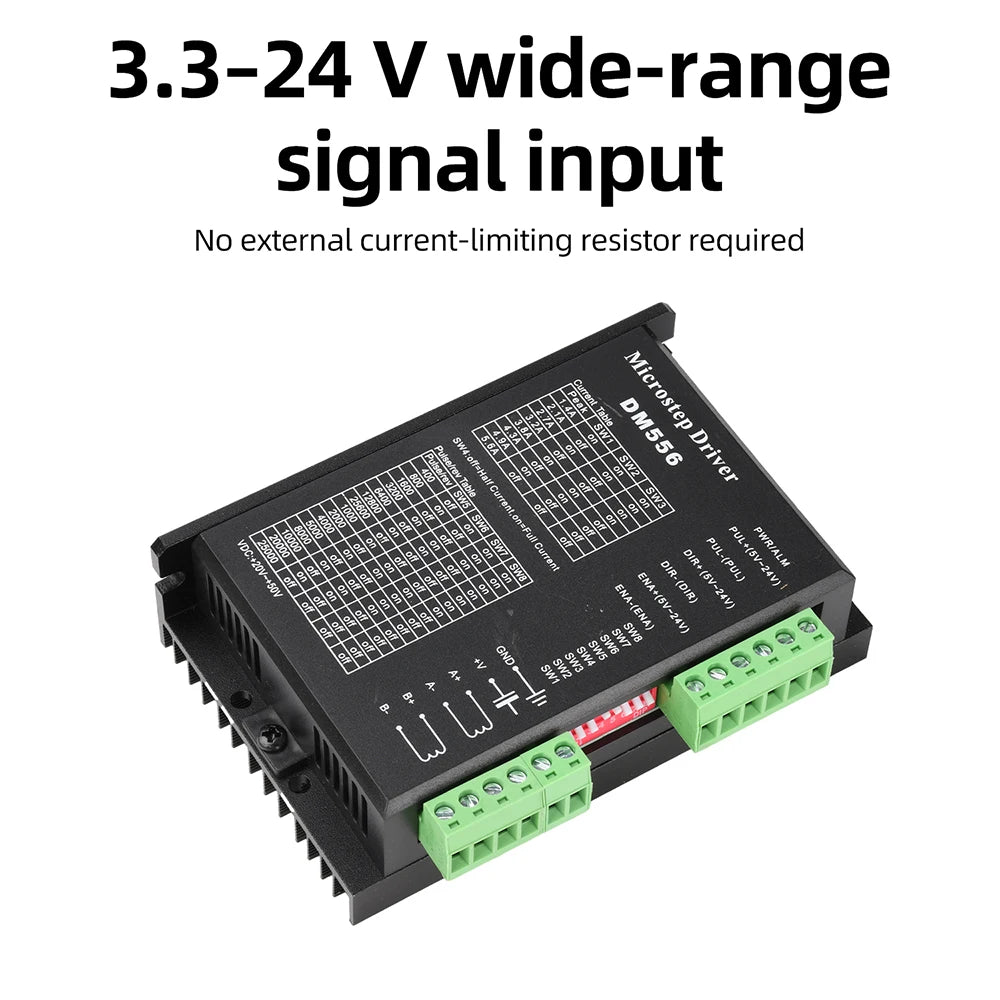

2. Wide input voltage range of 3.3–24 V, eliminating the need for external current-limiting resistors

3. Up to 15 microstepping levels available, ensuring stable performance

4. Optocoupler-isolated signal input for strong anti-interference capability

5. Features over-temperature, over-current, under-voltage lockout, and reverse polarity protection

6. Large heat sink for effective heat dissipation and easy installation

7. Capable of driving 4-, 6-, and 8-wire two-phase and four-phase stepper motors, including 42-type and 57-type motors

Product Specifications

Input Voltage: DC 20–50V (Recommended: 24–50V)

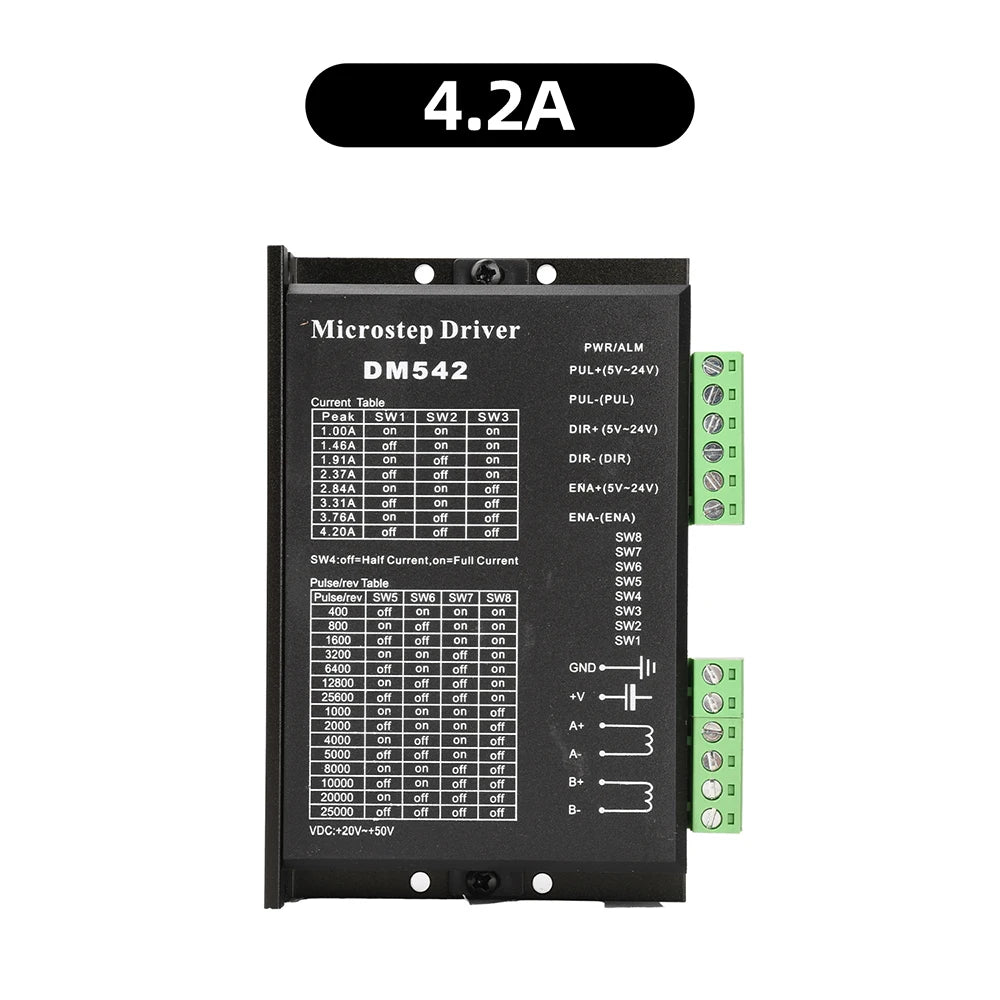

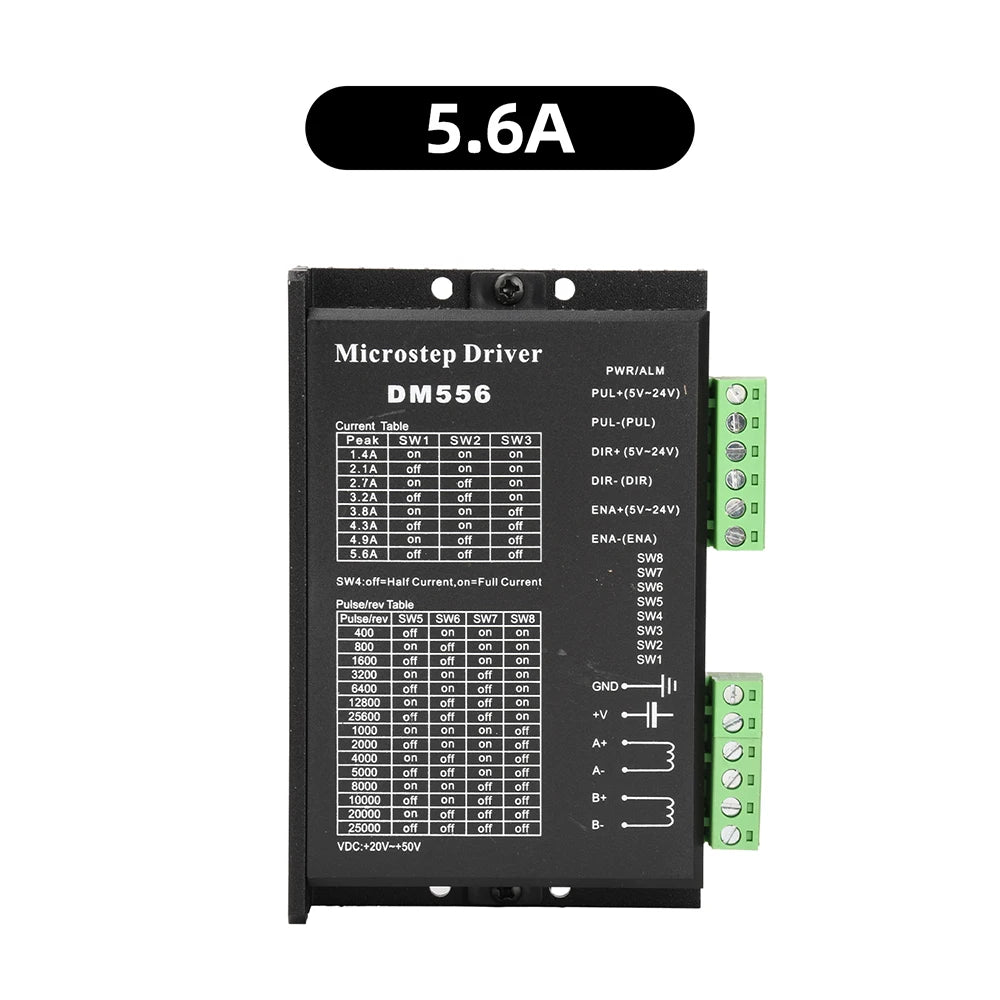

Output Current: DM542: 1.0–4.2A / DM566: 1.4–5.6A

Maximum Pulse Frequency: 200 kHz

Signal Input: Single-ended, Pulse/Direction

Microstepping Options: 2/4/8/16/32/64/128/5/10/20/25/40/50/100/125 steps, maximum resolution 25,600 steps/revolution

Storage Temperature: -10–80°C

Maximum Ambient Temperature: 65°C

Operating Environment: Do not place near other heat-generating equipment. Avoid locations with dust, oil, corrosive gases, extreme temperatures, or strong vibrations. Flammable gases and conductive dust are strictly prohibited

Product Overview

The DM542 and DM566 DSP drivers are professional two-phase hybrid digital stepper motor drivers compatible with various domestic and international brands. They support four-wire, six-wire, and eight-wire two-phase hybrid stepper motors with current ratings of 4.2A or 5.6A and below, and outer diameters of 57 mm or 86 mm. Suitable for various small and medium-sized automated equipment and instruments, such as engraving machines, marking machines, cutting machines, laser typesetting systems, plotters, CNC machine tools, and pick-and-place devices. It performs exceptionally well in equipment where high current, low noise, and high-resolution operation are required.

Package Contents

Stepper Motor Driver *1

Options

• Color: 5.6A, 4.2A
